Presentation Transcript

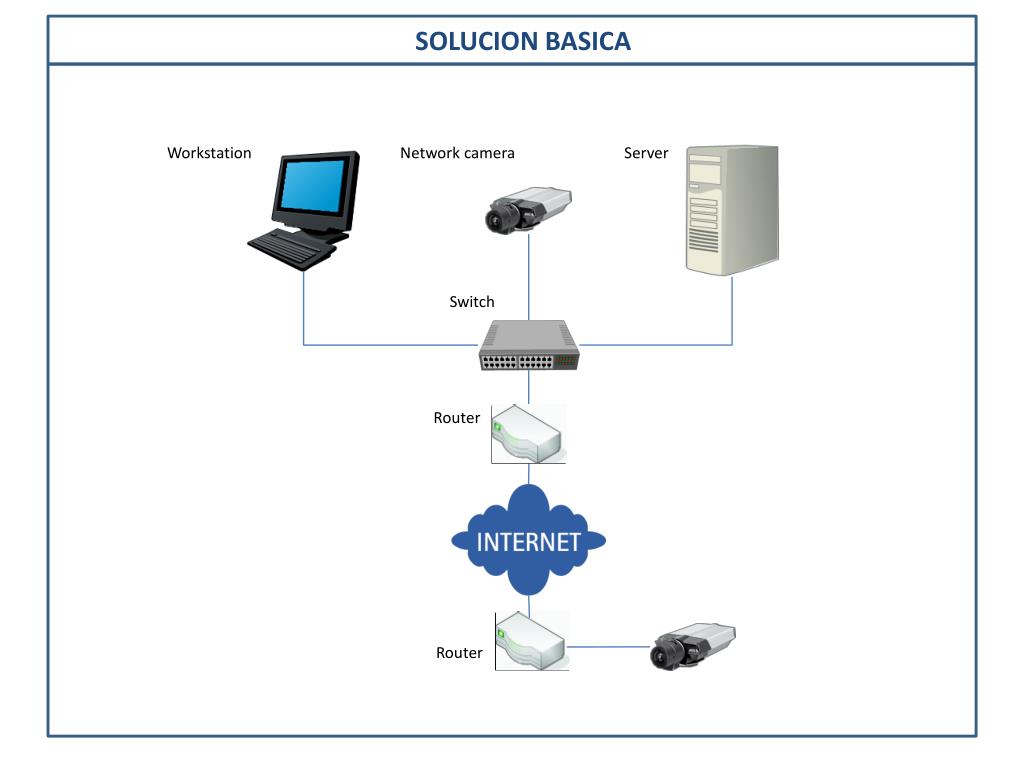

  1. SOLUCION BASICA Workstation Network camera Server Switch Router Router

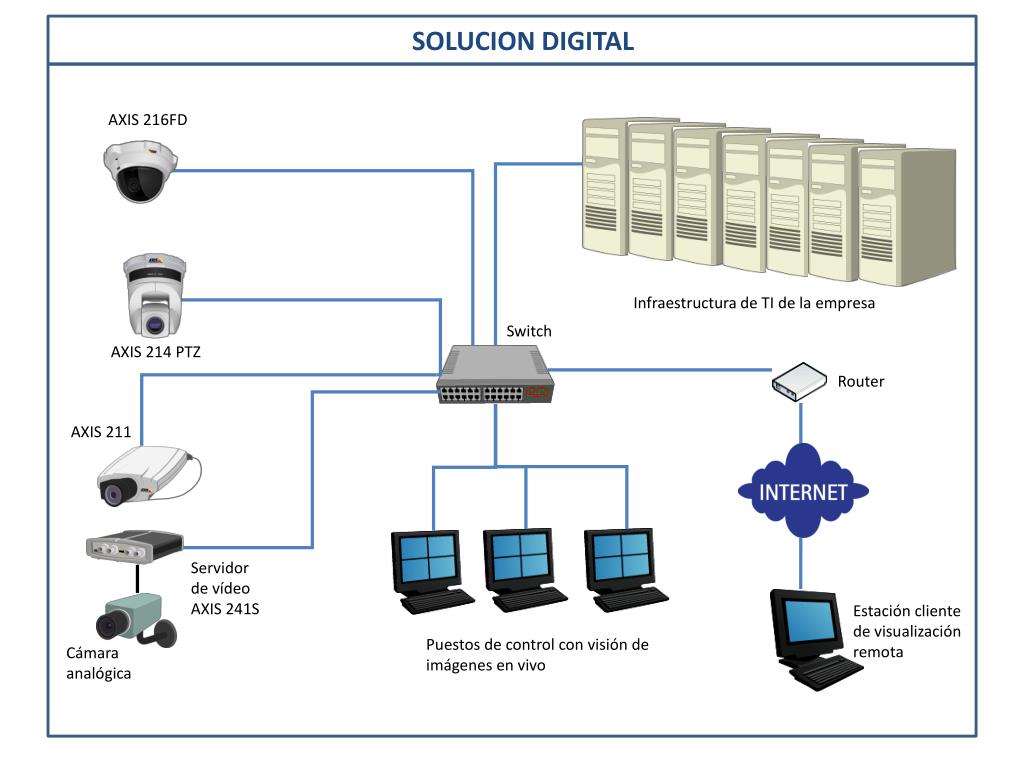

  2. SOLUCION DIGITAL AXIS 216FD Infraestructura de TI de la empresa AXIS 214 PTZ Router Servidor de vídeo AXIS 241S Cámaraanalógica AXIS 211 Estación clientede visualización remota Puestos de control con visión de imágenes en vivo Switch

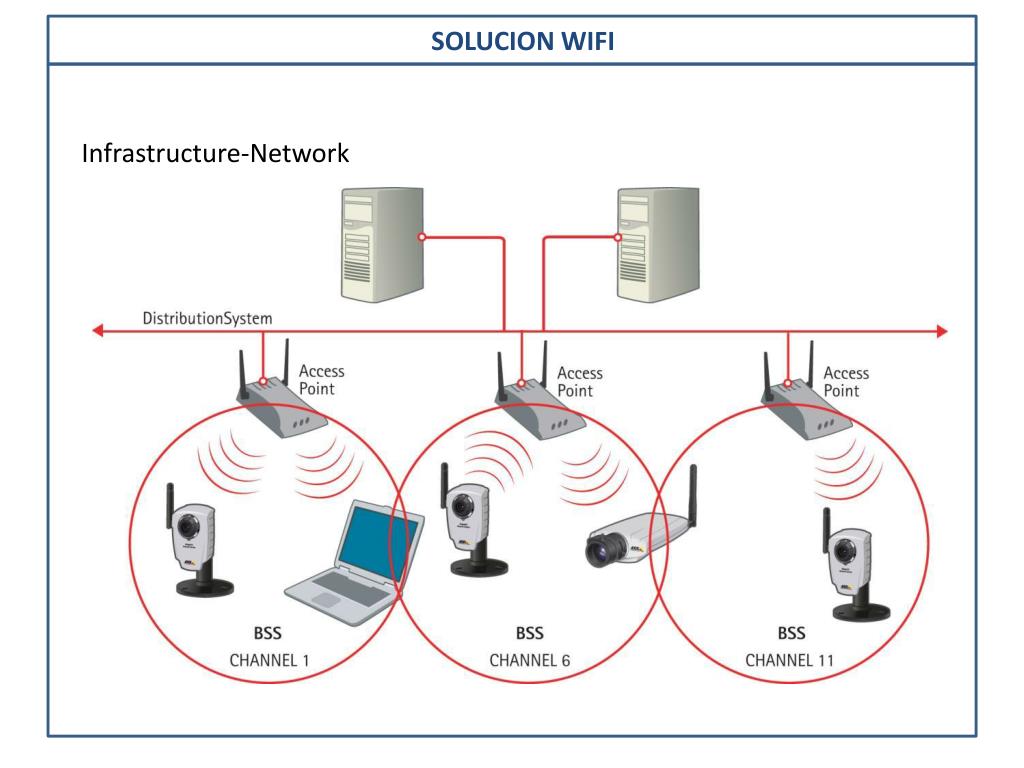

  3. SOLUCION WIFI Infrastructure-Network

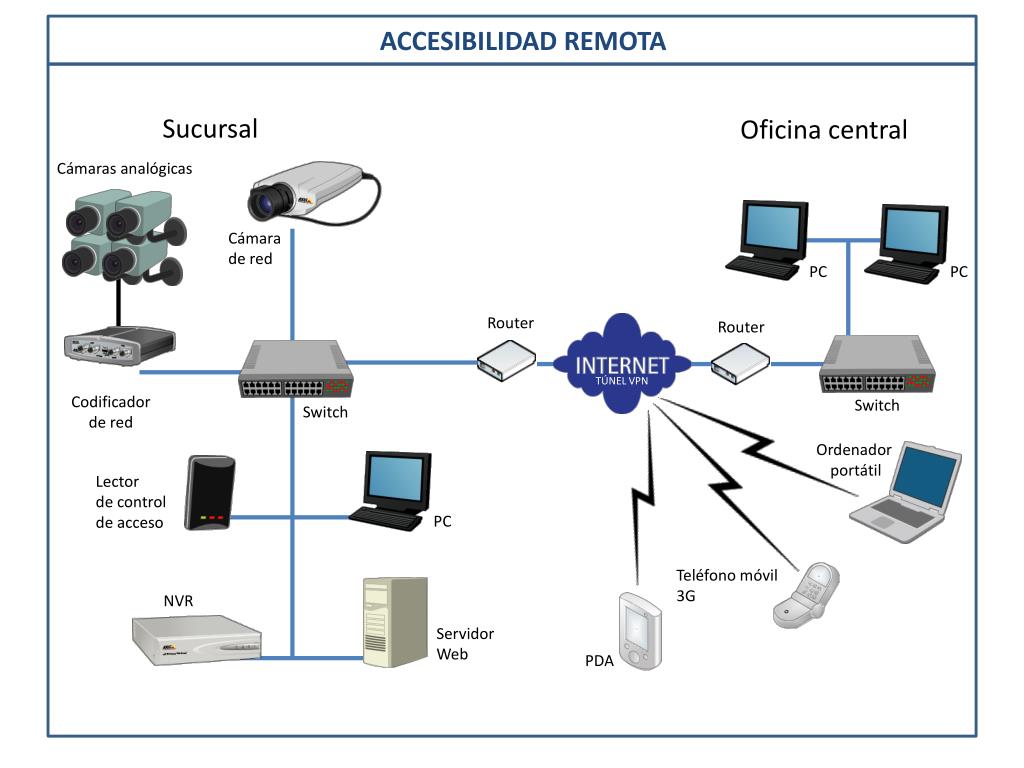

  4. ACCESIBILIDAD REMOTA Cámaras analógicas Cámarade red PC PC Router Router TÚNEL VPN Switch Switch Codificador de red Ordenador portátil Lectorde controlde acceso PC Teléfono móvil3G NVR ServidorWeb PDA Sucursal Oficina central

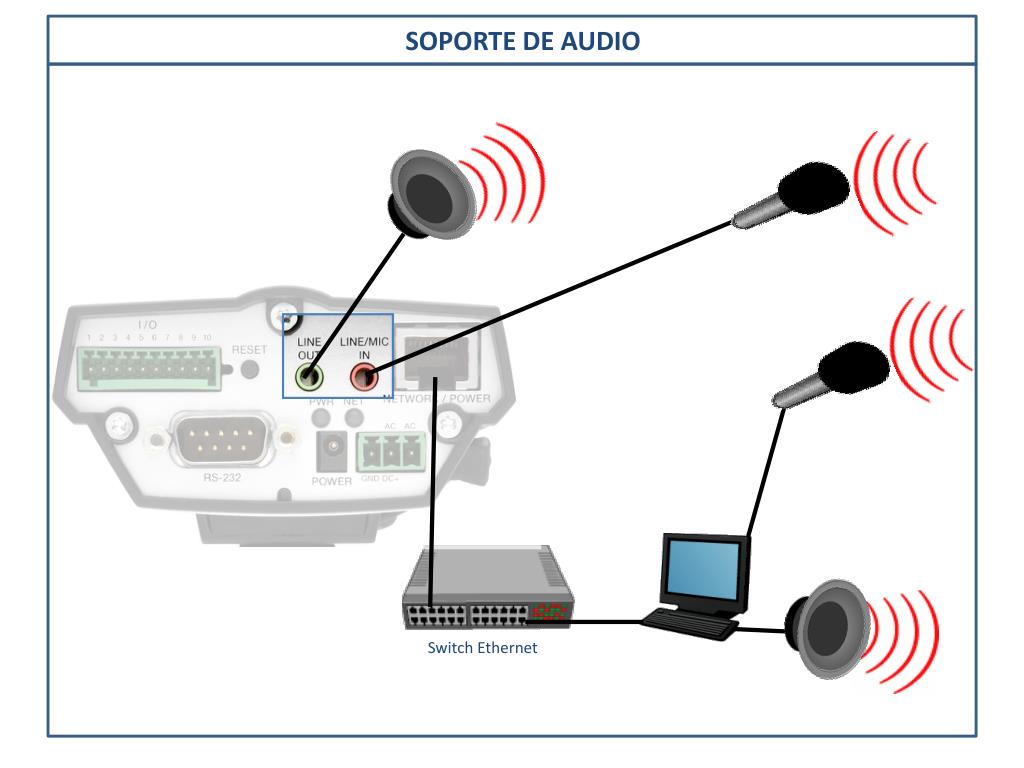

  5. SOPORTE DE AUDIO Switch Ethernet

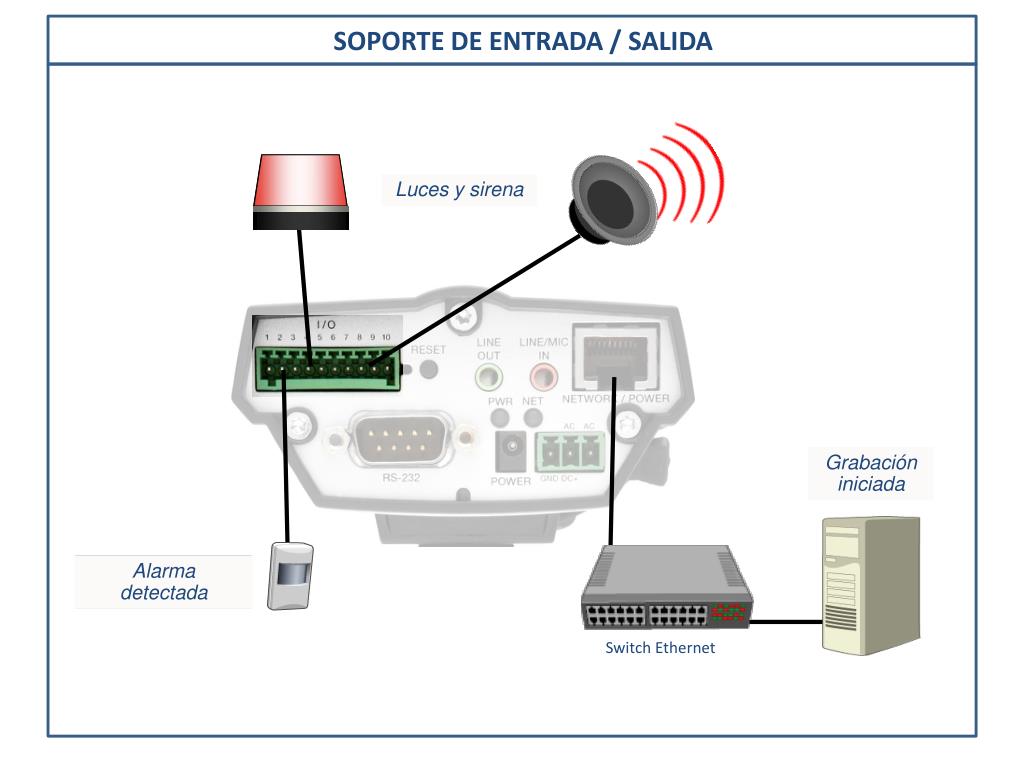

  6. SOPORTE DE ENTRADA / SALIDA Luces y sirena Grabacióniniciada Alarmadetectada Entrada: Switch Ethernet
