Ultrasonic Fetal Monitor UFM 1000C

Medzer Ultrasonic Fetal Monitor with FAS technology offers a 3-in-1 transducer ultrasound, TOCO, remote marking, plus optional U/S2, SpO2, and BP cuff. Features FHR 50-210 bpm, TOCO 0-100 units, and ECG 30-240 bpm, powered by an LCD module and microprocessor for accurate real-time monitoring.<br>

cherylross
Download Presentation

Ultrasonic Fetal Monitor UFM 1000C

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

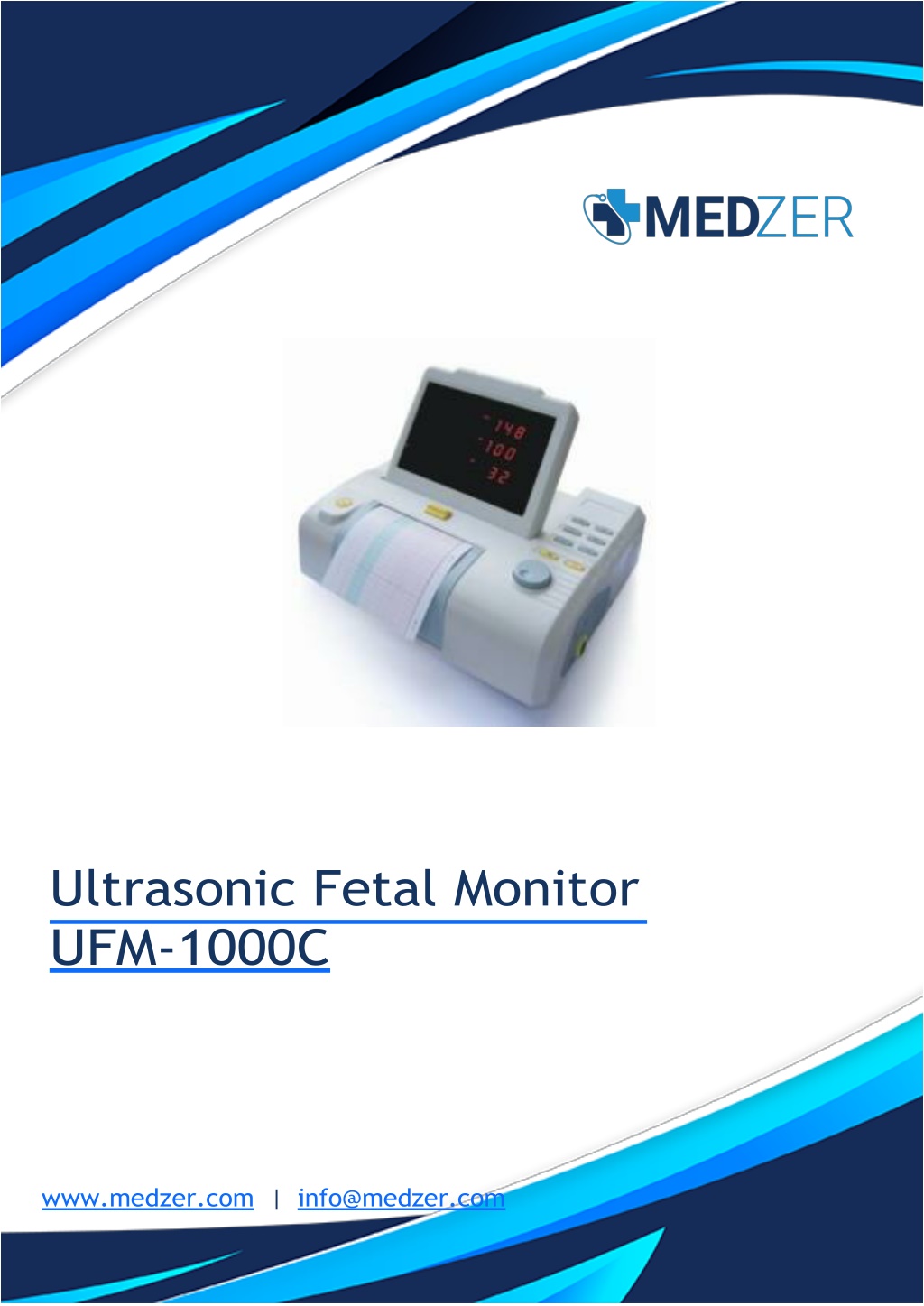

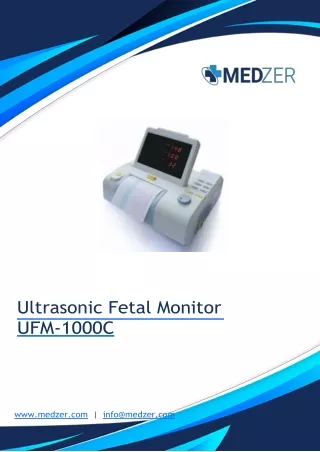

  1. Ultrasonic Fetal Monitor UFM-1000C www.medzer.com|info@medzer.com

  2. Specifications: FHR Transducer: Multi-crystals, pulsed doppler Strength: < 5 mW/cm2 Working frequency: 1.0MHz Signal processing: special DSP system and modern recognization Measurement range: 50 bpm ~ 210 bpm TOCO Pressure Range: 0 ~ 100 units Maternal ECG Measure scope: 30 bpm ~ 240 bpm Measure accuracy: ±2 bpm

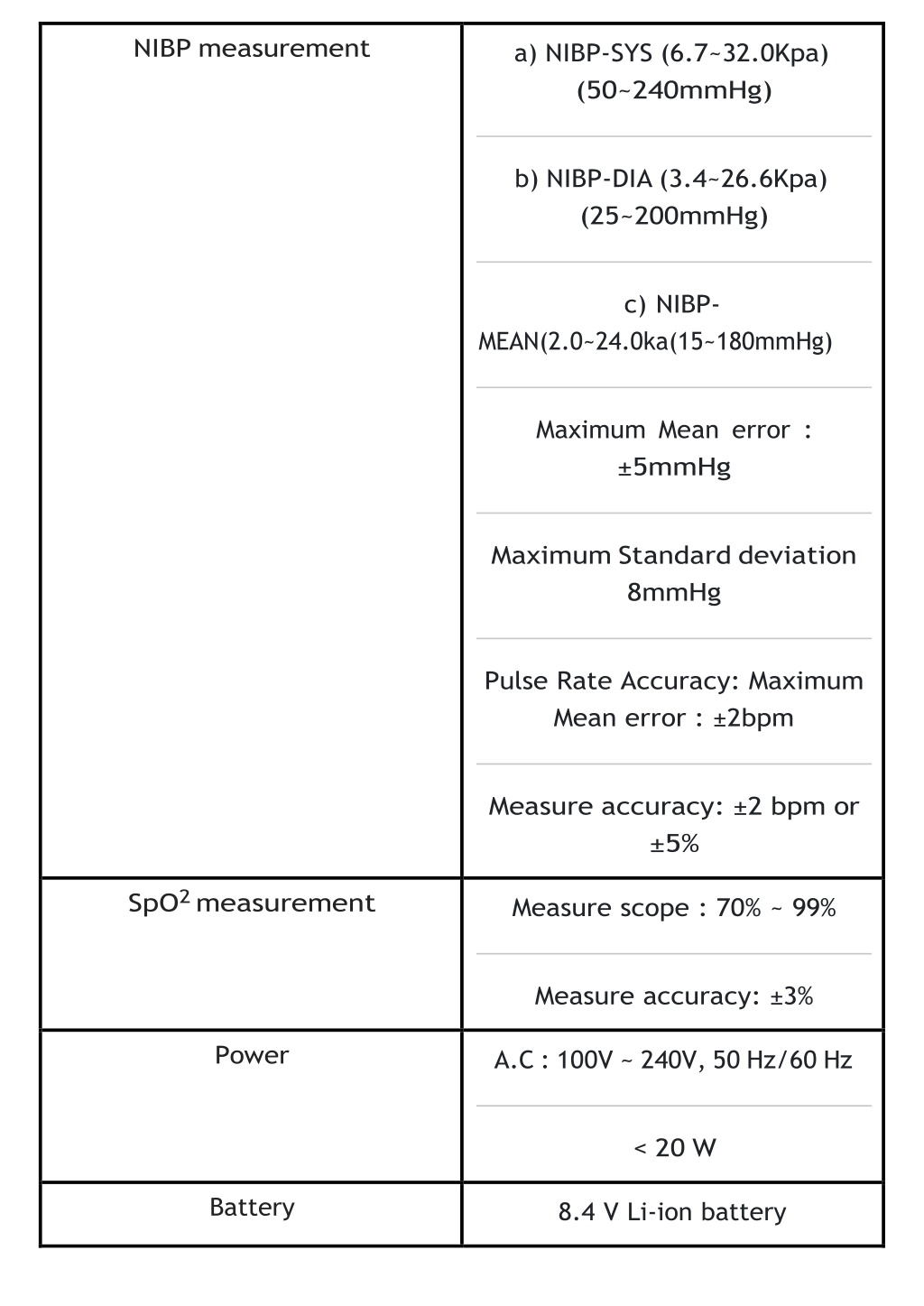

  3. NIBP measurement a)NIBP-SYS (6.7~32.0Kpa) (50~240mmHg) b)NIBP-DIA (3.4~26.6Kpa) (25~200mmHg) c)NIBP- MEAN(2.0~24.0ka(15~180mmHg) Maximum Mean error : ±5mmHg Maximum Standard deviation 8mmHg Pulse Rate Accuracy: Maximum Mean error : ±2bpm Measure accuracy: ±2 bpm or ±5% SpO2 measurement Measure scope : 70% ~ 99% Measure accuracy: ±3% Power A.C : 100V ~ 240V, 50 Hz/60 Hz < 20 W Battery 8.4 V Li-ion battery

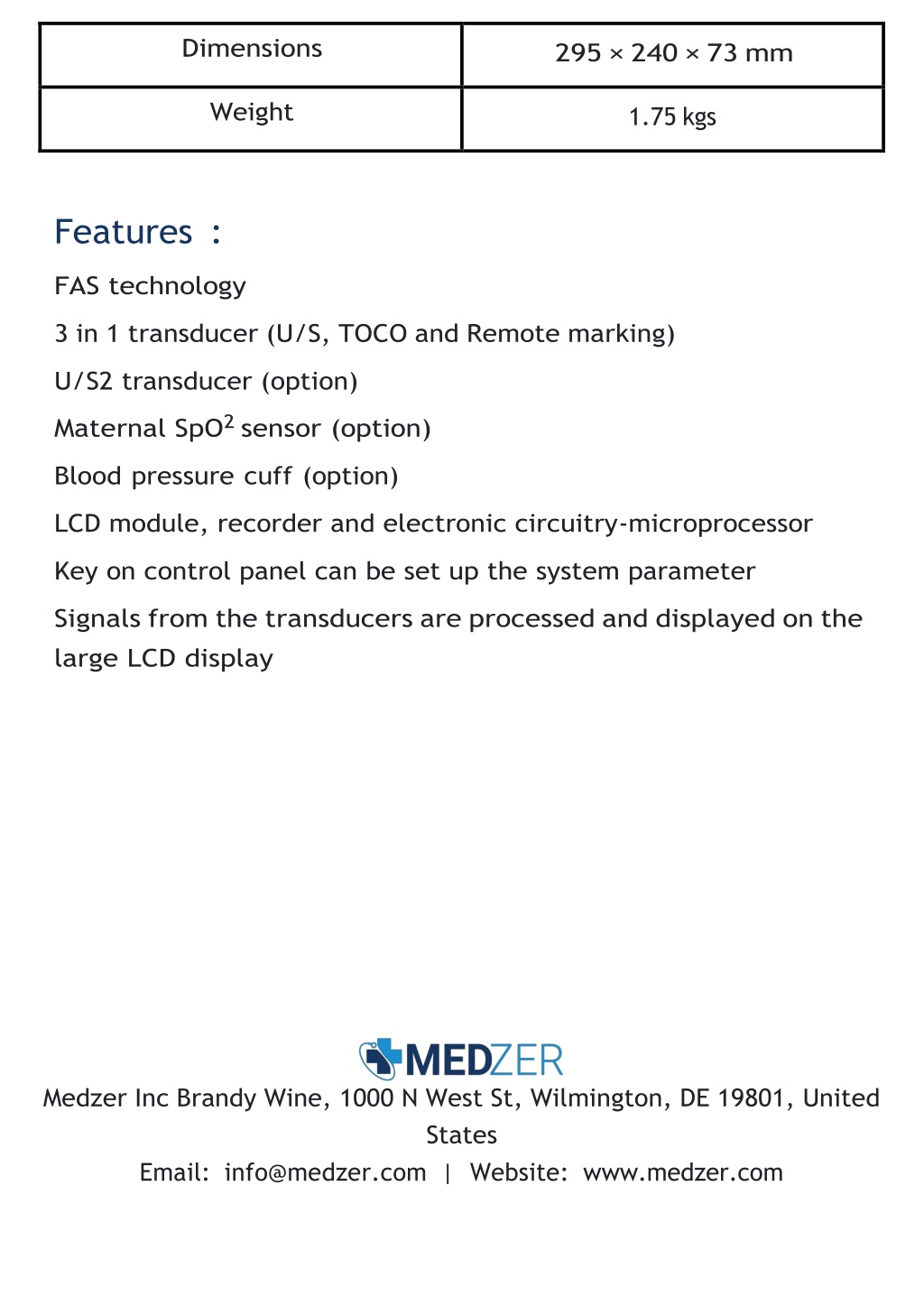

  4. Dimensions 295 × 240 × 73 mm Weight 1.75 kgs Features: FAS technology 3 in 1 transducer (U/S, TOCO and Remote marking) U/S2 transducer (option) Maternal SpO2 sensor (option) Blood pressure cuff (option) LCD module, recorder and electronic circuitry-microprocessor Key on control panel can be set up the system parameter Signals from the transducers are processed and displayed on the large LCD display Medzer Inc Brandy Wine, 1000 N West St, Wilmington, DE 19801, United States Email:info@medzer.com|Website:www.medzer.com
