Monophasic Defibrillator MDFM-1000A

Medzer MDFM-1000A Monophasic Defibrillator offers manual, synchronized, and asynchronous defibrillation. With a true-color LED display, rapid charge times (360J in <7s, 100J in <2s), and a durable build, it supports 120 mins of monitoring and 30 shocks at 360J, charging fully in 4 hours.

cherylross
Download Presentation

Monophasic Defibrillator MDFM-1000A

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

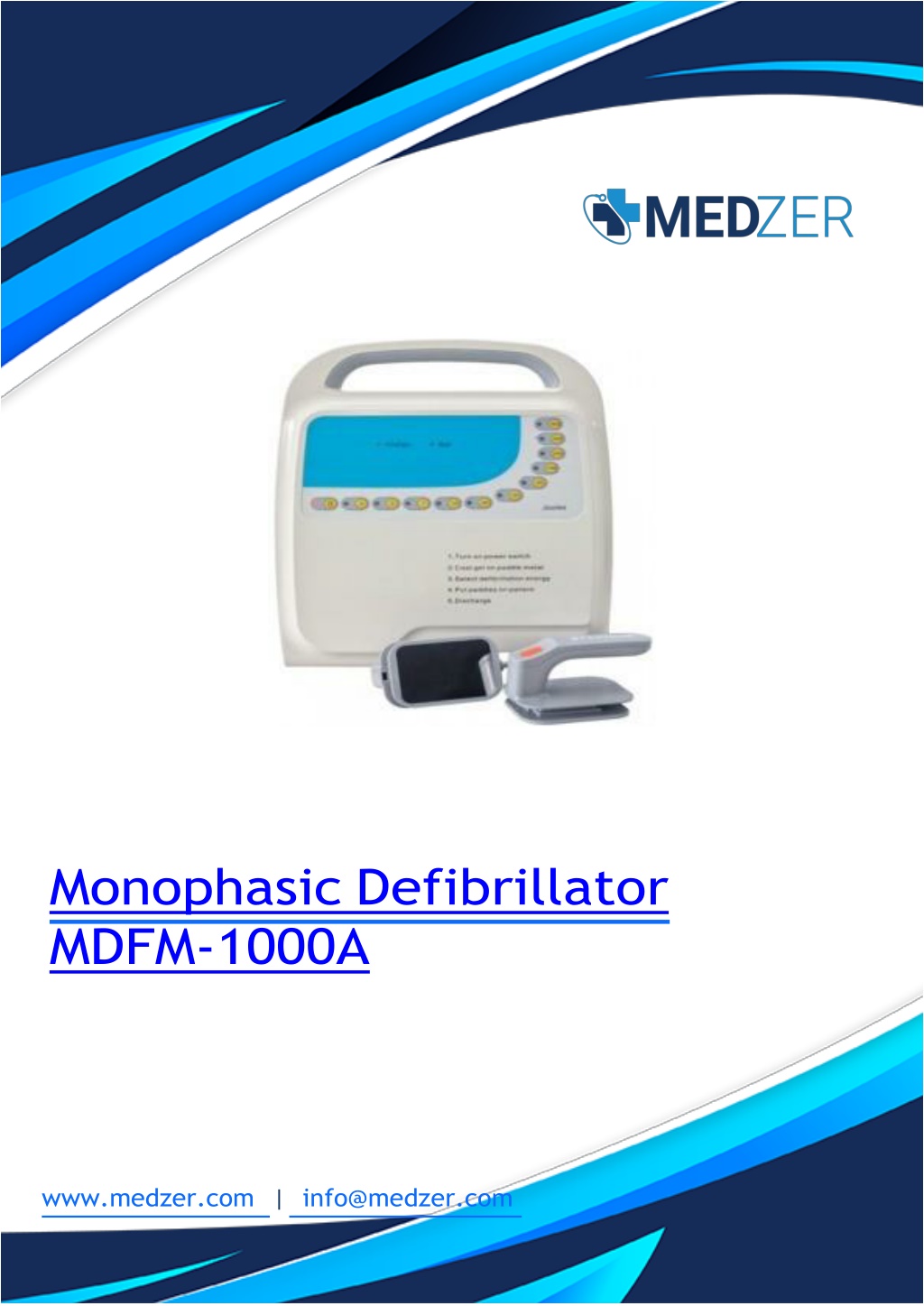

  1. Monophasic Defibrillator MDFM-1000A www.medzer.com | info@medzer.com

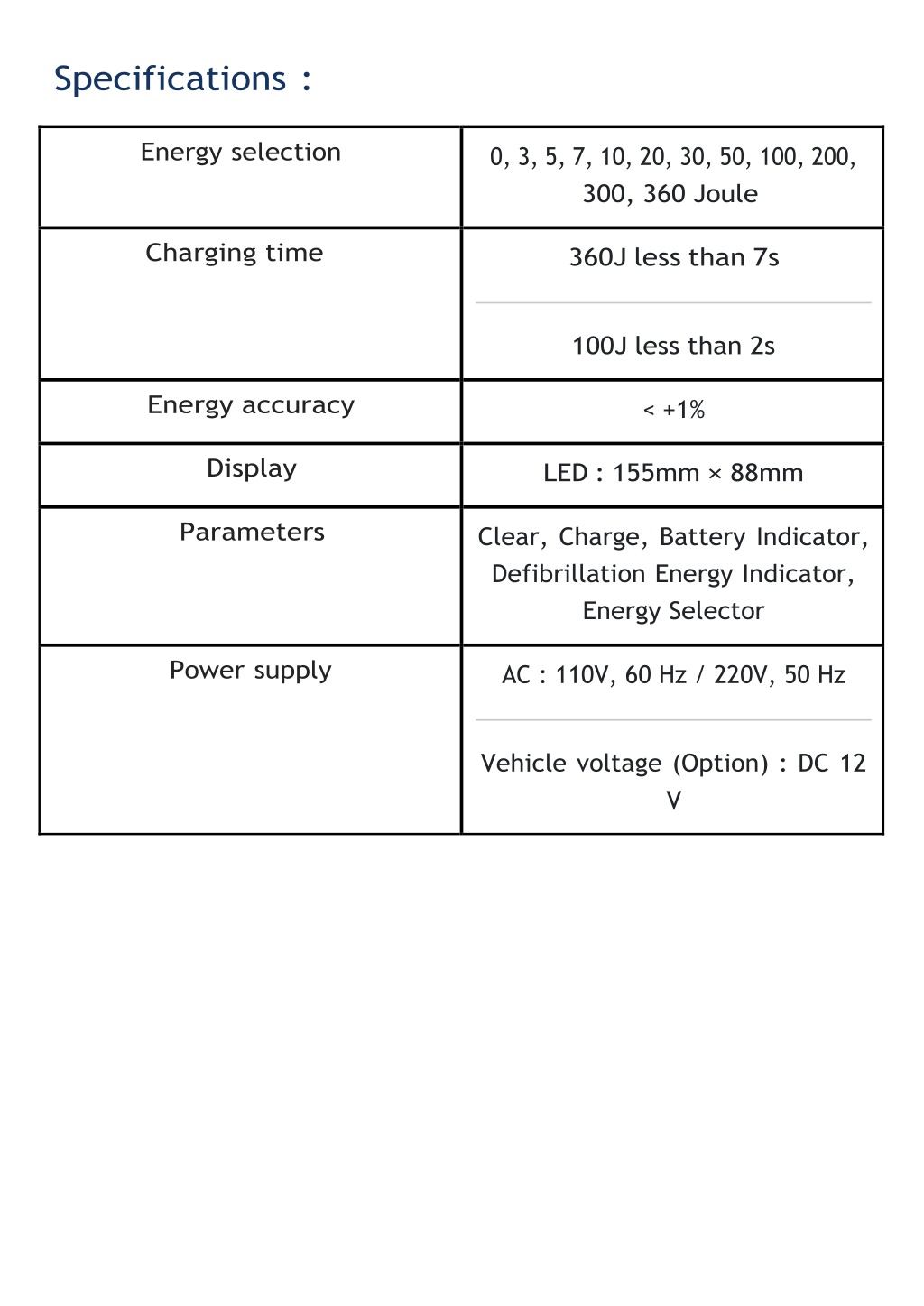

  2. Specifications : Energy selection 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 Joule Charging time 360J less than 7s 100J less than 2s Energy accuracy < +1% Display LED : 155mm × 88mm Parameters Clear, Charge, Battery Indicator, Defibrillation Energy Indicator, Energy Selector Power supply AC : 110V, 60 Hz / 220V, 50 Hz Vehicle voltage (Option) : DC 12 V

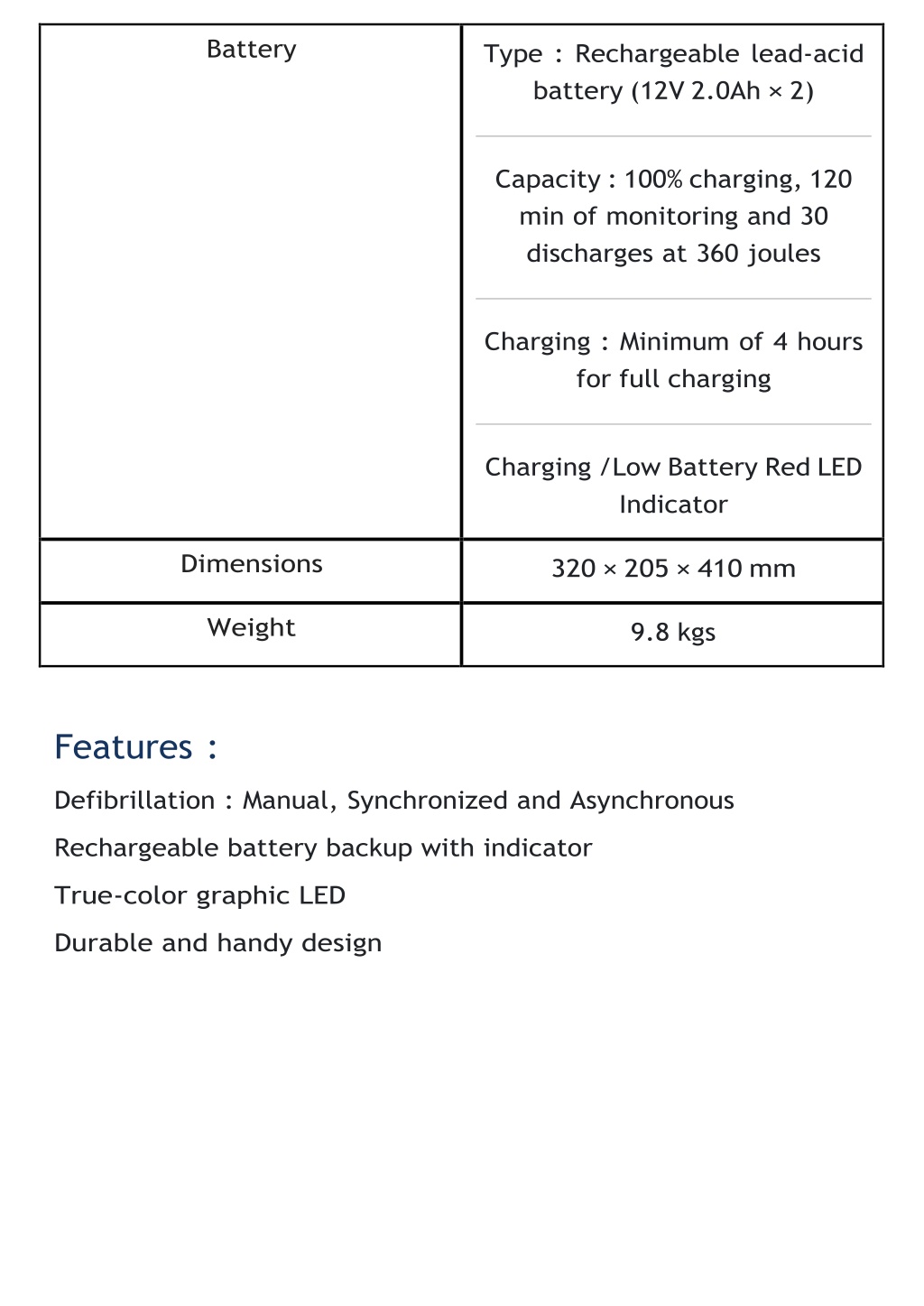

  3. Battery Type : Rechargeable lead-acid battery (12V 2.0Ah × 2) Capacity : 100% charging, 120 min of monitoring and 30 discharges at 360 joules Charging : Minimum of 4 hours for full charging Charging /Low Battery Red LED Indicator Dimensions 320 × 205 × 410 mm Weight 9.8 kgs Features : Defibrillation : Manual, Synchronized and Asynchronous Rechargeable battery backup with indicator True-color graphic LED Durable and handy design

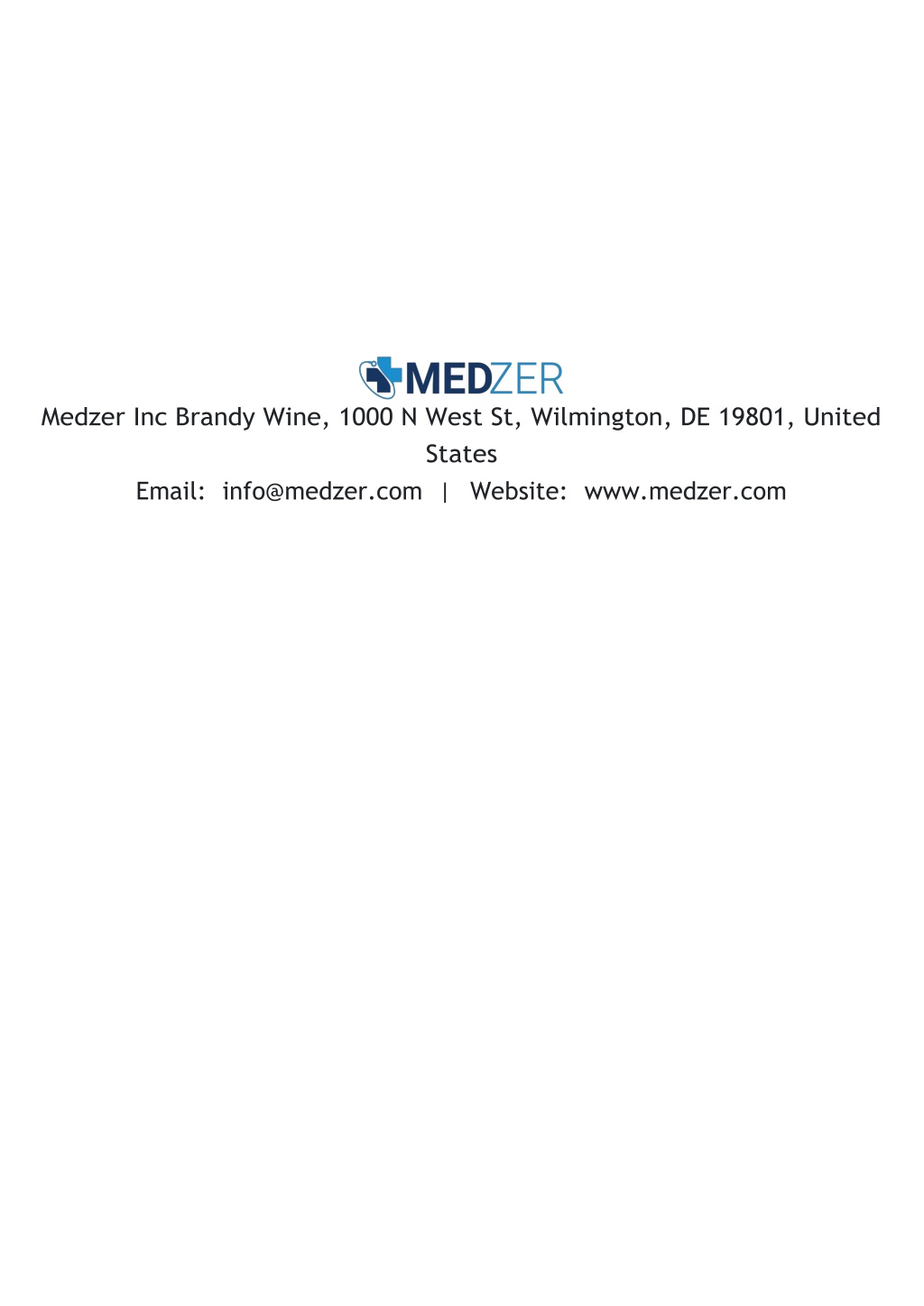

  4. Medzer Inc Brandy Wine, 1000 N West St, Wilmington, DE 19801, United States Email: info@medzer.com | Website: www.medzer.com
