Biphasic Defibrillator BDFM-1000B

Medzer Biphasic Defibrillator offers manual, synchronized, and asynchronous defibrillation. It features a high-res graphic display, 12-lead ECG/RESP, quick 10-second charging to 360J, durable 4000V isolation, 120-min monitoring, and 35 discharges per charge.

cherylross
Download Presentation

Biphasic Defibrillator BDFM-1000B

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

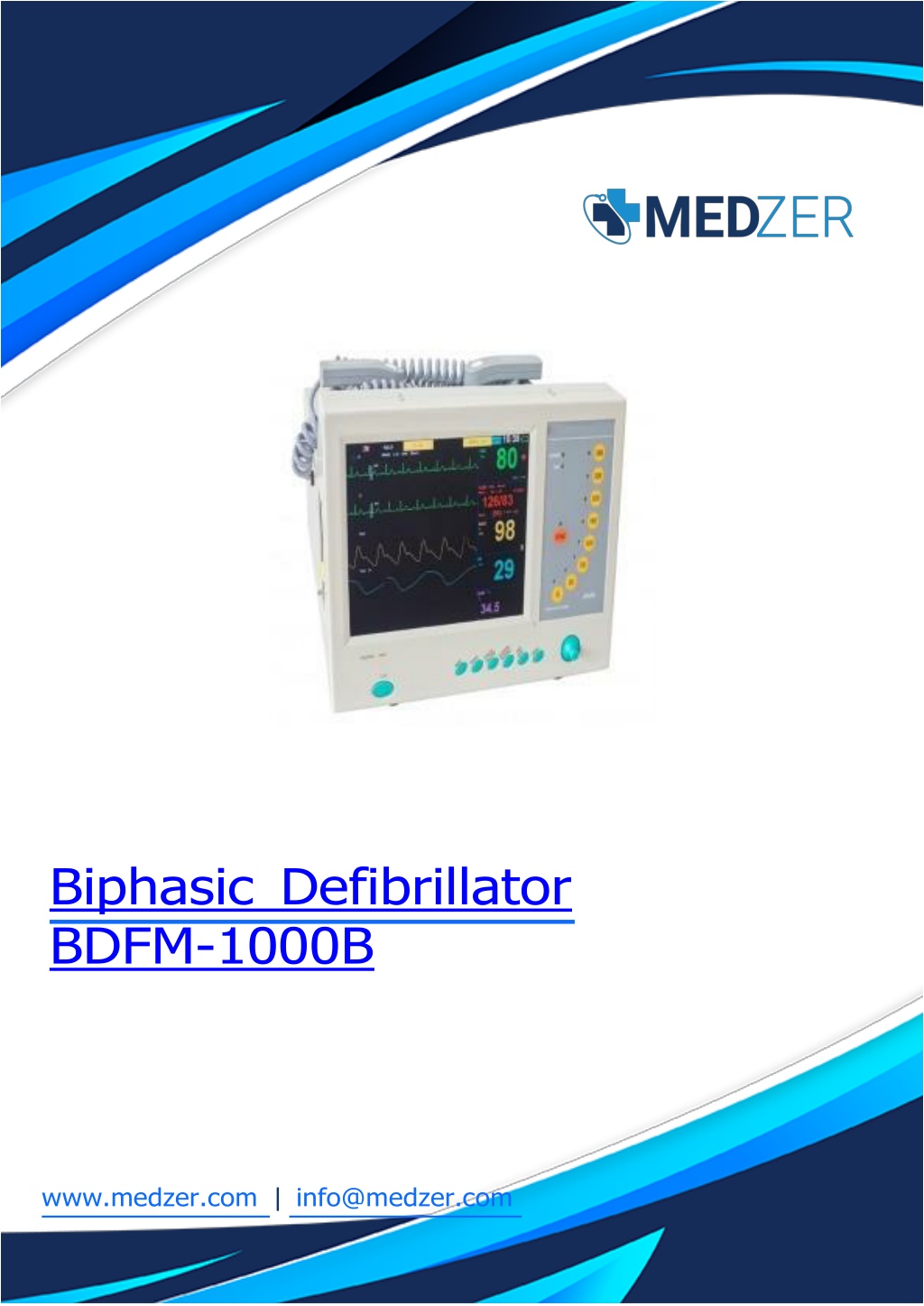

  1. Biphasic Defibrillator BDFM-1000B www.medzer.com | info@medzer.com

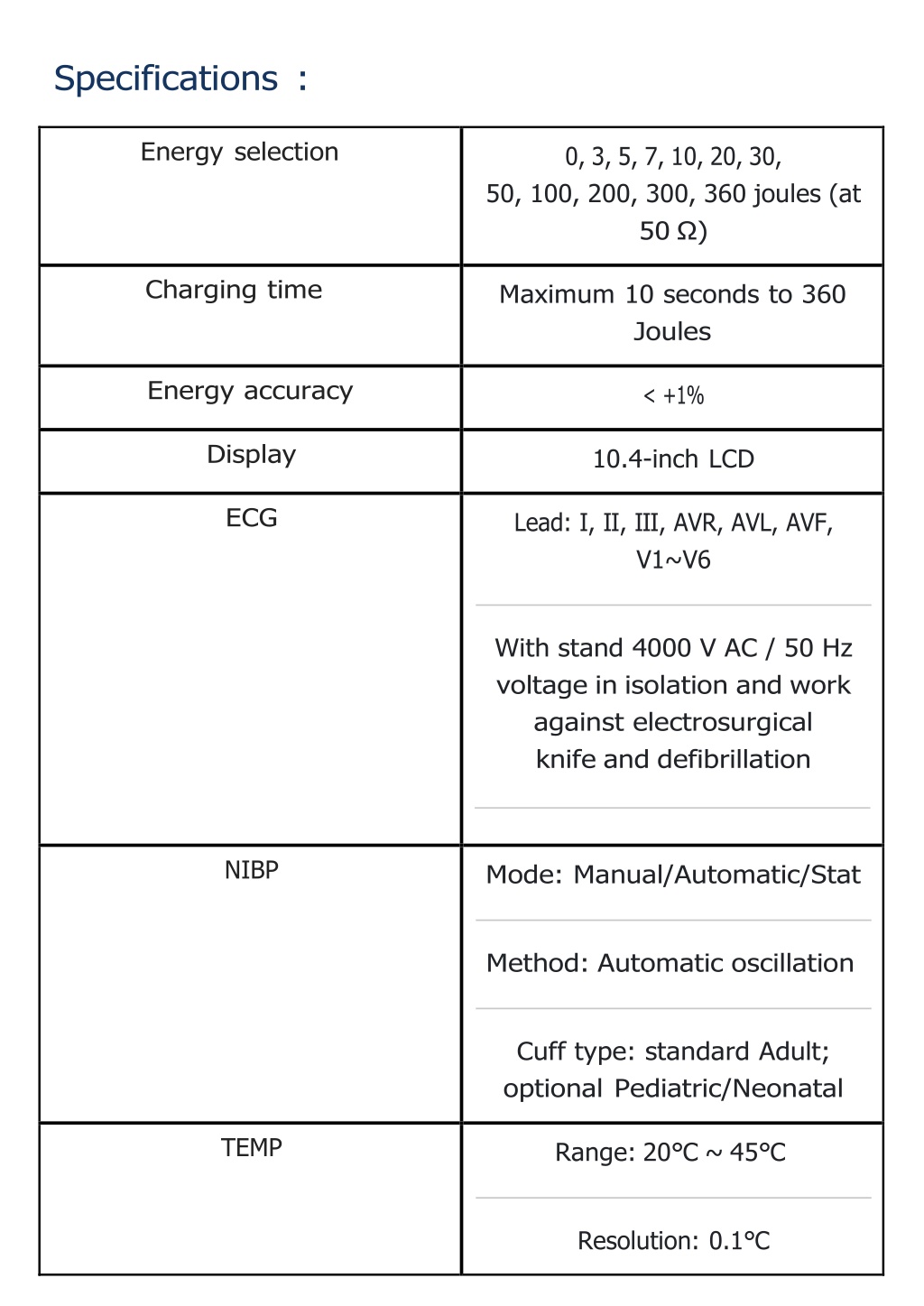

  2. Specifications : Energy selection 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (at 50 Ω) Charging time Maximum 10 seconds to 360 Joules Energy accuracy < +1% Display 10.4-inch LCD ECG Lead: Ⅰ,Ⅱ,Ⅲ, AVR, AVL, AVF, V1~V6 With stand 4000 V AC / 50 Hz voltage in isolation and work against electrosurgical knife and defibrillation NIBP Mode: Manual/Automatic/Stat Method: Automatic oscillation Cuff type: standard Adult; optional Pediatric/Neonatal TEMP Range: 20℃ ~ 45℃ Resolution: 0.1℃

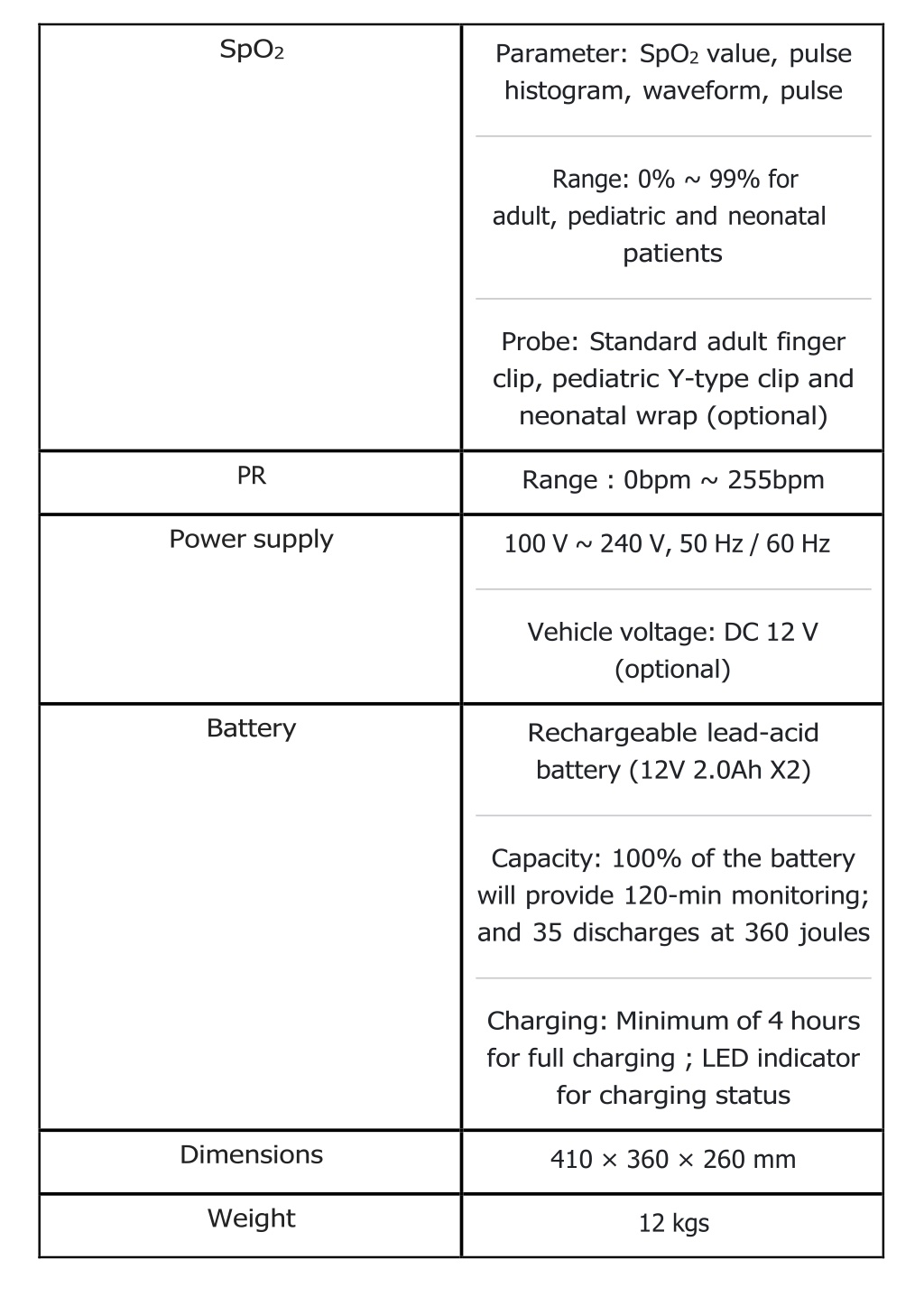

  3. SpO2 Parameter: SpO2 value, pulse histogram, waveform, pulse Range: 0% ~ 99% for adult, pediatric and neonatal patients Probe: Standard adult finger clip, pediatric Y-type clip and neonatal wrap (optional) PR Range : 0bpm ~ 255bpm Power supply 100 V ~ 240 V, 50 Hz / 60 Hz Vehicle voltage: DC 12 V (optional) Battery Rechargeable lead-acid battery (12V 2.0Ah X2) Capacity: 100% of the battery will provide 120-min monitoring; and 35 discharges at 360 joules Charging: Minimum of 4 hours for full charging ; LED indicator for charging status Dimensions 410 × 360 × 260 mm Weight 12 kgs

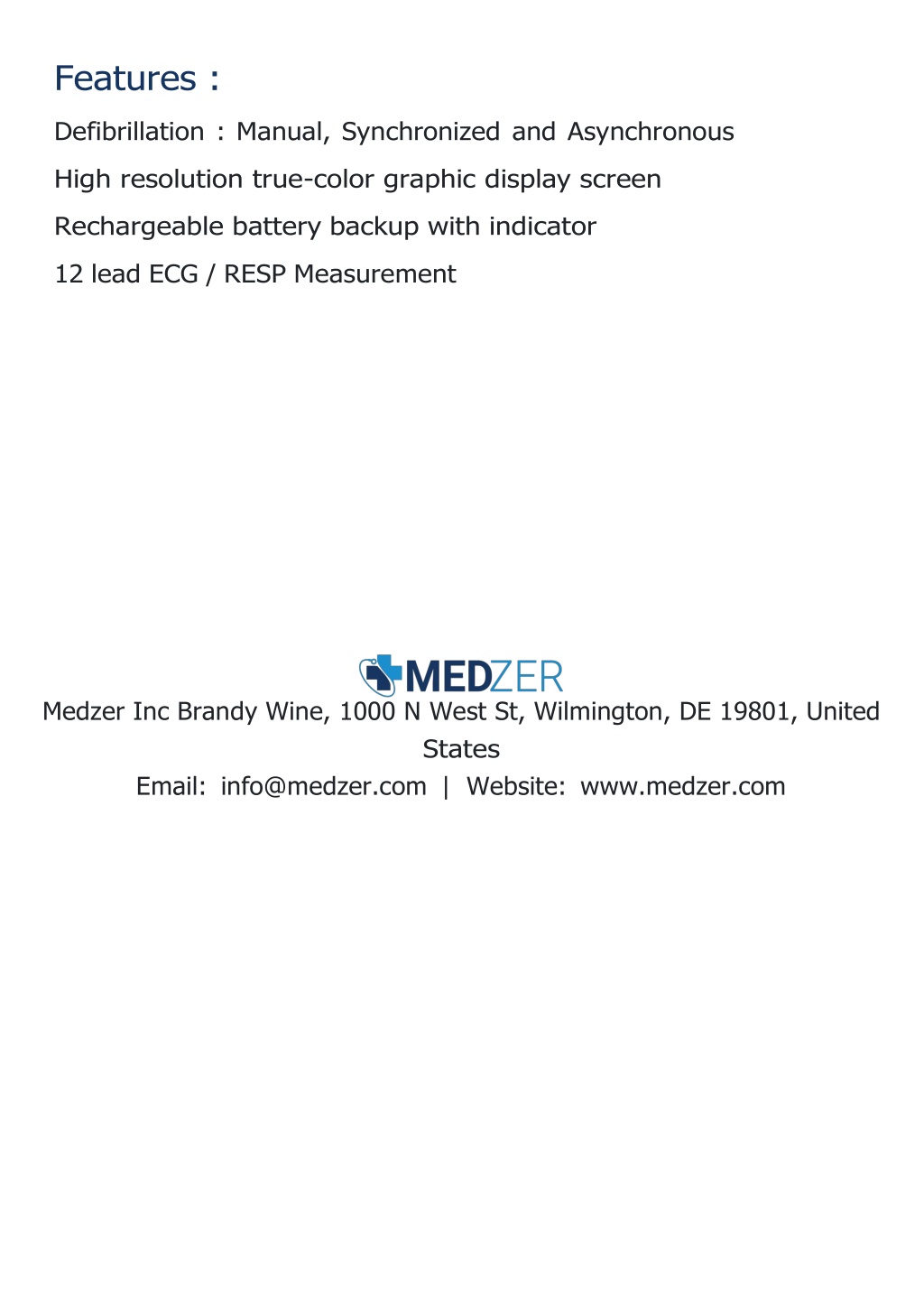

  4. Features : Defibrillation : Manual, Synchronized and Asynchronous High resolution true-color graphic display screen Rechargeable battery backup with indicator 12 lead ECG / RESP Measurement Medzer Inc Brandy Wine, 1000 N West St, Wilmington, DE 19801, United States Email: info@medzer.com | Website: www.medzer.com
