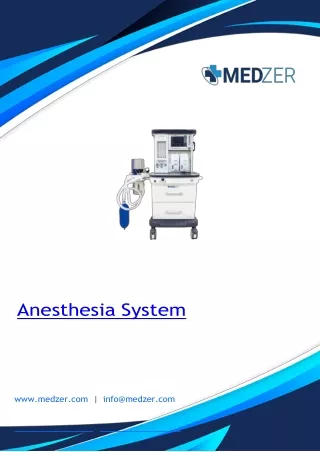

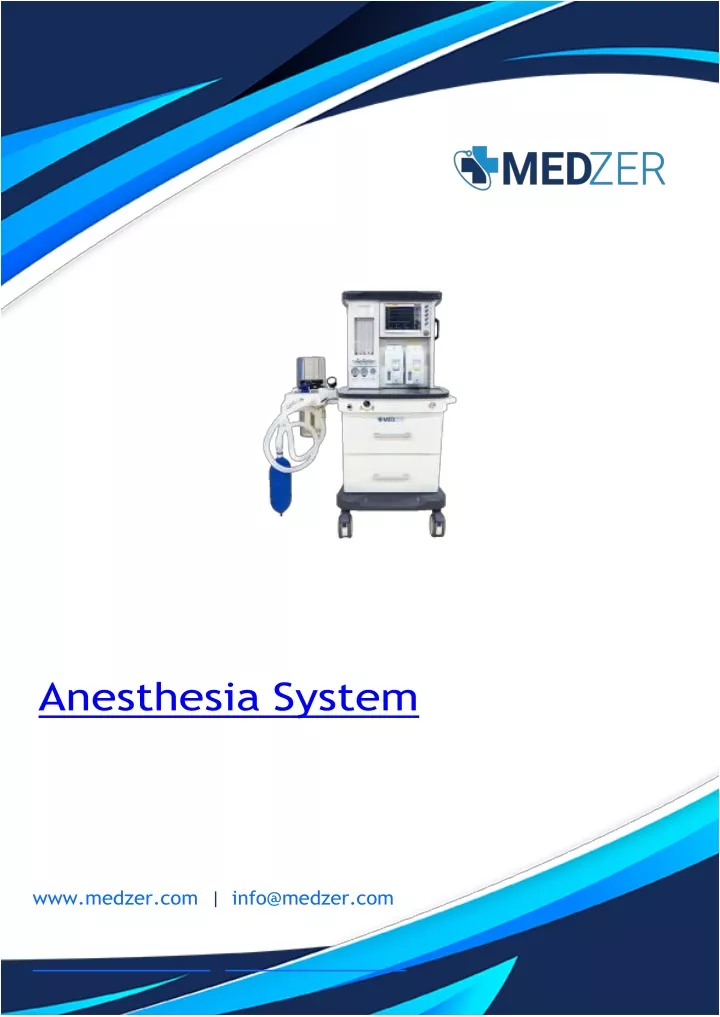

  1. Anesthesia System www.medzer.com|info@medzer.com

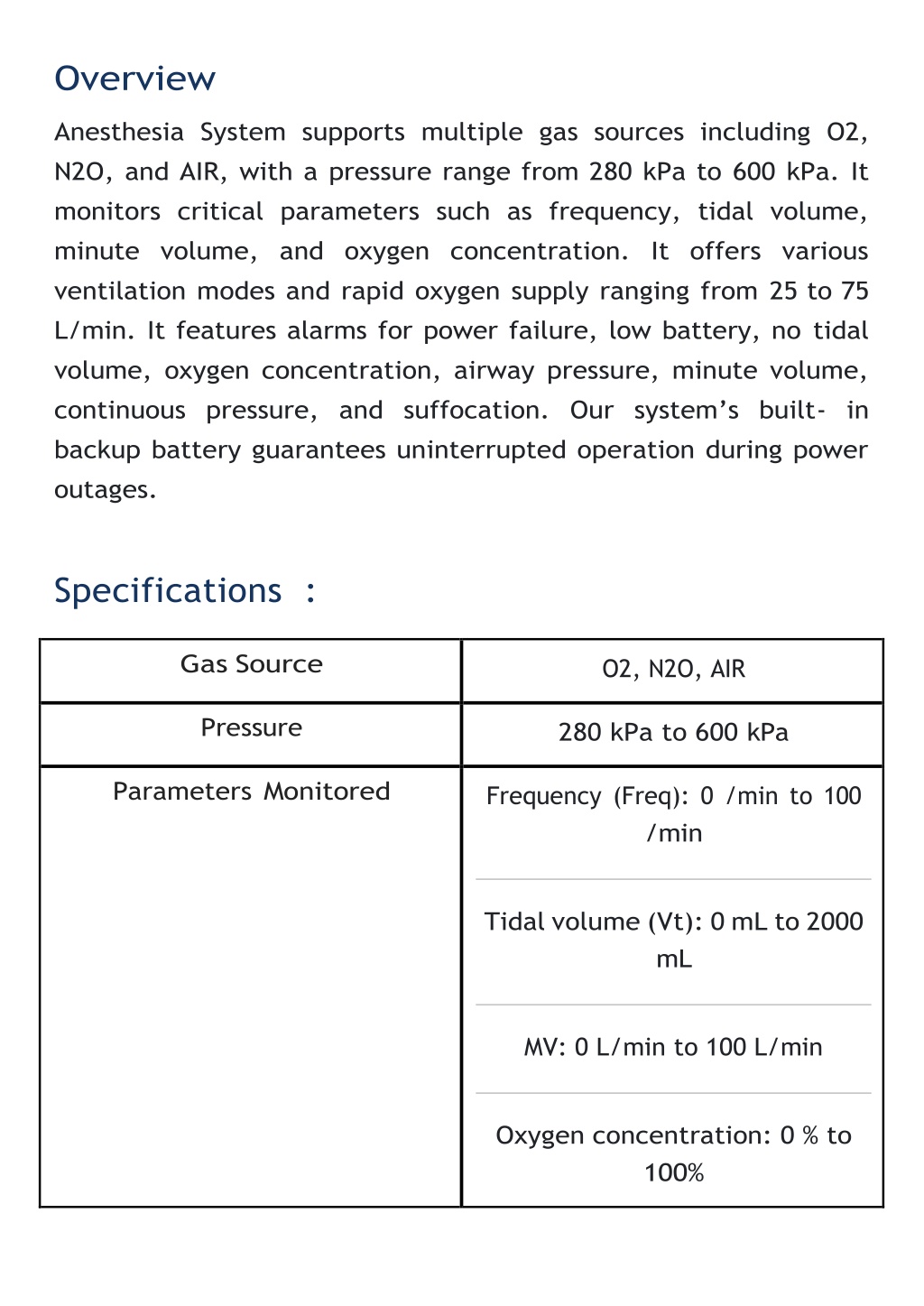

  2. Overview Anesthesia System supports multiple gas sources including O2, N2O, and AIR, with a pressure range from 280 kPa to 600 kPa. It monitors critical parameters such as frequency, tidal volume, minute volume, and oxygen concentration. It offers various ventilation modes and rapid oxygen supply ranging from 25 to 75 L/min. It features alarms for power failure, low battery, no tidal volume, oxygen concentration, airway pressure, minute volume, continuous pressure, and suffocation. Our system’s built- in backup battery guarantees uninterrupted operation during power outages. Specifications: Gas Source O2, N2O, AIR Pressure 280 kPa to 600 kPa Parameters Monitored Frequency (Freq): 0 /min to 100 /min Tidal volume (Vt): 0 mL to 2000 mL MV: 0 L/min to 100 L/min Oxygen concentration: 0 % to 100%

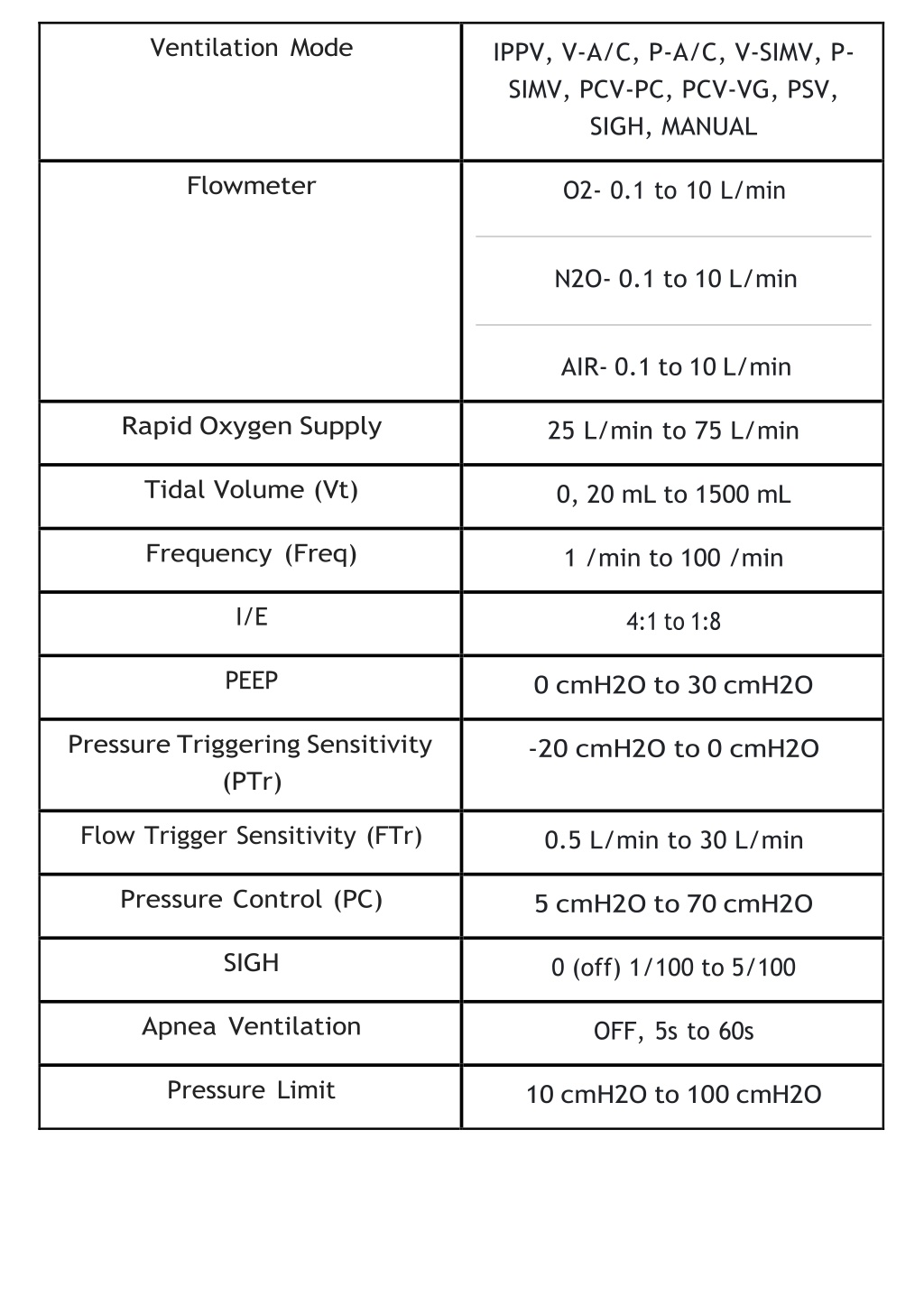

  3. Ventilation Mode IPPV, V-A/C, P-A/C, V-SIMV, P- SIMV, PCV-PC, PCV-VG, PSV, SIGH, MANUAL Flowmeter O2- 0.1 to 10 L/min N2O- 0.1 to 10 L/min AIR- 0.1 to 10 L/min Rapid Oxygen Supply 25 L/min to 75 L/min Tidal Volume (Vt) 0, 20 mL to 1500 mL Frequency (Freq) 1 /min to 100 /min I/E 4:1 to 1:8 PEEP 0 cmH2O to 30 cmH2O Pressure Triggering Sensitivity (PTr) -20 cmH2O to 0 cmH2O Flow Trigger Sensitivity (FTr) 0.5 L/min to 30 L/min Pressure Control (PC) 5 cmH2O to 70 cmH2O SIGH 0 (off) 1/100 to 5/100 Apnea Ventilation OFF, 5s to 60s Pressure Limit 10 cmH2O to 100 cmH2O

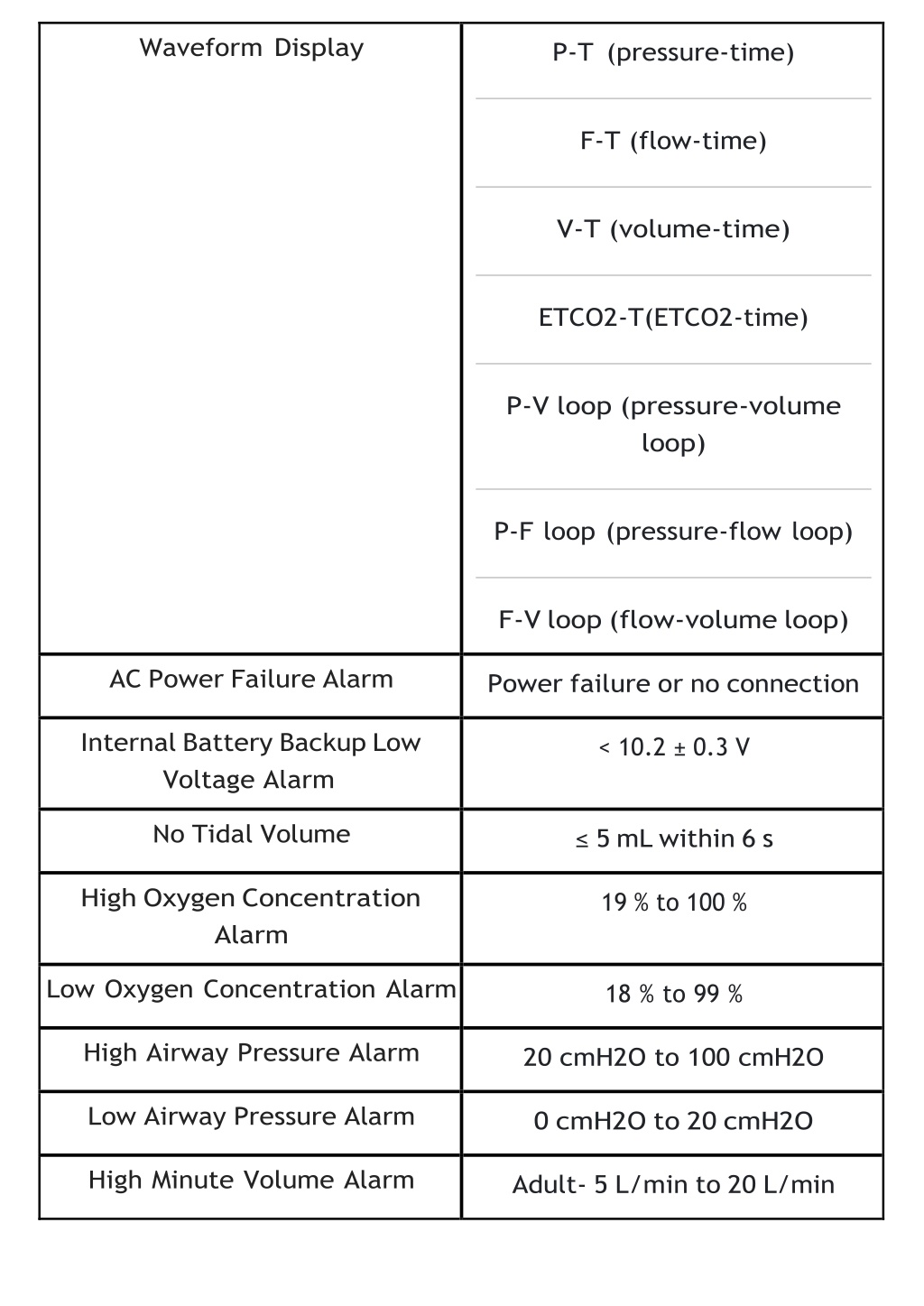

  4. Waveform Display P-T (pressure-time) F-T (flow-time) V-T (volume-time) ETCO2-T(ETCO2-time) P-V loop (pressure-volume loop) P-F loop (pressure-flow loop) F-V loop (flow-volume loop) AC Power Failure Alarm Power failure or no connection Internal Battery Backup Low Voltage Alarm < 10.2 ± 0.3 V No Tidal Volume ≤5 mL within 6 s High Oxygen Concentration Alarm 19 % to 100 % Low Oxygen Concentration Alarm 18 % to 99 % High Airway Pressure Alarm 20 cmH2O to 100 cmH2O Low Airway Pressure Alarm 0 cmH2O to 20 cmH2O High Minute Volume Alarm Adult- 5 L/min to 20 L/min

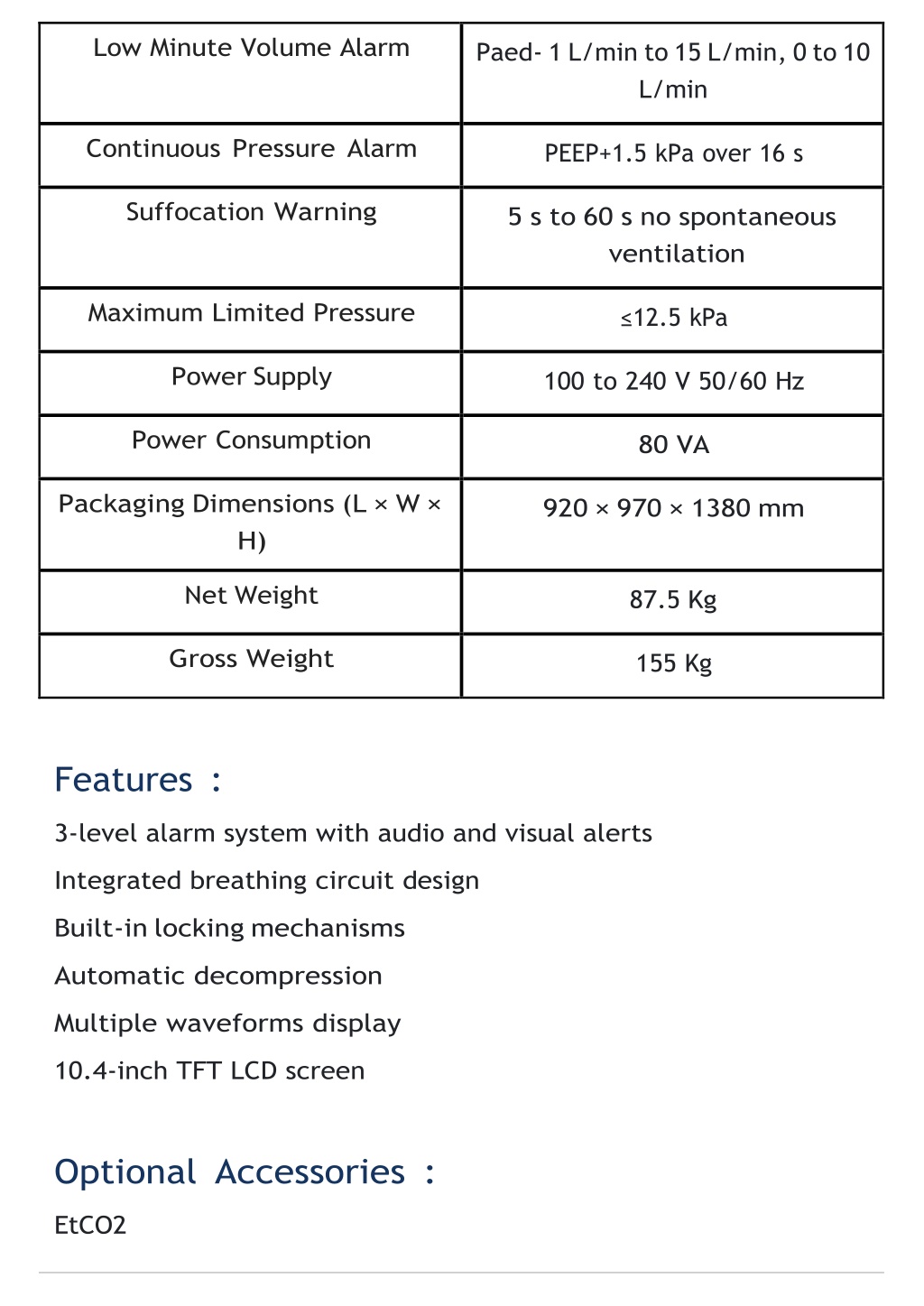

  5. Low Minute Volume Alarm Paed- 1 L/min to 15 L/min, 0 to 10 L/min Continuous Pressure Alarm PEEP+1.5 kPa over 16 s Suffocation Warning 5 s to 60 s no spontaneous ventilation Maximum Limited Pressure ≤12.5 kPa Power Supply 100 to 240 V 50/60 Hz Power Consumption 80 VA Packaging Dimensions (L × W × H) 920 × 970 × 1380 mm Net Weight 87.5 Kg Gross Weight 155 Kg Features: 3-level alarm system with audio and visual alerts Integrated breathing circuit design Built-in locking mechanisms Automatic decompression Multiple waveforms display 10.4-inch TFT LCD screen Optional Accessories: EtCO2

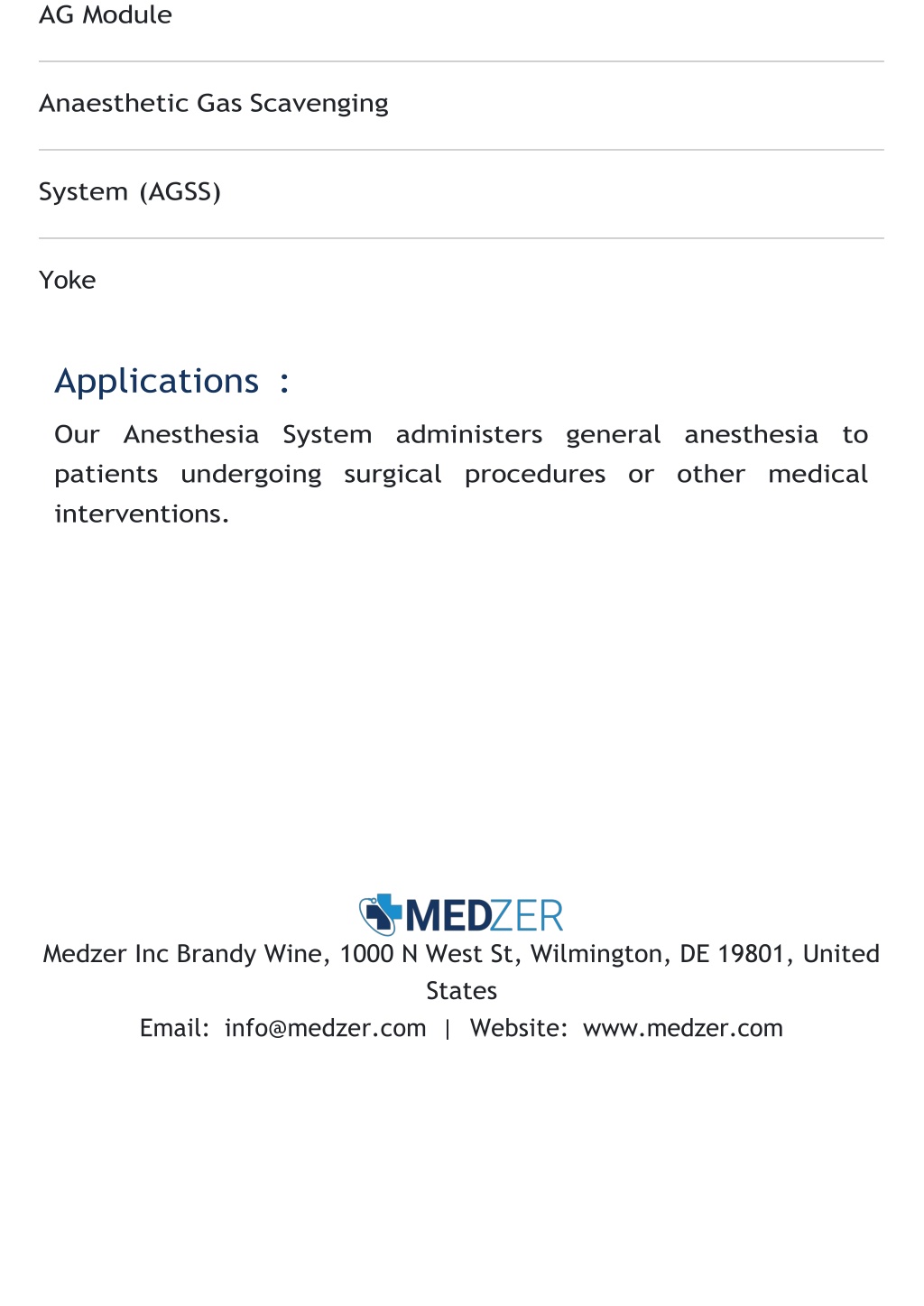

  6. AG Module Anaesthetic Gas Scavenging System (AGSS) Yoke Applications: Our Anesthesia System administers general anesthesia to patients undergoing surgical procedures or other medical interventions. Medzer Inc Brandy Wine, 1000 N West St, Wilmington, DE 19801, United States Email: info@medzer.com|Website:www.medzer.com
