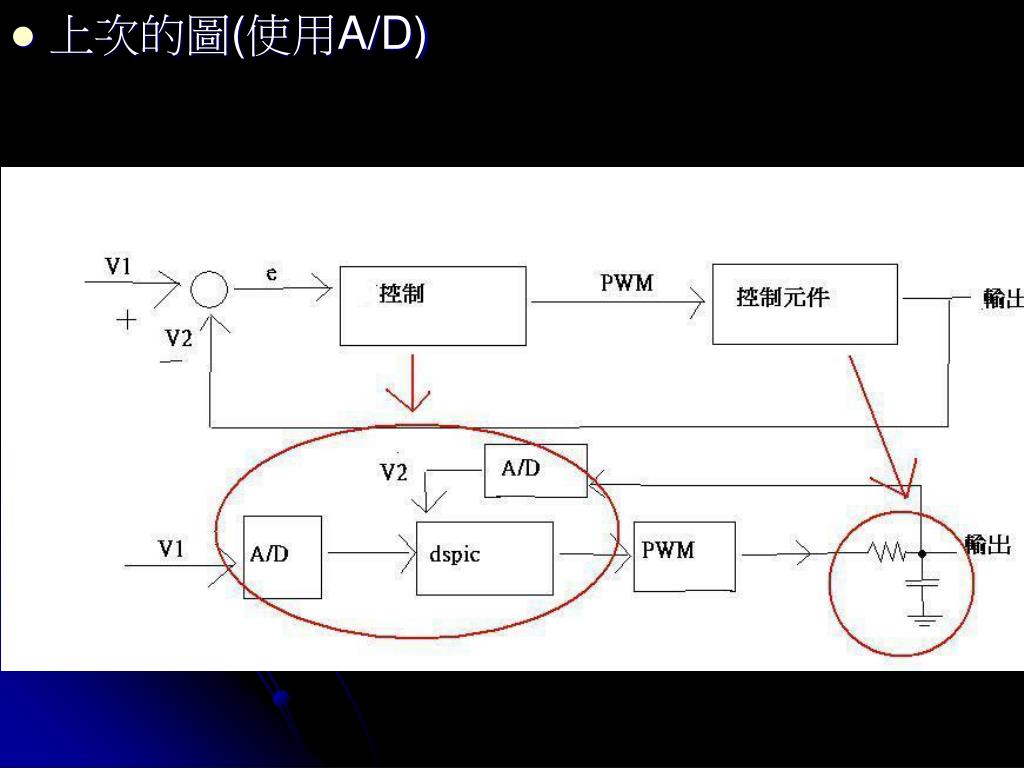

馬達控制 (QEI). 上次的圖 ( 使用 A/D). 這次的圖 ( 用 QEI 大約是這樣 ). // 馬達正反轉 1 圈 //#include <stdio.h> // 呼叫 stdio( 標準輸入輸出 ) 指令巨集 //#define FCY 2000000 #include <p30F4011.h> // 呼叫 p30F3011(IC) 指令巨集 #include <qei.h> long icount=0,v2_new=0,v2_old=0,pi=0,j=0;

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about '馬達控制 (QEI)' - cheryl-vazquez


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide4
//馬達正反轉1圈
  • //#include <stdio.h> //呼叫stdio(標準輸入輸出)指令巨集
  • //#define FCY 2000000
  • #include <p30F4011.h> //呼叫p30F3011(IC)指令巨集
  • #include <qei.h>
  • long icount=0,v2_new=0,v2_old=0,pi=0,j=0;
  • double v1=1600.0,v3=0.0,e_new=0.0,e_old=0.0,d_new=0.0,d_old=0.0,kp=20.0,ki=0.0;
  • int pot[4]={0x0100,0x0200,1,-1};
  • int dd;
  • unsigned int s=0;
  • _FWDT(WDT_OFF);
  • void PWM_Initial(void)
  • {
  • PTPER = 125; //PWM = (20MHz / 16/ 125) = 10 KHz
  • IEC2bits.PWMIE = 0; //Disable PWM Interrupt
  • PTCON = 0xA008; // 0b 1010 0000 0000 0000
  • PWMCON1 = 0x0777; // 0b 0000 0111 0111 0111
  • PDC1=0;
  • OVDCON= pot[pi]; //設定輸出腳位
  • IPC9bits.PWMIP = 6;
  • }
slide5
void Qei_Initial(void)
  • {
  • QEICON=0x0700; //0000 0111 0000 0000 x4與MAX比較
  • DFLTCON=0x0; //0000 0000 0000 0000
  • POSCNT=0;
  • MAXCNT=0xffff;
  • QEICONbits.CNTERR=1;
  • }
  • void Init_Timer1( void )
  • {
  • T1CON = 0;
  • IFS0bits.T1IF = 0;
  • IPC0bits.T1IP = 7;
  • IEC0bits.T1IE = 1;
  • PR1 = 5000; // 20MHz/8/5000=500 Hz 中斷為2ms
  • T1CONbits.TCS = 0;
  • T1CONbits.TCKPS=1; //TCKPS<1:0>: Timer Input Clock Prescale Select bits
  • //11 = 1:256 prescale value
  • //10 = 1:64 prescale value
  • //01 = 1:8 prescale value
  • //00 = 1:1 prescale value
  • T1CONbits.TON=1;
  • }
slide6
void _ISR _T1Interrupt(void)
  • {
  • v2_old=v2_new;
  • v2_new=POSCNT;
  • if(((v2_old-v2_new)<30000)&&((v2_new-v2_old)<30000))
  • v2_new=v2_new;
  • else if((v2_old-v2_new)>30000)
  • v2_new=65536+v2_new;
  • else if(((v2_new-v2_old)>30000)&&(v2_old>=65536))
  • v2_new=v2_new;
  • else
  • v2_new=v2_new-65536;
  • e_new=v1-v2_new*1.0;
  • d_new=kp*e_new;
  • if(d_new>0.0)
  • {
  • pi=0;
  • if(d_new>220.0)
  • d_new=220.0;
  • }
  • else if(d_new<0.0)
  • {
  • if(d_new<-220.0)
  • d_new=-220.0;
  • pi=1;
  • }
  • dd=d_new*pot[pi+2];
  • PDC1=dd; OVDCON= pot[pi];
  • s++;
  • IFS0bits.T1IF = 0;
  • }
slide7

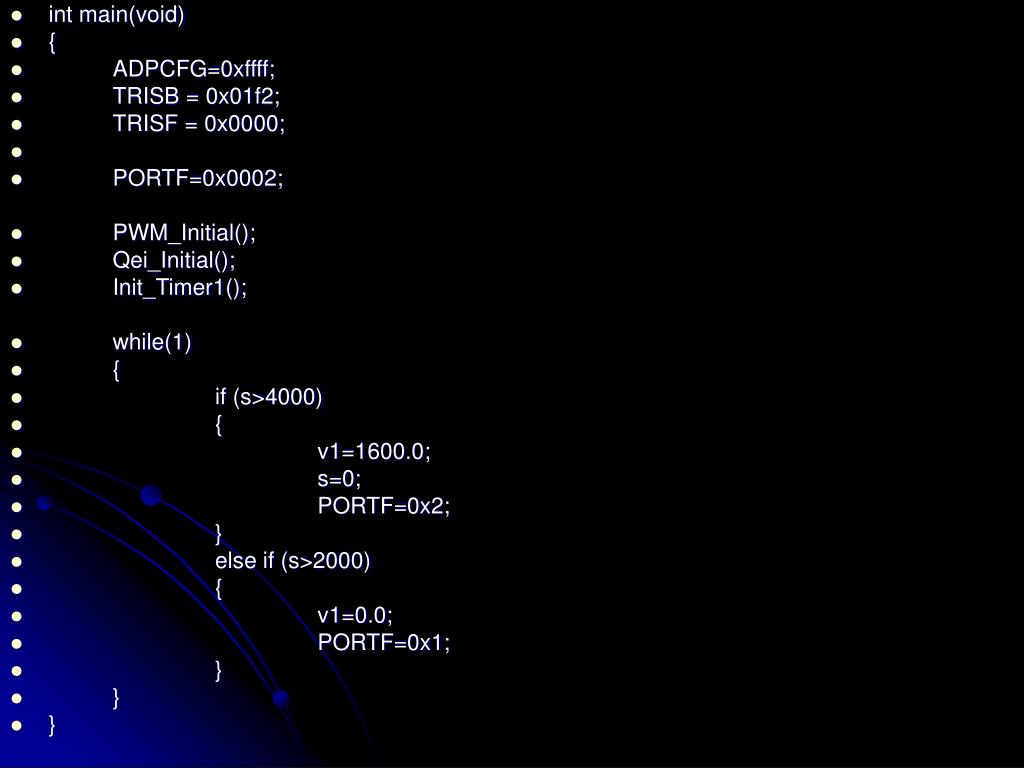

int main(void)
  • {
  • ADPCFG=0xffff;
  • TRISB = 0x01f2;
  • TRISF = 0x0000;
  • PORTF=0x0002;
  • PWM_Initial();
  • Qei_Initial();
  • Init_Timer1();
  • while(1)
  • {
  • if (s>4000)
  • {
  • v1=1600.0;
  • s=0;
  • PORTF=0x2;
  • }
  • else if (s>2000)
  • {
  • v1=0.0;
  • PORTF=0x1;
  • }
  • }
  • }
slide8

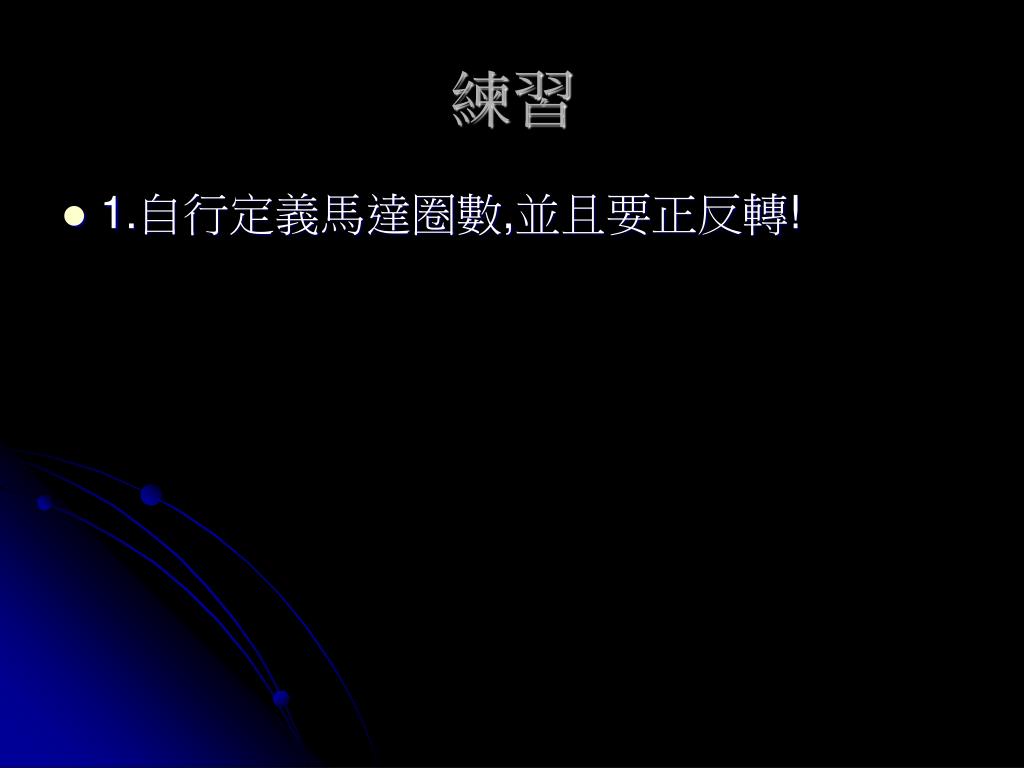

練習
  • 1.自行定義馬達圈數,並且要正反轉!
