DES1

DES1. UBQ 10. Wt des1-2. Wt des1-1. 9.4. 7.1. 4.3. 3.1. LBb1. (a). T-DNA. SALK_103855 ( des1-1 ). GW-CSL- F. DES1. GW-CSL-R. RATM13-2715-1_G ( des1-2 ). Ds-trans. DS3-4. (b). DES1. UBQ 10. Wt des1-1. (c).

cheryl-vazquez
Download Presentation

DES1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

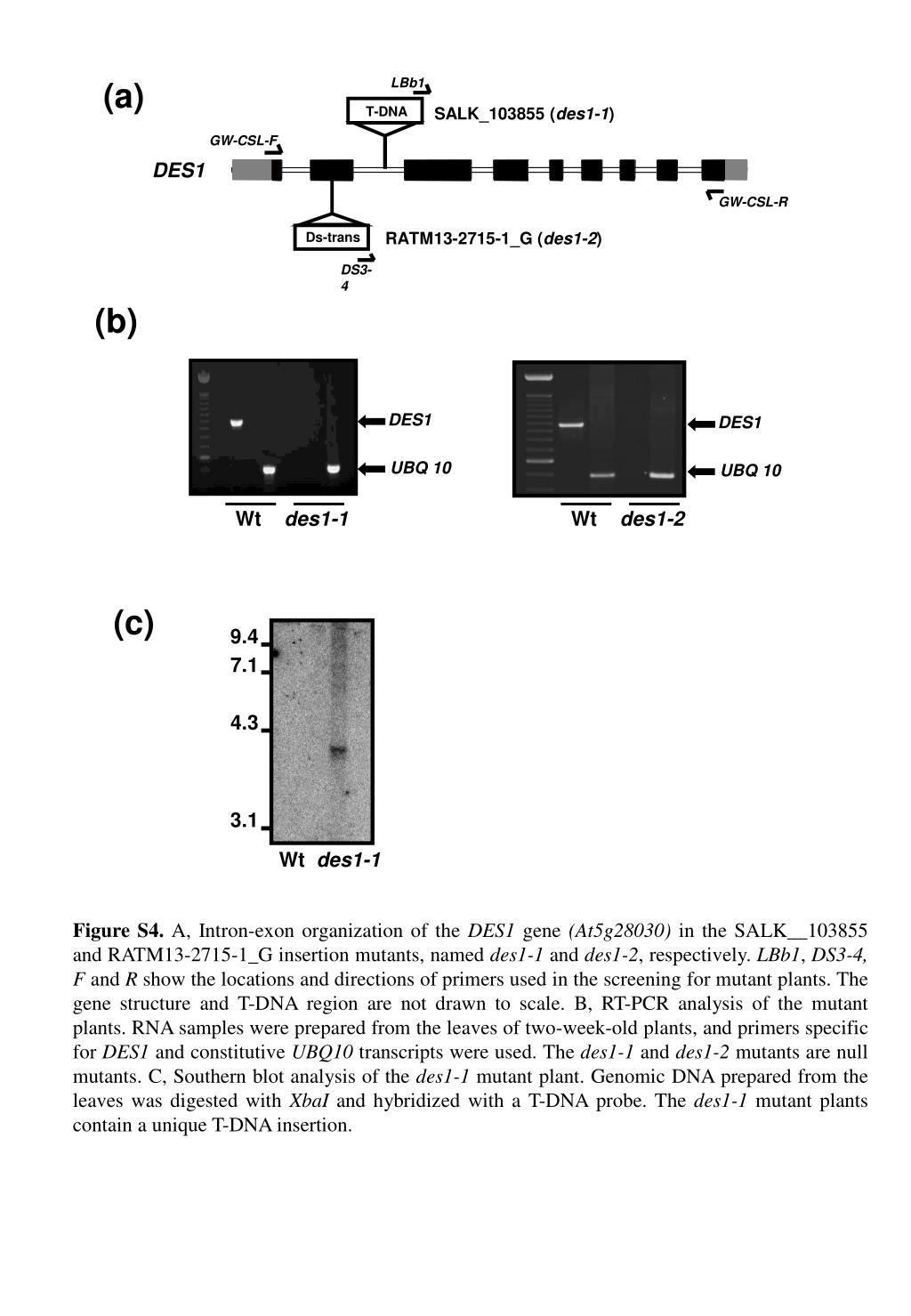

  1. DES1 UBQ 10 Wt des1-2 Wt des1-1 9.4 7.1 4.3 3.1 LBb1 (a) T-DNA SALK_103855 (des1-1) GW-CSL-F DES1 GW-CSL-R RATM13-2715-1_G (des1-2) Ds-trans DS3-4 (b) DES1 UBQ 10 Wt des1-1 (c) Figure S4. A, Intron-exon organization of the DES1 gene (At5g28030) in the SALK__103855 and RATM13-2715-1_G insertion mutants, named des1-1 and des1-2, respectively. LBb1, DS3-4, F and R show the locations and directions of primers used in the screening for mutant plants. The gene structure and T-DNA region are not drawn to scale. B, RT-PCR analysis of the mutant plants. RNA samples were prepared from the leaves of two-week-old plants, and primers specific for DES1 and constitutive UBQ10 transcripts were used. The des1-1 and des1-2 mutants are null mutants. C, Southern blot analysis of the des1-1 mutant plant. Genomic DNA prepared from the leaves was digested with XbaI and hybridized with a T-DNA probe. The des1-1 mutant plants contain a unique T-DNA insertion.
