Presentation Transcript

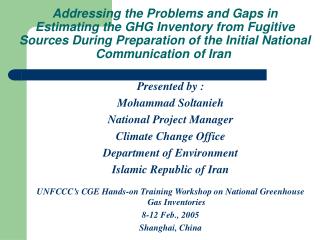

slide1

Addressing the Problems and Gaps in Estimating the GHG Inventory from Fugitive Sources During Preparation of the Initial National Communication of Iran

Presented by :

Mohammad Soltanieh

National Project Manager

Climate Change Office

Department of Environment

Islamic Republic of Iran

UNFCCC’s CGE Hands-on Training Workshop on National Greenhouse Gas Inventories

8-12 Feb., 2005

Shanghai, China

presentation overview
Presentation Overview
  • Energy sector in Iran
  • GHG inventory and share of the fugitive emissions
  • Trend of fugitive emissions in Iran
  • Problems and gaps in estimating the fugitive GHG inventory for Initial National Communication
  • What are the approaches for removing the barriers in preparing the 2nd National Communication
slide4
Energy sector in Iran:Trend of primary energy production, domestic consumption, import and export (MBOE, 1971-2002)
slide8
Energy sector in Iran:Trend of CO2 emission per capita (tonnes/capita) and per GDP (tonnes/Mn. Rial-constant price 1982 )
national ghg inventory contribution of different sectors to total co2 eq emissions in 1994
National GHG Inventory:Contribution of different sectors to total CO2 Eq. emissions in 1994(%)
  • Fugitive sources are responsible for 9.2% of the total CO2, 58% of the total CH4 and 15% of the total GHG emissions, respectively.
national ghg inventory contribution of different energy sub sectors to ghg emissions in 1994 gg
National GHG Inventory:Contribution of different energy sub-sectors to GHG emissions in 1994(Gg)
  • The table shows that fugitive emissions are responsible for 11% of the CO2 emission and 95% of the CH4 emission in energy sector.
slide12
National GHGs Inventory:Contribution of different fugitive emission sources to the total fugitive emissions in 1994(Gg)
fugitive sources of emission
Fugitive Sources of Emission
  • Oil Activities
    • Exploration
    • Production
    • Transport
    • Refining
    • Storage
  • Gas Activities
    • Production/Processing
    • Transmission/Distribution
    • Leakage
  • Venting and Flaring from Oil/Gas Production
  • Coal Mining
problems and gaps in developing ghg inventory from fugitive sources hot flare
Problems and Gaps in Developing GHG Inventory from Fugitive Sources (hot flare)
  • Hot flaring in normal operations: Methane burning on well heads and oil and gas refineries is one of the major CO2 emission sources and the IPCC 1996 Guidelines have not provided the methodology for this type of GHG emission. Expert judgment was used for estimations.
  • Cold flaring in drilling operations: No national emission factors were available. Thus, for well drilling activity other international emission factors were used which include: US EPA (EPA-600/R96, 1996); Canadian Association of Petroleum Producers (VOC and Methane Emissions for Canadian Upstream Oil and Gas Industry, Calgary, AB 1999) and the information from the Stockholm Environmental Institute, Boston Center.
problems and gaps in developing ghg inventory from fugitive sources hot flare continued
Problems and Gaps in Developing GHG Inventory from Fugitive Sources (hot flare)-continued
  • In startup, overhaul of operations, accidents, repair and maintenance operations: The volume of gaseous components that are sent to the flare is closely related to the type of process, skill of the personnel, safety considerations and systems and management, resulting in uncertain estimation. Here again, rough estimates were made by expert judgment.
problems and gaps in developing ghg inventory from fugitive sources cold flare
Problems and Gaps in Developing GHG Inventory from Fugitive Sources (cold flare)
  • Leakage in pump stations and gas pipelines: The volume of leakage is closely related to the level of repair and maintenance operations and the type of technology. An average of 1% loss in the gas pipeline was assumed.
  • The IPCC Tier 1 methodology was used for fugitive emissions from oil refining, i.e. 1200 kg CH4/PJ of refined oil and for storage 135 kg CH4/PJ of refined oil.
  • Leakage in unit operations and storage tanks: There is little information available at national level for estimation of such emissions, except for evaporative losses from storage and handling of gasoline.
what are the approaches for removing the barriers in preparing the 2 nd national communication
What are the approaches for removing the barriers in preparing the 2nd National Communication
  • Installing the measurement tools in refinery flares.
  • Installing gas analyzers in refinery flares.
  • Using the mass balance approaches for estimation of GHG emissions from process equipments.
  • Using the mass balance approaches in natural gas networks.
  • Installing measurement tools in storage tanks and using mass balance approach.
  • Collecting activity data in storage tanks in terms of throughput capacity instead of volume of crude oil and oil products.
slide19
Thank you

For

Your attention.
