  1. Diatelic - An Intelligent TeleSurveillance System for Peritoneal Dialysis Laurent Romary Minit Gupta Loria Labs, Nancy

  2. Context • A Tele Medicine System • Need for flexibility • Use of XML • Perspectives

  3. Quelle télémédecine? • Différentes perspectives • Télé-opération • Transmission d ’informations : médecin-médecin • Télémédecine « publique » : • Rapprochement patient-médecin • Matériel peu coûteux • Utilisation simplifiée

  4. Difficultés rencontrées en DP • suivi épisodique du malade (mensuelle etc.) • fiche journalière de suivi • pas d’exploitation de ces fiches en continu • isolement du malade • risques pathologiques importants => hospitalisations fréquentes

  5. Objectifs de Diatélic • moyens • suivi médical en temps réel • prévention des accidents • finalité • réduction de la morbidité • amélioration du confort • économies de santé

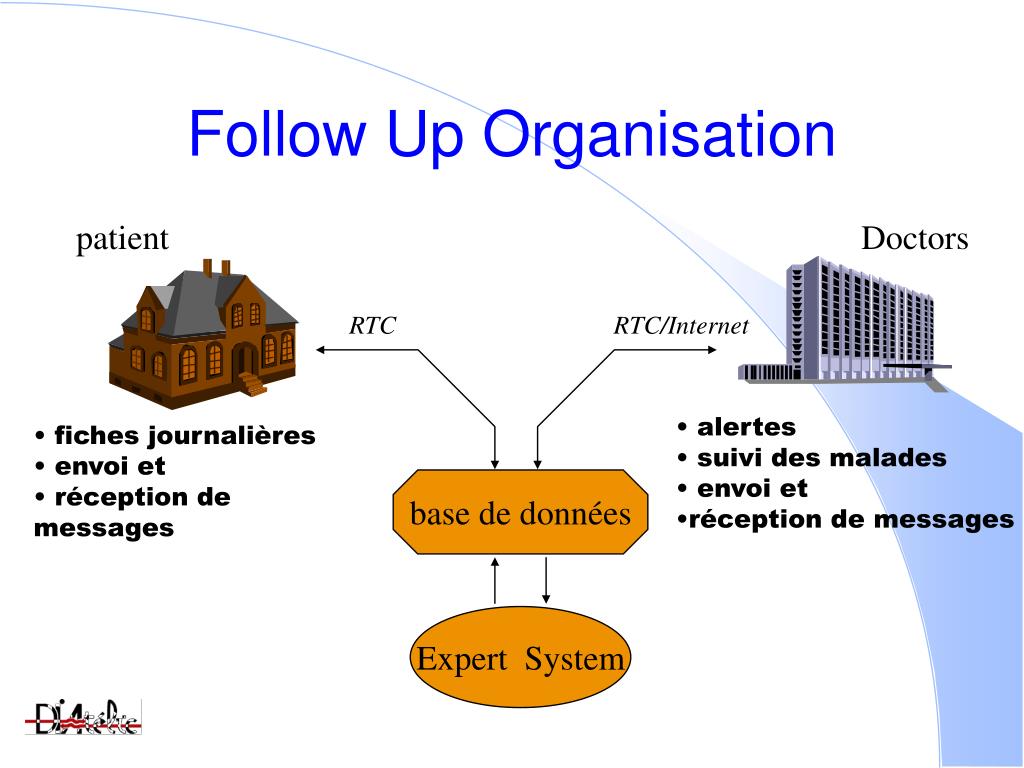

  6. Follow Up Organisation patient Doctors RTC RTC/Internet • alertes • suivi des malades • envoi et • réception de messages • fiches journalières • envoi et • réception de messages base de données Expert System

  7. Expérimentation en cours • Validation technologique • de Juillet 1998 à Mai 1999 après autorisation de la CNIL • Évaluation clinique depuis juin 1999 • expérimentation randomisée auprès de 30 patients: • 15 patients équipés de Diatélic • 15 patients formant le groupe témoin

  8. Diatelic: Extension • Extension to other pathologies like diabetes, heart diseases, … • Interfacing with Data Acquisition Machines. • Customization for each Patient. • Dynamic Generation of the Interface.

  9. Why UIML? • XML based - homogenous view • Easy updation • Dynamic generation - daily monitoring • Swing renderer • Ability to invoke methods at runtime - Potential Devices/Flexibility

  10. New Follow up Organization Diabetes Doctors Peritoneal Dialysis RTC/Internet RTC Application • Alerts • Patient’s follow up • Messages Heart Disease Data base & MedComp Expert System • Daily datas • Messages

  11. The XML Based Architecture

  12. Medical Component • Represents a single monitoring parameter, an entity, and defines its meta data. • It contains both medical and environmental information about the patient. • The « peers  » describes the method for the retrieval of the medical data. Blood Pressure is an example entity

  13. <medComp id="00215062000112"> <name>Blood Pressure</name> <state>sitting</state> ... <value id="00215062000112sys" datatype="integer"> <descrip type="medical" class="clinical">systolic</descrip> <bound type="max">23</bound> </value> ... </medComp> <peers> ... <retrieve idref="00215062000112sys" type="bsnQuery"> <method> <name>bsnQuery</name> <param datatype="char" name="BP"/> <param datatype="char" name="Systolic"/> <return datatype="integer"/> </method> </retrieve> ... </peers>

  14. Dynamic Generation of the Interface It is a three phase process Phase I: parsing the medComps file and initialising the local data structures Phase II: parsing the pre-written templates and filling in missing information Phase III: the templates are combined to form a valid UIML file and the Swing renderer invoked on it

  15. <template name=”HelpTemplate”>  <structure> <part class="JFrame" name="BPHelpFrame"> <style>...</style> <part class="JPanel" name="BPHelpMainPanel"> <style>...</style> <part class="JTextArea“ name="BPHelpTextArea"> <style> ... <property name="text">this is the new BP Help. Entry type is mixed.Make of Machine is GAMBO. The scale for measuring used is mm of Hg.. Type: systemParam. Type: medical Class: clinical For value with id= 00215062000112dias the lower bound is 5. Type: medical Class: clinical</property> </style> </part> ... </structure>   <behavior> <rule> <condition> <event class="actionPerformed" part-name="BPHelpCloseButton" /> </condition> <action> <property name="visible" part-name="BPHelpFrame"> false</property> </action> </rule> </behavior> </template>

  16. Conclusion • Diatelic interface enhanced • flexible, customizable • separation of user interface and logic • Non standard templates - definition and parsing • One to one mapping of the elements • Marking the missing information • The communication with the Data Acquisition Machine

  17. Remarks • Parsing the data entered • Type definition and type checking • Simple mathematical relations like <,>,<> • Programming language control structures if-then-else, do-while • Editing parts of the interface at run time • Representation of graphics oriented interfaces and time based parameters.
