slide1

Aviation

Critical Safety Items

DCMA Aviation CSI Lead

Aeronautical Systems Division

05 June 2007

1

agenda
Agenda
  • What is an Aviation Critical Safety Item
  • Aviation CSI Authority
  • Aviation CSI Identification
  • DCMA Assistance
  • PA Instructions/Guidance
  • Summary / Questions
what is an aviation csi

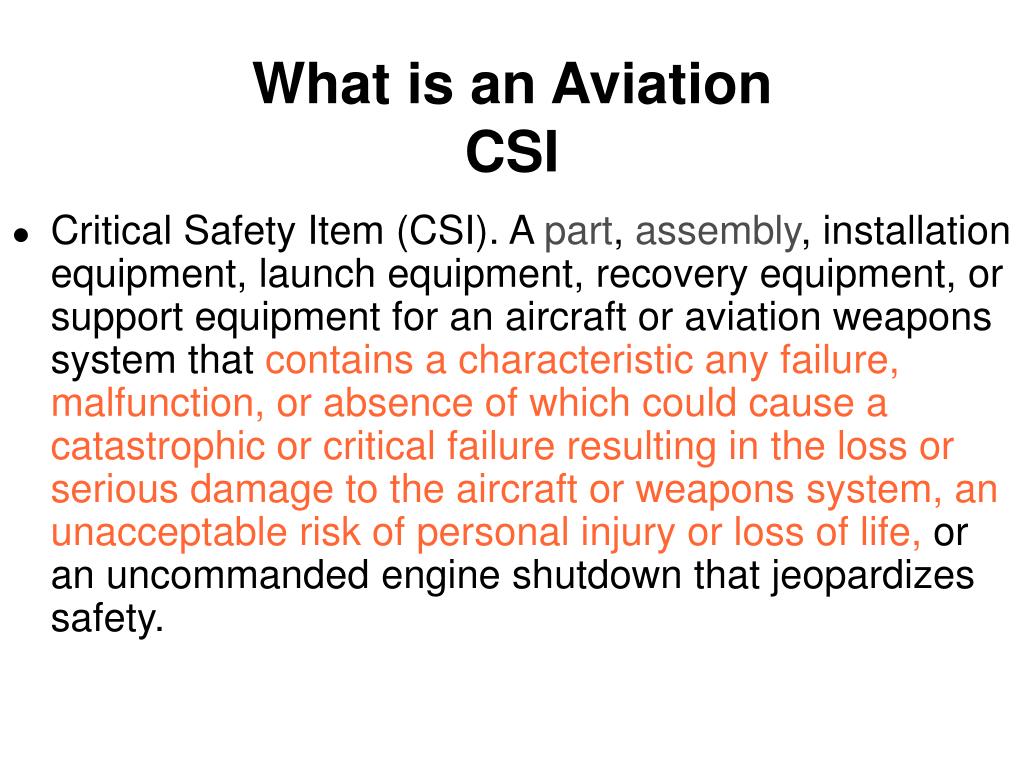

What is an Aviation CSI
  • Critical Safety Item (CSI). A part, assembly, installation equipment, launch equipment, recovery equipment, or support equipment for an aircraft or aviation weapons system that contains a characteristic any failure, malfunction, or absence of which could cause a catastrophic or critical failure resulting in the loss or serious damage to the aircraft or weapons system, an unacceptable risk of personal injury or loss of life, or an uncommanded engine shutdown that jeopardizes safety.
terminology

Fatigue

Sensitive

Part

Critical

Characteristic

Critical Safety

Item

Flight Critical

Part

Qualification

Flight Safety

Part

Life Limited

Part

Critical Item

Code

Category I

Part

Approved

Source

Approved

Part

Qualified

Item

Tracked

Part

Frozen

Part

Tested

Part

Prime

Part

Flight Safety

Critical Aircraft

Part

Mission

Critical

Part

Qualified

Manufacturers

List

Safety

Critical Item

Fracture

Critical

Traceable

Qualified

Suppliers

List

Qualified

Parts

List

Fracture

Critical

Item

Critical Item

Procurement

Requirement

Document

Durability

Critical

Part

Flight

Essential

Part

Terminology
what is an aviation csi1

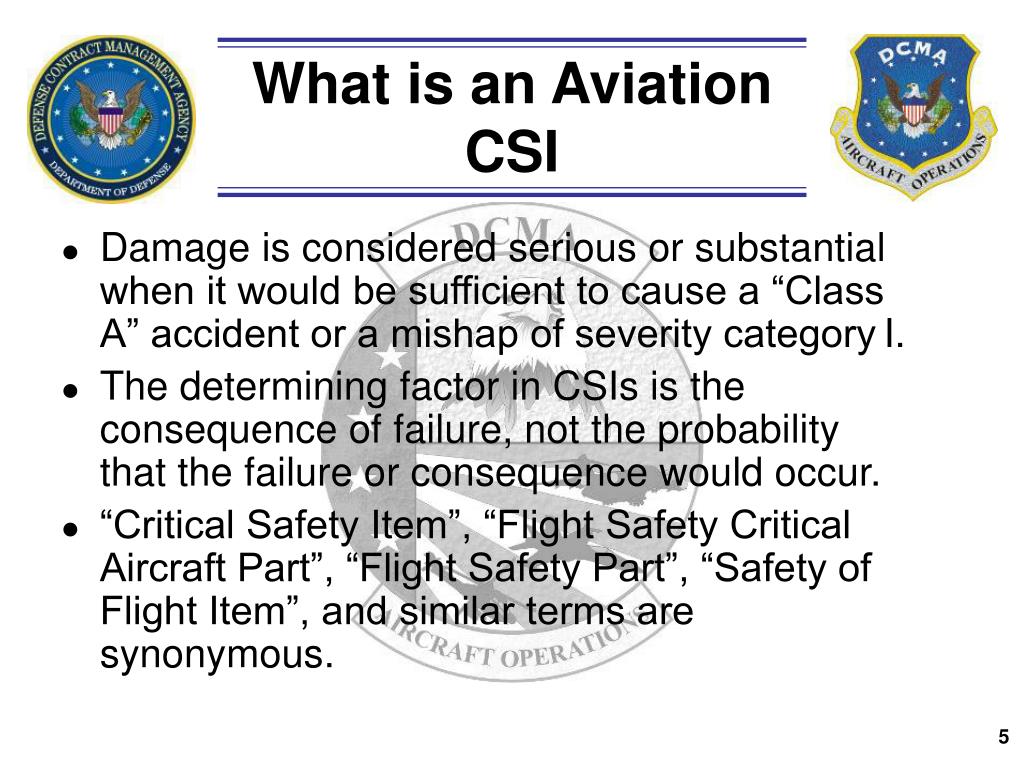

What is an Aviation CSI
  • Damage is considered serious or substantial when it would be sufficient to cause a “Class A” accident or a mishap of severity categoryI.
  • The determining factor in CSIs is the consequence of failure, not the probability that the failure or consequence would occur.
  • “Critical Safety Item”, “Flight Safety Critical Aircraft Part”, “Flight Safety Part”, “Safety of Flight Item”, and similar terms are synonymous.
what is a csi

DoD NSNs

4.9 Million

DLA NSNs

3.9 Million

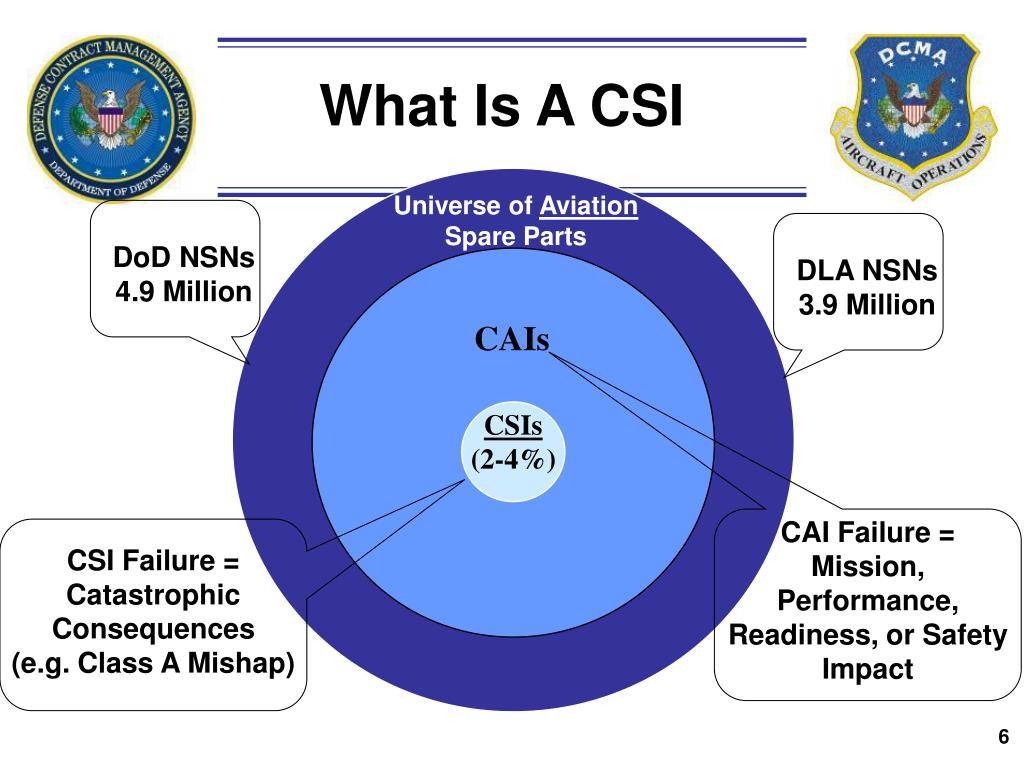

What Is A CSI

Universe of Aviation Spare Parts

CAIs

CSIs

(2-4%)

CAI Failure = Mission, Performance, Readiness, or Safety Impact

CSI Failure = Catastrophic Consequences

(e.g. Class A Mishap)

slide7

P.L. 108-136, Sec 802 …

FY 2004 National Defense Authorization Act

  • That the head of the design control activity for aviation critical safety items establish processes to identify and manage aviation critical safety items and modifications, repair, and overhaul of such items.
  • That the head of the contracting activity for an aviation critical safety item enter into a contract for such item only with a source approved by the design control activity in accordance with section 2319 of title 10, United States Code.
  • That the aviation critical safety items delivered, and the services performed with respect to aviation critical safety items, meet all technical and quality requirements specified by the design control activity.
who identifies csis
Who Identifies CSIs
  • Determined By Service Engineering Support Activity (ESA), Based on
    • Engineering Failure Analysis, Field Failure Analyses, History, etc.
  • CSI’s are not identified by DCMA
  • CSI’s are not the same as SOF

Exclusive Authority Of ESA

DFARS 209.270-4

where to look

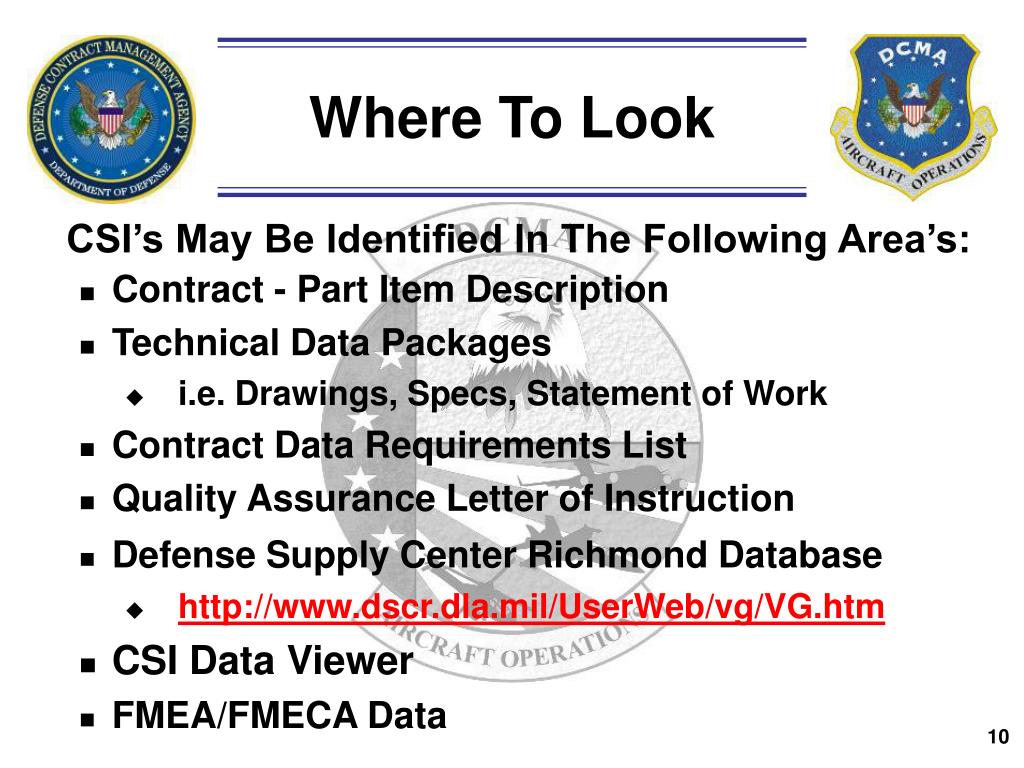

Where To Look

CSI’s May Be Identified In The Following Area’s:

  • Contract - Part Item Description
  • Technical Data Packages
    • i.e. Drawings, Specs, Statement of Work
  • Contract Data Requirements List
  • Quality Assurance Letter of Instruction
  • Defense Supply Center Richmond Database
    • http://www.dscr.dla.mil/UserWeb/vg/VG.htm
  • CSI Data Viewer
  • FMEA/FMECA Data
dcma can assist
DCMA Can Assist

Elevate through Buying Office to ESA

when:

  • Have reason to believe an item should be identified as CSI
  • Have reason to believe an item is incorrectly identified as a CSI
  • Recommending authorization for a supplier to perform material review board actions on minor non conformances (MRB)
product assurance csi instructions
Product Assurance CSI Instructions

Primes/OEMs with Legacy Systems

  • CSI’s Identified with Critical Characteristics designated
    • Surveillance Strategy will require that a 0.4 Quality Release Level (QRL) be used.
  • CSI’s Identified with NO Critical Characteristics designated
    • Surveillance Strategy will require that applicable Process Evaluation be performed on CSI Items on a risk based approach.
    • Important Processes to be considered during the development of the surveillance strategy is Hyperlinked within the Instructions
product assurance csi instructions1

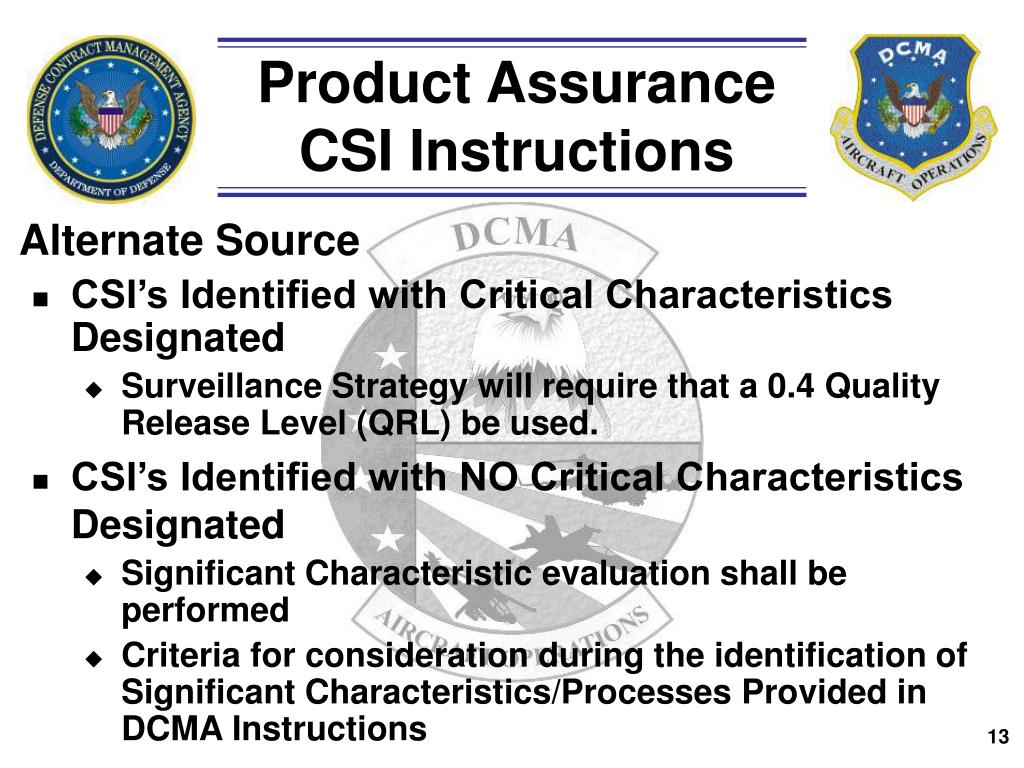

Product Assurance CSI Instructions

Alternate Source

  • CSI’s Identified with Critical Characteristics Designated
    • Surveillance Strategy will require that a 0.4 Quality Release Level (QRL) be used.
  • CSI’s Identified with NO Critical Characteristics Designated
    • Significant Characteristic evaluation shall be performed
    • Criteria for consideration during the identification of Significant Characteristics/Processes Provided in DCMA Instructions
slide13
Contractor to notify PCO and ACO of nonconformance's to:

Replenishment parts identified as CSIs

Systems, subsystems, assemblies, etc that impact safety

Repair, maintenance, logistics, or overhaul that impact safety

Notification within 72 hours after discovery/receipt of credible information of situation

Summary

Chronology

Potentially affected systems

POC

Other relevant info

Flow down to Subcontractors

Prime contractor responsible for notification

Subcontract to provide notice to higher contractors

Concurrently notify PCO/ACO if known to Subcontractor

Facilitate communications between Gov’t and Sub

Neither Admission of Responsibility nor Release of Liability

Notification Requirements for Critical Safety ItemsDFARS Case 2004-D008 - Synopsis (Comments Being Dispositioned)
summary
Summary
  • CSI’s are not Identified By DCMA
    • Designated by the Service ESA
  • CSI’s characteristics are not the same as Safety of Flight.
  • Elevate CSI concerns to the ESA through the Buying Office
  • Questions?
