  1. 國立中山大學HPC專案驗收報告

  2. Agenda • 系統架構圖 • 機房擺設位置 • p595硬體及安裝軟體（操作檢驗） • p6-570硬體及安裝軟體（操作檢驗） • 購買軟體（實體光碟） • GQS Benchmark 驗收部份

  3. 管學院 工學院 理學院 國立中山大學 HPC 系統架構圖 Management LAN 192.168.0.0/24 Public LAN140.117.24.0/24 HMC LAN 10.0.0.0/24 HMC HMC p6-570 p595 (140.117.24.1)

  4. 國立中山大學 p595 & p6-570 機房擺設位置 空 調 1 P595 Repair Kit ( p595 專屬維修工具 ) p570 空 調 2 p595

  5. p595 H/W Configuration • Hostname : hpc • Model Name: IBM System p 9119-595 • CPU • Architecture: SMP • Processor Type: PowerPC_POWER5 • Number Of Processors: 64 • Processor Clock Speed: 2302 MHz • CPU Type: 64-bit • Main Memory: 256 GB • Storage : 300GB 15K RPM SCSI Disk x 10

  6. p595 Software • AIX 5L V5.3 • IBM XL C/C++ Enterprise Edition for AIX, V9.0 • IBM XL Fortran Enterprise Edition for AIX, V11.1 • LoadLeveler V3.4 (Job Submission Tool) • PE V4.3 • ESSL 4.3 • Parallel ESSL V3.3

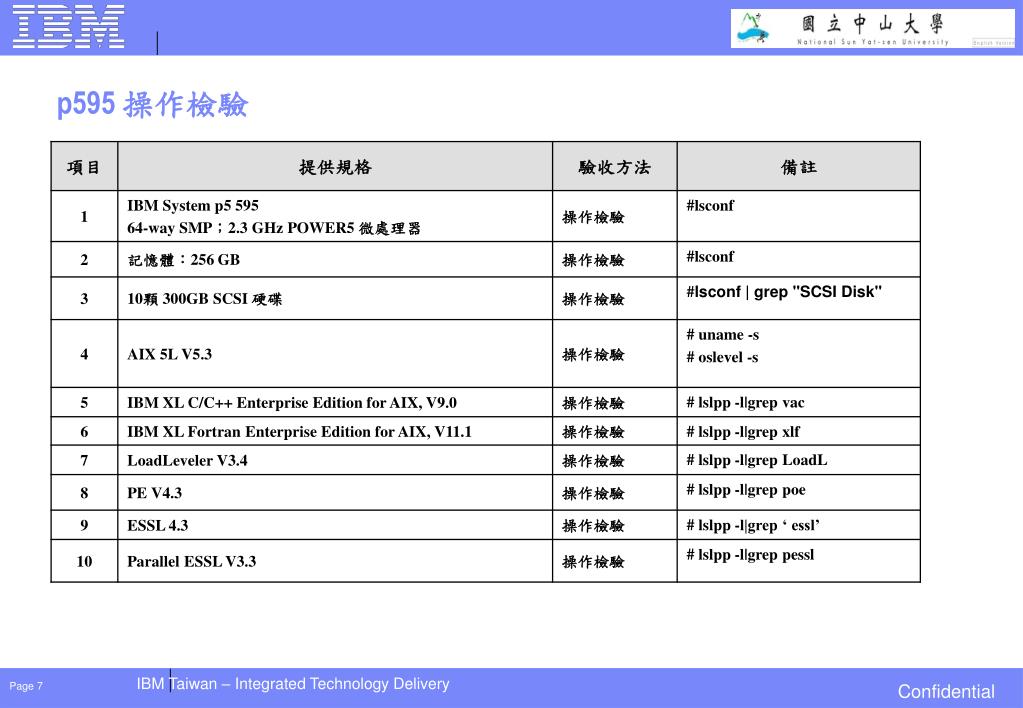

  7. p595 操作檢驗

  8. p6-570 H/W Configuration • Hostname : N/A • Model Name: IBM System p 9117-MMA • CPU • Architecture: SMP • Processor Type: PowerPC_POWER6 • Number Of Processors: 16 • Processor Clock Speed: 4704 MHz • CPU Type: 64-bit • Main Memory: 32 GB • Storage : 300 GB 15K RPM SAS Disk x 4

  9. p6-570 Software • AIX 5L V5.3 • LoadLeveler V3.4 (Job Submission Tool) • IBM XL C/C++ Enterprise Edition for AIX, V9.0 • IBM XL Fortran Enterprise Edition for AIX, V11.1 • PE V4.3 • Parallel ESSL V3.3 • ESSL 4.3

  10. P6-570 操作檢驗
