The next edition of the manual of surveying instructions and the modern cadastre

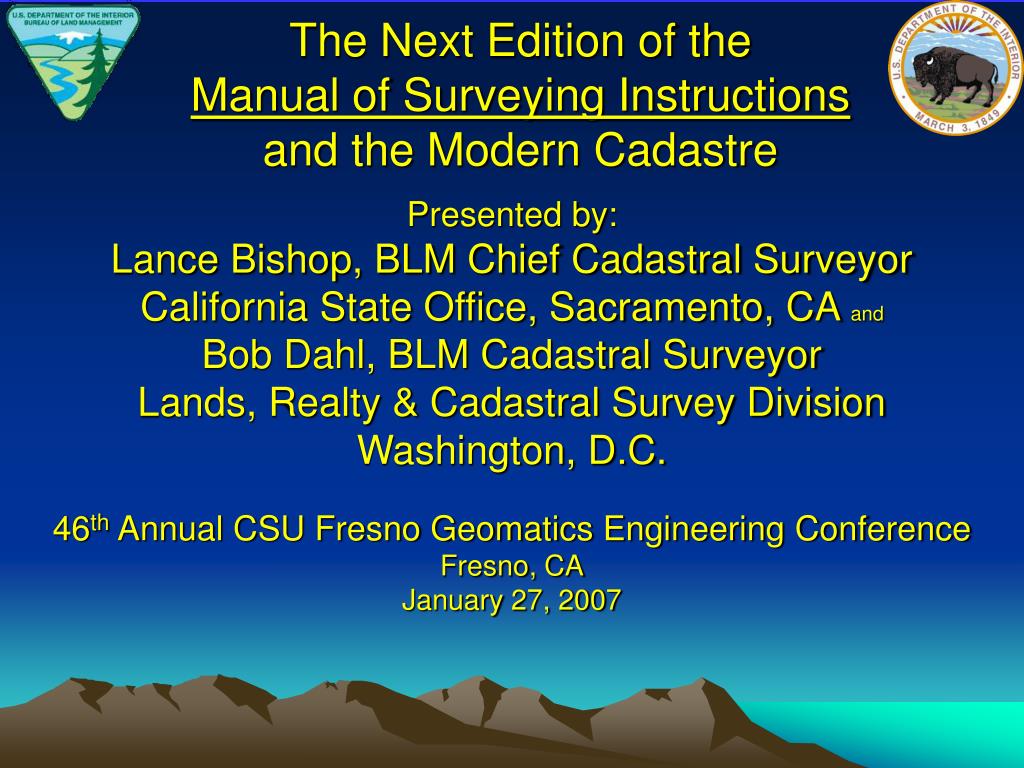

The Next Edition of theManual of Surveying Instructionsand the Modern Cadastre

Presented by:

Lance Bishop, BLM Chief Cadastral Surveyor

California State Office, Sacramento, CA and

Bob Dahl, BLM Cadastral Surveyor

Lands, Realty & Cadastral Survey Division

Washington, D.C.

46th Annual CSU Fresno Geomatics Engineering Conference

Fresno, CA

January 27, 2007

January 29 2007


Cadastre – Cadastral – Cadastral Survey

Little Fish in a Big Pond

Case Study

What is the Manual of Surveying


Why is the Manual relevant to the Private, County and State Surveyors in California?

January 29 2007

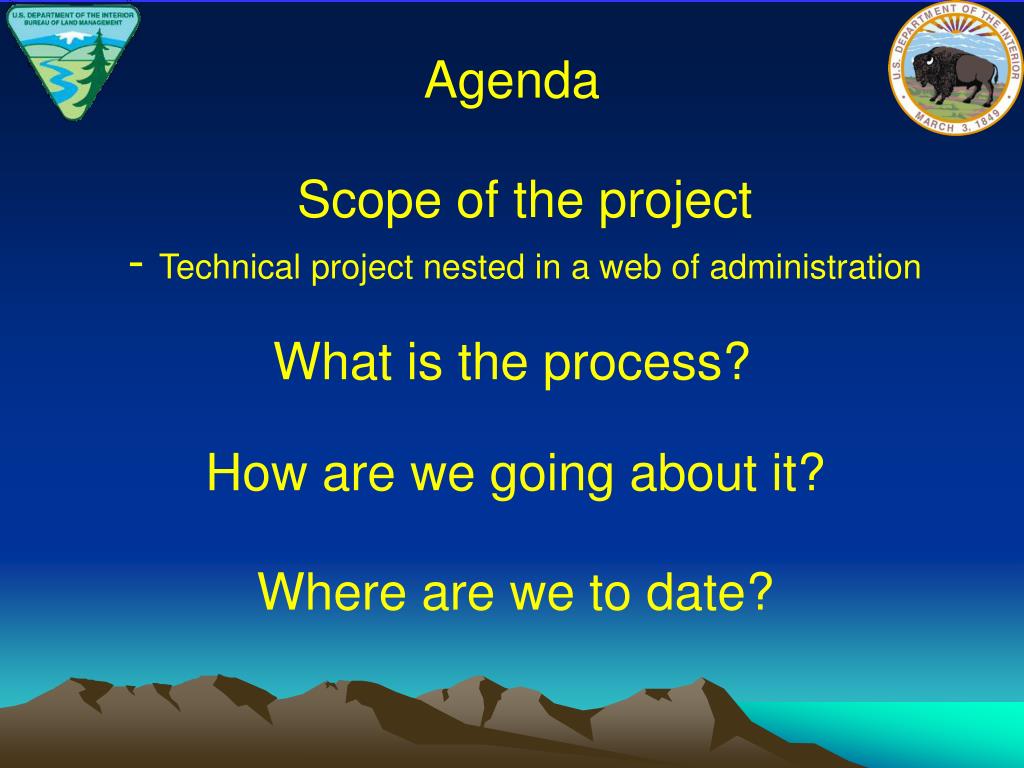

Scope of the project

- Technical project nested in a web of administration

What is the process?

How are we going about it?

Where are we to date?

January 29 2007





Cadastral presence

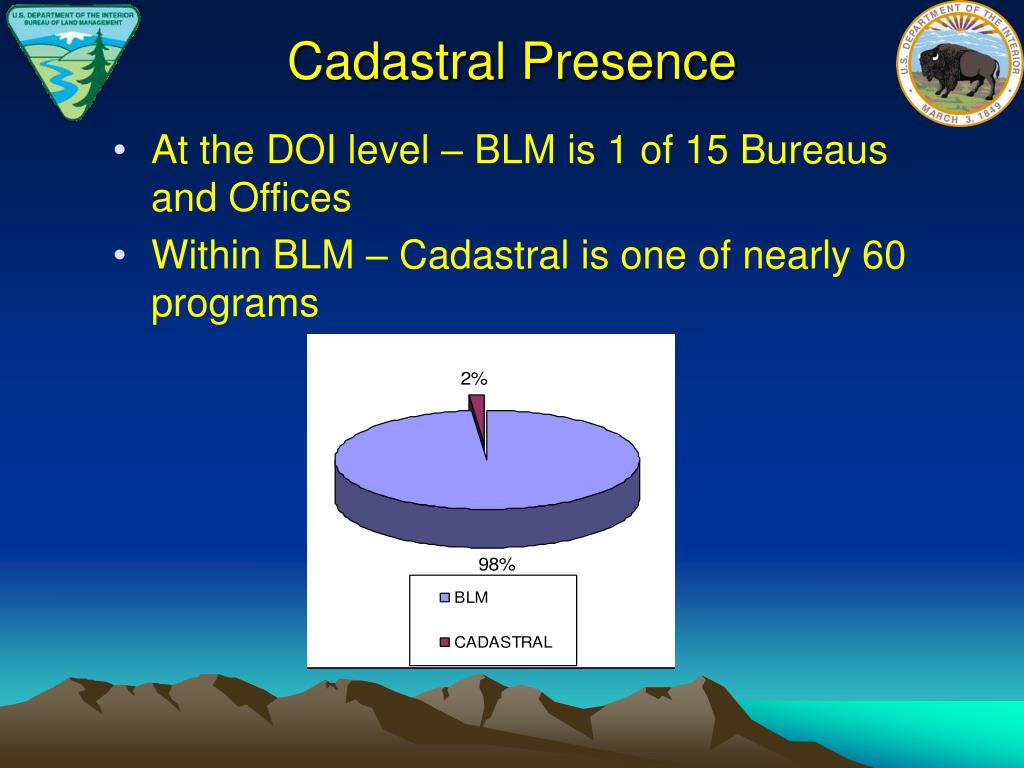

Cadastral Presence

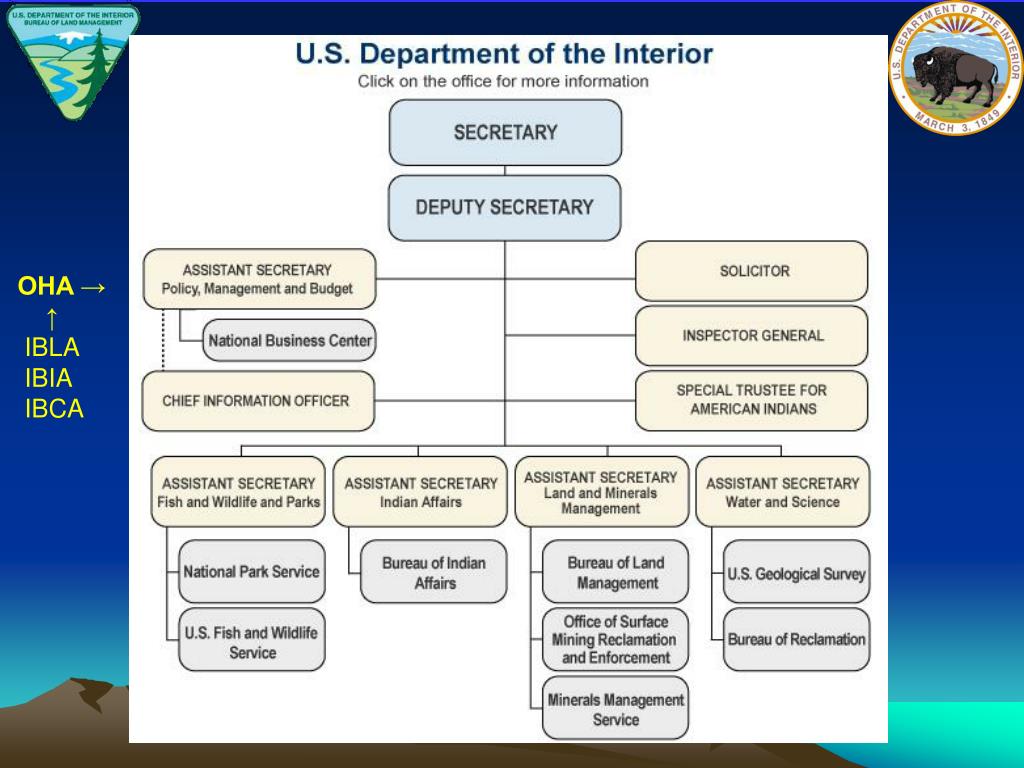

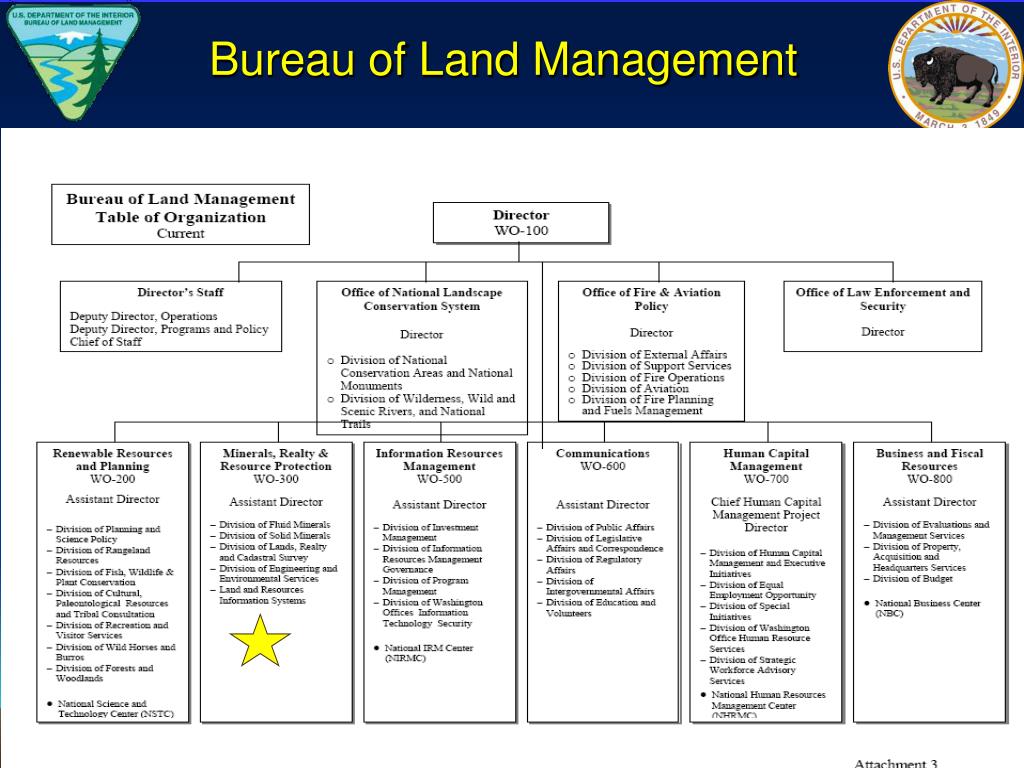

  • At the DOI level – BLM is 1 of 15 Bureaus and Offices

  • Within BLM – Cadastral is one of nearly 60 programs

January 29 2007

What is the

Manual of Instructions for the Survey of the Public Lands of the United States? (Manual)

Whom/What is affected?

January 29 2007

Why is the Manual

Relevant to the Private, County and State Surveyor in California?

Case study

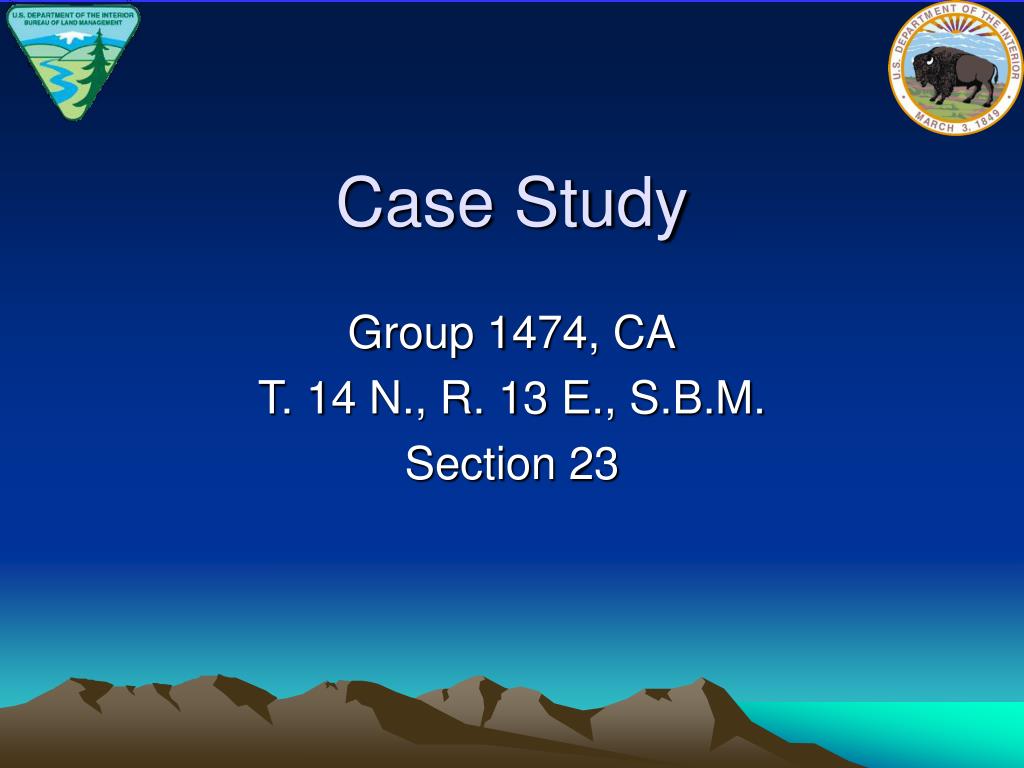

Case Study

Group 1474, CA

T. 14 N., R. 13 E., S.B.M.

Section 23

History of surveys

History of Surveys

1856-57 - A.H. Jones originally surveyed the township lines and subdivisional lines of the township

1916-17 - J.F. Duling, CE & PLS resurveyed multiple townships in the area for the Rock Springs Land and Cattle Co.

1919 San Bernardino County Surveyor’s office resurveyed portions of the township

Our first plan for survey

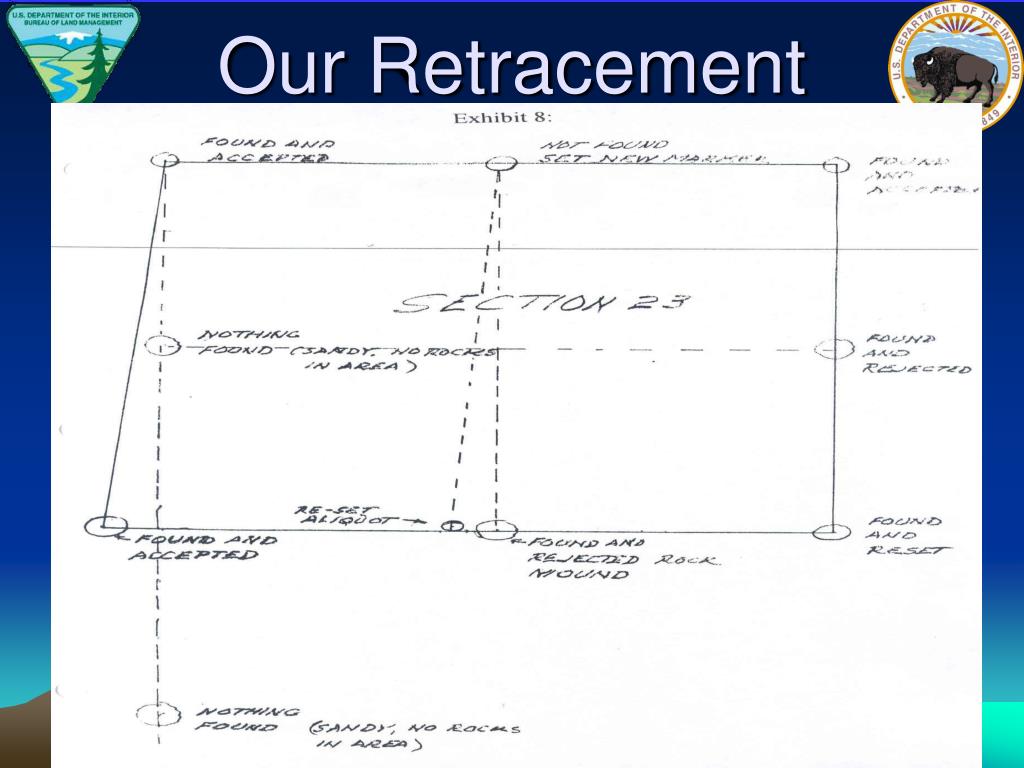

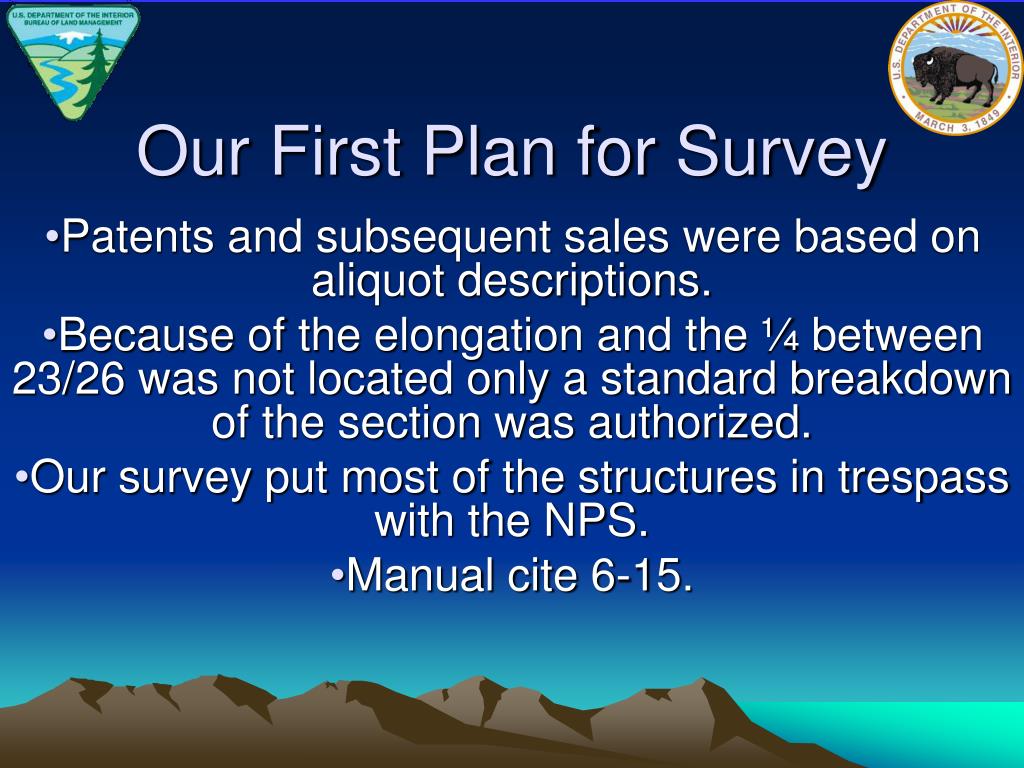

Our First Plan for Survey

Patents and subsequent sales were based on aliquot descriptions.

Because of the elongation and the ¼ between 23/26 was not located only a standard breakdown of the section was authorized.

Our survey put most of the structures in trespass with the NPS.

Manual cite 6-15.

The manual

The Manual

Section 5-2

“Where government lands are involved, the final authority …rests with the BLM”

“If privately owned lands are involved, consideration is given to any protest made by an interested person concerning the work done by the BLM”

The Landowner did protest!

Interior board of land appeals

Interior Board of Land Appeals

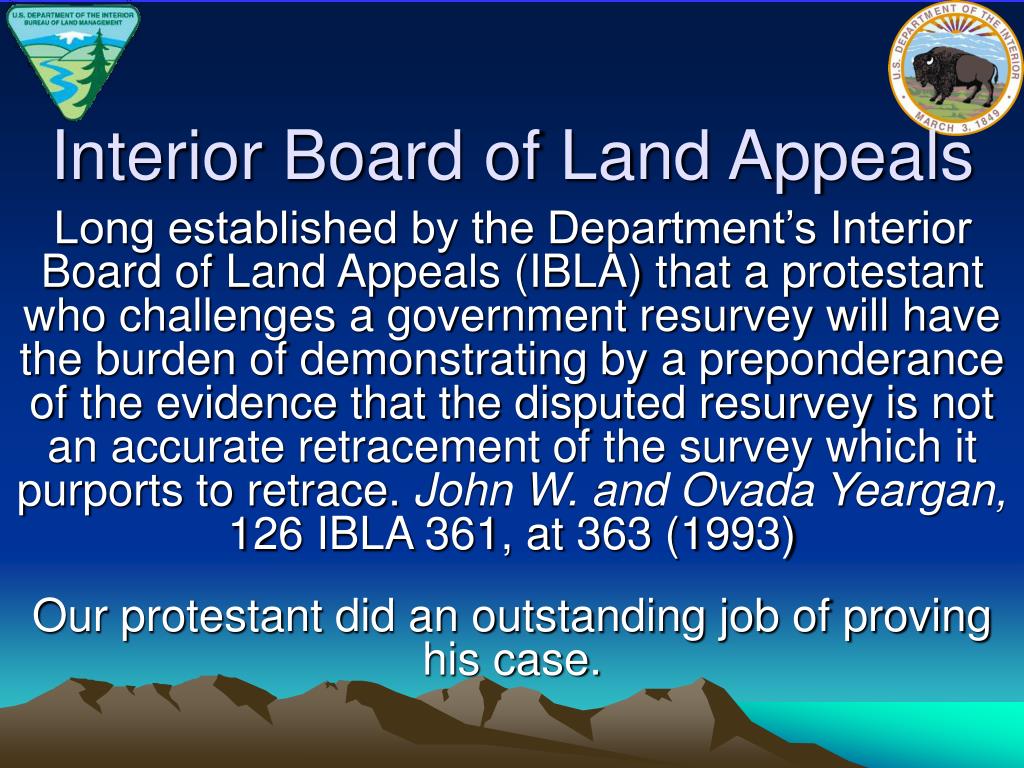

Long established by the Department’s Interior Board of Land Appeals (IBLA) that a protestant who challenges a government resurvey will have the burden of demonstrating by a preponderance of the evidence that the disputed resurvey is not an accurate retracement of the survey which it purports to retrace. John W. and Ovada Yeargan, 126 IBLA 361, at 363 (1993)

Our protestant did an outstanding job of proving his case.

The manual continued

The Manualcontinued:

Section 5-21

The rules for the restoration of lost corners should not be applied until all original and collateral evidence has been developed…..

The act of march 3 1909 manual section 6 12

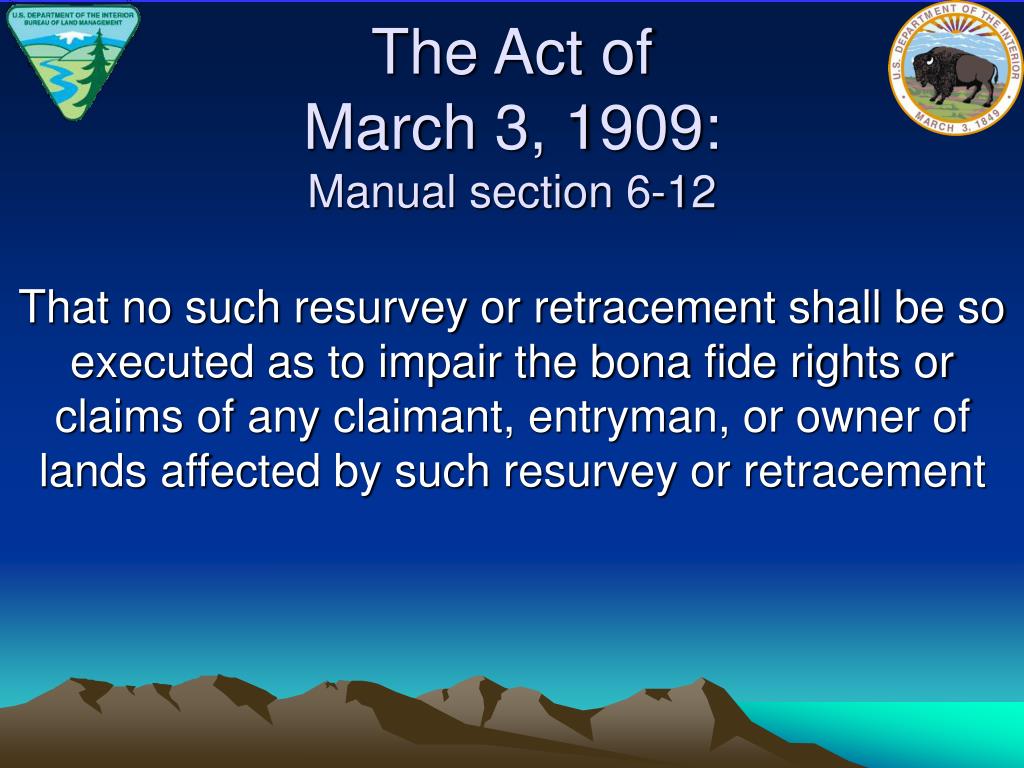

The Act ofMarch 3, 1909:Manual section 6-12

That no such resurvey or retracement shall be so executed as to impair the bona fide rights or claims of any claimant, entryman, or owner of lands affected by such resurvey or retracement

The manual continued1

The Manualcontinued:

Section 6-13

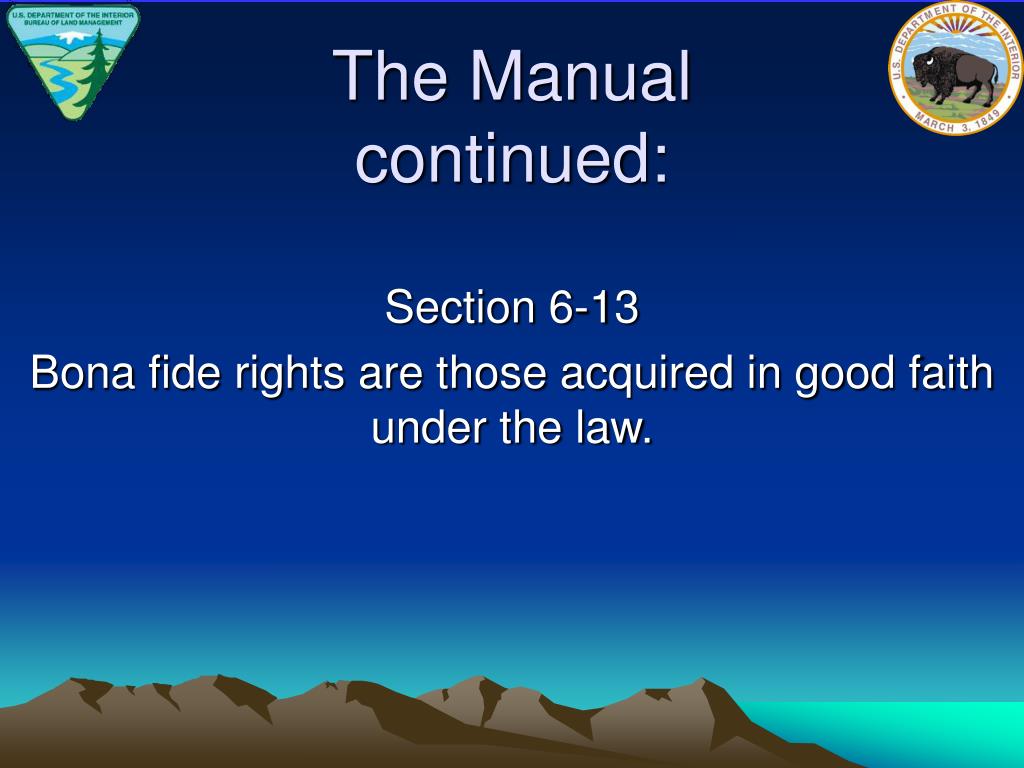

Bona fide rights are those acquired in good faith under the law.

The manual continued2

The Manualcontinued:

Section 6-15 continued

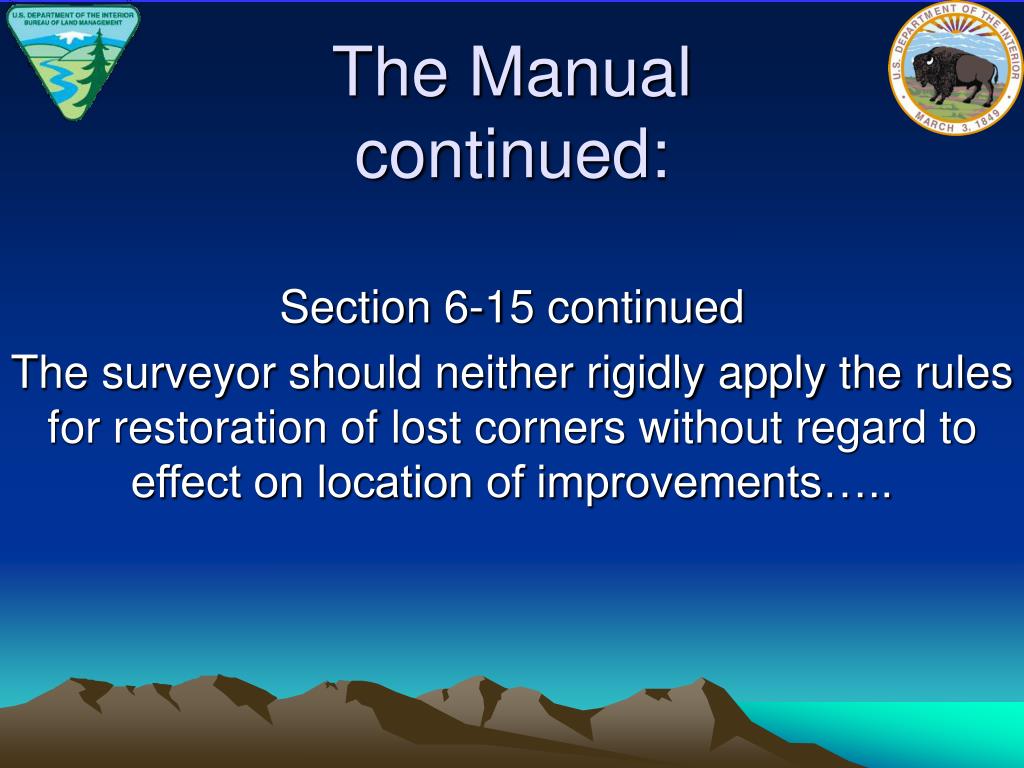

The surveyor should neither rigidly apply the rules for restoration of lost corners without regard to effect on location of improvements…..

The manual continued3

The Manualcontinued:

Section 6-17

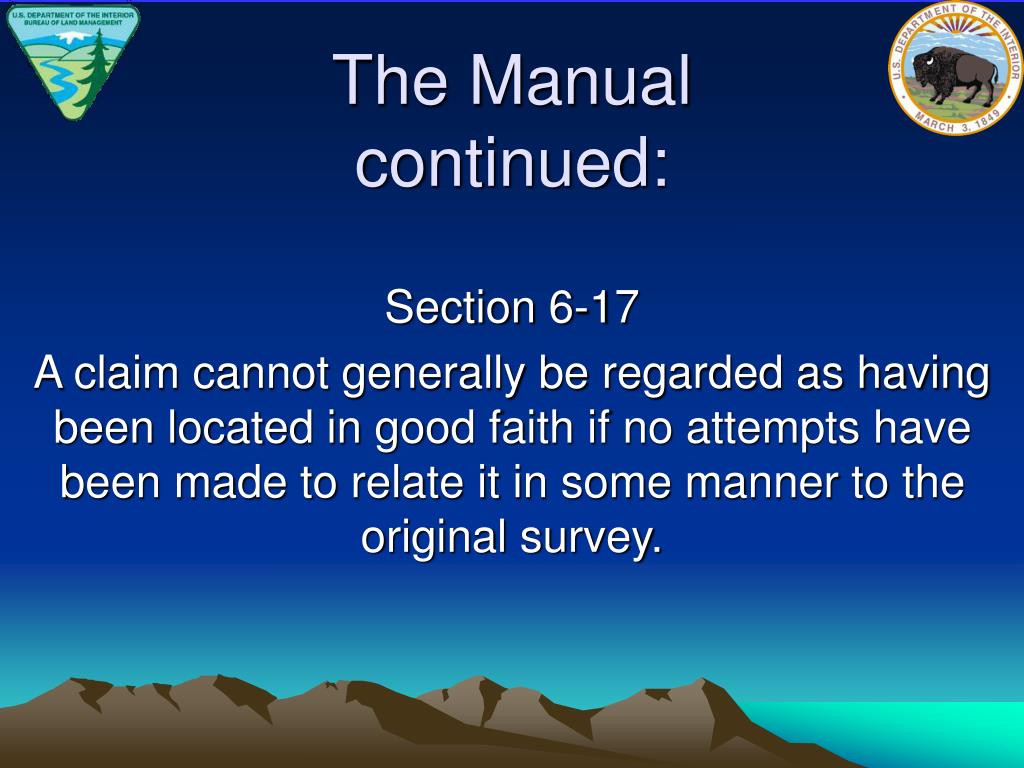

A claim cannot generally be regarded as having been located in good faith if no attempts have been made to relate it in some manner to the original survey.

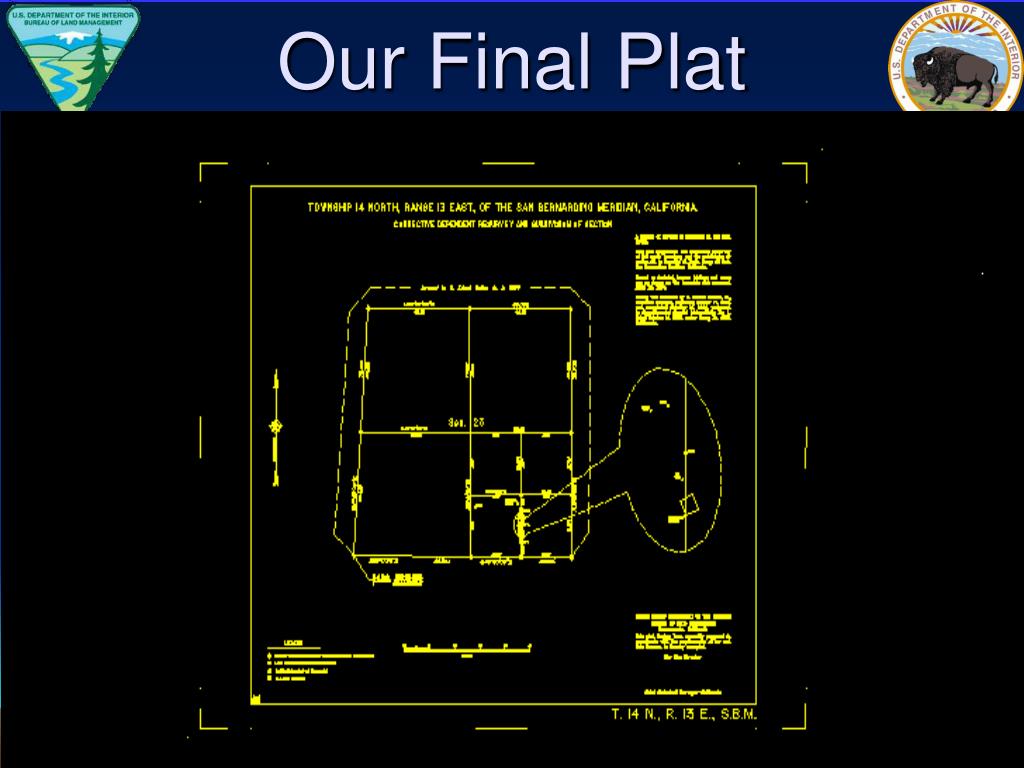

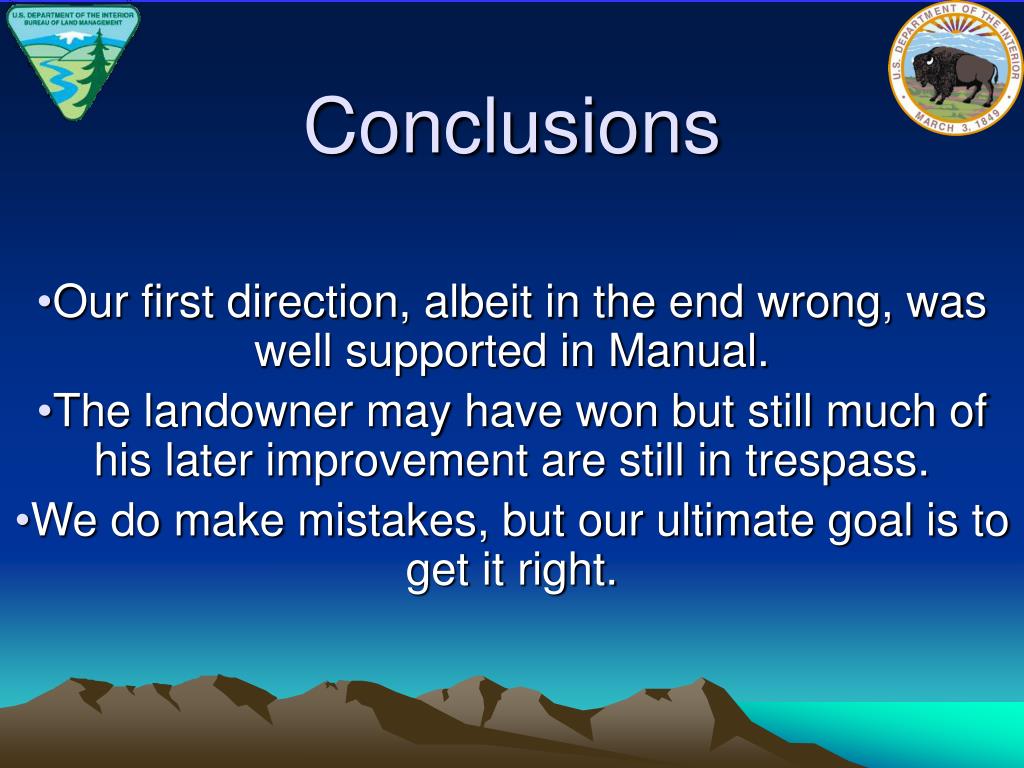

Our first direction, albeit in the end wrong, was well supported in Manual.

The landowner may have won but still much of his later improvement are still in trespass.

We do make mistakes, but our ultimate goal is to get it right.

January 29 2007

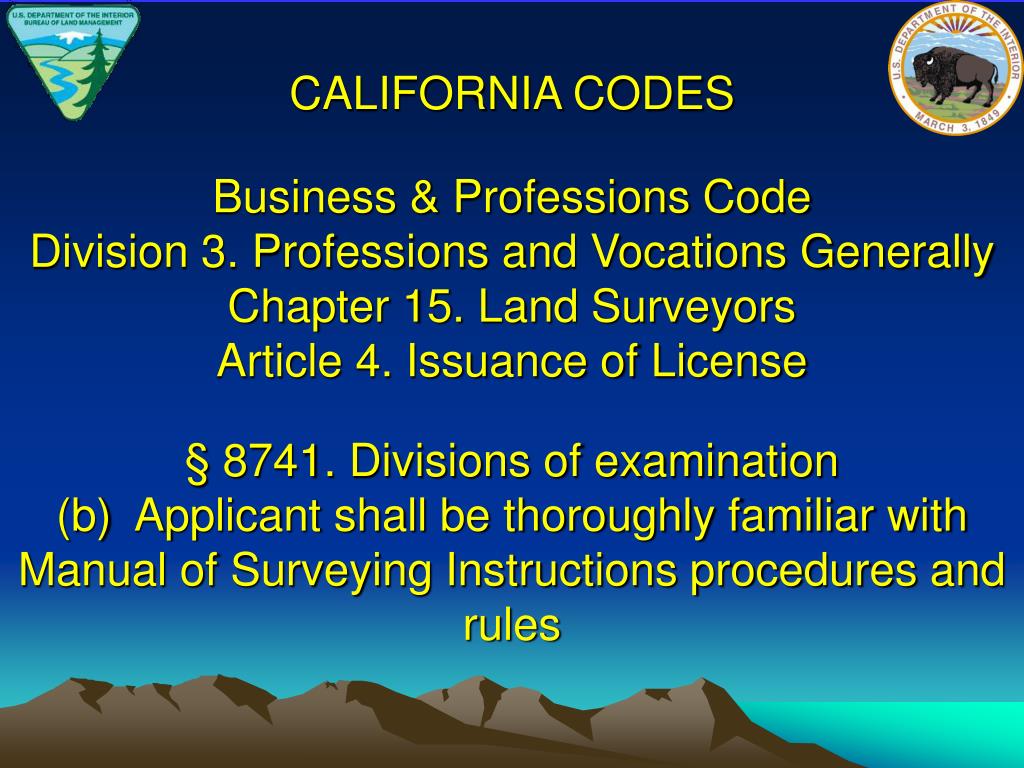

Business & Professions CodeDivision 3. Professions and Vocations GenerallyChapter 15. Land SurveyorsArticle 4. Issuance of License

§ 8741. Divisions of examination

(b) Applicant shall be thoroughly familiar with Manual of Surveying Instructions procedures and rules

January 29 2007

CALIFORNIA CODESBusiness & Professions CodeDivision 3. Professions and Vocations GenerallyChapter 15. Land SurveyorsArticle 5. Surveying Practice

§ 8773. Filing of written record of corner establishment or restoration required

(a) & (b) “Lost corner” - defined by the Manual

January 29 2007


Title 16. Professional and Vocational RegulationsDivision 5. Board for Professional Engineers and Land SurveyorsArticle 4. Miscellaneous

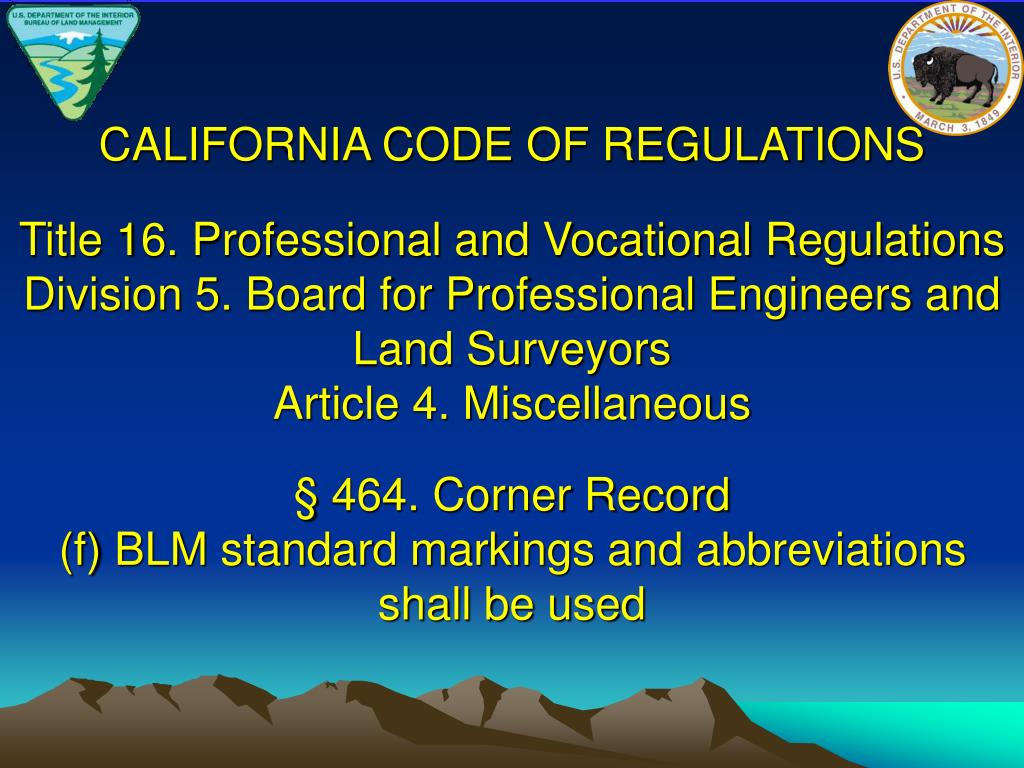

§ 464. Corner Record

(f) BLM standard markings and abbreviations shall be used

64 opinions of the attorney general 224 1981

Office of the Attorney General of the State of California

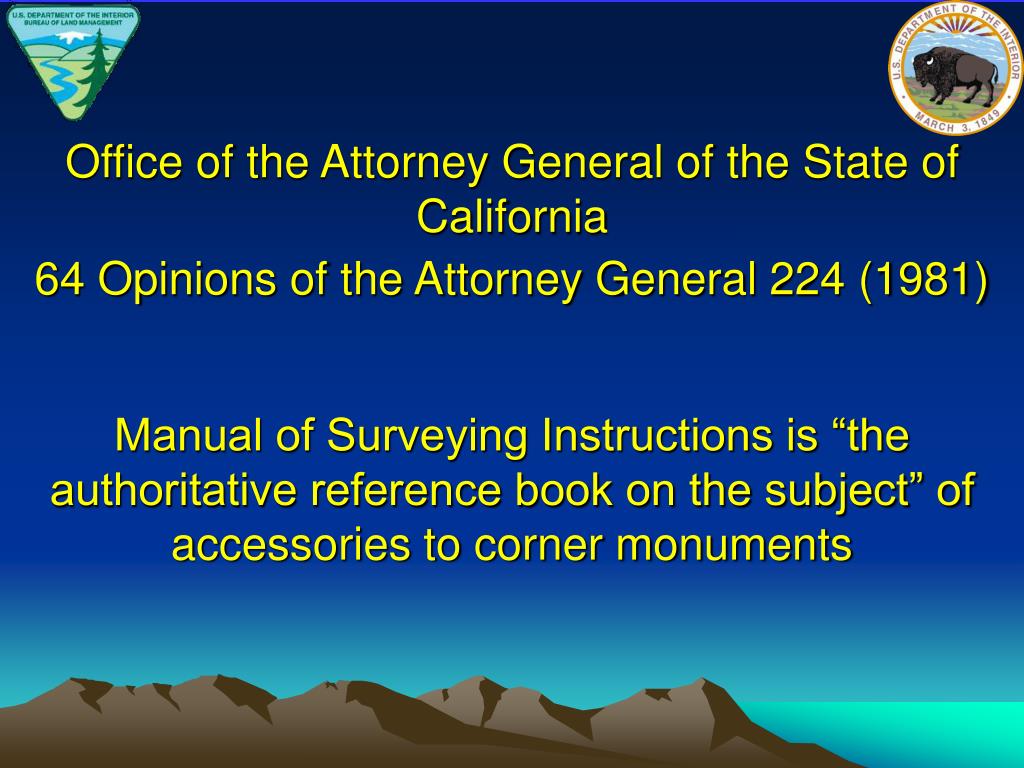

64 Opinions of the Attorney General 224 (1981)

Manual of Surveying Instructions is “the authoritative reference book on the subject” of accessories to corner monuments

January 29 2007

CALIFORNIA CODESEvidence CodeDivision 4. Judicial Notice§ 452. Matters which may be judicially noticed

Regulations of the land office

Actions of the BLM and of Departmental decisions

January 29 2007

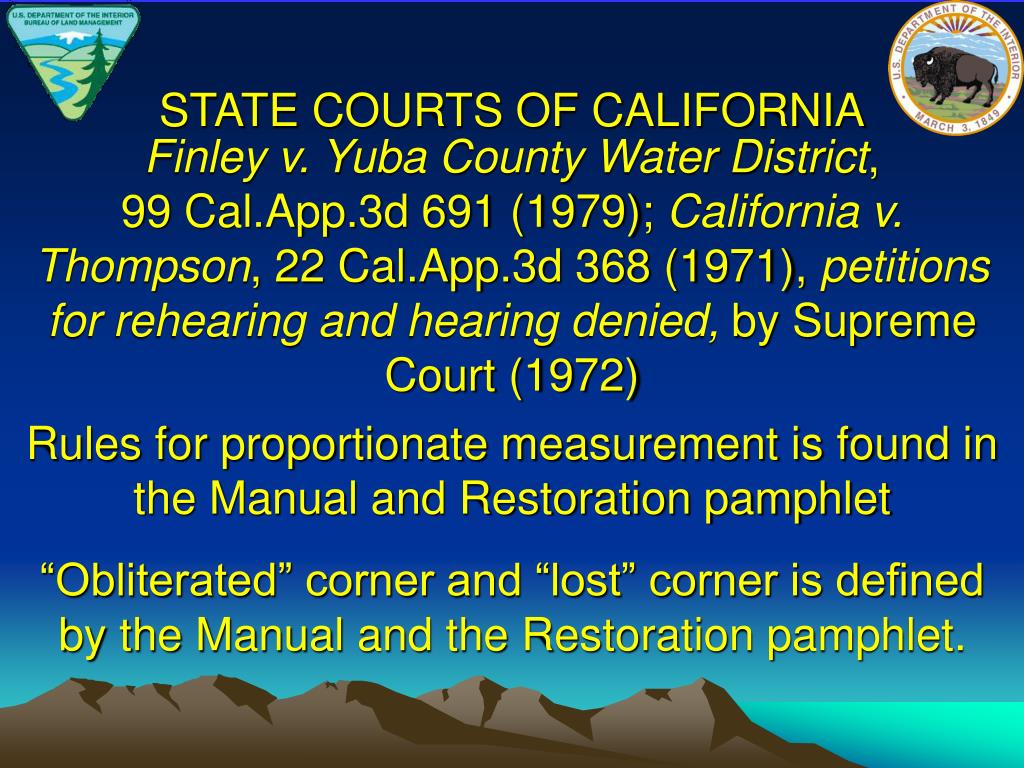

Finley v. Yuba County Water District,99 Cal.App.3d 691 (1979); California v. Thompson, 22 Cal.App.3d 368 (1971), petitions for rehearing and hearing denied, by Supreme Court (1972)

Rules for proportionate measurement is found in the Manual and Restoration pamphlet

“Obliterated” corner and “lost” corner is defined by the Manual and the Restoration pamphlet.

State courts of california reid v dunn 201 cal app 2d 612 1962 cert denied by supreme court 1962

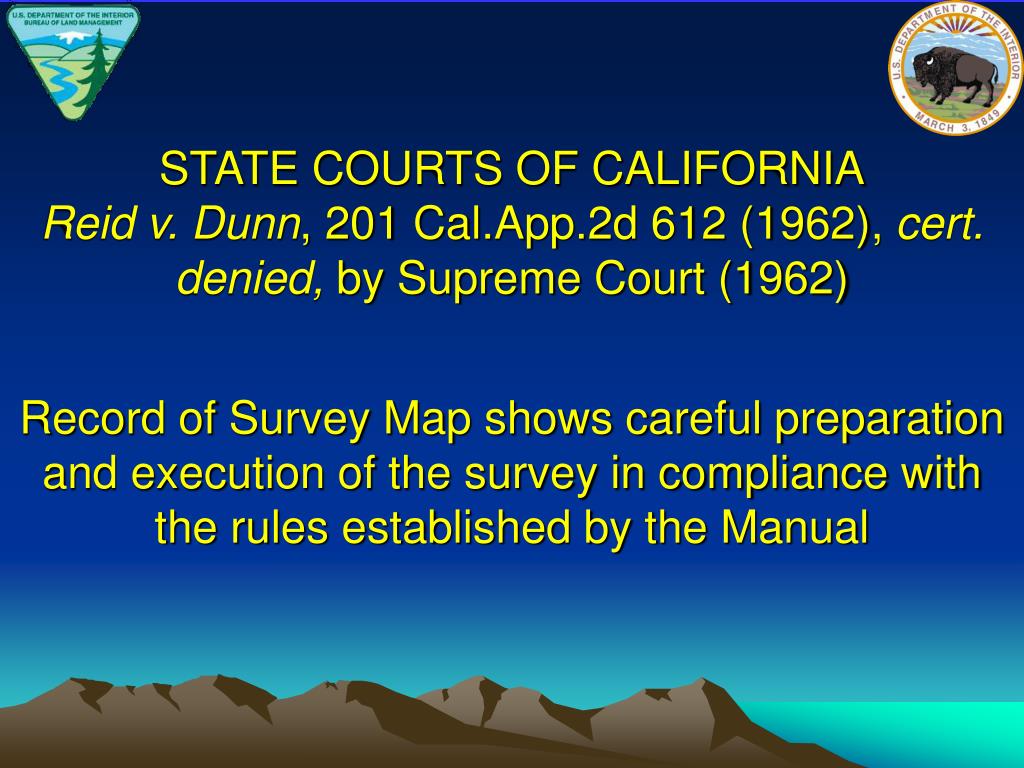

STATE COURTS OF CALIFORNIAReid v. Dunn, 201 Cal.App.2d 612 (1962), cert. denied, by Supreme Court (1962)

Record of Survey Map shows careful preparation and execution of the survey in compliance with the rules established by the Manual

January 29 2007

STATE COURTS OF CALIFORNIAHanes v. Hollow Tree Lumber Company, 191 Cal.App.2d 658 (1961), cert. denied, by Supreme Court (1961)

In unusual situations (up to one mile of distortion in original survey): unexplained or irreconcilable discrepancy, fictitious or grossly erroneous field notes – the Manual is quoted as the law in California

California case law of note county of yolo v nolan 144 cal 445 1904

CALIFORNIA CASE LAW of NOTECounty of Yolo v. Nolan, 144 Cal. 445 (1904)

Surveyor should endeavor to retrace the steps of the original surveyor

California case law of note weaver v howatt 161 cal 77 1911 171 cal 302 1915

CALIFORNIA CASE LAW of NOTEWeaver v. Howatt, 161 Cal. 77 (1911); 171 Cal. 302 (1915)

1) Field notes and survey plat constitute parts of the descriptions in the original patents;

2) Monuments and objects prevail over courses and distances;

3) Lost corners will be restored by proportionate measurement; except

California case law of note weaver v howatt 161 cal 77 1911 171 cal 302 19151

CALIFORNIA CASE LAW of NOTEWeaver v. Howatt, 161 Cal. 77 (1911); 171 Cal. 302 (1915)

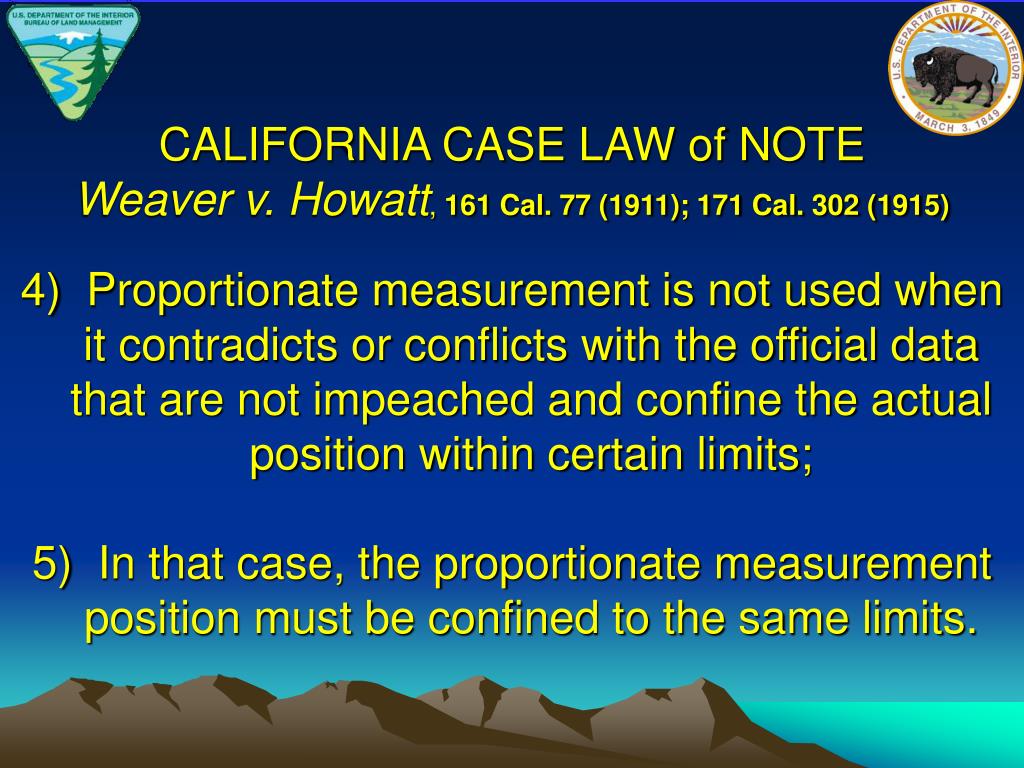

4) Proportionate measurement is not used when it contradicts or conflicts with the official data that are not impeached and confine the actual position within certain limits;

5) In that case, the proportionate measurement position must be confined to the same limits.

United states code title 43 public lands 2

UNITED STATES CODETitle 43 Public Lands § 2

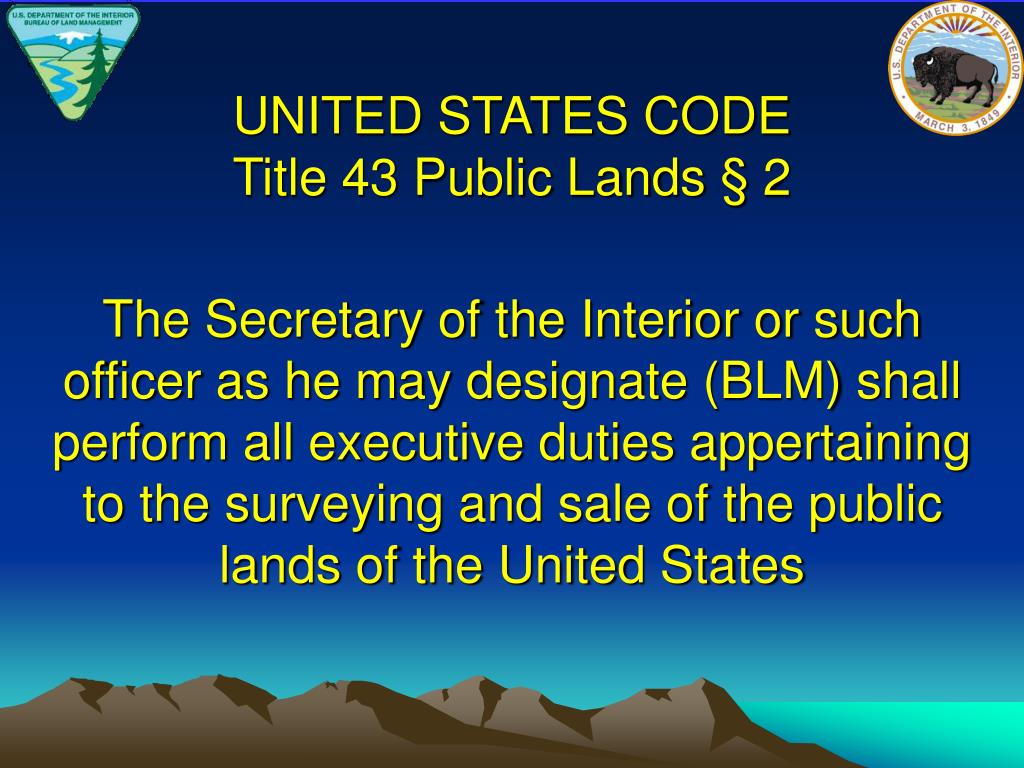

The Secretary of the Interior or such officer as he may designate (BLM) shall perform all executive duties appertaining to the surveying and sale of the public lands of the United States

January 29 2007

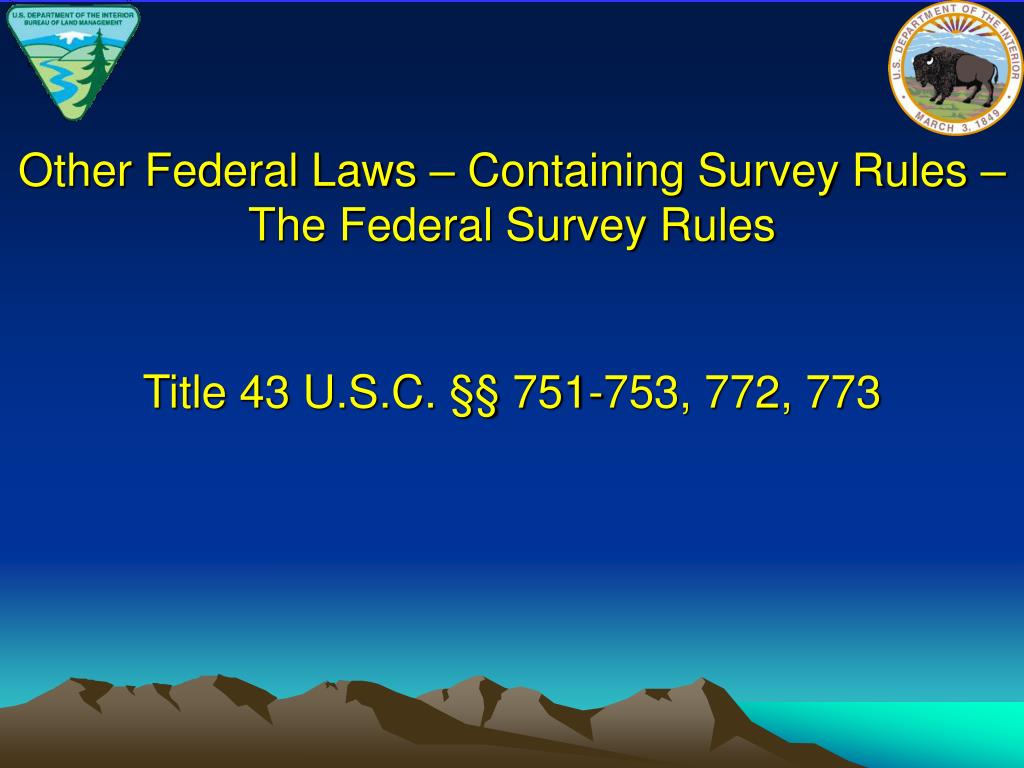

Other Federal Laws – Containing Survey Rules –

The Federal Survey Rules

Title 43 U.S.C. §§ 751-753, 772, 773

United states code title 25 indians 176

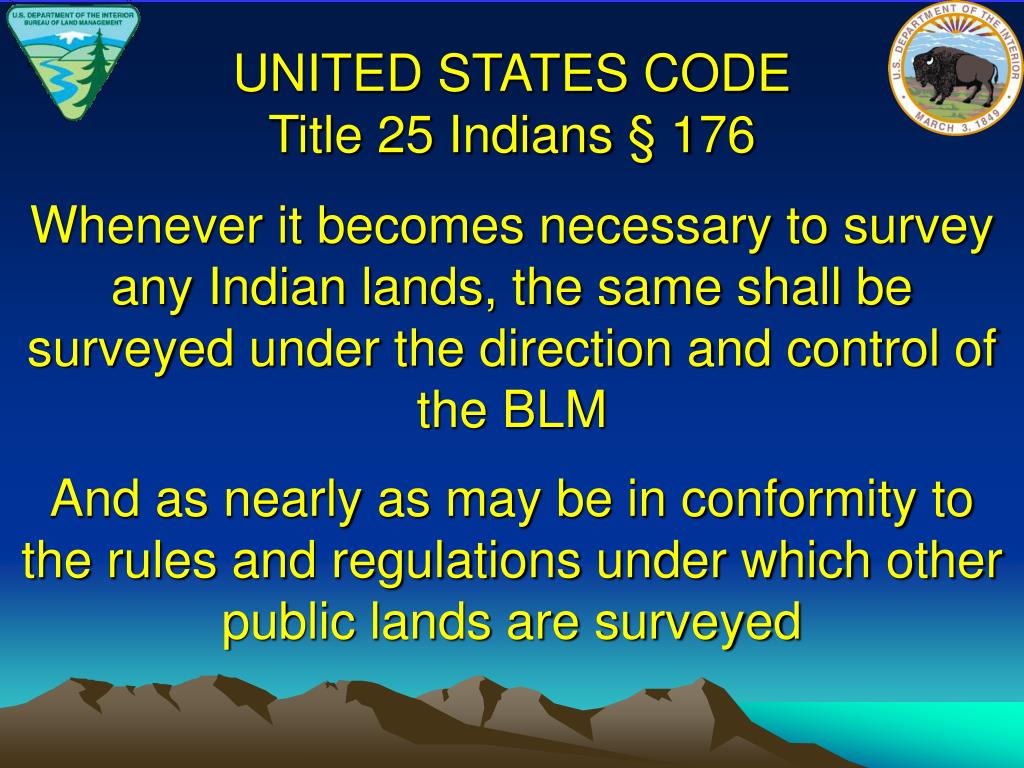

UNITED STATES CODETitle 25 Indians § 176

Whenever it becomes necessary to survey any Indian lands, the same shall be surveyed under the direction and control of the BLM

And as nearly as may be in conformity to the rules and regulations under which other public lands are surveyed

Interior board of land appeals howard vagneur 159 ibla 272 2003

1) BLM is authorized to resurvey the corners and lines of government surveys

INTERIOR BOARD OF LAND APPEALSHoward Vagneur, 159 IBLA 272 (2003)

2) BLM Survey Manual defines a resurvey

3) Manual defines ‘existent’ ‘obliterated’ and ‘lost’ corners

4) Manual provides guidance to surveyors on how to base a resurvey on the ‘best available evidence’

Interior board of land appeals howard vagneur 159 ibla 272 20031

INTERIOR BOARD OF LAND APPEALS government surveys Howard Vagneur, 159 IBLA 272 (2003)

5) BLM Official Surveys are presumed regular and

6) An accurate retracement and reestablishment of the lines of the original survey

January 29 2007

United States Supreme Court government surveys

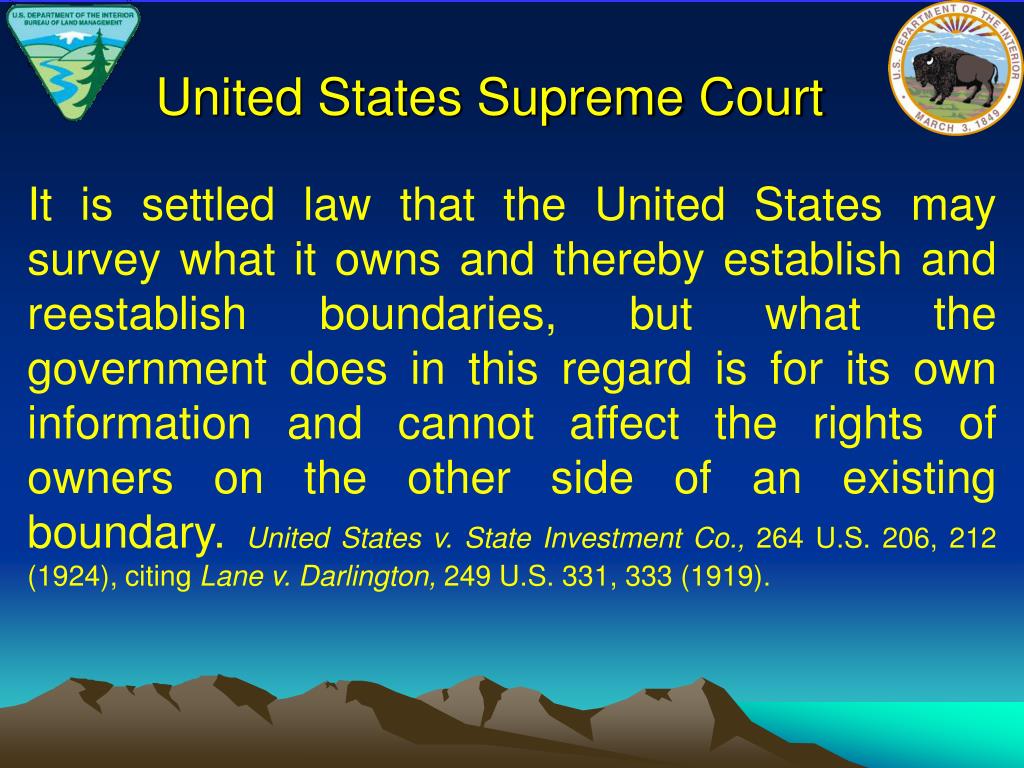

It is settled law that the United States may survey what it owns and thereby establish and reestablish boundaries, but what the government does in this regard is for its own information and cannot affect the rights of owners on the other side of an existing boundary. United States v. State Investment Co., 264 U.S. 206, 212 (1924), citing Lane v. Darlington, 249 U.S. 331, 333 (1919).

January 29 2007

MANUAL government surveys

The Manual of Surveying Instructions describes how cadastral surveys of the public lands are made in conformance to statutory law and its judicial interpretation. (1973 Manual § 1-1.)

It is within the province of the Director to determine what are public lands, what lands have been surveyed, what are to be surveyed, what have been disposed of, what remains to be disposed of, and what are reserved.

(1973 Manual § 1-11.)

January 29 2007

SUMMARY government surveys

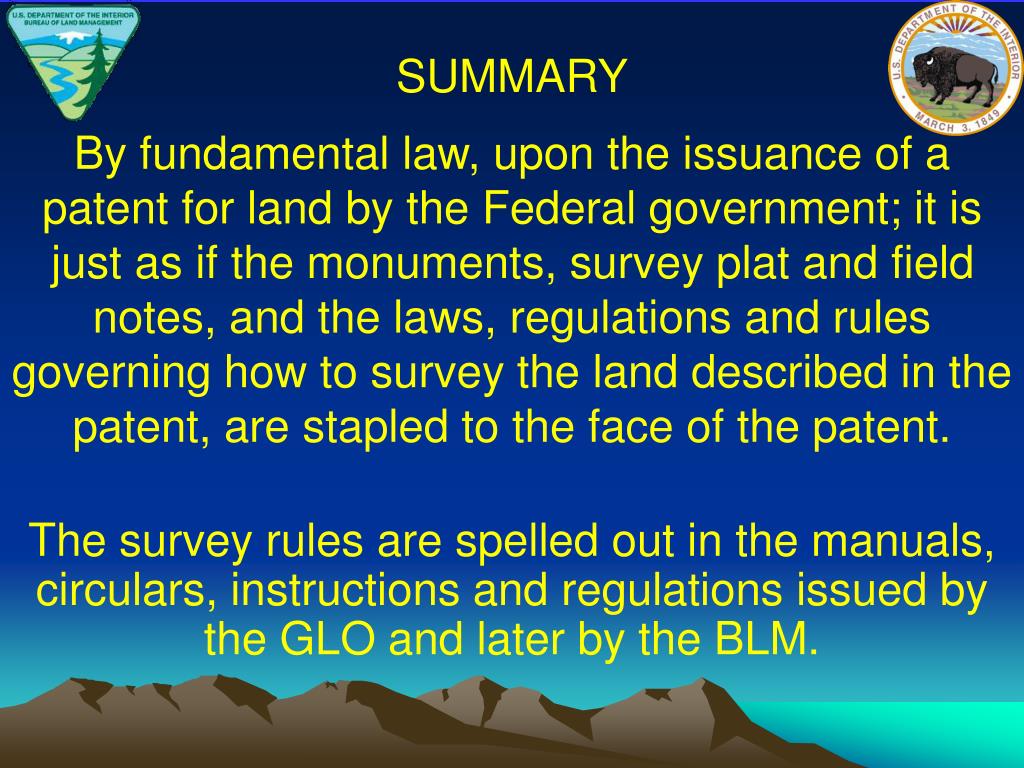

By fundamental law, upon the issuance of a patent for land by the Federal government; it is just as if the monuments, survey plat and field notes, and the laws, regulations and rules governing how to survey the land described in the patent, are stapled to the face of the patent.

The survey rules are spelled out in the manuals, circulars, instructions and regulations issued by the GLO and later by the BLM.

January 29 2007

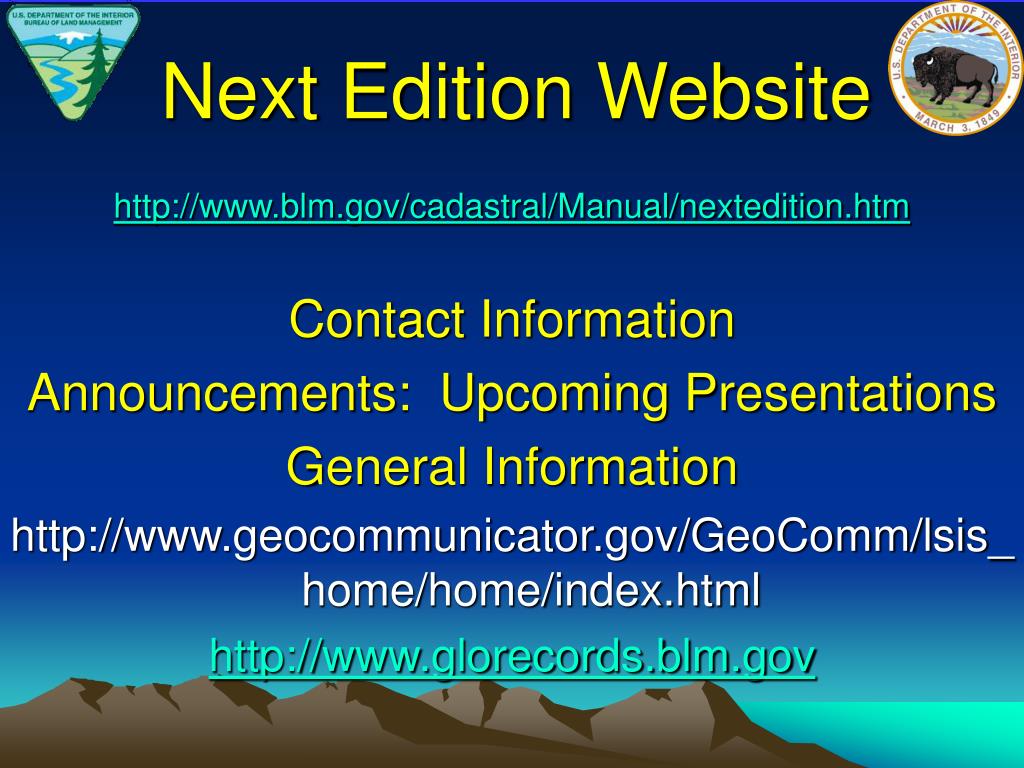

Next Edition Website government surveys


Contact Information

Announcements: Upcoming Presentations

General Information
