Introduction

1. Introduction to Avro and Integration with Hadoop Introduction

2. What is Avro? • Avro is a serialization framework developed within Apache's Hadoop project. It uses JSON for defining data types and protocols, and serializes data in a compact binary format. Its primary use is in Apache Hadoop, where it can provide both a serialization format for persistent data. • Avro provides good way to convert unstructured and semi-structured data into a structured way using schemas

3. Creating your first Avro schema • Schema description: • { • "name": "User", • "type": "record", • "fields": [ • {"name": "FirstName", "type": "string", "doc": "First Name"}, • {"name": "LastName", "type": "string"}, • {"name": "isActive", "type": "boolean", "default": true}, • {"name": "Account", "type": "int", "default": 0} ] • }

4. Avro schema features • Primitive types (null, boolean, int, long, float, double, bytes, string) • Records • { "type": "record", • "name": "LongList", • [ {"name": "value", "type": "long"}, • {"name": ”description", "type”:”string”}] • } • Others (Enums, Arrays, Maps,Unions,Fixed)

5. Avro schema features • Primitive types (null, boolean, int, long, float, double, bytes, string) • Records • { "type": "record", • "name": "LongList", • [ {"name": "value", "type": "long"}, • {"name": ”description", "type”:”string”}] • } • Others (Enums, Arrays, Maps,Unions,Fixed)

6. How to create Avro record? String schemaDescription = " { \n" + " \"name\": \"User\", \n" + " \"type\": \"record\",\n" + " \"fields\": [\n" + " {\"name\": \"FirstName\", \"type\": \"string\", \"doc\": \"First Name\"},\n" + " {\"name\": \"LastName\", \"type\": \"string\"},\n" + " {\"name\": \"isActive\", \"type\": \"boolean\", \"default\": true},\n" + " {\"name\": \"Account\", \"type\": \"int\", \"default\": 0} ]\n" + "}"; Schema.Parser parser = new Schema.Parser(); Schema s = parser.parse(schemaDescription); GenericRecordBuilder builder = new GenericRecordBuilder(s);

7. How to create Avro record? (cont. 2) The first step to create Avro record is to create JSON-based schema Avro provides parser that will take a Avro schema string and return schema object. Once the schema object is created, we have created a builder that will allow us to create records with default values

8. How to create Avro record? (cont. 3) GenericRecord r = builder.build(); System.out.println("Record" + r); r.put("FirstName", "Joe"); r.put("LastName", "Hadoop"); r.put("Account", 12345); System.out.println("Record" + r); System.out.println("FirstName:" + r.get("FirstName")); {"FirstName": null, "LastName": null, "isActive": true, "Account": 0} {"FirstName": "Joe", "LastName": "Hadoop", "isActive": true, "Account": 12345} FirstName:Joe

9. How to create Avro record? (cont. 3) GenericRecord r = builder.build(); System.out.println("Record" + r); r.put("FirstName", "Joe"); r.put("LastName", "Hadoop"); r.put("Account", 12345); System.out.println("Record" + r); System.out.println("FirstName:" + r.get("FirstName")); {"FirstName": null, "LastName": null, "isActive": true, "Account": 0} {"FirstName": "Joe", "LastName": "Hadoop", "isActive": true, "Account": 12345} FirstName:Joe

10. How to create Avro schema dynamically? String[] fields = {"FirstName", "LastName", "Account"}; Schema s = Schema.createRecord("Ex2", “desc", ”namespace", false); List<Schema.Field> lstFields = new LinkedList<Schema.Field>(); for (String f : fields) { lstFields.add(new Schema.Field(f, Schema.create(Schema.Type.STRING), "doc", new TextNode(""))); } s.setFields(lstFields);

11. How to create Avro schema dynamically? String[] fields = {"FirstName", "LastName", "Account"}; Schema s = Schema.createRecord("Ex2", “desc", ”namespace", false); List<Schema.Field> lstFields = new LinkedList<Schema.Field>(); for (String f : fields) { lstFields.add(new Schema.Field(f, Schema.create(Schema.Type.STRING), "doc", new TextNode(""))); } s.setFields(lstFields);

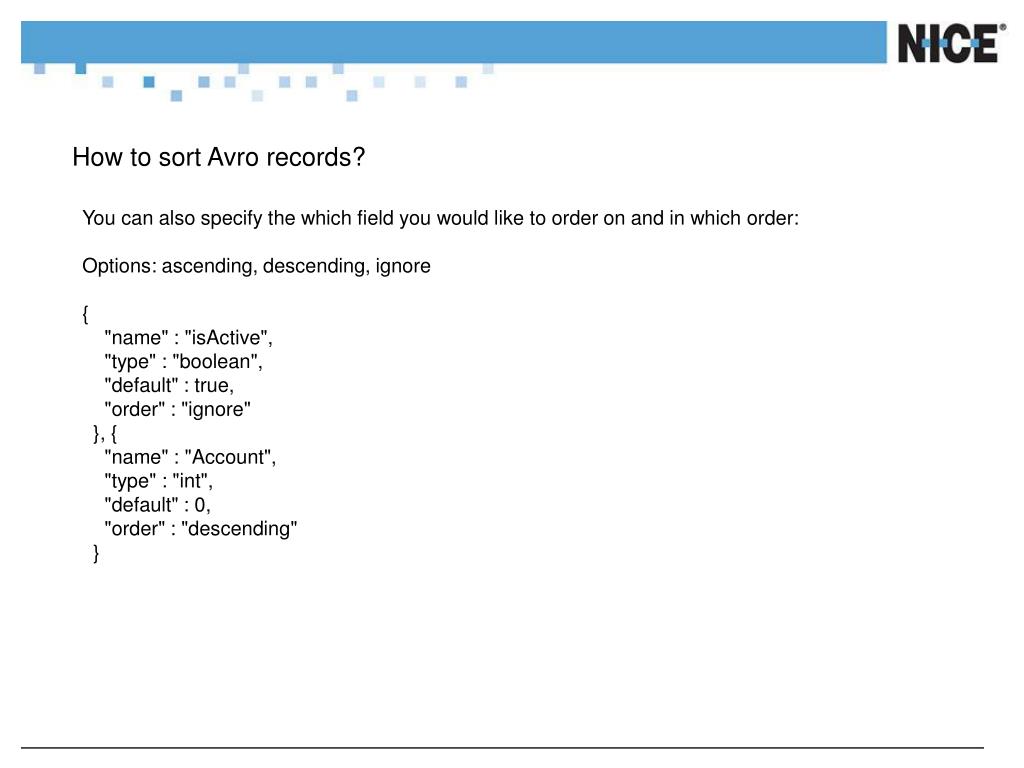

12. How to sort Avro records? You can also specify the which field you would like to order on and in which order: Options: ascending, descending, ignore { "name" : "isActive", "type" : "boolean", "default" : true, "order" : "ignore" }, { "name" : "Account", "type" : "int", "default" : 0, "order" : "descending" }

13. How to sort Avro records? You can also specify the which field you would like to order on and in which order: Options: ascending, descending, ignore { "name" : "isActive", "type" : "boolean", "default" : true, "order" : "ignore" }, { "name" : "Account", "type" : "int", "default" : 0, "order" : "descending" }

14. How to write Avro records in a file? File file = new File(“<file-name>"); DatumWriter<GenericRecord> writer = new GenericDatumWriter<GenericRecord>(schema); DataFileWriter<GenericRecord> dataFileWriter = new DataFileWriter<GenericRecord>(writer); dataFileWriter.create(schema, file); for (Record rec : list) { dataFileWriter.append(rec); } dataFileWriter.close();

15. How to reading Avro records from a file? File file = new File(“<file-name>"); DatumWriter<GenericRecord> writer = new GenericDatumWriter<GenericRecord>(schema); DataFileWriter<GenericRecord> dataFileWriter = new DataFileWriter<GenericRecord>(writer); dataFileWriter.create(schema, file); for (Record rec : list) { dataFileWriter.append(rec); } dataFileWriter.close();

16. How to read Avro records from a file? File file = new File(“<file-name>"); DatumReader<GenericRecord> reader = new GenericDatumReader<GenericRecord>(); DataFileReader<GenericRecord> dataFileReader = new DataFileReader<GenericRecord>(file, reader); while (dataFileReader.hasNext()) { Record r = (Record) dataFileReader.next(); System.out.println(r.toString()); }

17. Running MapReduce Jobs on Avro Data 1. Set input schema on AvroJob based on the schema from input path File file = new File(DATA_PATH); DatumReader<GenericRecord> reader = new GenericDatumReader<GenericRecord>(); DataFileReader<GenericRecord> dataFileReader = new DataFileReader<GenericRecord>(file, reader); Schema s = dataFileReader.getSchema(); AvroJob.setInputSchema(job, s);

18. Running MapReduce Jobs on Avro Data (cont. 2) 1. Set input schema on AvroJob based on the schema from input path File file = new File(DATA_PATH); DatumReader<GenericRecord> reader = new GenericDatumReader<GenericRecord>(); DataFileReader<GenericRecord> dataFileReader = new DataFileReader<GenericRecord>(file, reader); Schema s = dataFileReader.getSchema(); AvroJob.setInputSchema(job, s);

19. Running MapReduce Jobs on Avro Data - Mapper public static class MapImplextends AvroMapper<GenericRecord, Pair<String, GenericRecord>> { public void map( GenericRecord datum, AvroCollector<Pair<String, GenericRecord>> collector, Reporter reporter) throws IOException { …. } }

20. Running MapReduce Jobs on Avro Data - Reducer public static class ReduceImpl extends AvroReducer<Utf8, GenericRecord, GenericRecord> { public void reduce(Utf8 key, Iterable<GenericRecord> values, AvroCollector< GenericRecord> collector, Reporter reporter) throws IOException { collector.collect(values.iterator().next()); return; } }

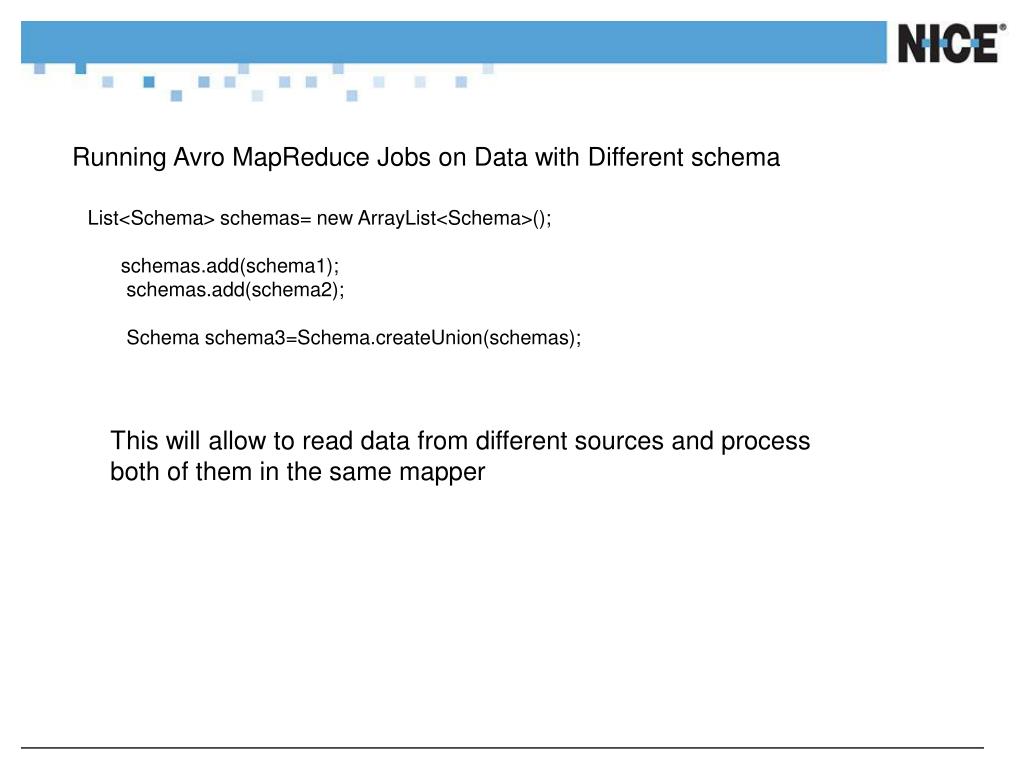

21. Running Avro MapReduce Jobs on Data with Different schema List<Schema> schemas= new ArrayList<Schema>(); schemas.add(schema1); schemas.add(schema2); Schema schema3=Schema.createUnion(schemas); This will allow to read data from different sources and process both of them in the same mapper

22. Summary • Avro is a great tool to use for semi-structured and structured data • Simplifies MapReduce development • Provides good compression mechanism • Great tool for conversion from existing SQL code • Questions?
