  1. 800D The heart of every great machine

  2. Emissions Legislation

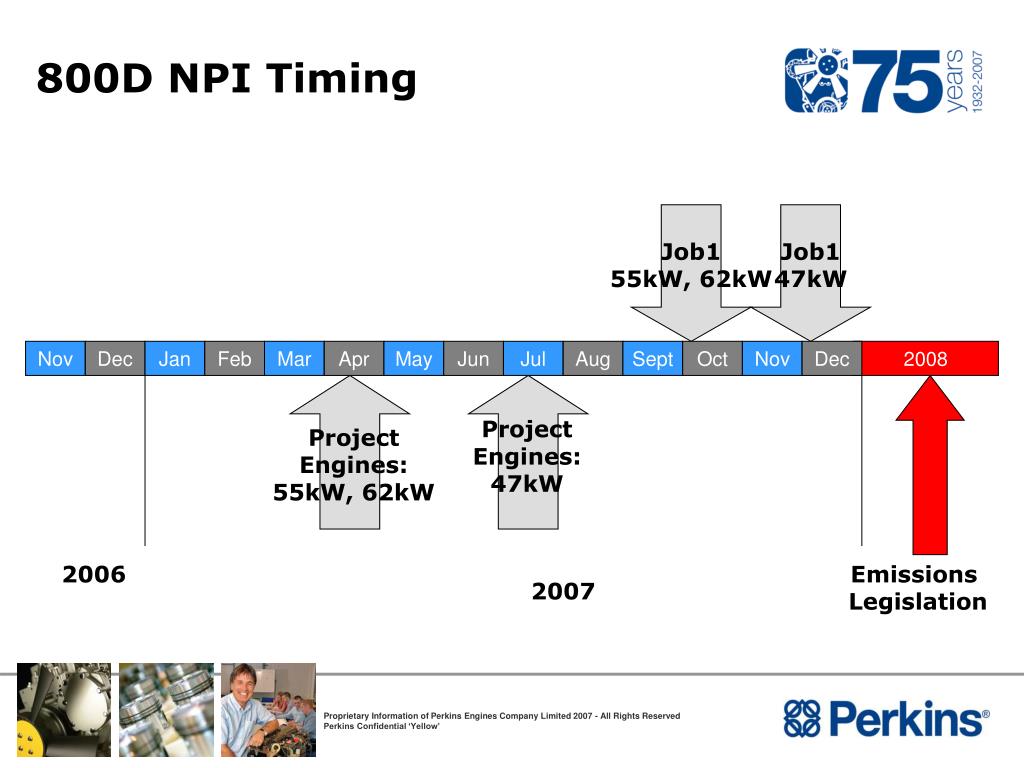

  3. 800D NPI Timing Job1 55kW, 62kW Job1 47kW Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sept Oct Nov Dec 2008 Project Engines: 47kW Project Engines: 55kW, 62kW 2006 Emissions Legislation 2007

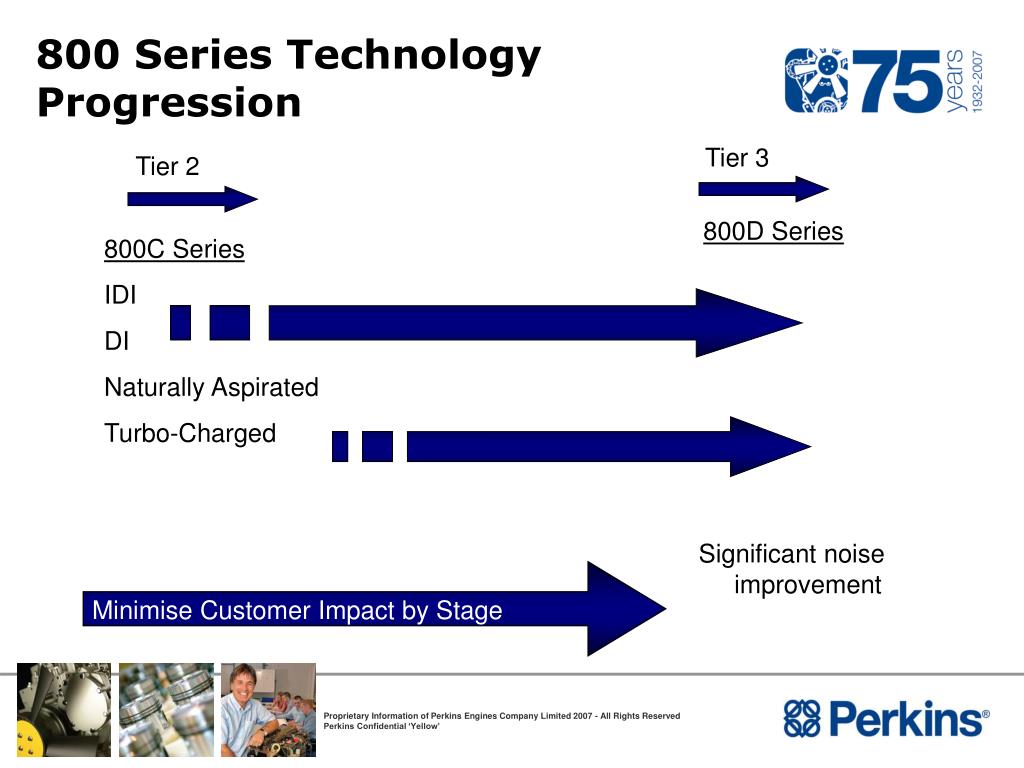

  4. 800 Series Technology Progression Tier 3 Tier 2 800D Series Significant noise improvement 800C Series IDI DI Naturally Aspirated Turbo-Charged Minimise Customer Impact by Stage

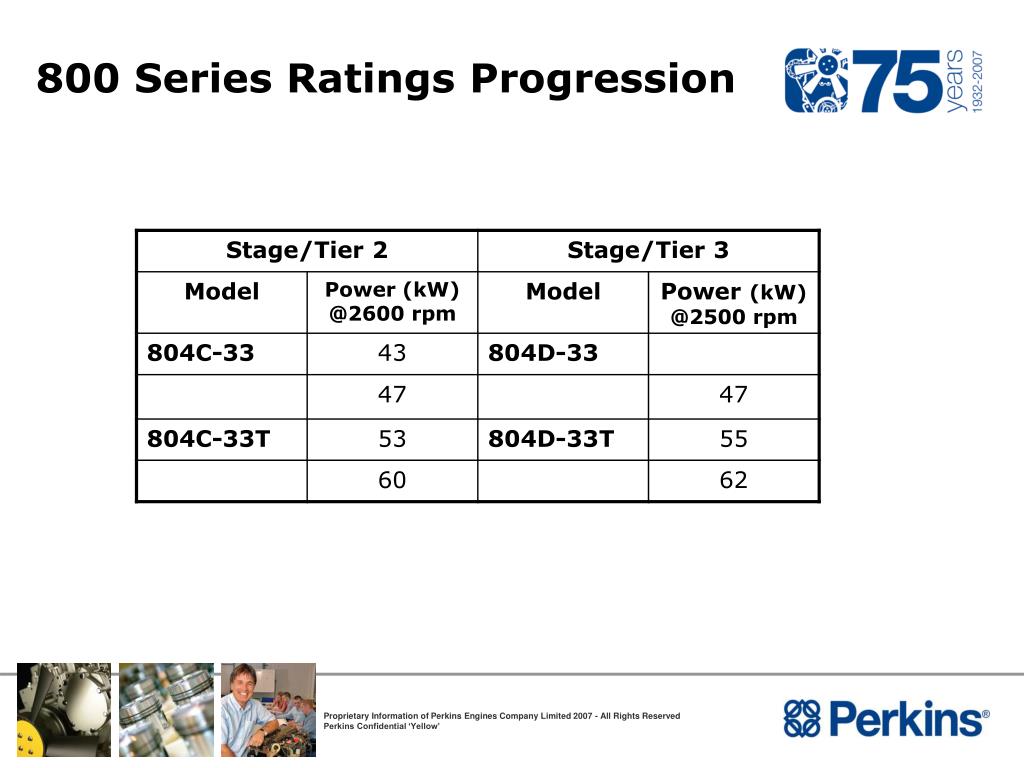

  5. 800 Series Ratings Progression

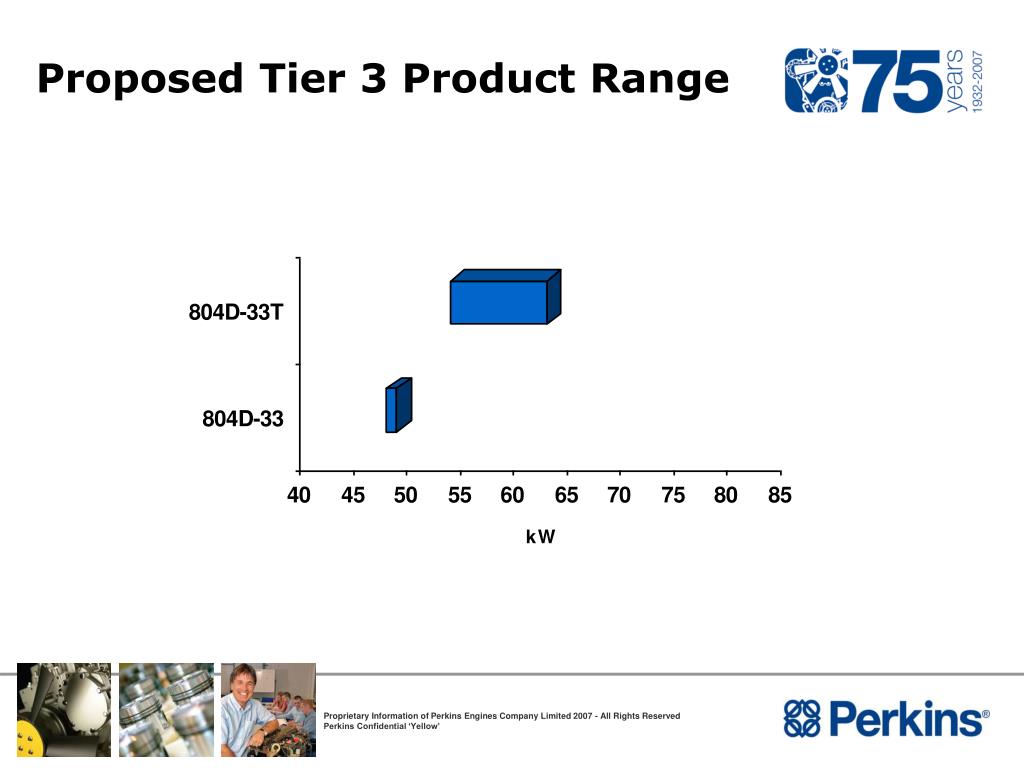

  6. Proposed Tier 3 Product Range

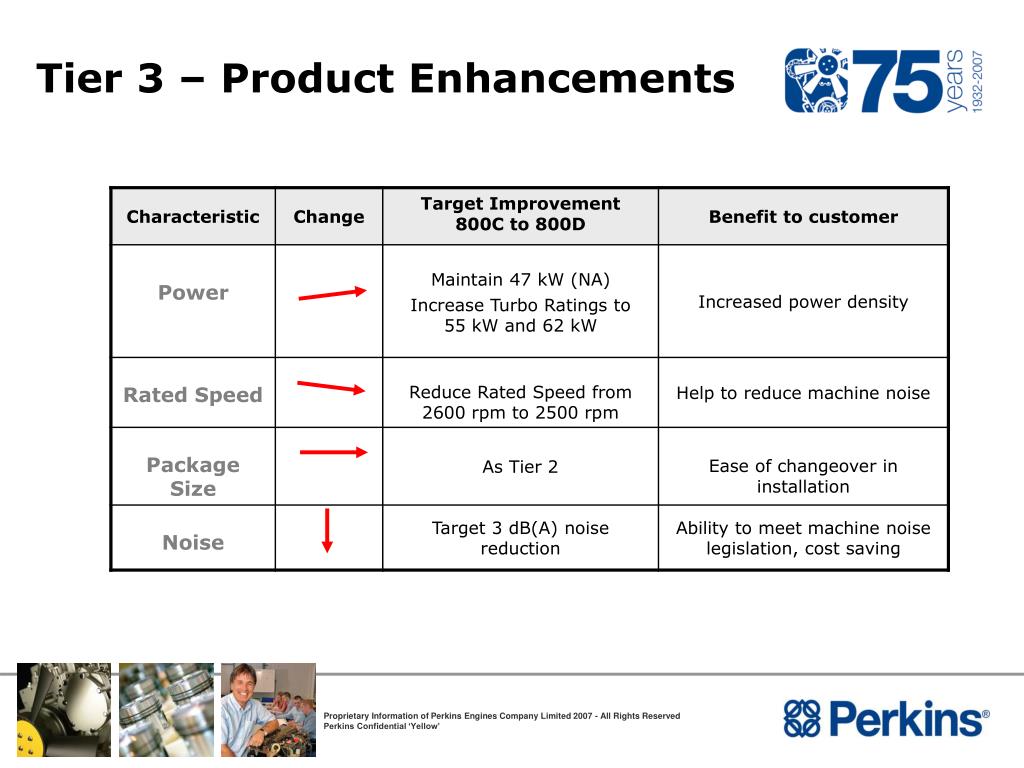

  7. Tier 3 – Product Enhancements

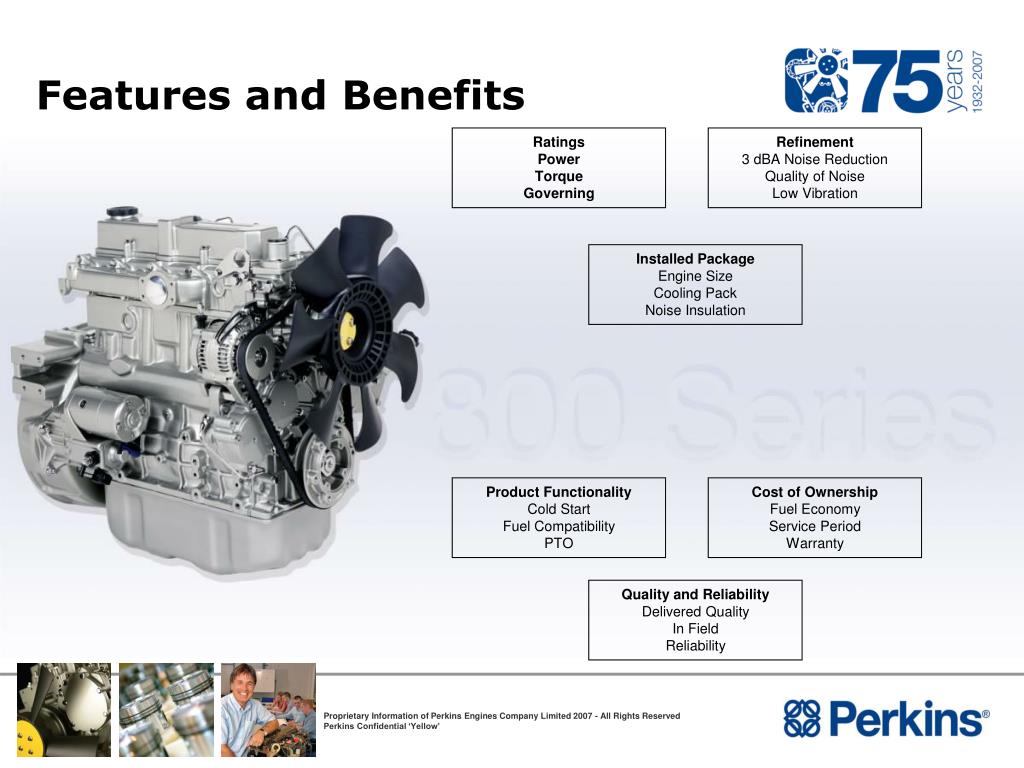

  8. Features and Benefits Ratings Power Torque Governing Refinement 3 dBA Noise Reduction Quality of Noise Low Vibration Installed Package Engine Size Cooling Pack Noise Insulation Product Functionality Cold Start Fuel Compatibility PTO Cost of Ownership Fuel Economy Service Period Warranty Quality and Reliability Delivered Quality In Field Reliability

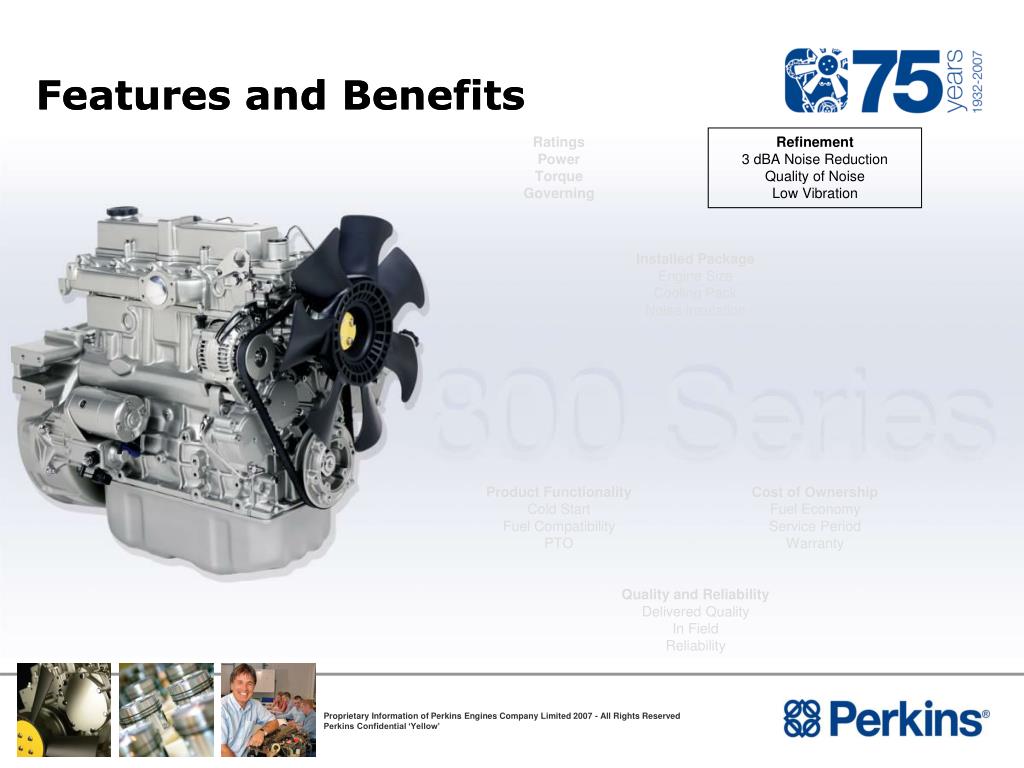

  9. Features and Benefits Ratings Power Torque Governing Refinement 3 dBA Noise Reduction Quality of Noise Low Vibration Installed Package Engine Size Cooling Pack Noise Insulation Product Functionality Cold Start Fuel Compatibility PTO Cost of Ownership Fuel Economy Service Period Warranty Quality and Reliability Delivered Quality In Field Reliability

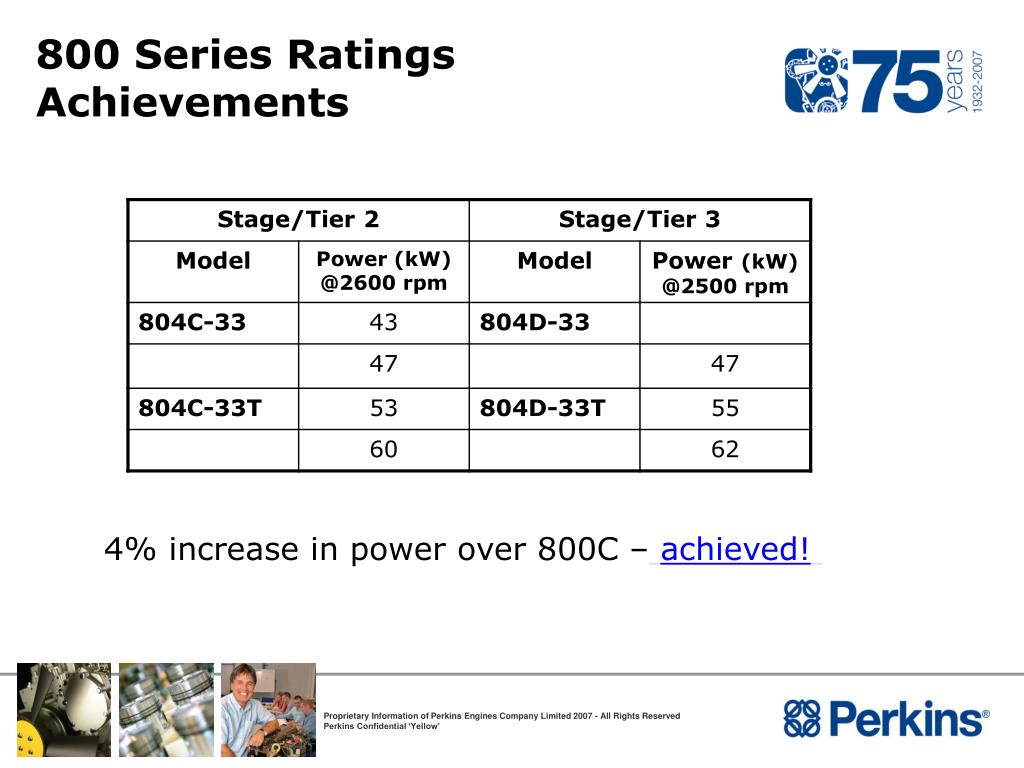

  10. 800 Series Ratings Achievements 4% increase in power over 800C –achieved!

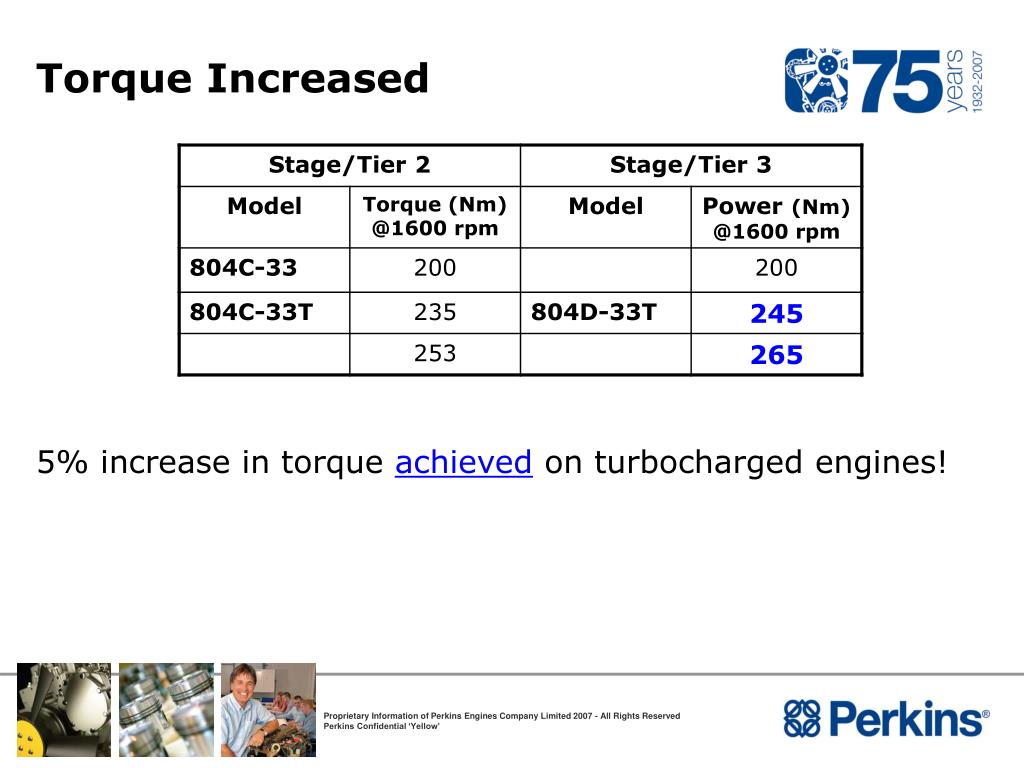

  11. Torque Increased 5% increase in torque achieved on turbocharged engines!

  12. Features and Benefits Features and Benefits Ratings Power Torque Governing Refinement 3 dBA Noise Reduction Quality of Noise Low Vibration Installed Package Engine Size Cooling Pack Noise Insulation Product Functionality Cold Start Fuel Compatibility PTO Cost of Ownership Fuel Economy Service Period Warranty Quality and Reliability Delivered Quality In Field Reliability

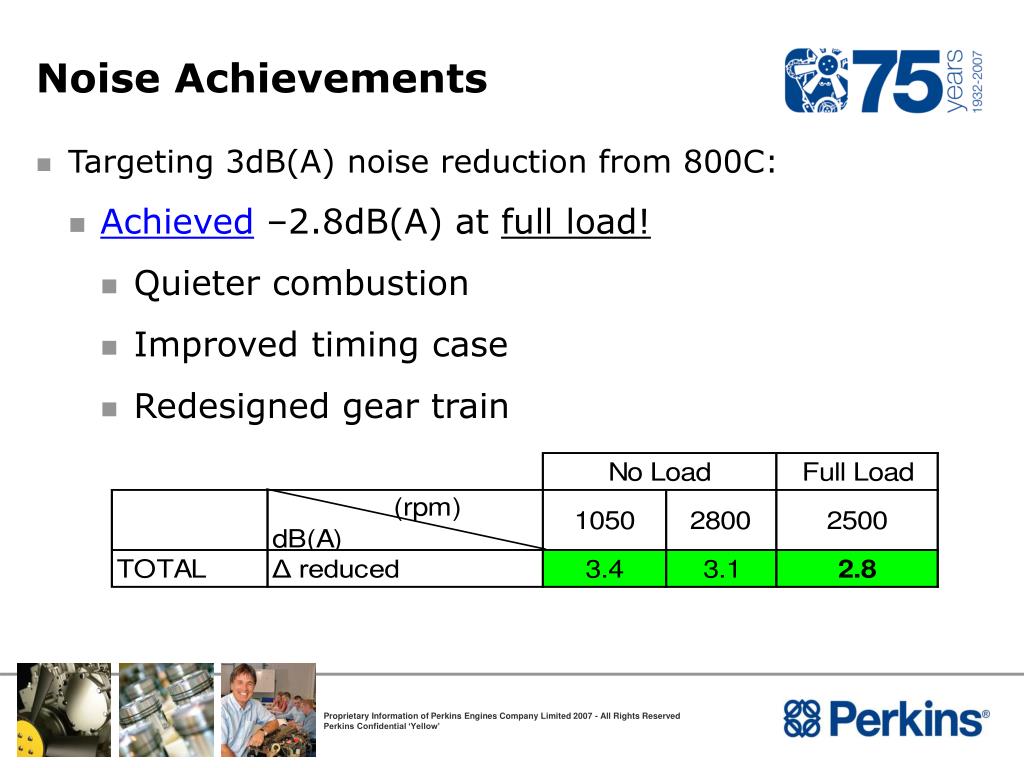

  13. Noise Achievements • Targeting 3dB(A) noise reduction from 800C: • Achieved –2.8dB(A) at full load! • Quieter combustion • Improved timing case • Redesigned gear train

  14. Features and Benefits Features and Benefits Ratings Power Torque Governing Refinement 3 dBA Noise Reduction Quality of Noise Low Vibration Installed Package Engine Size Cooling Pack Noise Insulation Product Functionality Cold Start Fuel Compatibility PTO Cost of Ownership Fuel Economy Service Period Warranty Quality and Reliability Delivered Quality In Field Reliability

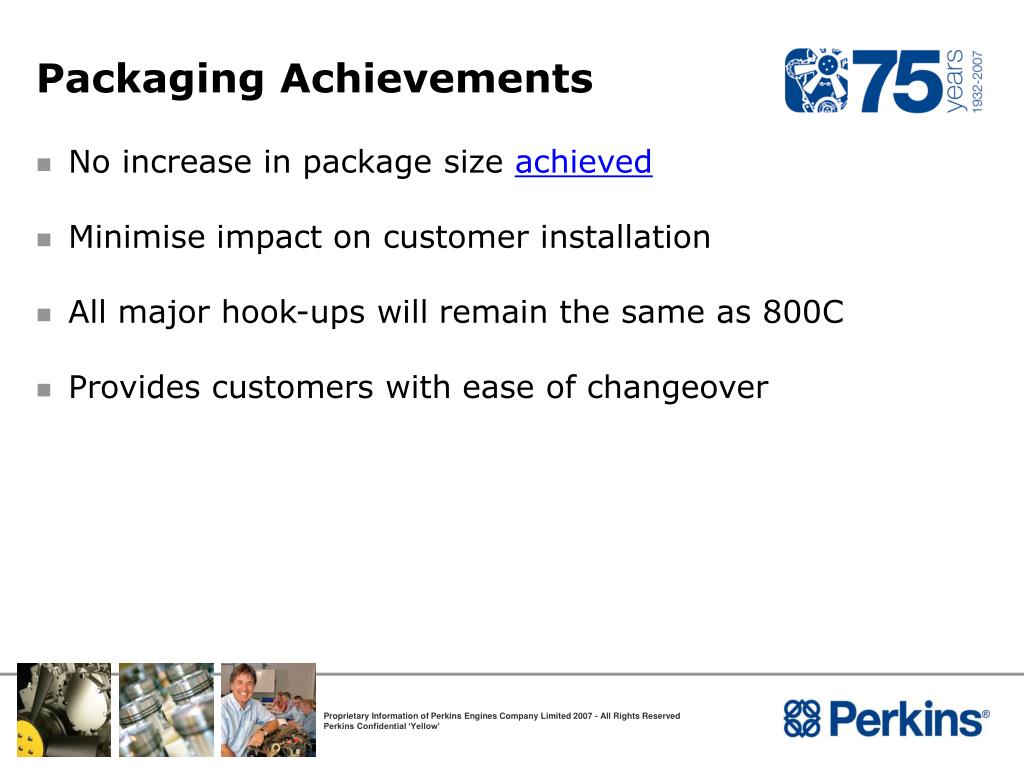

  15. Packaging Achievements • No increase in package size achieved • Minimise impact on customer installation • All major hook-ups will remain the same as 800C • Provides customers with ease of changeover

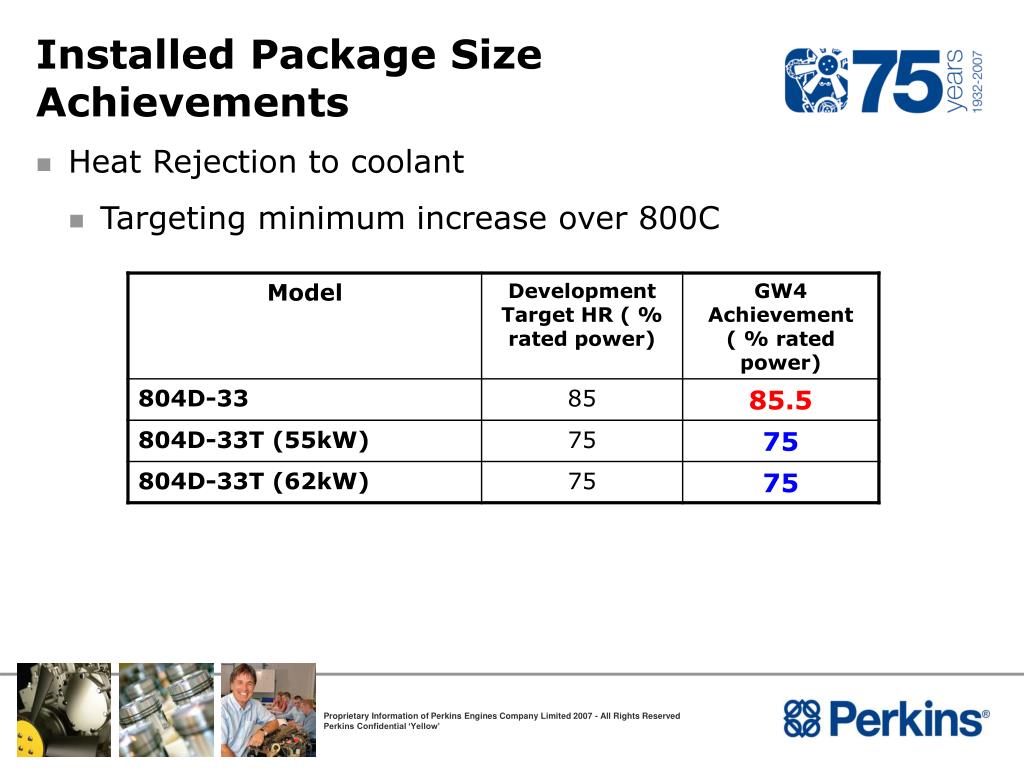

  16. Installed Package Size Achievements • Heat Rejection to coolant • Targeting minimum increase over 800C

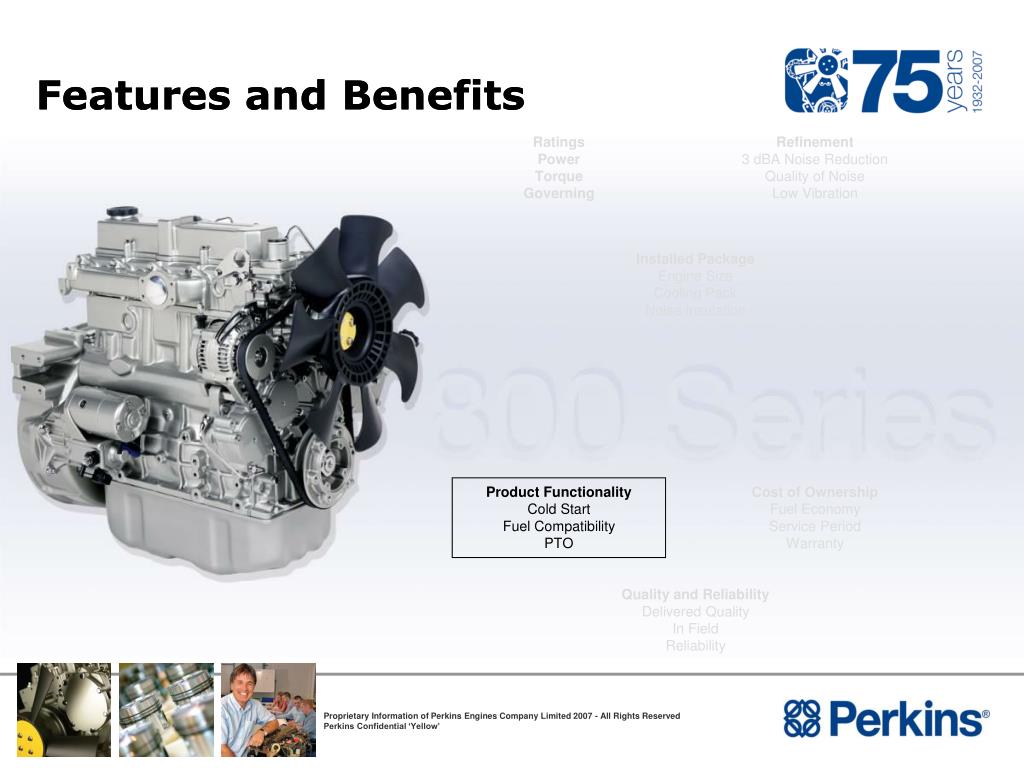

  17. Features and Benefits Features and Benefits Ratings Power Torque Governing Refinement 3 dBA Noise Reduction Quality of Noise Low Vibration Installed Package Engine Size Cooling Pack Noise Insulation Product Functionality Cold Start Fuel Compatibility PTO Cost of Ownership Fuel Economy Service Period Warranty Quality and Reliability Delivered Quality In Field Reliability

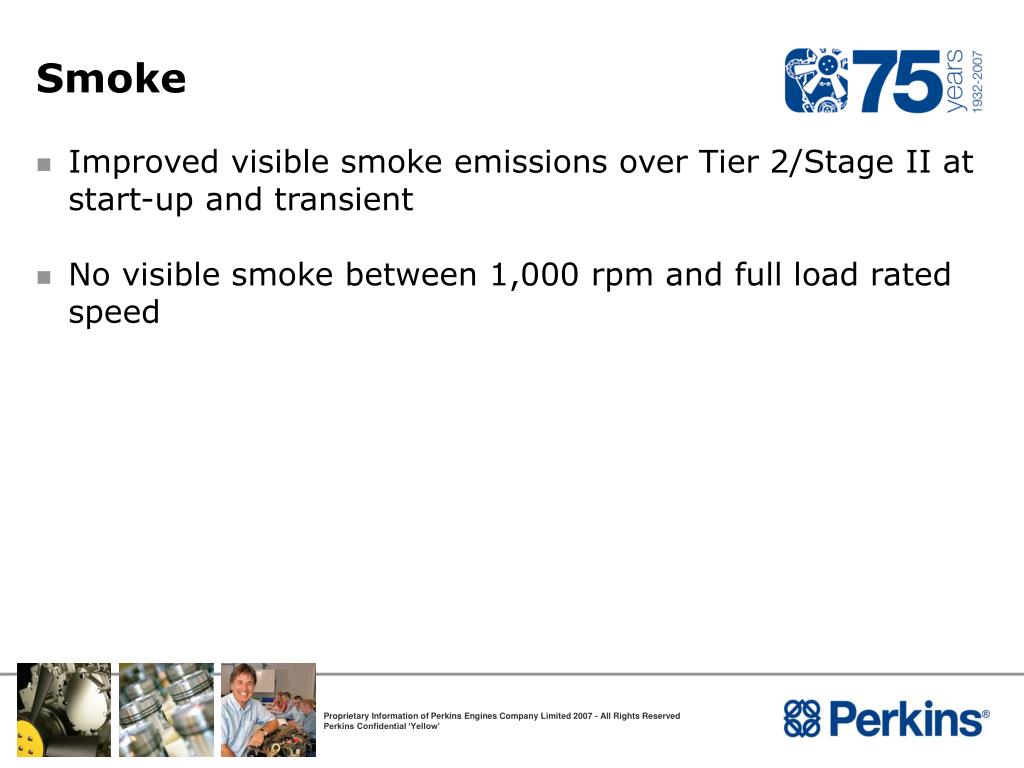

  18. Smoke • Improved visible smoke emissions over Tier 2/Stage II at start-up and transient • No visible smoke between 1,000 rpm and full load rated speed

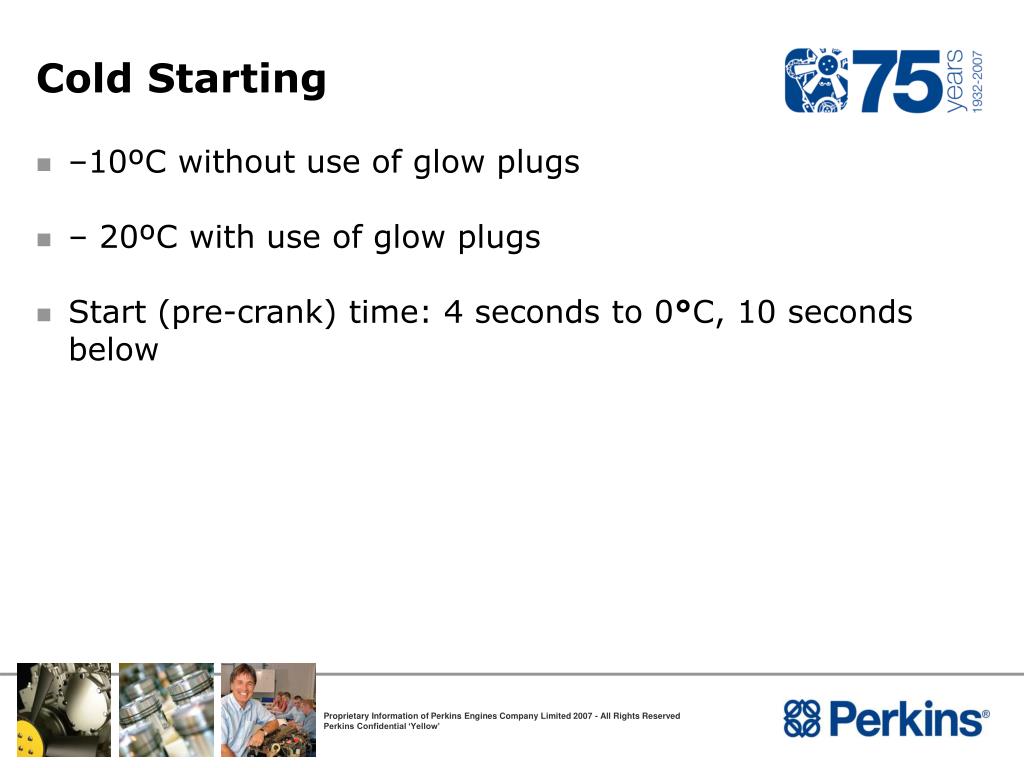

  19. Cold Starting • –10ºC without use of glow plugs • – 20ºC with use of glow plugs • Start (pre-crank) time: 4 seconds to 0°C, 10 seconds below

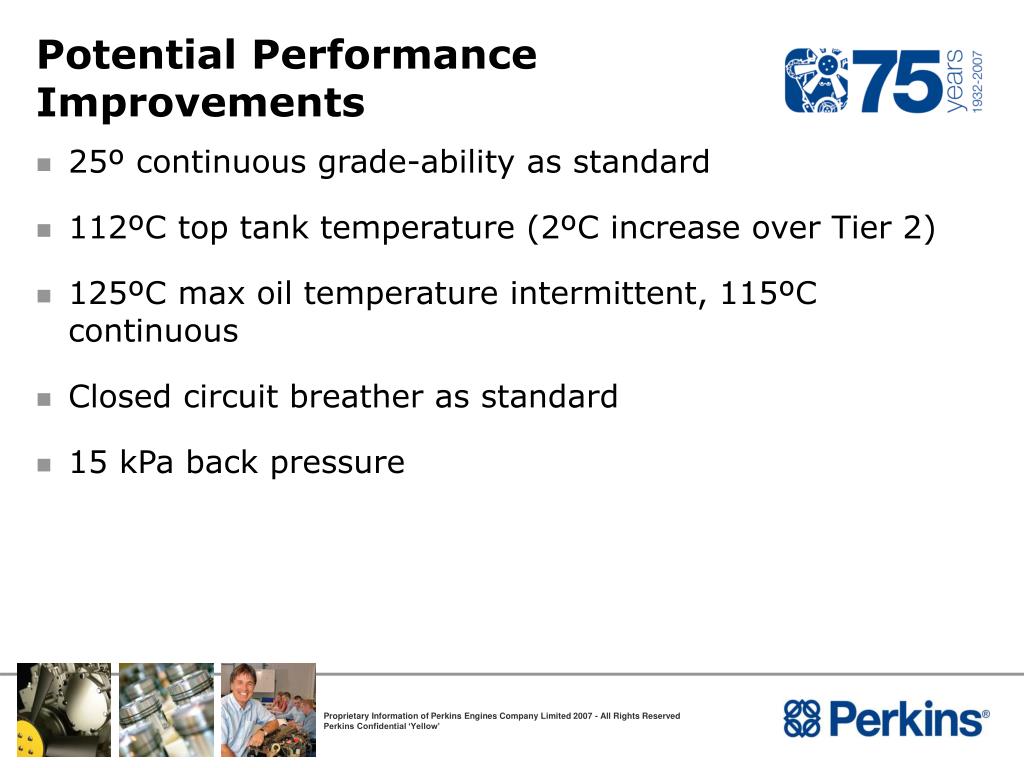

  20. Potential Performance Improvements • 25º continuous grade-ability as standard • 112ºC top tank temperature (2ºC increase over Tier 2) • 125ºC max oil temperature intermittent, 115ºC continuous • Closed circuit breather as standard • 15 kPa back pressure

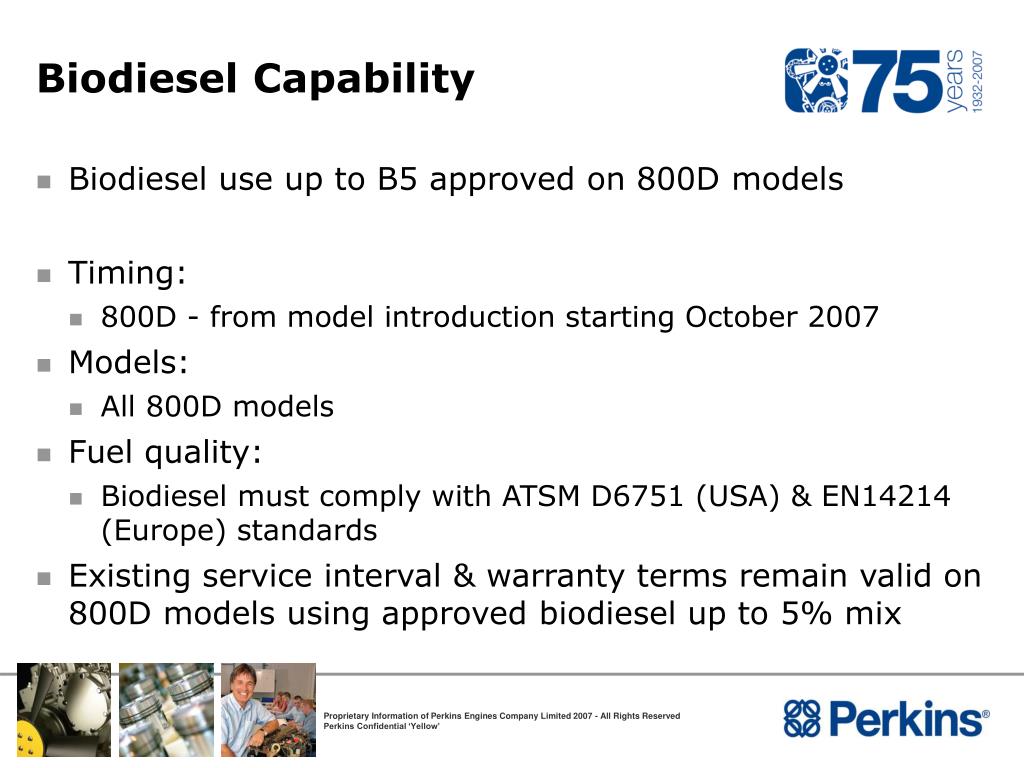

  21. Biodiesel Capability • Biodiesel use up to B5 approved on 800D models • Timing: • 800D - from model introduction starting October 2007 • Models: • All 800D models • Fuel quality: • Biodiesel must comply with ATSM D6751 (USA) & EN14214 (Europe) standards • Existing service interval & warranty terms remain valid on 800D models using approved biodiesel up to 5% mix

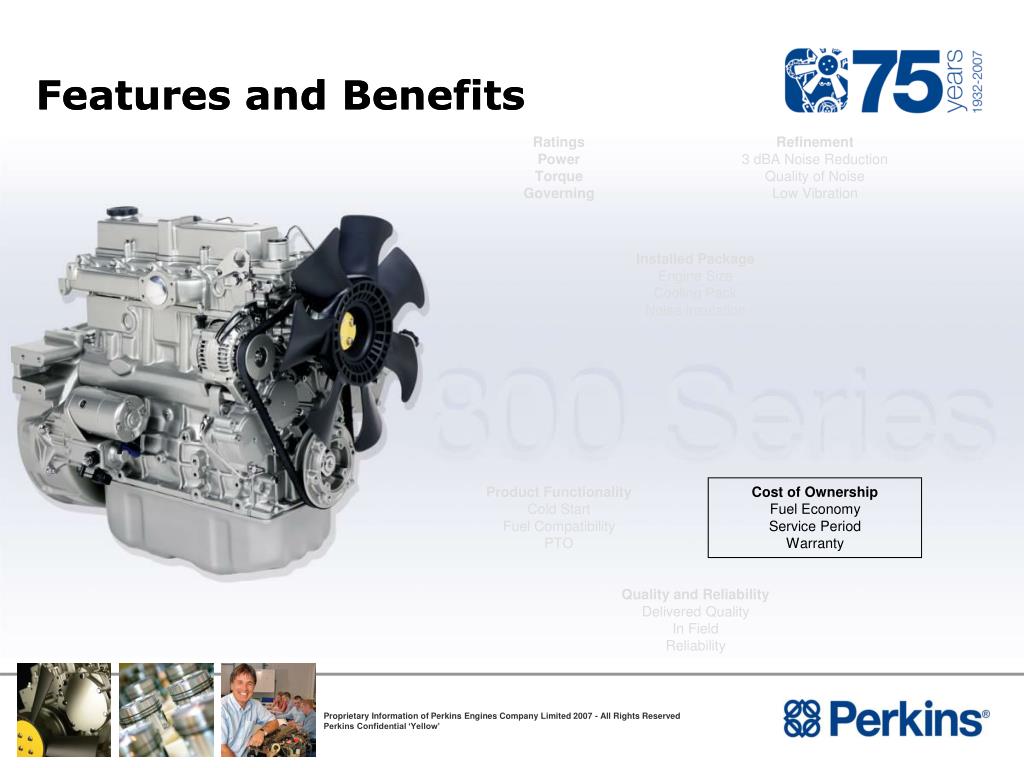

  22. Features and Benefits Features and Benefits Ratings Power Torque Governing Refinement 3 dBA Noise Reduction Quality of Noise Low Vibration Installed Package Engine Size Cooling Pack Noise Insulation Product Functionality Cold Start Fuel Compatibility PTO Cost of Ownership Fuel Economy Service Period Warranty Quality and Reliability Delivered Quality In Field Reliability

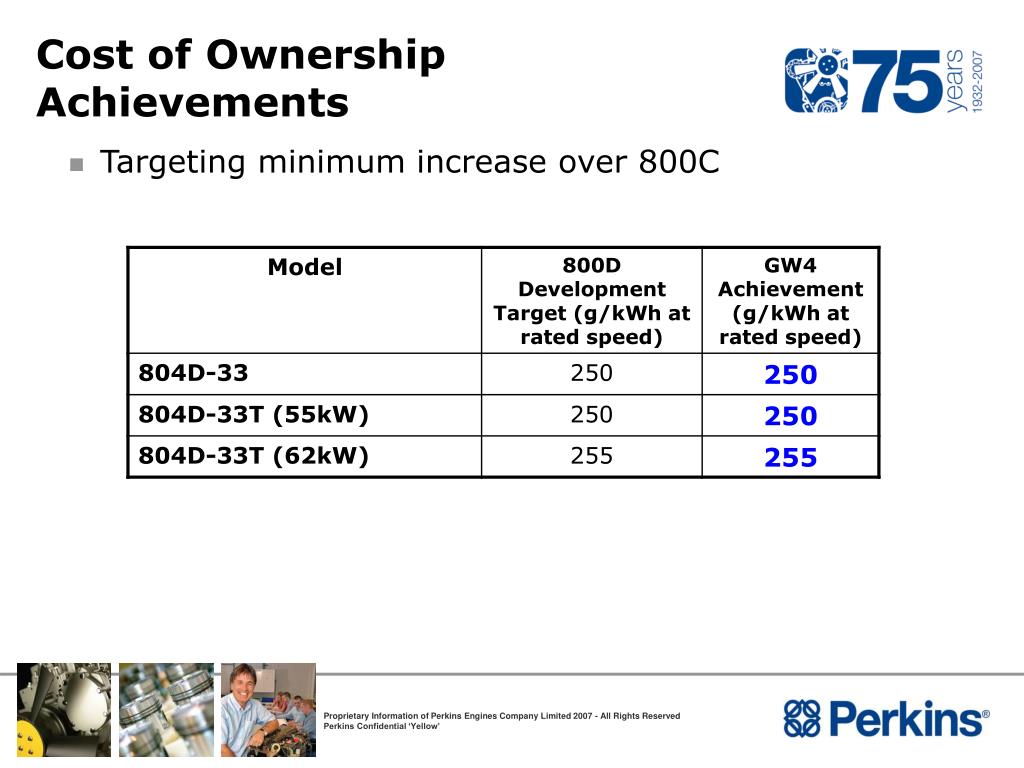

  23. Cost of Ownership Achievements • Targeting minimum increase over 800C

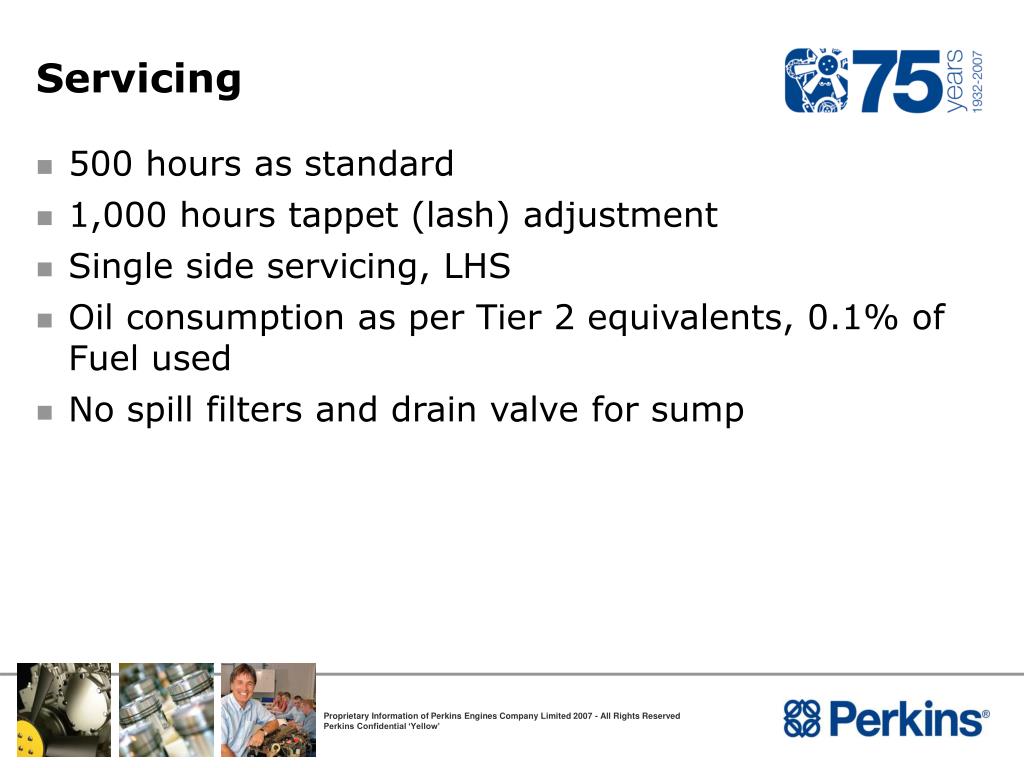

  24. Servicing • 500 hours as standard • 1,000 hours tappet (lash) adjustment • Single side servicing, LHS • Oil consumption as per Tier 2 equivalents, 0.1% of Fuel used • No spill filters and drain valve for sump

  25. Warranty • Industrial warranty terms • Full engine: 24 months / 3000 hours whichever expires first • Major components: 36 months • Low usage ie 500 hours or less per annum: 36 months / 1,500 hours whichever is first to occur • Alternators and starter motors: 12 months

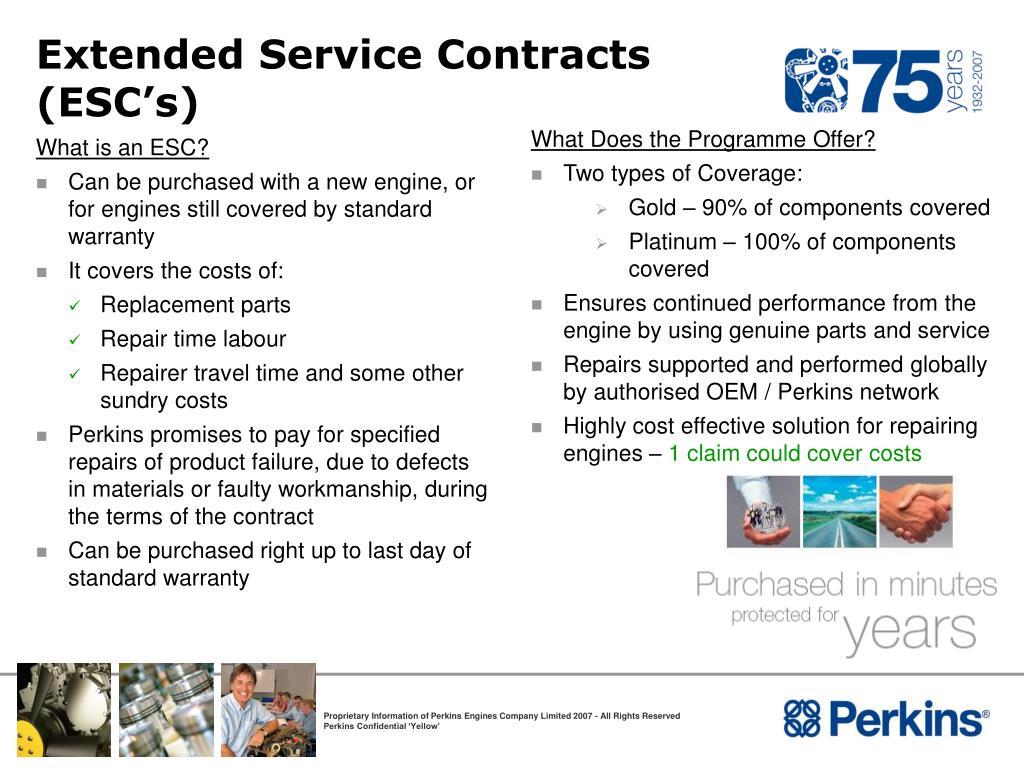

  26. What Does the Programme Offer? Two types of Coverage: Gold – 90% of components covered Platinum – 100% of components covered Ensures continued performance from the engine by using genuine parts and service Repairs supported and performed globally by authorised OEM / Perkins network Highly cost effective solution for repairing engines – 1 claim could cover costs What is an ESC? Can be purchased with a new engine, or for engines still covered by standard warranty It covers the costs of: Replacement parts Repair time labour Repairer travel time and some other sundry costs Perkins promises to pay for specified repairs of product failure, due to defects in materials or faulty workmanship, during the terms of the contract Can be purchased right up to last day of standard warranty Extended Service Contracts (ESC’s)

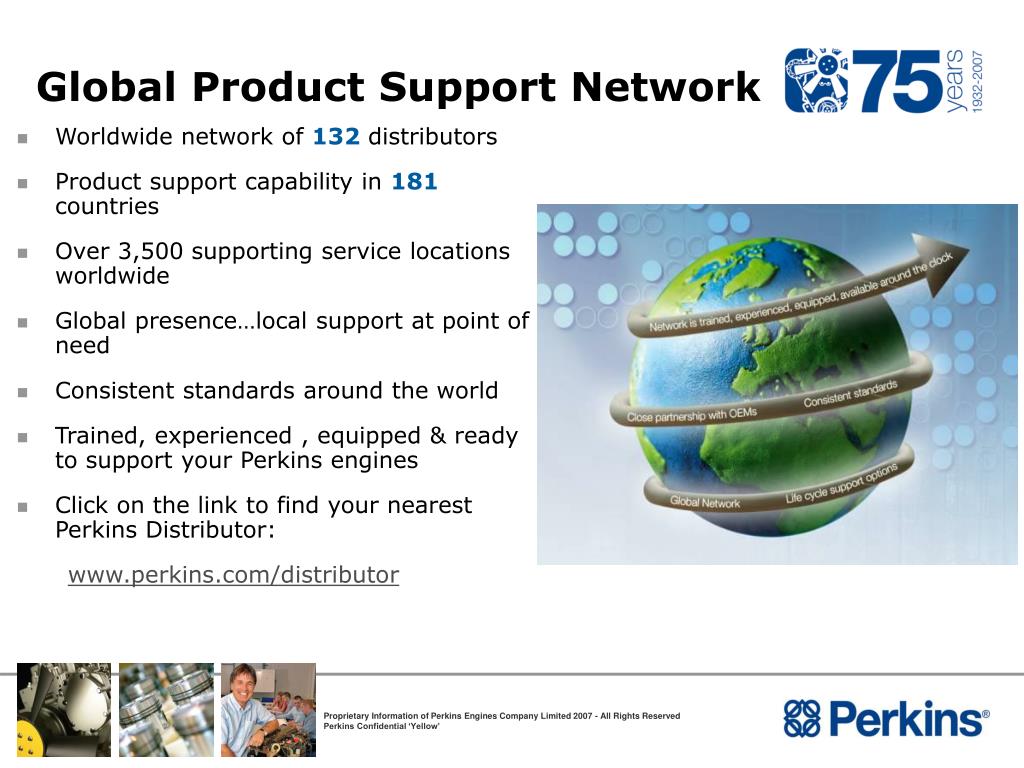

  27. Global Product Support Network • Worldwide network of 132 distributors • Product support capability in 181 countries • Over 3,500 supporting service locations worldwide • Global presence…local support at point of need • Consistent standards around the world • Trained, experienced , equipped & ready to support your Perkins engines • Click on the link to find your nearest Perkins Distributor: www.perkins.com/distributor

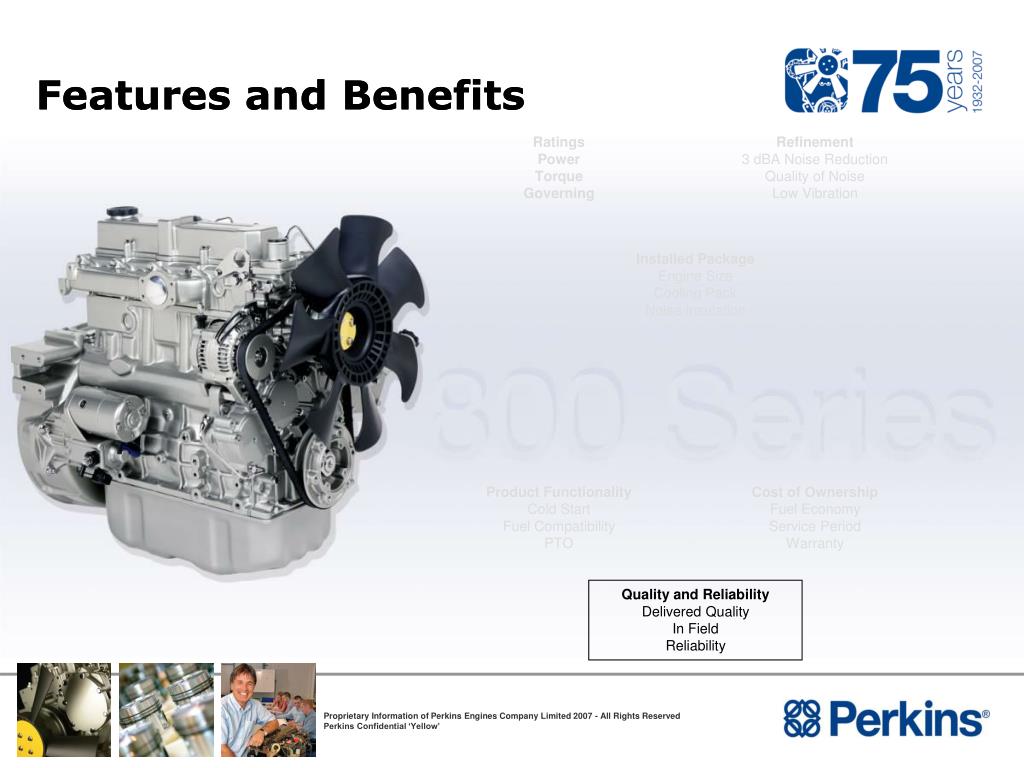

  28. Features and Benefits Features and Benefits Ratings Power Torque Governing Refinement 3 dBA Noise Reduction Quality of Noise Low Vibration Installed Package Engine Size Cooling Pack Noise Insulation Product Functionality Cold Start Fuel Compatibility PTO Cost of Ownership Fuel Economy Service Period Warranty Quality and Reliability Delivered Quality In Field Reliability

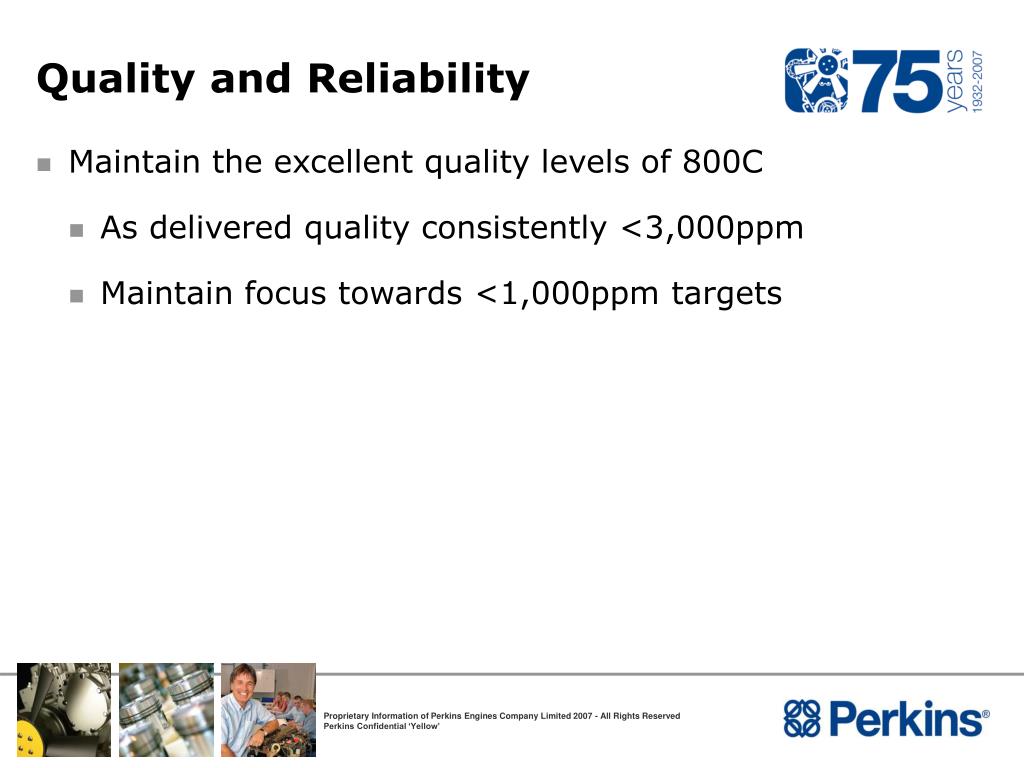

  29. Quality and Reliability • Maintain the excellent quality levels of 800C • As delivered quality consistently <3,000ppm • Maintain focus towards <1,000ppm targets

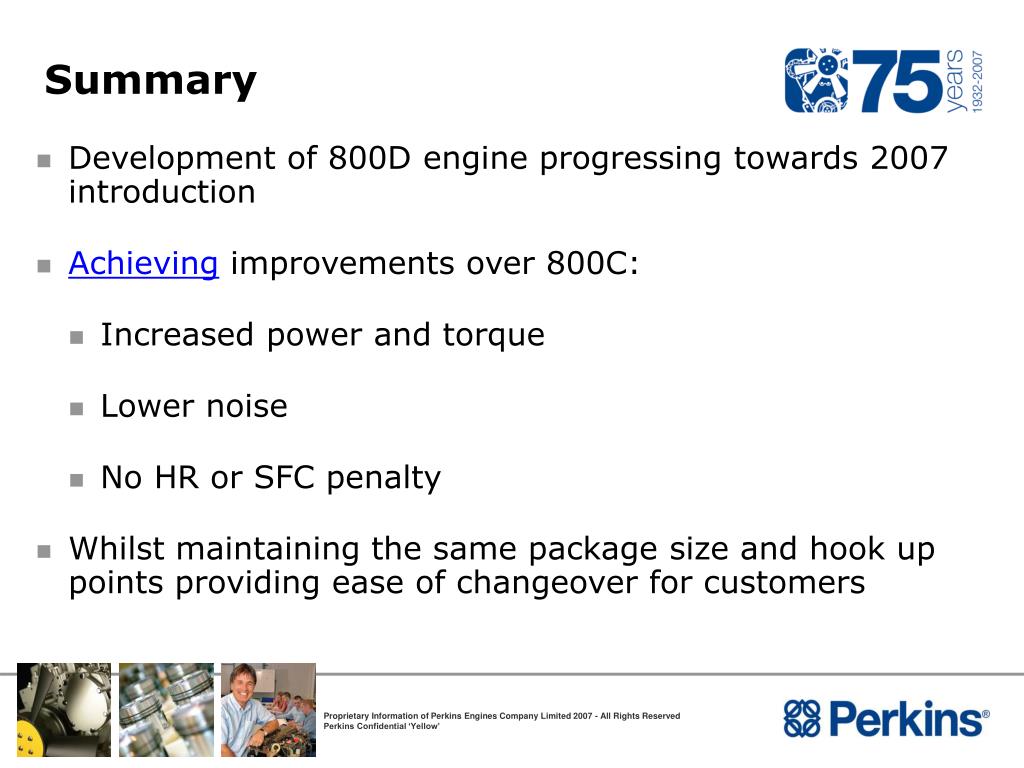

  30. Summary • Development of 800D engine progressing towards 2007 introduction • Achieving improvements over 800C: • Increased power and torque • Lower noise • No HR or SFC penalty • Whilst maintaining the same package size and hook up points providing ease of changeover for customers
