  1. OSPF Offloading: The HELLO Protocol A First Step Toward Distributed Heterogeneous Offloading Speaker: Mary Bond

  2. Introduction: The Challenge • Traditional IP router architecture incorporates single centralized control processor • Scalability issues are real • Large amount of I/O bandwidth required across backplane

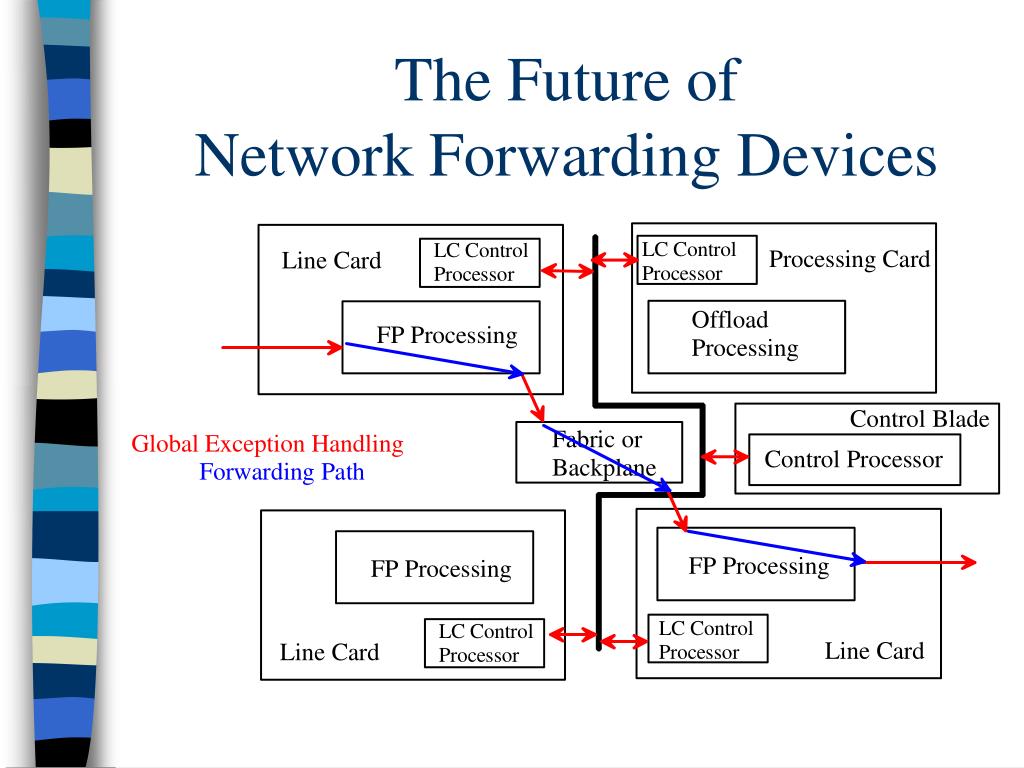

  3. The Future of Network Forwarding Devices

  4. The Protocol Offload Solution: Long Term Goal • Distribute functionality by protocol offloading to forwarding plane blades • Design a generalized framework for offloading protocols • The Approach: • Examine offloading possibilities of many routing protocols • Use collective results to design offloading framework

  5. OSPF: A Brief Overview • Link state vector algorithm • Distribute data by flooding • Amount of data passed reduced via area grouping • External data advertised, separate from link state data

  6. OSPF: A Brief Overview • HELLO packets used to acquire neighbors • HELLO protocol elects designated router • Link state ads (LSAs) reflect adjacencies • LSAs flooded reliably • Link state database is collection of LSAs from every router in area

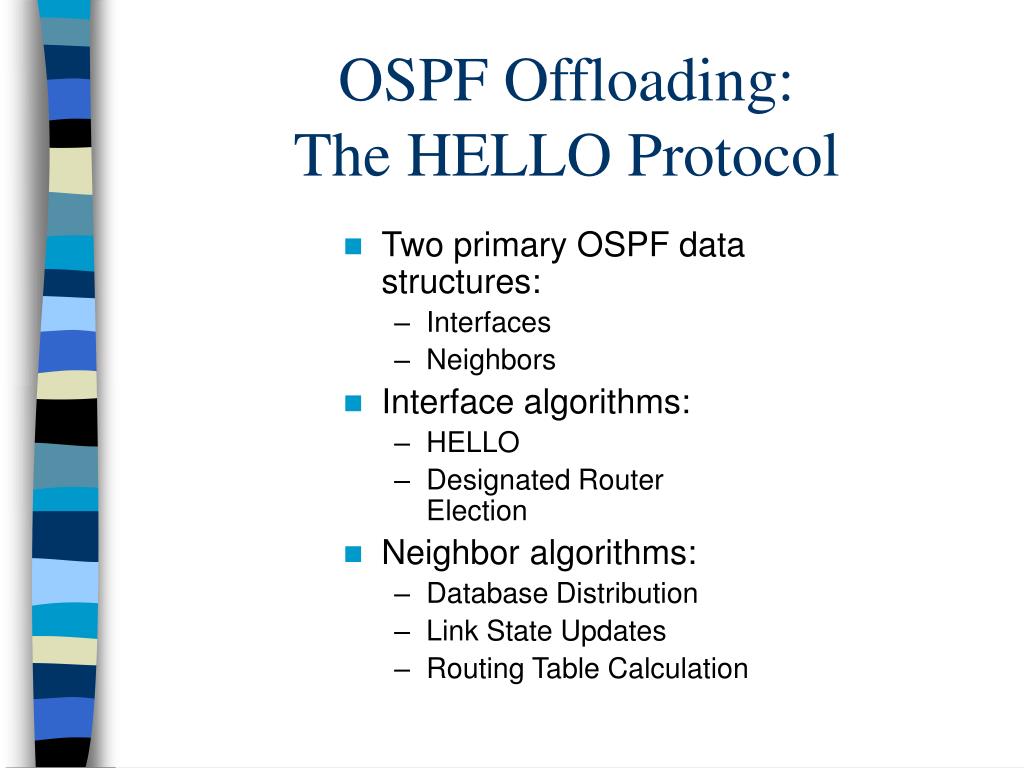

  7. OSPF Offloading: The HELLO Protocol • Two primary OSPF data structures: • Interfaces • Neighbors • Interface algorithms: • HELLO • Designated Router Election • Neighbor algorithms: • Database Distribution • Link State Updates • Routing Table Calculation

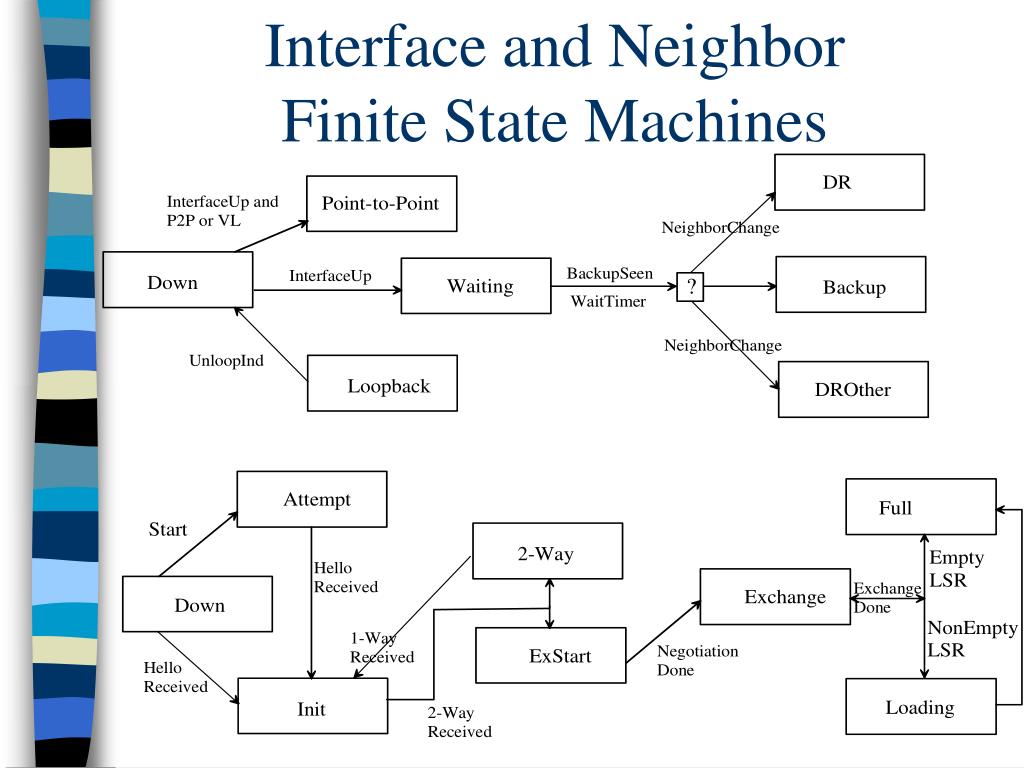

  8. Interface and NeighborFinite State Machines

  9. Communication Between GOSPF and OOSPF • Synchronizing Data Structure Fields • Starting/Stopping HELLO Timers • Instigating FSM Transitions • Triggering Link State Advertisements • Updating Designated Router (or Backup) • Instigating sending of HELLO Packets

  10. GOSPF and OOSPF Proxies • GOSPF and OOSPF communicate via proxies • Remote procedure calls are transparent • TCP connection

  11. The RPC Class • Provides general framework for communication between proxies • Child classes inherit from RPC class, one for each remote procedure call • Child classes correspond to specific functions (called remotely) between GOSPF and OOSPF

  12. Offloaded OSPF, IXP Architecture

  13. Conclusions • Future control plane processing presents a bottleneck issue • Protocol offloading is a possible solution • This project was a first step toward studying the offloading of control plane routing protocols.
