  1. Building a Cube Using PTC Pro/ENGINEER WILDFIRE Presented by Maria Bina

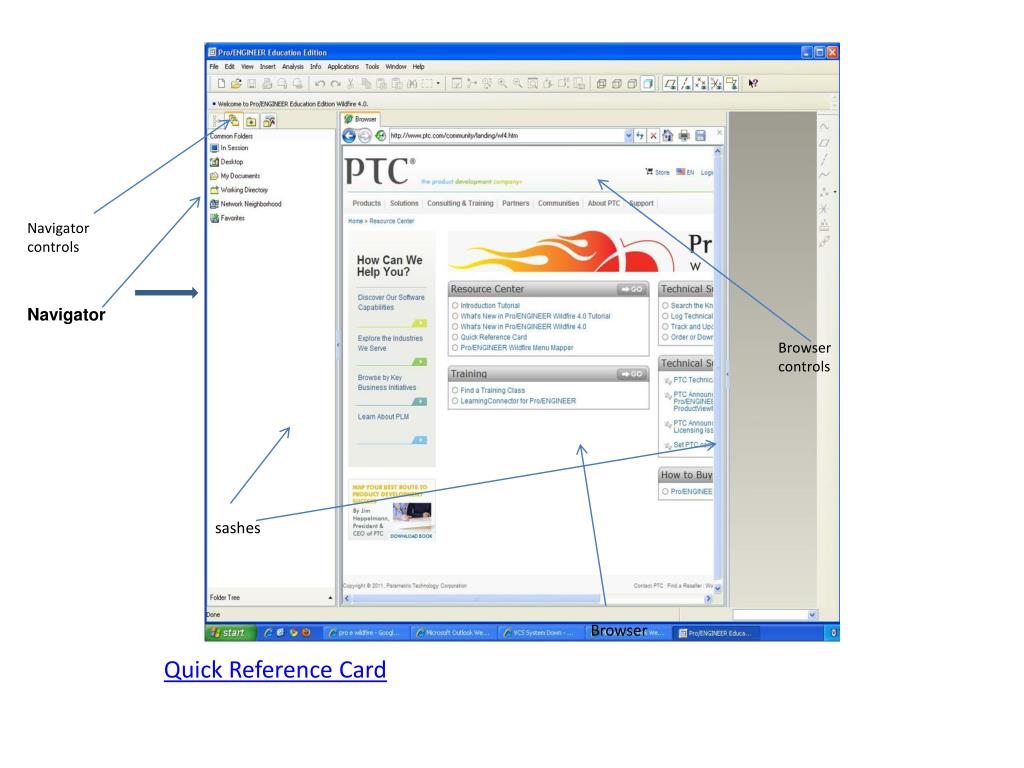

  2. Navigator controls Navigator Browser controls Brower controls sashes sashes Browser Browser Quick Reference Card

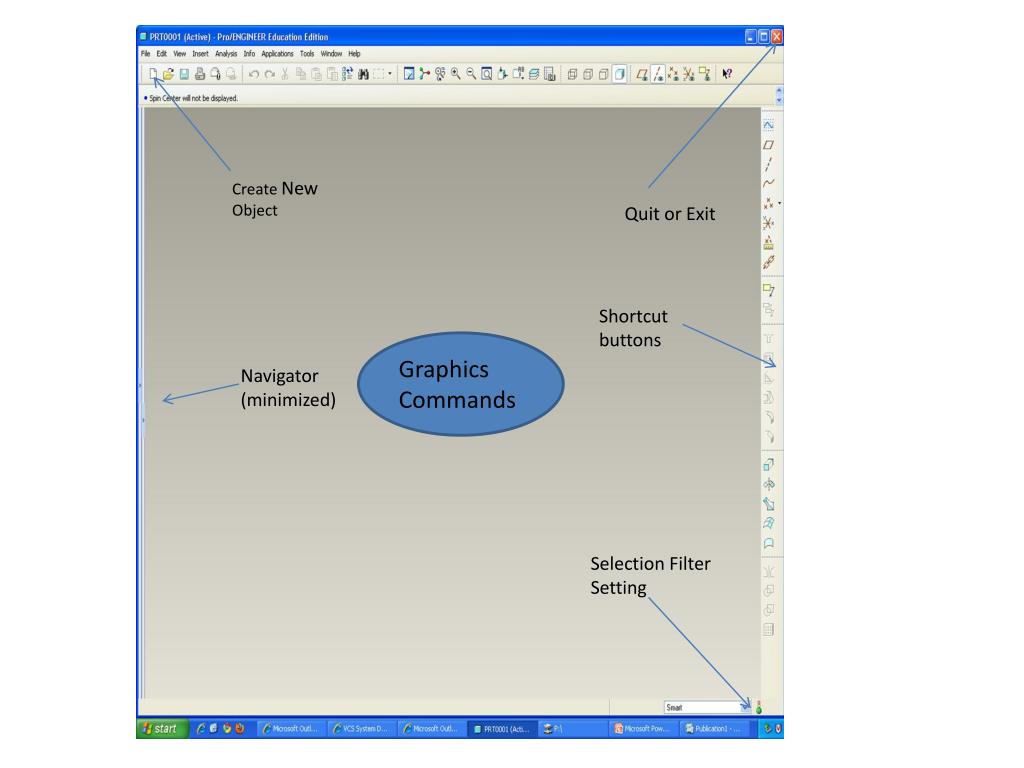

  3. Create New Object Quit or Exit Shortcut buttons Graphics Commands Navigator (minimized) Selection Filter Setting

  4. Dashboard

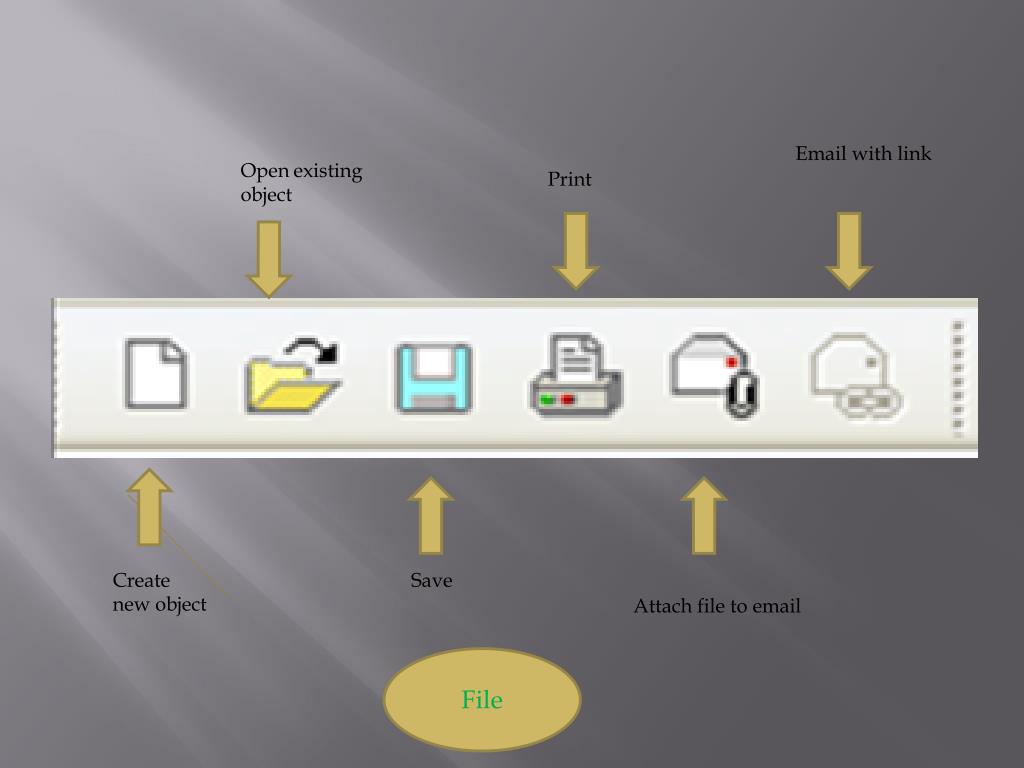

  5. Email with link Openexisting object Print Create new object Save Attach file to email File

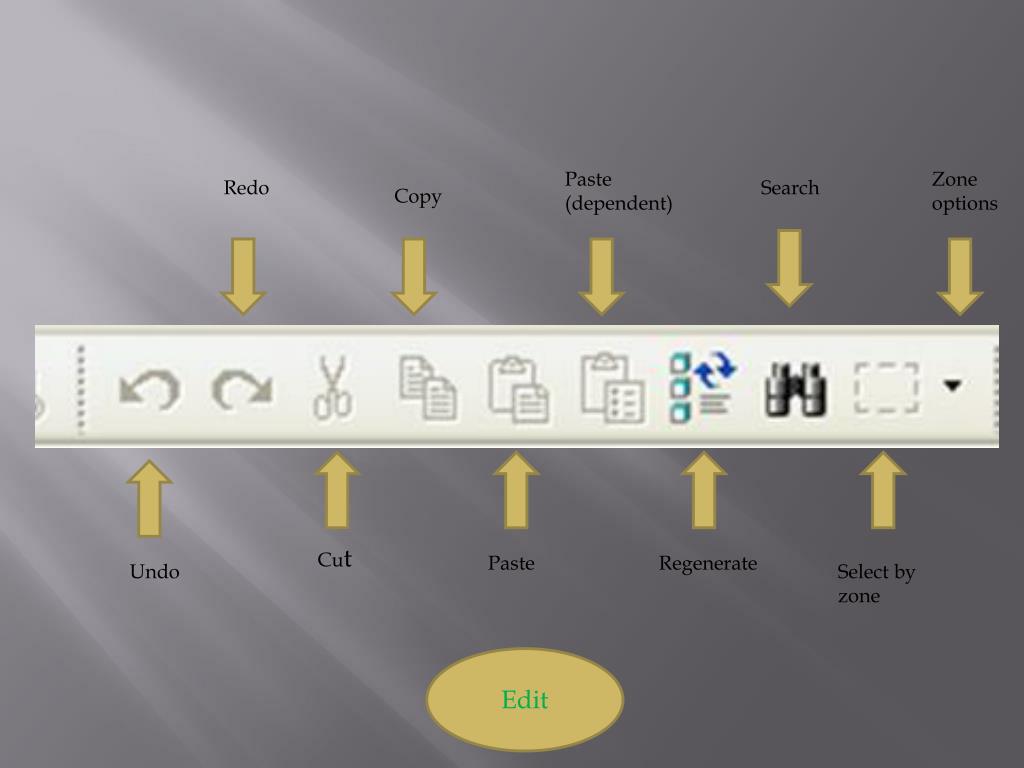

  6. Paste (dependent) Zone options Redo Search Copy Cut Paste Regenerate Undo Select by zone Edit

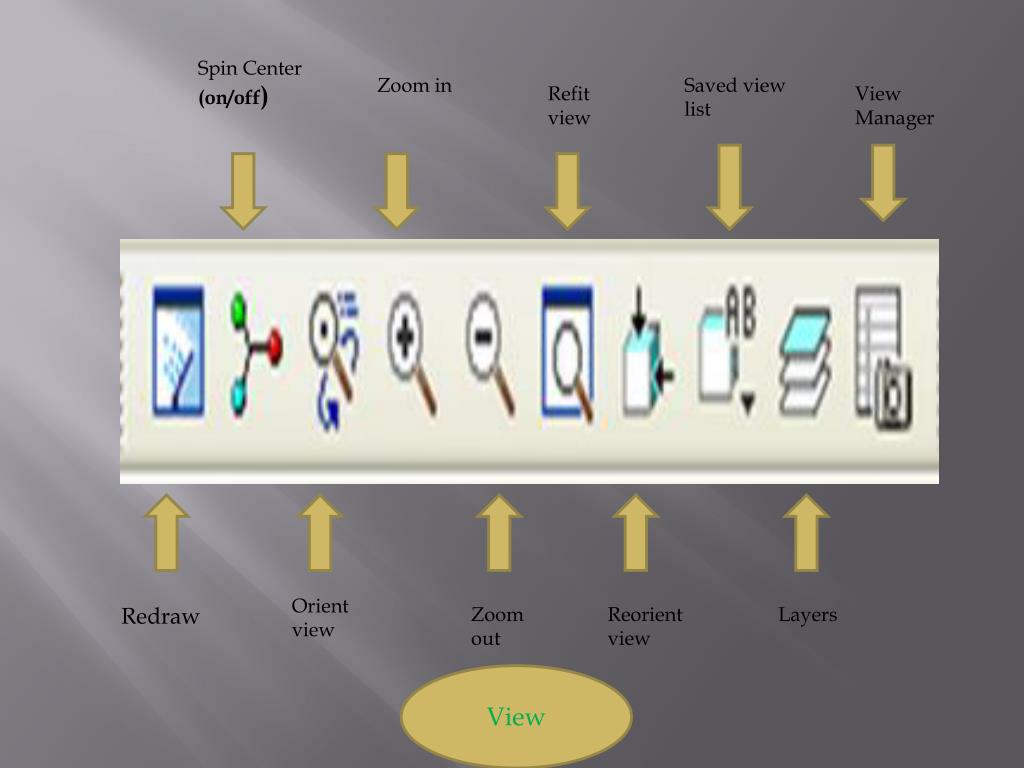

  7. Spin Center (on/off) Zoom in Saved view list Refit view View Manager Orient view Redraw Zoom out Reorient view Layers View

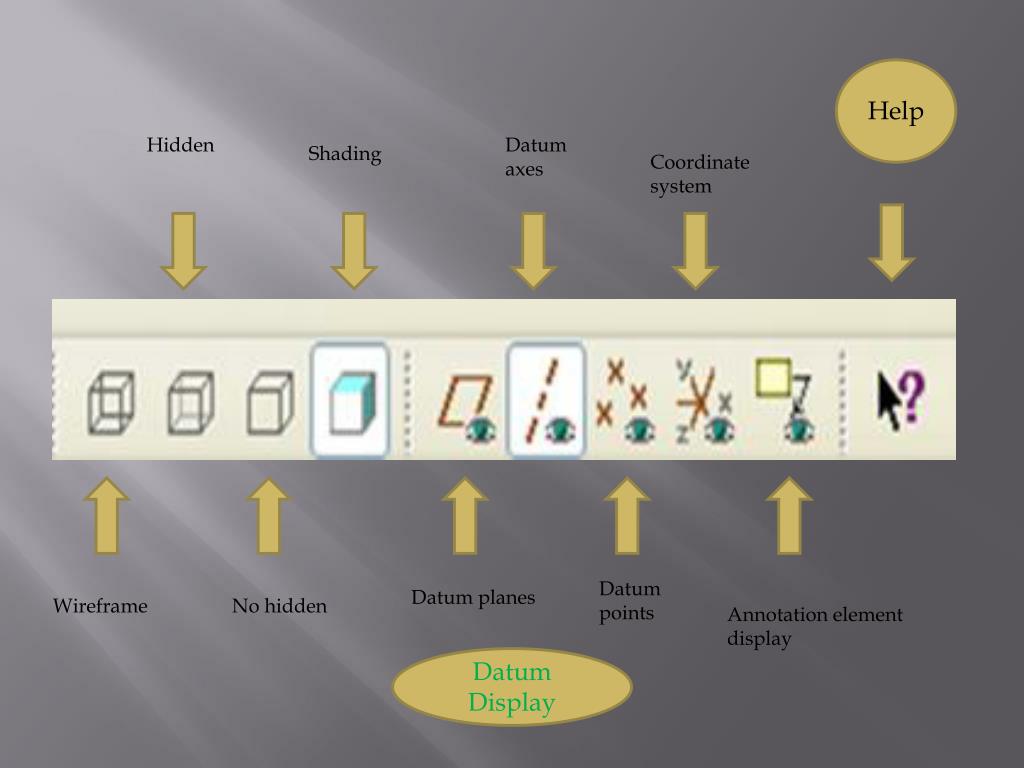

  8. Help Hidden Datum axes Shading Coordinate system Datum points Datum planes Wireframe No hidden Annotation element display Datum Display

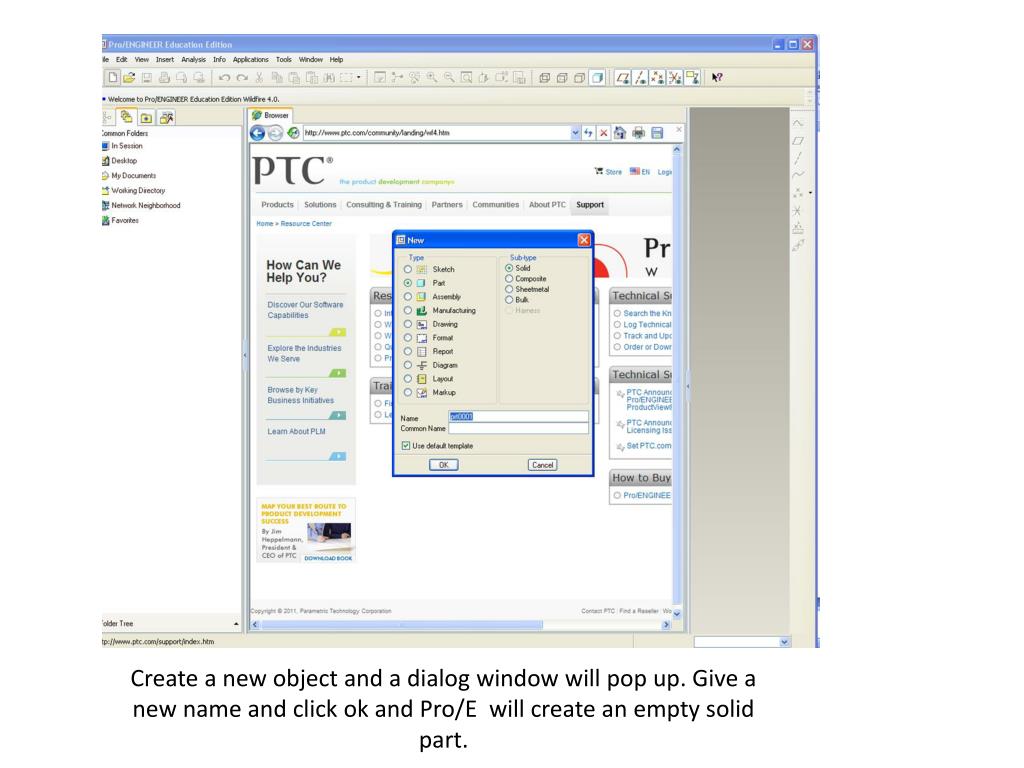

  9. Create a new object and a dialog window will pop up. Give a new name and click ok and Pro/E will create an empty solid part.

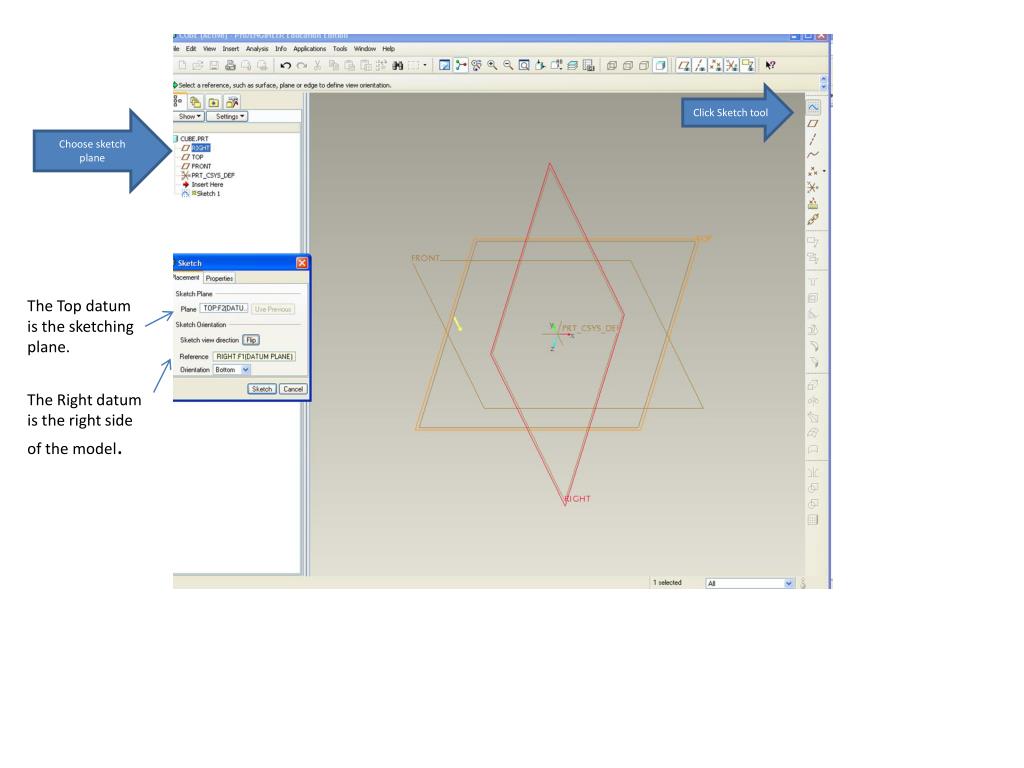

  10. Click Sketch tool Choose sketch plane The Top datum is the sketching plane. The Right datum is the right side of the model.

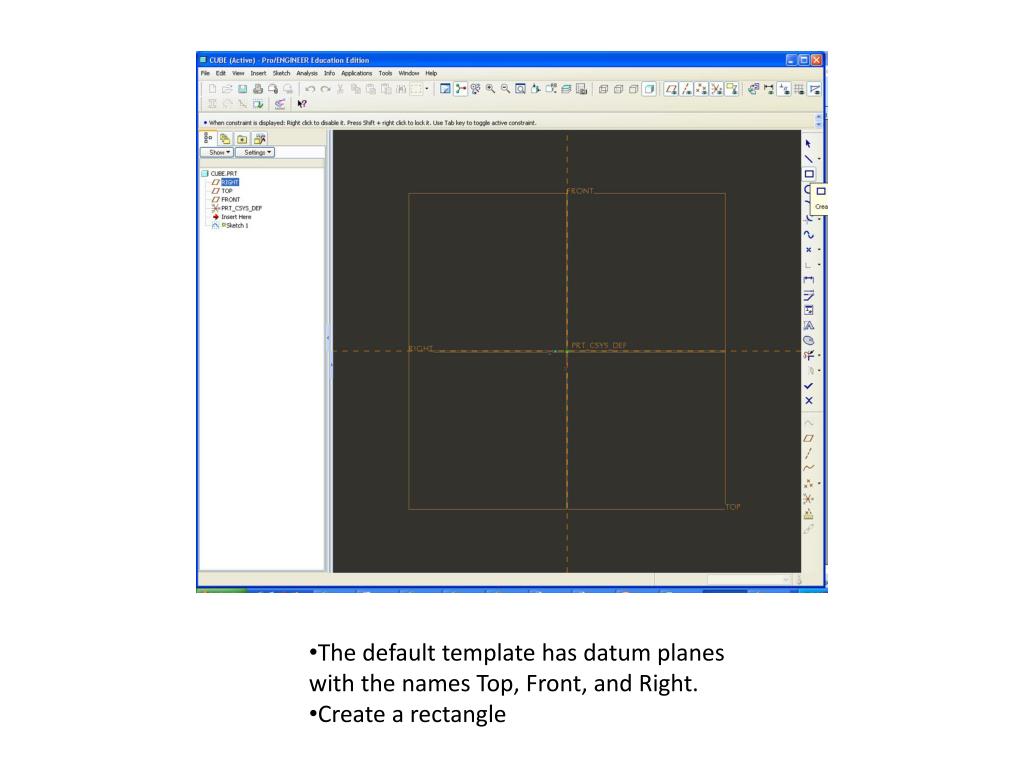

  11. The default template has datum planes with the names Top, Front, and Right. • Create a rectangle

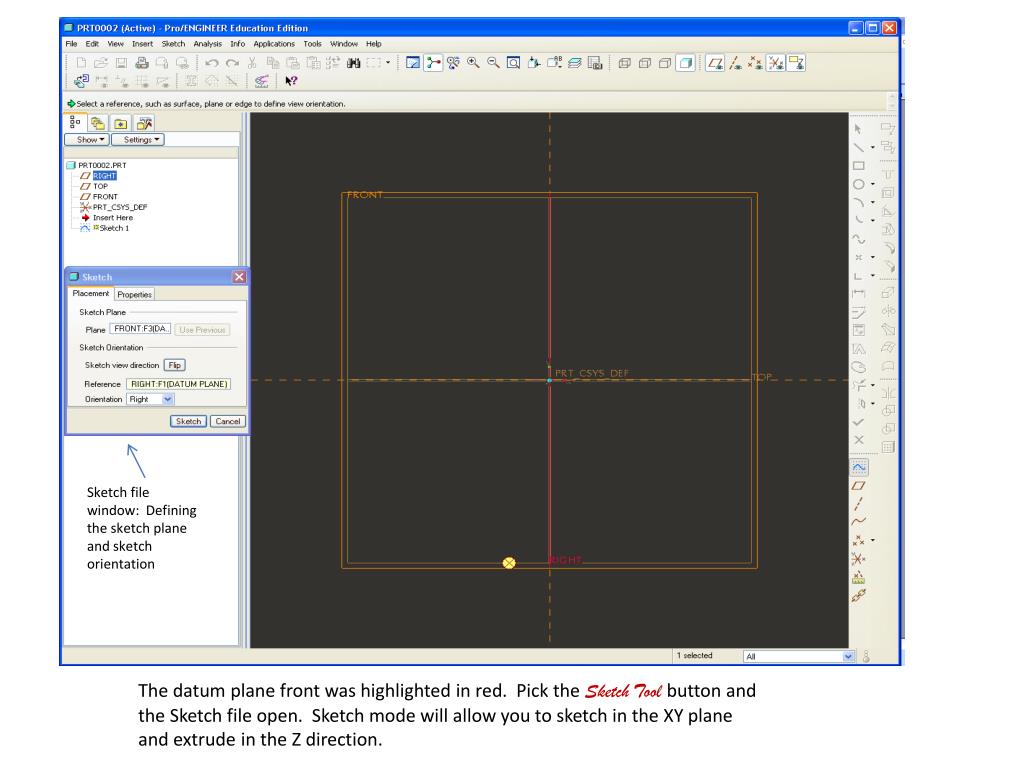

  12. Sketch file window: Defining the sketch plane and sketch orientation The datum plane front was highlighted in red. Pick the Sketch Tool button and the Sketch file open. Sketch mode will allow you to sketch in the XY plane and extrude in the Z direction.

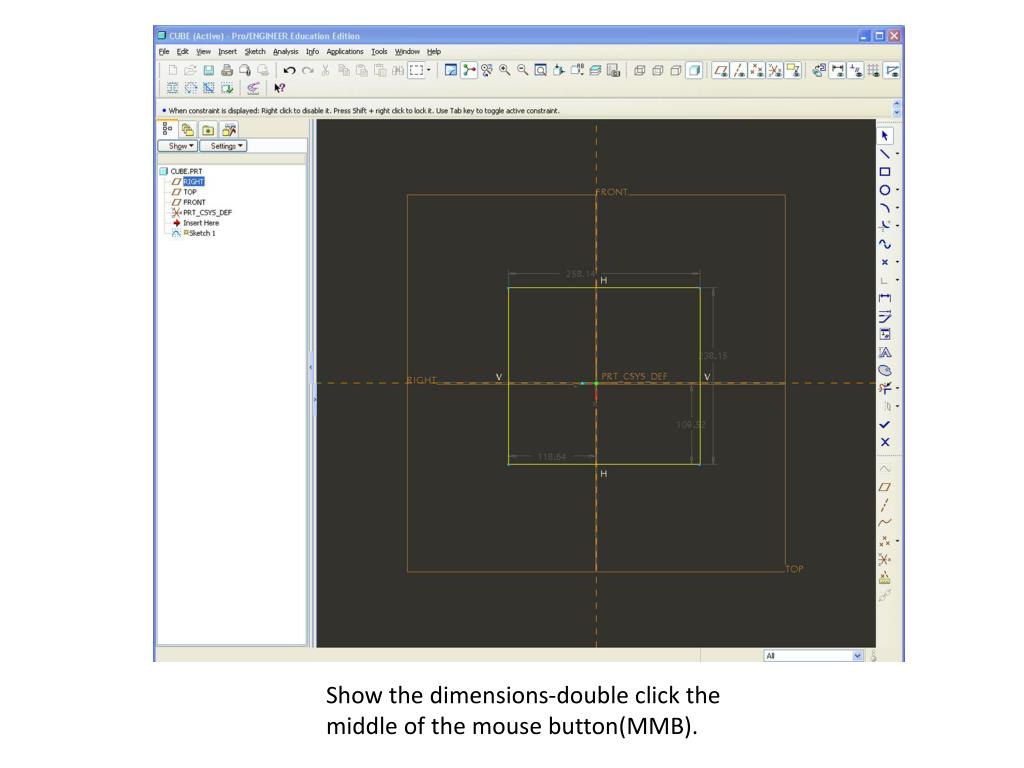

  13. Show the dimensions-double click the middle of the mouse button(MMB).

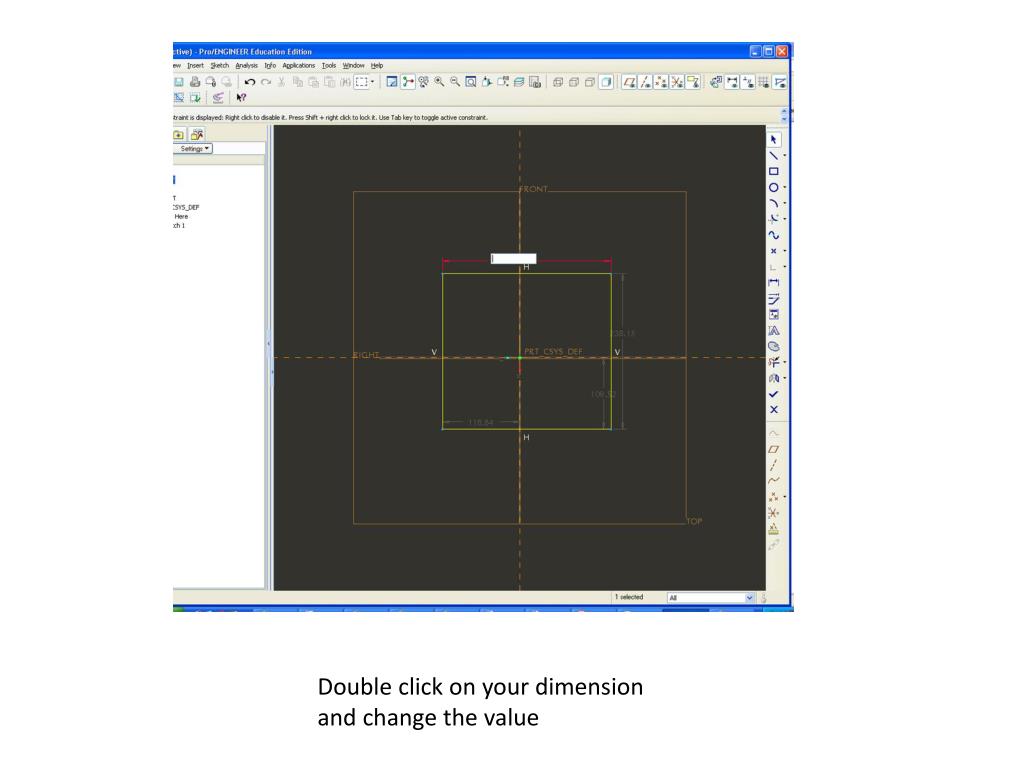

  14. Double click on your dimension and change the value

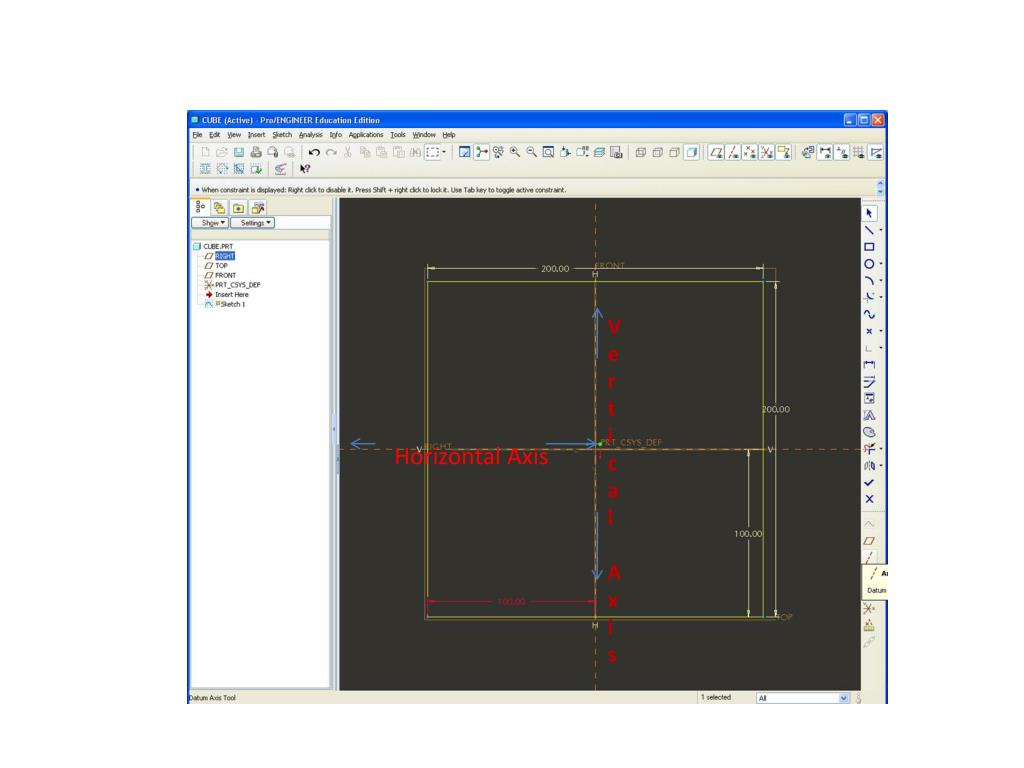

  15. Vert ical Axis Horizontal Axis

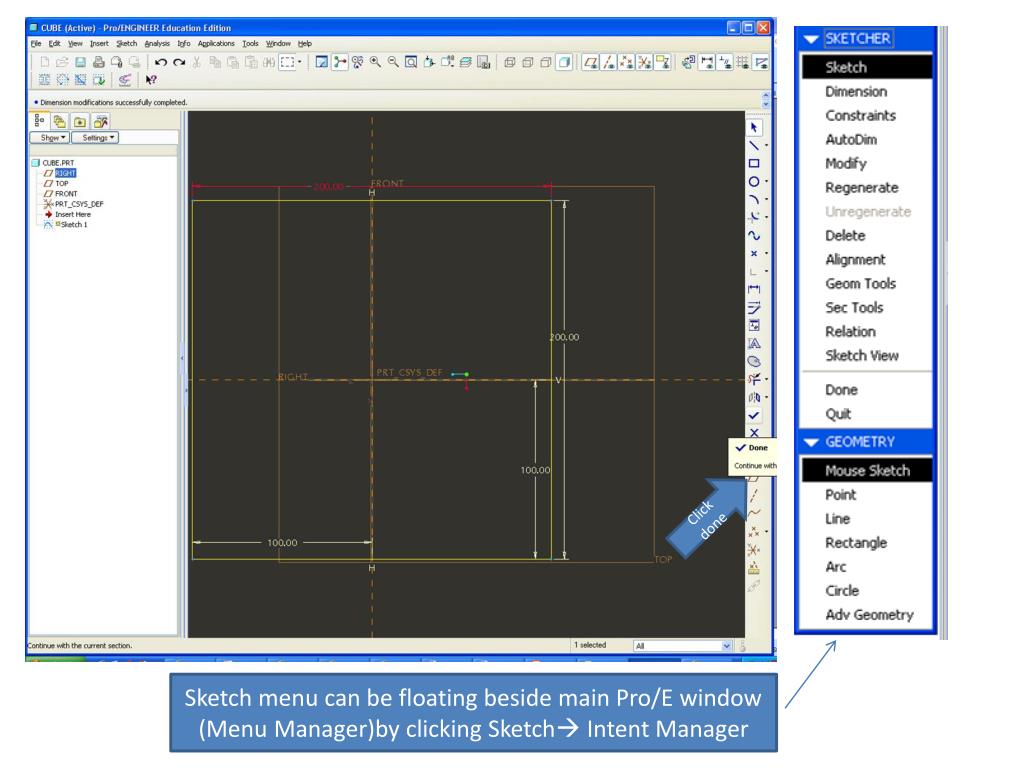

  16. Click done Sketch menu can be floating beside main Pro/E window (Menu Manager)by clicking Sketch Intent Manager

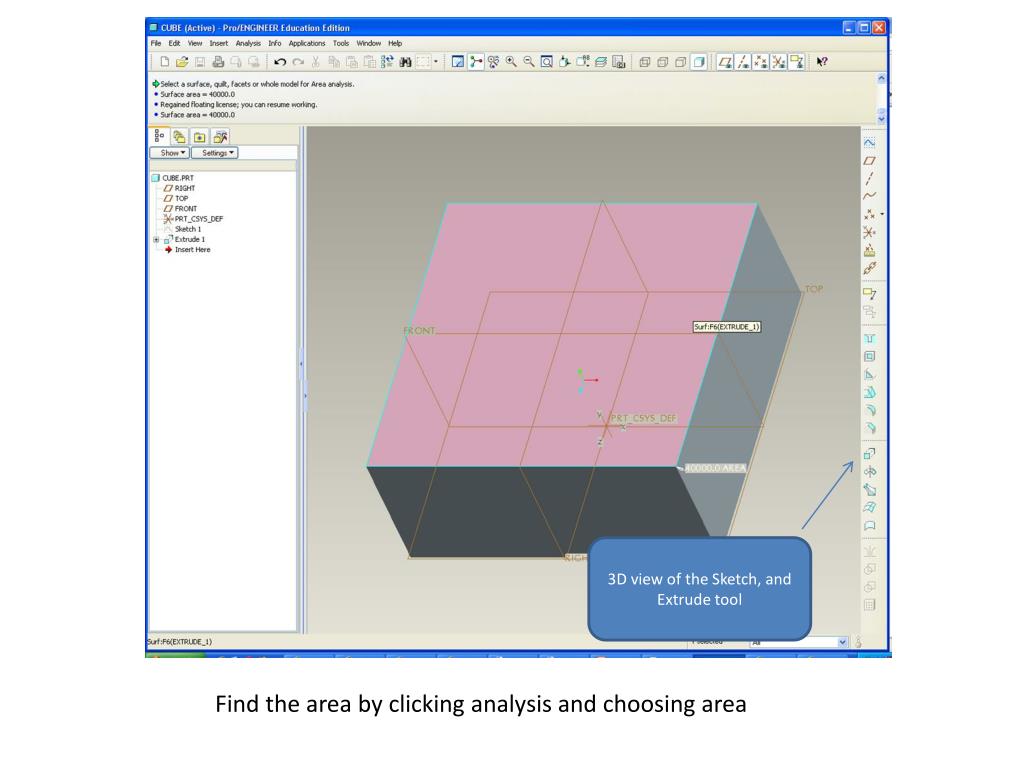

  17. 3D view of the Sketch, and Extrude tool Find the area by clicking analysis and choosing area

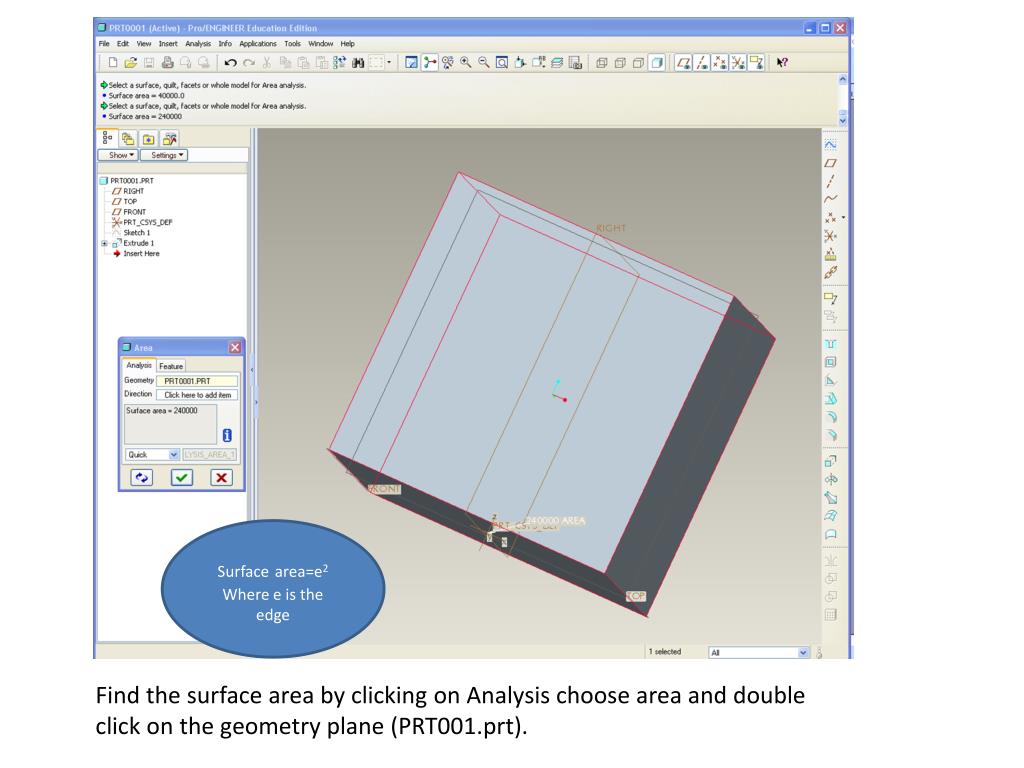

  18. Surfacearea=e2 Where e is the edge Find the surface area by clicking on Analysis choose area and double click on the geometry plane (PRT001.prt).

  19. Click save a copy Save a copy

  20. What happens to the surface area of a cube in the length of each edge is doubled?

  21. The surface area is multiplied by 4
