  1. Imaging diagnosis of tuberculosis Christoph Lange

  2. imaging differential diagnosis diffuse infiltrates focal infiltrates ? ? nodular opacities hilar enlargement ? ? cavitations pleural effusion ? ?

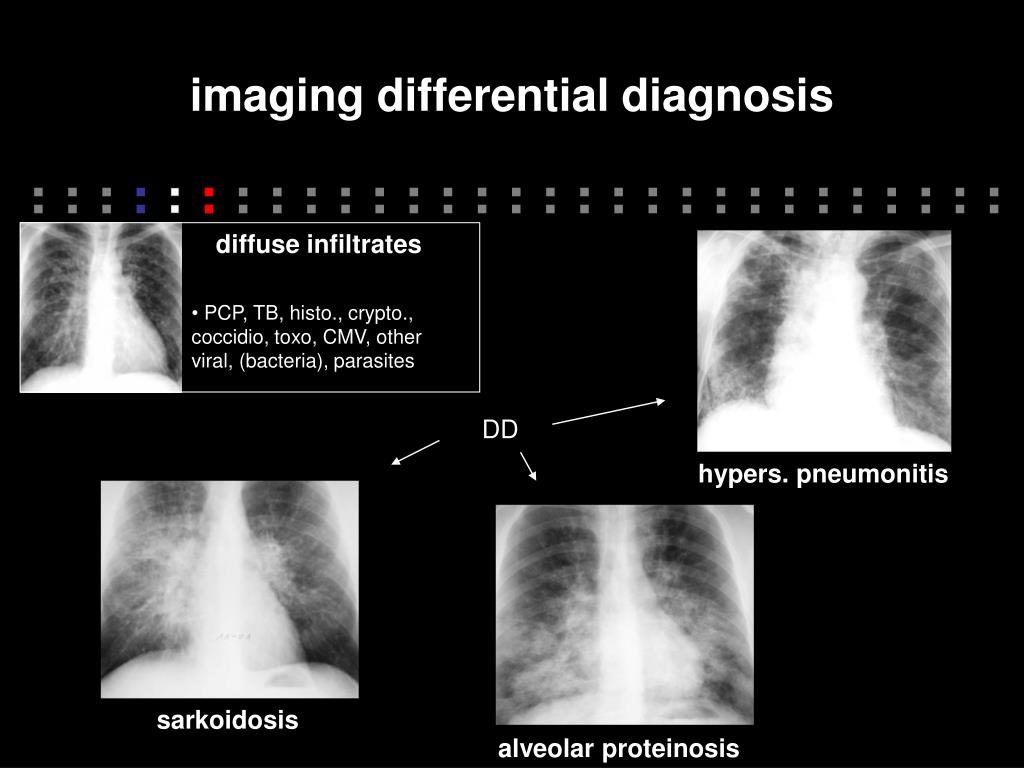

  3. imaging differential diagnosis diffuse infiltrates • PCP, TB, histo., crypto., coccidio, toxo, CMV, other viral, (bacteria), parasites DD hypers. pneumonitis sarkoidosis alveolar proteinosis

  4. imaging differential diagnosis focal infiltrates • bact./fung. pneumonia, TB, B/C, (PCP), (KS) DD carcinoma eos. pneumonia COP/BOOP

  5. imaging differential diagnosis sarkoidosis PAH DD hilar enlargement • TB, NTM, KS cardiac decomp.

  6. imaging differential diagnosis nodular opacities • TB, NTM, KS, PCP, aspergillus, crypto., coccidio, DD toxic alveolitis metastasis Wegener disease

  7. imaging differential diagnosis pulmonary embolus cardiac decomp. DD pleural effusion • TB, KS, B/C, NHL, bact./fung. pneumonias, malignancy

  8. 58 y.o. male, 2 mo. cough, weight loss

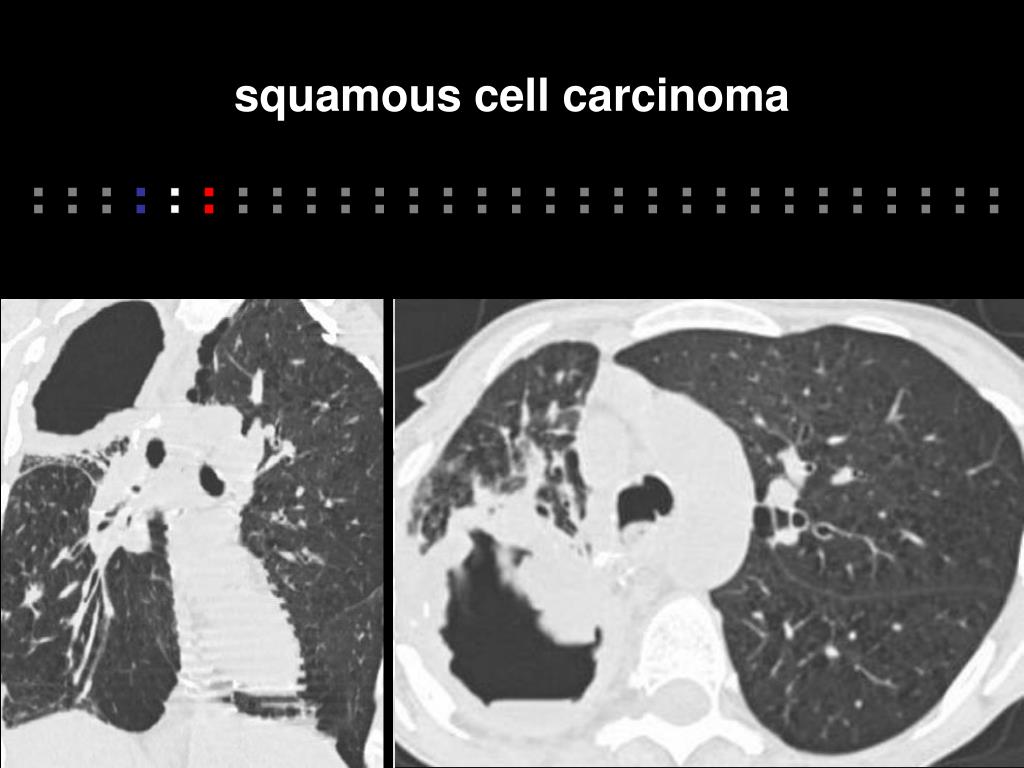

  9. squamous cell carcinoma

  10. squamous cell carcinoma

  11. Wegener´s disease

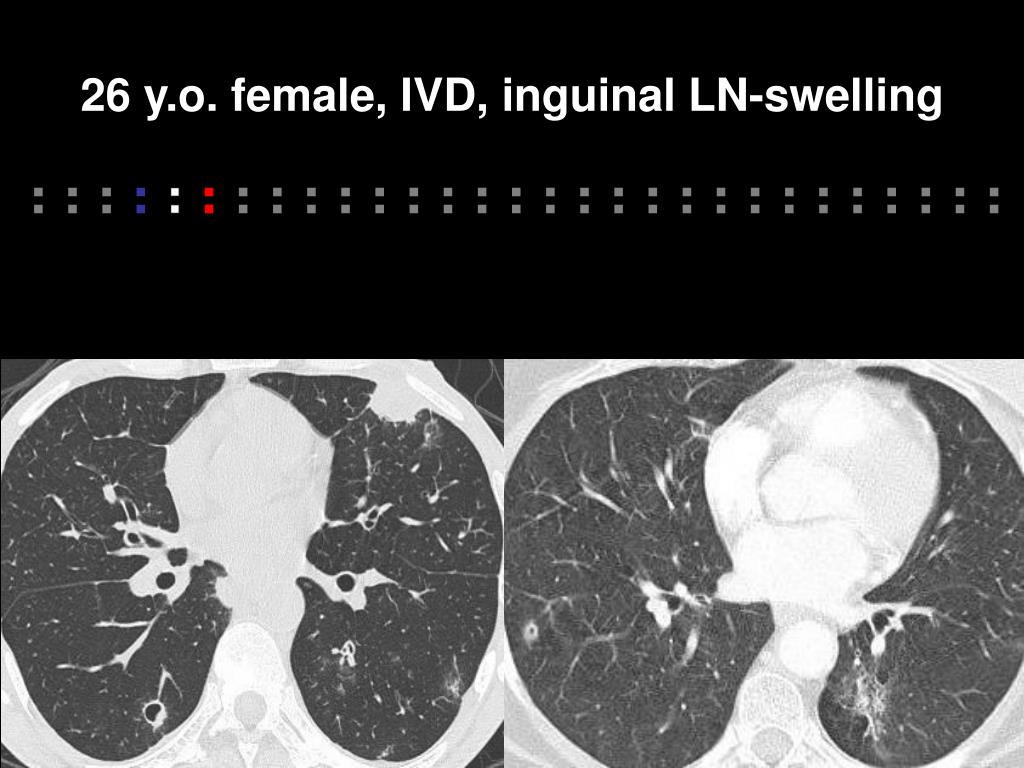

  12. 26 y.o. female, IVD, inguinal LN-swelling

  13. septic emboli

  14. 38 y.o.. male, alcoholic, foetor ex ore

  15. lunge abscess

  16. acid fast bacilli in sputum

  17. M. abscessus M. avium- complex M. celatum M. tuberculosis M. malmoense M. kansasii

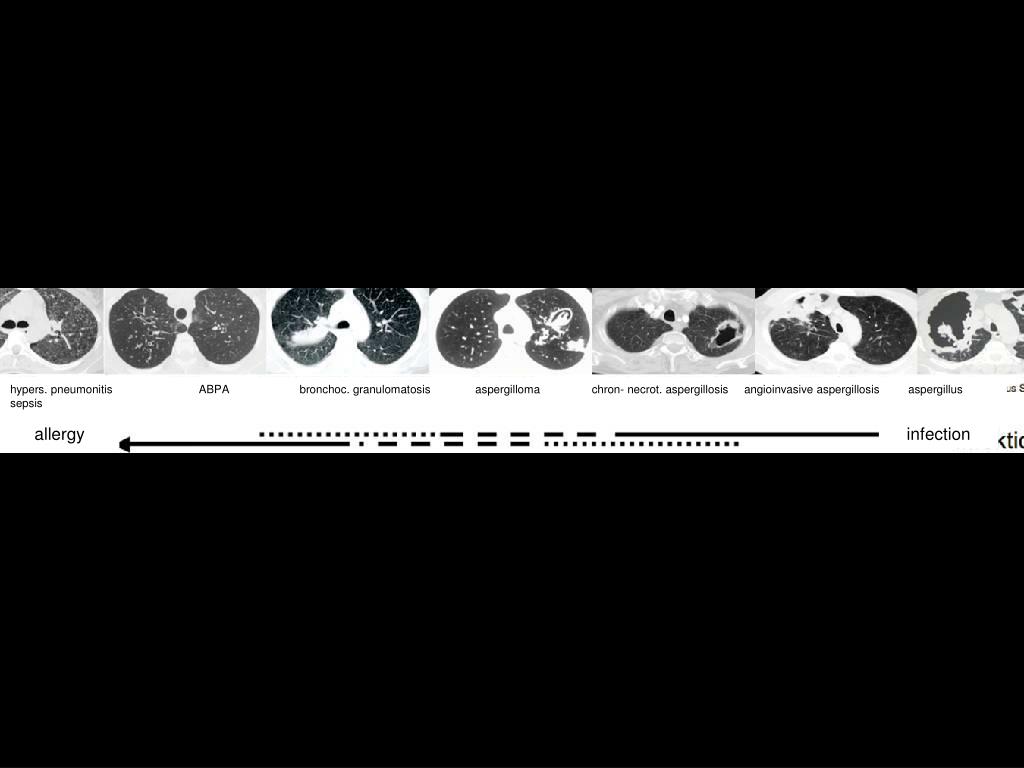

  18. hypers. pneumonitis ABPA bronchoc. granulomatosis aspergilloma chron- necrot. aspergillosis angioinvasive aspergillosis aspergillus sepsis allergy infection

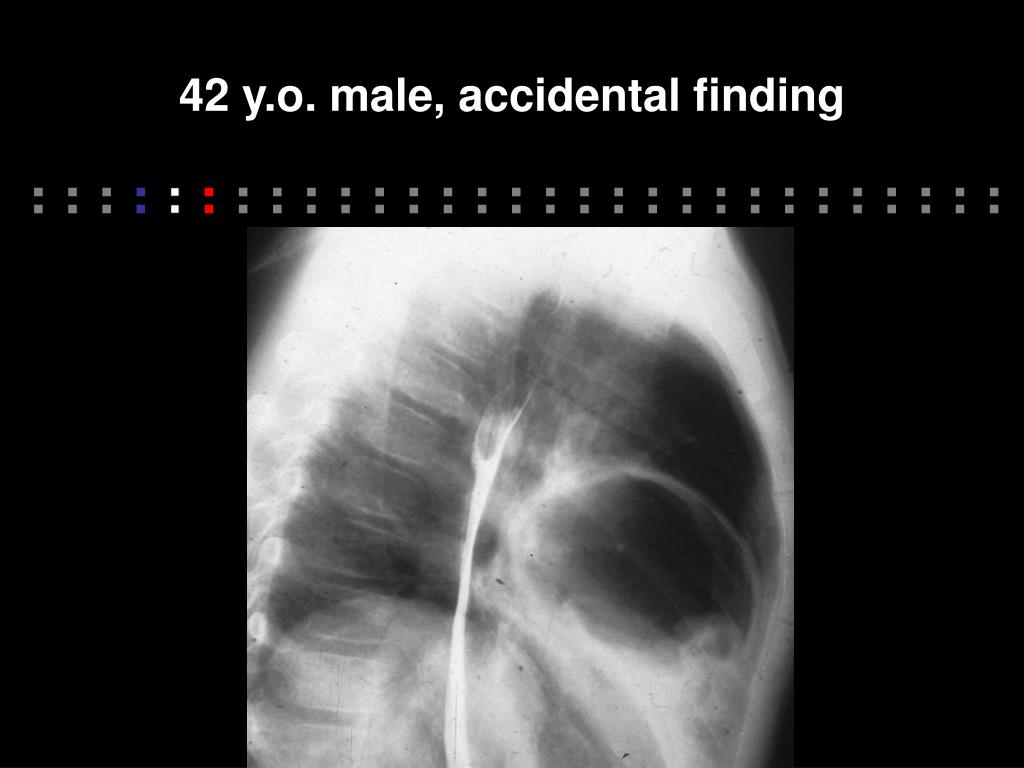

  19. 42 y.o. male, accidental finding

  20. echinococcus granulosus

  21. 64 y.o. male, 14 d fever, cough

  22. 64 y.o. male, 14 d fever, cough

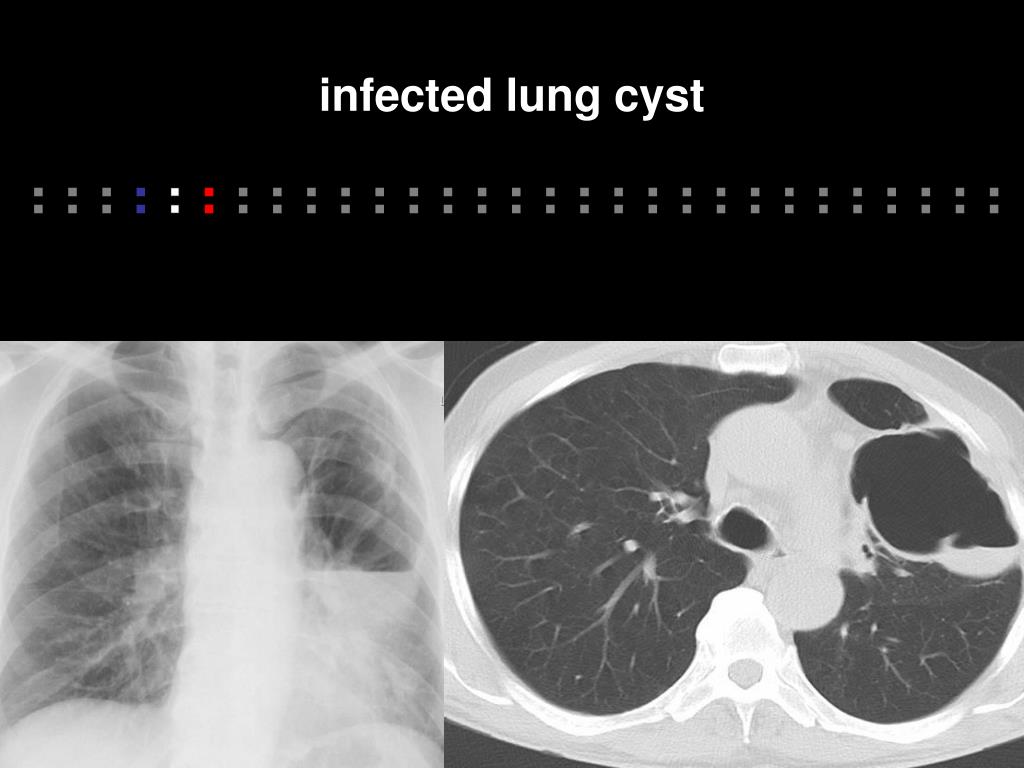

  23. infected lung cyst

  24. infected lung cyst

  25. UIP cystic bronchiectasis histiozytosis X lymphangioleiomyomatosis

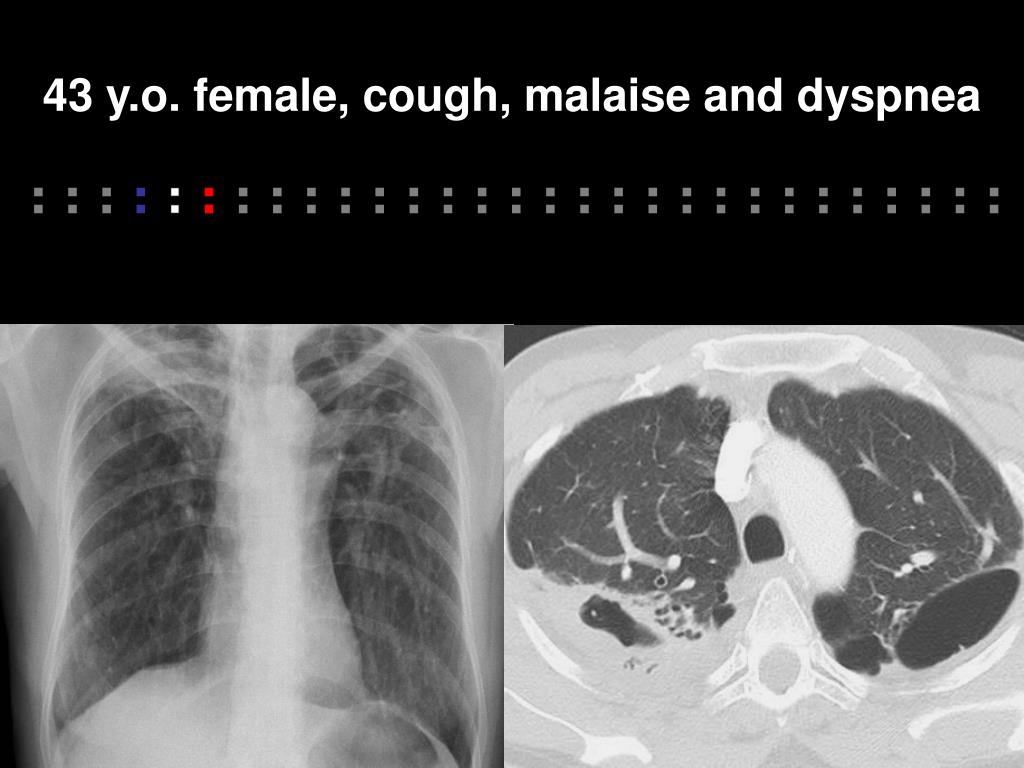

  26. 43 y.o. female, cough, malaise and dyspnea

  27. 43 y.o. female, cough, malaise and dyspnea

  28. cavitary sarcoidosis

  29. C A V I T I E S Carcinoma Autoimmune disease Vascular Infection Trauma Idiopathic Etc. Sarcoidosis

  30. Research Center Borstel Germany May 27th-29th 2010
