  1. PRESSER FOOTS

  2. Feed mechanism • Feeding of fabric past the needle • Construction of seams and formation of stitches and formation of stitches that hold them together • Three sewing machine parts constitute feed mechanism • - Presser foot • - Throat plate • - Feed dog

  3. Early feed mechanism • First fabric feeding devices duplicated action of human hands • Platform to which material was clamped or pinned • Entire platform transported for a predetermined length, continuous needle under sewing needle

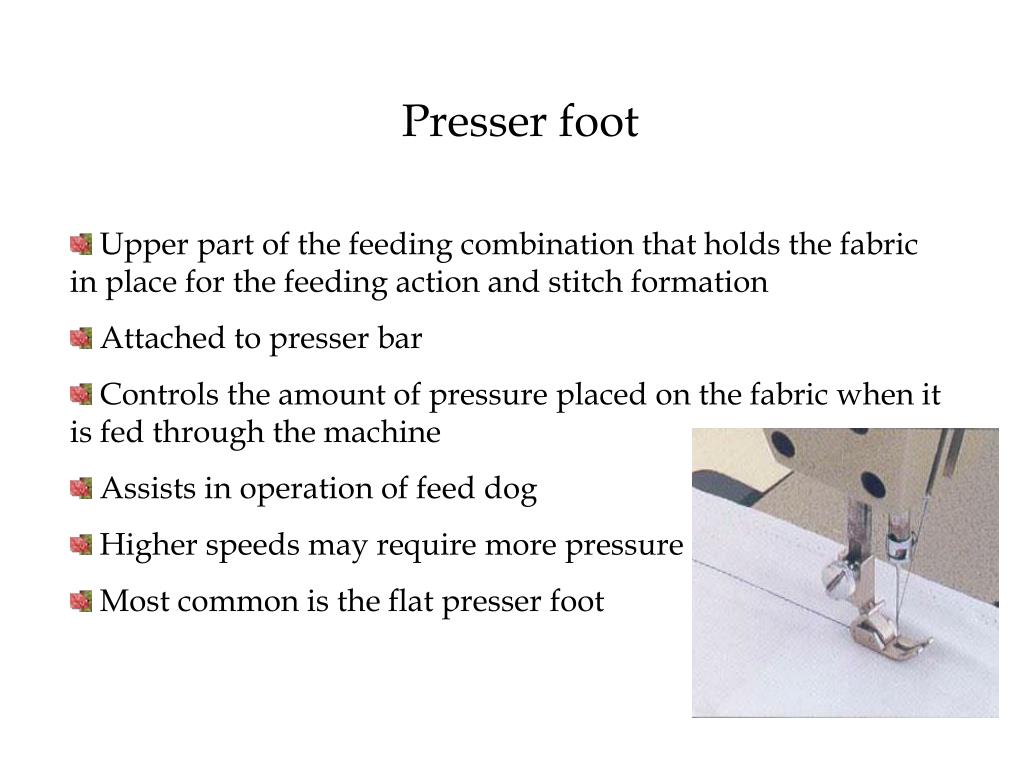

  4. Presser foot • Upper part of the feeding combination that holds the fabric in place for the feeding action and stitch formation • Attached to presser bar • Controls the amount of pressure placed on the fabric when it is fed through the machine • Assists in operation of feed dog • Higher speeds may require more pressure • Most common is the flat presser foot

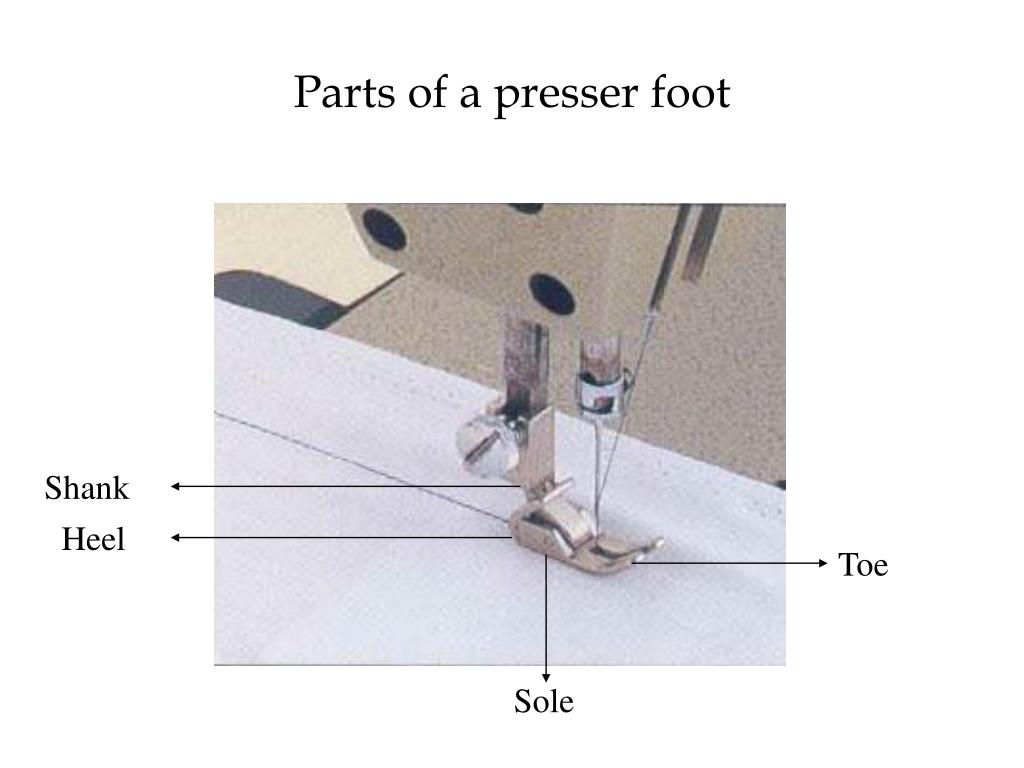

  5. Parts of a presser foot Shank Heel Toe Sole

  6. Types of presser foots

  7. Compensated Presser Foot Right Compensated foot(standard and slim)

  8. Left Compensated foot (standard and slim)

  9. Double Compensated foot

  10. Two step Compensated foot

  11. Teflon Foot Teflon Foot standard Teflon foot flat

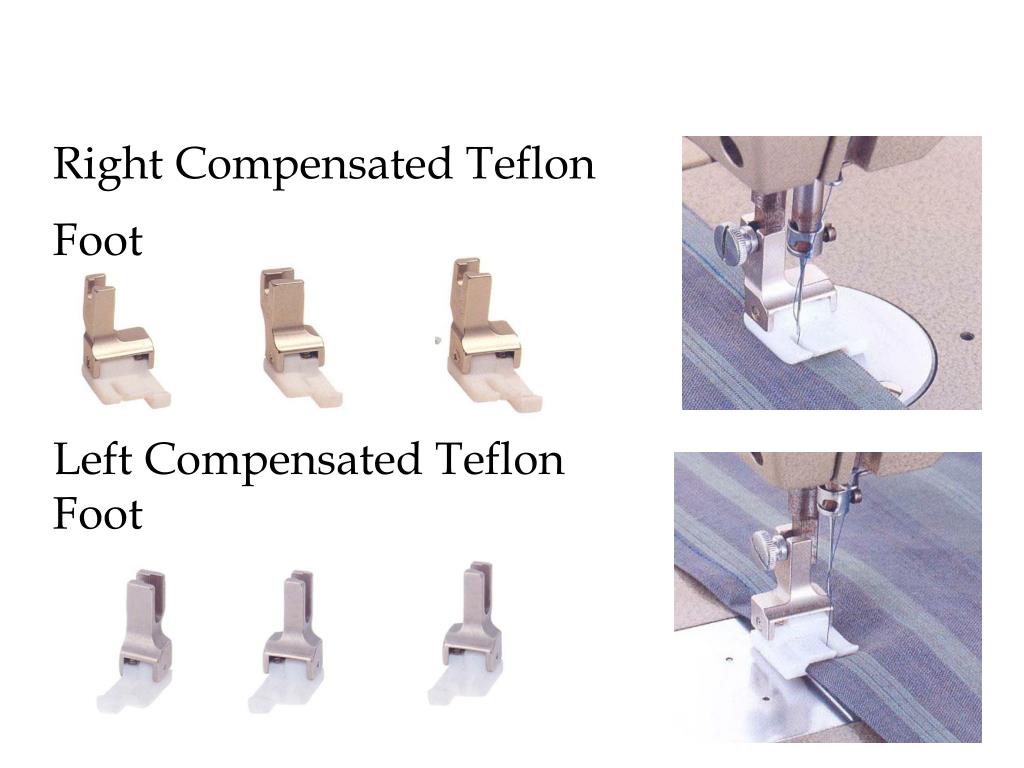

  12. Right Compensated Teflon Foot Left Compensated Teflon Foot

  13. Shirring Foot Adjustable Shirring Foot

  14. Top ply joining Shirring Foot

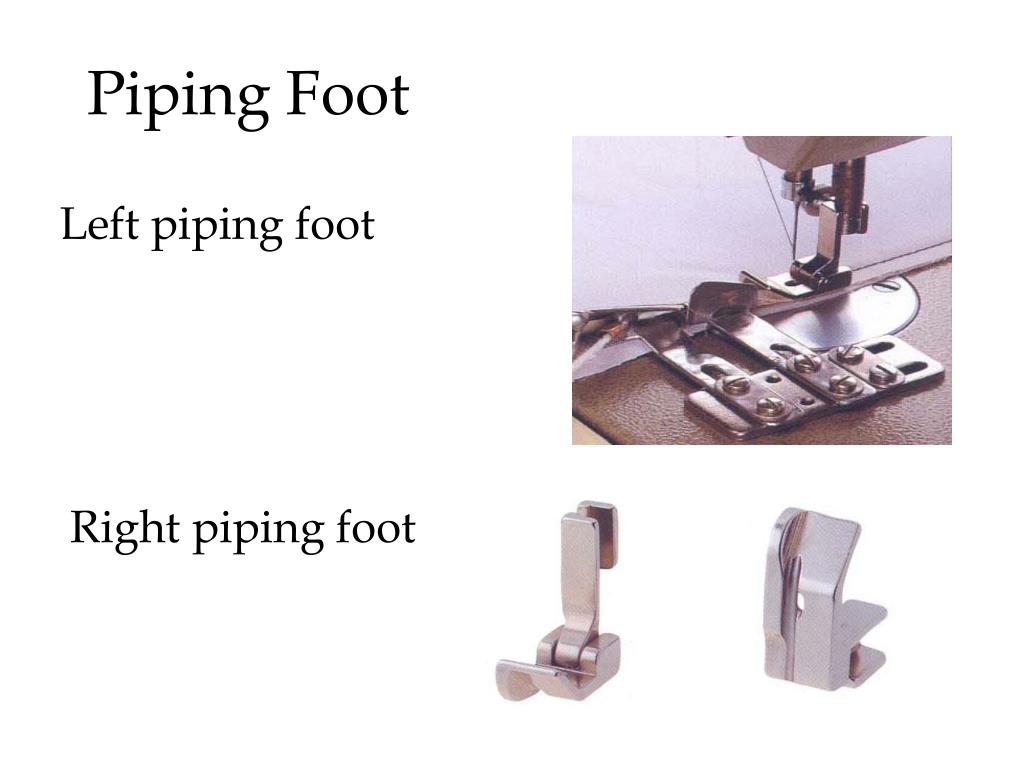

  15. Piping Foot Left piping foot Right piping foot

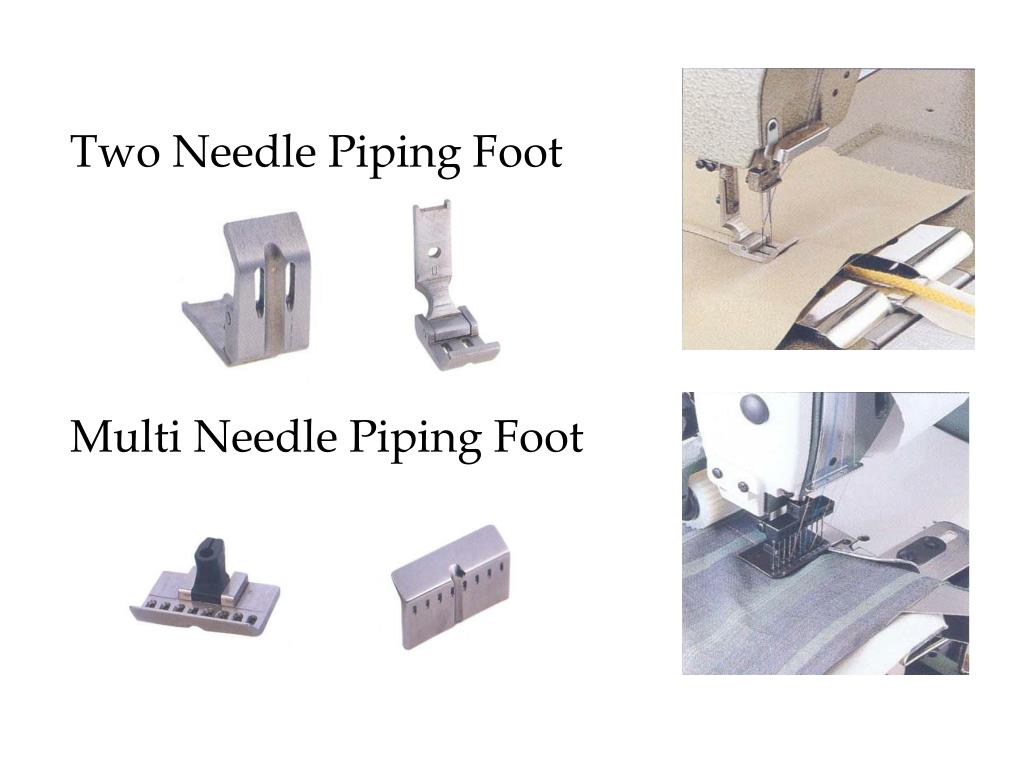

  16. Two Needle Piping Foot Multi Needle Piping Foot

  17. Edge Guide Presser Foot Left Edge Guild Presser Foot Right Edge Guild Presser Foot

  18. Guild Flat Bottom Foot Left Guild Flat Bottom Foot

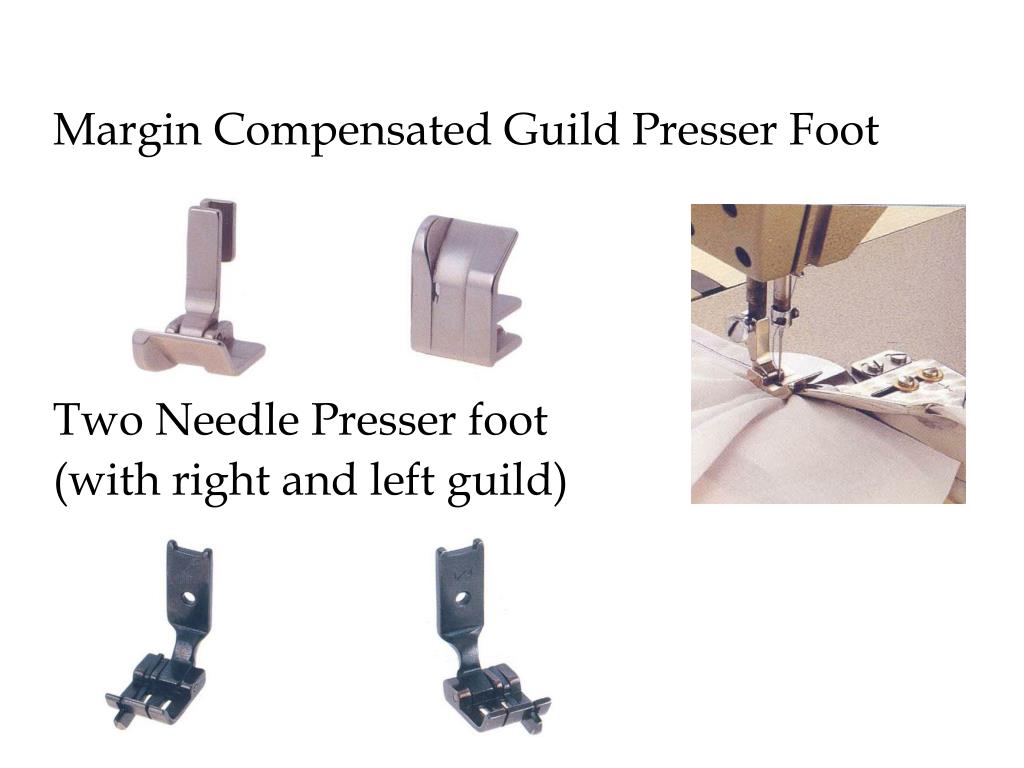

  19. Margin Compensated Guild Presser Foot Two Needle Presser foot (with right and left guild)

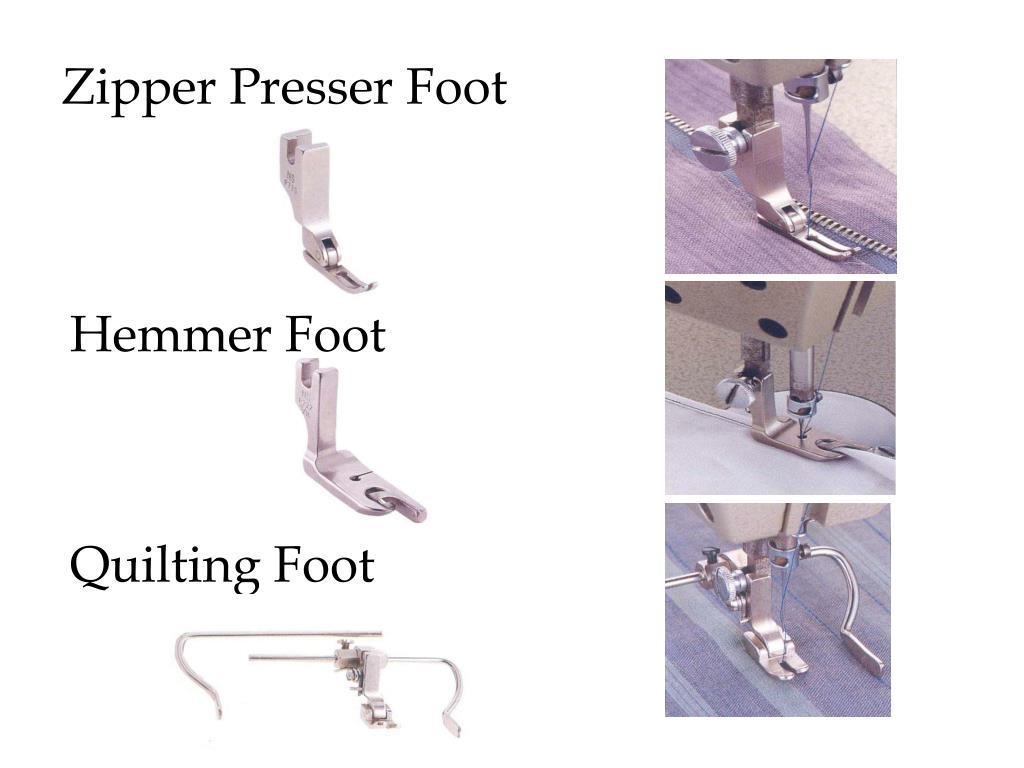

  20. Zipper Presser Foot Hemmer Foot Quilting Foot
