  1. PKCS #1 v2.1:RSA Cryptography Standard Burt Kaliski, RSA Laboratories PKCS Workshop, 5 October 2000

  2. History of PKCS #1 • June 1991: PKCS #1 v1.4 • initial RSA encryption, signature schemes • Nov. 1993: PKCS #1 v1.5 • minor editorial revisions • wide deployment, in parallel with increased understanding of security of RSA-based techniques • July 1998: PKCS #1 v2.0 • adds RSA-OAEP encryption scheme • (M. Bellare and P. Rogaway, Eurocrypt ’94) • Sept. 1999: PKCS #1 v2.1 draft 1 • adds RSA-PSS signature scheme • (M. Bellare and P. Rogaway, Eurocrypt ’96)

  3. History of PKCS #1 (cont’d) • July 2000: PKCS #1 v2.0 Amd. 1 • adds “multi-prime” RSA • soon: PKCS #1 v2.1 draft 2 • updates RSA-PSS to align with related standards • (for a preview, see IEEE P1363a D5)

  4. What is PSS? • PSS stands for Probabilistic Signature Scheme • Published in 1996 by M. Bellare and P. Rogaway • “Encoding method” for signatures with appendix in the integer factorization (IF) family, including RSA signatures • Provable security in the random oracle model • PSS-R variant provides message recovery

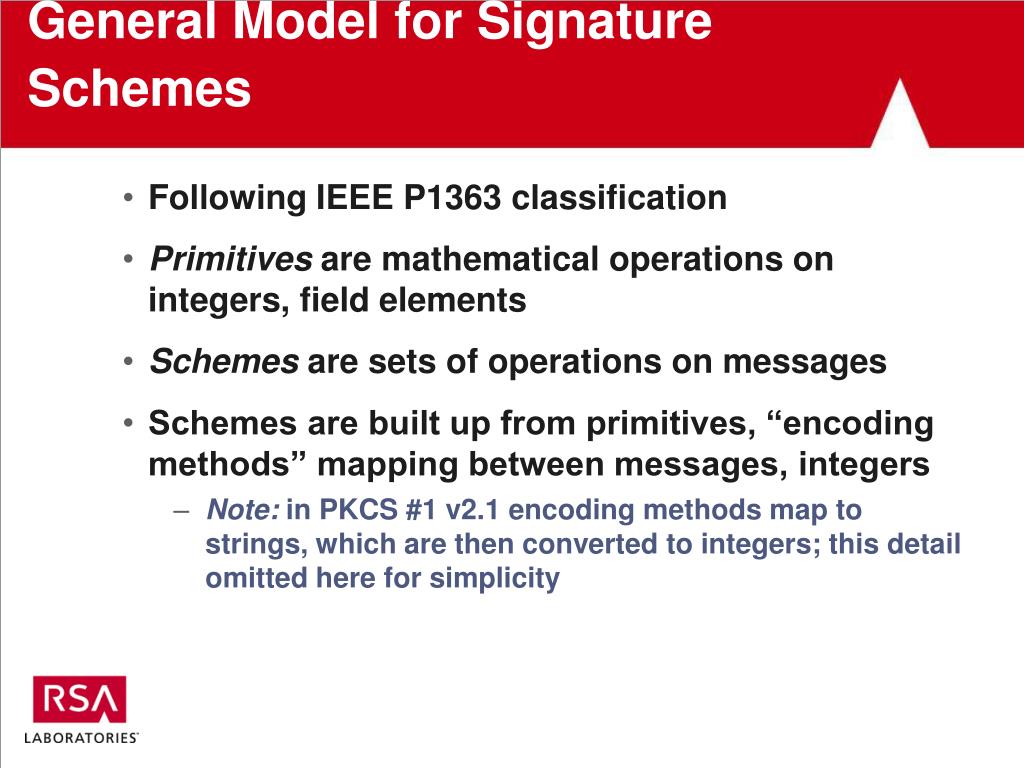

  5. General Model for Signature Schemes • Following IEEE P1363 classification • Primitives are mathematical operations on integers, field elements • Schemes are sets of operations on messages • Schemes are built up from primitives, “encoding methods” mapping between messages, integers • Note: in PKCS #1 v2.1 encoding methods map to strings, which are then converted to integers; this detail omitted here for simplicity

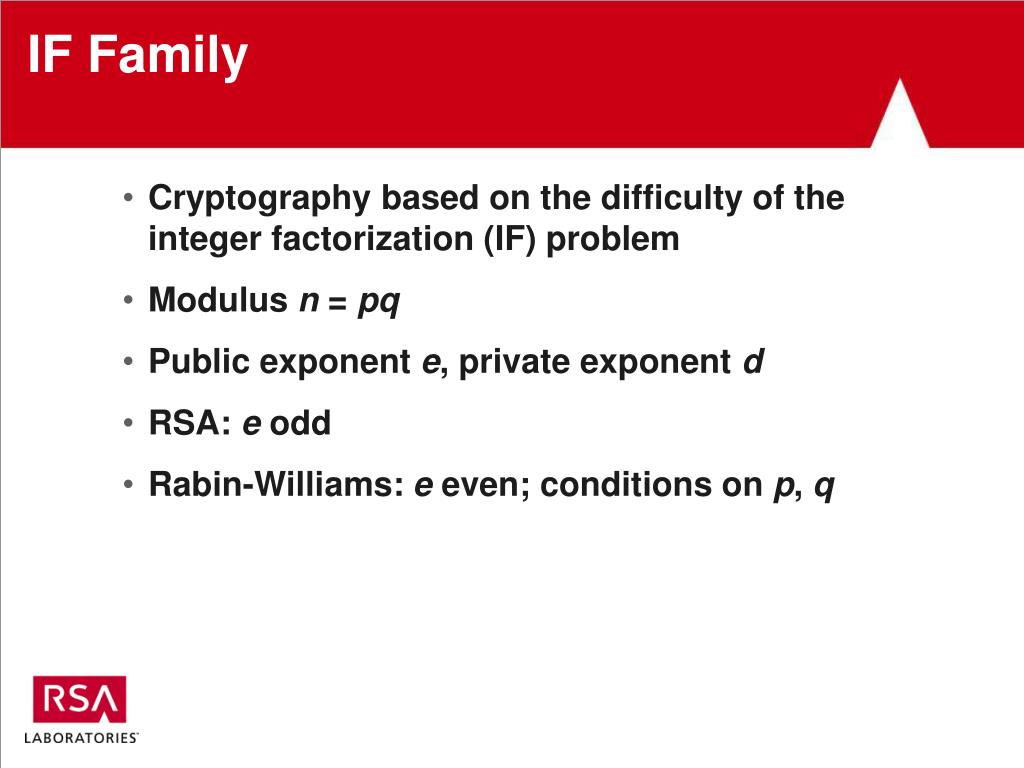

  6. IF Family • Cryptography based on the difficulty of the integer factorization (IF) problem • Modulus n = pq • Public exponent e, private exponent d • RSA: e odd • Rabin-Williams: e even; conditions on p, q

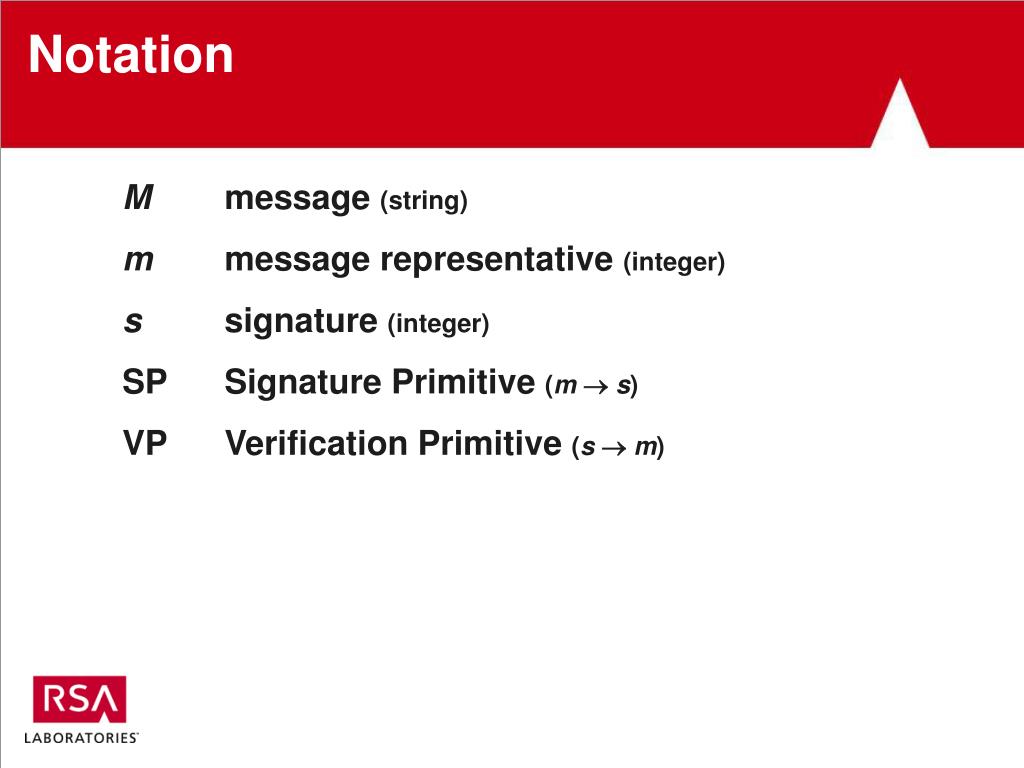

  7. Notation M message (string) m message representative (integer) s signature (integer) SP Signature Primitive (ms) VP Verification Primitive (sm)

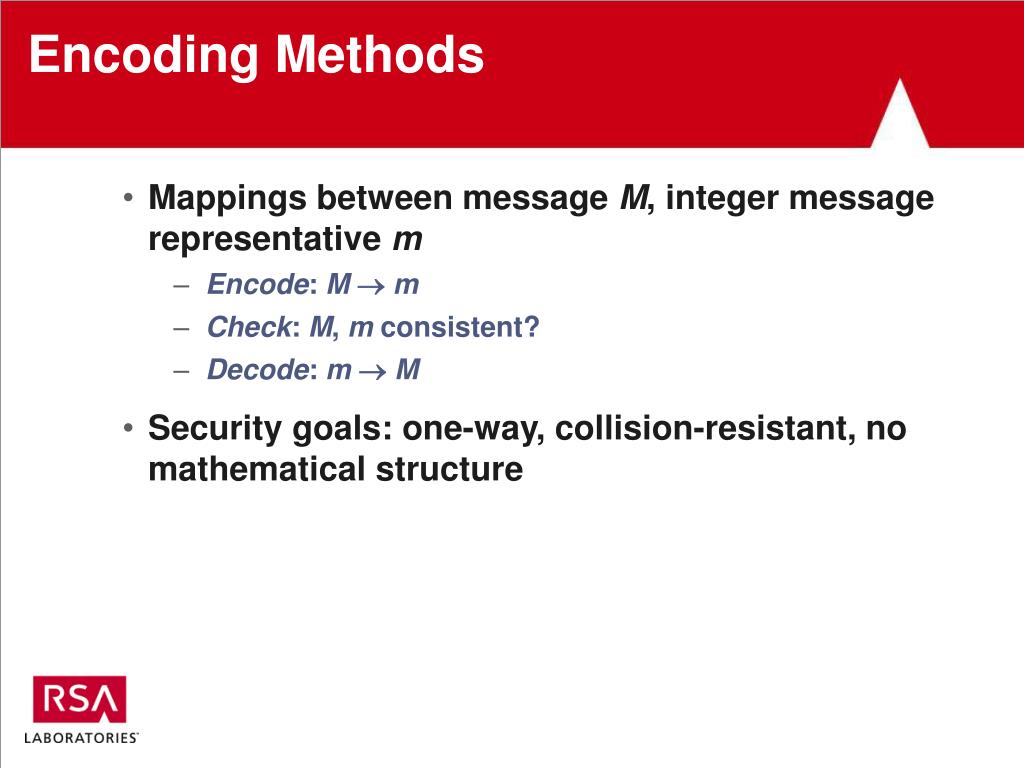

  8. Encoding Methods • Mappings between message M, integer message representative m • Encode: Mm • Check: M, m consistent? • Decode: mM • Security goals: one-way, collision-resistant, no mathematical structure

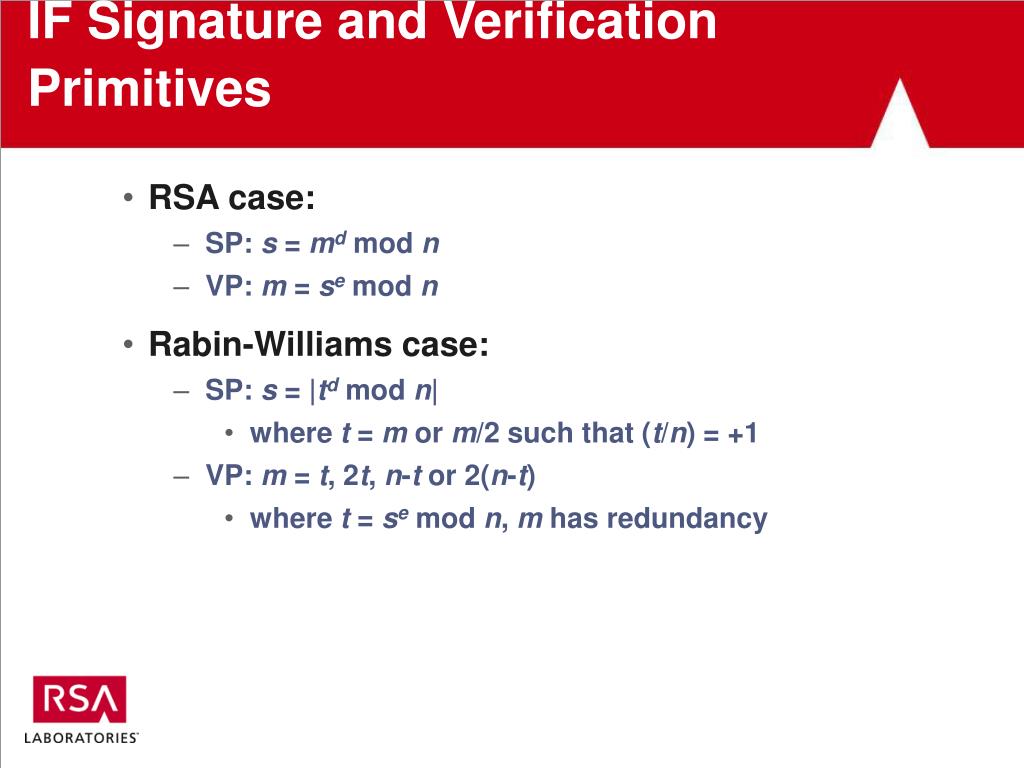

  9. IF Signature and Verification Primitives • RSA case: • SP: s = md mod n • VP: m = se mod n • Rabin-Williams case: • SP: s = |td mod n| • where t = m or m/2 such that (t/n) = +1 • VP: m = t, 2t, n-t or 2(n-t) • where t = se mod n, m has redundancy

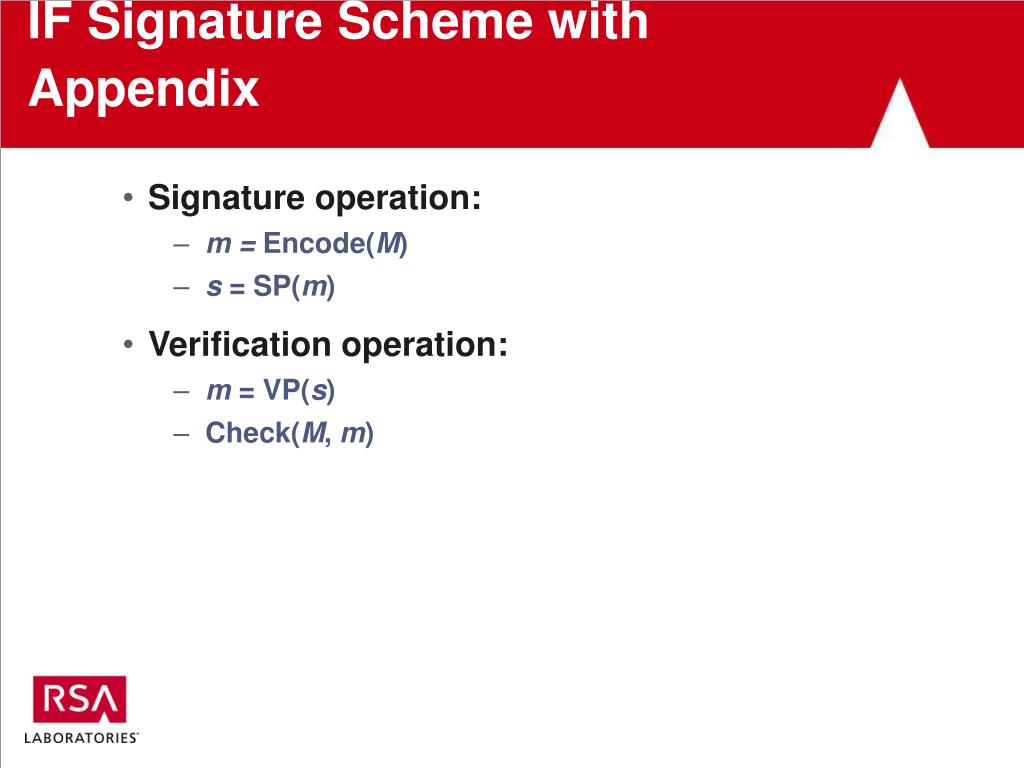

  10. IF Signature Scheme with Appendix • Signature operation: • m= Encode(M) • s = SP(m) • Verification operation: • m = VP(s) • Check(M, m)

  11. IF Signature Scheme with Message Recovery • Signature operation: • m = Encode(M) • s = SP(m) • Recovery operation: • m = VP(s) • M = Decode(m) • (Size of M is limited)

  12. Draft Specification of PSS • RSASSA-PSS in PKCS #1 v2.1 d2 • “RSAsignature scheme with appendix based on PSS” • Follows general model, with new encoding operation • Aligned with IEEE P1363a D5

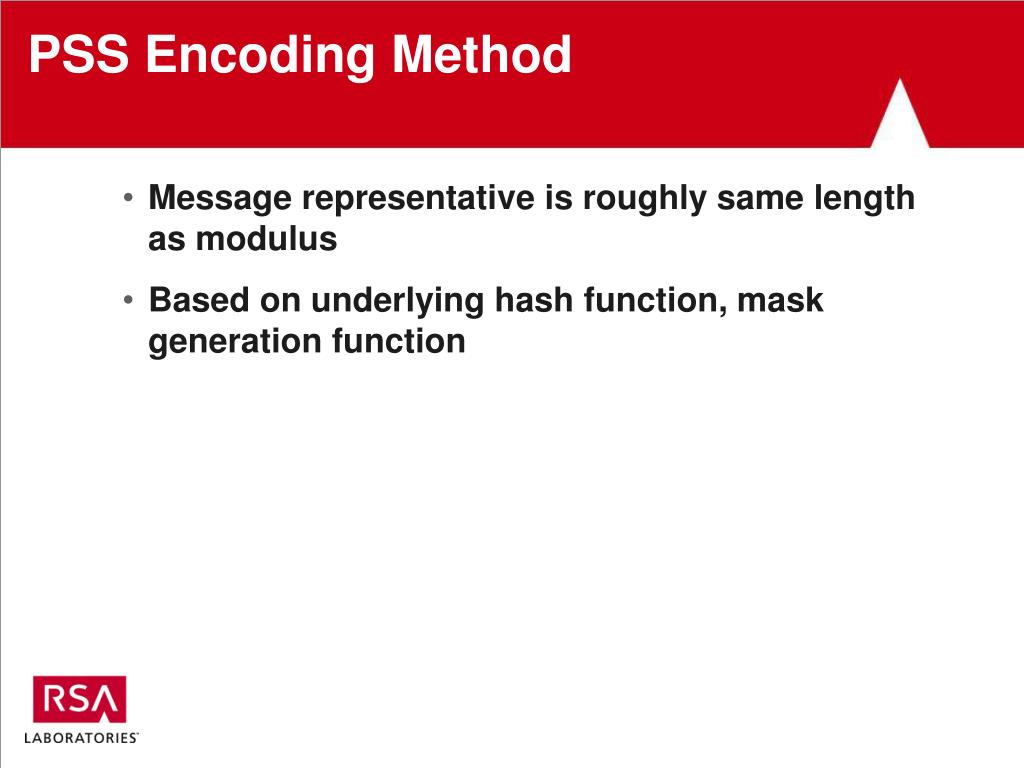

  13. PSS Encoding Method • Message representative is roughly same length as modulus • Based on underlying hash function, mask generation function

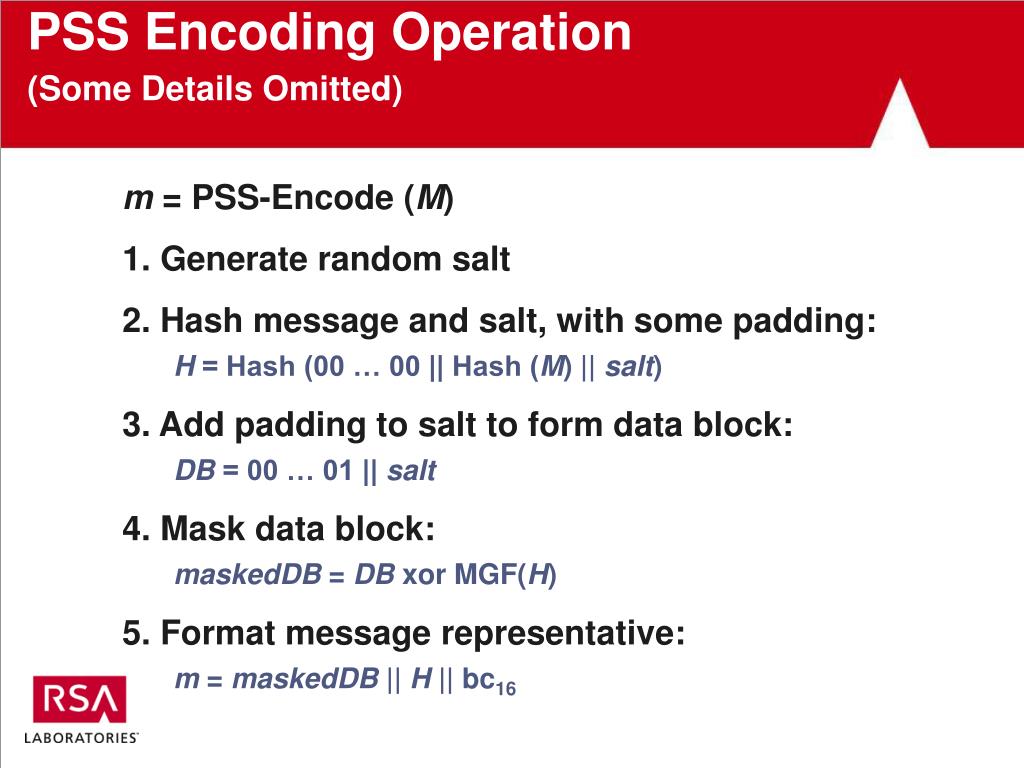

  14. PSS Encoding Operation(Some Details Omitted) m = PSS-Encode (M) 1. Generate random salt 2. Hash message and salt, with some padding: H = Hash (00 … 00 || Hash (M) || salt) 3. Add padding to salt to form data block: DB = 00 … 01 || salt 4. Mask data block: maskedDB = DB xor MGF(H) 5. Format message representative: m = maskedDB || H || bc16

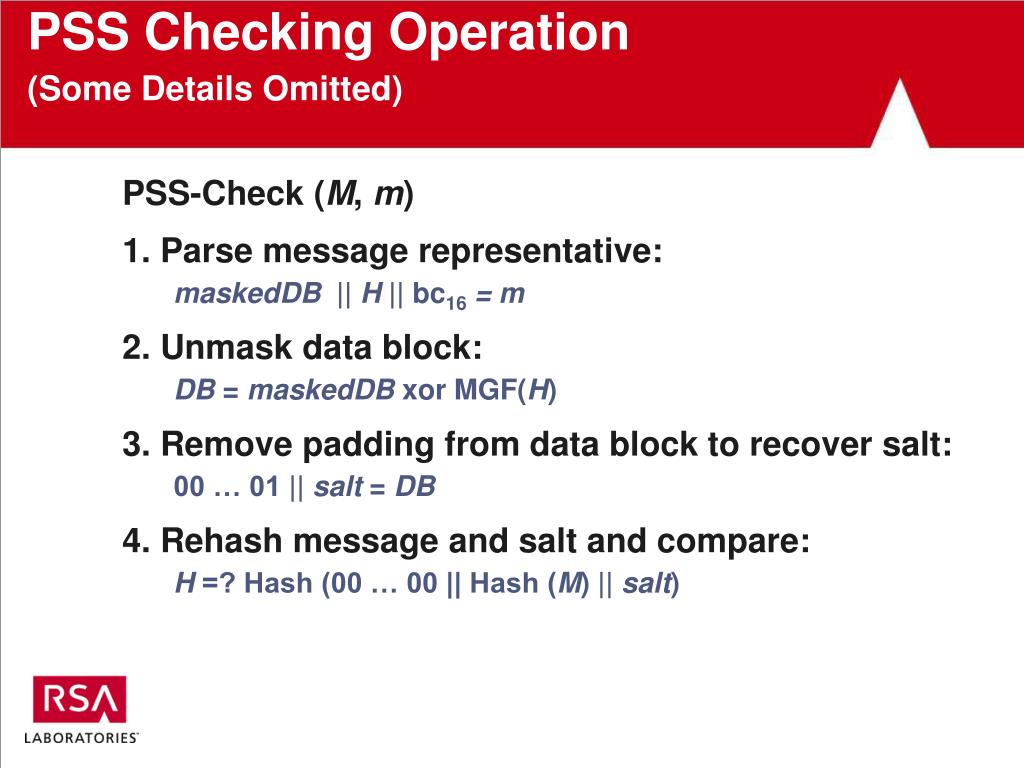

  15. PSS Checking Operation(Some Details Omitted) PSS-Check (M, m) 1. Parse message representative: maskedDB || H || bc16= m 2. Unmask data block: DB = maskedDB xor MGF(H) 3. Remove padding from data block to recover salt: 00 … 01||salt= DB 4. Rehash message and salt and compare: H =? Hash (00 … 00 || Hash (M) || salt)

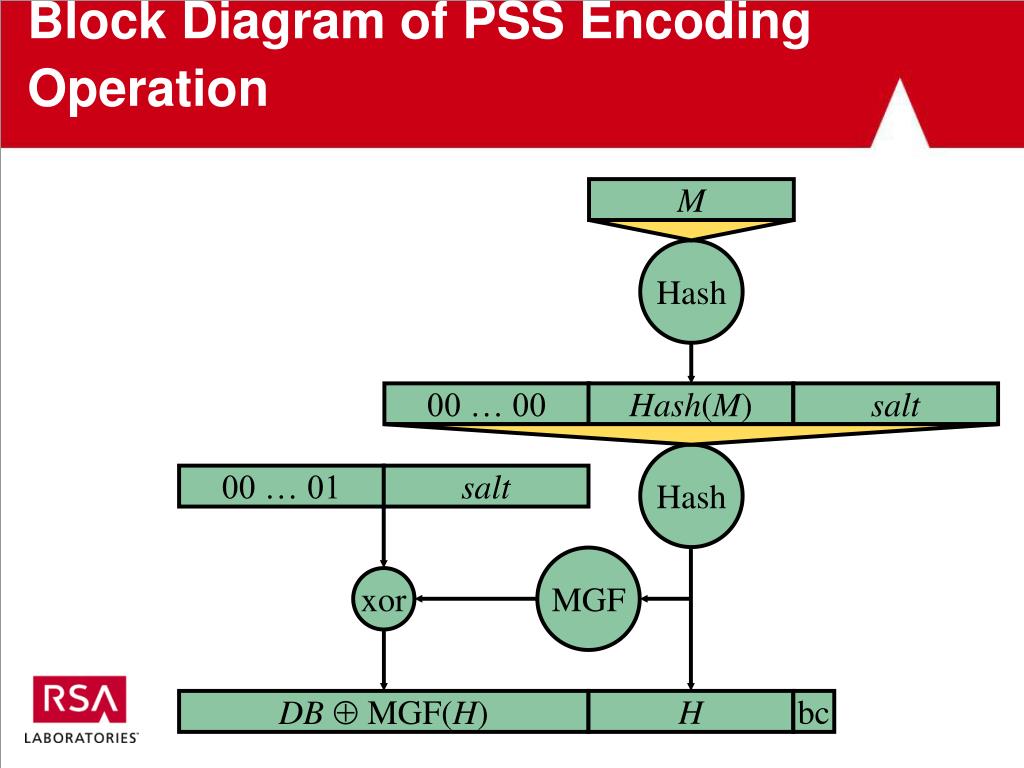

  16. Block Diagram of PSS Encoding Operation M Hash 00 … 00 Hash(M) salt Hash 00 … 01 salt MGF xor DB MGF(H) H bc

  17. Block Diagram of Encoding Operation for PKCS #1 v1.5 M Hash 00 01 ff ff … ff 00 HashID H

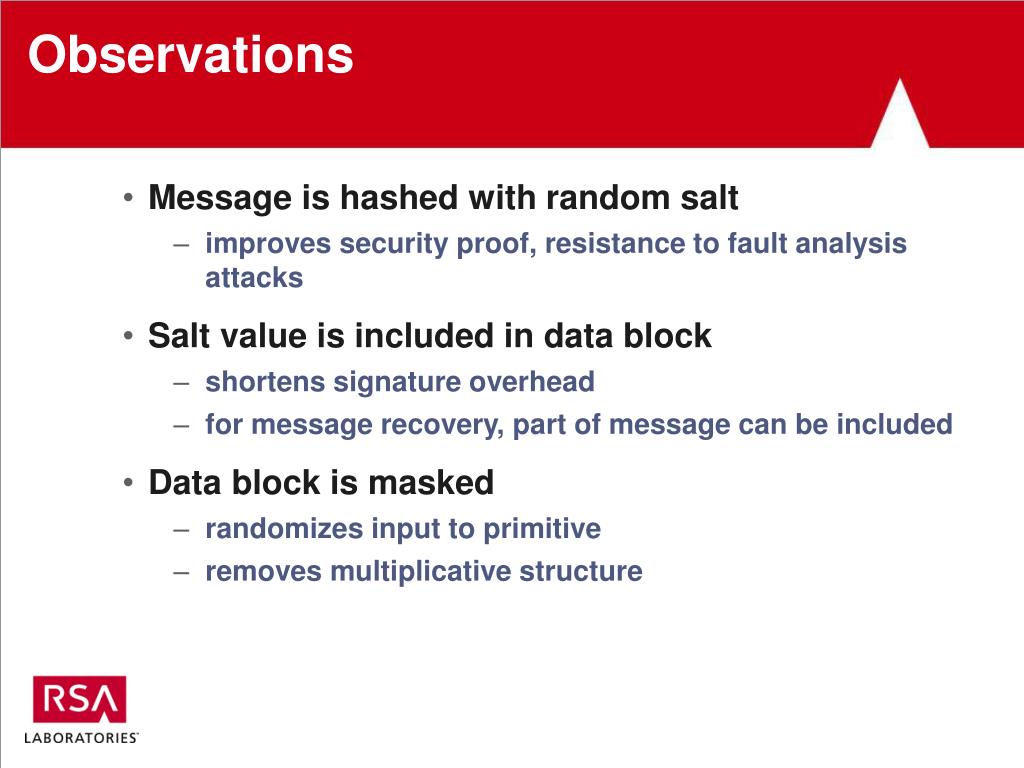

  18. Observations • Message is hashed with random salt • improves security proof, resistance to fault analysis attacks • Salt value is included in data block • shortens signature overhead • for message recovery, part of message can be included • Data block is masked • randomizes input to primitive • removes multiplicative structure

  19. Observations (cont’d) • Message representative ends with bc16 • per ISO/IEC 9796-2 format, to support RW primitive • but note that hash function identifier, header bits are not taken from that format • security proof would be “looser” • hash function ID turns out to be only partially helpful in variant with message recovery (a long story …)

  20. Two-Level Hashing • In PKCS #1 v2.1 d1 as well as the original PSS, message and salt were concatenated then hashed • Here, message hash is concatenated with salt • Motivation: • typical protocols hash message first, so integration of new method is easier • “single-pass” processing is easier, since salt is not needed until after message is hashed • Security proof is the same, under usual assumptions about hash function • proof holds even if attacker controls hash value

  21. What’s Provable? • Suppose an algorithm A can forge PSS signatures without access to the details of Hash, MGF • Hash, MGF are effectively “random oracles” that can only be queried • Then an algorithm B can invert RSA in about the same time using algorithm A as a subroutine •  If RSA is hard to invert, then PSS is secure against generic attacks

  22. Proof Method • Inverting algorithm B “builds” Hash, MGF that appear random to forgery algorithm A, but embed an instance to be inverted • When A succeeds at forgery, B succeeds at inverting RSA • Random salt is key to “tight” proof; if not random, “looser” proof holds

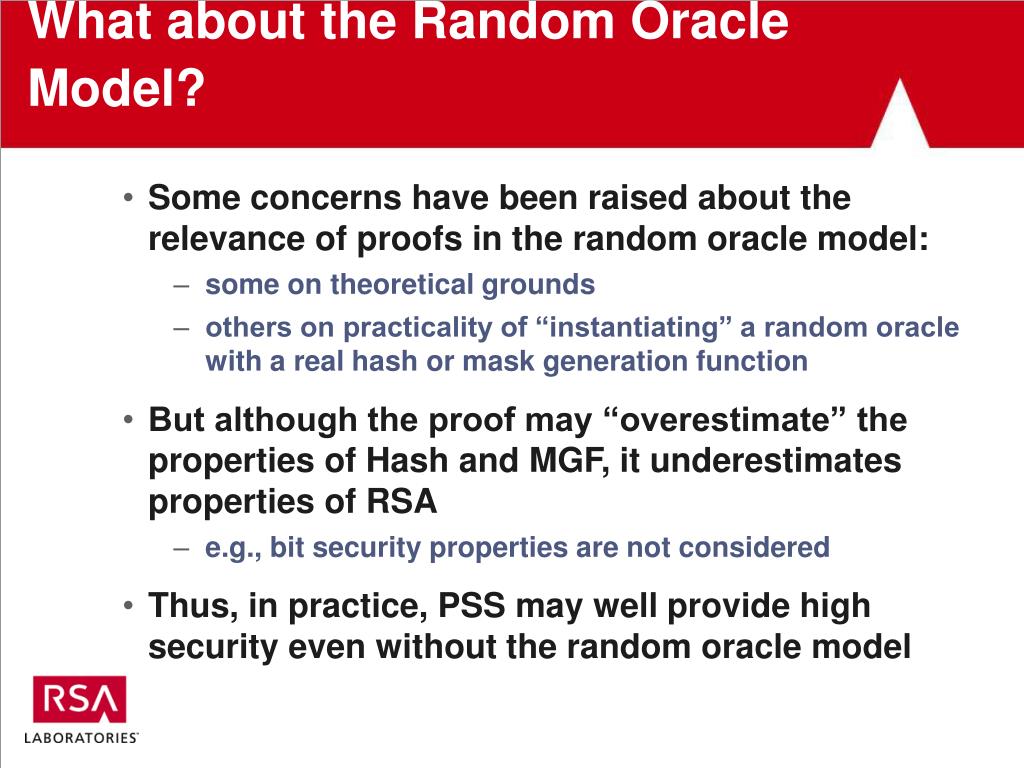

  23. What about the Random Oracle Model? • Some concerns have been raised about the relevance of proofs in the random oracle model: • some on theoretical grounds • others on practicality of “instantiating” a random oracle with a real hash or mask generation function • But although the proof may “overestimate” the properties of Hash and MGF, it underestimates properties of RSA • e.g., bit security properties are not considered • Thus, in practice, PSS may well provide high security even without the random oracle model

  24. ASN.1 Syntax for RSASSA-PSS • Generic OID: • id-RSASSA-PSS ::= pkcs-1.10 • Parameters: • RSASSA-PSS-params ::= SEQUENCE { hashFunc [0] AlgorithmIdentifier {{oaepDigestAlgorithms}} DEFAULT sha1Identifier, maskGenFunc [1] AlgorithmIdentifier {{pkcs1MGFAlgorithms}} DEFAULT mgf1SHA1Identifier } • (For S/MIME, perhaps a separate OID for the steps after the message is hashed)

  25. Patent Issues • University of California has applied for a patent (U.S. only) on PSS and PSS-R • In a letter to IEEE P1363, UC has offered to waive licensing on PSS for signatures with appendix if adopted as an IEEE standard • agreed for ANSI X9F1, ISO/IEC, NESSIE as well • Reasonable and non-discriminatory licensing for signatures with message recovery

  26. Recommended Deployment • A gradual transition to PSS is recommended in the interest of prudent security • rollover, along with AES, new hash functions, … • PKCS #1 v1.5 signature scheme is still appropriate for new applications • Different than situation with PKCS #1 v1.5 encryption scheme, where only OAEP is recommended for new applications

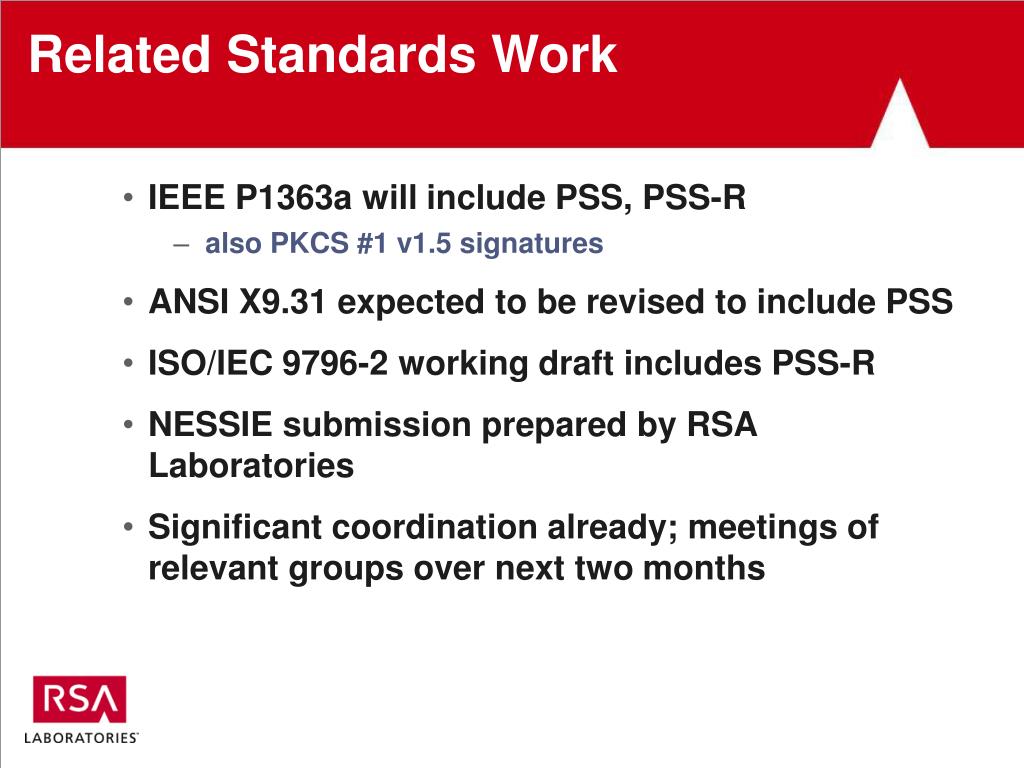

  27. Related Standards Work • IEEE P1363a will include PSS, PSS-R • also PKCS #1 v1.5 signatures • ANSI X9.31 expected to be revised to include PSS • ISO/IEC 9796-2 working draft includes PSS-R • NESSIE submission prepared by RSA Laboratories • Significant coordination already; meetings of relevant groups over next two months

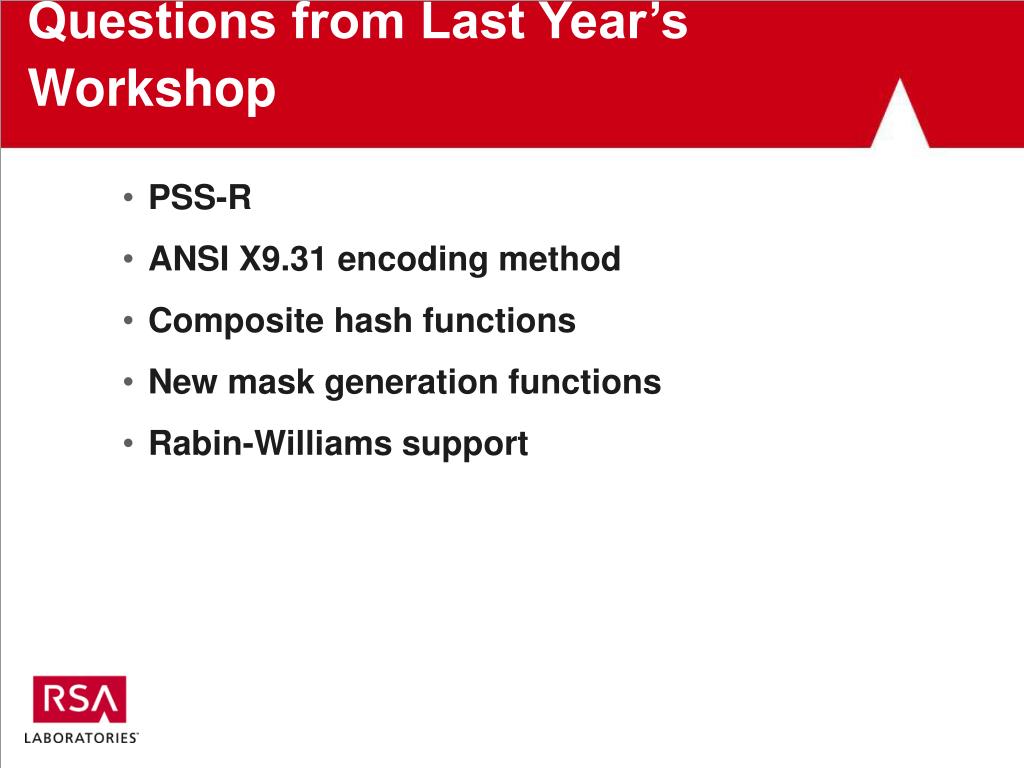

  28. Questions from Last Year’s Workshop • PSS-R • ANSI X9.31 encoding method • Composite hash functions • New mask generation functions • Rabin-Williams support

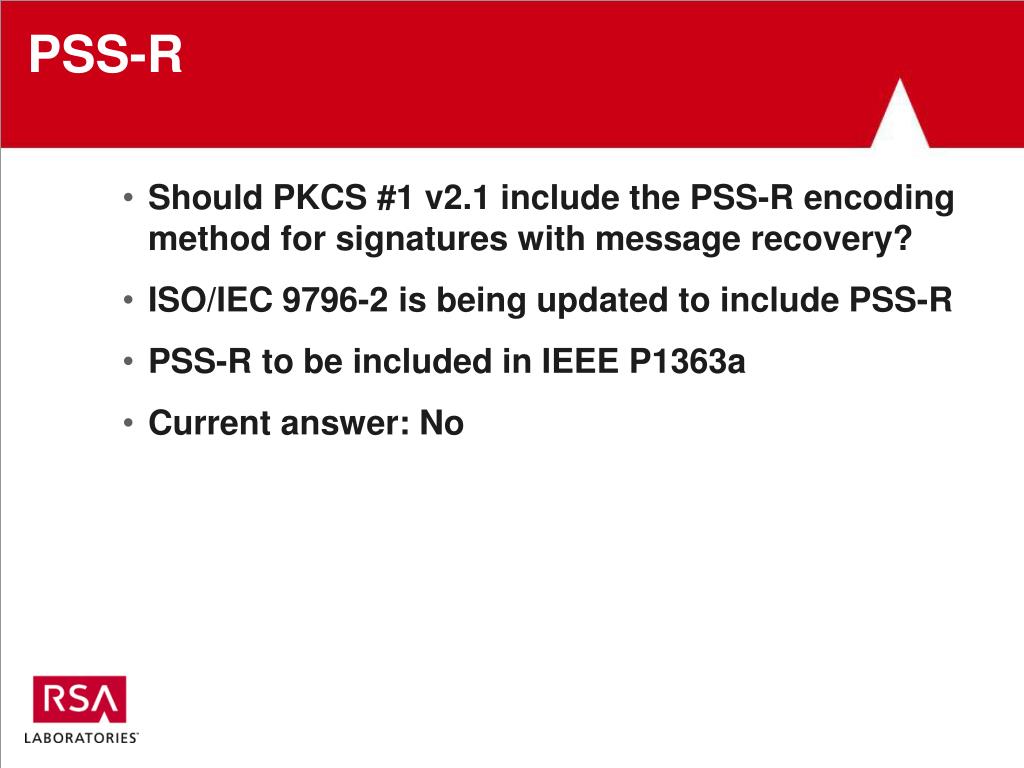

  29. PSS-R • Should PKCS #1 v2.1 include the PSS-R encoding method for signatures with message recovery? • ISO/IEC 9796-2 is being updated to include PSS-R • PSS-R to be included in IEEE P1363a • Current answer: No

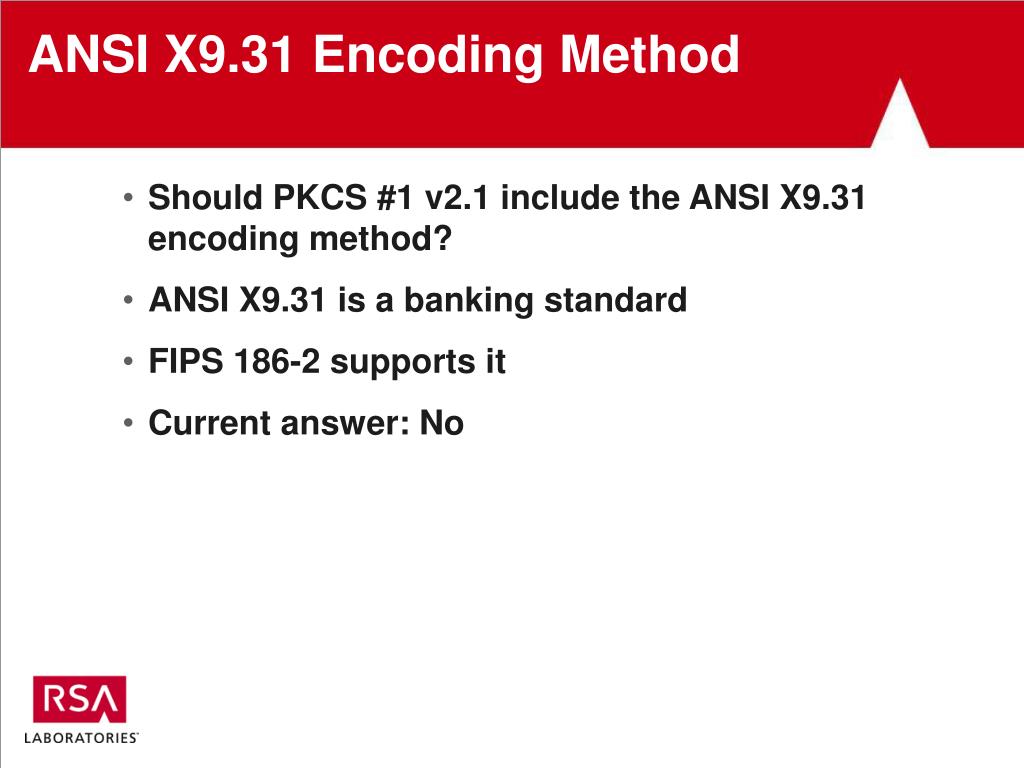

  30. ANSI X9.31 Encoding Method • Should PKCS #1 v2.1 include the ANSI X9.31 encoding method? • ANSI X9.31 is a banking standard • FIPS 186-2 supports it • Current answer: No

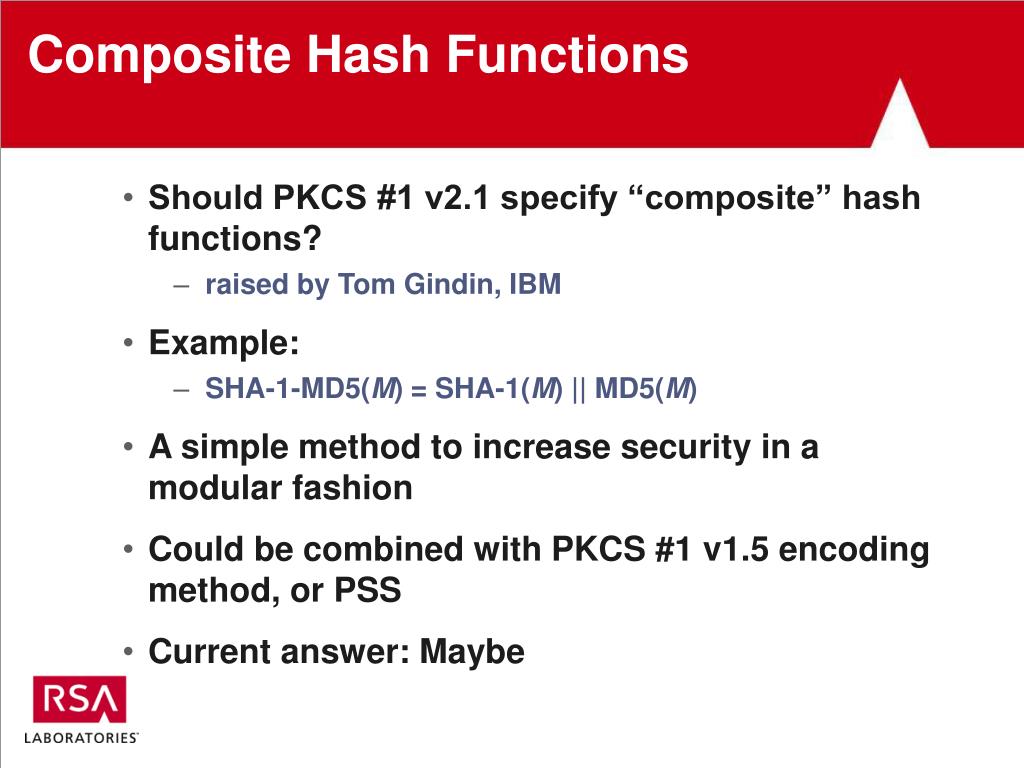

  31. Composite Hash Functions • Should PKCS #1 v2.1 specify “composite” hash functions? • raised by Tom Gindin, IBM • Example: • SHA-1-MD5(M) = SHA-1(M) || MD5(M) • A simple method to increase security in a modular fashion • Could be combined with PKCS #1 v1.5 encoding method, or PSS • Current answer: Maybe

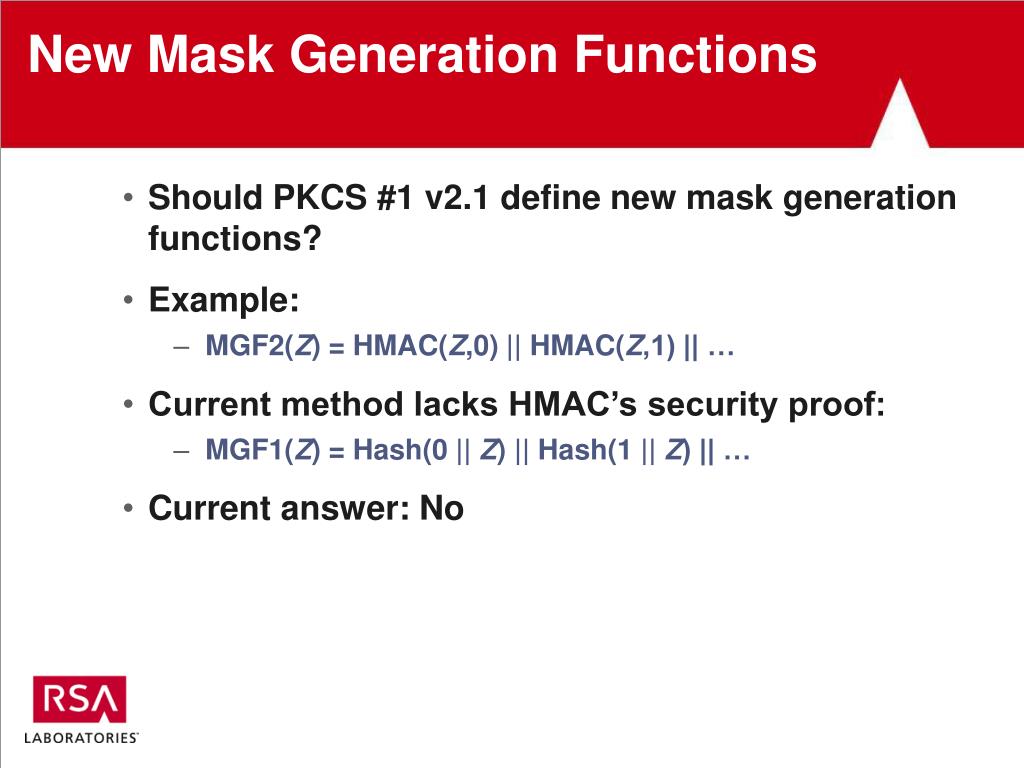

  32. New Mask Generation Functions • Should PKCS #1 v2.1 define new mask generation functions? • Example: • MGF2(Z) = HMAC(Z,0) || HMAC(Z,1) || … • Current method lacks HMAC’s security proof: • MGF1(Z) = Hash(0 || Z) || Hash(1 || Z) || … • Current answer: No

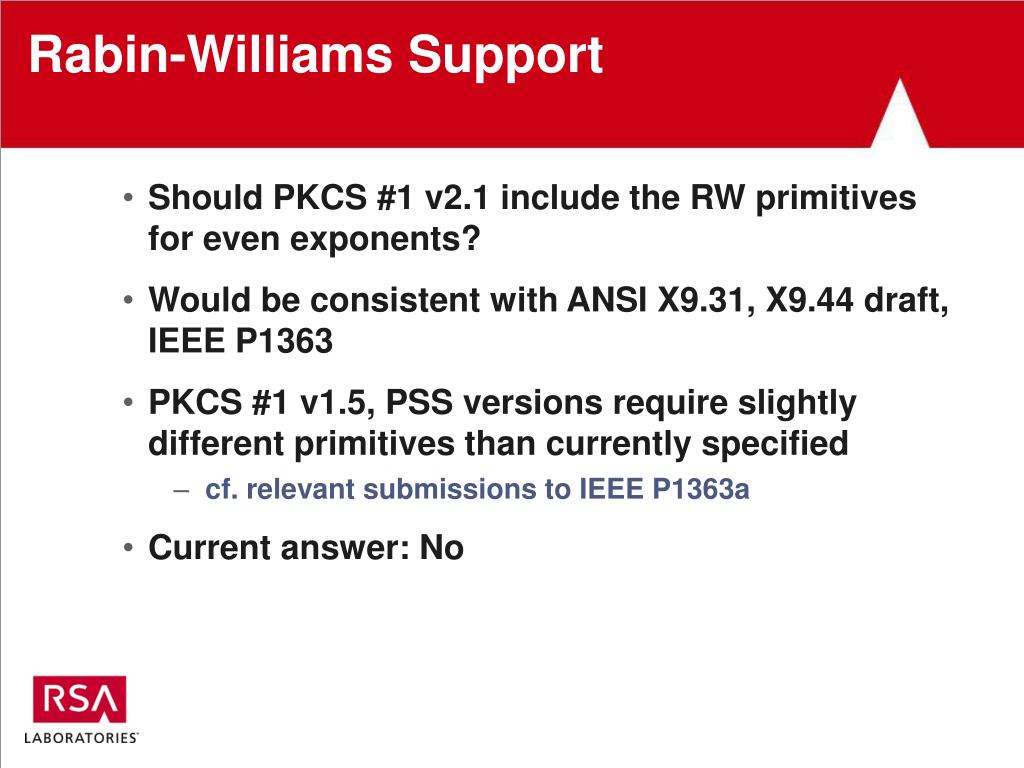

  33. Rabin-Williams Support • Should PKCS #1 v2.1 include the RW primitives for even exponents? • Would be consistent with ANSI X9.31, X9.44 draft, IEEE P1363 • PKCS #1 v1.5, PSS versions require slightly different primitives than currently specified • cf. relevant submissions to IEEE P1363a • Current answer: No

  34. Conclusions • New version of PKCS #1 in development • Standards strategy for RSA signatures emerging • PSS a prudent choice for long-term security, harmonization of standards • For future work? • PKCS #1 usage guidelines • key generation and validation specifications

  35. For More Information • PKCS #1 drafts: www.rsalabs.com/pkcs/ • IEEE P1363a drafts: grouper.ieee.org/groups/1363/ • bkaliski@rsasecurity.com
