  1. GRX and Its Role in Inter-Standard Data Roaming Shu Gan VP Marketing, Aicent, Inc. CDG IRT, Macau March 2007

  2. Agenda • GPRS Roaming and GRX • GPRS vs. CDMA Data Roaming • Aicent GRX/CRX Enhance Inter-Standard Data Roaming

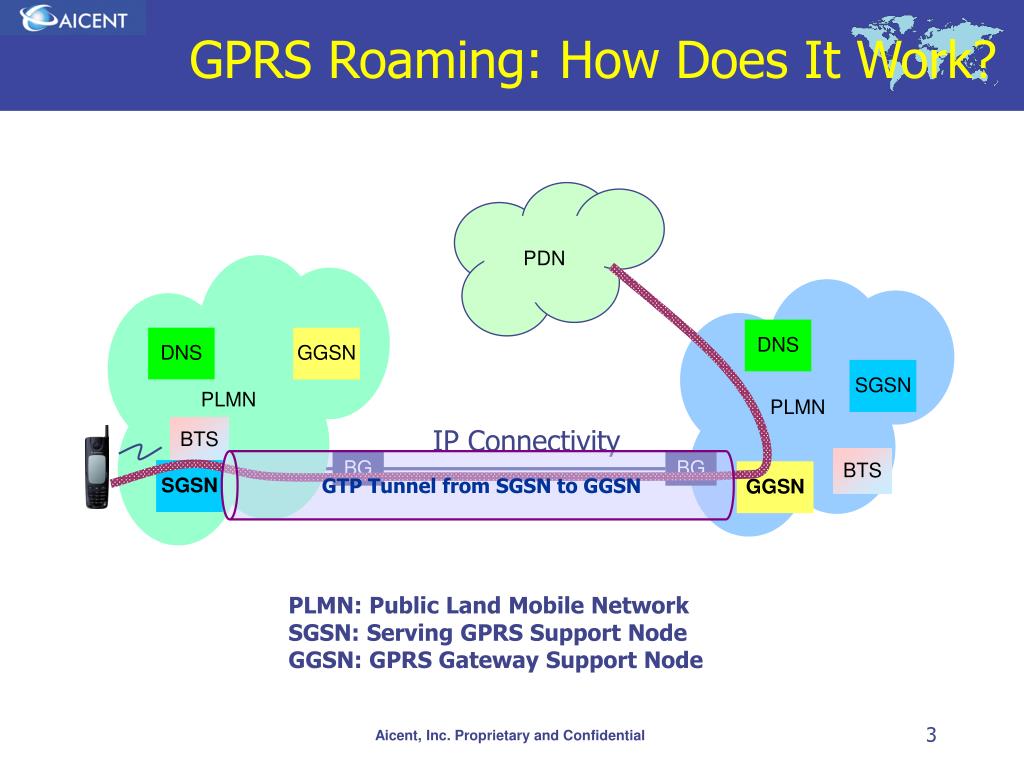

  3. DNS GGSN BTS PLMN BG SGSN PLMN PDN GPRS Roaming: How Does It Work? GTP Tunnel from SGSN to GGSN DNS SGSN IP Connectivity BTS BG GGSN PLMN: Public Land Mobile Network SGSN: Serving GPRS Support Node GGSN: GPRS Gateway Support Node

  4. HOME Operator PLMN VISITED Operator PLMN GRX Backbone Internet End-to-end GPRS Roaming (2) GGSN SGSN GGSN DNS BTS ( 1) SGSN DNS BTS (1) PLMN Roaming ( MS->VSGSN->HGGSN) Root DNS (2) ISP Roaming ( MS->VSGSN->VGGSN)

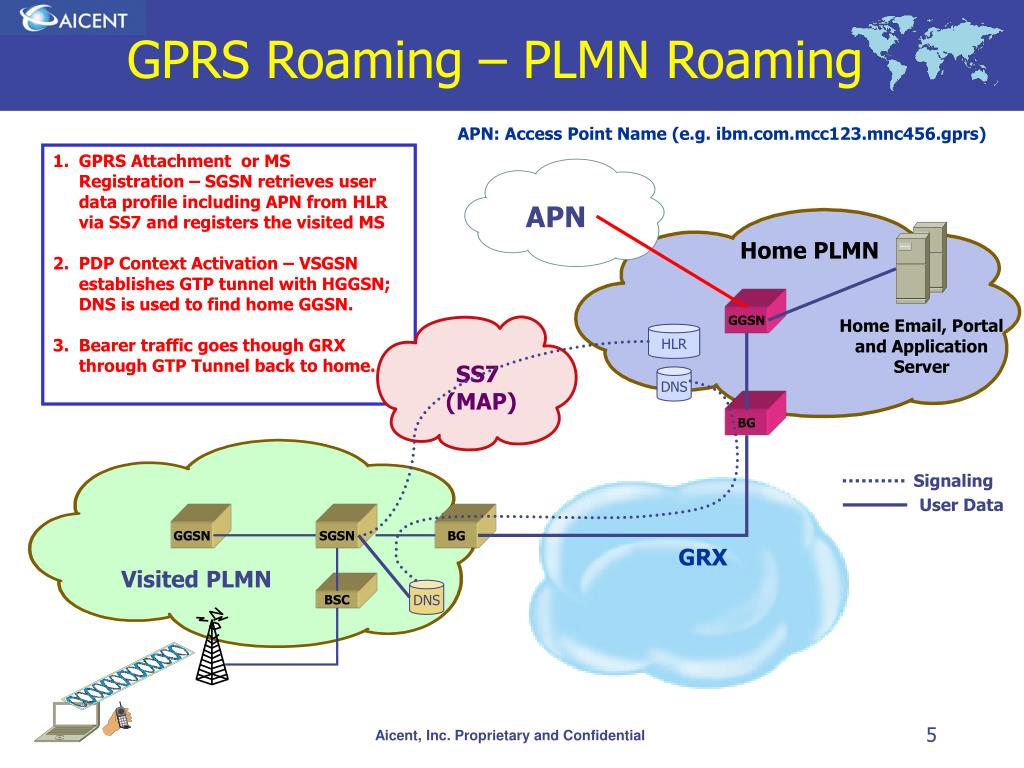

  5. APN SS7 (MAP) GRX GPRS Roaming – PLMN Roaming APN: Access Point Name (e.g. ibm.com.mcc123.mnc456.gprs) • GPRS Attachment or MS Registration – SGSN retrieves user data profile including APN from HLR via SS7 and registers the visited MS • PDP Context Activation – VSGSN establishes GTP tunnel with HGGSN; DNS is used to find home GGSN. • Bearer traffic goes though GRX through GTP Tunnel back to home. Home PLMN GGSN Home Email, Portal and Application Server HLR DNS BG Signaling User Data GGSN SGSN BG Visited PLMN DNS BSC

  6. Agenda • GPRS Roaming and GRX • GRRS vs. CDMA Data Roaming • Aicent GRX/CRX Enhance Inter-Standard Data Roaming

  7. GRX and CRX Comparison

  8. Agenda • GPRS Roaming and GRX • GRRS vs. CDMA Data Roaming • Aicent GRX/CRX Enhance Inter-Standard Data Roaming (ISDR)

  9. Key Components for ISDR • Sponsor GPRS operator • Enable GPRS roaming relationship with visited GPRS network • IIF and AAA • Signaling/authentication integration • Home GGSN and Visited PDSN • Tunnel conversion for bearer traffic • Data Clearing • TAP and CIBER integration

  10. Two ISDR Cases • Third party ISDR total solution provider • Third party sponsor GPRS operator • Third party solution provider integrates IIF and AAA • Third party solution provider converts tunnels • Third party solution provider integrates TAP and CIBER • Self-sponsor ISDR • Self provides GPRS roaming agreements • Self provides IIF, GGSN and AAA • Self provides tunnel conversion • Self provides TAP billing system

  11. Sponsor GPRS IIF DNS DNS Root DNS ISDR Solution Concept in Case of MIP Home CDMA AAA HA AAA GGSN PDSN/FA CRX GRX Visited GPRS Proxy AAA SGSN BSC GTP Tunnel MIP/GRE Tunnel

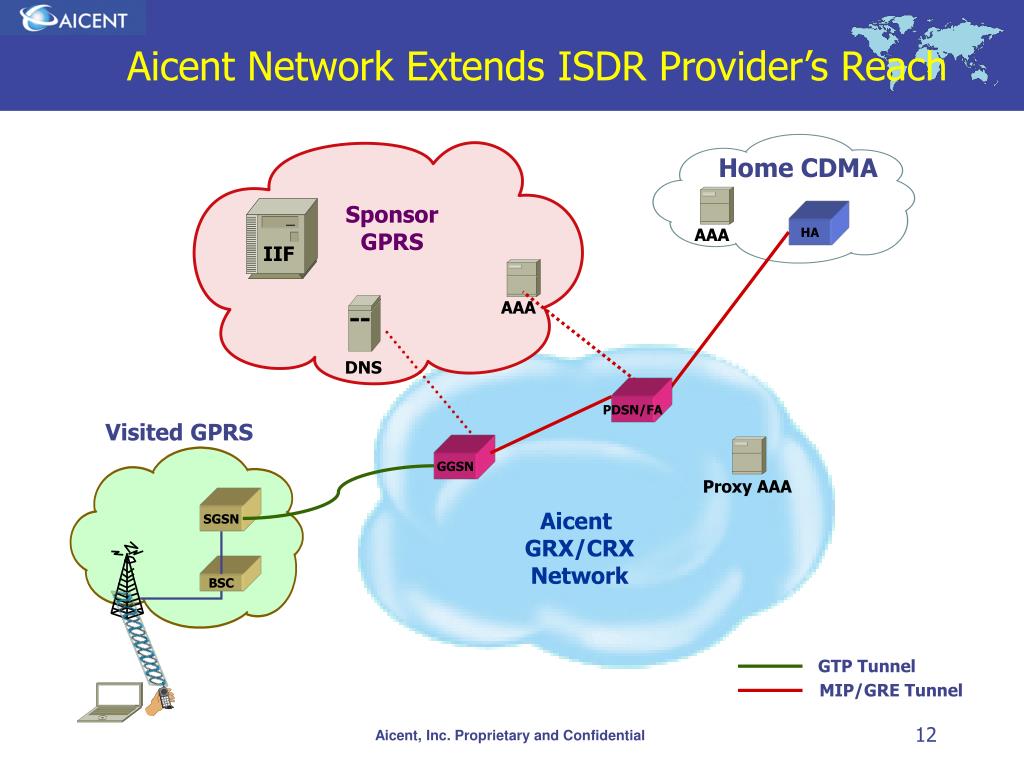

  12. Sponsor GPRS IIF DNS Aicent Network Extends ISDR Provider’s Reach Home CDMA AAA HA AAA PDSN/FA Visited GPRS GGSN Proxy AAA Aicent GRX/CRX Network SGSN BSC GTP Tunnel MIP/GRE Tunnel

  13. Aicent GRX Network One of the largest global GRX providers • 50+ GPRS/3G operators in all major continents • 4 world’s largest GSM operators • 25 3G operators • 800+ million subscribers • 18 Peering arrangements • 300+ GPRS/3G networks reachable • 2500+ roaming commercial routes

  14. Aicent Network Coverage • Aicent partner with multiple and the best global and regional network carriers to offer diverse network connectivity worldwide

  15. Bridging the Mobile WorldTM Thank You Aicent, Inc. www.aicent.com Info@aicent.com +1 (408) 324-1830
