Integration and Migration: Making the Move to Windows Server 2003

1. Integration and Migration: Making the Move to Windows Server 2003 Michael Leworthy Windows Server Product Manager Microsoft Australia

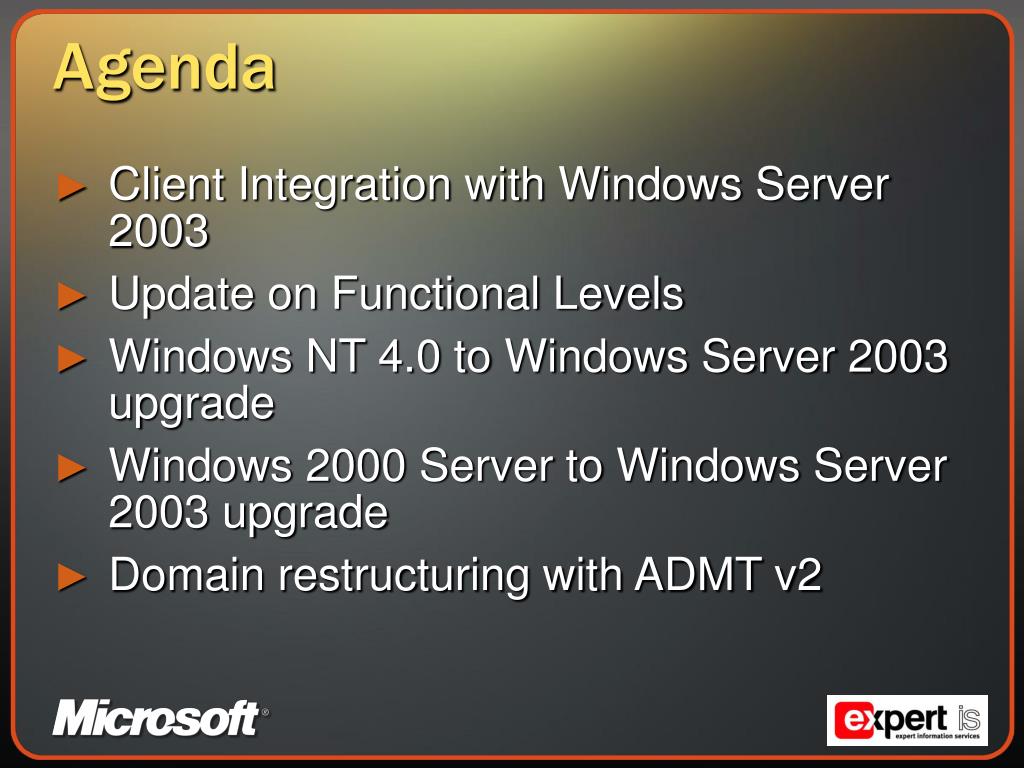

2. Agenda • Client Integration with Windows Server 2003 • Update on Functional Levels • Windows NT 4.0 to Windows Server 2003 upgrade • Windows 2000 Server to Windows Server 2003 upgrade • Domain restructuring with ADMT v2

3. Clients And Windows Server 2003 • Security improvements change behavior of Windows Server 2003 Domain Controllers • SMB signing and secure channel encryption enforced • Adjustments needed for older clients • Windows NT 4.0 SP4 and higher, Windows 2000, Windows XP clients work without adjustments • Win95 and Windows NT4 pre-SP4 require changes; either • Disable enforcement of SMB signing and secure channel encryption • Install DS Client and/or Service Pack • Fully documented in the Windows Server 2003 Deployment Kit

4. Update on Functional Levels • Functional Levels • Domain Functional Levels • Forest Functional Levels • Features without Dependencies • Best Practices For Functional Levels • Raising Domain Functional Level • What Happens with Functional Level Upgrades • Upgrading the PDC • Forest switch to Windows Server 2003 Functional Level

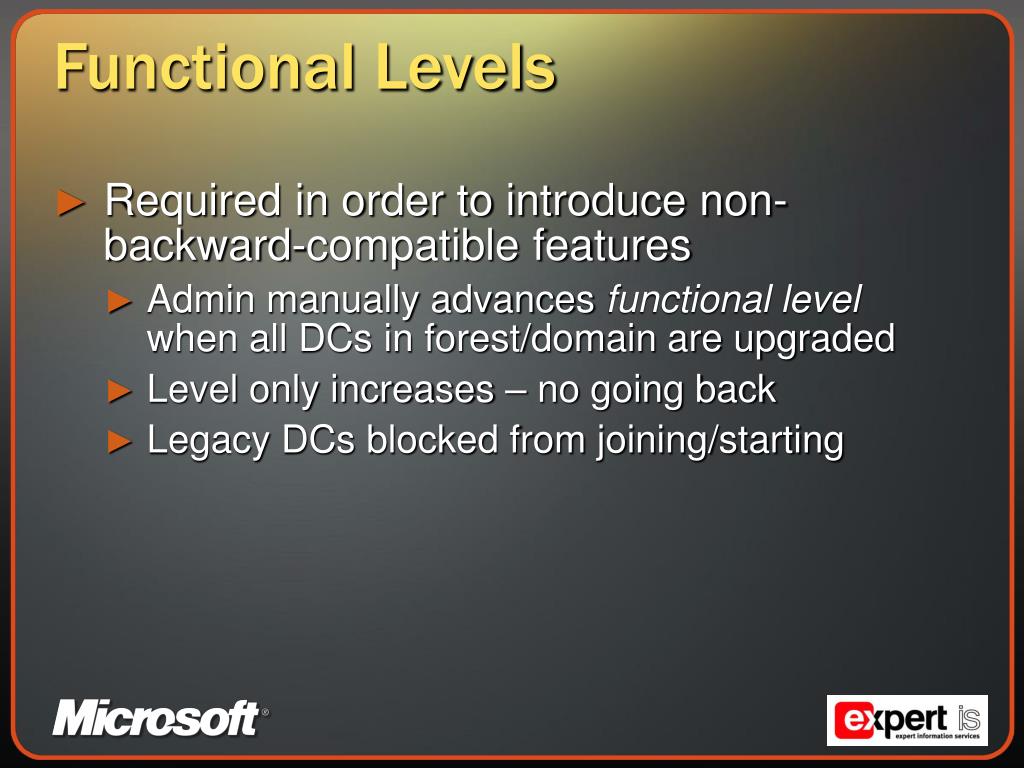

5. Functional Levels • Required in order to introduce non-backward-compatible features • Admin manually advances functional level when all DCs in forest/domain are upgraded • Level only increases – no going back • Legacy DCs blocked from joining/starting

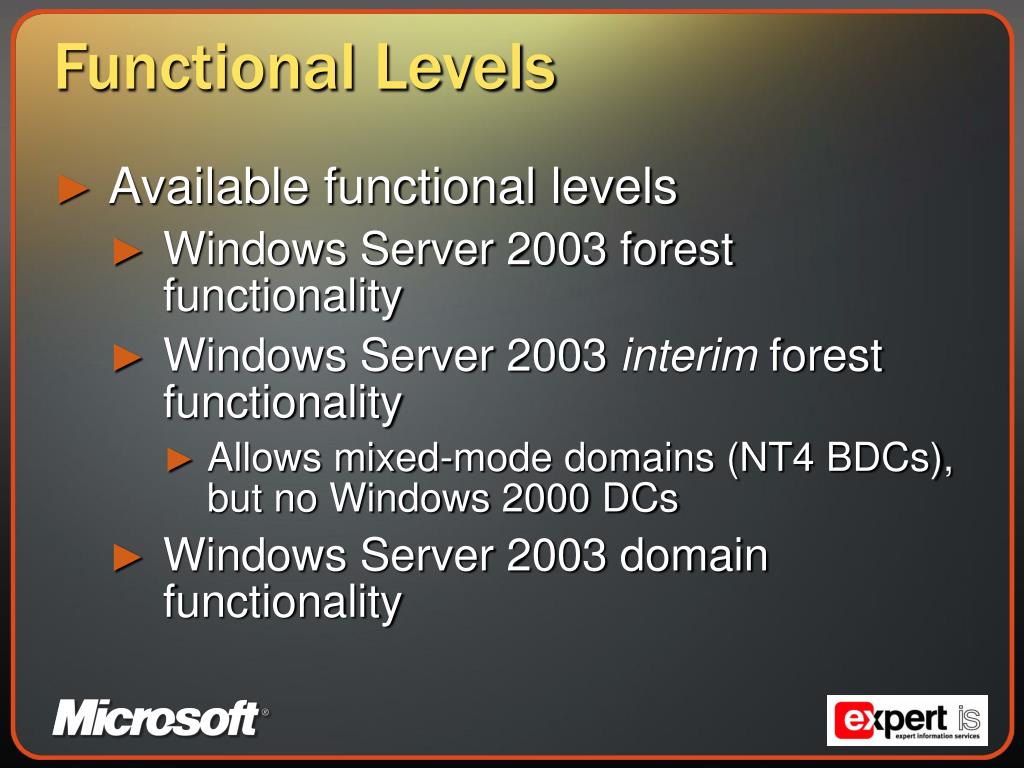

6. Functional Levels • Available functional levels • Windows Server 2003 forest functionality • Windows Server 2003 interim forest functionality • Allows mixed-mode domains (NT4 BDCs), but no Windows 2000 DCs • Windows Server 2003 domain functionality

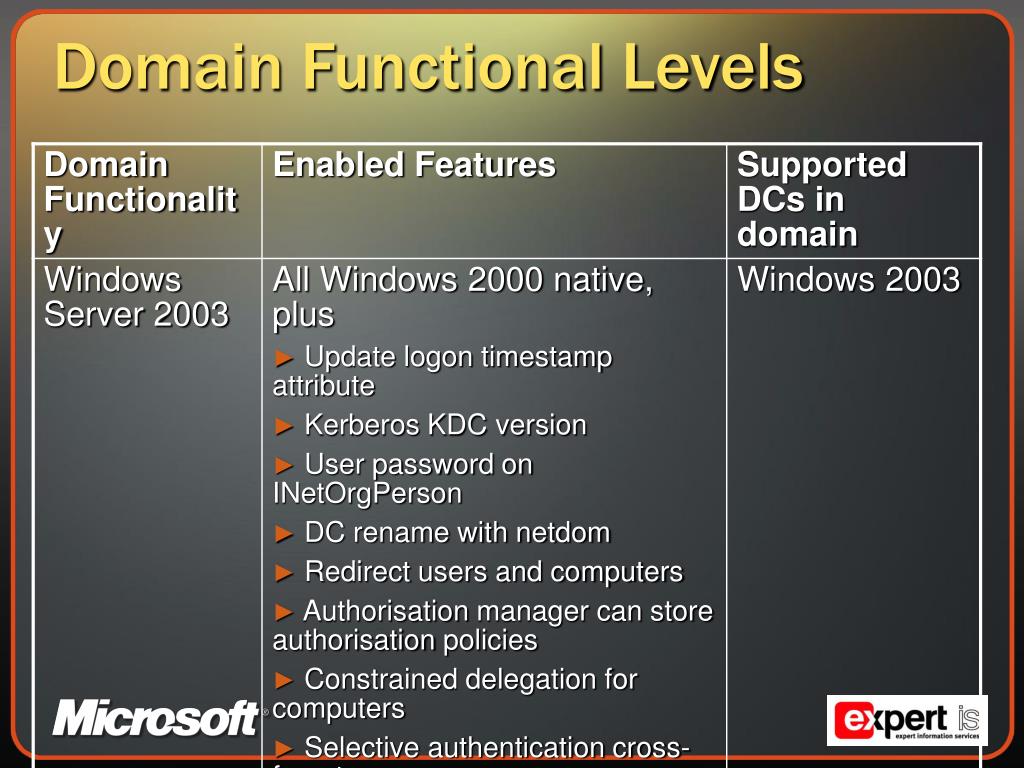

7. Domain Functional Levels

8. Domain Functional Levels

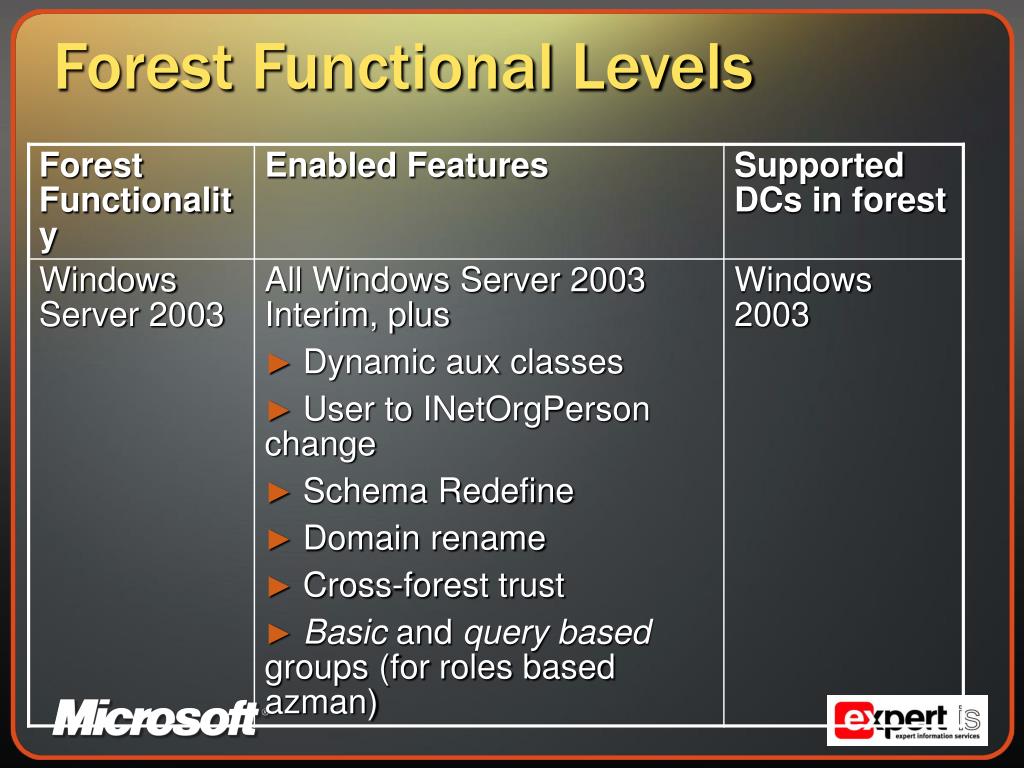

9. Forest Functional Levels

10. Forest Functional Levels

11. Features without Dependencies • Application partitions • Universal Group Caching • Install from Media • No-GC-Full-Sync for PAS schema extensions • SID History migration delegation • Concurrent LDAP binds • Manual trigger of online defrag • DNS in application partitions • Single instance store

12. Forest switch to Windows Server 2003 Functional Level • Domain controllers switch to new replication pause values • Windows 2000: registry values • 5 minutes / 30 seconds • Windows 2003: new default values if registry keys are not set • 30 secs / 5 secs • At forest functional switch • DCs delete registry values if values are Windows 2000 defaults • Automatically switch to 30 secs / 5 secs

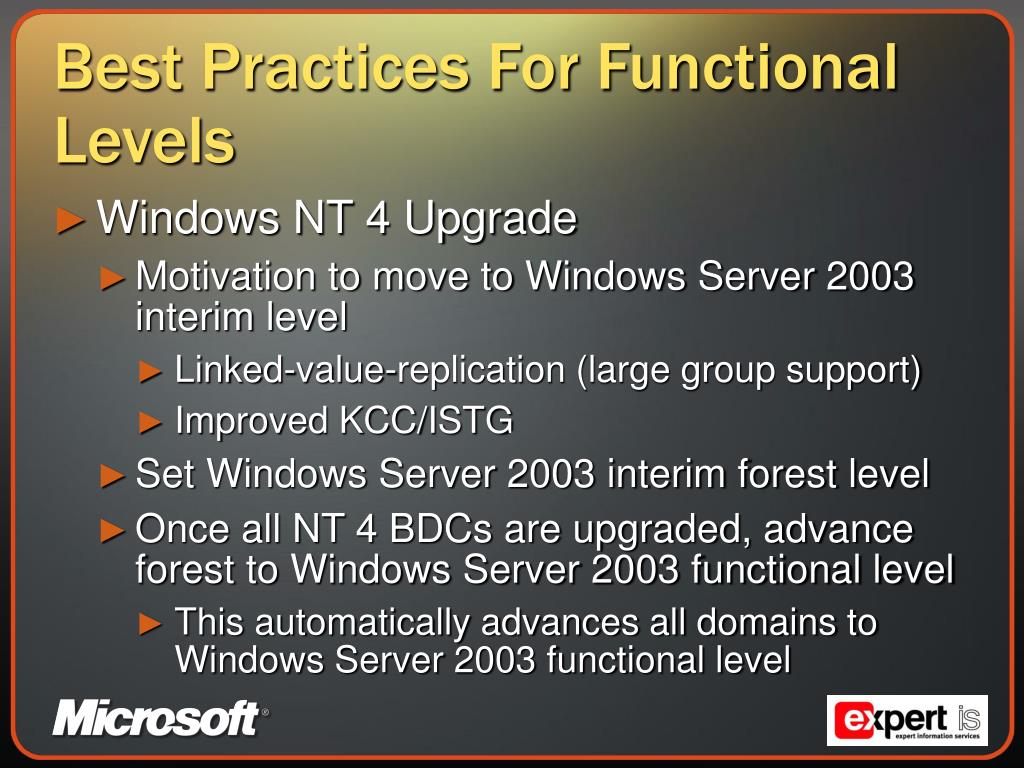

13. Best Practices For Functional Levels • Windows NT 4 Upgrade • Motivation to move to Windows Server 2003 interim level • Linked-value-replication (large group support) • Improved KCC/ISTG • Set Windows Server 2003 interim forest level • Once all NT 4 BDCs are upgraded, advance forest to Windows Server 2003 functional level • This automatically advances all domains to Windows Server 2003 functional level

14. Best Practices For Functional Levels • Windows 2000 Upgrade • Do nothing until all DCs are running Windows Server 2003 • Make sure that no mixed mode domain is left in the forest • Advance forest level to Windows Server 2003 functional level • This automatically advances all domains to Windows Server 2003 functional level

15. Windows NT 4 to Windows Server 2003 upgrade • Upgrading from Windows NT 4 • Demo: Upgrading the Windows NT 4 PDC

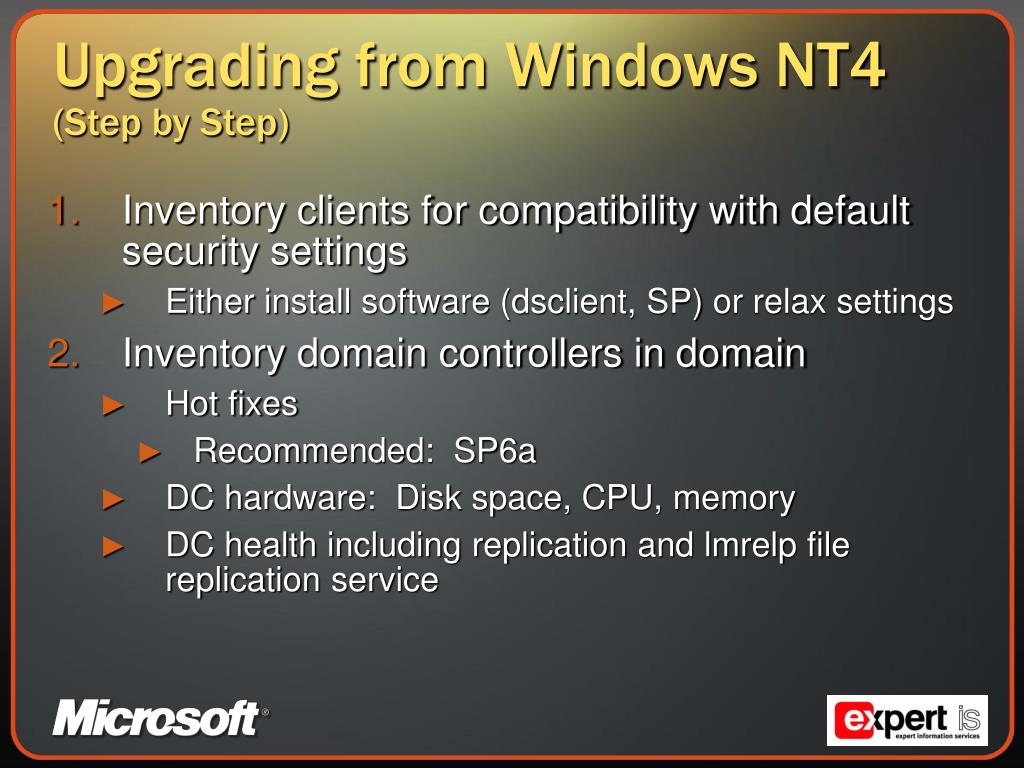

16. Upgrading from Windows NT4 (Step by Step) • Inventory clients for compatibility with default security settings • Either install software (dsclient, SP) or relax settings • Inventory domain controllers in domain • Hot fixes • Recommended: SP6a • DC hardware: Disk space, CPU, memory • DC health including replication and lmrelp file replication service

17. Upgrading from Windows NT4 (Step by Step) • Check for services running as local system on all member servers and workstations • Re-configure service to use user account, or • Upgrade server to Windows 2000 Server or Windows Server 2003, or • Use “Enable downlevel access” in dcpromo • Services which require “Enable downlevel access” include Windows NT 4.0 RAS

18. Upgrading from Windows NT4 (Step by Step) • Configure lmrepl export server • This will be the last domain controller to be upgraded • If lmrepl service runs on PDC, either • Select one BDC to be new lmrepl export server, or • Move lmrepl to server that will be upgraded as the last DC • Secure one BDC • Sync with PDC • Take back-up tape and test restore • Take BDC off-line and keep in storage

19. Upgrading from Windows NT4(Step by Step) • Upgrade PDC • PDC will not be able to perform PDC role while upgrade and dcpromo run • No changes possible (no new users, groups, group membership changes) • Clients and workstations will not be able to change passwords • Trusts might fail • Plan for the change freeze / downtime • Configure security settings

20. Upgrading from Windows NT4(Step by Step) • Verify success • Verify down-level replication works • Verify that users can be added and passwords can be changed • Install and configure lmbridge • Windows Server 2003 has no more lmrepl service; it uses sysvol replication (frs) • Copy all logon scripts and other files from lmrepl export server to PDC emulator • Configure lmbridge to copy files from PDC emulator to lmrepl export server • Change files on PDC only

21. Upgrading from Windows NT4(Step by Step) • Continue upgrading BDCs • Once all DCs are Windows Server 2003 • If this was the last domain to join the forest and all DCs in the forest are Windows Server 2003, switch to Windows 2003 forest functional level • In multi-domain forests, don’t worry about single domain modes, wait until last domain is upgraded

22. Upgrading The Windows NT 4.0 PDC

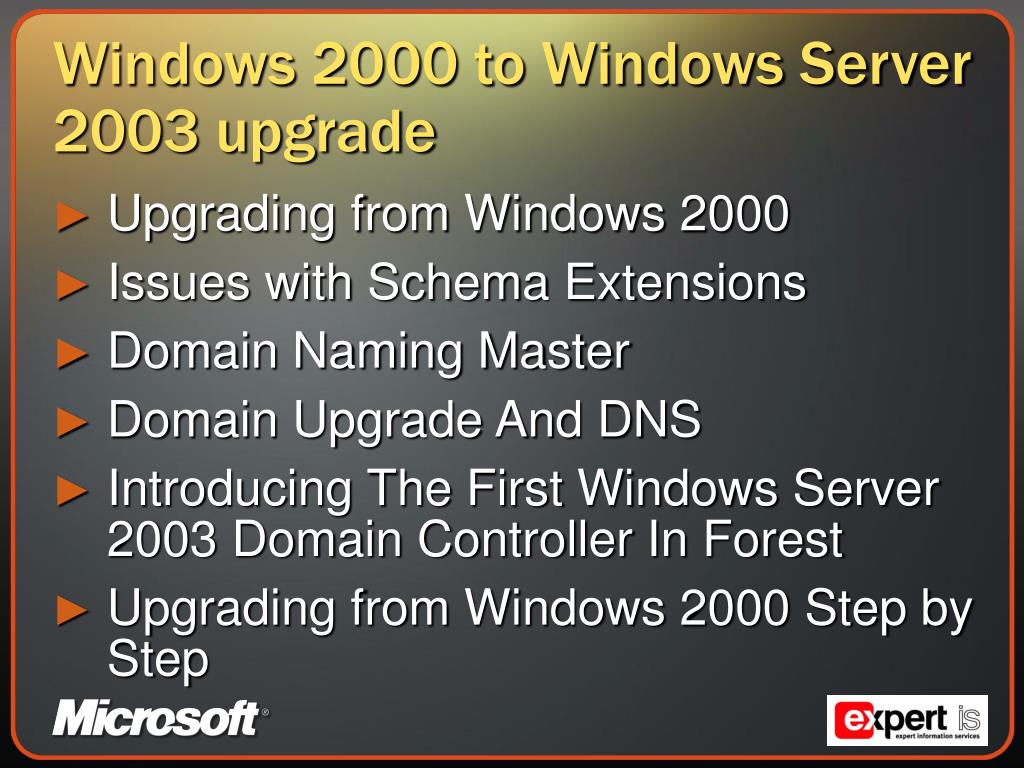

23. Windows 2000 to Windows Server 2003 upgrade • Upgrading from Windows 2000 • Issues with Schema Extensions • Domain Naming Master • Domain Upgrade And DNS • Introducing The First Windows Server 2003 Domain Controller In Forest • Upgrading from Windows 2000 Step by Step

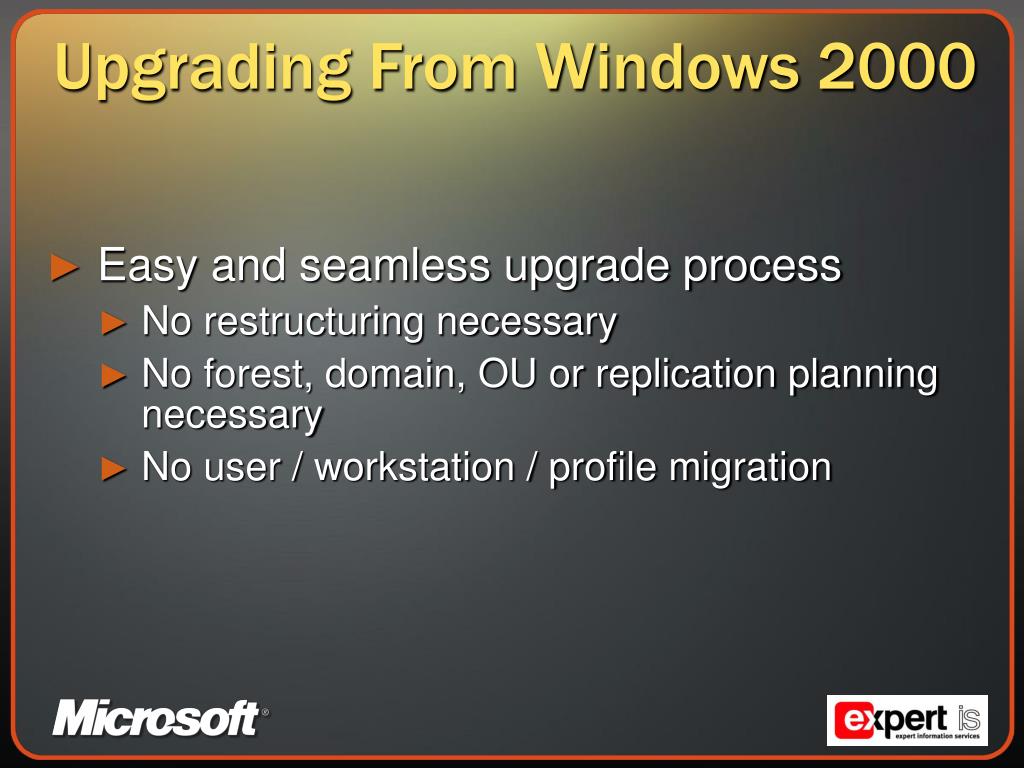

24. Upgrading From Windows 2000 • Easy and seamless upgrade process • No restructuring necessary • No forest, domain, OU or replication planning necessary • No user / workstation / profile migration

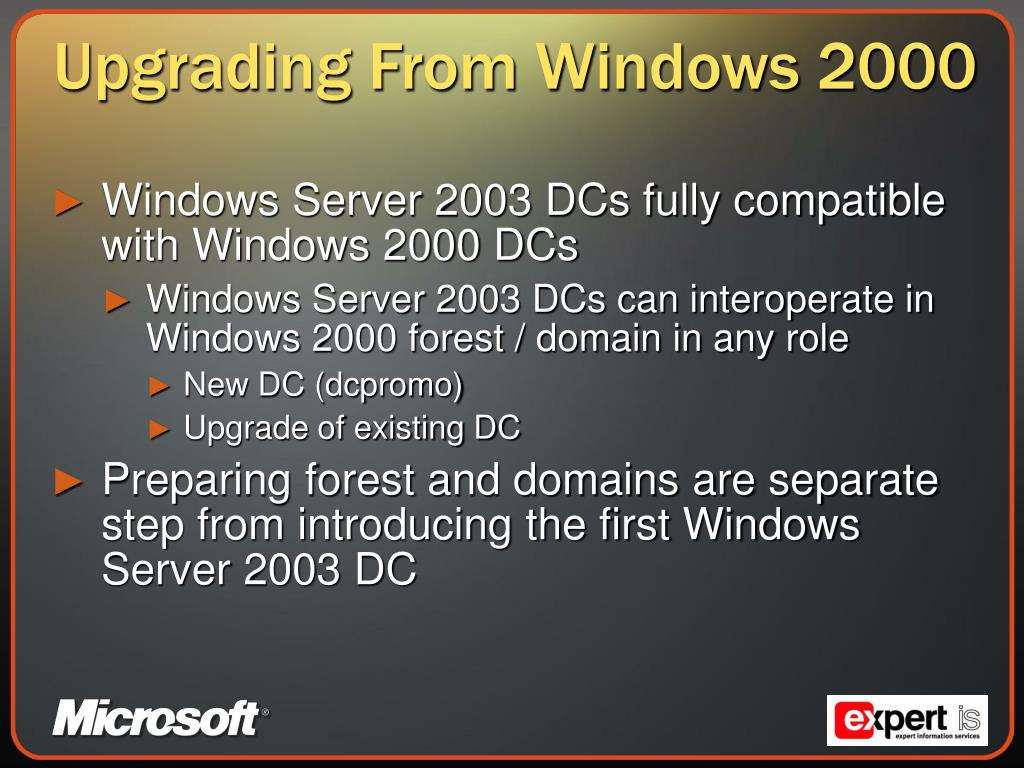

25. Upgrading From Windows 2000 • Windows Server 2003 DCs fully compatible with Windows 2000 DCs • Windows Server 2003 DCs can interoperate in Windows 2000 forest / domain in any role • New DC (dcpromo) • Upgrade of existing DC • Preparing forest and domains are separate step from introducing the first Windows Server 2003 DC

26. Issues with Schema Extensions • Exchange 2000 schema present • Exchange 2000 schema extensions define three non-RFC conform attributes (houseIdentifier, secretary and labeledURl) • If Exchange 2000 schema extensions are applied before Windows 2000 InetOrgKit or Windows Server 2003 schema, attributes with mangled names are created • See KB article Q325379

27. Issues with Schema Extensions • Services For Unix version 2.0 • SFU 2.0 NIS component defines a uid attribute which clashes with the correct interpretation in Windows Server 2003 schema • Adprep cannot extend the schema unless a QFE is applied • See KB article Q293783

28. Introducing The First Windows Server 2003 Domain Controller In Forest • Once adprep has run, Windows Server 2003 Domain Controllers can join the forest • Two methods • Upgrade existing domain controller • Install Windows Server 2003 as member server and run dcpromo • Can choose any domain to hold the first Windows Server 2003 DC

29. Introducing The First Windows Server 2003 Domain Controller In Forest • Upgrade of PDC emulator performs special operations • Creates group for Terminal Service, internal groups • Role transfer to Windows Server 2003 DC triggers same operations • Best practice • Install Windows Server 2003 as member server and promote to Domain Controller • Upgrade PDC to Windows Server 2003 early in the process • Or transfer PDC emulator role to Windows Server 2003 DC, even if temporarily only

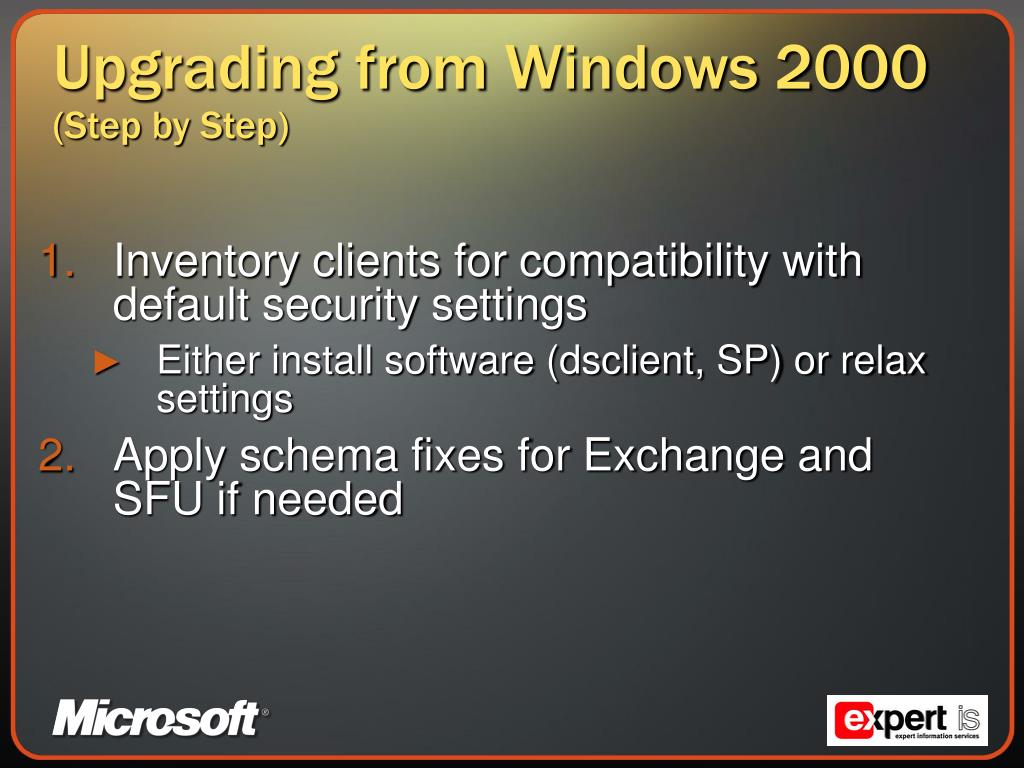

30. Upgrading from Windows 2000(Step by Step) • Inventory clients for compatibility with default security settings • Either install software (dsclient, SP) or relax settings • Apply schema fixes for Exchange and SFU if needed

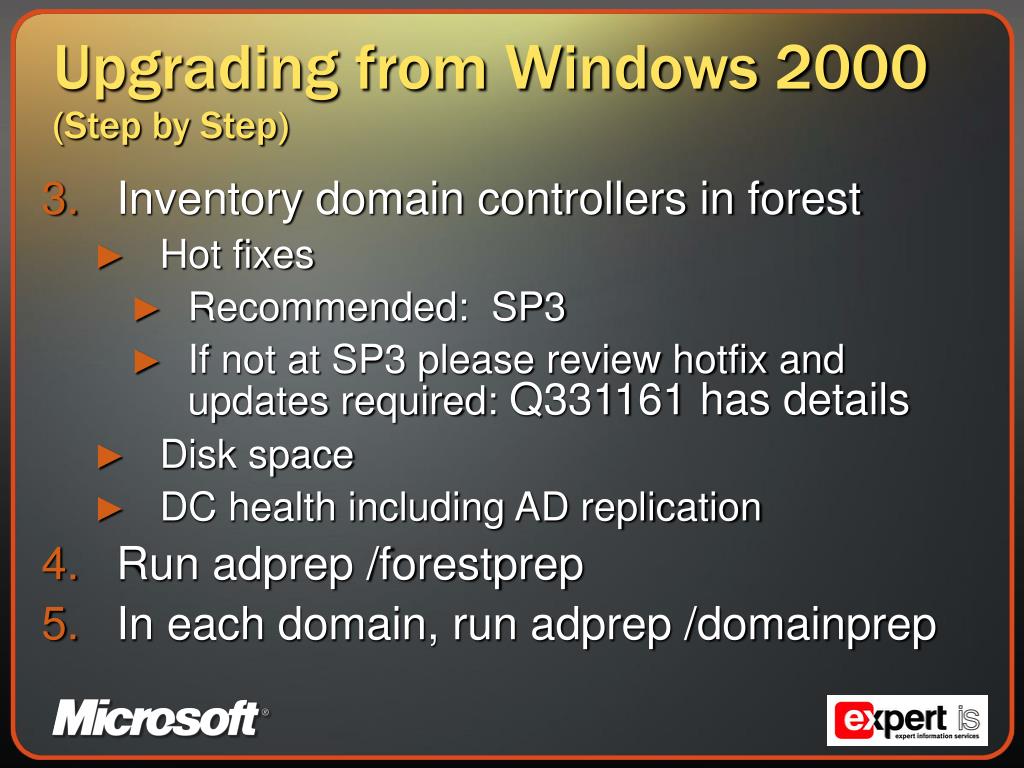

31. Upgrading from Windows 2000(Step by Step) • Inventory domain controllers in forest • Hot fixes • Recommended: SP3 • If not at SP3 please review hotfix and updates required: Q331161 has details • Disk space • DC health including AD replication • Run adprep /forestprep • In each domain, run adprep /domainprep

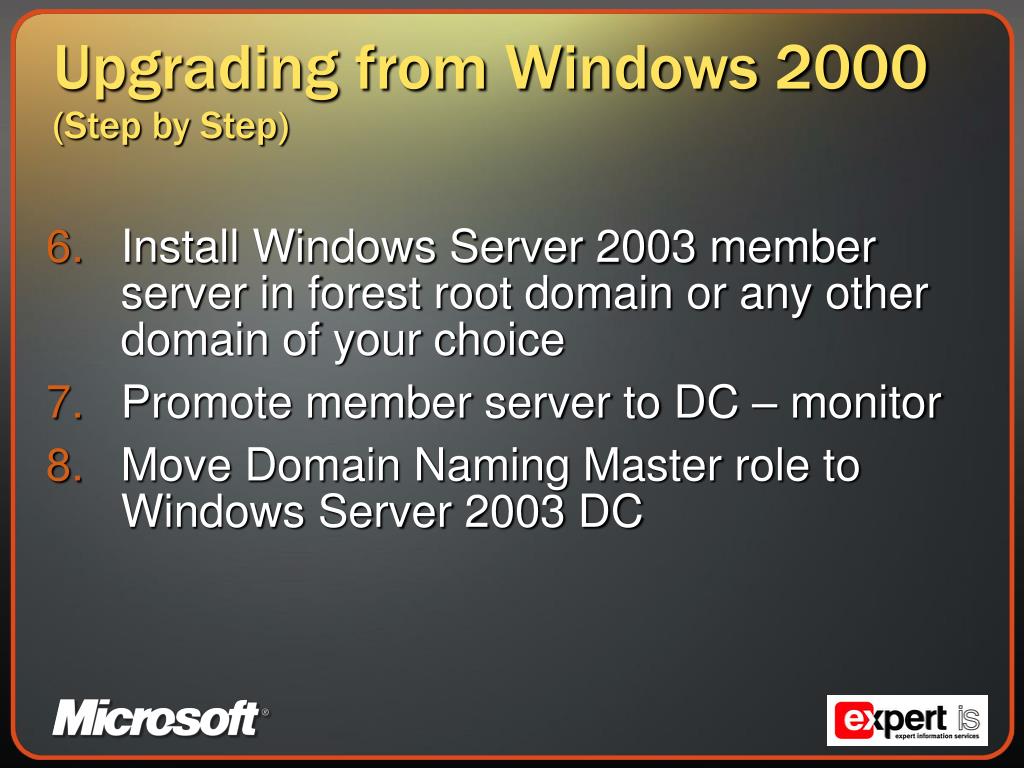

32. Upgrading from Windows 2000(Step by Step) • Install Windows Server 2003 member server in forest root domain or any other domain of your choice • Promote member server to DC – monitor • Move Domain Naming Master role to Windows Server 2003 DC

33. Upgrading from Windows 2000(Step by Step) • Upgrade existing Windows 2000 domain controllers • In each domain • Upgrade PDC emulator as soon as possible (or transfer PDC emulator role to Windows Server 2003 DC) • Once all DNS servers are running Windows Server 2003, move domain DNS data into application partition • Verify that DNM is still running on Windows 2003 DC

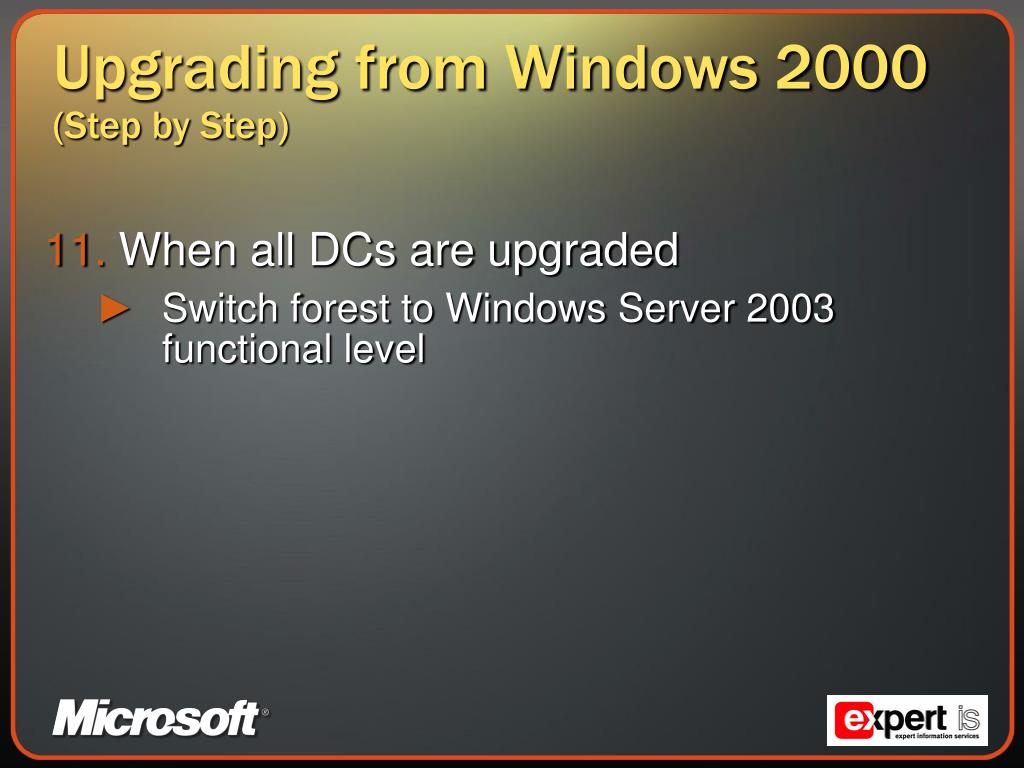

34. Upgrading from Windows 2000(Step by Step) • When all DCs are upgraded • Switch forest to Windows Server 2003 functional level

35. Domain restructuring with ADMT V-2 • Migrating To Windows Server 2003 • Restructure Activities • Active Directory Migration Tool Version 2.0

36. Migrating To Windows Server 2003 • Most migrations from Windows NT 4.0 to Active Directory are a mix of in-place upgrades and restructuring • See “Best Practice Active Directory Design for Managing Windows Networks” for more information • http://www.microsoft.com/windows2000/techinfo/planning/activedirectory/bpaddsgn.asp

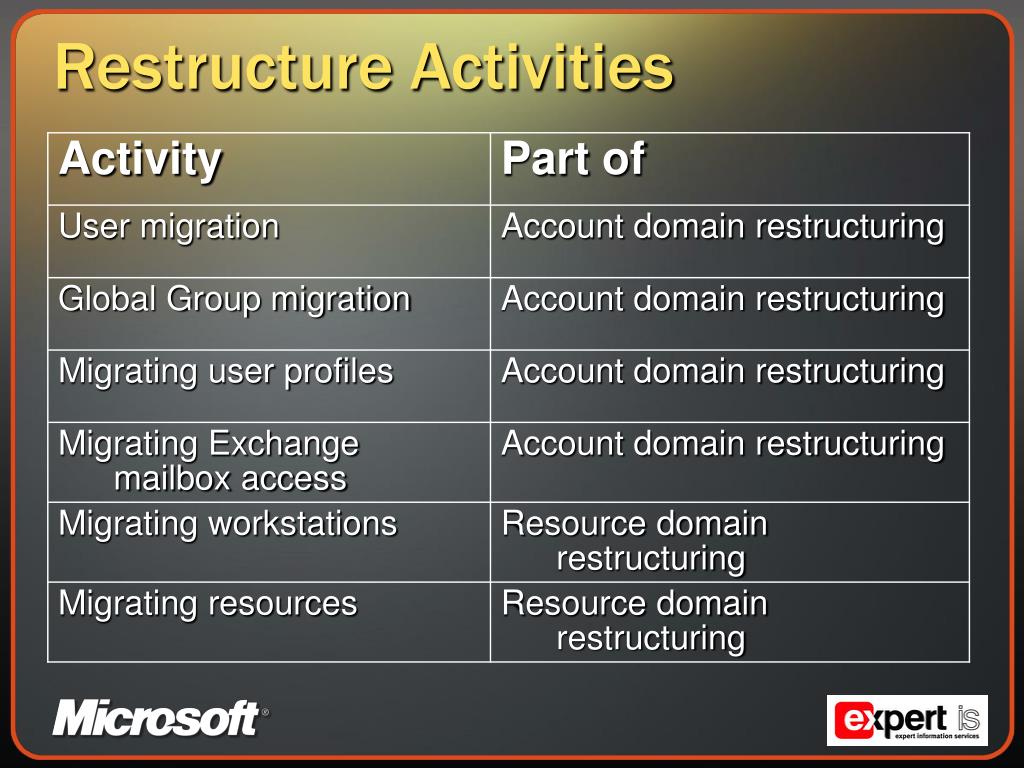

37. Restructure Activities

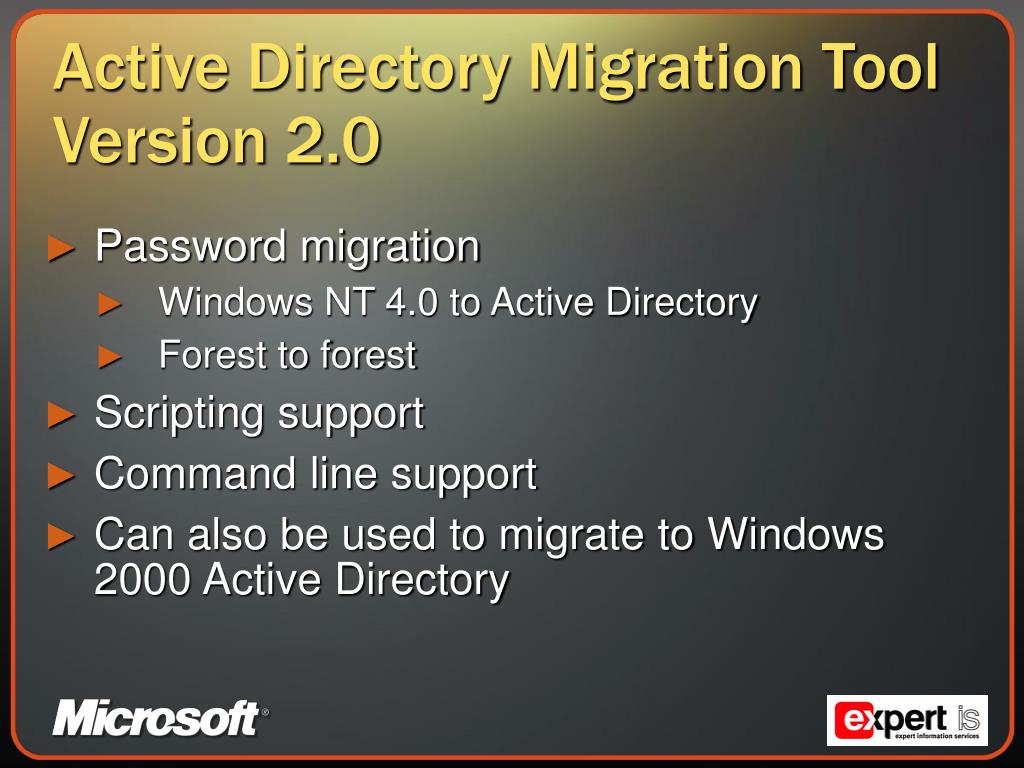

38. Active Directory Migration Tool Version 2.0 • Password migration • Windows NT 4.0 to Active Directory • Forest to forest • Scripting support • Command line support • Can also be used to migrate to Windows 2000 Active Directory

39. ADMT

40. Summary • Windows NT 4 to Windows Server 2003 upgrade very similar to Windows NT 4 to Windows 2000 upgrade • Windows 2000 Server to Windows Server 2003 upgrade is easy and requires no additional design planning • ADMT v2 makes restructuring easier

41. Do More With Less

42. © 2003 Microsoft Corporation. All rights reserved. This presentation is for informational purposes only. Microsoft makes no warranties, express or implied, in this summary.
