  1. TOSCA WG1 Workshop 14-16 May 2012, Berlin Multi-model intercomparison of the impact of SORCE measurements in climate models K. Matthes (1), J.D. Haigh(2), F. Hansen (1), J.W. Harder(3), S. Ineson(4), K. Kodera(5,6), U. Langematz (7), D.R. Marsh (8), A.W. Merkel (3), P.A. Newman (9), S. Oberländer (7), A.A. Scaife(4), R.S. Stolarski(9,10), W.H. Swartz(11) (1) Helmholtz-Zentrum für Ozeanforschung Kiel (GEOMAR), Kiel, Germany; (2) Imperial College, London, UK; (3)LASP, CU, Boulder, USA; (4) Met Office Hadley Centre, Exeter, UK; (5) Meteorological Research Institute, Tsukuba, Japan; (6)STEL University of Nagoya, Nagoya, Japan; (7) Freie Universität Berlin, Institute für Meteorologie, Berlin, Germany; (8) NCAR, Boulder USA; (9) NASA GSFC, Greenbelt, USA; (10)John Hopkins University, Baltimore, USA; (11) JHU Applied Physics Laboratory, Laurel, USA

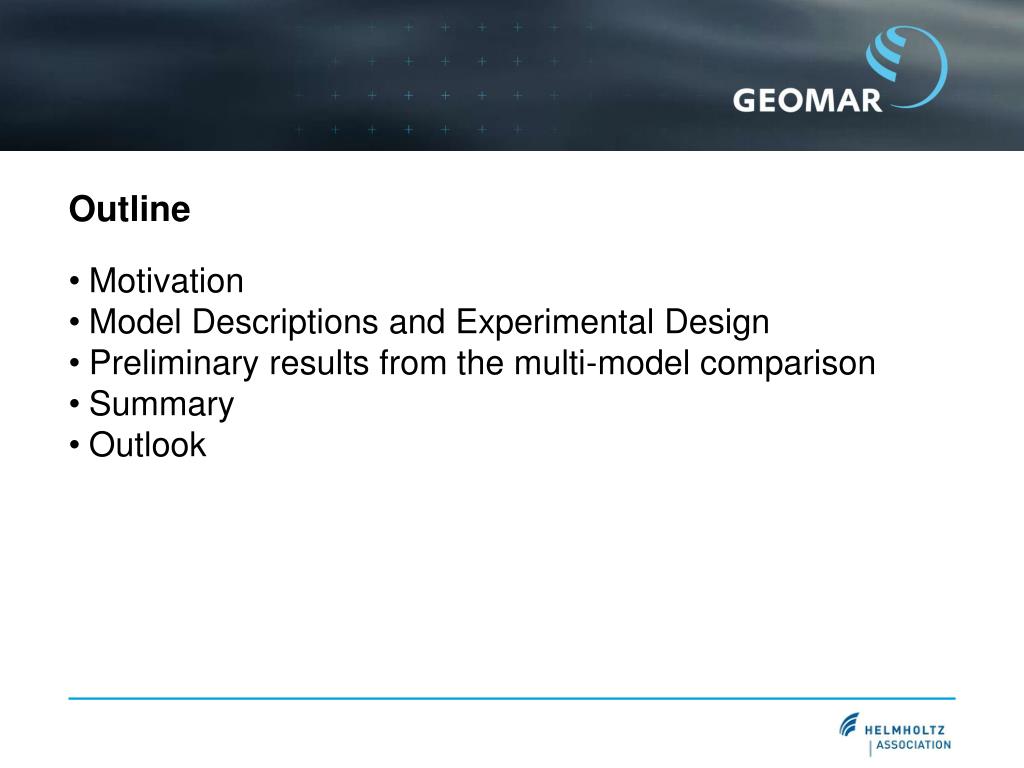

  2. Outline • Motivation • Model Descriptions and Experimental Design • Preliminary results from the multi-model comparison • Summary • Outlook

  3. Motivation • SORCE/SIM measurements from 2004 to 2007: increased solar spectral irradiance at UV and IR wavelengths even as solar and TSI decreased => • SIM spectral data into climate models => „the effects of solar variability on temperature throughout the atmosphere may be contrary to current expectations“ (Haigh et al., 2010) • => higher solar activity cools Earth But: • SIM trends relative to TSI and solar activity during solar min => unlikely to be solar in origin • „It is doubtful that simulations of climate and atmospheric change using SIM measurements are indicative of real behavior in the Earth‘s climate and atmosphere.“ (Lean and DeLand, 2012) • „SIM‘s solar spectral irradiance measurements from April 2004 to December 2008 and inferences of their climatic implications are incompatible with the historical solar UV irradiance database […] but are consistent with known effects of instrument sensitivity drifts.“ (Lean and DeLand, 2012) • „To prevent future research following a path of unrealistic solar-terrestrial behavior, the SORCE SIM observations should be used with extreme caution in studies of climate and atmospheric change until additional validation and uncertainty estimates are available.“(Lean and DeLand, 2012)

  4. Motivation 2 questions: • Do the SIM measurementsprovidetrue solar behaviororaretheserelatedtoinstrumentdrifts? • Whatistheeffectof larger UV variability on theEarth‘satmosphere? (focusofthisstudy)

  5. „Top-down mechanism“

  6. EPF Stratosphericwaves (direct solar effect) Troposphericwaves (response to stratospheric changes) „Top-down“: Dynamical Interactions and Transfer totheTroposphere10-day meanwave-meanflowinteractions (Max-Min) u Matthes et al. (2006)

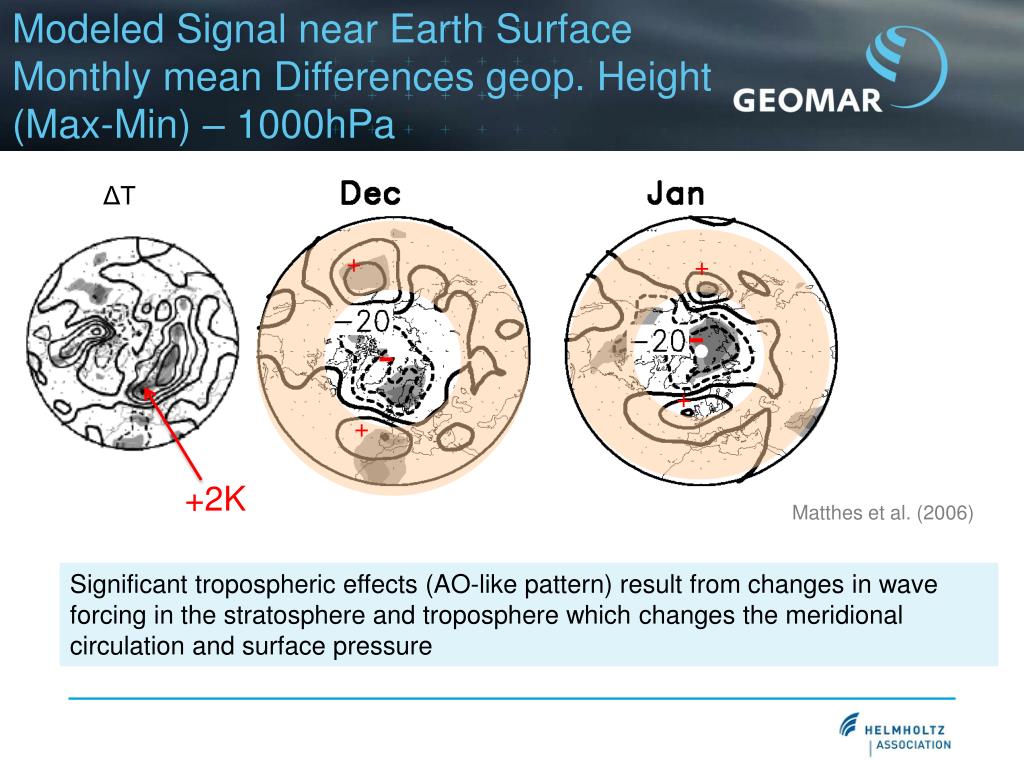

  7. + + - - + + Modeled Signal near Earth SurfaceMonthlymeanDifferencesgeop. Height (Max-Min) – 1000hPa ΔT +2K Matthes et al. (2006) Significanttroposphericeffects (AO-likepattern) resultfromchanges in waveforcing in thestratosphereandtropospherewhichchangesthe meridional circulationandsurfacepressure

  8. Uncertainty in Solar Irradiance Data Solar Max-Min Lean vs. Krivova Lean et al. (2005) Krivova et al. (2006) • larger variation in Krivova data in 200-300 and 300-400nm range • SORCE measurements from 2004 through 2007 show very different spectral distribution (in-phase with solar cycle in UV, out-of-phase in VIS and NIR) • => Implications for solar heating and ozone chemistry

  9. 1. CompareExisting Model Runs Participating Models Caveat: all the models used a slightly different experimental setup, so it won’t be possible to do an exact comparison

  10. Differences in Experimental Setup

  11. Experimental Design 2004: “solar max” (declining phase of SC23) Time series of F10.7cm solar flux „solar max“ 2004 „solar min“ 2007 2007: “solar min” (close to minimum of SC23)

  12. JanuaryMeanDifferences (25N-25S) Shortwave Heating Rate (K/d) Temperature (K) NRL SSI SORCE • larger shortwave heating rate and temperature differences for SORCE than NRL SSI data • FUB-EMAC and HadGEM only include radiation, not ozone effects

  13. JanuaryMeanDifferences (25N-25S) Ozone (%) Temperature (K) • larger ozone variations below 10hPa and smaller variations above for • SORCE than NRL SSI data • height for negative ozone signal in upper strat. differs between models

  14. ShortwaveHeating Rate DifferencesJanuary(K/d) HadGEM IC2D WACCM EMAC-FUB GEOS NRL SSI SORCE • NRL SSI shortwave heating rates: 0.2 to 0.3 K/d • SORCE shortwave heating rates: 0.7 to >1.0 K/d (3x NRL SSI response)

  15. ShortwaveHeating Rate DifferencesJanuary (K/d) Small multi-model mean (GEOS, HadGEM, WACCM) Large multi-model mean (EMAC-FUB, GEOS, HadGEM, IC2D, WACCM) NRL SSI SORCE

  16. TemperatureDifferencesJanuary(K) HadGEM IC2D WACCM EMAC-FUB GEOS NRL SSI SORCE • NRL SSI temperatures: 0.5 to 1.0 K (stratopause) • SORCE temperatures: 2.5 to 4.0 K (4-5x NRL SSI response) • colder polar stratosphere

  17. TemperatureDifferencesJanuary (K) Small multi-model mean (GEOS, HadGEM, WACCM) Large multi-model mean (EMAC-FUB, GEOS, HadGEM, IC2D, WACCM) NRL SSI SORCE

  18. OzoneDifferencesJanuary (%) HadGEM IC2D WACCM EMAC-FUB GEOS NRL SSI SORCE • larger ozone variations below 10hPa and smaller variations above for • SORCE than NRL SSI data • height for negative ozone signal in upper strat. differs between models

  19. OzoneDifferencesJanuary (%) Small multi-model mean (GEOS, HadGEM, WACCM) Large multi-model mean (EMAC-FUB, GEOS, HadGEM, IC2D, WACCM) NRL SSI SORCE

  20. Zonal Wind DifferencesJanuary(m/s) HadGEM IC2D WACCM EMAC-FUB GEOS NRL SSI SORCE • consistently stronger zonal wind signals for SORCE than NRL SSI data • wind signal in SORCE data characterized by strong westerly winds at polar latitudes, and significant and similar signals in NH troposphere

  21. Zonal Wind DifferencesJanuary (m/s) Small multi-model mean (GEOS, HadGEM, WACCM) Large multi-model mean (EMAC-FUB, GEOS, HadGEM, IC2D, WACCM) NRL SSI SORCE

  22. SORCE Wind Differences NH Winter HadGEM IC2D WACCM EMAC-FUB GEOS Dec Jan Feb

  23. SORCE Wind Differences NH Winter Small multi-model mean (GEOS, HadGEM, WACCM) Large multi-model mean (EMAC-FUB, GEOS, HadGEM, IC2D, WACCM) Dec Jan Feb

  24. SORCE Geopot. Height DifferencesJanuary(gpdm) HadGEM WACCM EMAC-FUB GEOS 500 hPa NAO/AO positive signal during solar max strongest for HadGEM and WACCM 100 hPa 10 hPa

  25. SORCE Geopot. Height DifferencesJanuary (gpdm) Small multi-model mean (GEOS, HadGEM, WACCM) Large multi-model mean (EMAC-FUB, GEOS, HadGEM, WACCM) 500 hPa 100 hPa 10 hPa

  26. Solar Cycle andthe NAO Solar Max: NAO positive (highindex) • Colderstratosphere => stronger NAO, • i.e. strongerIcelandlow, higher • pressureoverAzores • amplifiedstormtrack • mild conditionsover northern • Europe andeastern US • => dry conditions in themediterranean

  27. Solar Min SurfacePressure Signal Model (HadGEM) Observations (Reanalyses) 25 (50%) of interannual standard deviation 90 (95%) significances Ineson et al. (2011)

  28. Solar Cycle andthe NAO Solar Max: NAO positive (high index) Solar Min: NAO negative (low index) Matthes (2011)

  29. Summary • Consistently larger amplitudes in 2004 to 2007 in solar signals for SORCE than for NRL SSI data in temperature, ozone, shortwave heating rates, zonal winds and geopotential heights • Larger ozone variations below 10hPa and smaller variations above for SORCE than NRL SSI data; height for negative ozone signal in upper stratosphere differs between models • Solar cycle effect on AO/NAO contributes to substantial fraction of typical year-to-year variations and therefore is a potentially useful source of improved decadal climate predictability (Ineson et al. (2011))  Results for the SORCE spectral irradiance data are provisional because of the need for continued degradation correction validation and because of the short length of the SORCE time series which does not cover a full solar cycle

  30. Outlook Next step: coordinated sensitivity experiments for a typical solar max (2002) and solar min (2008) spectrum from the NRL SSI and the SORCE data to investigate the atmospheric and surface climate response between the models in a more consistent way => White paper until early December, experiments to be started early 2012 in order to be ready for the SOLARIS/HEPPA workshop 8-12 October 2012 here in Boulder!

  31. Thankyouverymuch! Estes Park/RMNP, 10-15-2011
