  1. Describable Visual Attributes for Face Verification and Image Search Neeraj Kumar, Alexander C. Berg, Peter N. Belumeur, and Shree K. NayarPresented by Gregory Teodoro

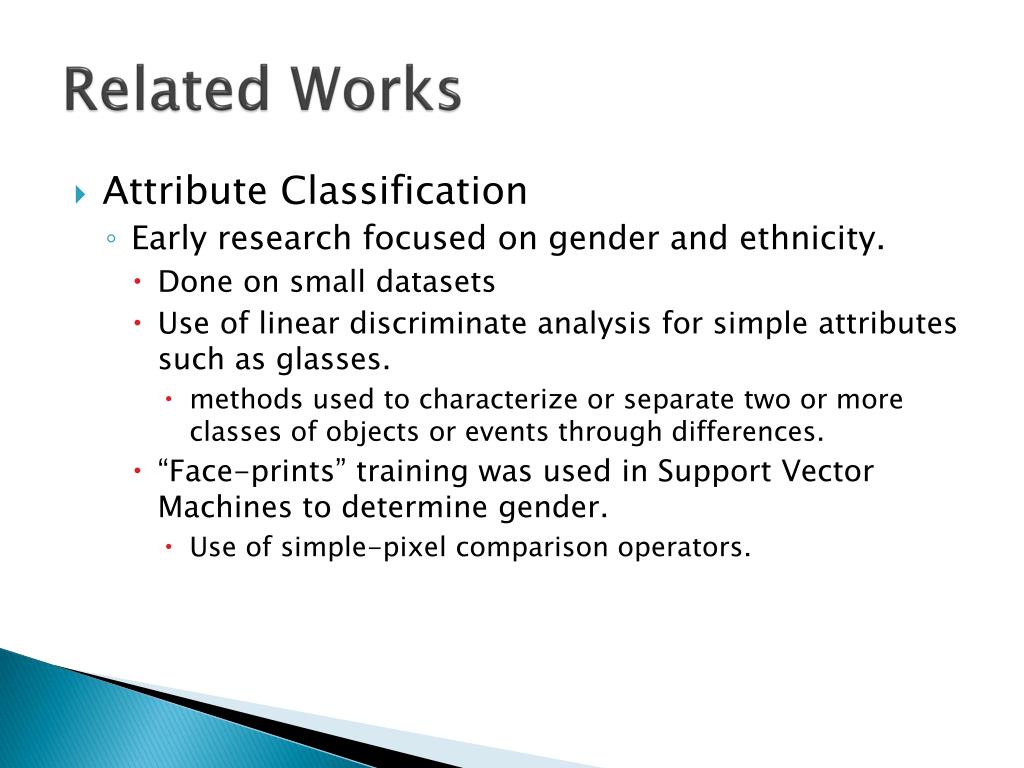

  2. Related Works • Attribute Classification • Early research focused on gender and ethnicity. • Done on small datasets • Use of linear discriminate analysis for simple attributes such as glasses. • methods used to characterize or separate two or more classes of objects or events through differences. • “Face-prints” training was used in Support Vector Machines to determine gender. • Use of simple-pixel comparison operators.

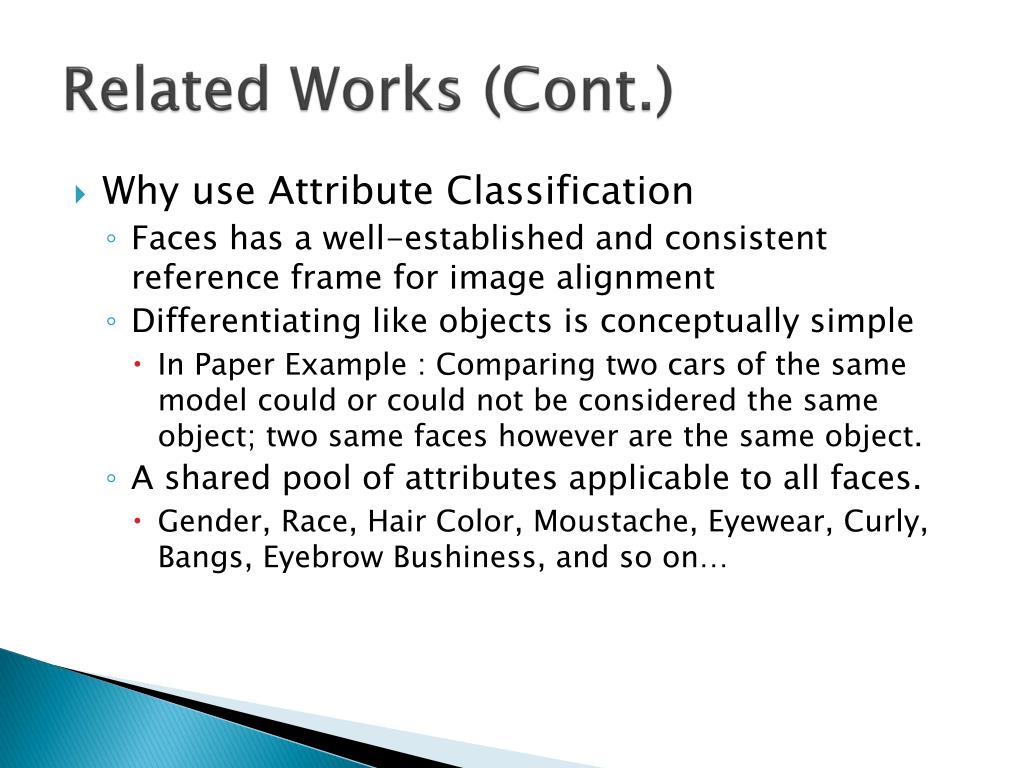

  3. Related Works (Cont.) • Why use Attribute Classification • Faces has a well-established and consistent reference frame for image alignment • Differentiating like objects is conceptually simple • In Paper Example : Comparing two cars of the same model could or could not be considered the same object; two same faces however are the same object. • A shared pool of attributes applicable to all faces. • Gender, Race, Hair Color, Moustache, Eyewear, Curly, Bangs, Eyebrow Bushiness, and so on…

  4. Face Verification • Older methods used a Euclidean Distance between pairs of images using Component Analysis; later adding in linear discriminate analysis. • Algorithms worked well, but only in controlled environments • Pose, angel, lighting and expression caused issues in recognizing the face. • Does not work very well with “Labeled Faces in the Wild (LFW) benchmarks. • Other methods used 2D alignment strategies, and applied them to the LFW benchmark set, aligning all faces to each other or pairs considered to be similar. • This was computationally expensive. • Paper attempts to find a far better solution and algorithm that does not involve matching points. • Paper suggests a new method, using attribute and identity labels to describe an image

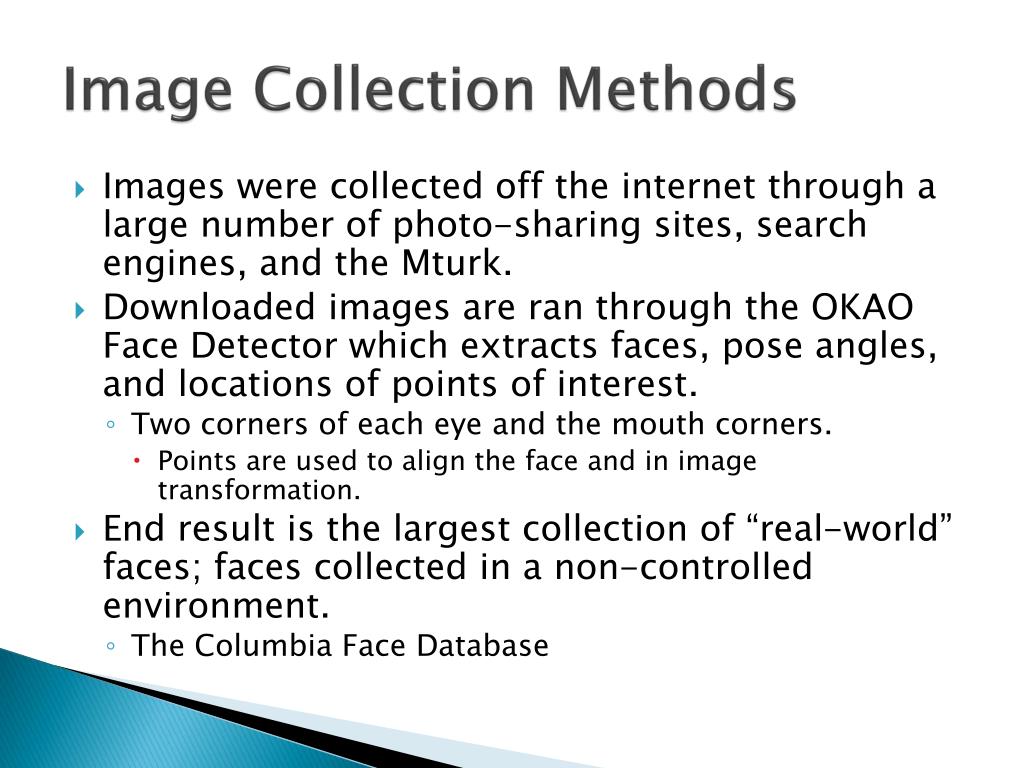

  5. Image Collection Methods • Images were collected off the internet through a large number of photo-sharing sites, search engines, and the Mturk. • Downloaded images are ran through the OKAO Face Detector which extracts faces, pose angles, and locations of points of interest. • Two corners of each eye and the mouth corners. • Points are used to align the face and in image transformation. • End result is the largest collection of “real-world” faces; faces collected in a non-controlled environment. • The Columbia Face Database

  6. Collecting Attribute and ID Labels • Images labeled using the Amazon Mechanic Turk (Mturk) service. • A form of crowd-sourcing, each image is labeled manually by a group of three people; only labels where all three people agreed were used. • Total collection of 145,000 verified positive labels. • Content-Based Image Retrieval System • Difference in goal from most CBIR systems • Most try to find objects similar to another object • This system tries to find an object fitting a text query. • In Paper Example : “Asian Man Smiling With Glasses”

  7. (Cont.) • Attributes collected by this method are not binary. • Thickness of eyebrows is not a “Have” or “Have not” situation. But rather a continuous attribute. “How thick.” • Visual attributes far more varied than names and specific attributes; providing more possible description overall. • Black, Asian, Male, Female are specific named attributes. eyebrow bushiness, skin shine, and age are visual attributes. • FaceTracer is the subset of the Columbia Face Database, containing these attribute labels. There are 5,000 labels. • PubFig is the second dataset, of 58,797 images of 200 individuals in a variety of poses and environments.

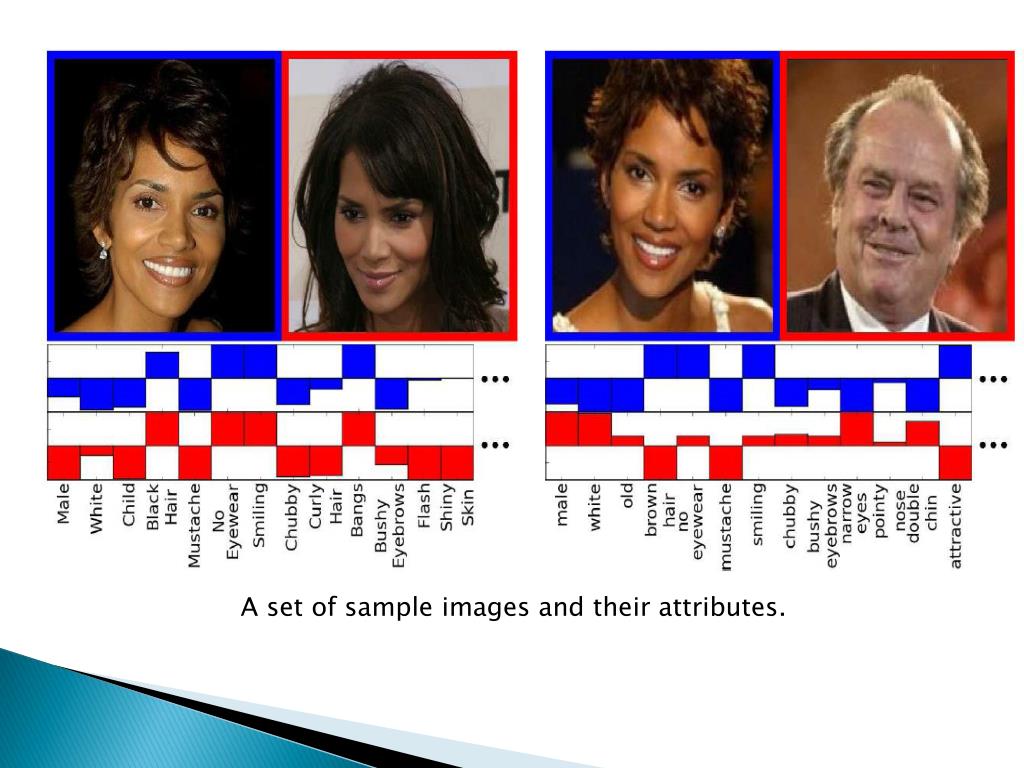

  8. A set of sample images and their attributes.

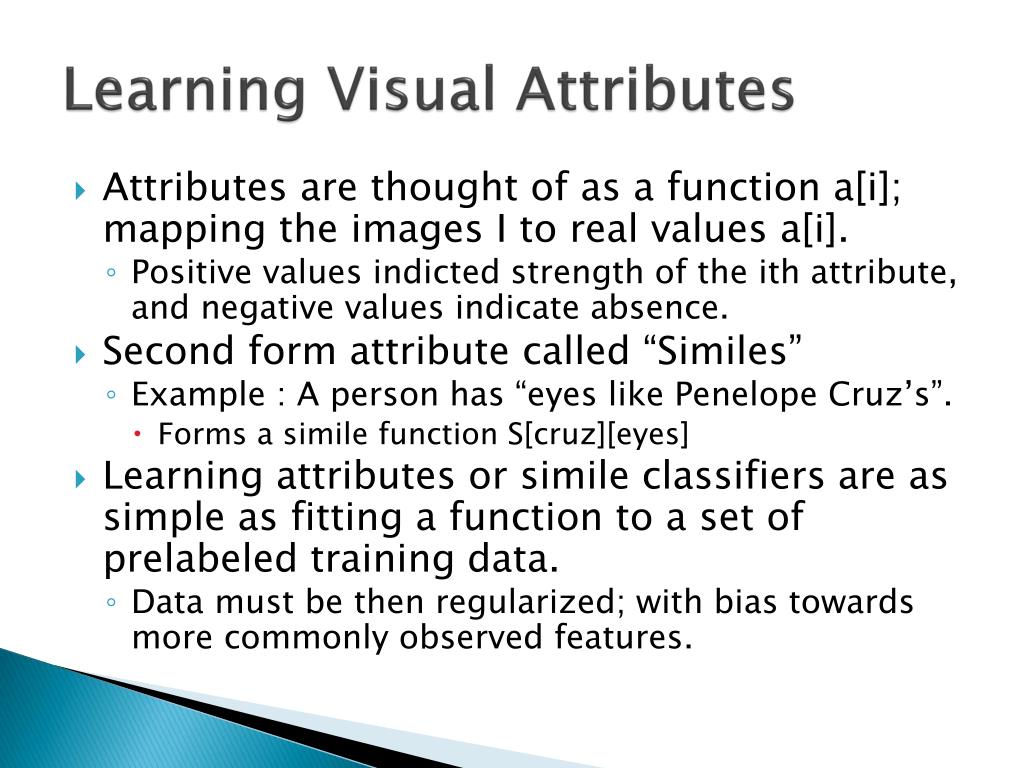

  9. Learning Visual Attributes • Attributes are thought of as a function a[i]; mapping the images I to real values a[i]. • Positive values indicted strength of the ith attribute, and negative values indicate absence. • Second form attribute called “Similes” • Example : A person has “eyes like Penelope Cruz’s”. • Forms a simile function S[cruz][eyes] • Learning attributes or simile classifiers are as simple as fitting a function to a set of prelabeled training data. • Data must be then regularized; with bias towards more commonly observed features.

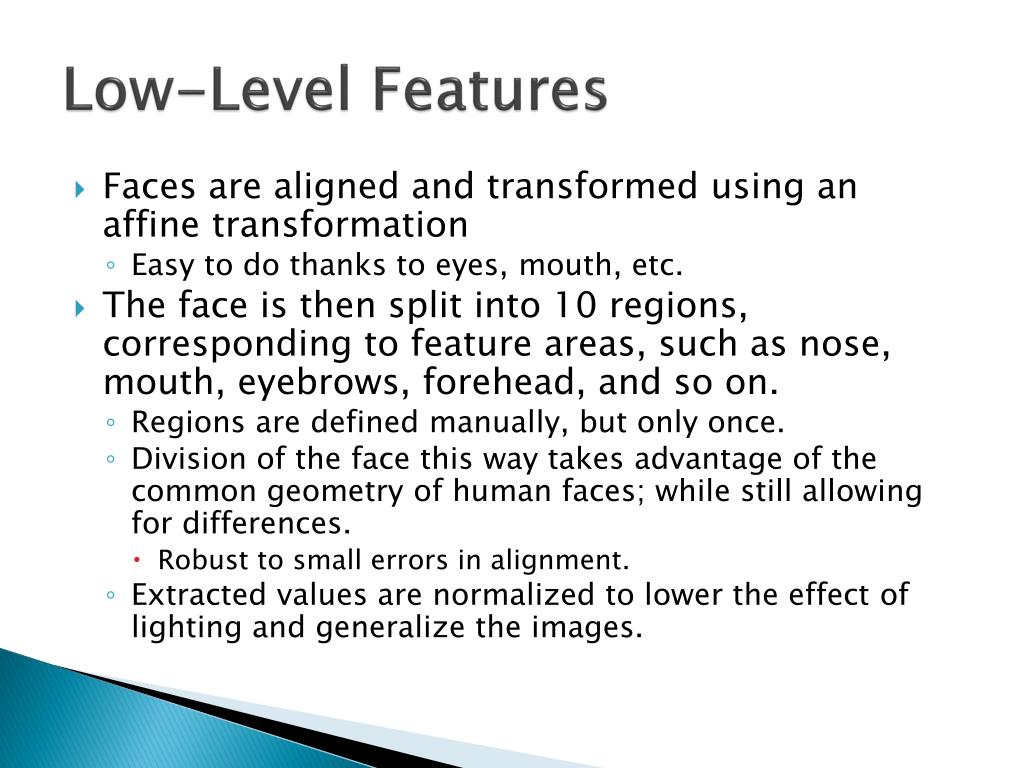

  10. Low-Level Features • Faces are aligned and transformed using an affine transformation • Easy to do thanks to eyes, mouth, etc. • The face is then split into 10 regions, corresponding to feature areas, such as nose, mouth, eyebrows, forehead, and so on. • Regions are defined manually, but only once. • Division of the face this way takes advantage of the common geometry of human faces; while still allowing for differences. • Robust to small errors in alignment. • Extracted values are normalized to lower the effect of lighting and generalize the images.

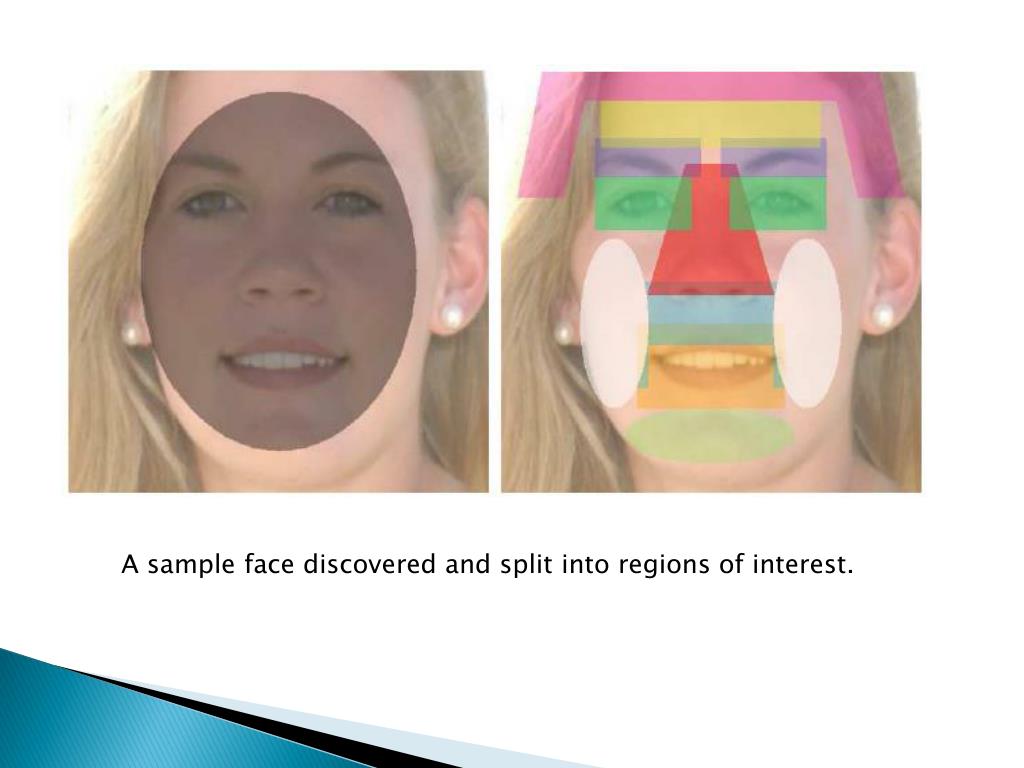

  11. A sample face discovered and split into regions of interest.

  12. A sample simile comparison, and more region details.

  13. Attribute Classifiers • Best features for classification chosen automatically from a number of features. • These are used to train the final attribute and simile classifiers • Classifiers (C[i]) are built using a supervised learning approach. • Trained against a set of labeled images for each attribute, in positive and negative. • This is iterated throughout the dataset and the different classifiers. • Classifiers chosen based on cross-validation accuracy performance. • Features continually added until accuracy for tests stops improving. • For performance, the lowest-scoring 70% of classification features are dropped to a minimum of 10 features.

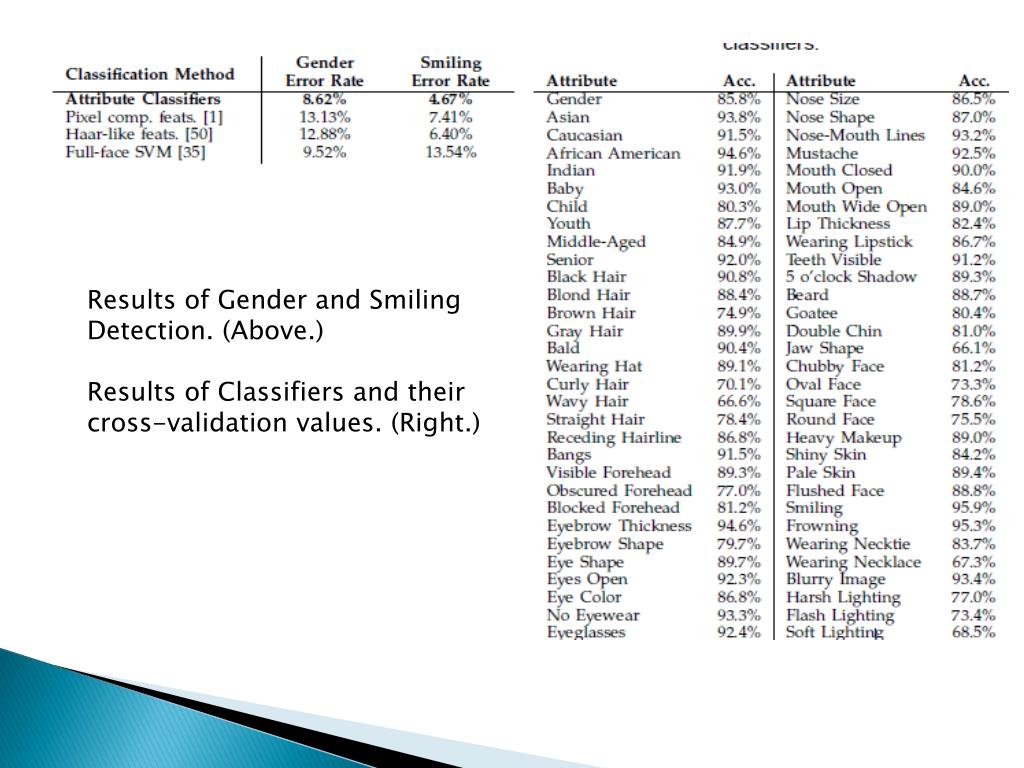

  14. Results of Gender and SmilingDetection. (Above.) Results of Classifiers and their cross-validation values. (Right.)

  15. Face Verification • Are these two faces of the same person? • Small changes in pose, expression, and lighting can cause false negatives. • Two images I[1] and I[2] show the same person. • Verification Classifier V compares the attributes of C[I[1]] and C[I[2]], returning v(I[1],I[2]) • These vectors are the result of concatenating the results of n attributes. • Assumptions made • C[i] for I[1] and I[2] should be similar if they are the same, and different otherwise. • Classifier Values are raw outputs of binary classifiers, thus the sign of the value return is important.

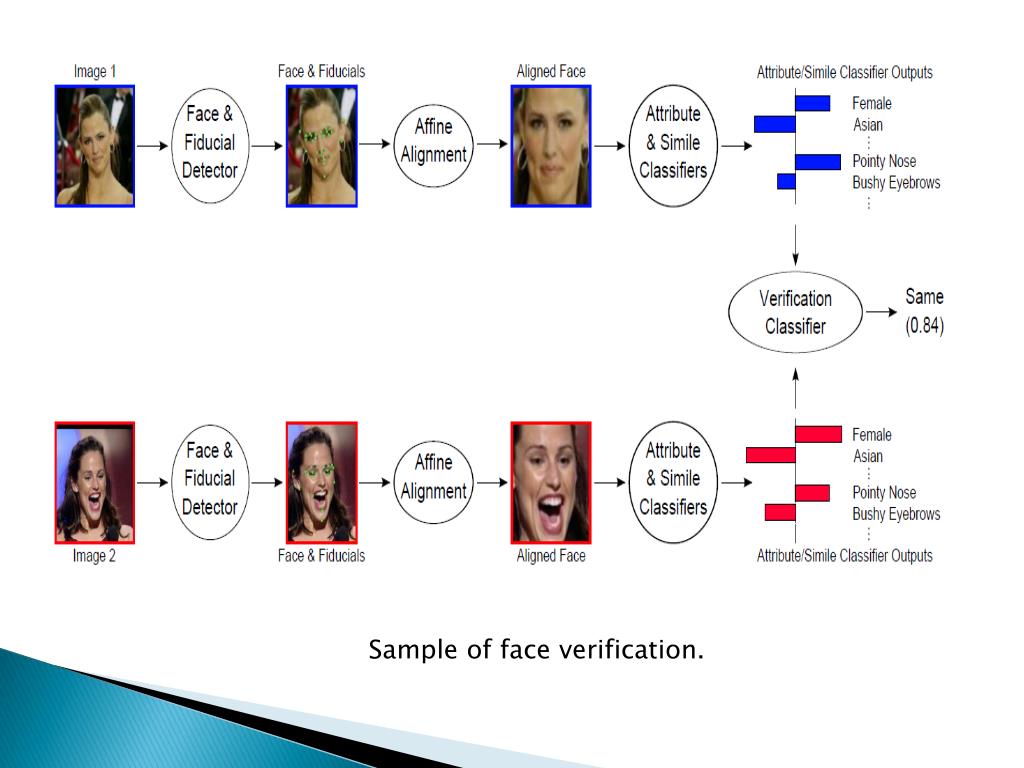

  16. Sample of face verification.

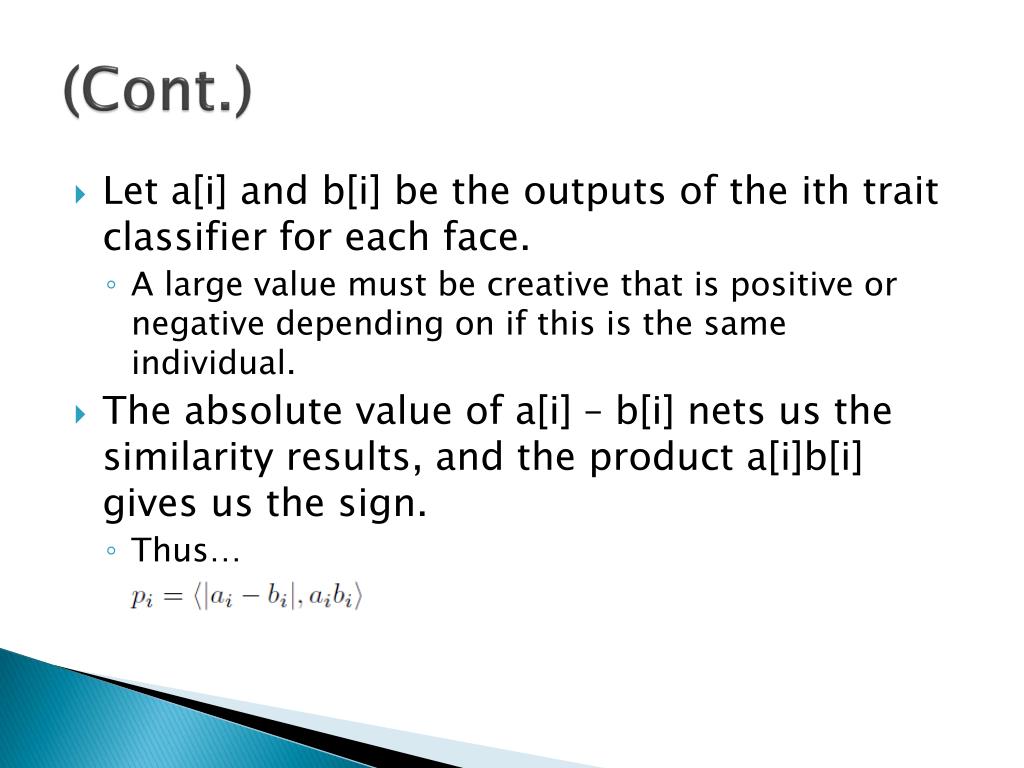

  17. (Cont.) • Let a[i] and b[i] be the outputs of the ith trait classifier for each face. • A large value must be creative that is positive or negative depending on if this is the same individual. • The absolute value of a[i] – b[i] nets us the similarity results, and the product a[i]b[i] gives us the sign. • Thus…

  18. (Cont.) • The concatenation of this for all n attributes/similes forms the input to the verification classifier. V. • Training V requires a combination of positive and negative examples. • The classification function was trained using libsvm.

  19. Results • Accuracy rating hovers around 85% on average, slightly below but comparable to the current state-of-the-art method. (86.83%) • When compared to human-based verification, versus machine-based verification; human-based wins out by a large margin. • Algorithm when tested against the LFW had an accuracy of 78.65%, compared to average human accuracy which is 99.20% • Testing was done by pulling a subset of 20,000 images of 140 people from the LWF, and creating mutually disjointed sets of 14 individuals.

  20. Future Work • Completely new direction of face verification and performances comparable to state-of-the-art algorithms already. • Further improvements can be made by using • more attributes • improving the training process • combining attributes and simile classifiers with low level image cues. • Questions remaining on how to apply attributes to domains other than faces. (Cars, houses, animals, etc.)
