Process Of Reverse Osmosis Plant

Process Of Reverse Osmosis Plant. Feeding Water. Source of Water. To Filtration System. Raw Water Tank. Raw Water Feed Pump : Raw Water pump is used to feed the water to Filtration System at required Pressure from water source. Raw Water Pump. Filtration System. From Raw Water Pump.

Download Presentation

Process Of Reverse Osmosis Plant

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Process Of Reverse Osmosis Plant

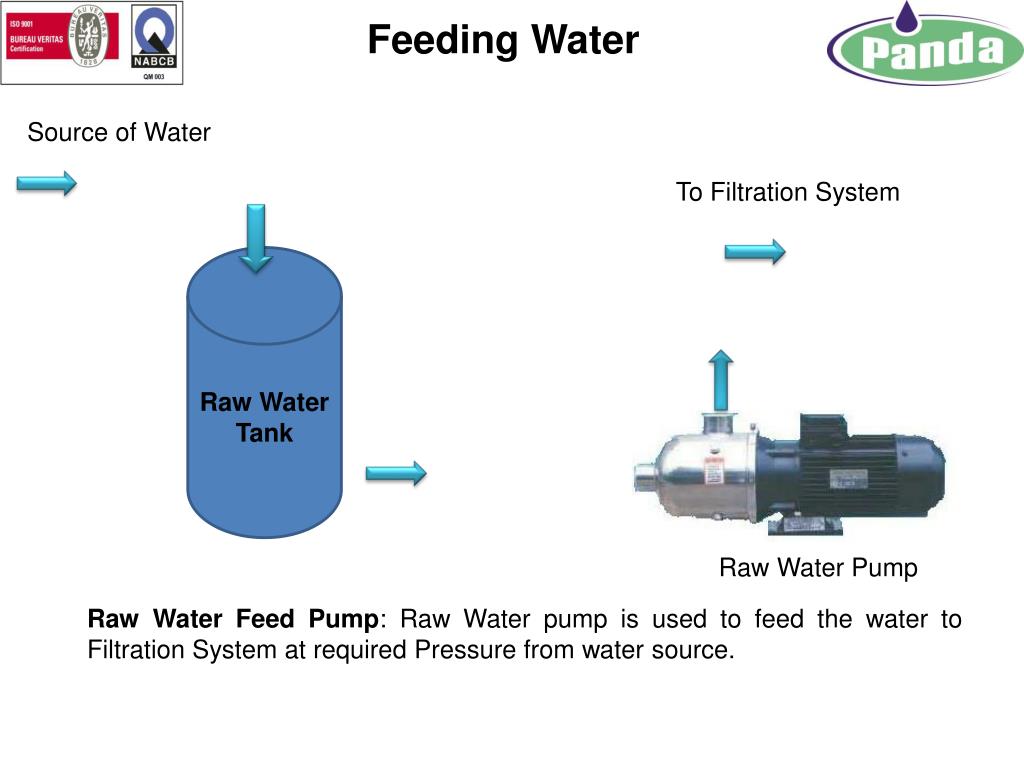

  2. Feeding Water Source of Water To Filtration System Raw Water Tank Raw Water Feed Pump: Raw Water pump is used to feed the water to Filtration System at required Pressure from water source. Raw Water Pump

  3. Filtration System From Raw Water Pump Activated Carbon Filter Pressure Sand Filter To Dosing Pressure Sand Filter : PSF consist of FRP / MS / SS Vessel with Frontal Pipe, Multi Port Valve or Conventional Valve, also media layer of Pebbles, Gravels, Cylex, Sand Media. PSF is used for reduction of suspended solids. Activated Carbon Filter : ACF consist of FRP / MS / SS Vessel with frontal pipe, Multi port Valve or Conventional Valve, & Activated Carbon layer. ACF is used for reduction of organic maters & chlorine.

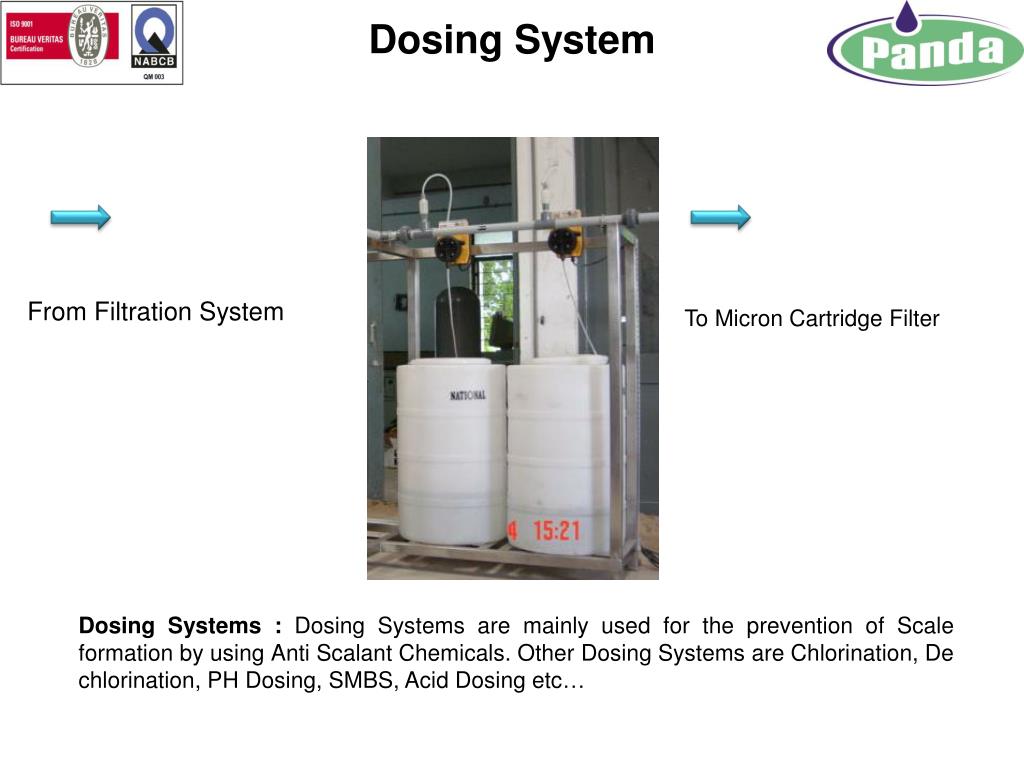

  4. Dosing System From Filtration System To Micron Cartridge Filter Dosing Systems : Dosing Systems are mainly used for the prevention of Scale formation by using Anti Scalant Chemicals. Other Dosing Systems are Chlorination, De chlorination, PH Dosing, SMBS, Acid Dosing etc…

  5. Micron Cartridge Filter From Dosing System To High Pressure Pump MCF: MCF are used to filter out Physical Impurities in micron rating from feed water.

  6. High Pressure Pump To Reverse Osmosis Module From High Cartridge Filter High pressure Pump: HPP is mainly used to transfer pre-treated water to RO module at required pressure.

  7. Reverse Osmosis Module Product Water Product Water Tank Reject Water Tank From High Pressure Pump

  8. Our Control Panel Volt-Ampere Meter Pressure Gauge Online Conductivity Meter Auto-Manual Switch Product & Reject Flow Meter Feed Pump Switches High Pressure Pump Switches

  9. RO Applications • Boiler Feed water Treatment • Food & Beverage • Power Generation Industries • Sea water Desalination • Recycling Industrial Effluent & Domestic Sewage • Pharmaceutical industries • Chemical & Dyes Industries • Pulp & Paper Industries • Drinking Water Application

  10. Some of our RO Plants

  11. Thank You
