Evolutionary Timeline Dating Techniques

Explore the Earth's timeline through dating methods like Carbon-14 and Genetic Clocks, tracing life forms from microbes to modern humans. Discover how Radioactive Half-Lifes, Index Fossils, Tree Rings, and Genetic Dating unveil the history of life on Earth.

channing-mayer
Download Presentation

Evolutionary Timeline Dating Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Dating Radioactive Half-Lifes Index Fossils Tree Rings Genetic

  2. Earth’s Timeline

  3. Dates of Life Life Form Microbial (prokaryotic cells) 3.8 Billion Complex (eukaryotic cells) 2 Billion First multicellular animals 1 Billion Vertebrates (simple fishes) 500,000,000 Amphibians 350,000,000 Reptiles 310,000,000 Mammals 200,000,000 Nonhuman primates 60,000,000 Earliest apes 25,000,000 Bipedal Hominids 6,000,000 Modern human Ancestors 200,000

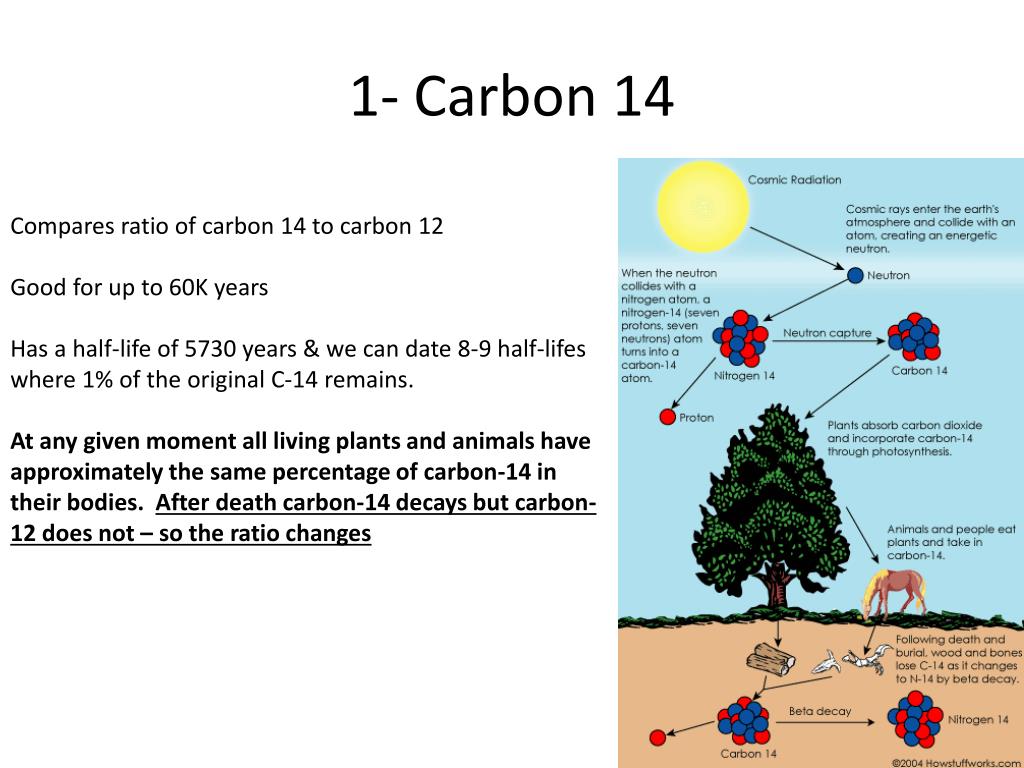

  4. 1- Carbon 14 Compares ratio of carbon 14 to carbon 12 Good for up to 60K years Has a half-life of 5730 years & we can date 8-9 half-lifes where 1% of the original C-14 remains. At any given moment all living plants and animals have approximately the same percentage of carbon-14 in their bodies. After death carbon-14 decays but carbon-12 does not – so the ratio changes

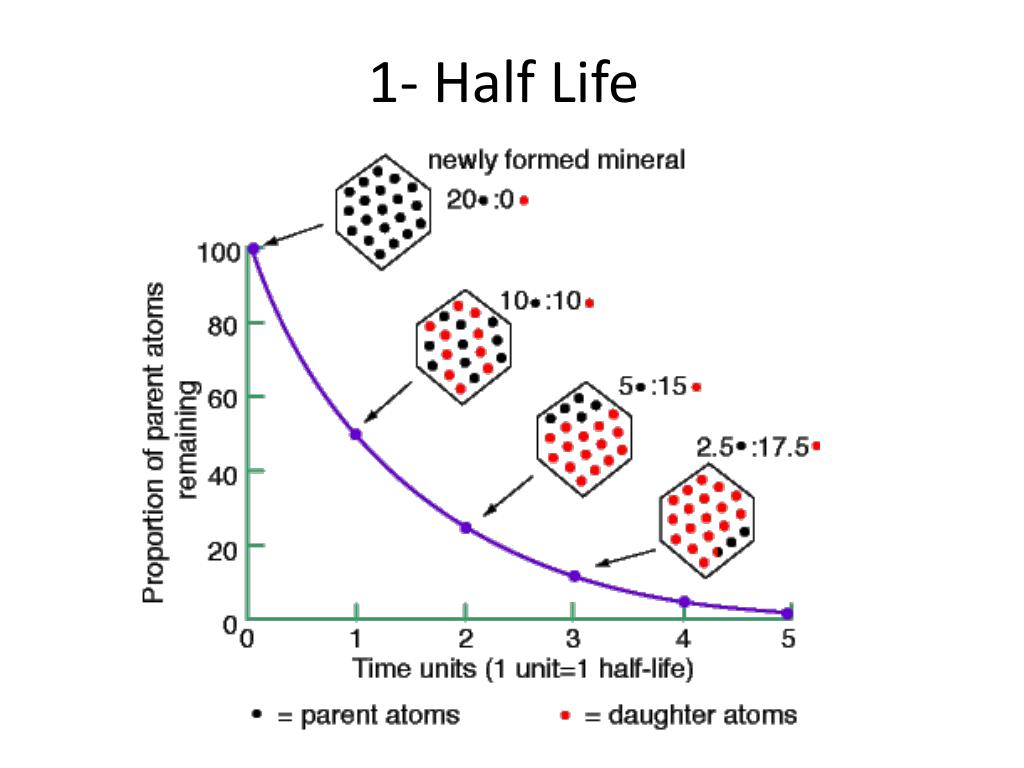

  5. 1- Half Life

  6. 1- Carbon 14 Potassium-40 found in your body at all times; half-life = 1.3 billion years Uranium-235; half-life = 704 million years Uranium-238; half-life = 4.5 billion years Thorium-232; half-life = 14 billion years Rubidium-87; half-life = 49 billion years Carbon-14 good for plant or animal life or things made from them but not sea life.

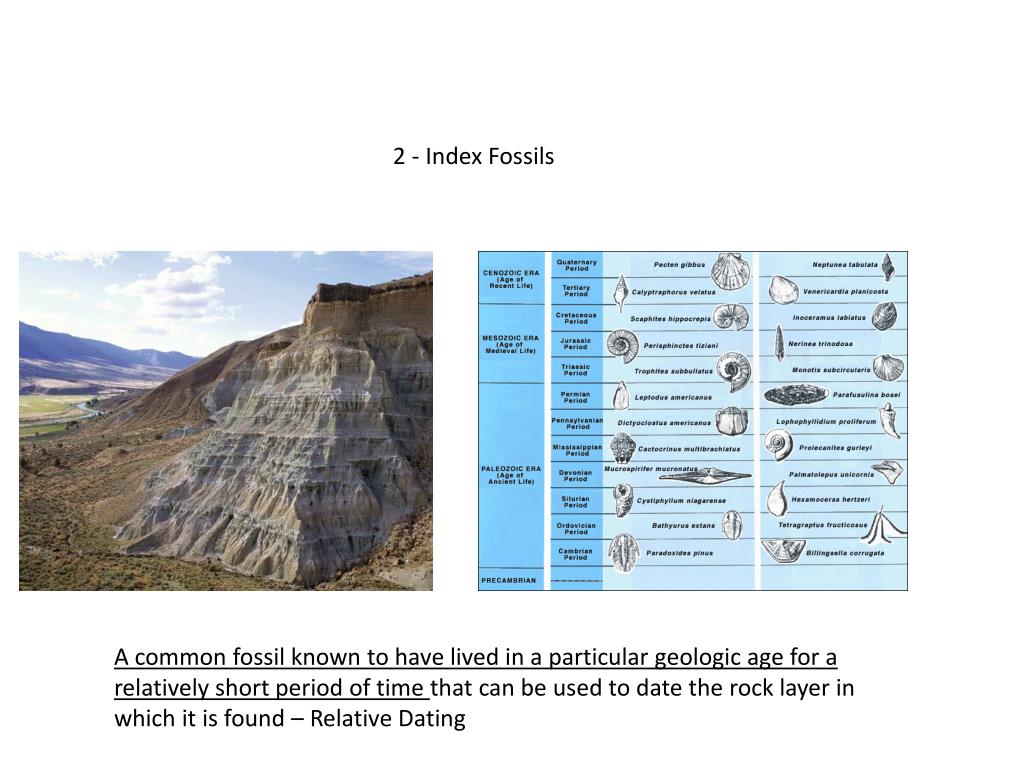

  7. 2 - Index Fossils A common fossil known to have lived in a particular geologic age for a relatively short period of time that can be used to date the rock layer in which it is found – Relative Dating

  8. 3 - Tree Ring Dating

  9. Genetic Dating/Clocks • Atechnique in molecular evolution used to measure the time of divergence of two species from a related ancestor. The length of time is calculated by measuring the number of molecular differences measured between the species' DNA sequences.
