Overview of SPIRE Photometer Pipeline

Overview of SPIRE Photometer Pipeline. C. Kevin Xu (NHSC/IPAC). Goals:. Show how SPIRE Photometer pipeline works (functionalities of major modules). Explain what is new in HIPE 8. Brief summary of remaining issues.

chanel
Download Presentation

Overview of SPIRE Photometer Pipeline

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Overview of SPIRE Photometer Pipeline C. Kevin Xu (NHSC/IPAC)

  2. Goals: • Show how SPIRE Photometer pipeline works (functionalities of major modules). • Explain what is new in HIPE 8. • Brief summary of remaining issues. • Will concentrate on scan map “user pipelines” (covering small map, large map, • SPIRE/PACS parallel mode).

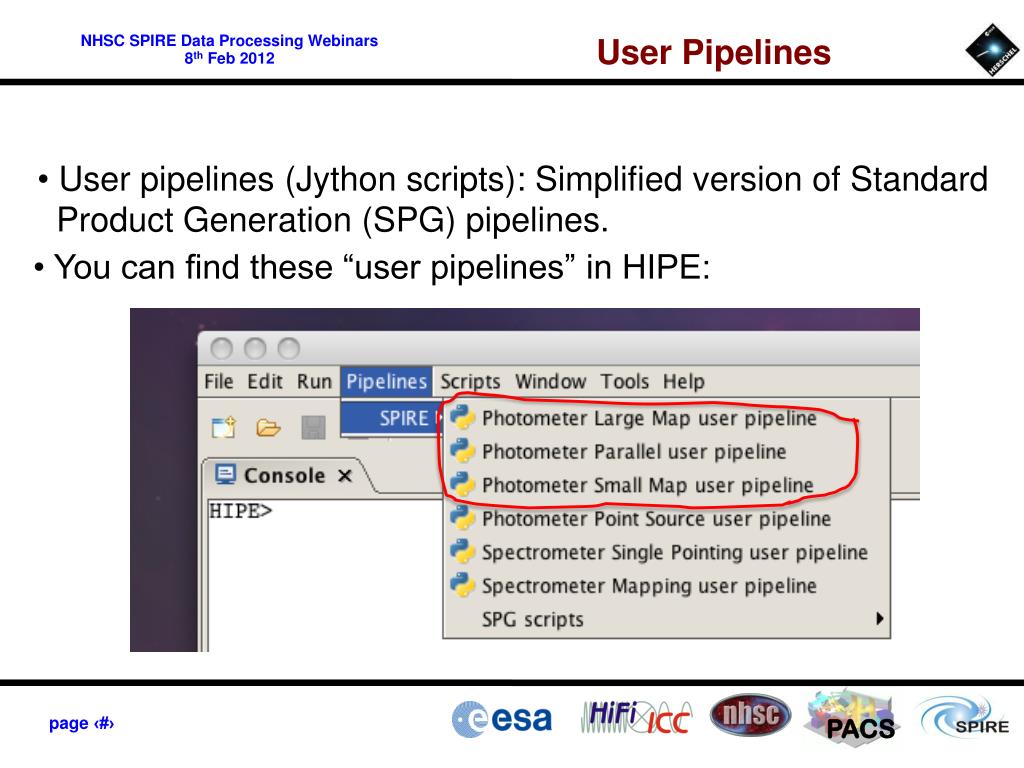

  3. User Pipelines • User pipelines (Jython scripts): Simplified version of Standard • Product Generation (SPG) pipelines. • You can find these “user pipelines” in HIPE:

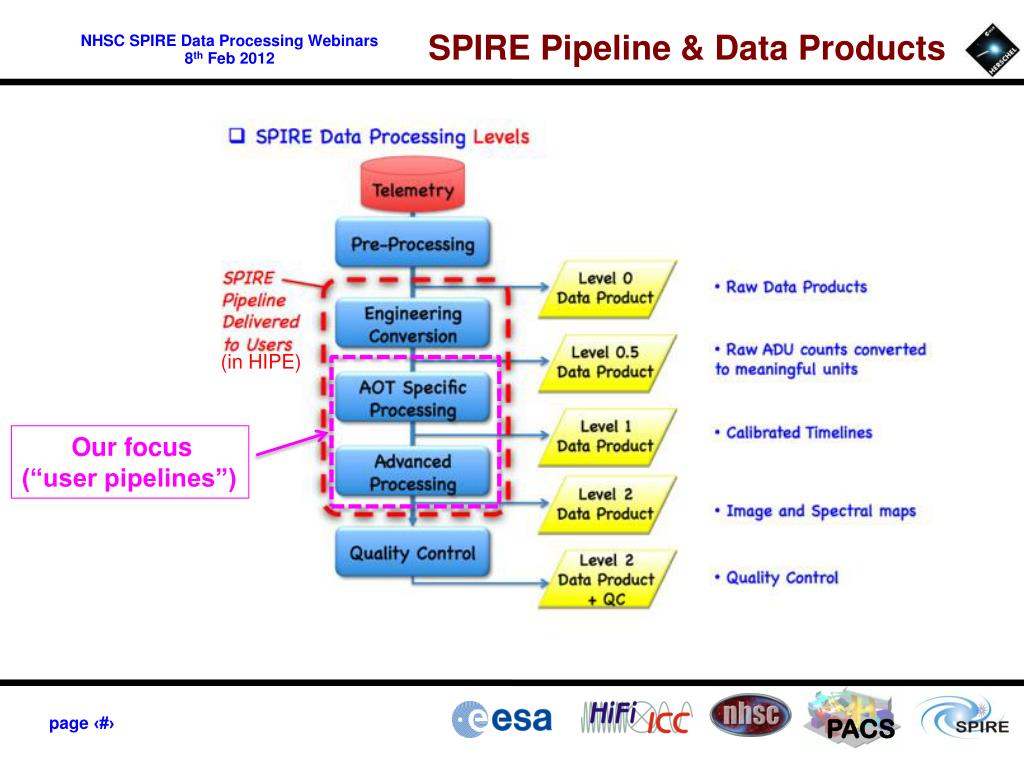

  4. SPIRE Pipeline & Data Products 5’ (in HIPE) Our focus (“user pipelines”)

  5. Scan Map Pipeline Flow Chart A “reversed sequence” relative to the chain of data acquisition place-holder • FFT based • Default: concurrent deglitcher • + wavelet deglitcher • Alternative: σ-κ deglitcher • Telescope pointing & • orientation • SPIRE detectors positions FFT based (run after deglitch & repair to avoid ringing) • Choices: • Default: scan median baseline removal • Advanced : polynomial baseline removal • Most advanced: an iterative destriper • Include: • Non-linearity correction • Volt to Jy/beam conversion Baseline removal + Mapper Remove 1/f noise due to T-drift • Default: naïve mapper • Alternative: madmapper

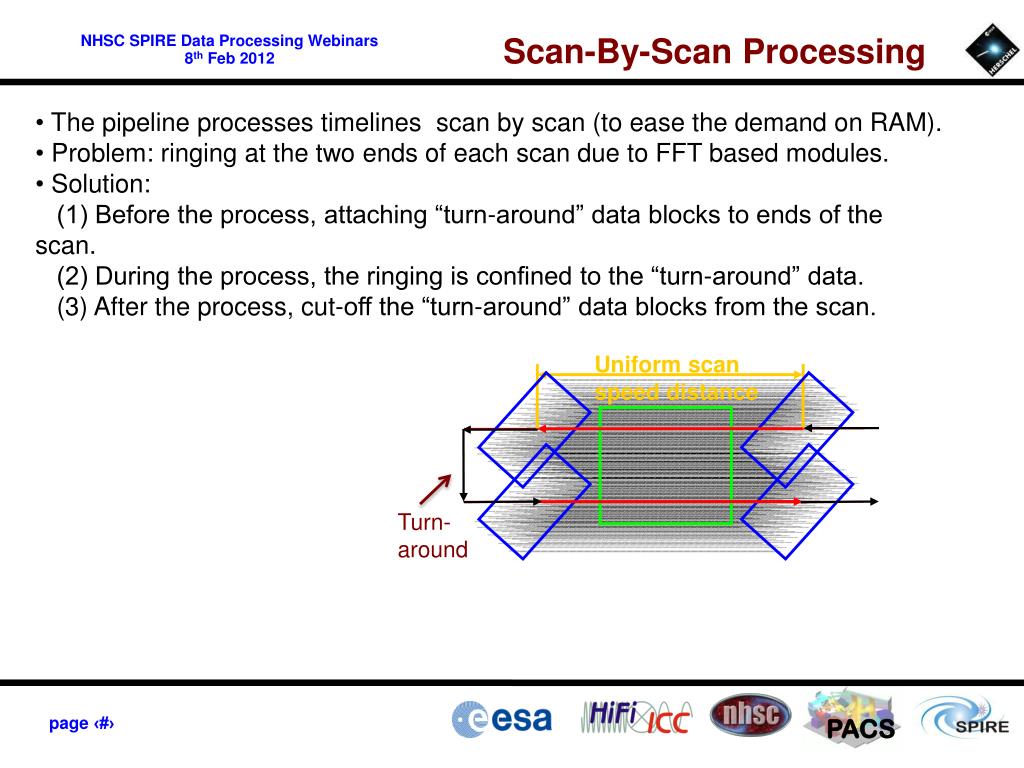

  6. Uniform scan speed distance Scan-By-Scan Processing • The pipeline processes timelines scan by scan (to ease the demand on RAM). • Problem: ringing at the two ends of each scan due to FFT based modules. • Solution: • (1) Before the process, attaching “turn-around” data blocks to ends of the scan. • (2) During the process, the ringing is confined to the “turn-around” data. • (3) After the process, cut-off the “turn-around” data blocks from the scan. Turn-around

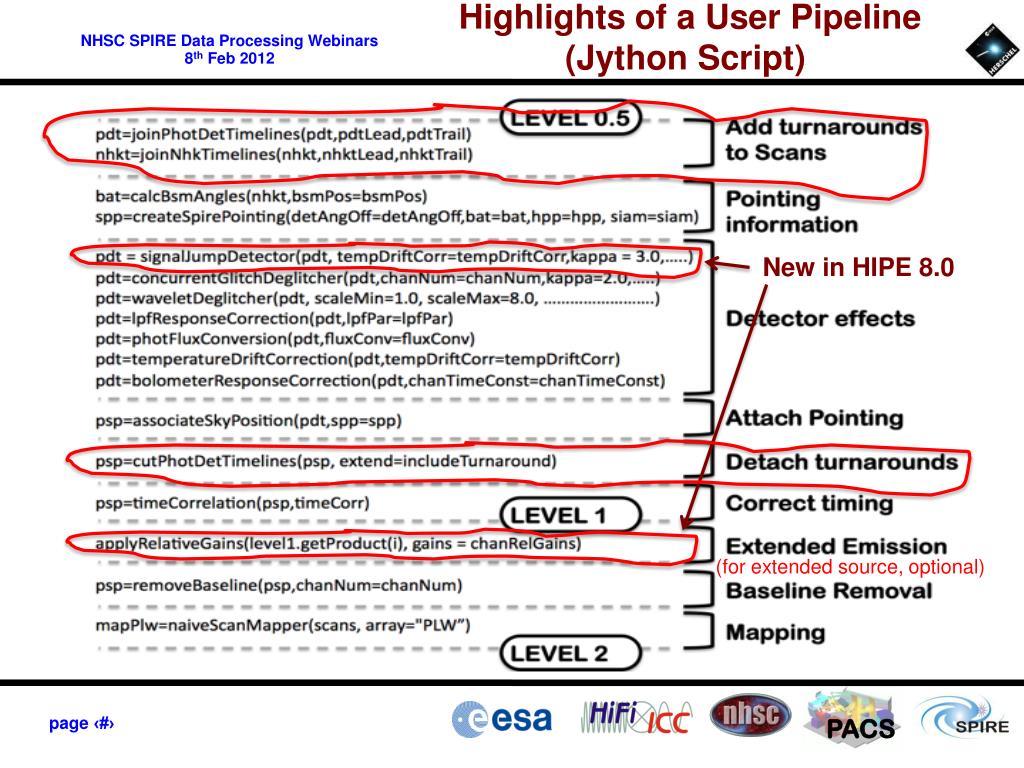

  7. Highlights of a User Pipeline (Jython Script) New in HIPE 8.0 (for extended source, optional)

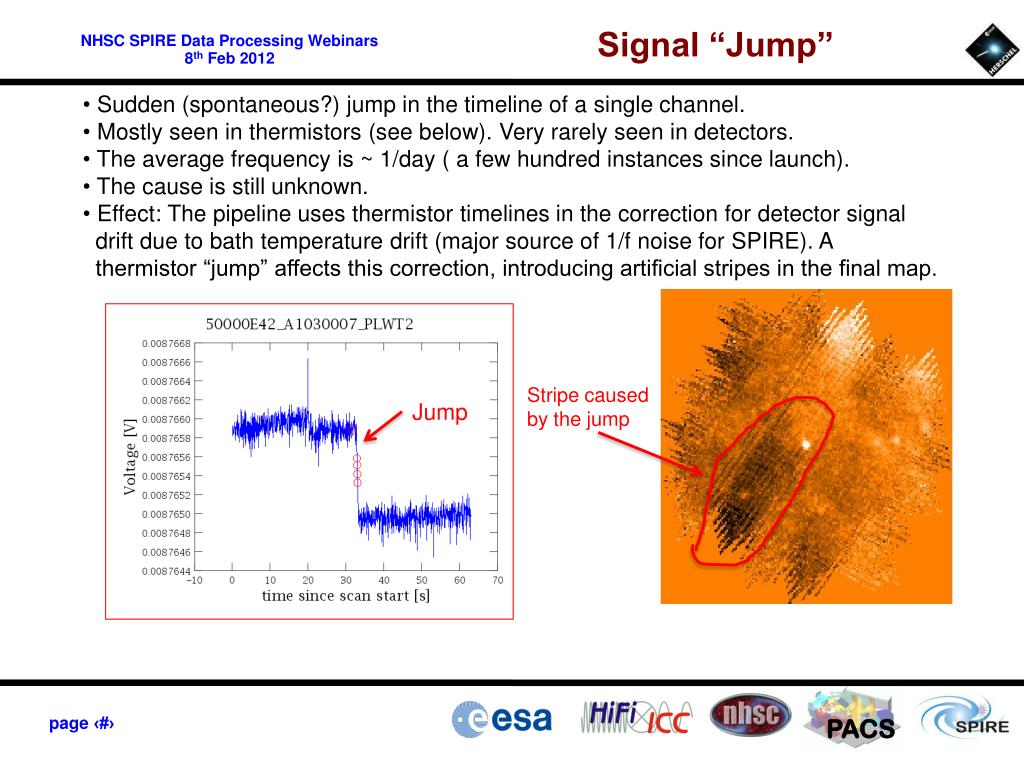

  8. Sudden (spontaneous?) jump in the timeline of a single channel. • Mostly seen in thermistors (see below). Very rarely seen in detectors. • The average frequency is ~ 1/day ( a few hundred instances since launch). • The cause is still unknown. • Effect: The pipeline uses thermistor timelines in the correction for detector signal • drift due to bath temperature drift (major source of 1/f noise for SPIRE). A • thermistor “jump” affects this correction, introducing artificial stripes in the final map. Signal “Jump” Stripe caused by the jump Jump

  9. Thermistor Jump Solution (in HIPE 8.0) • a “reversed sequence” relative to the chain of • data acquisition • scan by scan processing New module Jump Detector (automatically identify & mask any thermistor affected by a jump) Destriper + Mapper Exclude masked thermistors

  10. Status of SPIRE Scan Map Pipeline in HIPE 8.0. SPIRE 3-color map of NGC 5315 (a planetary nebula) • General assessment: • In many cases, data from HSA • are already science quality! • The official calibration accuracy is • ±7% (5% from model, 2% RMS). • An example (on the right): • The image from HSA looks good. • Caveat: detailed inspections show • thin stripes (can be improved using • a more advanced baseline remover • such as the iterative destriper). • A major issue yet to resolve: • stripes due to bias voltage • drift (the “burp”) • (affecting a few observations) (Public data taken from HSA)

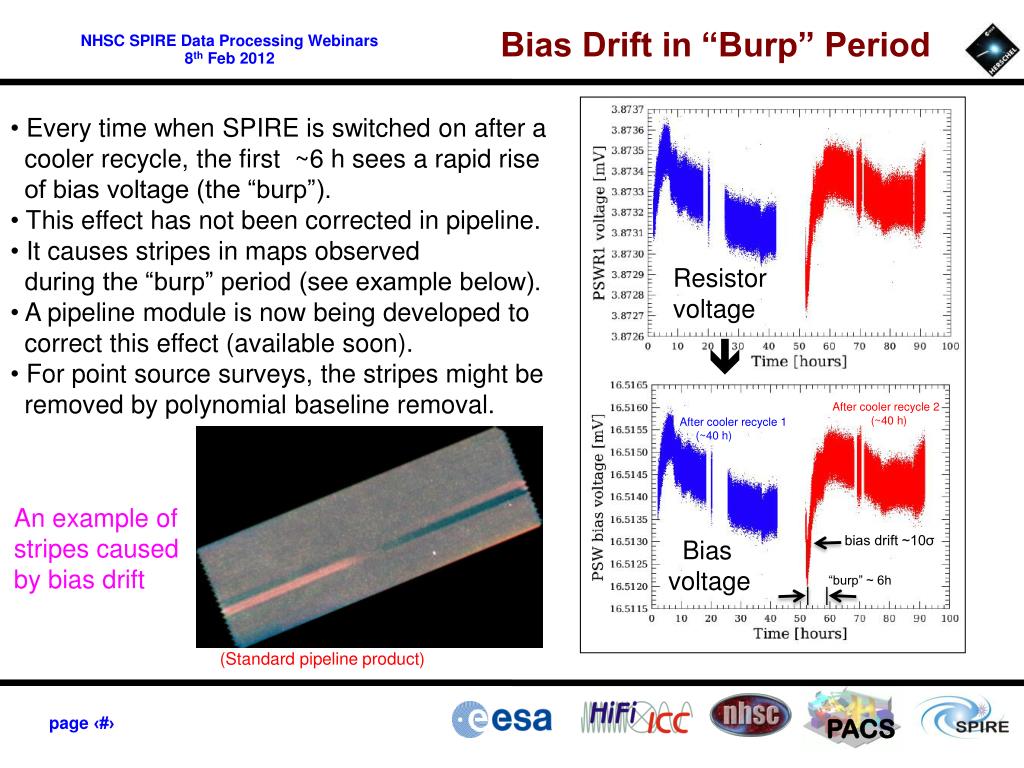

  11. Bias Drift in “Burp” Period • Every time when SPIRE is switched on after a • cooler recycle, the first ~6 h sees a rapid rise • of bias voltage (the “burp”). • This effect has not been corrected in pipeline. • It causes stripes in maps observed • during the “burp” period (see example below). • A pipeline module is now being developed to • correct this effect (available soon). • For point source surveys, the stripes might be • removed by polynomial baseline removal. Resistor voltage  After cooler recycle 2 (~40 h) After cooler recycle 1 (~40 h) An example of stripes caused by bias drift bias drift ~10σ Bias voltage “burp” ~ 6h (Standard pipeline product)

  12. Summary • Scan-Map pipeline covers nearly all SPIRE PHOT AOTs (small map, • large map, map in SPIRE/PACS parallel mode). • It follows a “reversed sequence” relative to the chain of data acquisition. • For a general user, Level0_5 should be the best starting point. • From Level0_5 to Level 1, the pipeline processes any observation data set • scan by scan (to ease the demand on the RAM). • The current pipeline (HIPE 8.0.1) does a good job (“science ready”) in general. • However, the pipeline still has some open issues: that • (1) Stripes due to the “burp effect” (affecting ~10% observations). • (2) Residual stripes (can be corrected by the destriper module in HIPE). • (3) Residual glitches in maps (2nd level deglitcher being developed inside • the destriper module).

  13. Home work: • Run Photometer Large Map user pipeline (with your own data or NGC 5315 data). • Next: A demo of SPIA (SPIRE Photometer Interactive Analysis), a GUI based • data reduction tool (including all pipeline modules and more).
