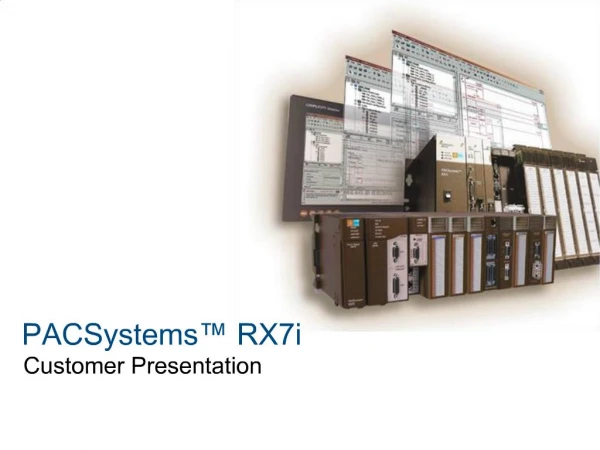

    1. Customer Presentation PACSystems™ RX7i

    10. Distributed or just in one spot, easy control for the complex application

    11. Steel Mill Application Finisher - Position Control and Speed/Loop Control Customer Needs Fast processing and sharing large amounts of data Control with advanced function blocks 3rd Party module support Solution – PACSystems RX7i Controls Open VME architecture C block programming for special functions Control Memory Xchange for fast sharing of large amounts of data Advantage – Sharing control over multiple hardware platforms with advanced functionality at very high speeds providing enhanced productivity and reduced hardware costs

    13. PACSystems High Availability

    15. Integrated redundancy at every level

    17. The first member of the PACSystems family, the RX7i available in April 2003 offers an open architecture platform with increased flexibility. The open architecture platform allow for increase application flexibly. Supporting VME64 standards and its many cards. The high performance open standard VME64 backplanes provide for faster I/O throughput with up to 4 times the bandwidth of existing VME based systems such as the GE Fanuc Series 90-70. This combined with the 300MHz or 700MHz CPU make for superior application speed. Best in class migration! Open door for your existing application by a simple replacement of a few components, easy software conversion and your on your way. The RX7i platform is followed by the next member of the PACSystems family the RX3i The first member of the PACSystems family, the RX7i available in April 2003 offers an open architecture platform with increased flexibility. The open architecture platform allow for increase application flexibly. Supporting VME64 standards and its many cards. The high performance open standard VME64 backplanes provide for faster I/O throughput with up to 4 times the bandwidth of existing VME based systems such as the GE Fanuc Series 90-70. This combined with the 300MHz or 700MHz CPU make for superior application speed. Best in class migration! Open door for your existing application by a simple replacement of a few components, easy software conversion and your on your way. The RX7i platform is followed by the next member of the PACSystems family the RX3i

    19. Benefits from top to bottom of your system

    20. Sub-Sea Oil Production Customer Needs Redundancy at all levels Fast processing of 45,000+ data variables Special communication boards for connecting to other 3rd party proprietary applications Solution – PACSystems High Availability Fast transfer of large amounts of data between systems using Control Memory Xchange technology 100MB integrated Ethernet with Redundant IP Open VME architecture Advantage - One set of synchronized controls to handle all special modules, memory, and I/O providing total process updates in real time for fast production improvements

    21. Cement Processing Customer Needs Redundancy at all levels Modular function block handling Fast loop control plus continued process capability and improvements Solution – PACSystems High Availability PACSystems architecture is built around modular block handling with advanced functions such as C programming for special processes Advantage - One set of controls to handle special programming functionality and top to bottom redundancy, providing enhanced productivity and reduced hardware costs

    22. Promotions Try Before You Buy Provide customer with Starter Kit 60-day evaluation period You love it, you keep it… if not return it Trade-In Program You have an old control system you want to upgrade? Old PLC system – GE Fanuc or Competitors hardware Price incentive on the new hardware

    23. Summary
