A novel user authentication and privacy preserving scheme with smartcards for wireless communications 作者:Chun-Ta Li,Cgeng-Chi Lee 出處:Mathematical and Computer Modelling,2012 報告人:葉瑞群日期:2012/09/07

Introduction 1 Review of He et al.’s scheme 2 Three weaknesses in He et al.’s scheme Conclusions Security analusis of the proposed scheme 7 5 3 3 3 3 Functionality features and performance analysis of the proposed scheme The proposed scheme 6 4 4 4 Outline

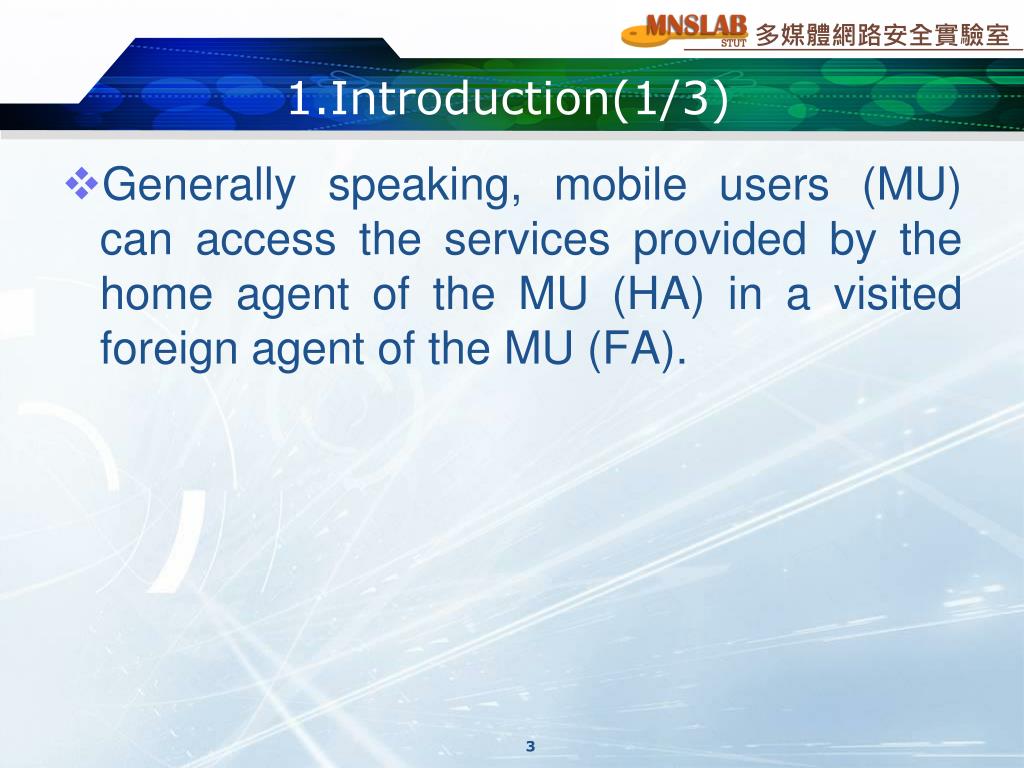

1.Introduction(1/3) • Generally speaking, mobile users (MU) can access the services provided by the home agent of the MU (HA) in a visited foreign agent of the MU (FA).

1.Introduction(2/3) • Recently, He et al. [5] showed that Wu et al.’s scheme is vulnerable to several weaknesses and then proposed a strong user authentication scheme with smart cards for wireless communications.

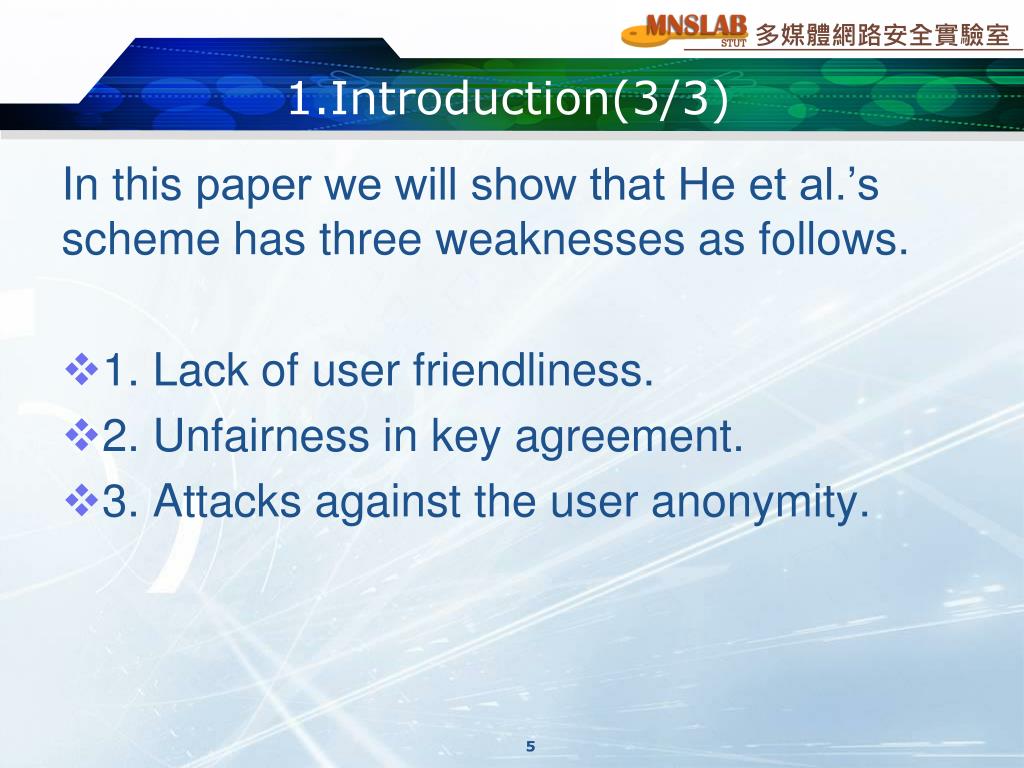

1.Introduction(3/3) In this paper we will show that He et al.’s scheme has three weaknesses as follows. • 1. Lack of user friendliness. • 2. Unfairness in key agreement. • 3. Attacks against the user anonymity.

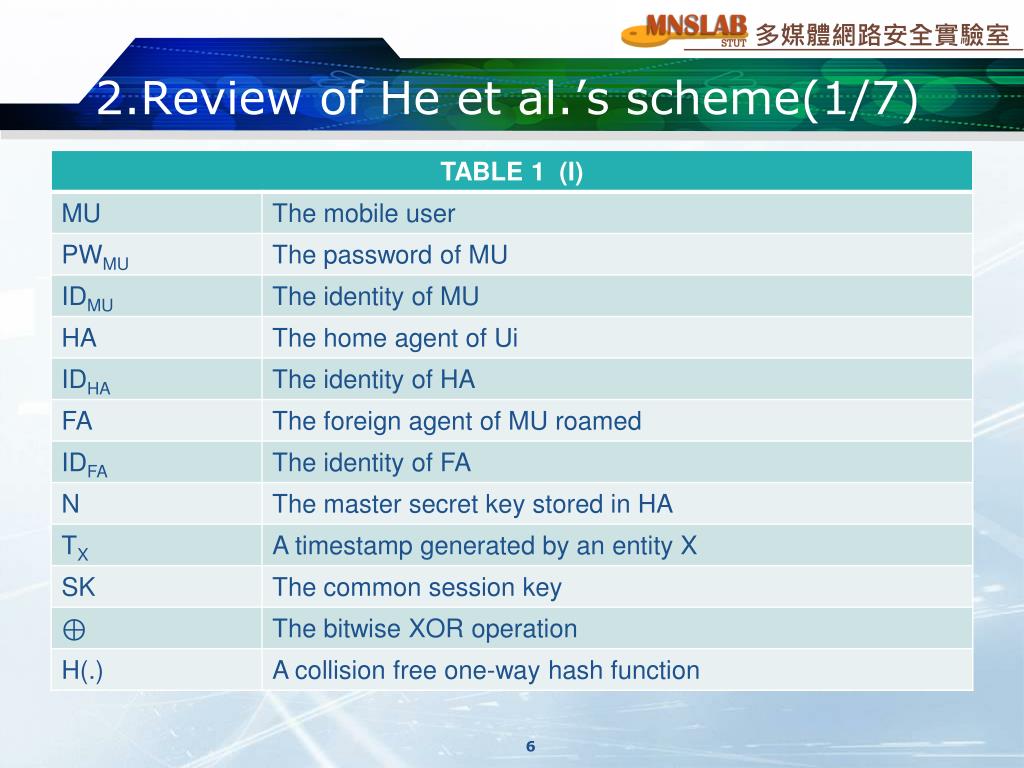

2.Review of He et al.’s scheme(1/7)

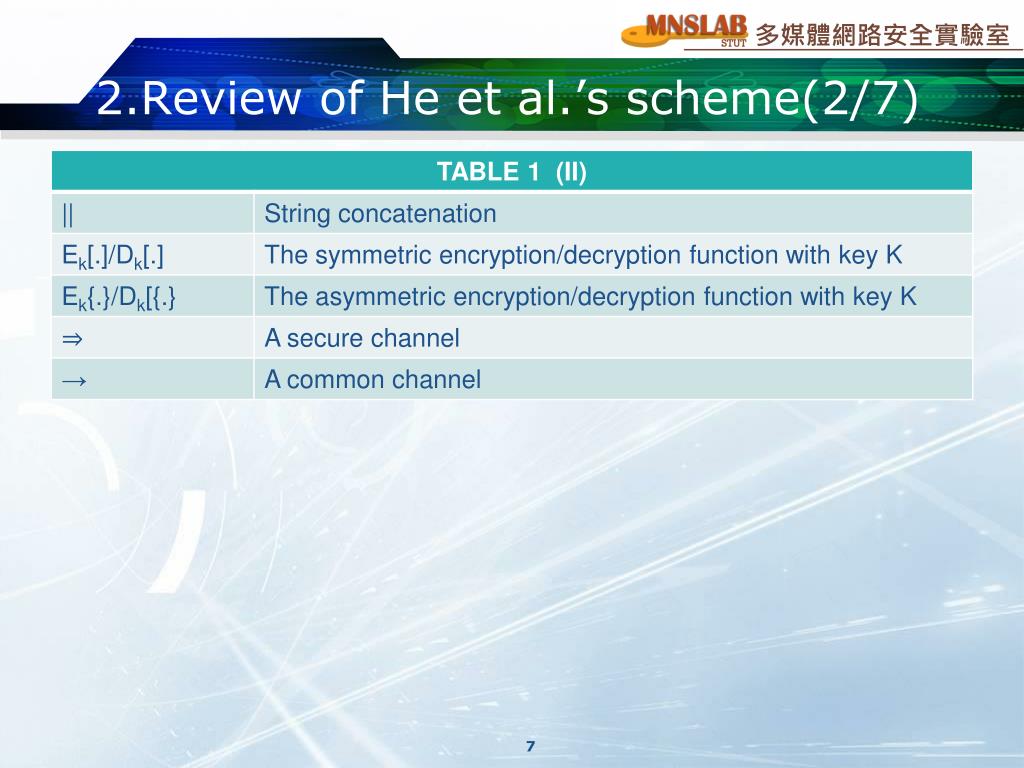

2.Review of He et al.’s scheme(2/7)

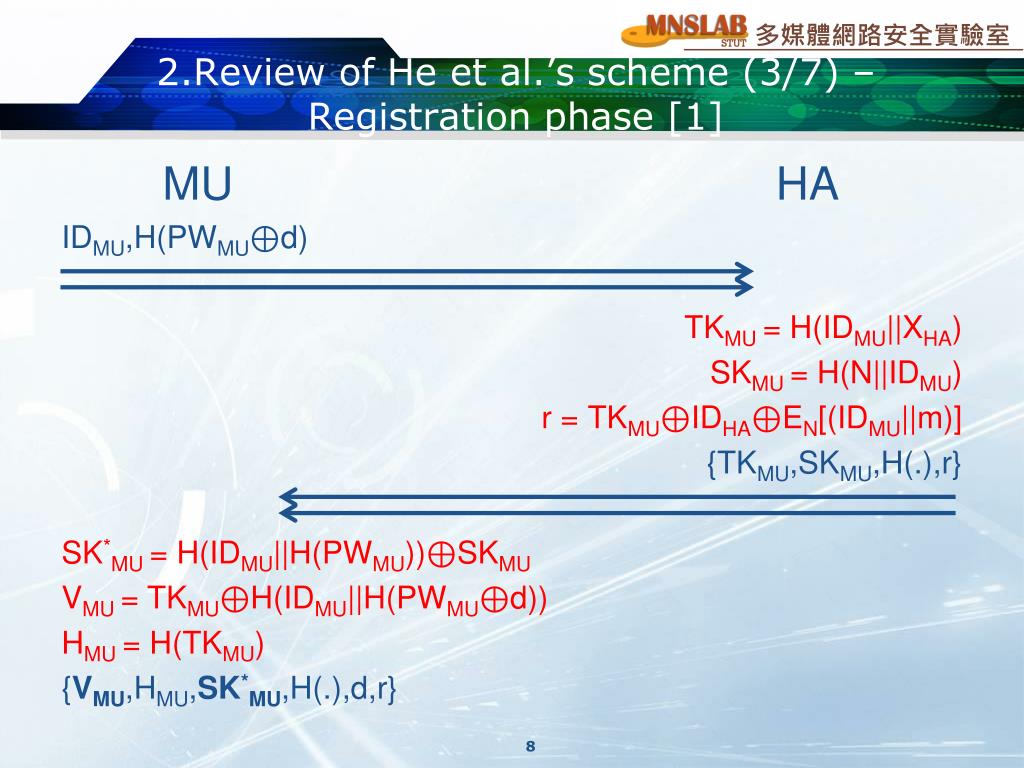

2.Review of He et al.’s scheme (3/7) – Registration phase [1] MU HA IDMU,H(PWMU⊕d) TKMU = H(IDMU||XHA) SKMU = H(N||IDMU) r = TKMU⊕IDHA⊕EN[(IDMU||m)] {TKMU,SKMU,H(.),r} SK*MU = H(IDMU||H(PWMU))⊕SKMU VMU = TKMU⊕H(IDMU||H(PWMU⊕d)) HMU = H(TKMU) {VMU,HMU,SK*MU,H(.),d,r}

2.Review of He et al.’s scheme (4/7) – Login phase [2] MU FA Smart card TK*MU=VMU⊕H(IDMU||H(PWMU⊕d)) H*MU=H(TK*MU) check H*MU=HMU SKMU=H(IDMU||H(PWMU))⊕SK*MU L = H(TMU⊕SKMU) F=EL[H(TMU)||IDFA||x0||x] n = r⊕TKMU = IDHA⊕EN[(IDMU||m)] m1{n,F,IDHA,TMU}

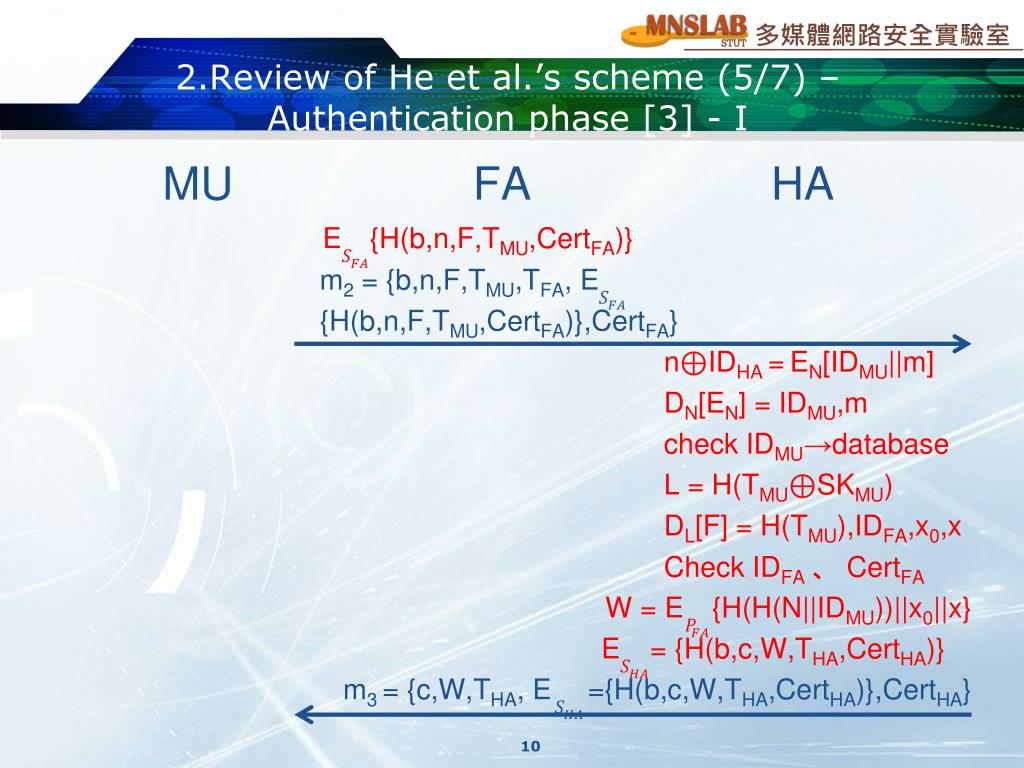

2.Review of He et al.’s scheme (5/7) – Authentication phase [3] - I MU FA HA E{H(b,n,F,TMU,CertFA)} m2 = {b,n,F,TMU,TFA, E {H(b,n,F,TMU,CertFA)},CertFA} n⊕IDHA =EN[IDMU||m] DN[EN] = IDMU,m check IDMU→database L = H(TMU⊕SKMU) DL[F] = H(TMU),IDFA,x0,x Check IDFA 、CertFA W = E{H(H(N||IDMU))||x0||x} E={H(b,c,W,THA,CertHA)} m3 = {c,W,THA, E={H(b,c,W,THA,CertHA)},CertHA}

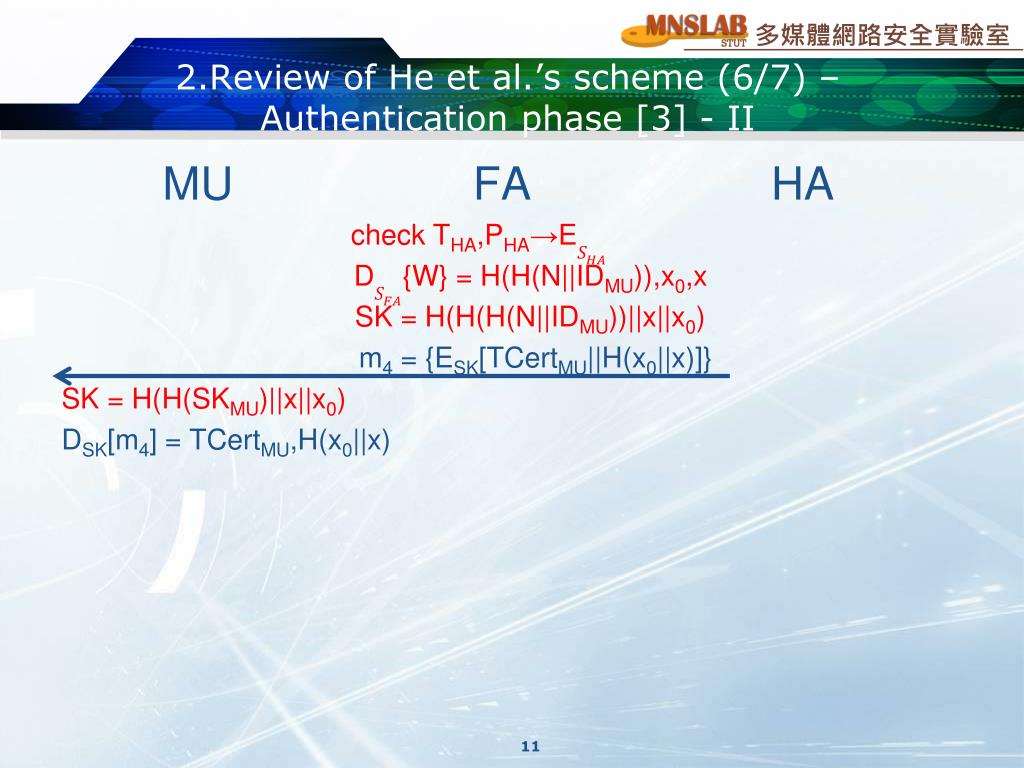

2.Review of He et al.’s scheme (6/7) – Authentication phase [3] - II MU FA HA check THA,PHA→E D{W} = H(H(N||IDMU)),x0,x SK = H(H(H(N||IDMU))||x||x0) m4 = {ESK[TCertMU||H(x0||x)]} SK=H(H(SKMU)||x||x0) DSK[m4] = TCertMU,H(x0||x)

2.Review of He et al.’s scheme (7/7) – Password change phase [4] Smart card TK*MU = VMU⊕H(IDMU||H(PWMU||⊕d)) H*MU=H(TK*MU),Check H*MU = HMU MU Input PWNEWMU Smart card SK’MU = H(IDMU||H(PWNEWMU))⊕SKMU =H(IDMU||H(PWNEWMU))⊕ H(IDMU||H(PWMU))⊕SK*MU,ReplacesSK’MU→SK*MU V’MU = TKMU⊕H(IDMU||H(PWNEWMU⊕dNEW)),Replaces V’MU→VMU {V’MU,HMU,SK’MU,H(.),dNEW,r},PWNEWMU

3. Three weaknesses in He et al.’s scheme(1/3) 1.Lack of user friendliness • Authors assumed that the bit length of MU’s IDMU is 128 bit and MU has to bear in mind such a 128 bit identity (usually in the form of as many as 32 hexadecimal ASCII characters).

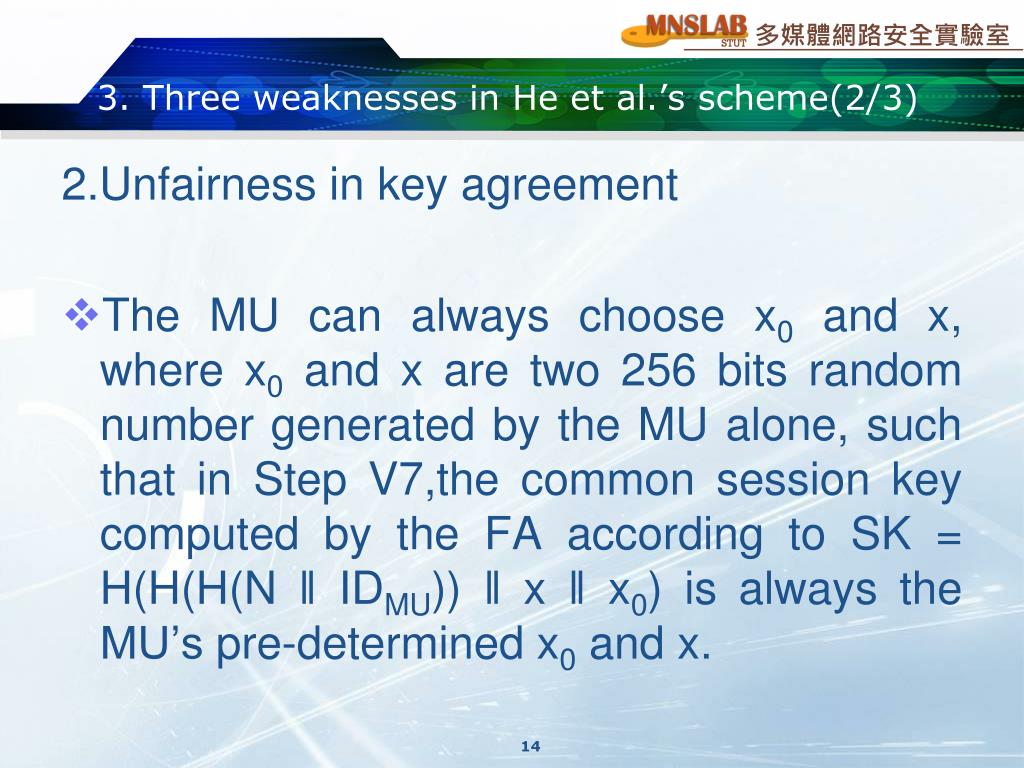

3. Three weaknesses in He et al.’s scheme(2/3) 2.Unfairness in key agreement • The MU can always choose x0 and x, where x0 and x are two 256 bits random number generated by the MU alone, such that in Step V7,the common session key computed by the FA according to SK = H(H(H(N ‖ IDMU)) ‖ x ‖ x0) is always the MU’s pre-determined x0 and x.

3. Three weaknesses in He et al.’s scheme(3/3) 3. Attacks against the user’s anonymity • Consider that a mobile user MU roams into the foreign network and sends the login message m1 = {n,F,IDHA,TMU} to the FA to access service, the contents of n and IDHA are for the mobile user MU’s exclusive use and these two values always unchanging in Step L4 of the login phase.

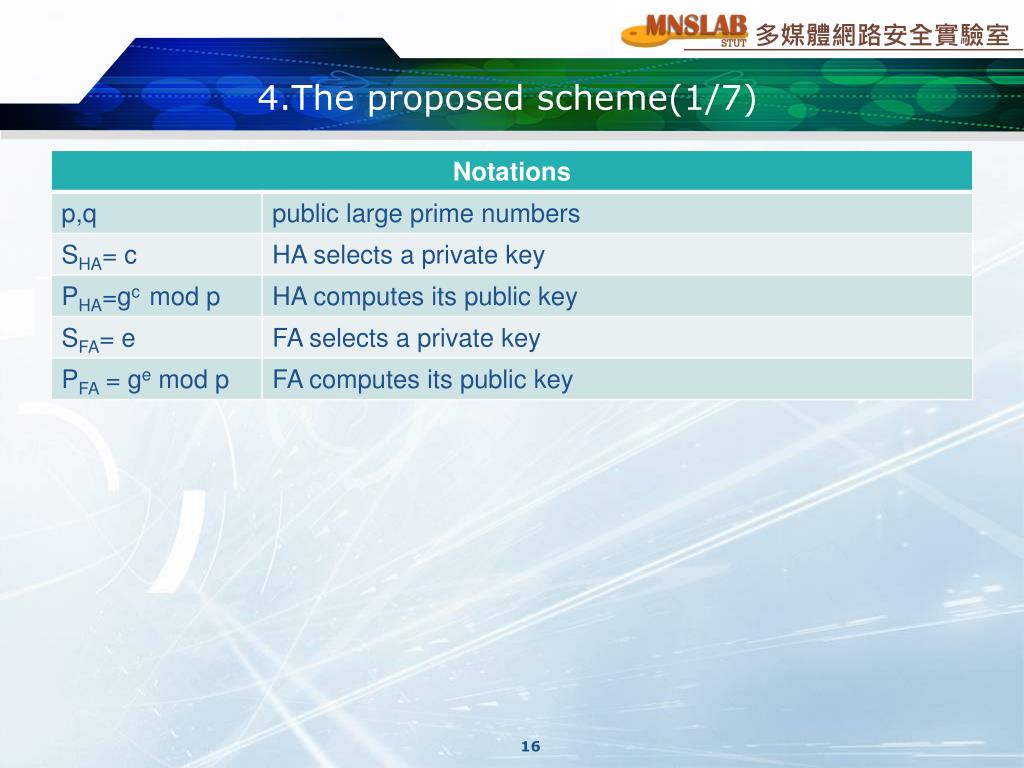

4.The proposed scheme(1/7)

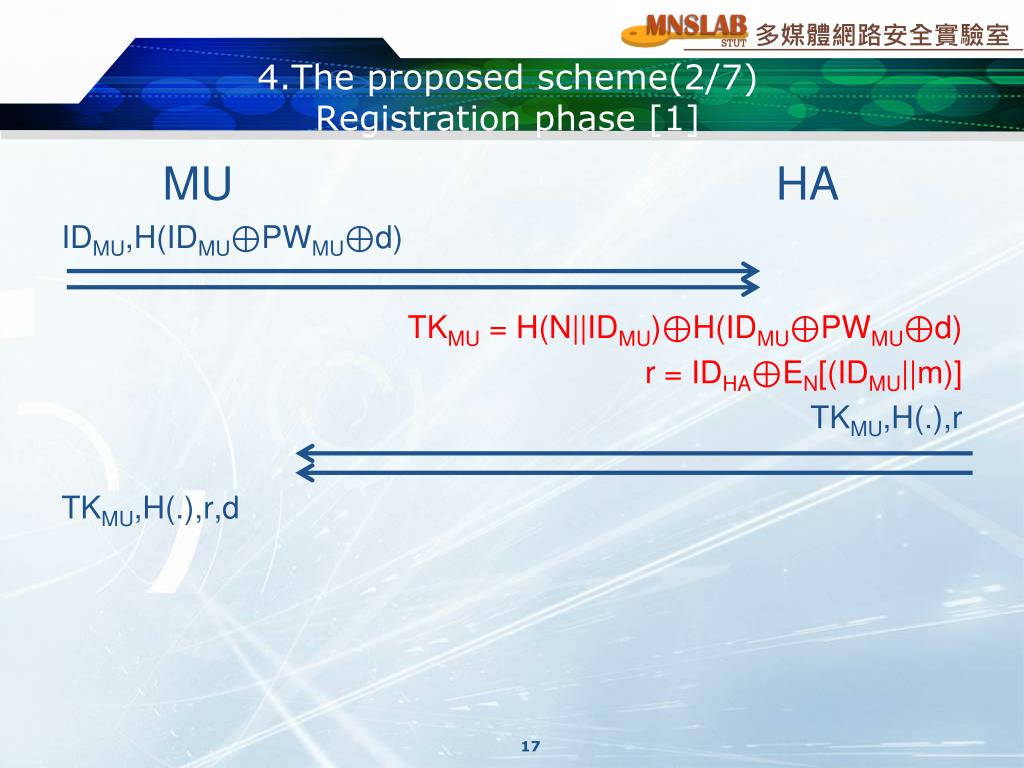

4.The proposed scheme(2/7)Registration phase [1] MU HA IDMU,H(IDMU⊕PWMU⊕d) TKMU = H(N||IDMU)⊕H(IDMU⊕PWMU⊕d) r = IDHA⊕EN[(IDMU||m)] TKMU,H(.),r TKMU,H(.),r,d

4.The proposed scheme(3/7)Login phase [2] MU FA Smart card TK*MU=TKMU⊕H(IDMU⊕PWMU⊕d) =H(N||IDMU) A=ga mod p L = H(TMU⊕TK*MU) , F = EL[TMU||IDFA||A] DH=PHAa mod p = gacmod p , M=EDH[r] MU DH’ = PFAamod p = geamod p m1 = {A,TMU,U=EDH’[M,F,IDHA,TMU]}

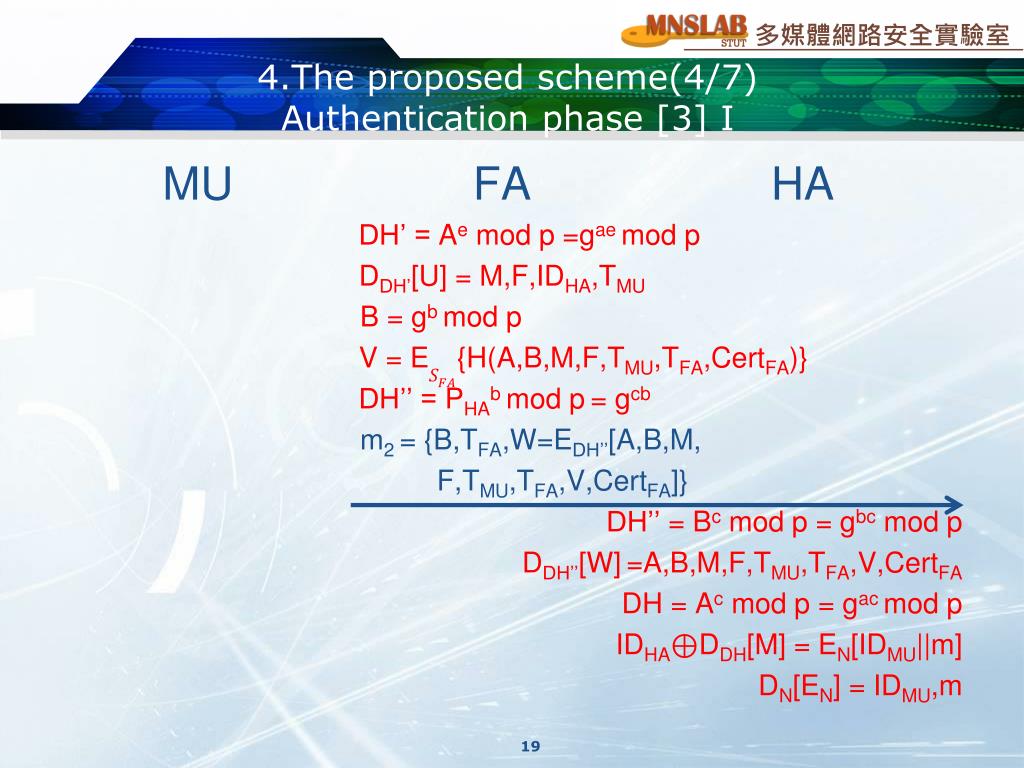

4.The proposed scheme(4/7)Authentication phase [3] I MU FA HA DH’ = Ae mod p =gaemod p DDH’[U] = M,F,IDHA,TMU B = gbmod p V = E{H(A,B,M,F,TMU,TFA,CertFA)} DH’’ = PHAbmod p= gcb m2 = {B,TFA,W=EDH’’[A,B,M, F,TMU,TFA,V,CertFA]} DH’’=Bc mod p = gbc mod p DDH’’[W]=A,B,M,F,TMU,TFA,V,CertFA DH = Ac mod p=gacmod p IDHA⊕DDH[M] = EN[IDMU||m] DN[EN]=IDMU,m

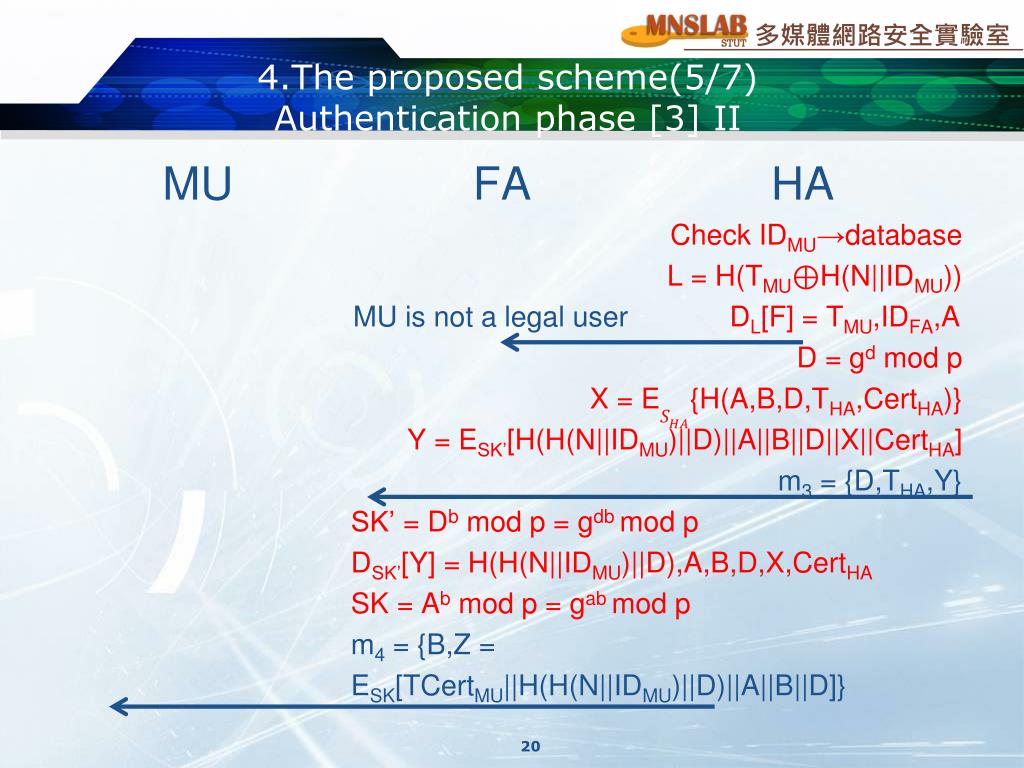

4.The proposed scheme(5/7)Authentication phase [3] II MU FA HA Check IDMU→database L=H(TMU⊕H(N||IDMU)) MU is not a legal user DL[F] = TMU,IDFA,A D = gd mod p X = E{H(A,B,D,THA,CertHA)} Y = ESK’[H(H(N||IDMU)||D)||A||B||D||X||CertHA] m3 = {D,THA,Y} SK’=Db mod p = gdbmod p DSK’[Y] = H(H(N||IDMU)||D),A,B,D,X,CertHA SK = Ab mod p=gab mod p m4 = {B,Z = ESK[TCertMU||H(H(N||IDMU)||D)||A||B||D]}

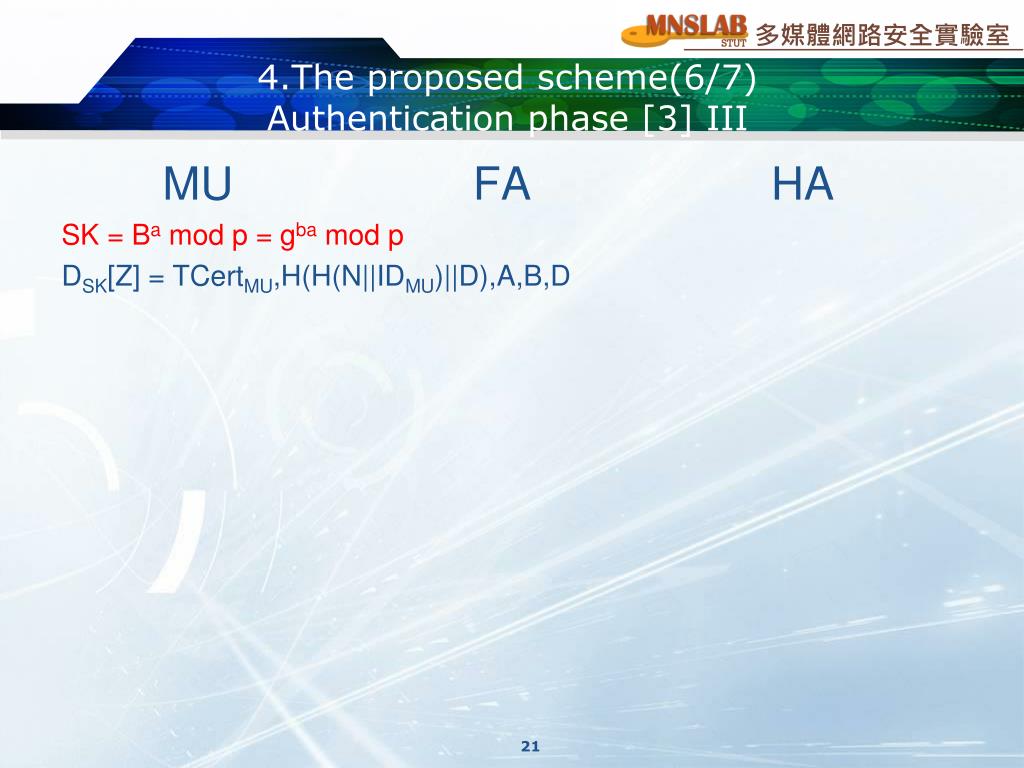

4.The proposed scheme(6/7)Authentication phase [3] III MU FA HA SK=Ba mod p = gba mod p DSK[Z] = TCertMU,H(H(N||IDMU)||D),A,B,D

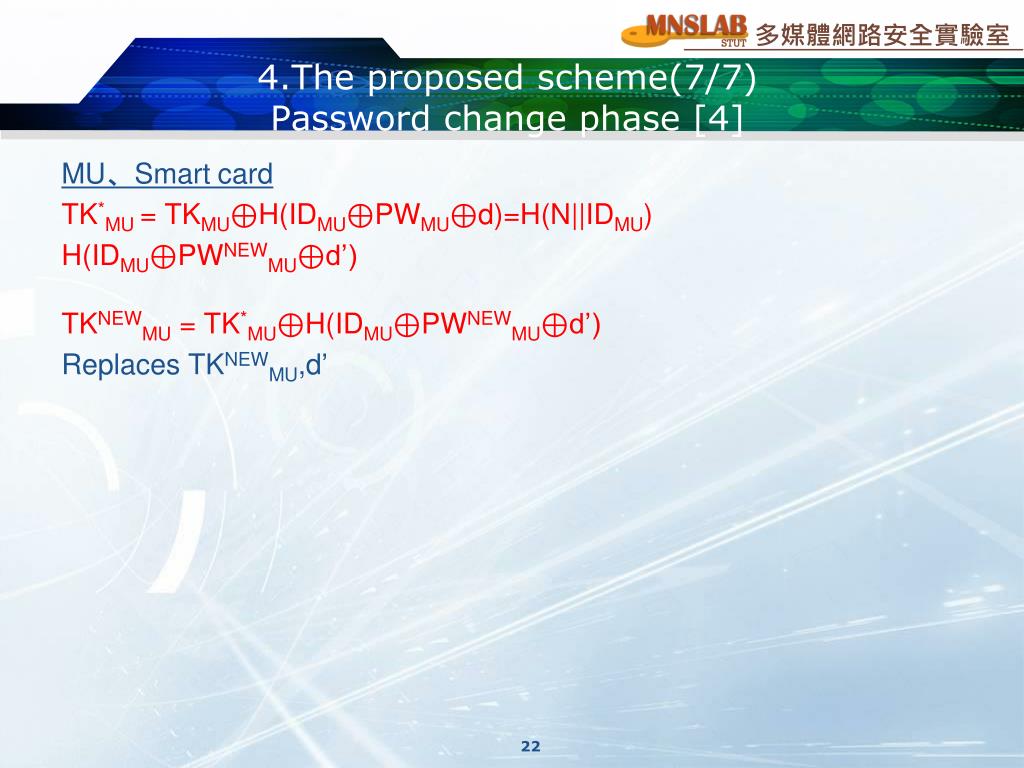

4.The proposed scheme(7/7)Password change phase [4] MU、Smart card TK*MU = TKMU⊕H(IDMU⊕PWMU⊕d)=H(N||IDMU) H(IDMU⊕PWNEWMU⊕d’) TKNEWMU = TK*MU⊕H(IDMU⊕PWNEWMU⊕d’) Replaces TKNEWMU,d’

5.Security analusis of the proposed scheme(1/3) • The proposed scheme is able to provide user anonymity. • m1= {A,TMU,U=EDH’[M,F,IDHA,TMU]} • Step1 DH’ = Ae mod p =gaemod p • Step2 DDH’[U] = M,F,IDHA,TMU

5.Security analusis of the proposed scheme(2/3) MU FA HA DH’ DH’ DH’’ DH’’ DH DH SK SK

5.Security analusis of the proposed scheme(3/3) • The proposed scheme meets the security requirement for perfect forward secrecy. (Diffie-Hellman) • Attacker cannot launch any attack to obtain the MU’s real identity IDMU and password PWMU. TK∗MU= H(N‖IDMU)

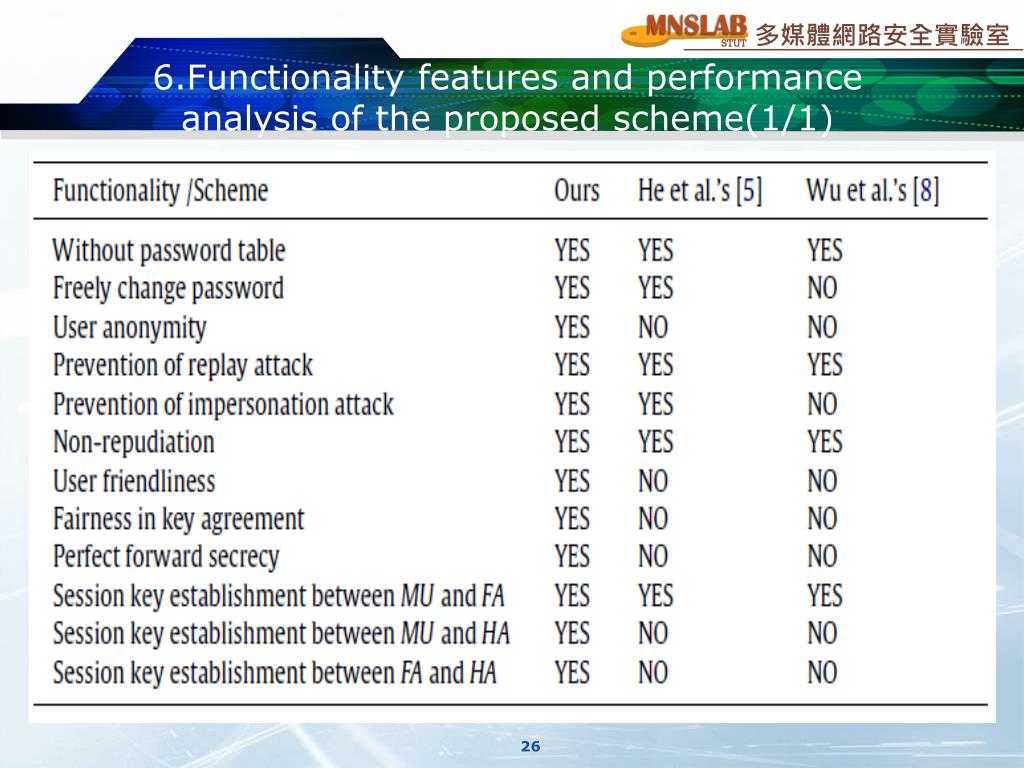

6.Functionality features and performance analysis of the proposed scheme(1/1)

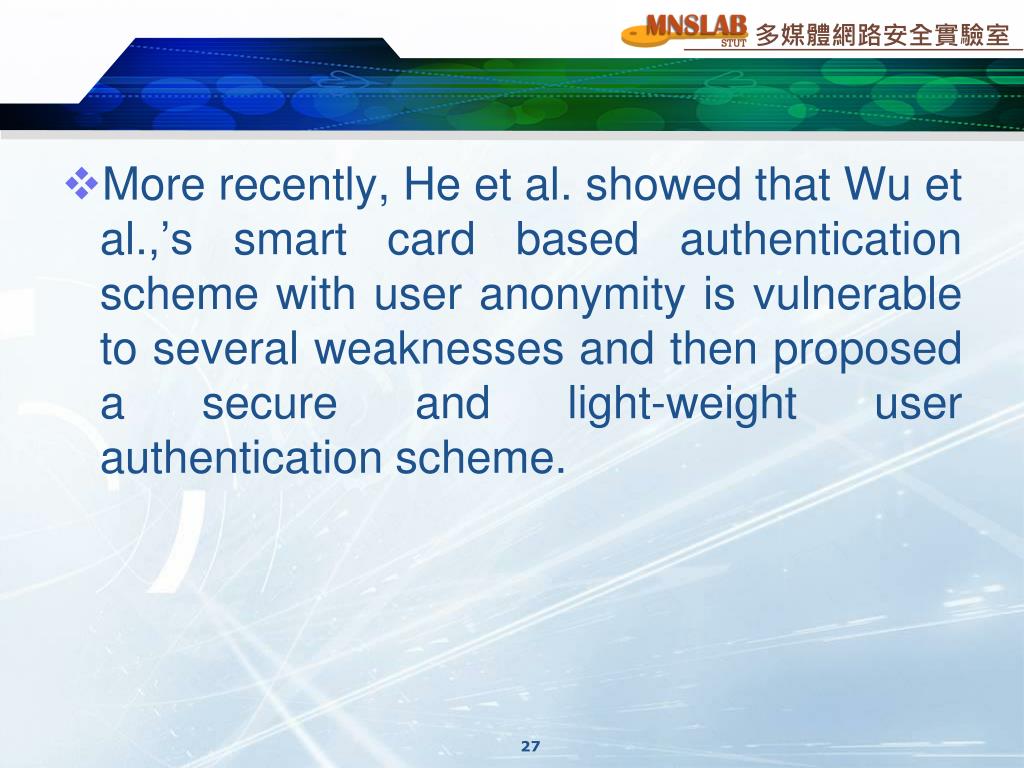

More recently, He et al. showed that Wu et al.,’s smart card based authentication scheme with user anonymity is vulnerable to several weaknesses and then proposed a secure and light-weight user authentication scheme.

Thank You !
