AI Bot for

First Person Shooters

João Carlos Gonçalves

omni bot resume

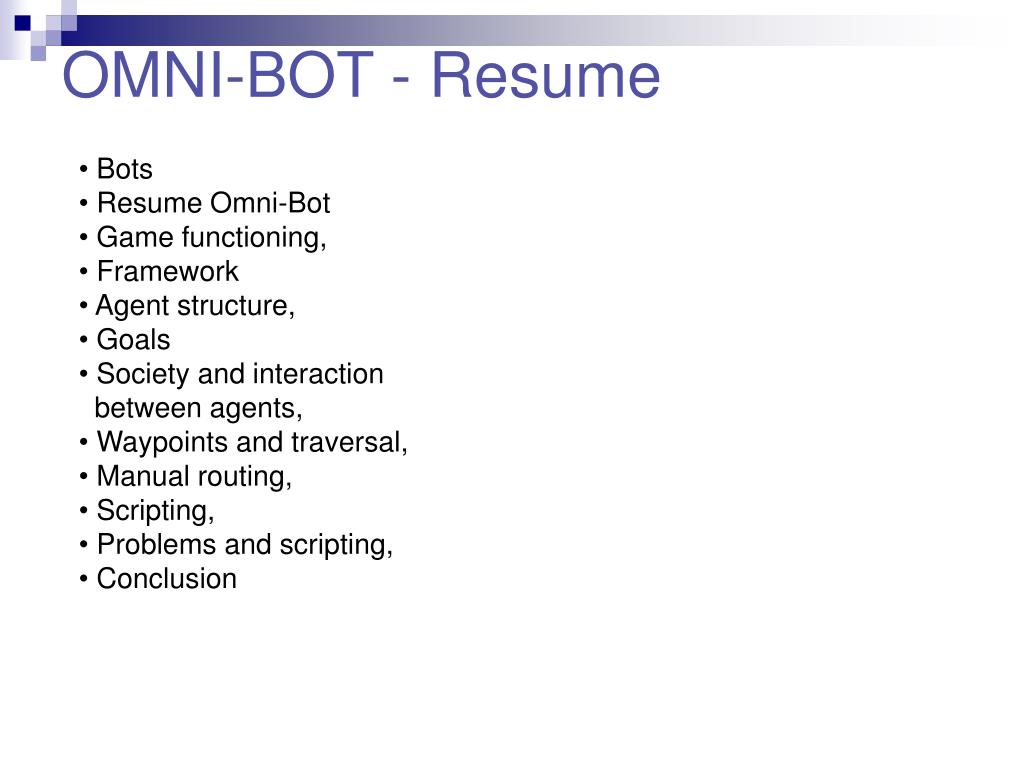

OMNI-BOT - Resume
  • Bots
  • Resume Omni-Bot
  • Game functioning,
  • Framework
  • Agent structure,
  • Goals
  • Society and interaction
  • between agents,
  • Waypoints and traversal,
  • Manual routing,
  • Scripting,
  • Problems and scripting,
  • Conclusion
what s a bot
What’s a bot?

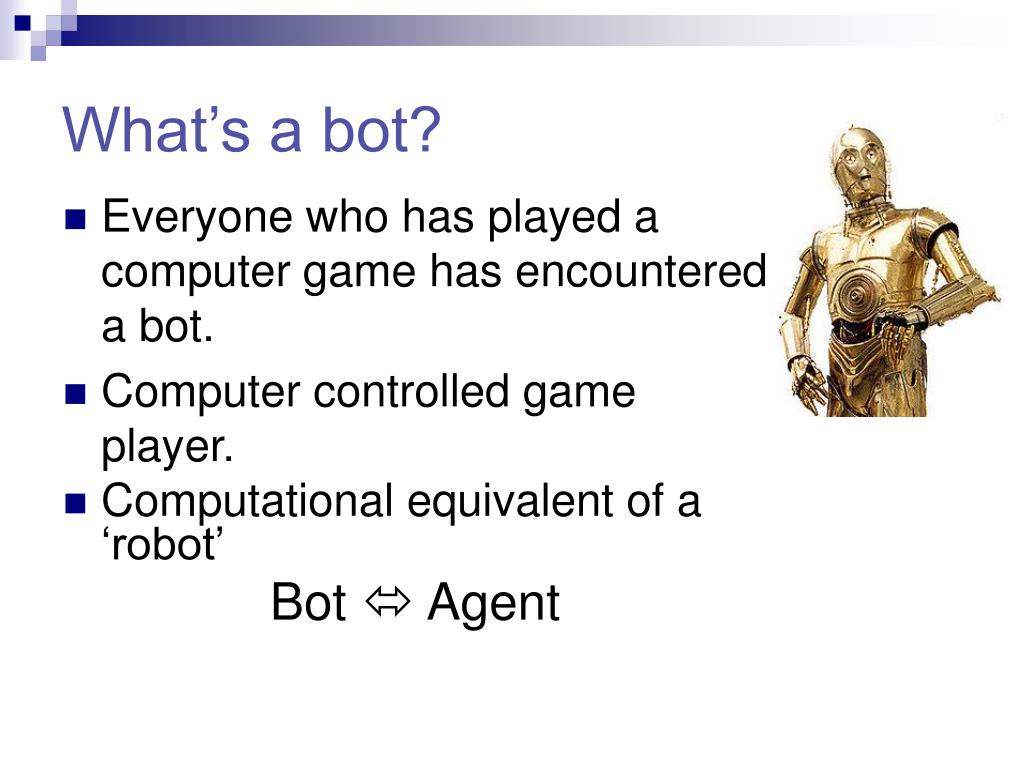

  • Everyone who has played a computer game has encountered a bot.
  • Computer controlled game player.
  • Computational equivalent of a ‘robot’

Bot  Agent

why bots
Why bots?
  • Fill a game with more players.
  • Help humans to train.
  • Execute tasks boring for us.
  • Etc.
omni bot

Framework implementing bots in FPS

  • Games supported:

Wolfenstein: Enemy Territory, Doom 3, Quake 4, Fortress Forever, Return To Castle Wolfenstein, Team Fortress 2

  • “BDI” agents, internally state machines. Oriented towards completing goals while sensing their environment.

Not ALL games fully working (currently).

Best implementation on W.E.T.

enemy territory resume
Enemy Territory- Resume -
  • Comprised of various environments (maps) usually set in WW2, with different goals (frequently contradictory) for the factions.
  • Two factions: Allies and Axis, equal in characteristics, spawning in pre-determinated locations.
  • Five classes: Soldier, Medic, Engineer, Field Ops, Covert Ops, each one with it’s advantages and disadvantages.
wolfenstein enemy territory goals
Wolfenstein – Enemy Territory- Goals -
  • Goals like stealing vehicles, escorting or not allowing them to move, destroying or constructing entities, healing and reviving teammates, etc.
  • Completing goals may create contradictory goals on the opposing faction.
  • Game development may also create or delete goals, possibly specific for some faction.
  • Show Demo.
wolfenstein enemy territory
Wolfenstein – Enemy Territory
  • Limbo, with map’s goals for allied faction:
wolfenstein et mods
Wolfenstein – ET : MODs
  • SDK for changing game logic available
  • Various game modifications (mods) with different game plays:
    • ETPub
    • NoQuarter
    • ShrubMod
    • ETPro
    • Jaymod
    • True Combat Elite
    • PowerBall
    • etc.
  • Installed on the game’s directory
omni bot1

Independent ‘Library’ installed on ET’s folder (usually “omni-bot”)

  • “omnibot_et.dll has the implementation
  • “qagame_mp_x86.dll” = server side engine (game logic)
  • “cgame_mp_x86.dll” & “ui_mp_x86.dll” = client side engine and graphics (client side logic and corresponding graphics)

“Omnibot_et.dll” linked by the running mod (must support omni’s interface)

    • mod initializes omnibot and bots are connected to the engine as clients (like players)
    • supported mods: ETPub, Jaymod, NoQuarter
omni bot agent structure
OMNI-BOT - agent structure

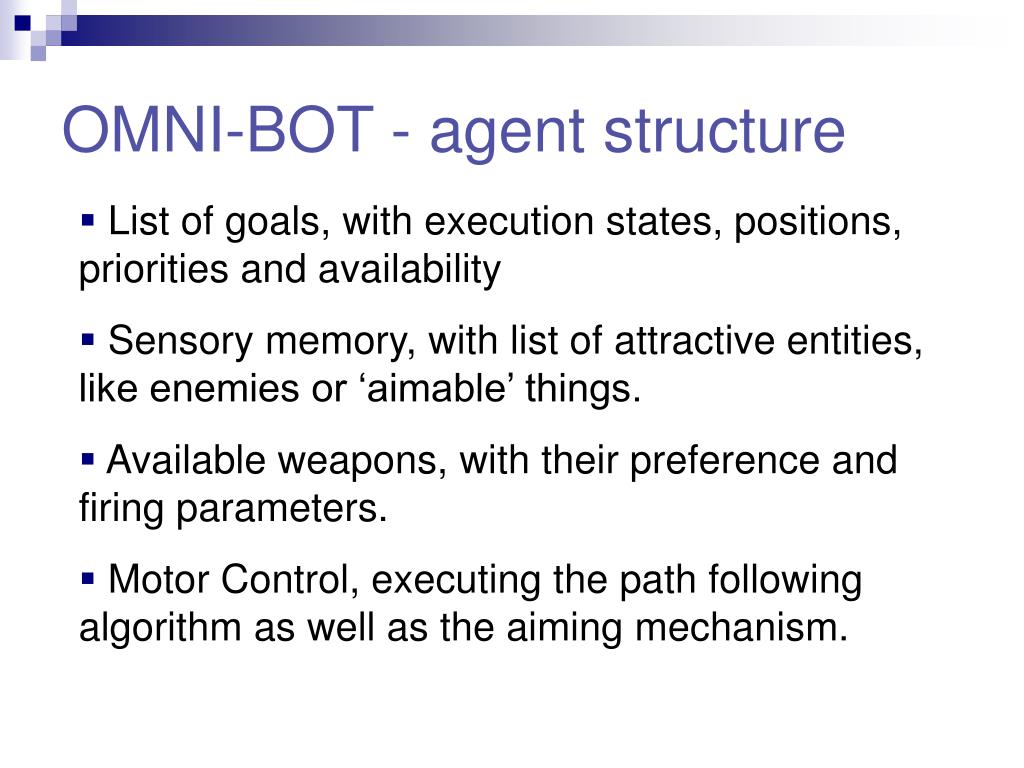

  • List of goals, with execution states, positions, priorities and availability
  • Sensory memory, with list of attractive entities, like enemies or ‘aimable’ things.
  • Available weapons, with their preference and firing parameters.
  • Motor Control, executing the path following algorithm as well as the aiming mechanism.
omni bot agent structure1
OMNI-BOT - agent structure

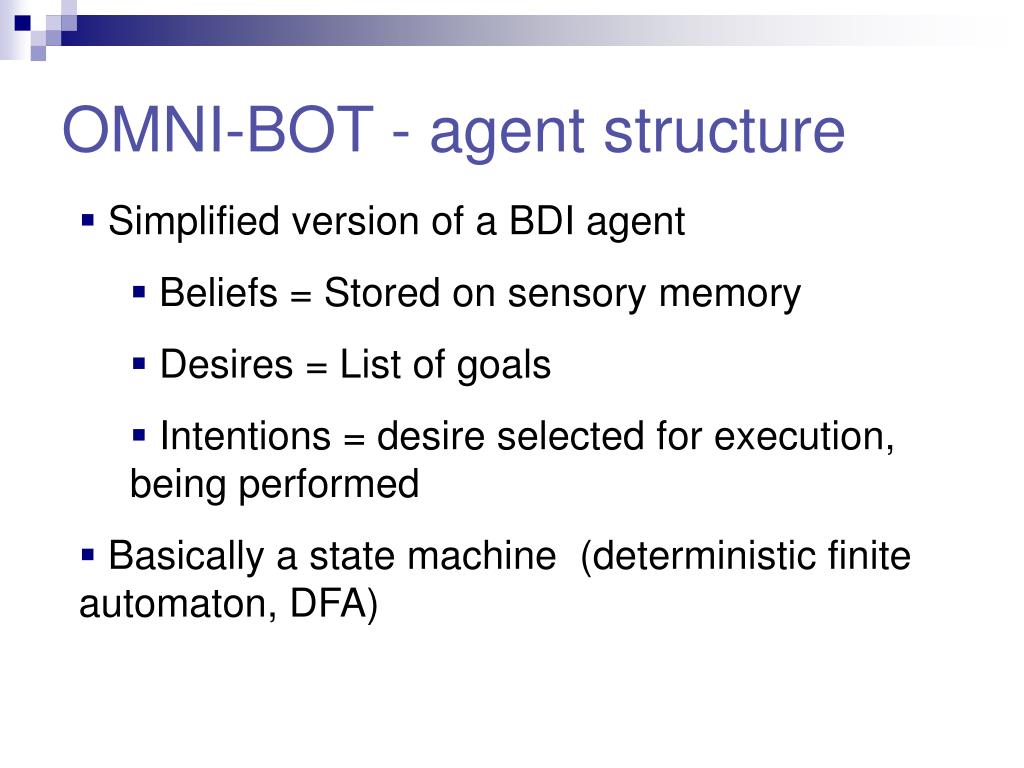

  • Simplified version of a BDI agent
    • Beliefs = Stored on sensory memory
    • Desires = List of goals
    • Intentions = desire selected for execution, being performed
  • Basically a state machine (deterministic finite automaton, DFA)
omni bot state tree
OMNI-BOT - State Tree
  • Show bigger state tree
omni bot agent s behaviour
OMNI-BOT – Agent’s behaviour

if(incapacitated) {

do {

for(medic:team.medics) {

evaluation = avaliate(medic.proximity);


evaluation = avaliate(timer.spawn);



} while(incapacitated);

} else {


// additional behaviour scripts



goal = getHighestPriorityAvailableGoal();

// goal may include alternative route

path = computePath(goal);

// wait for world events

while(not(world.changed)) {

waypoint = nearestWaypoint(path);


if(near(waypoint)) {

do {


} while(not(executed(goal)));




  • Simplified algorithm for bots' behaviour. Actually implemented in parallel threads, like path following, enemy aiming and firing, sensory information, etc. (external scripts)
omni bot agent s behaviour1
OMNI-BOT – Agent’s behaviour
  • Executed on each server frame (usually 20 per second, server side cvar “sv_fps”)
  • ‘Threads’ and execution details on Debug’s window, section profiler
omni bot goals
OMNI-BOT - Goals
  • Retrieved from the map’s script and bsp’s entities
  • Following example: destroy ‘Side Door’, for axis
omni bot goals1
OMNI-BOT - Goals
  • Example of map goals:
  • x: “goal” -> |bitflag| serial |y| priority |z|
    • bitflag specifying allowed team (axis, allies);
    • serial = internal goal identification;
    • priority = goal priority (relating to others).
    • and more properties
omni bot society
OMNI-BOT - Society
  • By default goals are shared by different agents (excluding some cases).
  • If not, the goal is assigned by the framework to some agent (actually, first come, first served).
  • An agent may require support from others (ammunition and health / revival). In this case, it creates a specific goal (like ‘heal me’).
  • No negotiation of goals between the agents.

Individual behaviour

omni bot waypoints
OMNI-BOT - Waypoints
  • Goals are reached by following paths
  • Paths created using waypoints
  • Directed graphs (typically cyclic)
  • Diagonal descending edge = connection direction
omni bot waypoints1
OMNI-BOT - Waypoints

Travelling properties (flags):

  • Crouch, prone, sprint, walk, jump, route, radius, etc.
  • radius of waypoint affects path cornering
  • waypoint flag affects bot‘s behaviour when it’s approaching the node or when reaches it’s radius
omni bot path travelling
OMNI-BOT – Path travelling

Uses Dijkstra's algorithm for waypoint selection

Essentially uses the shortest path from the source (where the agent selected the goal) to it’s destination (where goal resides or next route point if used)

omni bot routing
OMNI-BOT – Routing
  • Path travelling easily expected
  • Boring for humans
  • Solution = Manual routing

Basically a human ‘codes’ different paths for different map traversal

Goal X = travel through waypoint 1, then 2 OR 3, then 4, etc. until reach destination

  • Define waypoint selection probability
  • Route is chosen when goal acquired near ‘first’ route waypoint.
omni bot routing1
OMNI-BOT – Routing

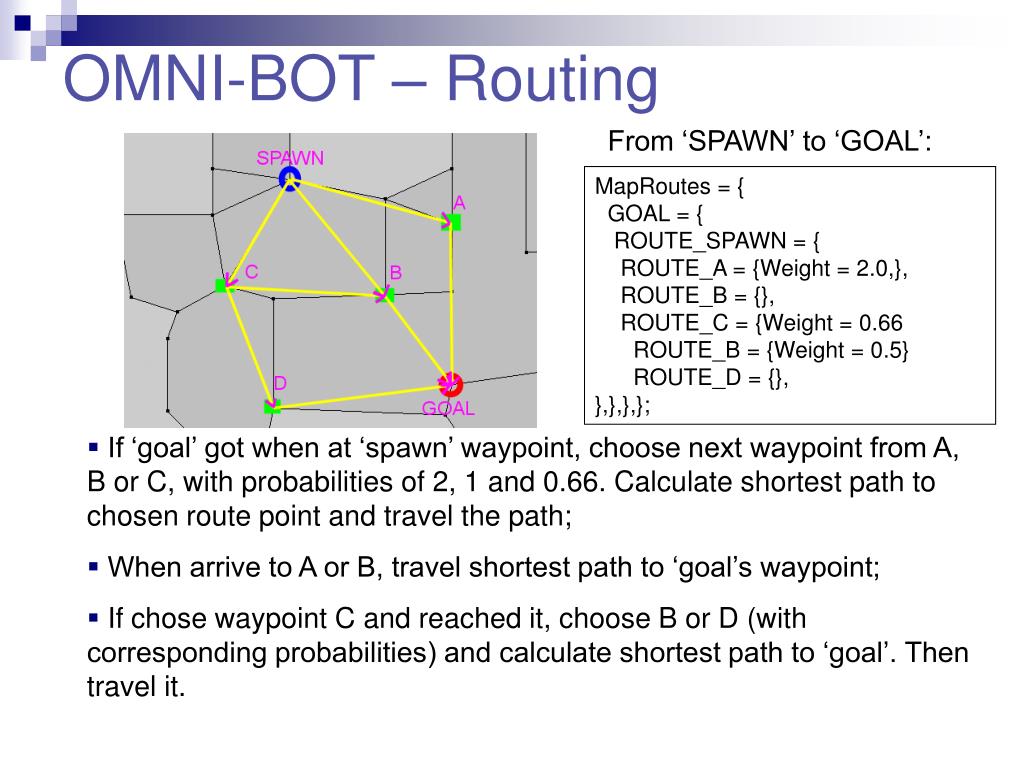

From ‘SPAWN’ to ‘GOAL’:

MapRoutes = {

GOAL = {


ROUTE_A = {Weight = 2.0,},

ROUTE_B = {},

ROUTE_C = {Weight = 0.66

ROUTE_B = {Weight = 0.5}

ROUTE_D = {},


  • If ‘goal’ got when at ‘spawn’ waypoint, choose next waypoint from A, B or C, with probabilities of 2, 1 and 0.66. Calculate shortest path to chosen route point and travel the path;
  • When arrive to A or B, travel shortest path to ‘goal’s waypoint;
  • If chose waypoint C and reached it, choose B or D (with corresponding probabilities) and calculate shortest path to ‘goal’. Then travel it.
omni bot scripting
OMNI-BOT – Scripting
  • Written in GameMonkey language
  • Add functionality to goals, maps, weapons, bots, utils, etc.
  • Goal scripts: Tells or helps the bot how to achieve some goal (map or another);
  • Map scripts: Control the logic of the map, like enabling or disabling routes and goals (for instance according to the game’s progress);
  • Weapon scripts: Configure how to use and handle some weapon or item
  • Bot scripts: Stores a behaviour which can be associated to some bots.
  • Utils: implement some usefull functions for been called in other scripts.
omni bot map scripts
OMNI-BOT – Map scripts

Goal script example:

  • this.GetPriority()
    • if my health < threshold and I’m alive (me, the bot) then
      • increase this goal’s priority
      • get nearest health pack
        • if no pack near, and my team has medics, request medical support
  • this.update()
    • if acquired pack, get pack’s position, aim towards it and try to acquire the pack
omni bot goal scripts
OMNI-BOT – Goal scripts

Goal script example:

  • Store the logic of the map (the bots don’t know the goal’s dependencies as well as their importance)
  • If objective taken → leave the stairs and attack the radio;
  • If objective returned → leave the radio and attack the stairs;
  • On map start → start attacking the stairs, forget the radio;
omni bot problems
OMNI-BOT – Problems

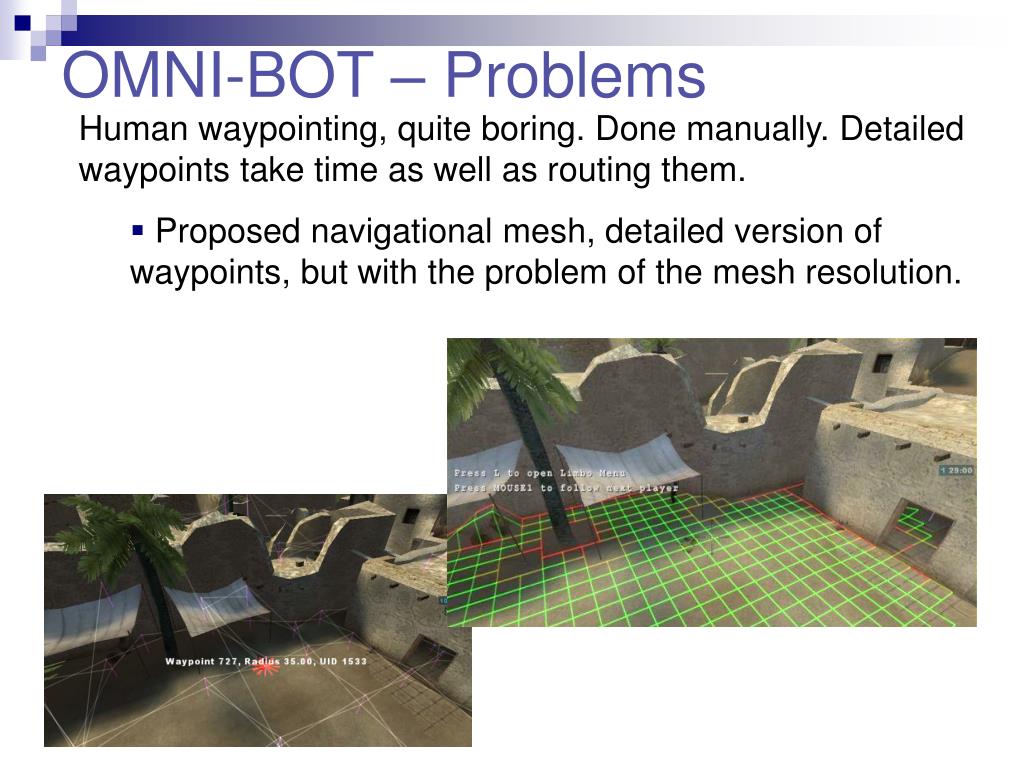

Human waypointing, quite boring. Done manually. Detailed waypoints take time as well as routing them.

  • Proposed navigational mesh, detailed version of waypoints, but with the problem of the mesh resolution.
omni bot problems1
OMNI-BOT – Problems

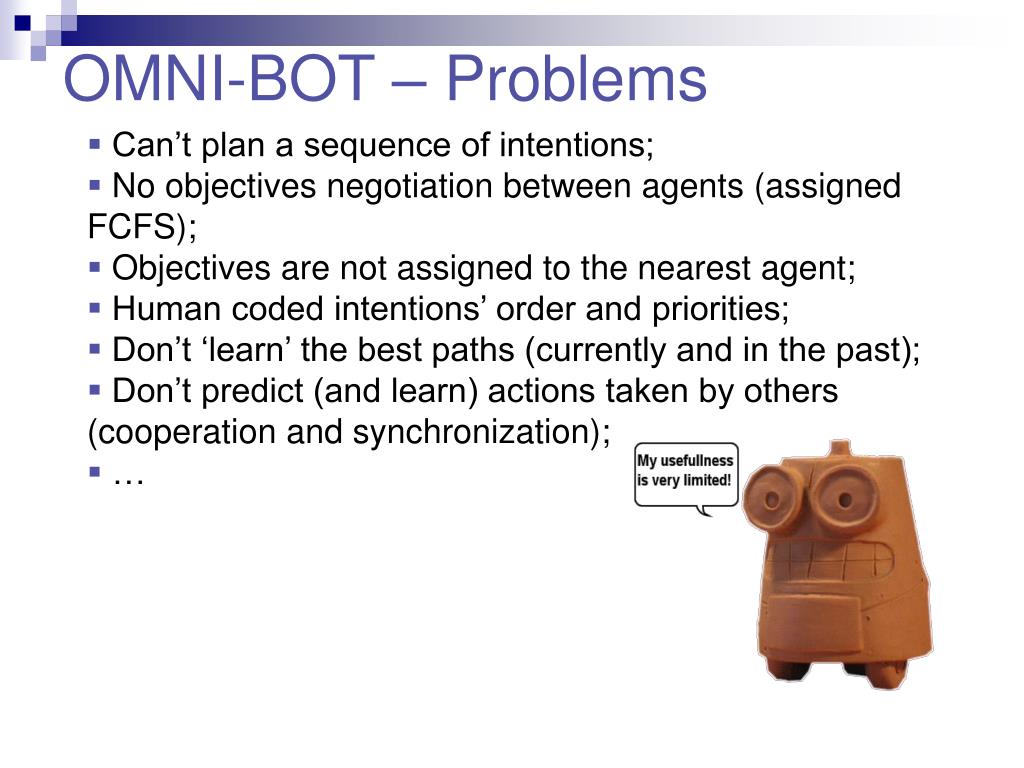

  • Can’t plan a sequence of intentions;
  • No objectives negotiation between agents (assigned FCFS);
  • Objectives are not assigned to the nearest agent;
  • Human coded intentions’ order and priorities;
  • Don’t ‘learn’ the best paths (currently and in the past);
  • Don’t predict (and learn) actions taken by others (cooperation and synchronization);
omni bot reference
OMNI-BOT – Reference

omni bot questions
OMNI-BOT – Questions

Tuesday, 16 December 2008
