Object Oriented Programming

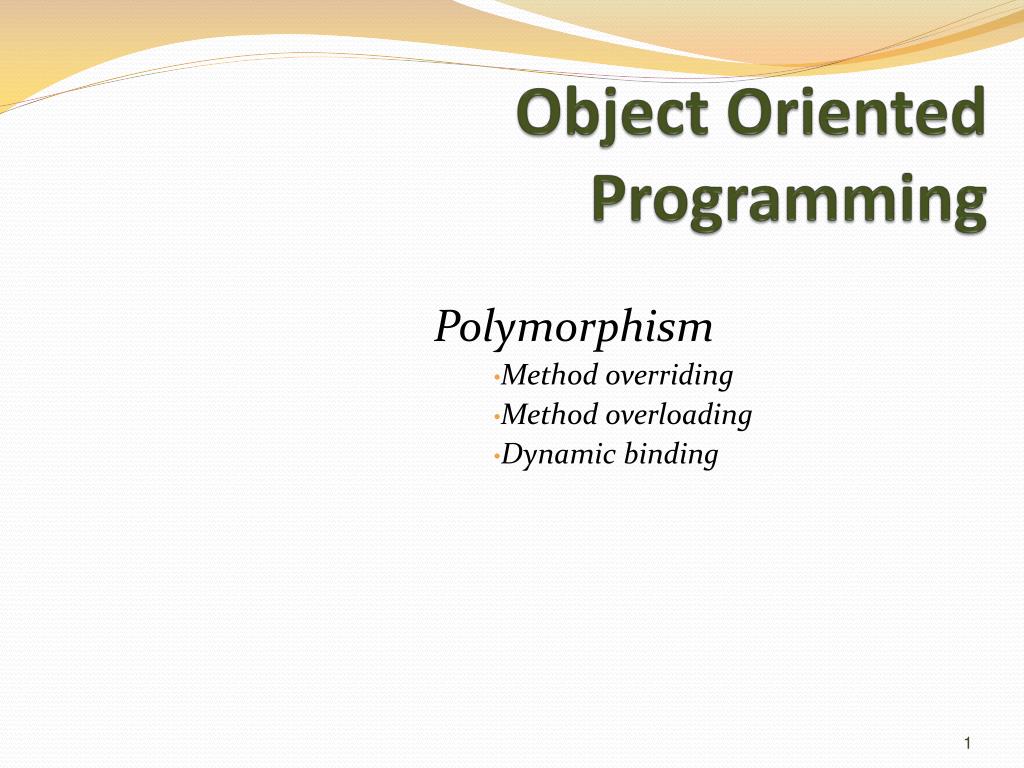

1. Object Oriented Programming Polymorphism Method overriding Method overloading Dynamic binding

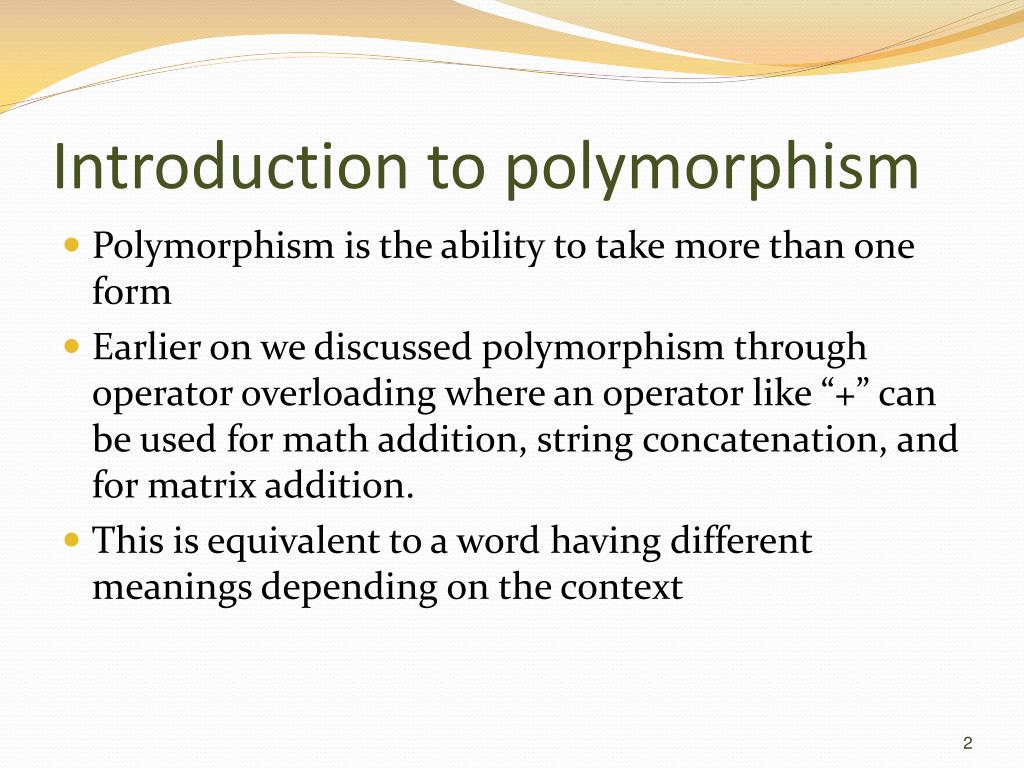

2. Introduction to polymorphism • Polymorphism is the ability to take more than one form • Earlier on we discussed polymorphism through operator overloading where an operator like “+” can be used for math addition, string concatenation, and for matrix addition. • This is equivalent to a word having different meanings depending on the context

3. Introduction to polymorphism – cont’d • Polymorphism enables objects with different internal structures to share the same external interface • This means same interface may be accessed by different classes that work differently as shown in figure below:

4. <Shape> Circle Rectangle Triangle Draw() Draw() Draw() Draw() Fig: Polymorphism

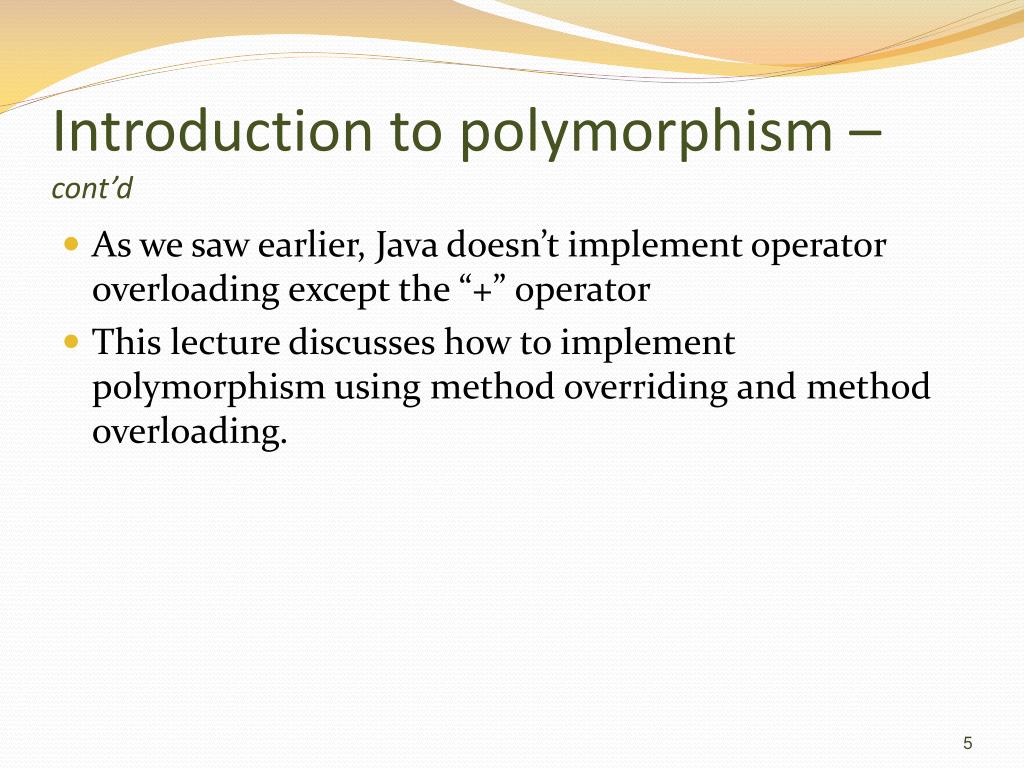

5. Introduction to polymorphism – cont’d • As we saw earlier, Java doesn’t implement operator overloading except the “+” operator • This lecture discusses how to implement polymorphism using method overriding and method overloading.

6. Method overriding • Overriding means redefining a method of a class in its subclass • The method name and signature (number and type of parameters it requires) remain unchanged i.e. only the method body changes

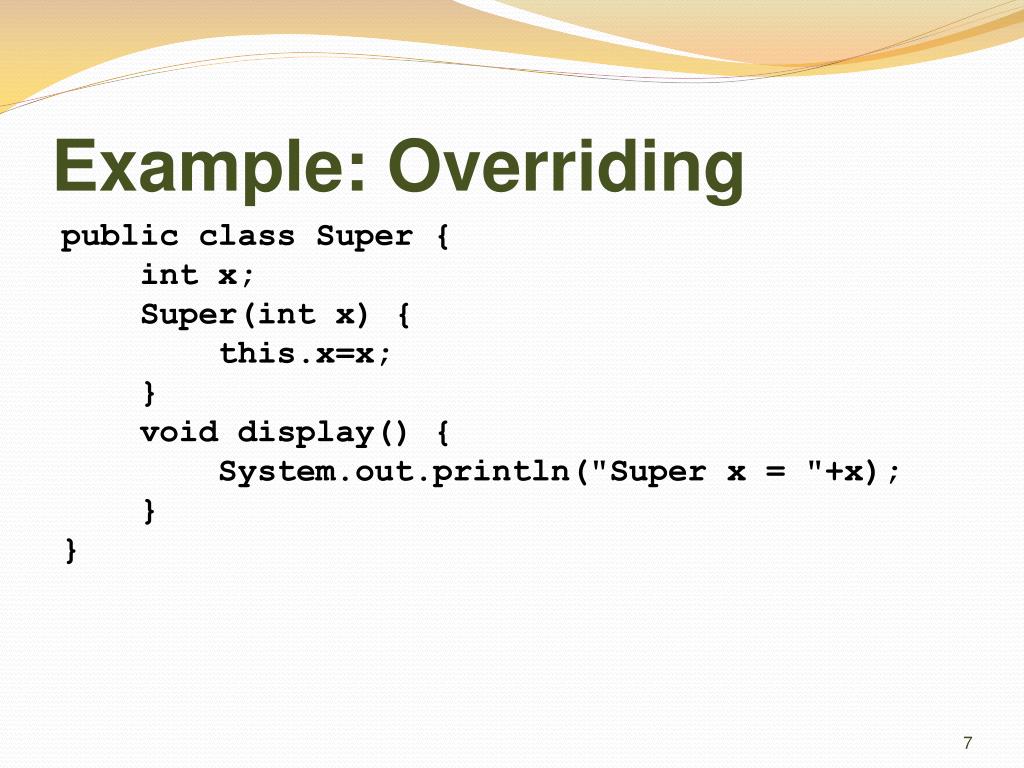

7. Example: Overriding public class Super { int x; Super(int x) { this.x=x; } void display() { System.out.println("Super x = "+x); } }

8. Example: Overriding public class Sub extends Super { int y; Sub (int x, int y) { super(x); this.y = y; } void display() { System.out.println("Super x = "+ x); System.out.println("Sub y = "+ y); } }

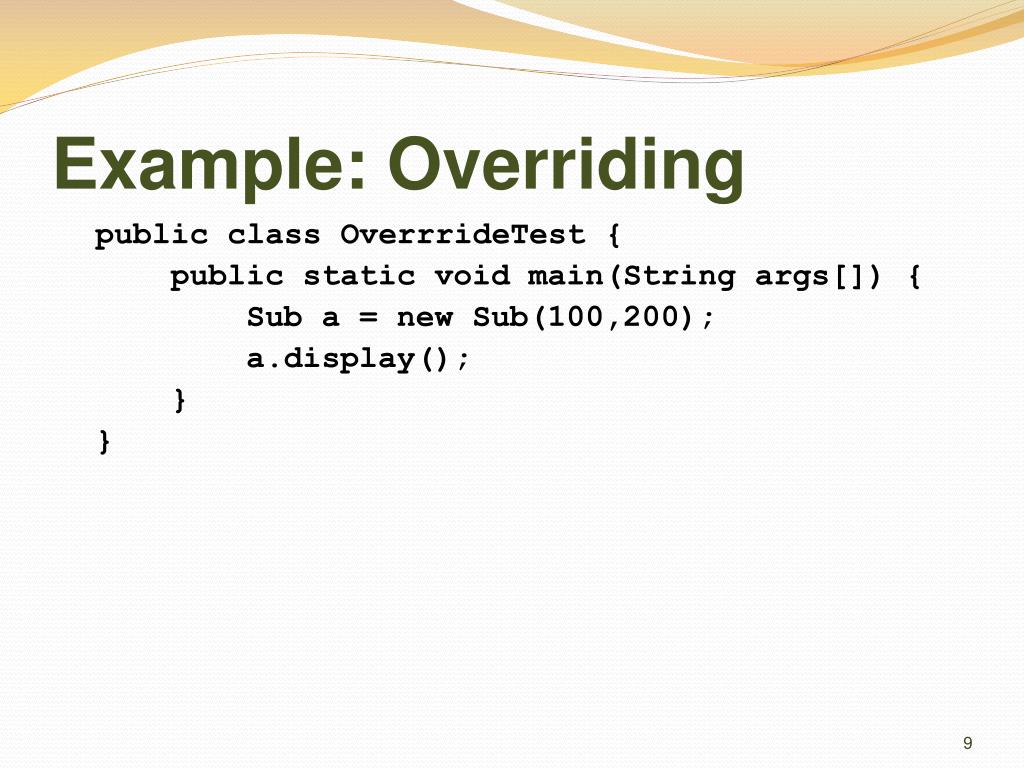

9. Example: Overriding public class OverrrideTest { public static void main(String args[]) { Sub a = new Sub(100,200); a.display(); } }

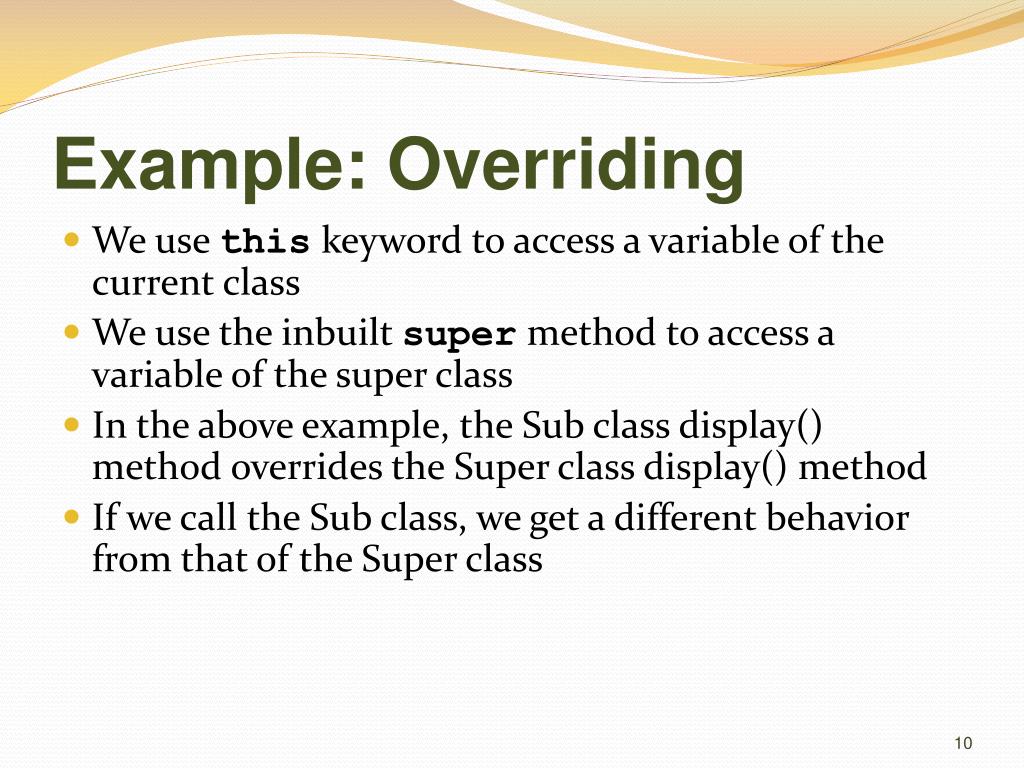

10. Example: Overriding • We use this keyword to access a variable of the current class • We use the inbuilt super method to access a variable of the super class • In the above example, the Sub class display() method overrides the Super class display() method • If we call the Sub class, we get a different behavior from that of the Super class

11. Example: Overriding in Applets • Applets always inherit from the Applet class • This class has methods such as init(), start(), stop(), destroy • These methods are available for use by applets to give them their runtime behavior

12. Example: Overriding in Applets • Applets are good examples of both the inheritance and the polymorphism principles. • To make an applet unique, various life cycle methods are overridden as shown in example below

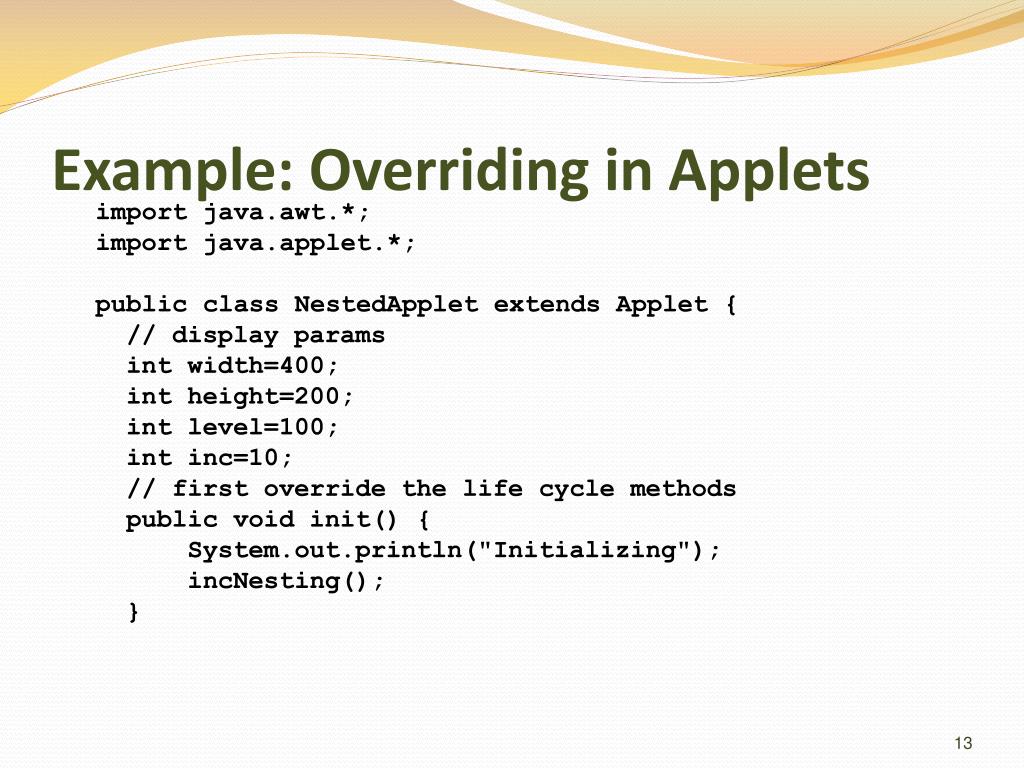

13. Example: Overriding in Applets import java.awt.*; import java.applet.*; public class NestedApplet extends Applet { // display params int width=400; int height=200; int level=100; int inc=10; // first override the life cycle methods public void init() { System.out.println("Initializing"); incNesting(); }

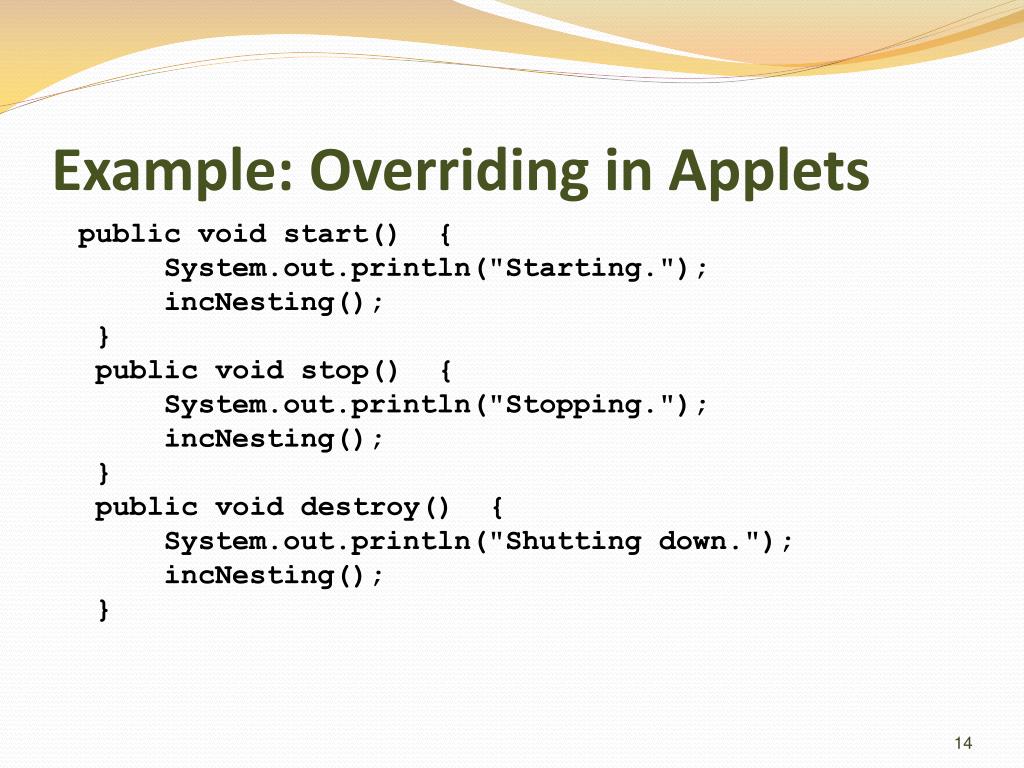

14. Example: Overriding in Applets public void start() { System.out.println("Starting."); incNesting(); } public void stop() { System.out.println("Stopping."); incNesting(); } public void destroy() { System.out.println("Shutting down."); incNesting(); }

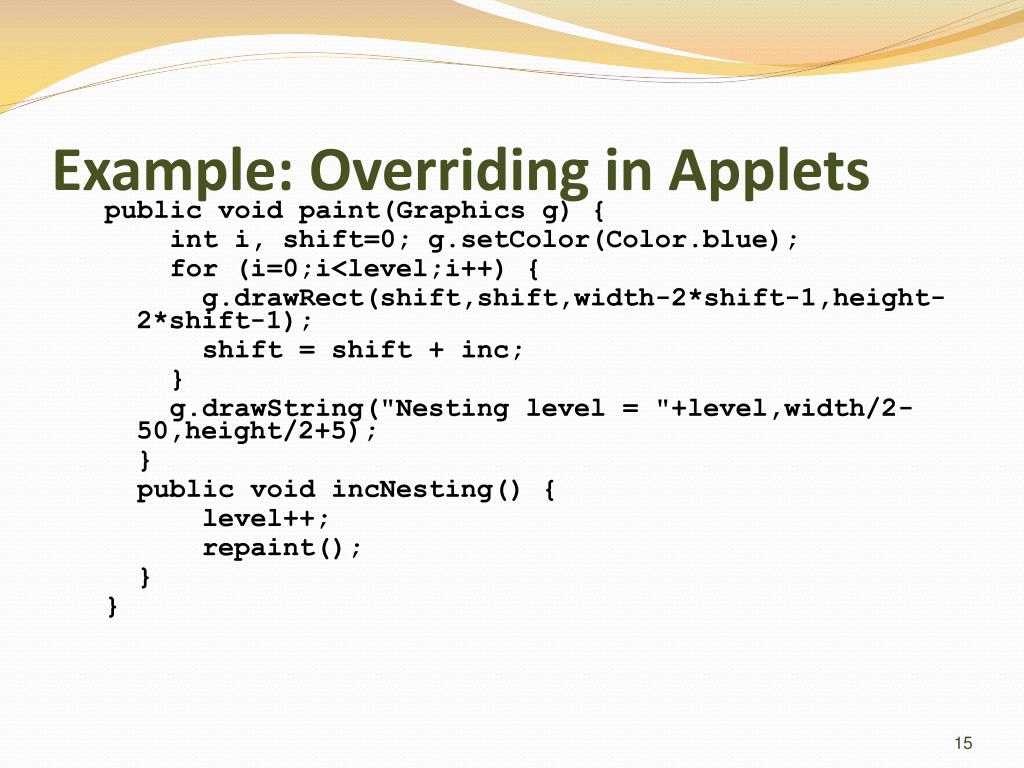

15. Example: Overriding in Applets public void paint(Graphics g) { int i, shift=0; g.setColor(Color.blue); for (i=0;i<level;i++) { g.drawRect(shift,shift,width-2*shift-1,height-2*shift-1); shift = shift + inc; } g.drawString("Nesting level = "+level,width/2-50,height/2+5); } public void incNesting() { level++; repaint(); } }

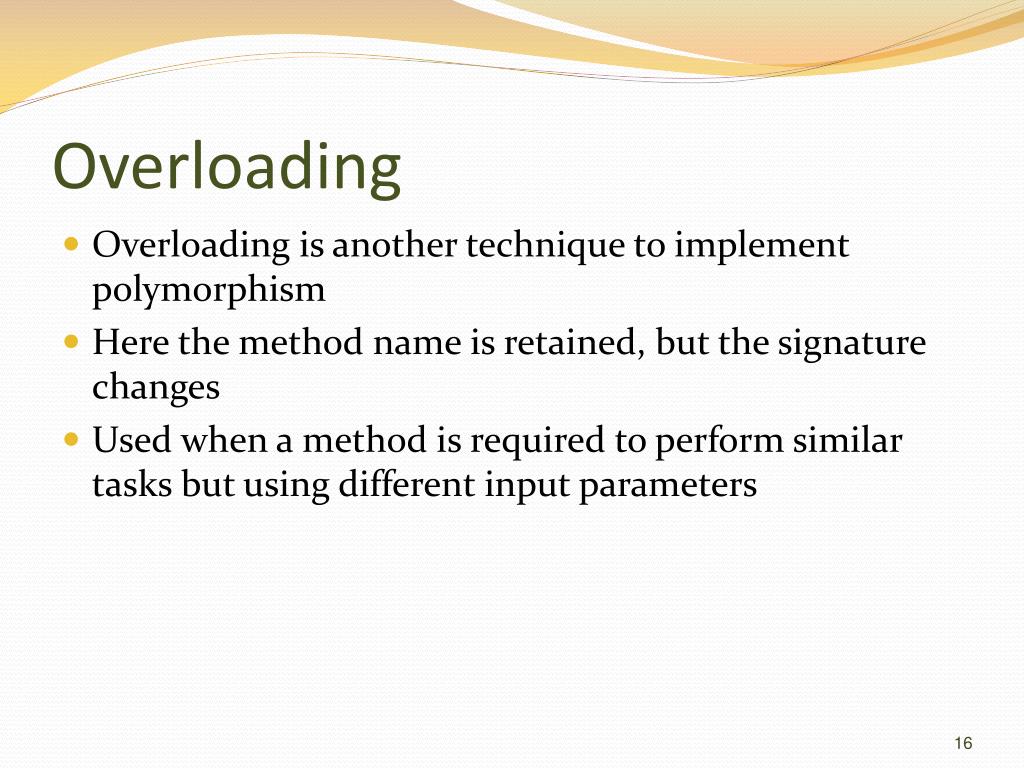

16. Overloading • Overloading is another technique to implement polymorphism • Here the method name is retained, but the signature changes • Used when a method is required to perform similar tasks but using different input parameters

17. Overloading – cont’d • When we call a method, Java matches the • Method name, • Number of parameters, and • Type of parameters • The matching method is then executed

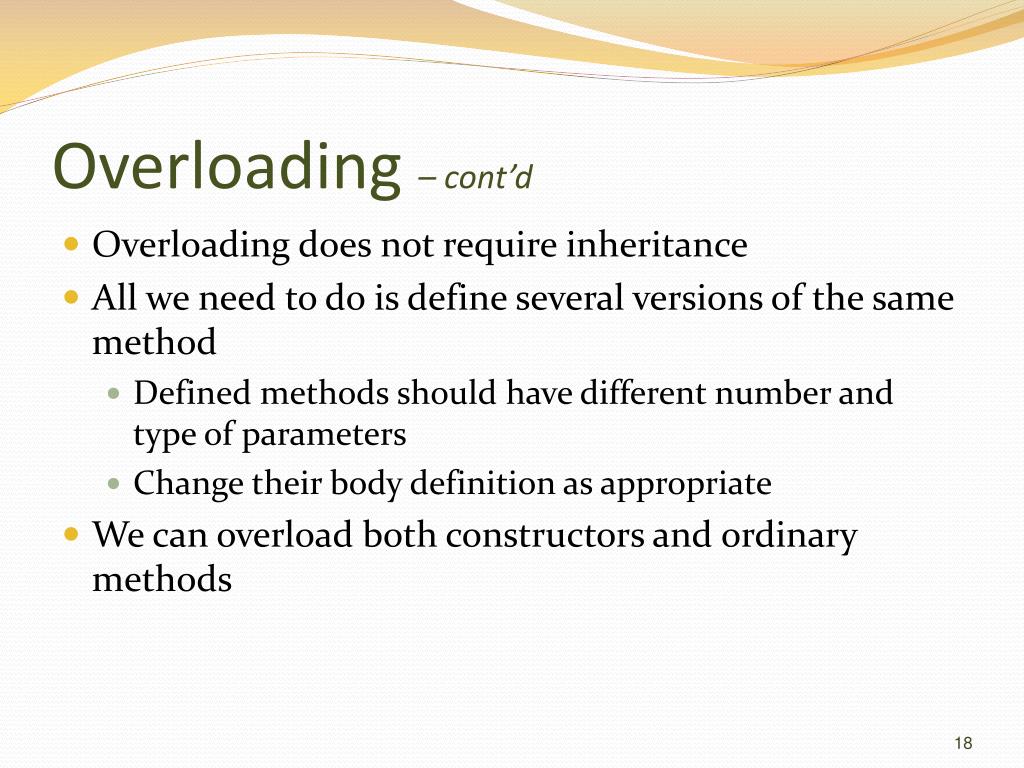

18. Overloading – cont’d • Overloading does not require inheritance • All we need to do is define several versions of the same method • Defined methods should have different number and type of parameters • Change their body definition as appropriate • We can overload both constructors and ordinary methods

19. Overloading – cont’d • In the example below, the constructor method is overloaded such that one takes one integer parameter and the other takes two integer parameters • The matching will be done at runtime, depending on how many parameters you supply

20. Example: Overloading class Room { int length, breadth; Room(int x, int y) { length = x; breadth = y; } Room(int x) { length = breadth=x; } int area() { return(length*breadth); } }

21. Example: Overloading class RectangleSquare { public static void main(String args[]) { Room room1 = new Room(25, 15); Room room2 = new Room(20); int area1 = room1.area(); int area2 = room2.area(); System.out.println("Area of Rectangle = "+area1); System.out.println("Area of Square = "+area2); } }

22. Overloading vs. Overriding • Don't confuse the concepts of overloading and overriding • Overloading deals with multiple methods in the same class with the same name but different signatures • Overriding deals with two methods, one in a parent class and one in a child class, that have the same signature • Overloading lets you define a similar operation in different ways for different data • Overriding lets you define a similar operation in different ways for different object types

23. Dynamic Binding • Binding is the • Linking of a procedure call to the code to be executed in response to the call • Dynamic binding is the • The code to be executed is not known until the time of the call at runtime • Associated with polymorphism and inheritance.

24. Example: Dynamic Binding Shape Circle Object Box Object Rectangle Object Draw() Draw(Circle) Draw(Box) Draw(Rectangle)

25. Dynamic binding example • By inheritance, • Each of the object will invoke the draw procedure • The algorithm will however be known at runtime depending on whether the user wants to draw circle or box or rectangle • Thus, at runtime • The code matching the object under current reference will be called.
