concurrency

Concurrency

Operating Systems

Spring 2004

OS Spring’04

concurrency pros and cons
Concurrency pros and cons
  • Concurrency is good for users
    • One of the reasons for multiprogramming
      • Working on the same problem, simultaneous execution of programs, background execution
  • Concurrency is a “pain in the neck” for the system
    • Access to shared data structures
    • Deadlock due to resource contention

OS Spring’04

mutual exclusion
Mutual Exclusion
  • OS is an instance of concurrent programming
    • Multiple activities may take place in the same time
  • Concurrent execution of operations involving multiple steps is problematic
    • Example: updating linked list
  • Concurrent access to a shared data structure must be mutually exclusive

OS Spring’04

slide4

new->next=current.next

insert_after(current,new):

current.next=new

new

current

new

current

OS Spring’04

slide5

remove_next(current):

tmp=current.next;

current.next=current.next.next;

free(tmp);

current

current

OS Spring’04

slide6

new

current

new

current

new

current

OS Spring’04

atomic operations
Atomic operations
  • A generic solution is to ensure atomic execution of operations
    • All the steps are perceived as executed in a single point of time

insert_after(current,new) remove_next(current), or

remove_next(current) insert_after(current,new)

OS Spring’04

the critical section model
A code within a critical section must be executed exclusively by a single process

entry section

exit section

The Critical Section Model

do {

critical section

remainder section

} while(1)

OS Spring’04

linked list example

entry section

exit section

entry section

exit section

Linked list example

do {

do {

tmp=current.next;

current.next=current.next.next;

free(tmp);

new->next=current.next

current.next=new

remainder section

remainder section

} while(1)

} while(1)

OS Spring’04

the critical section problem
The Critical Section Problem
  • n processes P0,…,Pn-1
  • No assumptions on relative process speeds, no synchronized clocks, etc…
    • Models inherent non-determinism of process scheduling
  • No assumptions on process activity when executing within
    • Critical and reminder sections

OS Spring’04

shared variables
Shared variables
  • Processes are communicating through shared atomic read/write variables
    • x is a shared variable, l is a local variable
    • Read: takes the current value:
    • Write: assigns a provided value:

OS Spring’04

requirements
Requirements
  • Mutual Exclusion: If process Pi is executing its C.S., then no other process is in its C.S.
  • Progress: If Pi is in its entry section and no process is in C.S., then some process eventually enters C.S.
  • Fairness: If no process remains in C.S. forever, then each process requesting entry to C.S. will be eventually let into C.S.

OS Spring’04

bakery algorithm of lamport

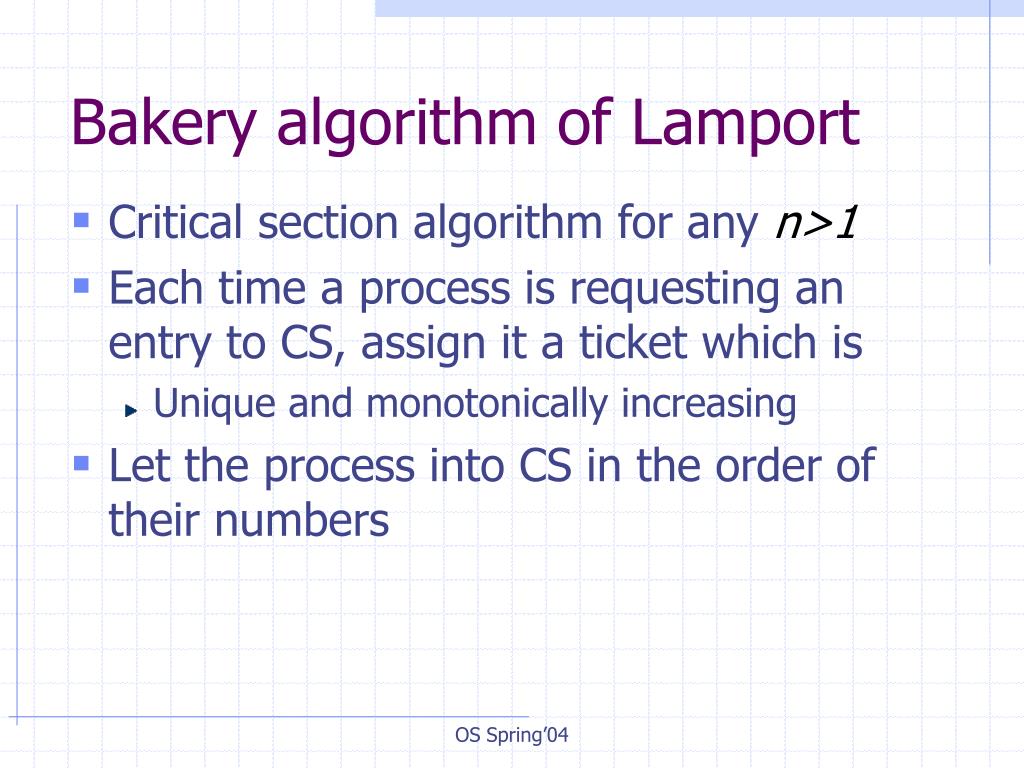

Bakery algorithm of Lamport
  • Critical section algorithm for any n>1
  • Each time a process is requesting an entry to CS, assign it a ticket which is
    • Unique and monotonically increasing
  • Let the process into CS in the order of their numbers

OS Spring’04

choosing a ticket

Does not guarantee uniqueness! Use process Ids:

Process need to know that somebody perhaps

chose a smaller number:

Choosing a ticket

OS Spring’04

correctness
Correctness

Lemma:

Mutual exclusion is immediate from this lemma

It is easy to show that Progress and Fairness hold

as well (recitation)

OS Spring’04

hardware primitives
Hardware primitives
  • Elementary building blocks capable of performing certain steps atomically
    • Should be universal to allow for solving versatile synchronization problems
  • Numerous such primitives were identified:
    • Test-and-set
    • Fetch-and-add
    • Compare-and-swap

OS Spring’04

test and set ts
boolean test-and-set(boolean &lock)

{

temp=lock;

lock=TRUE;

return temp;

}

reset(boolean &lock)

{

lock=FALSE;

}

Test-and-Set (TS)

OS Spring’04

critical section using ts
Critical section using TS

Shared boolean lock, initially FALSE

do {

while(test-and-set(&lock));

critical section;

reset(&lock);

reminder section;

} while(1);

  • Check yourself!
  • Is mutual exclusion satisfied?
  • Is progress satisfied?
  • Is fairness satisfied?

OS Spring’04

discussion
Discussion
  • Satisfies Mutual Exclusion and Progress
  • Does not satisfy Fairness
  • Provides exclusion among unbounded number of processes
    • Process IDs and number are unknown
  • Busy waiting
    • Burning CPU cycles while being blocked

OS Spring’04

fetch and add faa
Fetch-and-Add (FAA)

s: shared, a: local

int FAA(int &s, int a)

{

temp=s;

s=s+a;

return temp;

}

FAA can be used

as a ticket machine

OS Spring’04

critical section using faa
Critical section using FAA

Shared: int s, turn;

Initially: s = 0; turn=0;

Process Pi code:

Entry:

me = FAA(s,1);

while(turn < me); // busy wait for my turn

Critical section

Exit:

FAA(turn,1);

  • Check yourself!
  • Is mutual exclusion satisfied?
  • Is progress satisfied?
  • Is fairness satisfied?

OS Spring’04

discussion27
Discussion
  • Satisfies all three properties
  • Supports unbounded number of processes
  • Unbounded counter
  • Busy waiting

OS Spring’04

problems with studied synchronization methods
Problems with studied synchronization methods
  • Critical section framework is inconvenient for programming
  • Performance penalty
    • Busy waiting
    • Too coarse synchronization
  • Using hardware primitives directly results in non-portable code

OS Spring’04

higher level abstractions
Higher Level Abstractions
  • Higher level software abstractions are represented by
    • Semaphores
    • Monitors

OS Spring’04

semaphores
Semaphores
  • Invented by Edsger Dijkstra in 1968
  • Interface consists of two primitives:
    • P() and V()

OS Spring’04

notes on the language
Notes on the Language
  • Dutch: P: Proberen, V: Verhogen
  • Hebrew: P: פחות, V: ועוד
  • English: P(): wait(), V(): signal()

OS Spring’04

semaphores initial value
Semaphores: initial value
  • Initial value of a semaphore indicates how many identical instances of the critical resource exist
  • A semaphore initialized to 1 is called a mutex (mutual exclusion)

OS Spring’04

programming with semaphores
Programming with semaphores
  • Semaphores is a powerful programming abstraction
  • Define a semaphore for each critical resource
    • E.g., one for each linked list
    • Granularity?
  • Concurrent processes access appropriate semaphores when synchronization is needed

OS Spring’04

some examples
Some examples

P(synch);

V(synch);

OS Spring’04

some examples35
Some examples

Do {

P(mutex);

critical section

V(mutex);

Remainder section;

While(1);

OS Spring’04

implementing semaphores
Implementing semaphores
  • Semaphores can be implemented efficiently by the system
    • P() is explicitly telling the system: “Hey, I cannot proceed, you can preempt me”
    • V() instructs the system to wake up a waiting process

OS Spring’04

implementing semaphores37
Implementing Semaphores

type semaphore = record

count: integer;

queue: list of process

end;

var S: semaphore;

S.count must be initialized to a nonnegative value (depending on application)

OS Spring’04

implementing semaphores38
Implementing Semaphores

P(S):

S.count--;

if (S.count<0) {

add this process to S.queue

block this process;

}

V(S):

S.count++;

if (S.count <= 0) {

remove a process P from S.queue

place this process P on ready queue

}

OS Spring’04

we re still cheating
We’re still cheating…
  • P() and V() must be executed atomically
  • In uniprocessor system may disable interrupts
  • In multi-processor system, use hardware synchronization primitives
    • TS, FAA, etc…
  • Involves a some limited amount of busy waiting

OS Spring’04

monitors
Only a single process at a time can be active within the monitor

=> other processes calling Pi() are queued

Conditional variables for finer grain synchronization

x.wait() suspend the execution until another process calls x.signal()

Monitors

monitor monitor-name

{

shared variable

declarations

procedure P1(…) {

}

procedure Pn() {

}

}

OS Spring’04
