Forced-Air Central Heaters and Hydronic Systems

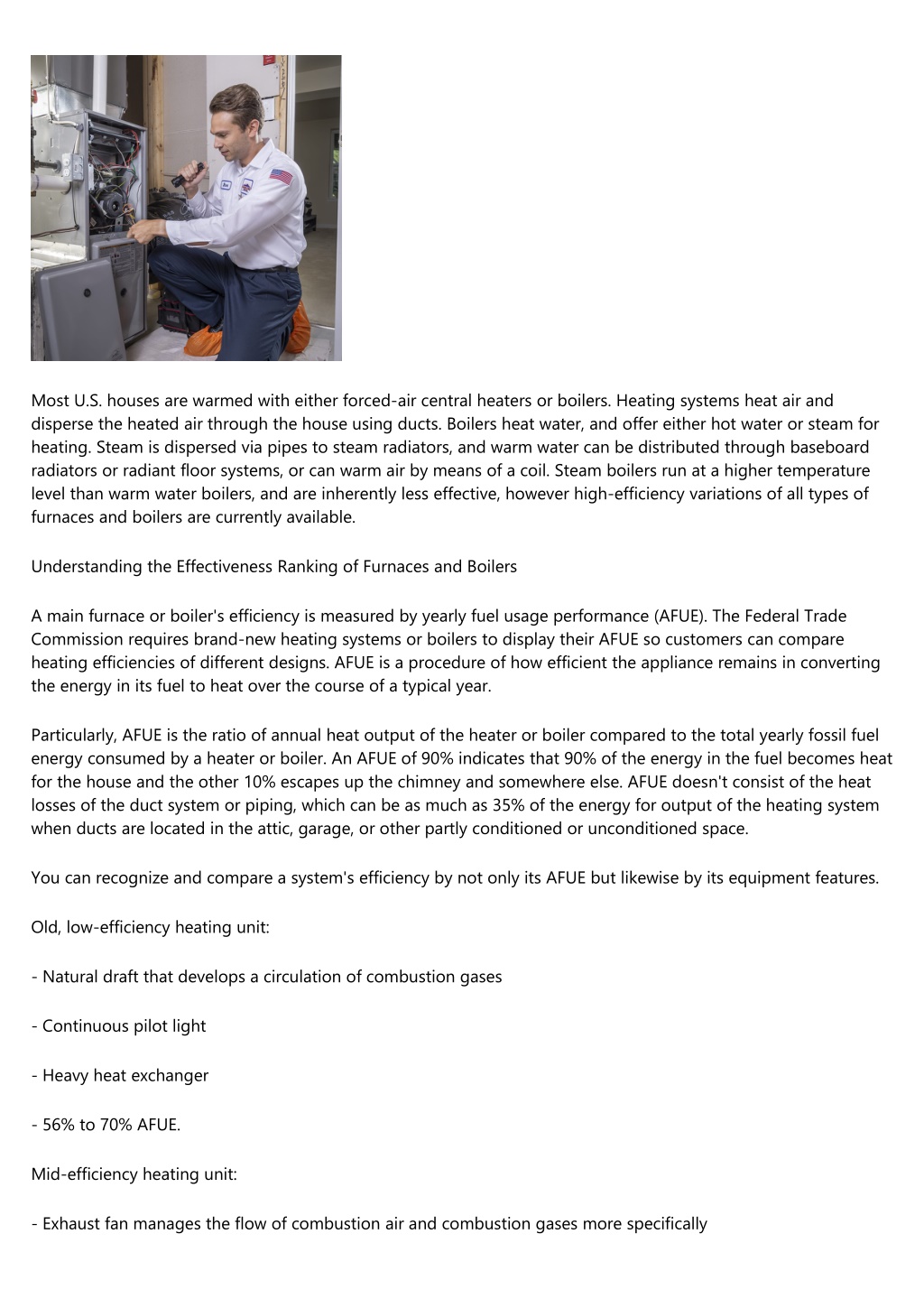

1. Most U.S. houses are warmed with either forced-air central heaters or boilers. Heating systems heat air and disperse the heated air through the house using ducts. Boilers heat water, and offer either hot water or steam for heating. Steam is dispersed via pipes to steam radiators, and warm water can be distributed through baseboard radiators or radiant floor systems, or can warm air by means of a coil. Steam boilers run at a higher temperature level than warm water boilers, and are inherently less effective, however high-efficiency variations of all types of furnaces and boilers are currently available. Understanding the Effectiveness Ranking of Furnaces and Boilers A main furnace or boiler's efficiency is measured by yearly fuel usage performance (AFUE). The Federal Trade Commission requires brand-new heating systems or boilers to display their AFUE so customers can compare heating efficiencies of different designs. AFUE is a procedure of how efficient the appliance remains in converting the energy in its fuel to heat over the course of a typical year. Particularly, AFUE is the ratio of annual heat output of the heater or boiler compared to the total yearly fossil fuel energy consumed by a heater or boiler. An AFUE of 90% indicates that 90% of the energy in the fuel becomes heat for the house and the other 10% escapes up the chimney and somewhere else. AFUE doesn't consist of the heat losses of the duct system or piping, which can be as much as 35% of the energy for output of the heating system when ducts are located in the attic, garage, or other partly conditioned or unconditioned space. You can recognize and compare a system's efficiency by not only its AFUE but likewise by its equipment features. Old, low-efficiency heating unit: - Natural draft that develops a circulation of combustion gases - Continuous pilot light - Heavy heat exchanger - 56% to 70% AFUE. Mid-efficiency heating unit: - Exhaust fan manages the flow of combustion air and combustion gases more specifically

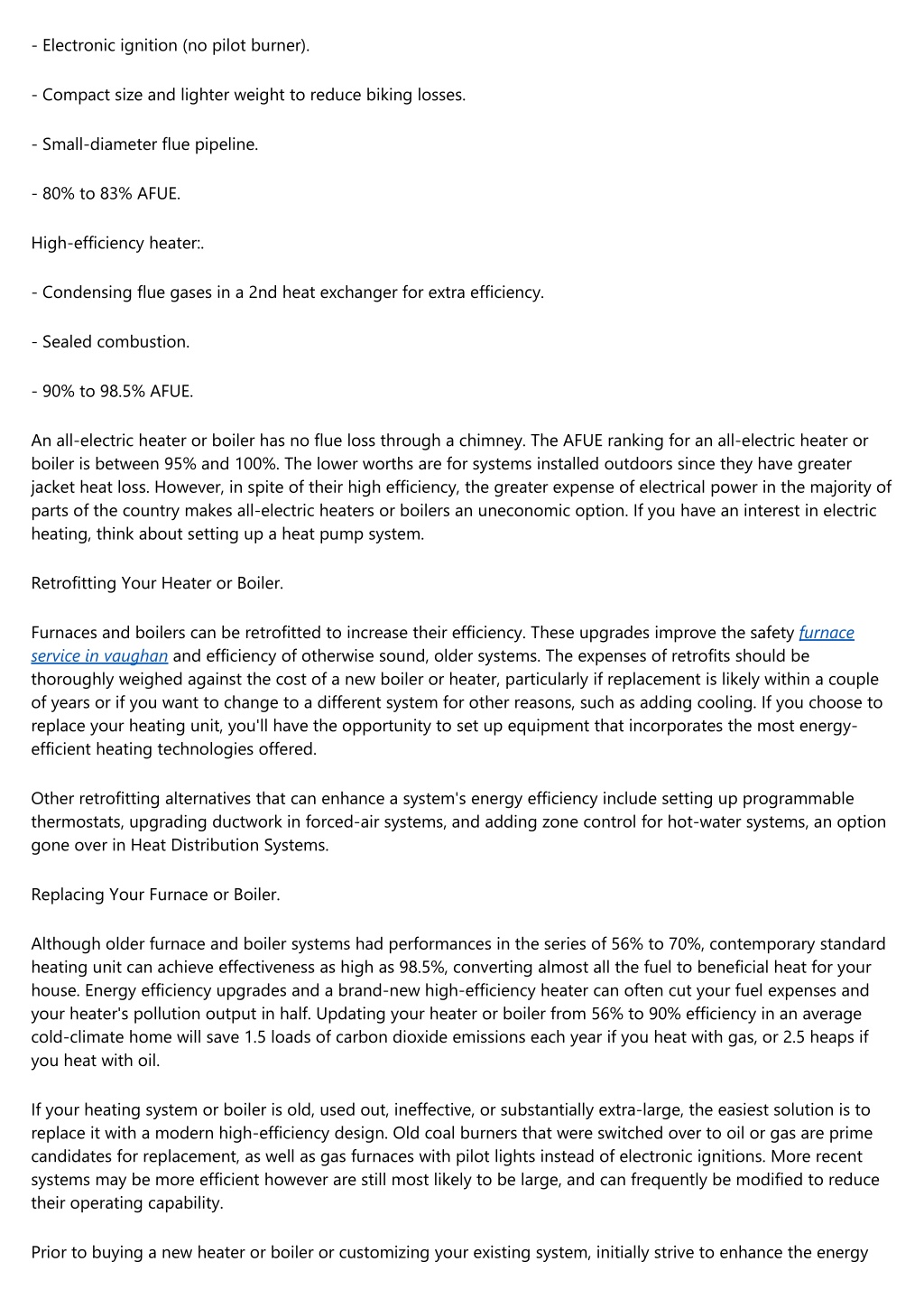

2. - Electronic ignition (no pilot burner). - Compact size and lighter weight to reduce biking losses. - Small-diameter flue pipeline. - 80% to 83% AFUE. High-efficiency heater:. - Condensing flue gases in a 2nd heat exchanger for extra efficiency. - Sealed combustion. - 90% to 98.5% AFUE. An all-electric heater or boiler has no flue loss through a chimney. The AFUE ranking for an all-electric heater or boiler is between 95% and 100%. The lower worths are for systems installed outdoors since they have greater jacket heat loss. However, in spite of their high efficiency, the greater expense of electrical power in the majority of parts of the country makes all-electric heaters or boilers an uneconomic option. If you have an interest in electric heating, think about setting up a heat pump system. Retrofitting Your Heater or Boiler. Furnaces and boilers can be retrofitted to increase their efficiency. These upgrades improve the safety furnace service in vaughan and efficiency of otherwise sound, older systems. The expenses of retrofits should be thoroughly weighed against the cost of a new boiler or heater, particularly if replacement is likely within a couple of years or if you want to change to a different system for other reasons, such as adding cooling. If you choose to replace your heating unit, you'll have the opportunity to set up equipment that incorporates the most energy- efficient heating technologies offered. Other retrofitting alternatives that can enhance a system's energy efficiency include setting up programmable thermostats, upgrading ductwork in forced-air systems, and adding zone control for hot-water systems, an option gone over in Heat Distribution Systems. Replacing Your Furnace or Boiler. Although older furnace and boiler systems had performances in the series of 56% to 70%, contemporary standard heating unit can achieve effectiveness as high as 98.5%, converting almost all the fuel to beneficial heat for your house. Energy efficiency upgrades and a brand-new high-efficiency heater can often cut your fuel expenses and your heater's pollution output in half. Updating your heater or boiler from 56% to 90% efficiency in an average cold-climate home will save 1.5 loads of carbon dioxide emissions each year if you heat with gas, or 2.5 heaps if you heat with oil. If your heating system or boiler is old, used out, ineffective, or substantially extra-large, the easiest solution is to replace it with a modern high-efficiency design. Old coal burners that were switched over to oil or gas are prime candidates for replacement, as well as gas furnaces with pilot lights instead of electronic ignitions. More recent systems may be more efficient however are still most likely to be large, and can frequently be modified to reduce their operating capability. Prior to buying a new heater or boiler or customizing your existing system, initially strive to enhance the energy

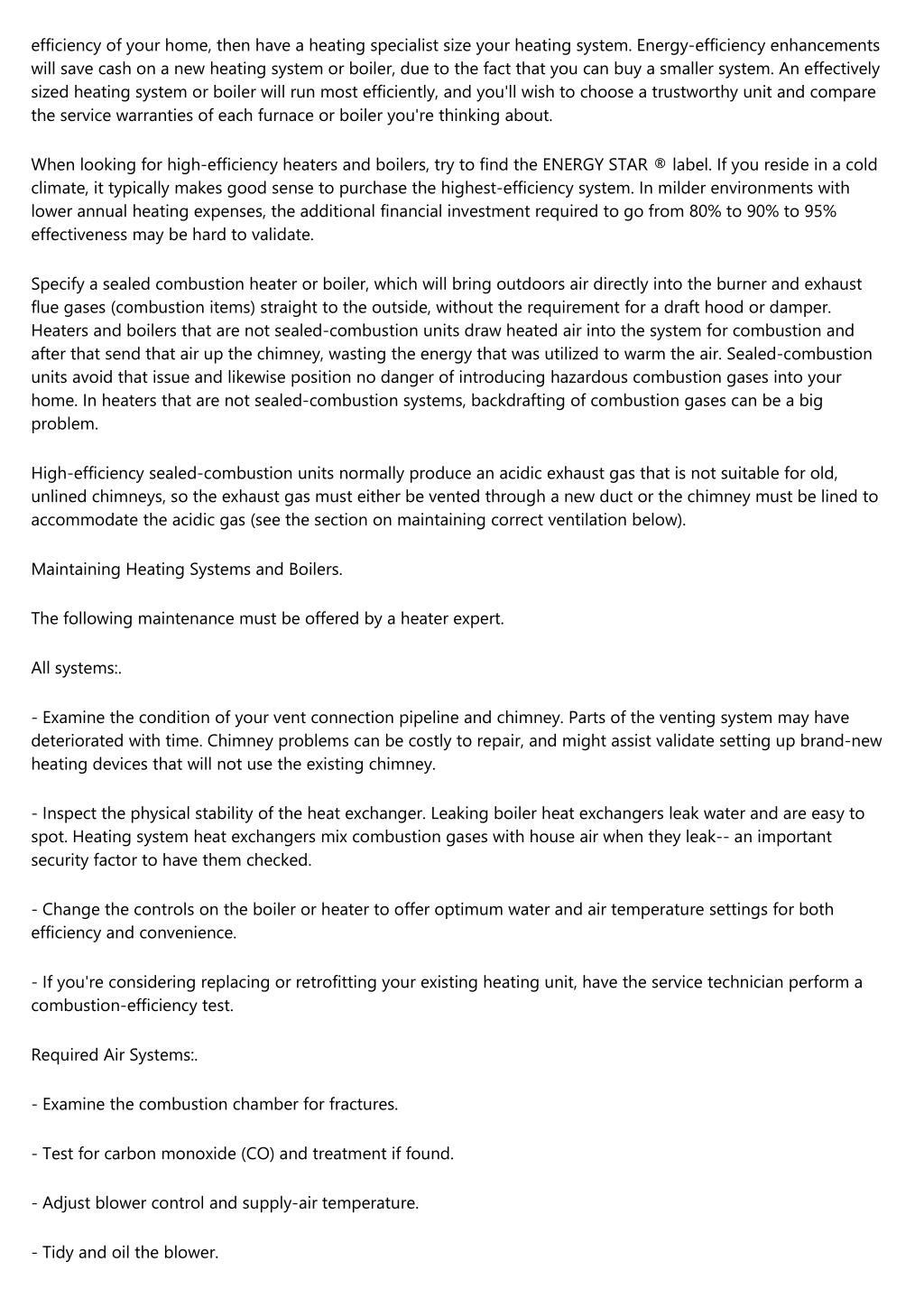

3. efficiency of your home, then have a heating specialist size your heating system. Energy-efficiency enhancements will save cash on a new heating system or boiler, due to the fact that you can buy a smaller system. An effectively sized heating system or boiler will run most efficiently, and you'll wish to choose a trustworthy unit and compare the service warranties of each furnace or boiler you're thinking about. When looking for high-efficiency heaters and boilers, try to find the ENERGY STAR ® label. If you reside in a cold climate, it typically makes good sense to purchase the highest-efficiency system. In milder environments with lower annual heating expenses, the additional financial investment required to go from 80% to 90% to 95% effectiveness may be hard to validate. Specify a sealed combustion heater or boiler, which will bring outdoors air directly into the burner and exhaust flue gases (combustion items) straight to the outside, without the requirement for a draft hood or damper. Heaters and boilers that are not sealed-combustion units draw heated air into the system for combustion and after that send that air up the chimney, wasting the energy that was utilized to warm the air. Sealed-combustion units avoid that issue and likewise position no danger of introducing hazardous combustion gases into your home. In heaters that are not sealed-combustion systems, backdrafting of combustion gases can be a big problem. High-efficiency sealed-combustion units normally produce an acidic exhaust gas that is not suitable for old, unlined chimneys, so the exhaust gas must either be vented through a new duct or the chimney must be lined to accommodate the acidic gas (see the section on maintaining correct ventilation below). Maintaining Heating Systems and Boilers. The following maintenance must be offered by a heater expert. All systems:. - Examine the condition of your vent connection pipeline and chimney. Parts of the venting system may have deteriorated with time. Chimney problems can be costly to repair, and might assist validate setting up brand-new heating devices that will not use the existing chimney. - Inspect the physical stability of the heat exchanger. Leaking boiler heat exchangers leak water and are easy to spot. Heating system heat exchangers mix combustion gases with house air when they leak-- an important security factor to have them checked. - Change the controls on the boiler or heater to offer optimum water and air temperature settings for both efficiency and convenience. - If you're considering replacing or retrofitting your existing heating unit, have the service technician perform a combustion-efficiency test. Required Air Systems:. - Examine the combustion chamber for fractures. - Test for carbon monoxide (CO) and treatment if found. - Adjust blower control and supply-air temperature. - Tidy and oil the blower.

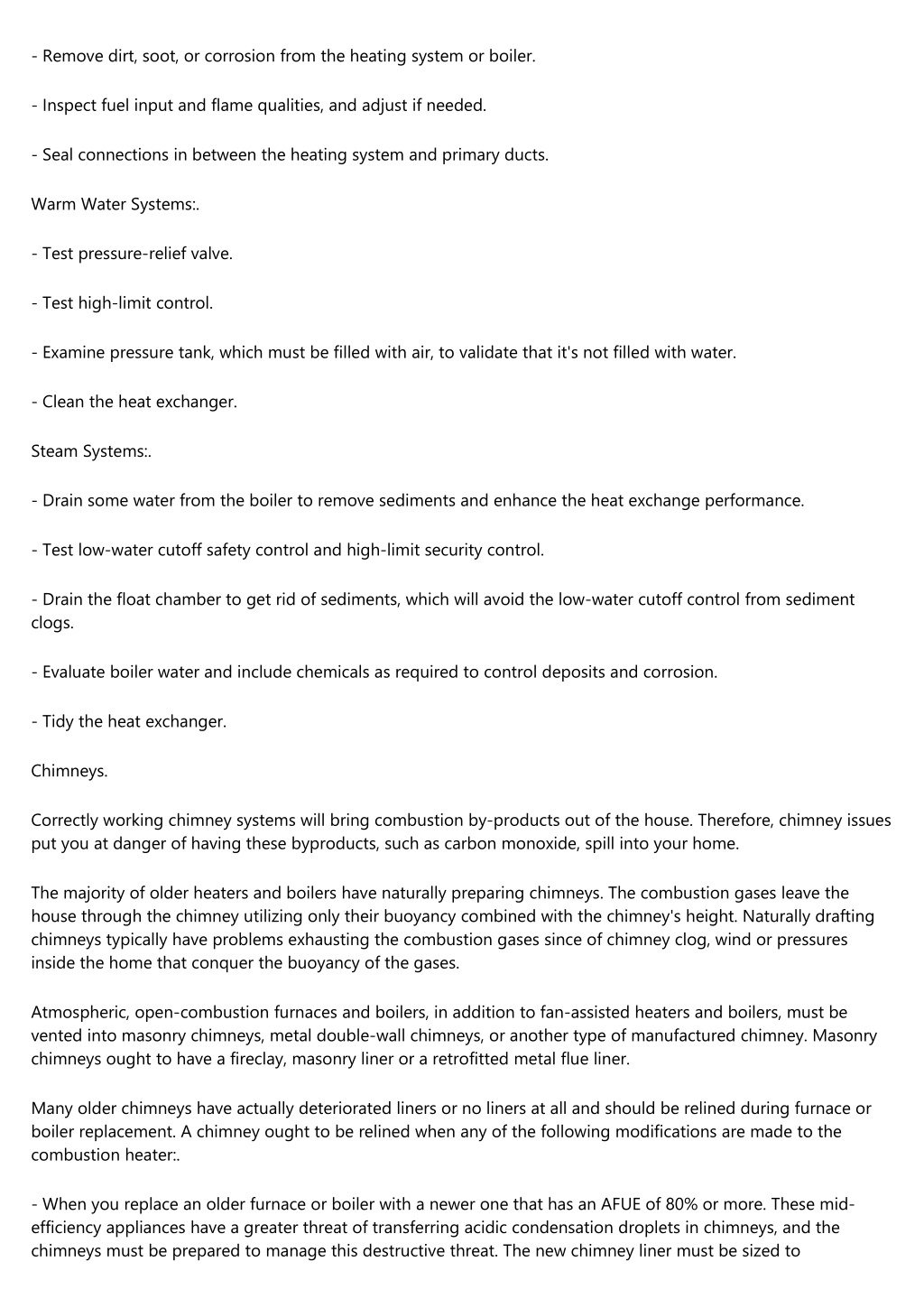

4. - Remove dirt, soot, or corrosion from the heating system or boiler. - Inspect fuel input and flame qualities, and adjust if needed. - Seal connections in between the heating system and primary ducts. Warm Water Systems:. - Test pressure-relief valve. - Test high-limit control. - Examine pressure tank, which must be filled with air, to validate that it's not filled with water. - Clean the heat exchanger. Steam Systems:. - Drain some water from the boiler to remove sediments and enhance the heat exchange performance. - Test low-water cutoff safety control and high-limit security control. - Drain the float chamber to get rid of sediments, which will avoid the low-water cutoff control from sediment clogs. - Evaluate boiler water and include chemicals as required to control deposits and corrosion. - Tidy the heat exchanger. Chimneys. Correctly working chimney systems will bring combustion by-products out of the house. Therefore, chimney issues put you at danger of having these byproducts, such as carbon monoxide, spill into your home. The majority of older heaters and boilers have naturally preparing chimneys. The combustion gases leave the house through the chimney utilizing only their buoyancy combined with the chimney's height. Naturally drafting chimneys typically have problems exhausting the combustion gases since of chimney clog, wind or pressures inside the home that conquer the buoyancy of the gases. Atmospheric, open-combustion furnaces and boilers, in addition to fan-assisted heaters and boilers, must be vented into masonry chimneys, metal double-wall chimneys, or another type of manufactured chimney. Masonry chimneys ought to have a fireclay, masonry liner or a retrofitted metal flue liner. Many older chimneys have actually deteriorated liners or no liners at all and should be relined during furnace or boiler replacement. A chimney ought to be relined when any of the following modifications are made to the combustion heater:. - When you replace an older furnace or boiler with a newer one that has an AFUE of 80% or more. These mid- efficiency appliances have a greater threat of transferring acidic condensation droplets in chimneys, and the chimneys must be prepared to manage this destructive threat. The new chimney liner must be sized to

5. accommodate both the brand-new heating home appliance and the combustion hot water heater (if present) by the installer. - When you replace an older heating system or boiler with a new 90+ AFUE device or a heat pump. In this case, the heating home appliance will no longer vent into the old chimney, and if the combustion hot water heater is present it will now vent through an extra-large chimney. This extra-large chimney can lead to condensation and insufficient draft. The brand-new chimney liner must be sized for the water heater alone, or the water heating unit in some cases can be vented straight through the wall. Other Ventilation Concerns. Some fan-assisted, non-condensing heaters and boilers, installed between 1987 and 1993, might be vented horizontally through high-temperature plastic vent pipe (not PVC pipe, which is securely used in condensing furnaces). This type of venting has been remembered and need to be replaced by stainless-steel vent pipe. If horizontal venting was utilized, an extra draft-inducing fan might be required near the vent outlet to develop appropriate draft. Floor furnaces might have special venting issues due to the fact that their vent port exits the furnace close to the floor and might travel 10 to 30 feet prior to reaching a chimney. Check to see if this type of venting or the flooring furnace itself requires replacement. If you smell gases, you have a venting issue that might affect your health. Contact your regional energy or heating contractor to have this venting issue fixed right away.
