TLT-01 Top Load Tester

The Top Loading Tester is a crucial instrument used to assess the strength and durability of packaging by applying a compressive force to the top of containers, such as boxes and cartons. It is widely utilized in the packaging industry to ensure that products can withstand stacking and handling stresses during transportation and storage. The test involves placing the container on the tester's base and applying a load from the top until the container fails or deforms.

cell6
Download Presentation

TLT-01 Top Load Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

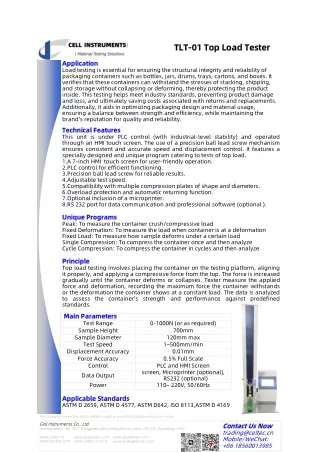

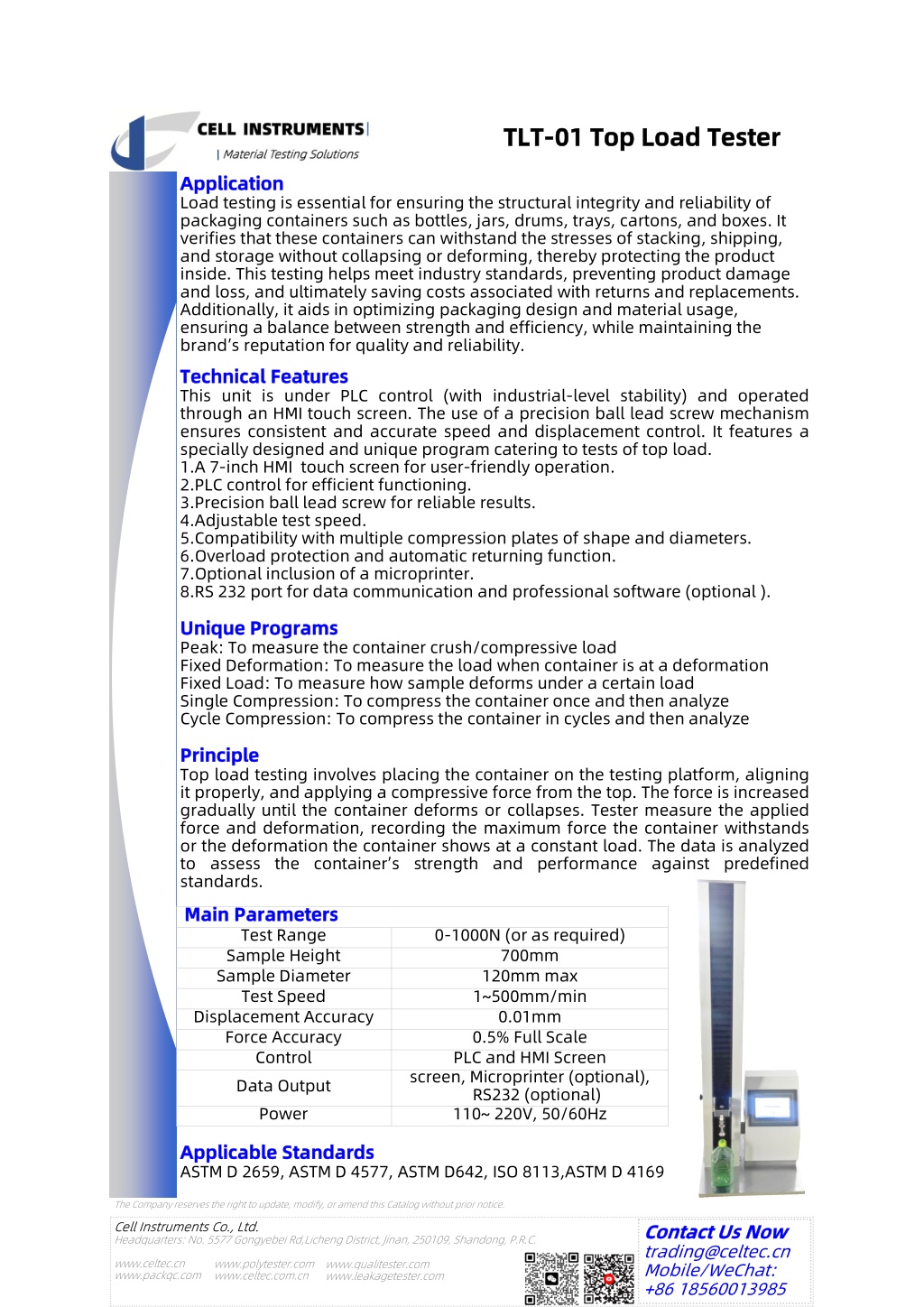

  1. TLT TLT- -01 Top Load Tester 01 Top Load Tester Application Application Load testing is essential for ensuring the structural integrity and reliability of packaging containers such as bottles, jars, drums, trays, cartons, and boxes. It verifies that these containers can withstand the stresses of stacking, shipping, and storage without collapsing or deforming, thereby protecting the product inside. This testing helps meet industry standards, preventing product damage and loss, and ultimately saving costs associated with returns and replacements. Additionally, it aids in optimizing packaging design and material usage, ensuring a balance between strength and efficiency, while maintaining the brand’s reputation for quality and reliability. Technical Features Technical Features This unit is under PLC control (with industrial-level stability) and operated through an HMI touch screen. The use of a precision ball lead screw mechanism ensures consistent and accurate speed and displacement control. It features a specially designed and unique program catering to tests of top load. 1.A 7-inch HMI touch screen for user-friendly operation. 2.PLC control for efficient functioning. 3.Precision ball lead screw for reliable results. 4.Adjustable test speed. 5.Compatibility with multiple compression plates of shape and diameters. 6.Overload protection and automatic returning function. 7.Optional inclusion of a microprinter. 8.RS 232 port for data communication and professional software (optional ). Unique Programs Unique Programs Peak: To measure the container crush/compressive load Fixed Deformation: To measure the load when container is at a deformation Fixed Load: To measure how sample deforms under a certain load Single Compression: To compress the container once and then analyze Cycle Compression: To compress the container in cycles and then analyze Principle Principle Top load testing involves placing the container on the testing platform, aligning it properly, and applying a compressive force from the top. The force is increased gradually until the container deforms or collapses. Tester measure the applied force and deformation, recording the maximum force the container withstands or the deformation the container shows at a constant load. The data is analyzed to assess the container’s strength and performance against predefined standards. Main Parameters Main Parameters Test Range 0-1000N (or as required) Sample Height Sample Diameter 120mm max Test Speed 1~500mm/min Displacement Accuracy Force Accuracy 0.5% Full Scale Control PLC and HMI Screen Data Output RS232 (optional) Power 110~ 220V, 50/60Hz 700mm 0.01mm screen, Microprinter (optional), Applicable Standards Applicable Standards ASTM D 2659, ASTM D 4577, ASTM D642, ISO 8113,ASTM D 4169 The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Mobile/WeChat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com
