Texture Analyzer from Cell Instruments for material analysis

A Texture Analyzer is a versatile instrument used to measure the physical properties of materials, such as hardness, elasticity, and viscosity. It is widely applied across various industries including food and beverage, pharmaceuticals, cosmetics, and materials science. The analyzer evaluates the texture of a wide range of test objects, from food products and packaging materials to pharmaceuticals and personal care items. The test process typically involves applying a controlled force to the sample, measuring its response, and analyzing the data to assess characteristics such as compression, t

cell6
Download Presentation

Texture Analyzer from Cell Instruments for material analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

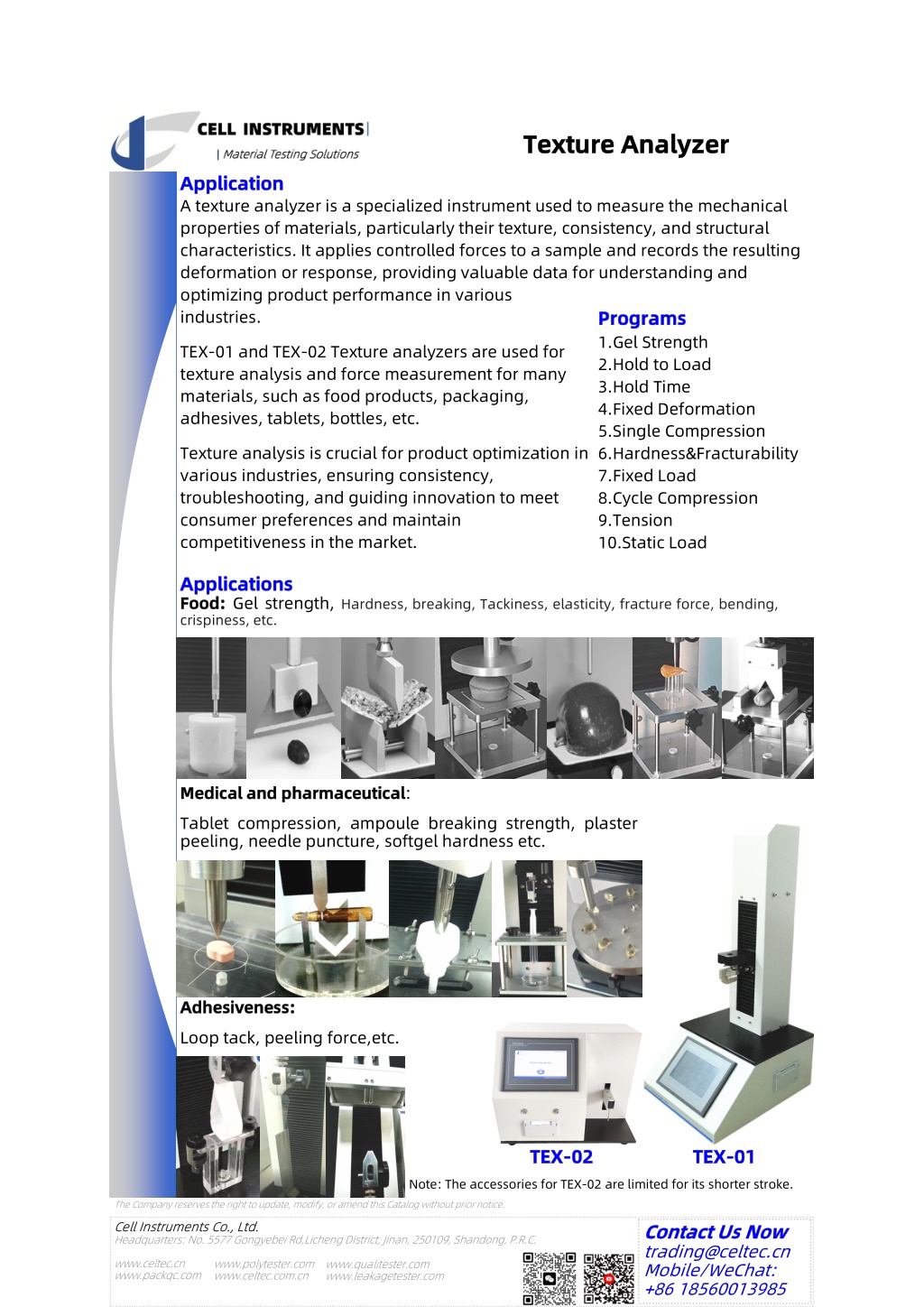

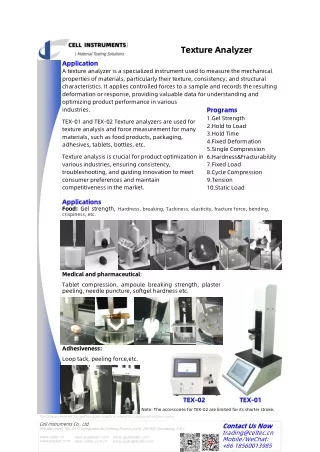

  1. Texture Analyzer Texture Analyzer Application Application A texture analyzer is a specialized instrument used to measure the mechanical properties of materials, particularly their texture, consistency, and structural characteristics. It applies controlled forces to a sample and records the resulting deformation or response, providing valuable data for understanding and optimizing product performance in various industries. Programs Programs 1.Gel Strength 2.Hold to Load 3.Hold Time 4.Fixed Deformation 5.Single Compression 6.Hardness&Fracturability 7.Fixed Load 8.Cycle Compression 9.Tension 10.Static Load TEX-01 and TEX-02 Texture analyzers are used for texture analysis and force measurement for many materials, such as food products, packaging, adhesives, tablets, bottles, etc. Texture analysis is crucial for product optimization in various industries, ensuring consistency, troubleshooting, and guiding innovation to meet consumer preferences and maintain competitiveness in the market. Applications Applications Food: Food: Gel strength, Hardness, breaking, Tackiness, elasticity, fracture force, bending, crispiness, etc. Medical and pharmaceutical Medical and pharmaceutical: Tablet compression, ampoule breaking strength, plaster peeling, needle puncture, softgel hardness etc. Adhesiveness Adhesiveness: : Loop tack, peeling force,etc. TEX TEX- -02 02 TEX TEX- -01 01 Note: The accessories for TEX-02 are limited for its shorter stroke. The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Mobile/WeChat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com

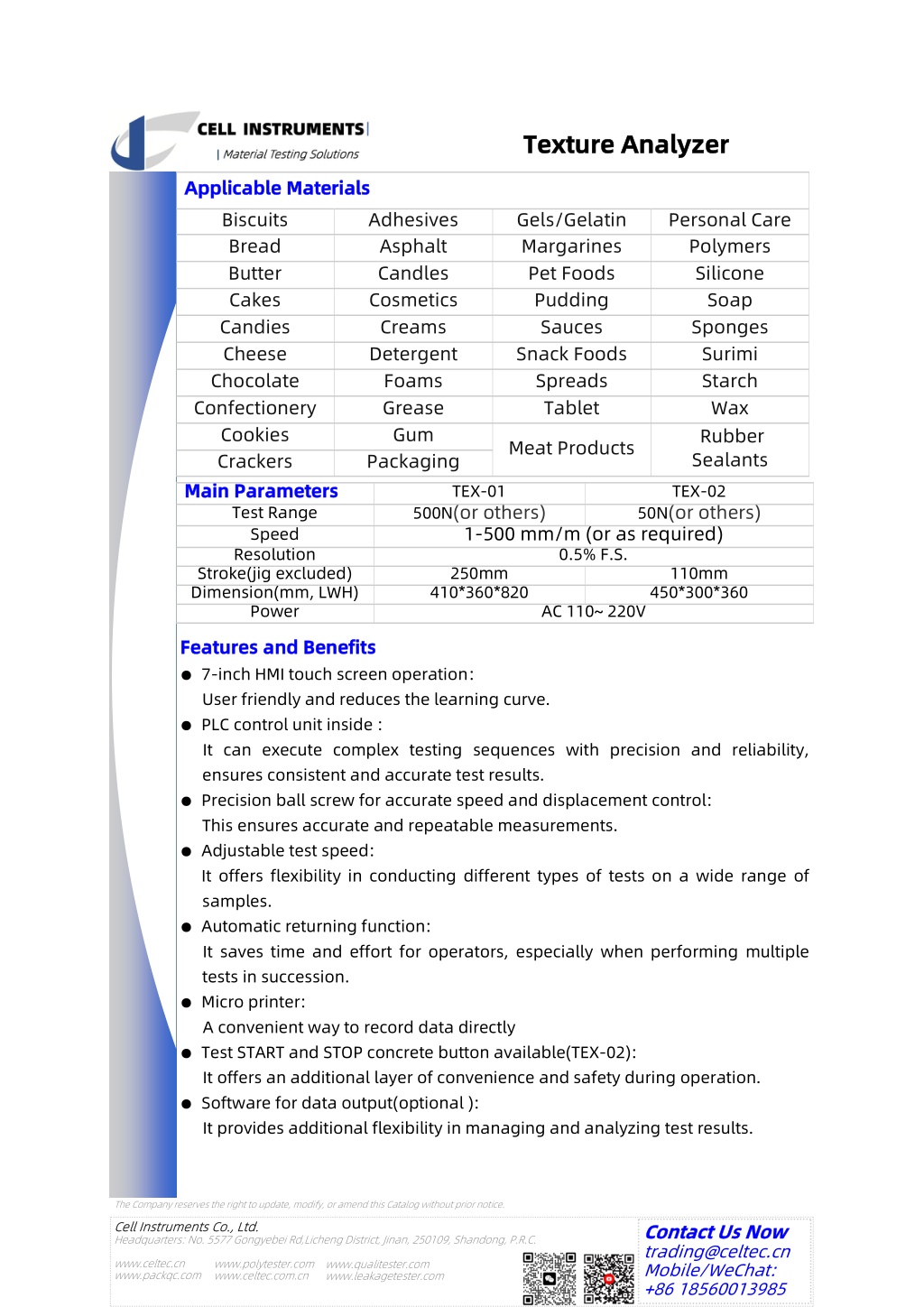

  2. Texture Analyzer Texture Analyzer Applicable Materials Applicable Materials Biscuits Bread Butter Cakes Candies Cheese Chocolate Confectionery Cookies Crackers Main Parameters Main Parameters Test Range Speed Resolution Stroke(jig excluded) Dimension(mm, LWH) Power Adhesives Asphalt Candles Cosmetics Creams Detergent Foams Grease Gum Packaging Gels/Gelatin Margarines Pet Foods Pudding Sauces Snack Foods Spreads Tablet Personal Care Polymers Silicone Soap Sponges Surimi Starch Wax Rubber Sealants TEX-02 50N(or others) Meat Products TEX-01 500N(or others) 1-500 mm/m (or as required) 0.5% F.S. 250mm 410*360*820 AC 110~ 220V 110mm 450*300*360 Features and Benefits Features and Benefits ● 7-inch HMI touch screen operation： User friendly and reduces the learning curve. ● PLC control unit inside : It can execute complex testing sequences with precision and reliability, ensures consistent and accurate test results. ● Precision ball screw for accurate speed and displacement control: This ensures accurate and repeatable measurements. ● Adjustable test speed: It offers flexibility in conducting different types of tests on a wide range of samples. ● Automatic returning function: It saves time and effort for operators, especially when performing multiple tests in succession. ● Micro printer: A convenient way to record data directly ● Test START and STOP concrete button available(TEX-02): It offers an additional layer of convenience and safety during operation. ● Software for data output(optional ): It provides additional flexibility in managing and analyzing test results. The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Mobile/WeChat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com
