PER-01 Verticality Tester

The Bottle Verticality Tester is designed to assess the perpendicularity of bottles and containers to ensure their quality and functionality. This instrument is crucial in industries such as beverage, pharmaceutical, and cosmetics. The test process typically involves placing the bottle in the device, which then measures the degree of tilt or misalignment, providing critical data to ensure that the bottles meet industry standards and are suitable for filling and sealing operations.

cell6
Download Presentation

PER-01 Verticality Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

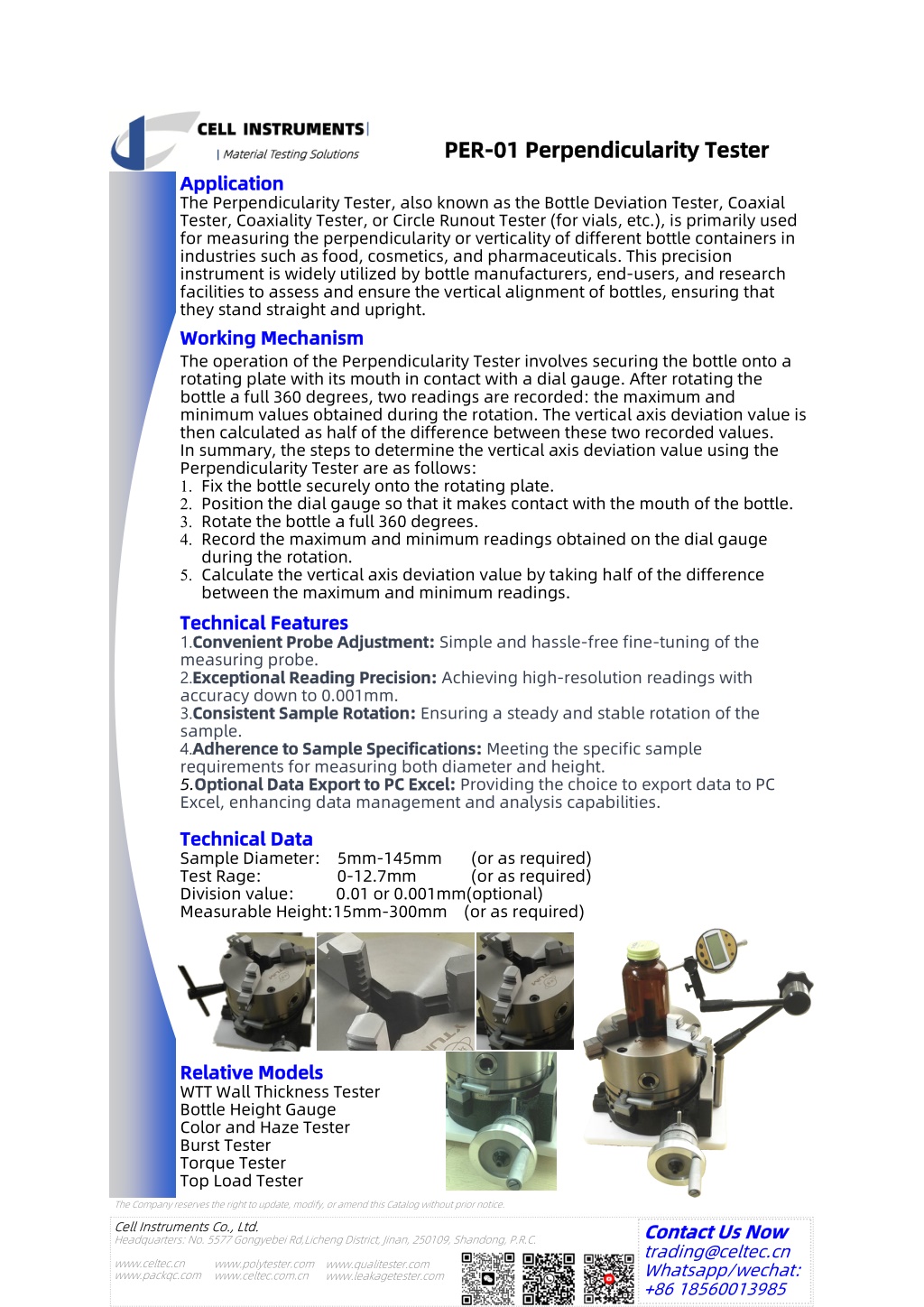

  1. PER PER- -01 Perpendicularity Tester 01 Perpendicularity Tester Application Application The Perpendicularity Tester, also known as the Bottle Deviation Tester, Coaxial Tester, Coaxiality Tester, or Circle Runout Tester (for vials, etc.), is primarily used for measuring the perpendicularity or verticality of different bottle containers in industries such as food, cosmetics, and pharmaceuticals. This precision instrument is widely utilized by bottle manufacturers, end-users, and research facilities to assess and ensure the vertical alignment of bottles, ensuring that they stand straight and upright. Working Mechanism Working Mechanism The operation of the Perpendicularity Tester involves securing the bottle onto a rotating plate with its mouth in contact with a dial gauge. After rotating the bottle a full 360 degrees, two readings are recorded: the maximum and minimum values obtained during the rotation. The vertical axis deviation value is then calculated as half of the difference between these two recorded values. In summary, the steps to determine the vertical axis deviation value using the Perpendicularity Tester are as follows:  Fix the bottle securely onto the rotating plate.  Position the dial gauge so that it makes contact with the mouth of the bottle.  Rotate the bottle a full 360 degrees.  Record the maximum and minimum readings obtained on the dial gauge during the rotation.  Calculate the vertical axis deviation value by taking half of the difference between the maximum and minimum readings. Technical Features Technical Features 1.Convenient Probe Adjustment: Convenient Probe Adjustment: Simple and hassle-free fine-tuning of the measuring probe. 2.Exceptional Reading Precision: Exceptional Reading Precision: Achieving high-resolution readings with accuracy down to 0.001mm. 3.Consistent Sample Rotation: Consistent Sample Rotation: Ensuring a steady and stable rotation of the sample. 4.Adherence to Sample Specifications: Adherence to Sample Specifications: Meeting the specific sample requirements for measuring both diameter and height. 5.Optional Data Export to PC Excel: Optional Data Export to PC Excel: Providing the choice to export data to PC Excel, enhancing data management and analysis capabilities. Technical Data Technical Data Sample Diameter: 5mm-145mm (or as required) Test Rage: 0-12.7mm (or as required) Division value: 0.01 or 0.001mm(optional) Measurable Height:15mm-300mm (or as required) Relative Models Relative Models WTT Wall Thickness Tester Bottle Height Gauge Color and Haze Tester Burst Tester Torque Tester Top Load Tester The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Whatsapp/wechat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com
