MST-01 Syringe Plunger Force Tester

The Syringe Plunger Force Tester is designed to evaluate the force required to pull or push the plunger of a syringe, ensuring its functionality and reliability in medical and pharmaceutical applications. The test object typically involves various types of syringes, including disposable and pre-filled models. During the test process, the tester measures the amount of force needed to operate the plunger smoothly, assessing the syringe's performance and detecting any potential issues.

cell6
Download Presentation

MST-01 Syringe Plunger Force Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

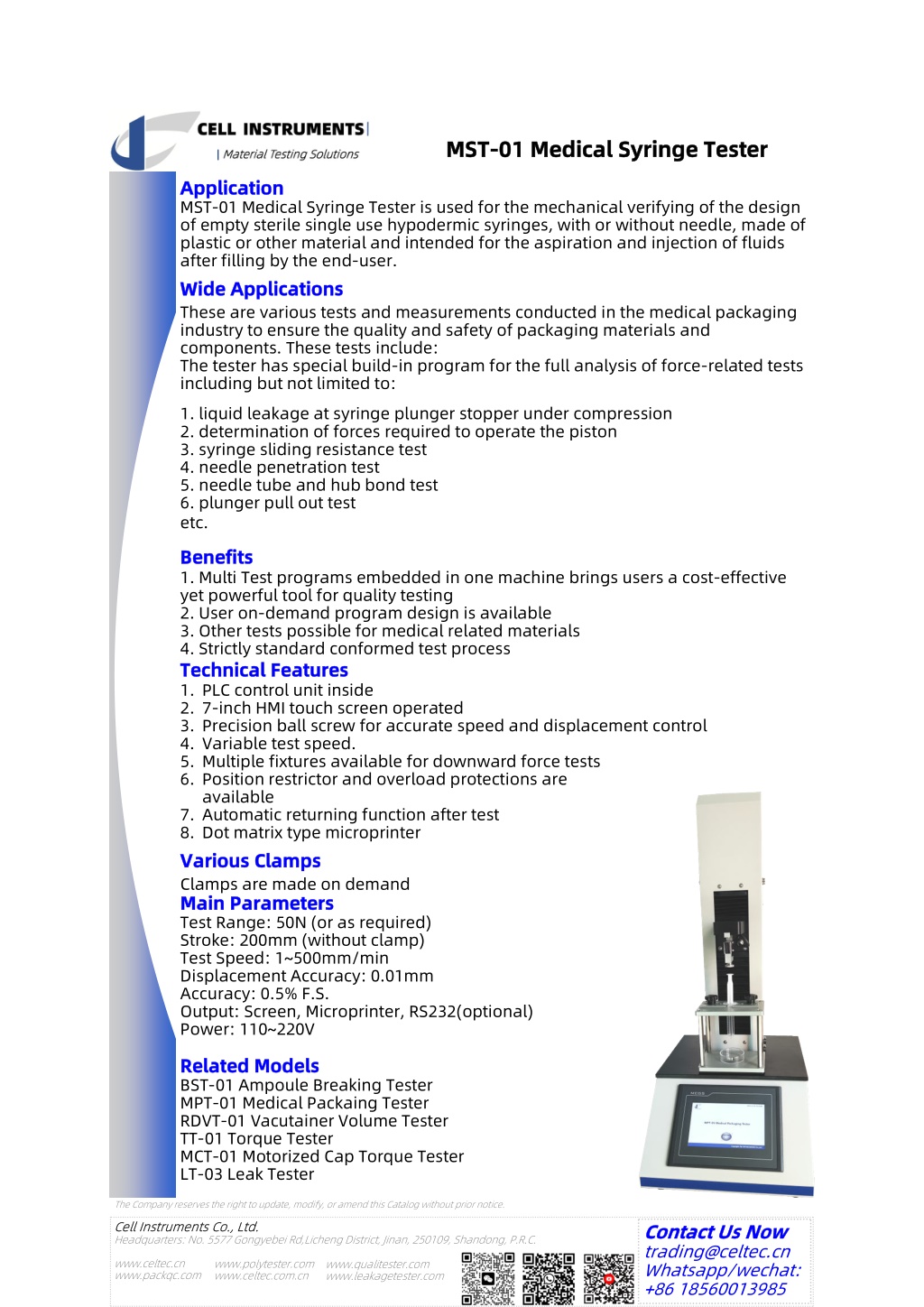

  1. MST MST- -01 Medical Syringe Tester 01 Medical Syringe Tester Application Application MST-01 Medical Syringe Tester is used for the mechanical verifying of the design of empty sterile single use hypodermic syringes, with or without needle, made of plastic or other material and intended for the aspiration and injection of fluids after filling by the end-user. Wide Applications Wide Applications These are various tests and measurements conducted in the medical packaging industry to ensure the quality and safety of packaging materials and components. These tests include: The tester has special build-in program for the full analysis of force-related tests including but not limited to: 1. liquid leakage at syringe plunger stopper under compression 2. determination of forces required to operate the piston 3. syringe sliding resistance test 4. needle penetration test 5. needle tube and hub bond test 6. plunger pull out test etc. Benefits Benefits 1. Multi Test programs embedded in one machine brings users a cost-effective yet powerful tool for quality testing 2. User on-demand program design is available 3. Other tests possible for medical related materials 4. Strictly standard conformed test process Technical Features Technical Features 1. PLC control unit inside 2. 7-inch HMI touch screen operated 3. Precision ball screw for accurate speed and displacement control 4. Variable test speed. 5. Multiple fixtures available for downward force tests 6. Position restrictor and overload protections are available 7. Automatic returning function after test 8. Dot matrix type microprinter Various Clamps Various Clamps Clamps are made on demand Main Parameters Main Parameters Test Range: 50N (or as required) Stroke: 200mm (without clamp) Test Speed: 1~500mm/min Displacement Accuracy: 0.01mm Accuracy: 0.5% F.S. Output: Screen, Microprinter, RS232(optional) Power: 110~220V Related Models Related Models BST-01 Ampoule Breaking Tester MPT-01 Medical Packaing Tester RDVT-01 Vacutainer Volume Tester TT-01 Torque Tester MCT-01 Motorized Cap Torque Tester LT-03 Leak Tester The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Whatsapp/wechat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com
