MPT-02 Tablet Hardness Tester

A Tablet Hardness Tester is designed to measure the mechanical strength and hardness of tablets, ensuring they can withstand packaging, and transportation without breaking or crumbling. This instrument is essential in the pharmaceutical industry, where it evaluates tablets, including pharmaceuticals and nutraceuticals. The test process typically involves applying a controlled force to a tablet until it fractures, with the tester recording the amount of force required.

cell6
Download Presentation

MPT-02 Tablet Hardness Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

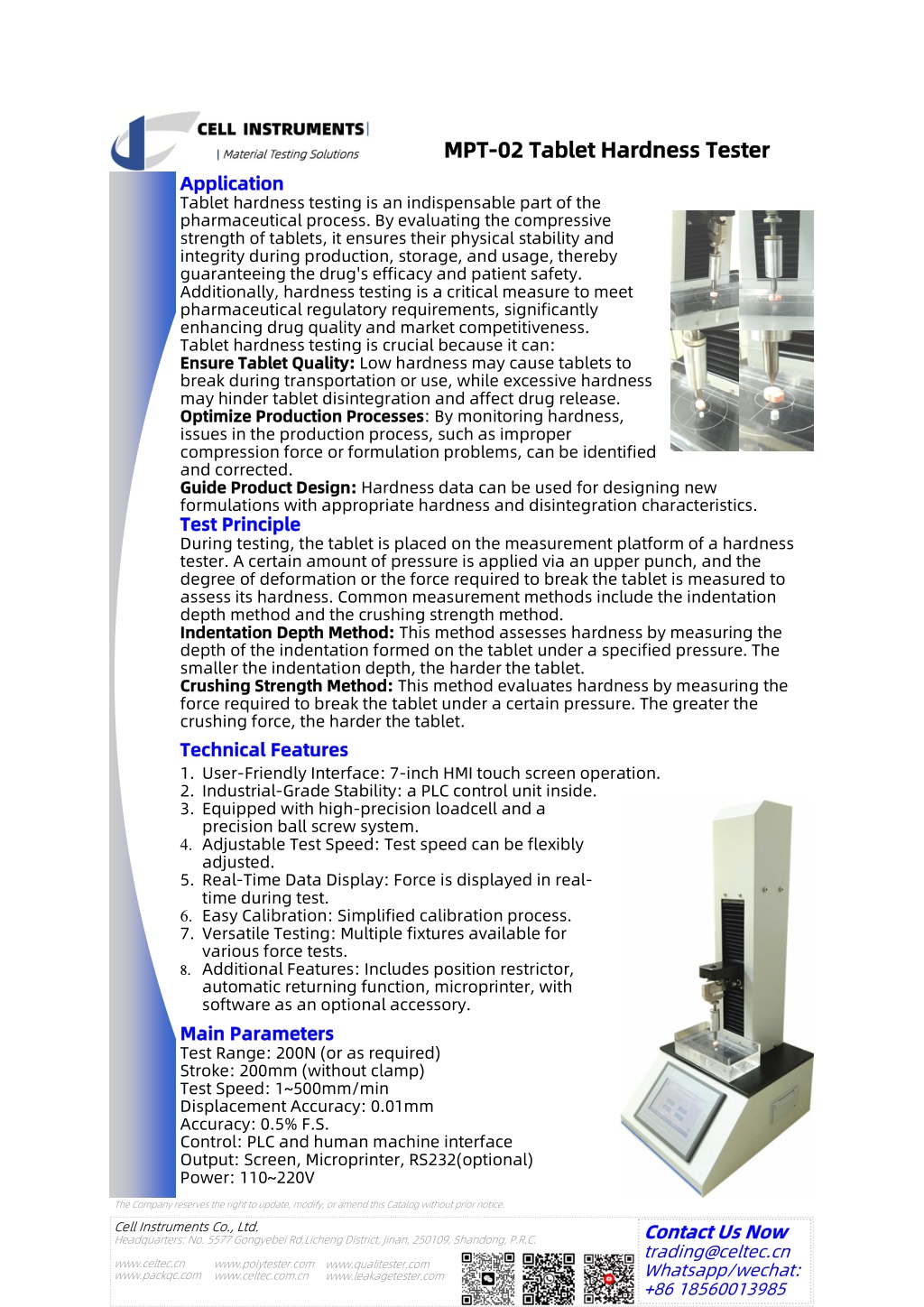

  1. MPT MPT- -02 Tablet Hardness Tester 02 Tablet Hardness Tester Application Application Tablet hardness testing is an indispensable part of the pharmaceutical process. By evaluating the compressive strength of tablets, it ensures their physical stability and integrity during production, storage, and usage, thereby guaranteeing the drug's efficacy and patient safety. Additionally, hardness testing is a critical measure to meet pharmaceutical regulatory requirements, significantly enhancing drug quality and market competitiveness. Tablet hardness testing is crucial because it can: Ensure Tablet Quality: Ensure Tablet Quality: Low hardness may cause tablets to break during transportation or use, while excessive hardness may hinder tablet disintegration and affect drug release. Optimize Production Processes Optimize Production Processes: By monitoring hardness, issues in the production process, such as improper compression force or formulation problems, can be identified and corrected. Guide Product Design: Guide Product Design: Hardness data can be used for designing new formulations with appropriate hardness and disintegration characteristics. Test Principle Test Principle During testing, the tablet is placed on the measurement platform of a hardness tester. A certain amount of pressure is applied via an upper punch, and the degree of deformation or the force required to break the tablet is measured to assess its hardness. Common measurement methods include the indentation depth method and the crushing strength method. Indentation Depth Method: Indentation Depth Method: This method assesses hardness by measuring the depth of the indentation formed on the tablet under a specified pressure. The smaller the indentation depth, the harder the tablet. Crushing Strength Method: Crushing Strength Method: This method evaluates hardness by measuring the force required to break the tablet under a certain pressure. The greater the crushing force, the harder the tablet. Technical Features Technical Features 1. User-Friendly Interface: 7-inch HMI touch screen operation. 2. Industrial-Grade Stability: a PLC control unit inside. 3. Equipped with high-precision loadcell and a precision ball screw system.  Adjustable Test Speed: Test speed can be flexibly adjusted. 5. Real-Time Data Display: Force is displayed in real- time during test.  Easy Calibration: Simplified calibration process. 7. Versatile Testing: Multiple fixtures available for various force tests.   Additional Features: Includes position restrictor, automatic returning function, microprinter, with software as an optional accessory. Main Parameters Main Parameters Test Range: 200N (or as required) Stroke: 200mm (without clamp) Test Speed: 1~500mm/min Displacement Accuracy: 0.01mm Accuracy: 0.5% F.S. Control: PLC and human machine interface Output: Screen, Microprinter, RS232(optional) Power: 110~220V The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Whatsapp/wechat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com
