The Mop Friction Force Tester is designed to measure the frictional resistance of mop materials, ensuring their efficiency and ease of use. Primarily used in the cleaning products industry, this tester is crucial for manufacturers of mops, cleaning pads, and related products. The test object typically includes mop heads or cleaning pads, which are evaluated to determine the force required to move them across various surfaces. The test process involves placing the mop material on a test surface, applying a controlled load, and measuring the frictional force as the material is moved.
E N D

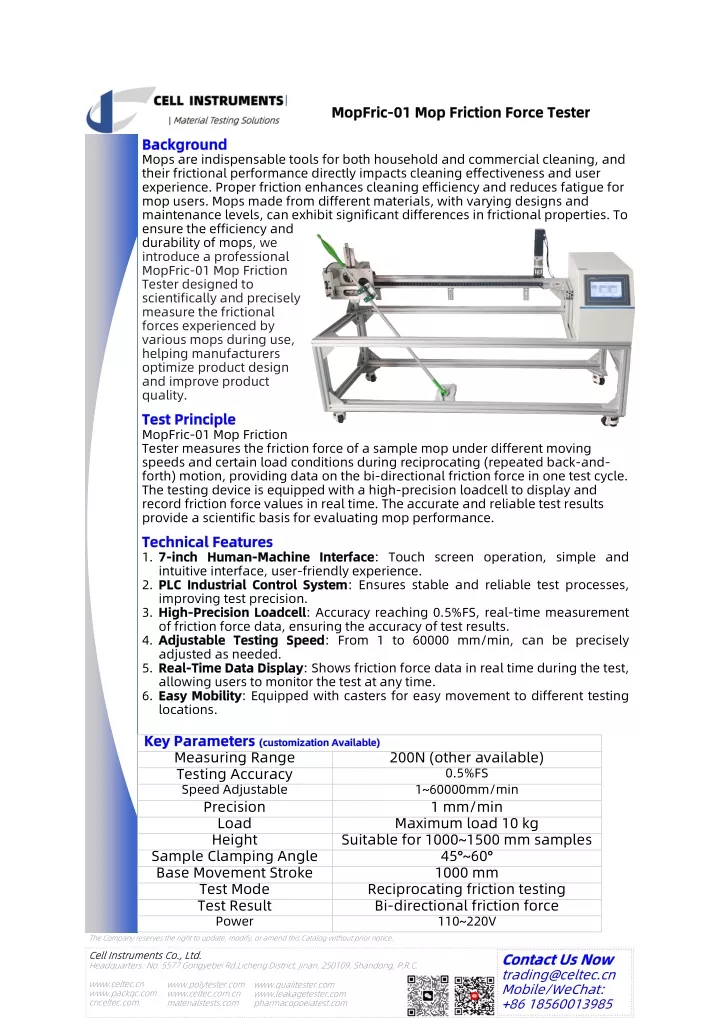

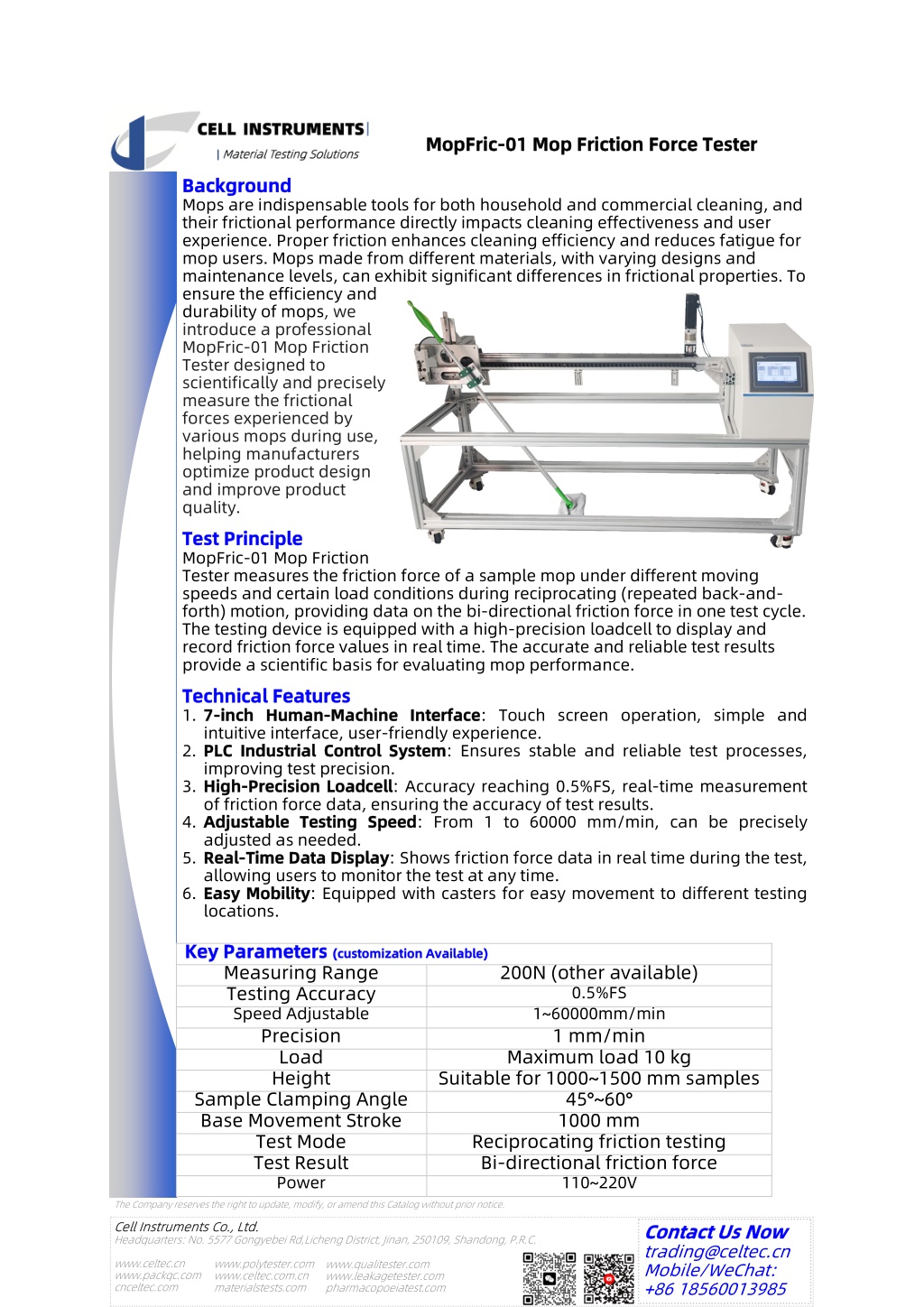

MopFric MopFric- -01 Mop Friction Force Tester 01 Mop Friction Force Tester Background Background Mops are indispensable tools for both household and commercial cleaning, and their frictional performance directly impacts cleaning effectiveness and user experience. Proper friction enhances cleaning efficiency and reduces fatigue for mop users. Mops made from different materials, with varying designs and maintenance levels, can exhibit significant differences in frictional properties. To ensure the efficiency and durability of mops, we introduce a professional MopFric-01 Mop Friction Tester designed to scientifically and precisely measure the frictional forces experienced by various mops during use, helping manufacturers optimize product design and improve product quality. Test Principle Test Principle MopFric-01 Mop Friction Tester measures the friction force of a sample mop under different moving speeds and certain load conditions during reciprocating (repeated back-and- forth) motion, providing data on the bi-directional friction force in one test cycle. The testing device is equipped with a high-precision loadcell to display and record friction force values in real time. The accurate and reliable test results provide a scientific basis for evaluating mop performance. Technical Features Technical Features 1. 7 7- -inch Human inch Human- -Machine Interface Machine Interface: Touch screen operation, simple and intuitive interface, user-friendly experience. 2. PLC Industrial Control System PLC Industrial Control System: Ensures stable and reliable test processes, improving test precision. 3. High High- -Precision Loadcell Precision Loadcell: Accuracy reaching 0.5%FS, real-time measurement of friction force data, ensuring the accuracy of test results. 4. Adjustable Testing Speed Adjustable Testing Speed: From 1 to 60000 mm/min, can be precisely adjusted as needed. 5. Real Real- -Time Data Display Time Data Display: Shows friction force data in real time during the test, allowing users to monitor the test at any time. 6. Easy Mobility Easy Mobility: Equipped with casters for easy movement to different testing locations. Key Parameters Key Parameters (customization Available) (customization Available) Measuring Range Testing Accuracy Speed Adjustable Precision Load Height Sample Clamping Angle Base Movement Stroke Test Mode Test Result Power The Company reserves the right to update, modify, or amend this Catalog without prior notice. 200N (other available) 0.5%FS 1~60000mm/min 1 mm/min Maximum load 10 kg Suitable for 1000~1500 mm samples 45°~60° 1000 mm Reciprocating friction testing Bi-directional friction force 110~220V Contact Us Now Contact Us Now trading@celtec.cn Mobile/WeChat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com cnceltec.com www.polytester.com www.celtec.com.cn materialstests.com www.qualitester.com www.leakagetester.com pharmacopoeiatest.com
