LTT-01 Loop Tack Tester for Adhesives from Cell Instruments

Loop Tack Tester is used to evaluate the tack or initial adhesive strength of pressure-sensitive adhesives, such as tapes and labels. This instrument is commonly employed in industries like packaging, labeling, and consumer goods. The test object typically includes adhesive tapes, labels, and protective films. During the test process, a loop of adhesive material is formed and brought into contact with a test surface under controlled conditions. The force required to detach the loop from the surface is measured.

cell6
Download Presentation

LTT-01 Loop Tack Tester for Adhesives from Cell Instruments

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

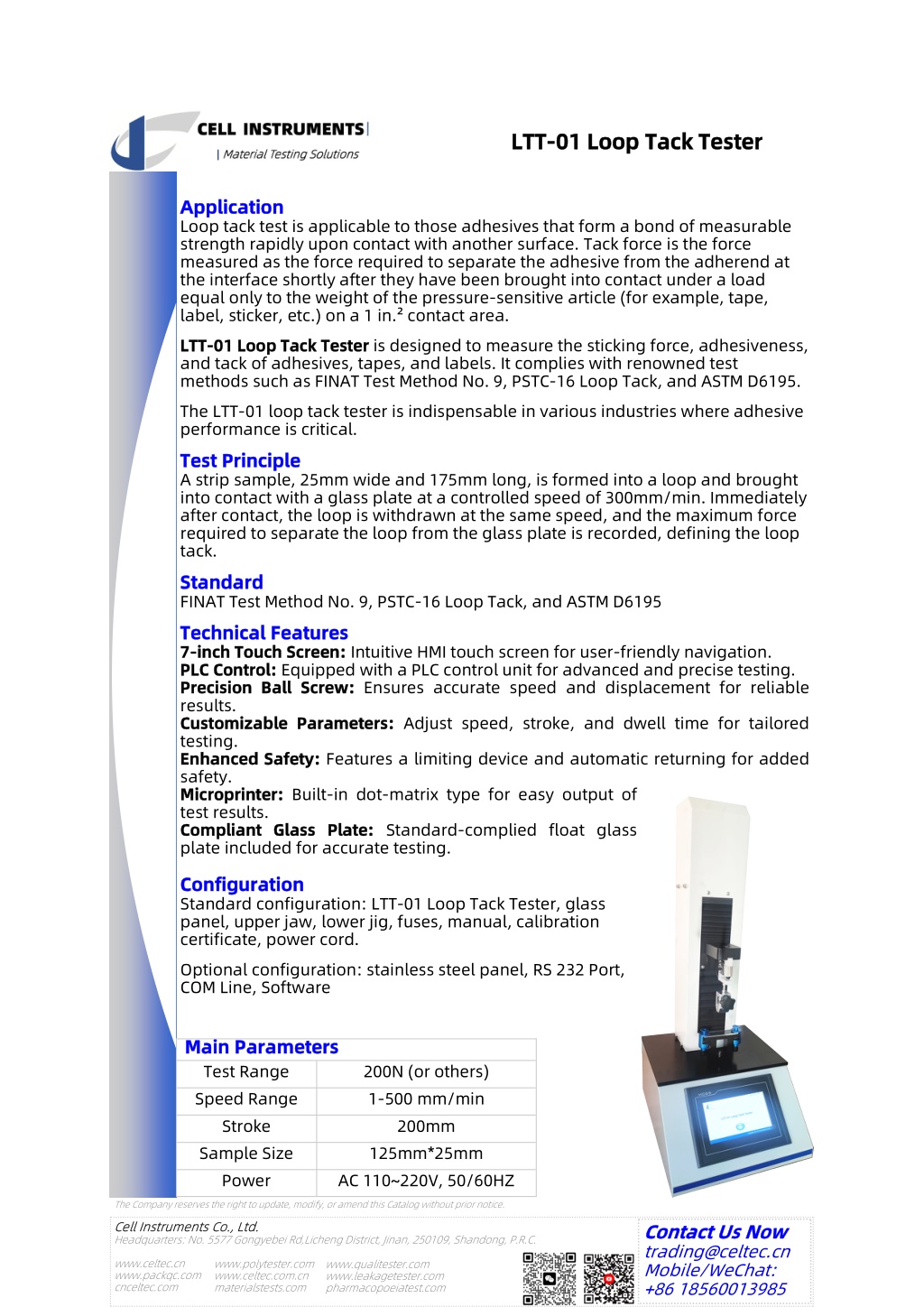

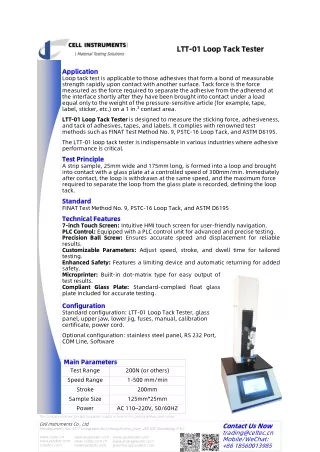

  1. LTT LTT- -01 Loop Tack Tester 01 Loop Tack Tester Application Application Loop tack test is applicable to those adhesives that form a bond of measurable strength rapidly upon contact with another surface. Tack force is the force measured as the force required to separate the adhesive from the adherend at the interface shortly after they have been brought into contact under a load equal only to the weight of the pressure-sensitive article (for example, tape, label, sticker, etc.) on a 1 in.² contact area. LTT LTT- -01 Loop Tack Tester 01 Loop Tack Tester is designed to measure the sticking force, adhesiveness, and tack of adhesives, tapes, and labels. It complies with renowned test methods such as FINAT Test Method No. 9, PSTC-16 Loop Tack, and ASTM D6195. The LTT-01 loop tack tester is indispensable in various industries where adhesive performance is critical. Test Principle Test Principle A strip sample, 25mm wide and 175mm long, is formed into a loop and brought into contact with a glass plate at a controlled speed of 300mm/min. Immediately after contact, the loop is withdrawn at the same speed, and the maximum force required to separate the loop from the glass plate is recorded, defining the loop tack. Standard Standard FINAT Test Method No. 9, PSTC-16 Loop Tack, and ASTM D6195 Technical Features Technical Features 7 7- -inch Touch Screen: inch Touch Screen: Intuitive HMI touch screen for user-friendly navigation. PLC Control: PLC Control: Equipped with a PLC control unit for advanced and precise testing. Precision Ball Screw: Precision Ball Screw: Ensures accurate speed and displacement for reliable results. Customizable Parameters: Customizable Parameters: Adjust speed, stroke, and dwell time for tailored testing. Enhanced Safety: Enhanced Safety: Features a limiting device and automatic returning for added safety. Microprinter: Microprinter: Built-in dot-matrix type for easy output of test results. Compliant Glass Plate: Compliant Glass Plate: Standard-complied float glass plate included for accurate testing. Configuration Configuration Standard configuration: LTT-01 Loop Tack Tester, glass panel, upper jaw, lower jig, fuses, manual, calibration certificate, power cord. Optional configuration: stainless steel panel, RS 232 Port, COM Line, Software Main Parameters Main Parameters Test Range Speed Range Stroke Sample Size Power 200N (or others) 1-500 mm/min 200mm 125mm*25mm AC 110~220V, 50/60HZ The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Mobile/WeChat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com cnceltec.com www.polytester.com www.celtec.com.cn materialstests.com www.qualitester.com www.leakagetester.com pharmacopoeiatest.com
