CHT-01 Capsule and Softgel Hardness Tester

Capsule and Softgel Hardness Tester

cell6
Download Presentation

CHT-01 Capsule and Softgel Hardness Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

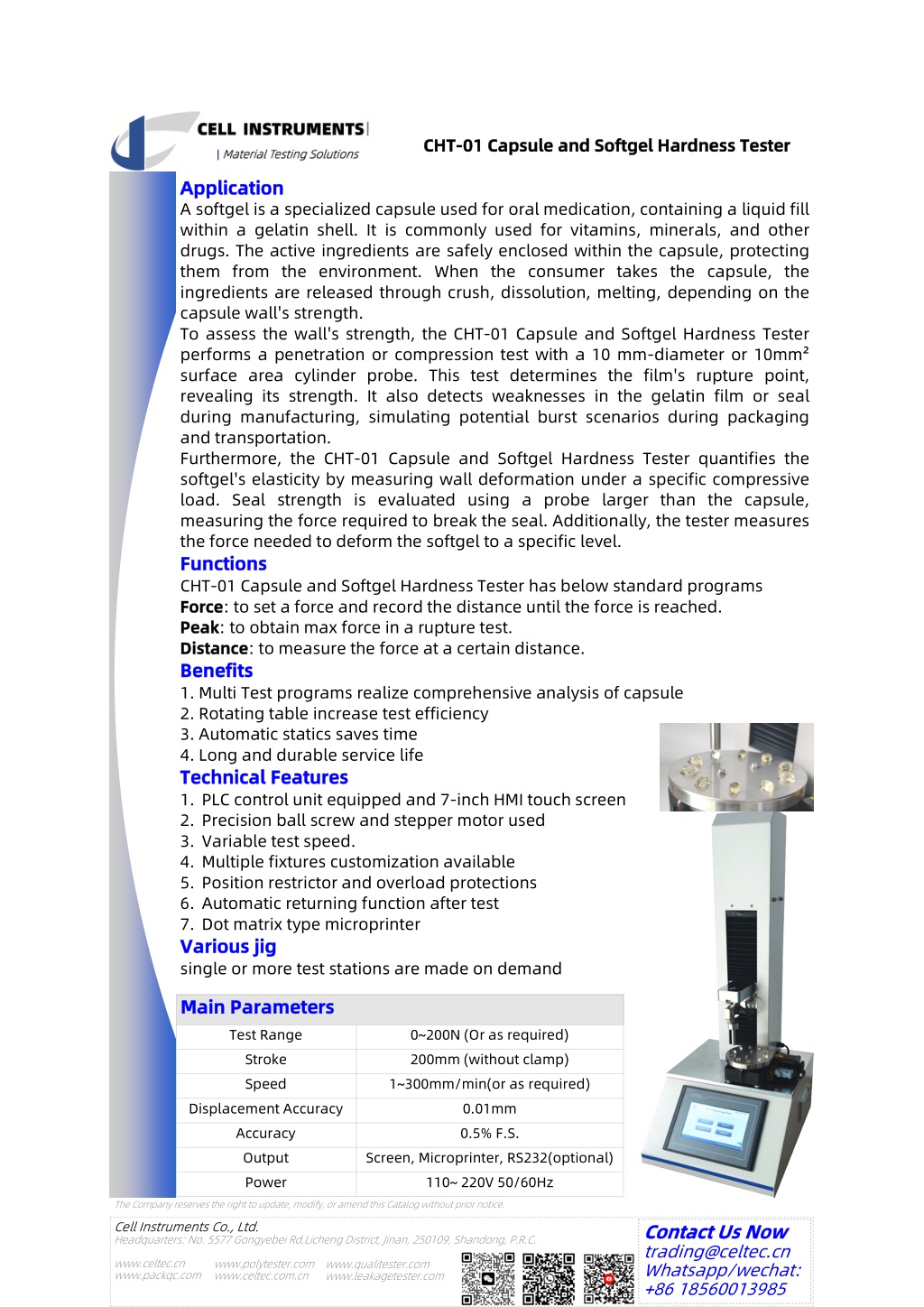

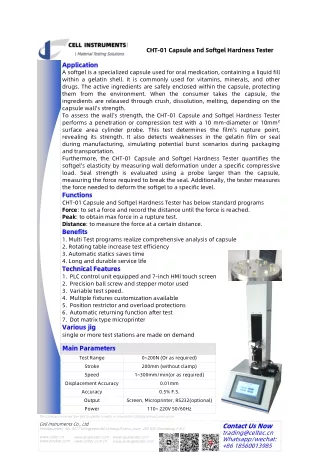

  1. CHT CHT- -01 Capsule and Softgel Hardness Tester 01 Capsule and Softgel Hardness Tester Application Application A softgel is a specialized capsule used for oral medication, containing a liquid fill within a gelatin shell. It is commonly used for vitamins, minerals, and other drugs. The active ingredients are safely enclosed within the capsule, protecting them from the environment. When the consumer takes the capsule, the ingredients are released through crush, dissolution, melting, depending on the capsule wall's strength. To assess the wall's strength, the CHT-01 Capsule and Softgel Hardness Tester performs a penetration or compression test with a 10 mm-diameter or 10mm² surface area cylinder probe. This test determines the film's rupture point, revealing its strength. It also detects weaknesses in the gelatin film or seal during manufacturing, simulating potential burst scenarios during packaging and transportation. Furthermore, the CHT-01 Capsule and Softgel Hardness Tester quantifies the softgel's elasticity by measuring wall deformation under a specific compressive load. Seal strength is evaluated using a probe larger than the capsule, measuring the force required to break the seal. Additionally, the tester measures the force needed to deform the softgel to a specific level. Functions Functions CHT-01 Capsule and Softgel Hardness Tester has below standard programs Force Force: to set a force and record the distance until the force is reached. Peak Peak: to obtain max force in a rupture test. Distance Distance: to measure the force at a certain distance. Benefits Benefits 1. Multi Test programs realize comprehensive analysis of capsule 2. Rotating table increase test efficiency 3. Automatic statics saves time 4. Long and durable service life Technical Features Technical Features 1. PLC control unit equipped and 7-inch HMI touch screen 2. Precision ball screw and stepper motor used 3. Variable test speed. 4. Multiple fixtures customization available 5. Position restrictor and overload protections 6. Automatic returning function after test 7. Dot matrix type microprinter Various jig Various jig single or more test stations are made on demand Main Parameters Main Parameters Test Range Stroke Speed Displacement Accuracy 0~200N (Or as required) 200mm (without clamp) 1~300mm/min(or as required) 0.01mm Accuracy Output 0.5% F.S. Screen, Microprinter, RS232(optional) Power 110~ 220V 50/60Hz The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Whatsapp/wechat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com
