BST-01 Ampoule Breaking Tester

An Ampoule Breaking Tester is designed to assess the breakage strength of ampoules to ensure their safety and reliability during handling and transportation. This instrument is primarily used in the pharmaceutical and healthcare industries, where ampoules are commonly employed for storing and dispensing medications. The test object is the ampoule itself, and the process involves applying controlled pressure to the ampoule to determine the force required to break it.

cell6
Download Presentation

BST-01 Ampoule Breaking Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

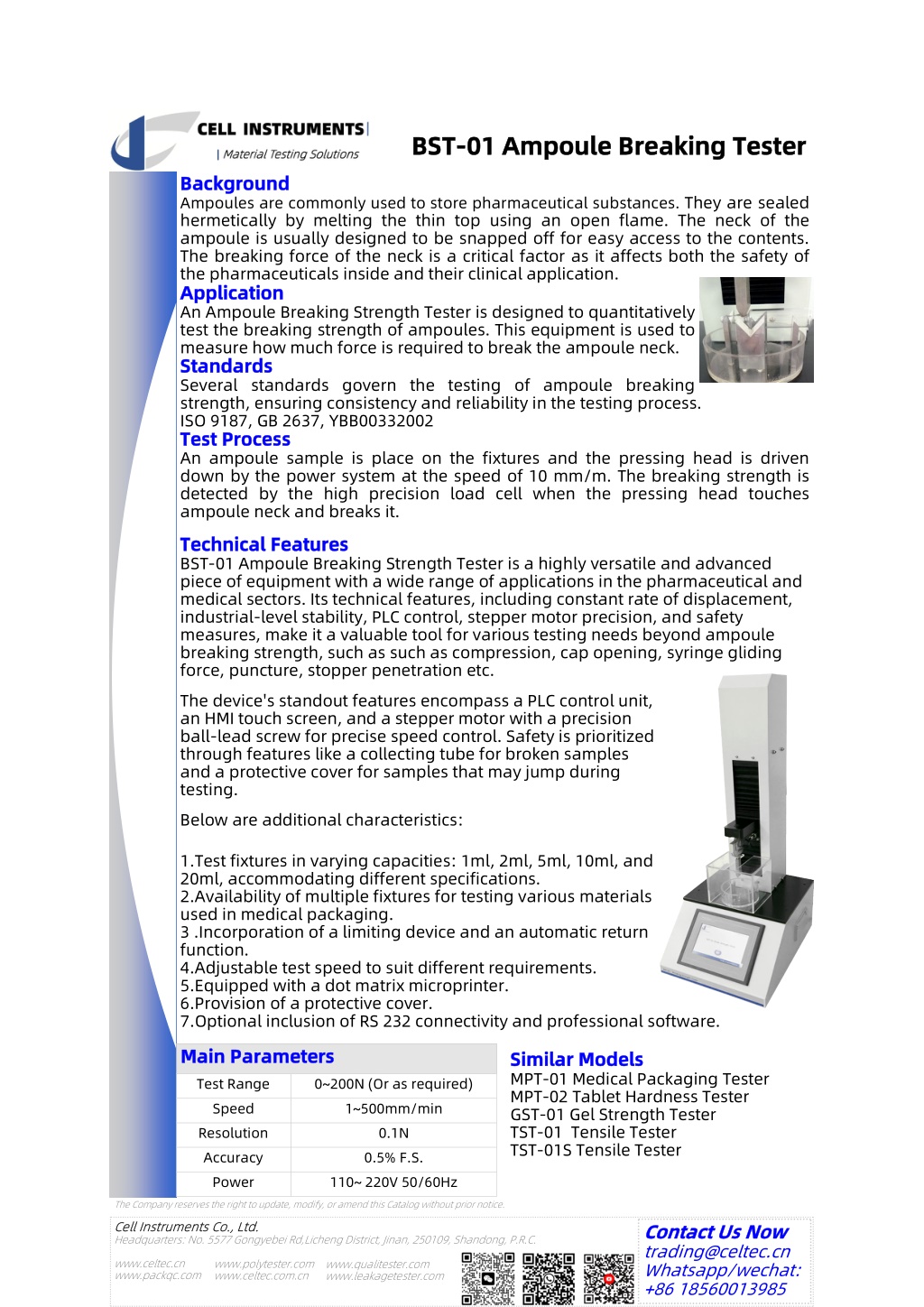

  1. BST BST- -01 Ampoule Breaking Tester 01 Ampoule Breaking Tester Background Background Ampoules are commonly used to store pharmaceutical substances. They are sealed hermetically by melting the thin top using an open flame. The neck of the ampoule is usually designed to be snapped off for easy access to the contents. The breaking force of the neck is a critical factor as it affects both the safety of the pharmaceuticals inside and their clinical application. Application Application An Ampoule Breaking Strength Tester is designed to quantitatively test the breaking strength of ampoules. This equipment is used to measure how much force is required to break the ampoule neck. Standards Standards Several standards govern the testing of ampoule breaking strength, ensuring consistency and reliability in the testing process. ISO 9187, GB 2637, YBB00332002 Test Process Test Process An ampoule sample is place on the fixtures and the pressing head is driven down by the power system at the speed of 10 mm/m. The breaking strength is detected by the high precision load cell when the pressing head touches ampoule neck and breaks it. Technical Features Technical Features BST-01 Ampoule Breaking Strength Tester is a highly versatile and advanced piece of equipment with a wide range of applications in the pharmaceutical and medical sectors. Its technical features, including constant rate of displacement, industrial-level stability, PLC control, stepper motor precision, and safety measures, make it a valuable tool for various testing needs beyond ampoule breaking strength, such as such as compression, cap opening, syringe gliding force, puncture, stopper penetration etc. The device's standout features encompass a PLC control unit, an HMI touch screen, and a stepper motor with a precision ball-lead screw for precise speed control. Safety is prioritized through features like a collecting tube for broken samples and a protective cover for samples that may jump during testing. Below are additional characteristics: 1.Test fixtures in varying capacities: 1ml, 2ml, 5ml, 10ml, and 20ml, accommodating different specifications. 2.Availability of multiple fixtures for testing various materials used in medical packaging. 3 .Incorporation of a limiting device and an automatic return function. 4.Adjustable test speed to suit different requirements. 5.Equipped with a dot matrix microprinter. 6.Provision of a protective cover. 7.Optional inclusion of RS 232 connectivity and professional software. Main Parameters Main Parameters Test Range Speed Resolution Accuracy Power Similar Models Similar Models MPT-01 Medical Packaging Tester MPT-02 Tablet Hardness Tester GST-01 Gel Strength Tester TST-01 Tensile Tester TST-01S Tensile Tester 0~200N (Or as required) 1~500mm/min 0.1N 0.5% F.S. 110~ 220V 50/60Hz The Company reserves the right to update, modify, or amend this Catalog without prior notice. Contact Us Now Contact Us Now trading@celtec.cn Whatsapp/wechat: +86 18560013985 Cell Instruments Co., Ltd. Cell Instruments Co., Ltd. Headquarters: No. 5577 Gongyebei Rd,Licheng District, Jinan, 250109, Shandong, P.R.C. www.celtec.cn www.packqc.com www.polytester.com www.celtec.com.cn www.qualitester.com www.leakagetester.com
