  1. New transmission technology on the bay/station level using IEC 61850 Study

  2. Retrospective Single core cable CAT 7 cable (Twisted Pair) Ethernet cable, preassembled

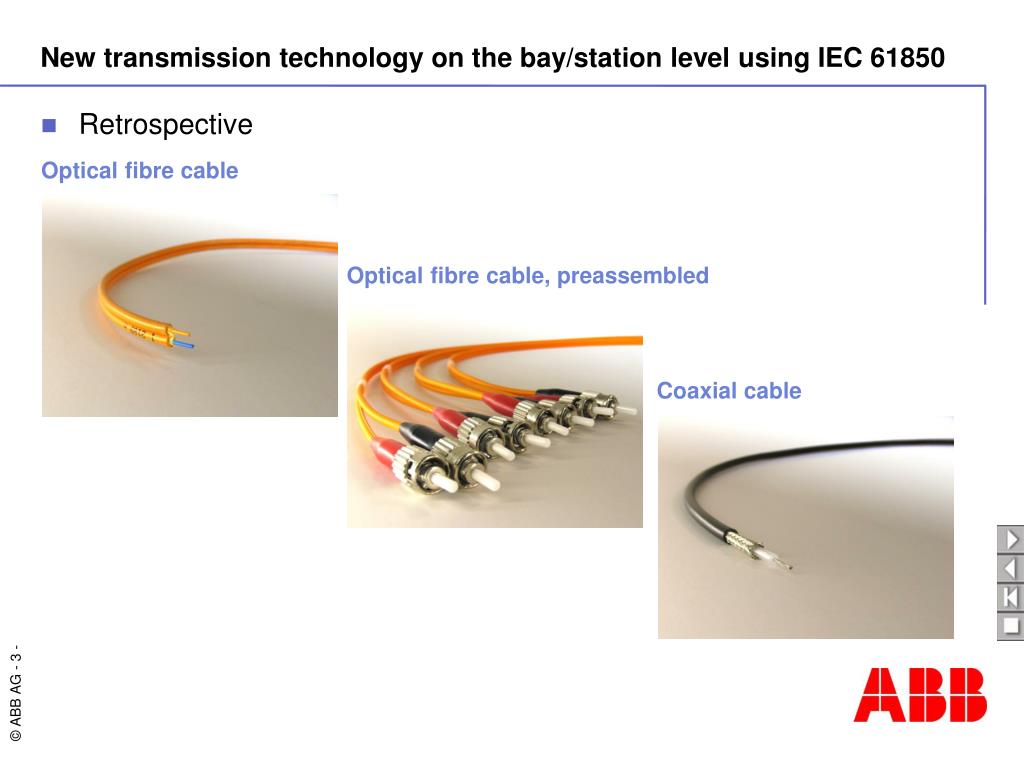

  3. Retrospective Optical fibre cable Optical fibre cable, preassembled Coaxial cable

  4. b a Rectangular Waveguide

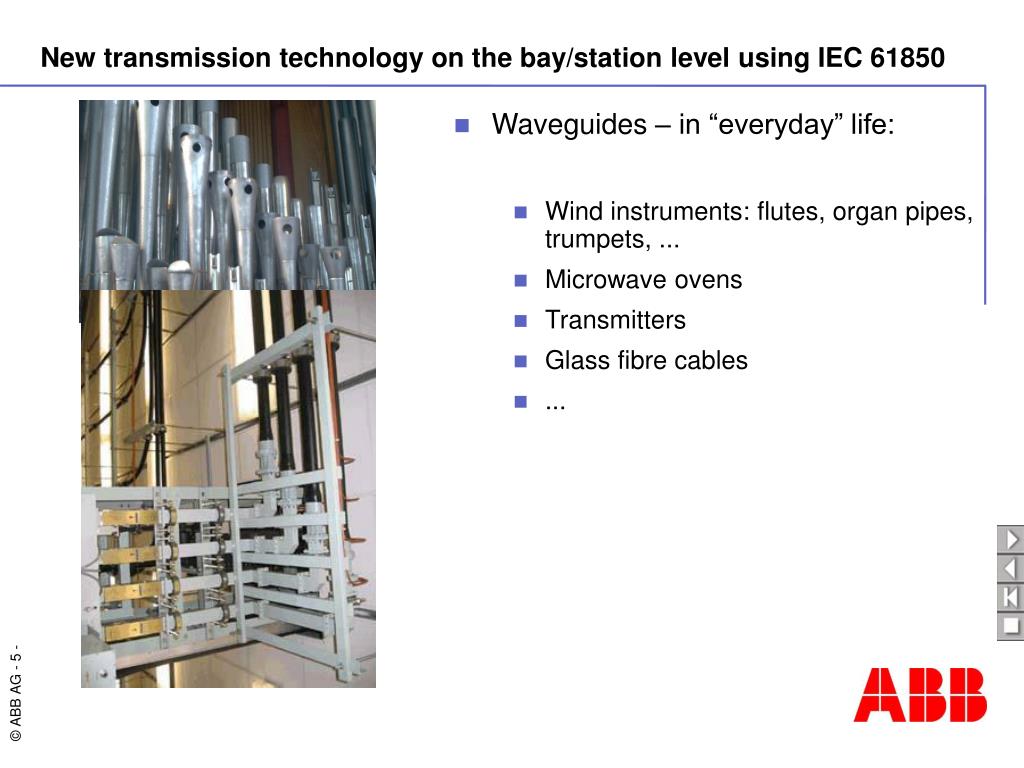

  5. Waveguides – in “everyday” life: Wind instruments: flutes, organ pipes, trumpets, ... Microwave ovens Transmitters Glass fibre cables ...

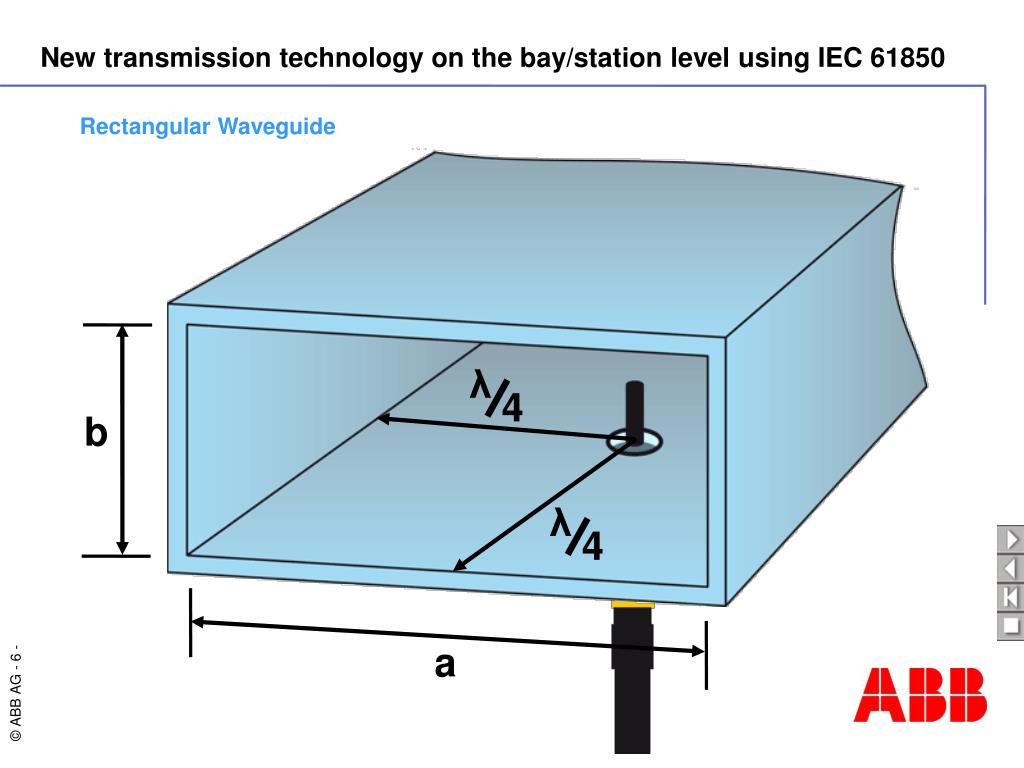

  6. λ 4 b λ 4 a Rectangular Waveguide

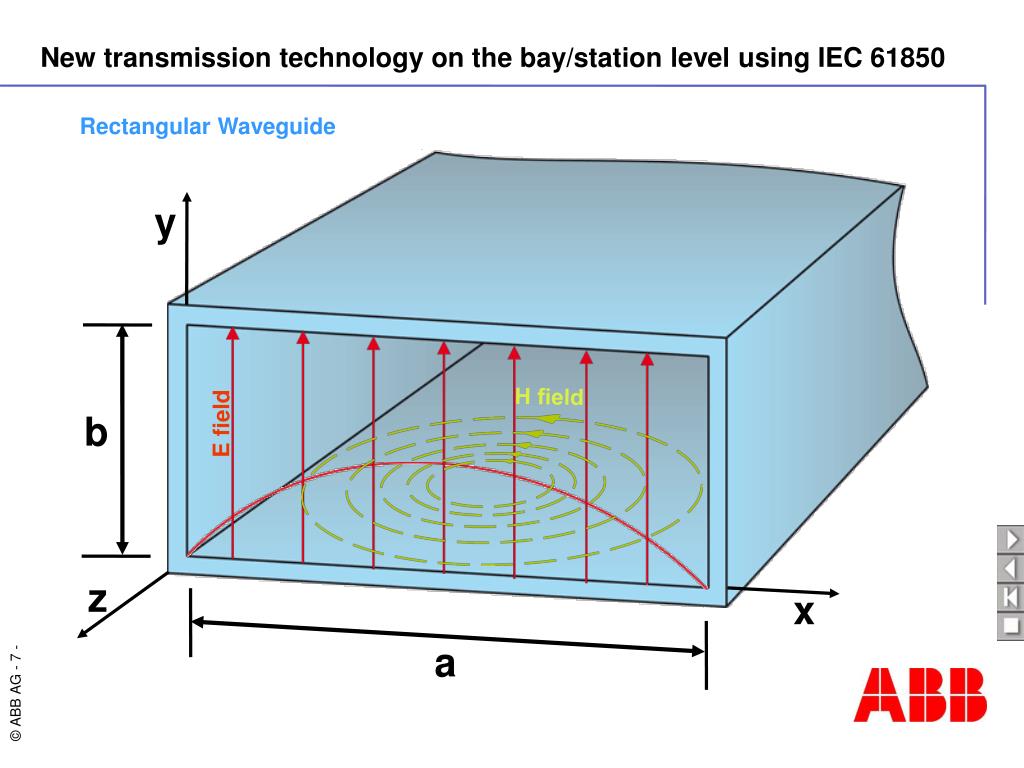

  7. y H field E field b z x a Rectangular Waveguide

  8. The future has begun: Waveguides as a transmission medium in medium voltage switchgear

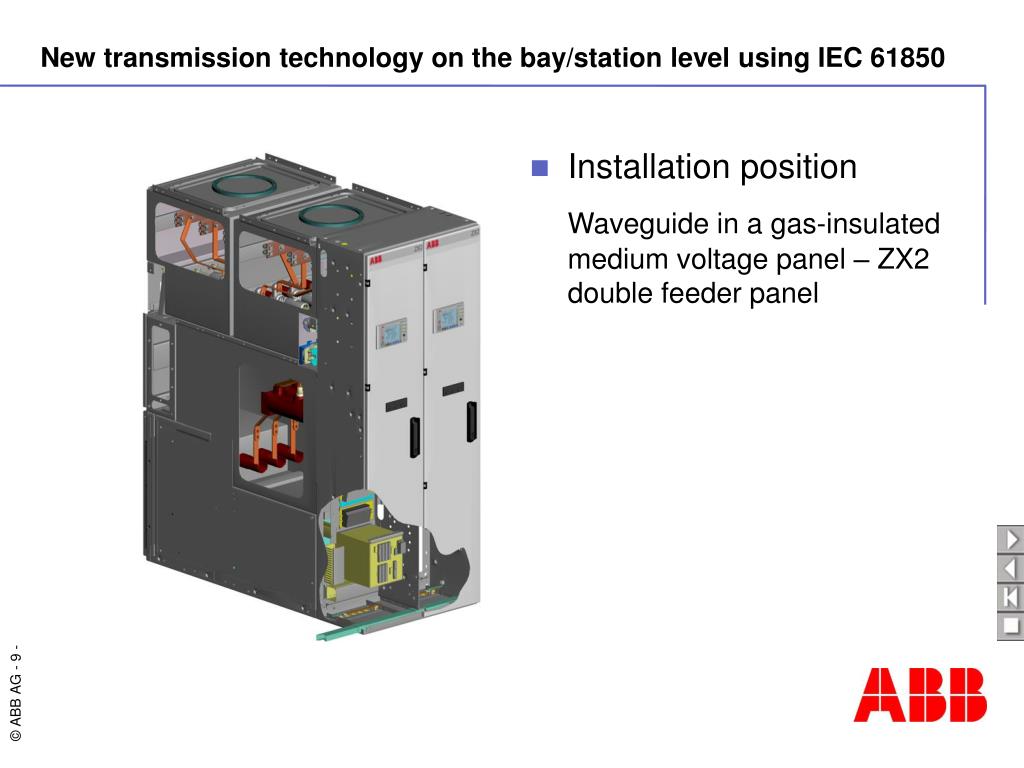

  9. Installation position Waveguide in a gas-insulated medium voltage panel – ZX2 double feeder panel

  10. Installation position – detail view: Waveguide in a gas-insulated medium voltage panel – ZX2 double feeder panel

  11. Comparison: electrical – optical – radio signals System availability Transmission media Optical fibres Waveguide

  12. View of the present

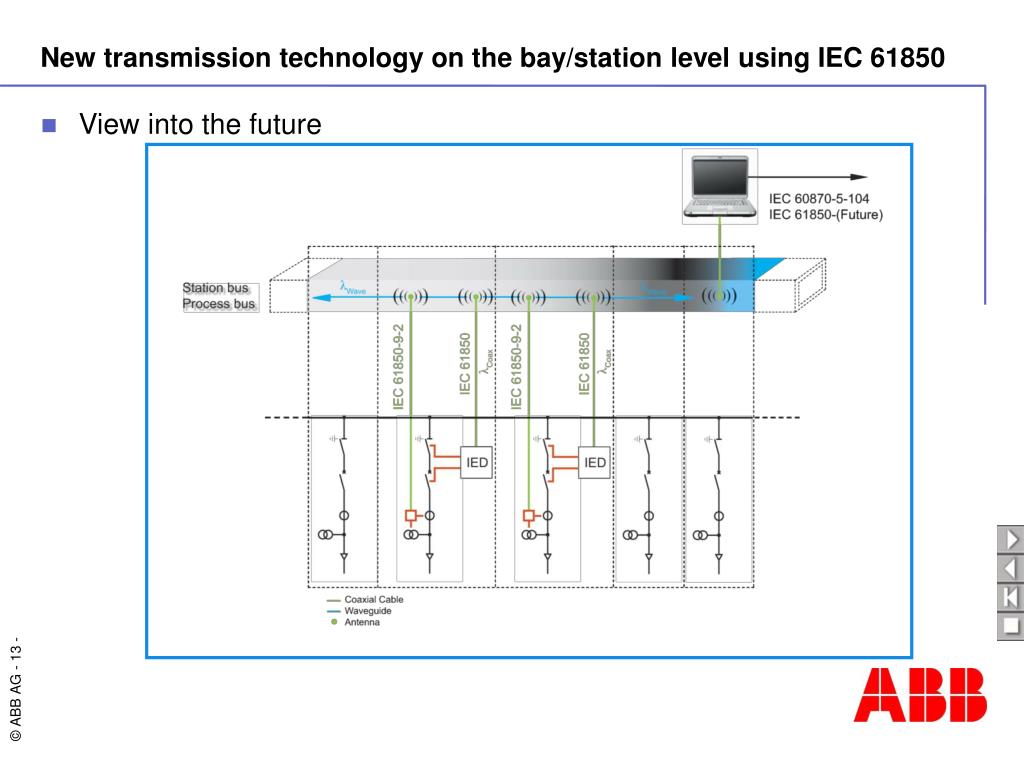

  13. View into the future

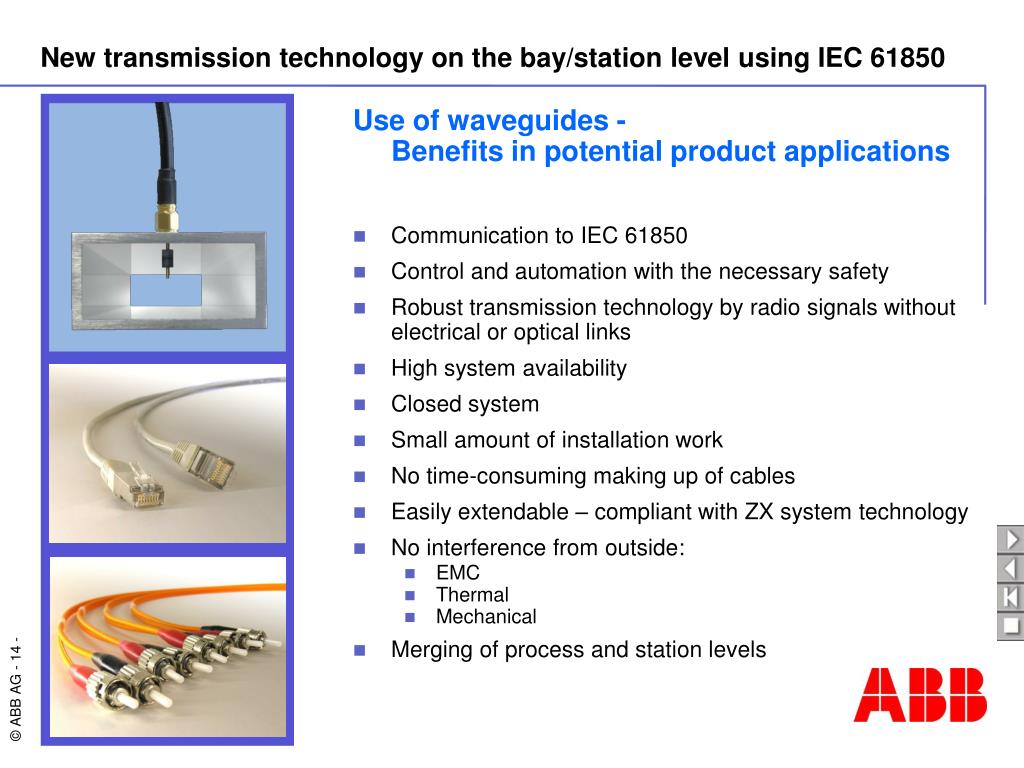

  14. Use of waveguides - Benefits in potential product applications Communication to IEC 61850 Control and automation with the necessary safety Robust transmission technology by radio signals without electrical or optical links High system availability Closed system Small amount of installation work No time-consuming making up of cables Easily extendable – compliant with ZX system technology No interference from outside: EMC Thermal Mechanical Merging of process and station levels

  15. SYS 600 with gateway functionality Meinberg LANTIME/GPSSNTP Server 1 Win XP SP2 AccessPoint AccessPoint NCC Uplink NCC Level Station Level Ethernet 100MB Integration of third party devices Bay Level IEEE802.11a Waveguide

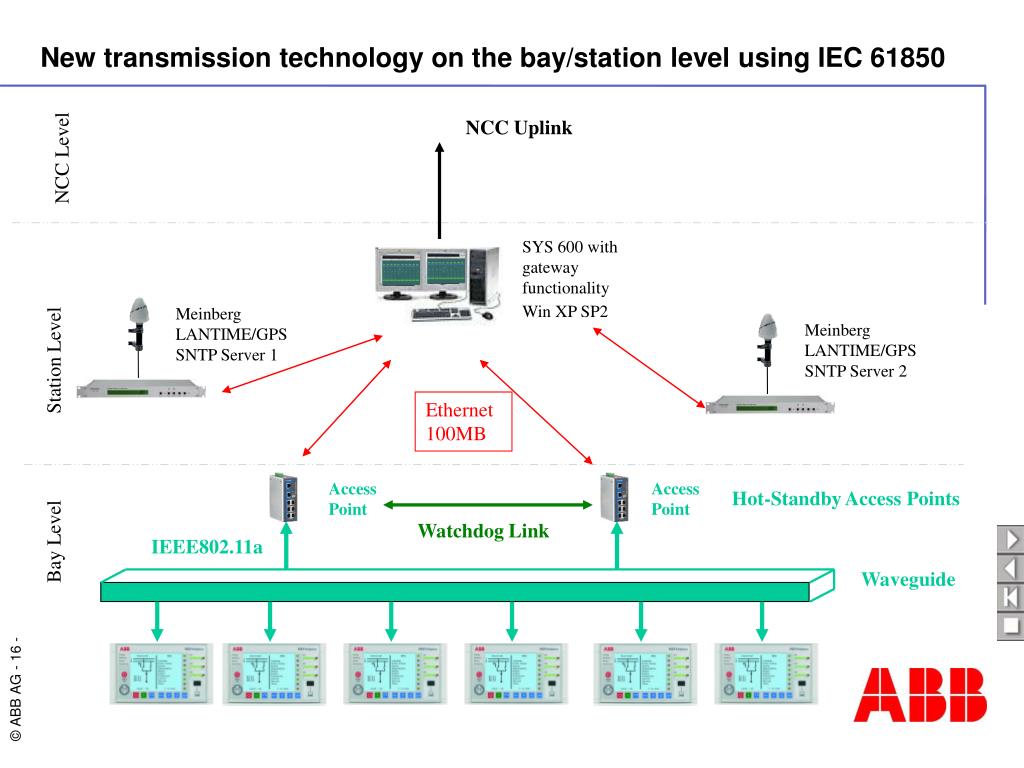

  16. SYS 600 with gateway functionality Meinberg LANTIME/GPSSNTP Server 2 Meinberg LANTIME/GPSSNTP Server 1 Win XP SP2 AccessPoint AccessPoint NCC Uplink NCC Level Station Level Ethernet 100MB Hot-Standby Access Points Bay Level Watchdog Link IEEE802.11a Waveguide
