Presentation Transcript
slide1

Simultaneous Localization and Mapping

Presented by Lihan He

Apr. 21, 2006

slide2

Outline

  • Introduction
  • SLAM using Kalman filter
  • SLAM using particle filter
    • Particle filter
    • SLAM by particle filter
  • My work : searching problem
slide3

Introduction: SLAM

SLAM: Simultaneous Localization and Mapping

A robot is exploring an unknown, static environment.

  • Given:
  • The robot’s controls
  • Observations of nearby features

The controls and observations are both noisy.

  • Estimate:
  • Location of the robot -- localization

where I am ?

  • Detail map of the environment – mapping

What does the world look like?

slide4

a2

at

a1

at-1

x1

x2

xt

xt-1

x0

o2

o1

ot

ot-1

m

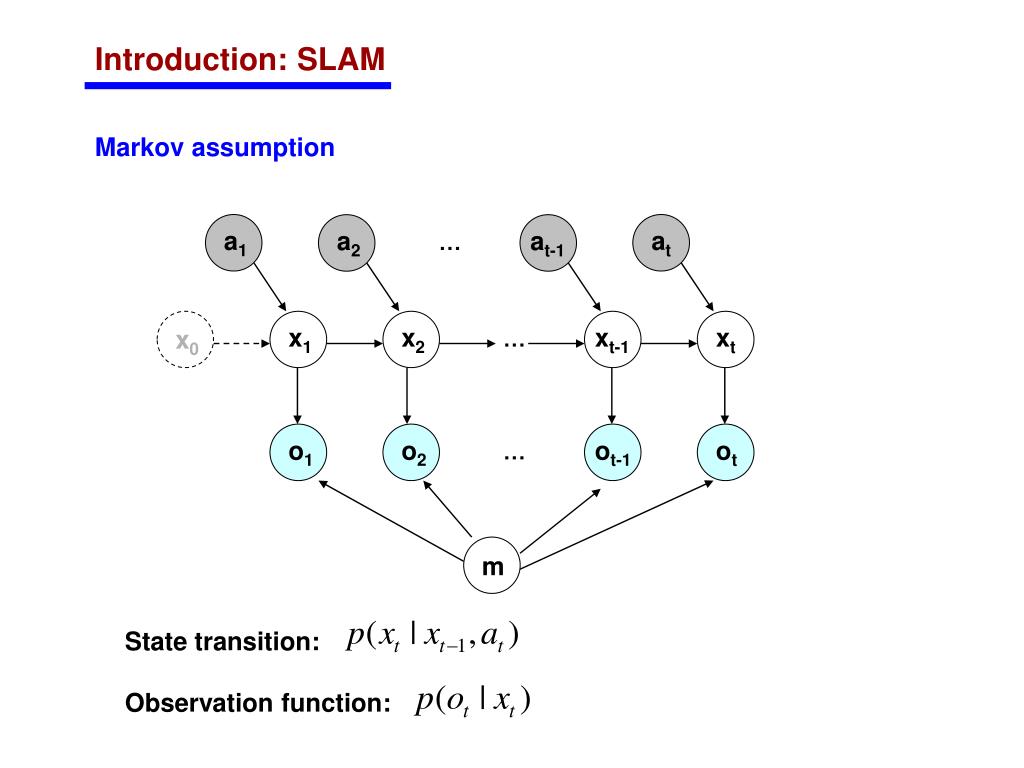

Introduction: SLAM

Markov assumption

State transition:

Observation function:

slide5

p(xt)

p(mt) or mt

p(x1)

p(m1) or m1

p(xt-1)

p(mt-1) or mt-1

Prior distribution on xt after taking action at

Introduction: SLAM

Method: Sequentially estimate the probability distribution p(xt) and update the map.

Prior: p(x0)

slide6

Introduction: SLAM

Map representations

1. Landmark-based map representation

Track the positions of a fixed number of predetermined sparse landmarks.

Observation: estimated distance from each landmark.

2. Grid-based map representation

Map is represented by a fine spatial grid, each grid square is either occupied or empty.

Observation: estimated distance from an obstacle using a laser range finder.

slide7

Represent the distribution of robot location xt(and map mt) by a Normal distribution

Introduction: SLAM

Methods:

The robot’s trajectory estimateis a tracking problem

1. Parametric method – Kalman filter

Sequentially update μt and Σt

2. Sample-based method – particle filter

Represent the distribution of robot location xt(and map mt)by a large amount of simulated samples.

Resample xt (and mt) at each time step

slide8

Location error

Map error

Introduction: SLAM

Why is SLAM a hard problem?

Robot location and map are both unknown.

  • The small error will quickly accumulated over time steps.
  • The errors come from inaccurate measurement of actual robot motion (noisy action) and the distance from obstacle/landmark (noisy observation).

When the robot closes a physical loop in the environment, serious misalignment errors could happen.

slide9

SLAM: Kalman filter

Update equation:

Assume:

Prior p(x0) is a normal distribution

Observation function p(o|x) is a normal distribution

Then:

Posterior p(x1), …, p(xt) are all normally distributed.

Mean μtand covariance matrix Σt can be derived analytically.

Sequentially update μt and Σt for each time step t

slide10

Assume:

State transition

Observation function

Kalman filter:

Propagation (motion model):

Update (sensor model):

SLAM: Kalman filter

slide11

localization

mapping

SLAM: Kalman filter

The hidden state for landmark-based SLAM:

Map with N landmarks: (3+2N)-dimentional Gaussian

State vector xt can be grown as new landmarks are discovered.

slide12

Idea:

  • Normal distribution assumption in Kalman filter is not necessary
  • A set of samples approximates the posterior distribution and will be used at next iteration.
  • Each sample maintains its own map; or all samples maintain a single map.
  • The map(s) is updated upon observation, assuming that the robot location is given correctly.

SLAM: particle filter

Update equation:

slide13

Particle filter:

Assume it is difficult to sample directly from

But get samples from another distribution is easy.

We sample from , with normalized weight for each xit as

The set of (particles) is an approximation of

Resamplextfrom ,with replacement, to get a sample set with uniform weights

SLAM: particle filter

slide14

Particle filter (cont’d):

0.4

0.3

0.2

0.1

SLAM: particle filter

slide15

Choose appropriate

Transition probability

Choose

Then

Observation function

SLAM: particle filter

slide16

Algorithm:

Let state xt represent the robot’s location,

1. Propagate each state through the state transition probability

. This samples a new state given the previous state.

2. Weight each new state according to the observation function

3. Normalize the weights, get .

4. Resampling: sample Ns new states from

are the updated robot location from

SLAM: particle filter

slide17

are the expected robot moving distance (angle) by taking action at.

Measured distance (observation) for sensor k

Map distance from location xtto the obstacle

SLAM: particle filter

State transition probability:

Observation probability:

slide18

SLAM: particle filter

  • Lots of work on SLAM using particle filter are focused on:
  • Reducing the cumulative error
  • Fast SLAM (online)
  • Way to organize the data structure (saving robot path and map).

Maintain single map: cumulative error

Multiple maps: memory and computation time

  • In Parr’s paper:
  • Use ancestry tree to record particle history
  • Each particle has its own map (multiple maps)
  • Use observation tree for each grid square (cell) to record the map corresponding to each particle.
  • Update ancestry tree and observation tree at each iteration.
  • Cell occupancy is represented by a probabilistic approach.
slide20

Searching problem

Assumption:

  • The agent doesn’t have map, doesn’t know the underlying model, doesn’t know where the target is.
  • Agent has 2 sensors:
    • Camera: tell agent “occupied” or “empty” cells in 4 orientations, noisy sensor.
    • Acoustic sensor: find the orientation of the target, effective only within certain distance.
  • Noisy observation, noisy action.
slide21

Searching problem

  • Similar to SLAM
  • To find the target, agent need build map and estimate its location.
  • Differences from SLAM
  • Rough map is enough; an accurate map is not necessary.
  • Objective is to find the target. Robot need to actively select actions to find the target as soon as possible.
slide22

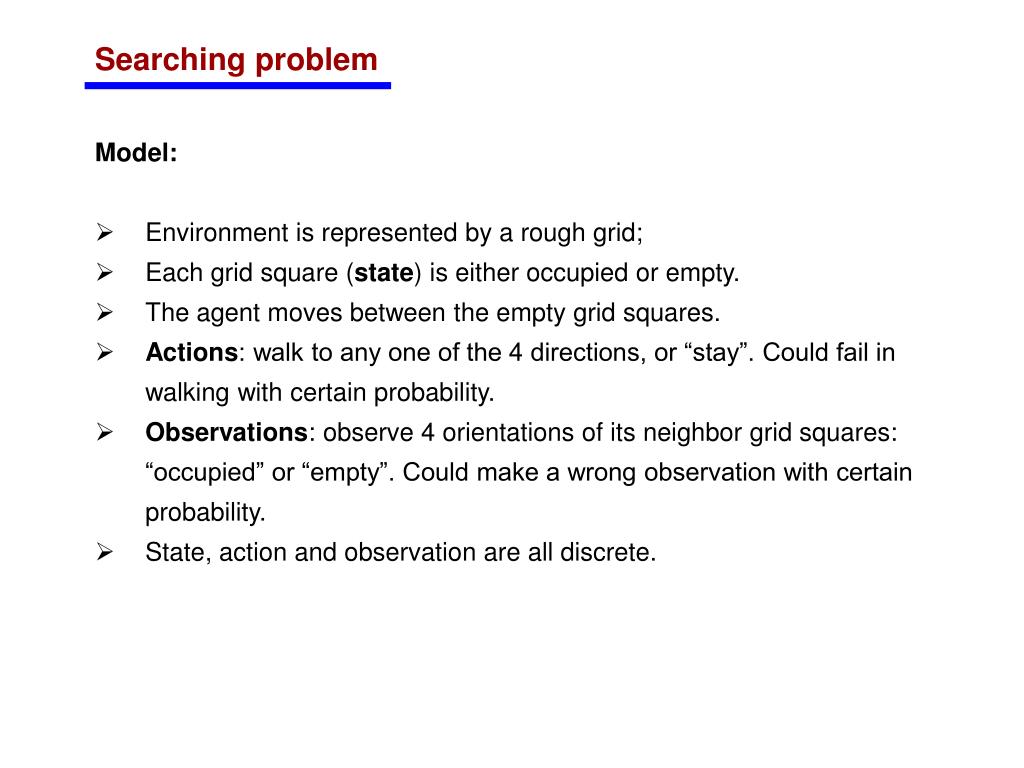

Searching problem

  • Model:
  • Environment is represented by a rough grid;
  • Each grid square (state) is either occupied or empty.
  • The agent moves between the empty grid squares.
  • Actions: walk to any one of the 4 directions, or “stay”. Could fail in walking with certain probability.
  • Observations: observe 4 orientations of its neighbor grid squares: “occupied” or “empty”. Could make a wrong observation with certain probability.
  • State, action and observation are all discrete.
slide23

Searching problem

In each step, the agent updates its location and map:

  • Belief state: the agent believes which state it is currently in. It is a distribution over all the states in the current map.
  • The map: The agent thinks what the environment is .
    • For each state (grid square), a 2-dimentional Dirichlet distribution is used to represent the probability of “empty” and “occupied”.
    • The hyperparameters of Dirichlet distribution are updated based on current observation and belief state.
slide24

Belief state update:

the set of neighbor states of s

where

Probability of successful moving from sjto s when taking action a

From map representation

and

with

Neighbor of s in orientation j

Searching problem

slide25

Assumeat step t-1, the hyperparameter for state S is

At step t, the hyperparameter for state S is updated as

and are the posterior after observing o given that the agent is in the neighbor of state s. If the probability of wrong observation for any orientation is p0,then

p0 if o is “occupied”

1-p0 if o is “empty”

prior

can be computed similarly.

Searching problem

Map update (Dirichlet distribution):

slide26

Searching problem

Belief state update:

a=“up”

a=“right”

Map representation update:

a=“right”

a=“up”

slide27

Searching problem

Choose actions:

Each state is assigned a reward R(s) according to following rules:

Less explored grids have higher reward.

Try to walk to the “empty” grid square.

Consider neighbor of s with priority.
