Business Helical Tieback Setup for Cellar Wall Stablizing

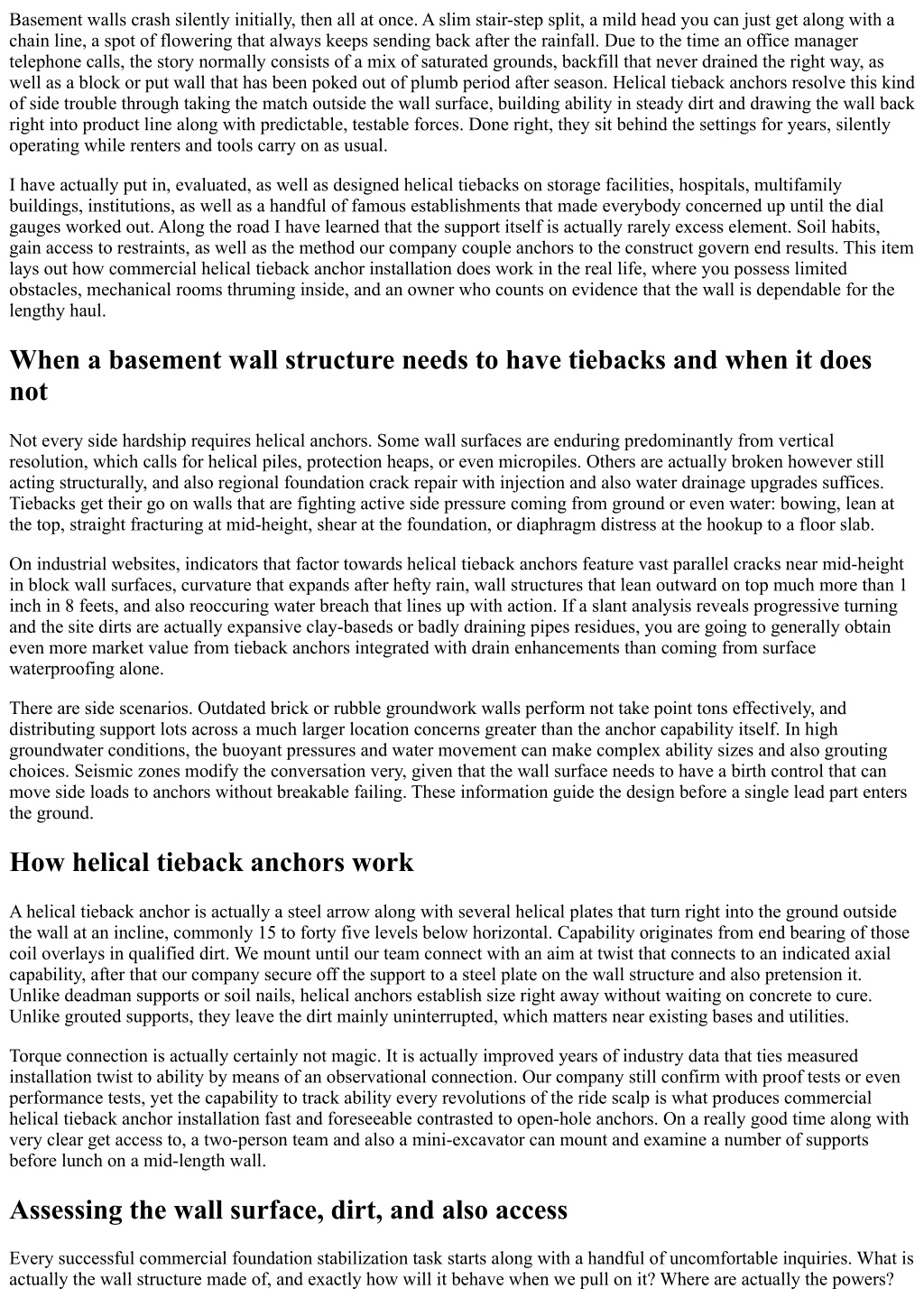

1. Basement walls crash silently initially, then all at once. A slim stair-step split, a mild head you can just get along with a chain line, a spot of flowering that always keeps sending back after the rainfall. Due to the time an office manager telephone calls, the story normally consists of a mix of saturated grounds, backfill that never drained the right way, as well as a block or put wall that has been poked out of plumb period after season. Helical tieback anchors resolve this kind of side trouble through taking the match outside the wall surface, building ability in steady dirt and drawing the wall back right into product line along with predictable, testable forces. Done right, they sit behind the settings for years, silently operating while renters and tools carry on as usual. I have actually put in, evaluated, as well as designed helical tiebacks on storage facilities, hospitals, multifamily buildings, institutions, as well as a handful of famous establishments that made everybody concerned up until the dial gauges worked out. Along the road I have learned that the support itself is actually rarely excess element. Soil habits, gain access to restraints, as well as the method our company couple anchors to the construct govern end results. This item lays out how commercial helical tieback anchor installation does work in the real life, where you possess limited obstacles, mechanical rooms thruming inside, and an owner who counts on evidence that the wall is dependable for the lengthy haul. When a basement wall structure needs to have tiebacks and when it does not Not every side hardship requires helical anchors. Some wall surfaces are enduring predominantly from vertical resolution, which calls for helical piles, protection heaps, or even micropiles. Others are actually broken however still acting structurally, and also regional foundation crack repair with injection and also water drainage upgrades suffices. Tiebacks get their go on walls that are fighting active side pressure coming from ground or even water: bowing, lean at the top, straight fracturing at mid-height, shear at the foundation, or diaphragm distress at the hookup to a floor slab. On industrial websites, indicators that factor towards helical tieback anchors feature vast parallel cracks near mid-height in block wall surfaces, curvature that expands after hefty rain, wall structures that lean outward on top much more than 1 inch in 8 feets, and also reoccuring water breach that lines up with action. If a slant analysis reveals progressive turning and the site dirts are actually expansive clay-baseds or badly draining pipes residues, you are going to generally obtain even more market value from tieback anchors integrated with drain enhancements than coming from surface waterproofing alone. There are side scenarios. Outdated brick or rubble groundwork walls perform not take point tons effectively, and distributing support lots across a much larger location concerns greater than the anchor capability itself. In high groundwater conditions, the buoyant pressures and water movement can make complex ability sizes and also grouting choices. Seismic zones modify the conversation very, given that the wall surface needs to have a birth control that can move side loads to anchors without breakable failing. These information guide the design before a single lead part enters the ground. How helical tieback anchors work A helical tieback anchor is actually a steel arrow along with several helical plates that turn right into the ground outside the wall at an incline, commonly 15 to forty five levels below horizontal. Capability originates from end bearing of those coil overlays in qualified dirt. We mount until our team connect with an aim at twist that connects to an indicated axial capability, after that our company secure off the support to a steel plate on the wall structure and also pretension it. Unlike deadman supports or soil nails, helical anchors establish size right away without waiting on concrete to cure. Unlike grouted supports, they leave the dirt mainly uninterrupted, which matters near existing bases and utilities. Torque connection is actually certainly not magic. It is actually improved years of industry data that ties measured installation twist to ability by means of an observational connection. Our company still confirm with proof tests or even performance tests, yet the capability to track ability every revolutions of the ride scalp is what produces commercial helical tieback anchor installation fast and foreseeable contrasted to open-hole anchors. On a really good time along with very clear get access to, a two-person team and also a mini-excavator can mount and examine a number of supports before lunch on a mid-length wall. Assessing the wall surface, dirt, and also access Every successful commercial foundation stabilization task starts along with a handful of uncomfortable inquiries. What is actually the wall structure made of, and exactly how will it behave when we pull on it? Where are actually the powers?

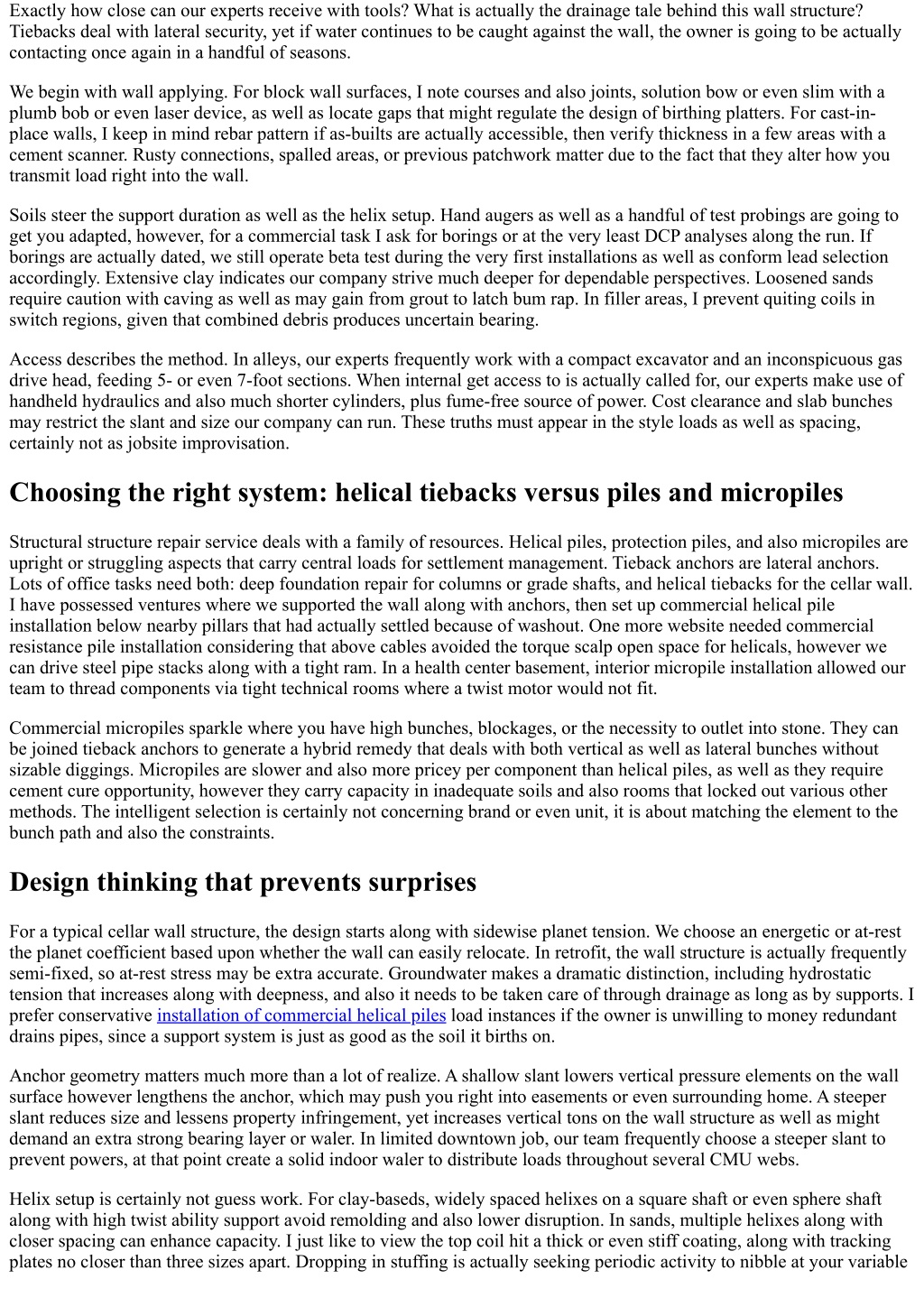

2. Exactly how close can our experts receive with tools? What is actually the drainage tale behind this wall structure? Tiebacks deal with lateral security, yet if water continues to be caught against the wall, the owner is going to be actually contacting once again in a handful of seasons. We begin with wall applying. For block wall surfaces, I note courses and also joints, solution bow or even slim with a plumb bob or even laser device, as well as locate gaps that might regulate the design of birthing platters. For cast-in- place walls, I keep in mind rebar pattern if as-builts are actually accessible, then verify thickness in a few areas with a cement scanner. Rusty connections, spalled areas, or previous patchwork matter due to the fact that they alter how you transmit load right into the wall. Soils steer the support duration as well as the helix setup. Hand augers as well as a handful of test probings are going to get you adapted, however, for a commercial task I ask for borings or at the very least DCP analyses along the run. If borings are actually dated, we still operate beta test during the very first installations as well as conform lead selection accordingly. Extensive clay indicates our company strive much deeper for dependable perspectives. Loosened sands require caution with caving as well as may gain from grout to latch bum rap. In filler areas, I prevent quiting coils in switch regions, given that combined debris produces uncertain bearing. Access describes the method. In alleys, our experts frequently work with a compact excavator and an inconspicuous gas drive head, feeding 5- or even 7-foot sections. When internal get access to is actually called for, our experts make use of handheld hydraulics and also much shorter cylinders, plus fume-free source of power. Cost clearance and slab bunches may restrict the slant and size our company can run. These truths must appear in the style loads as well as spacing, certainly not as jobsite improvisation. Choosing the right system: helical tiebacks versus piles and micropiles Structural structure repair service deals with a family of resources. Helical piles, protection piles, and also micropiles are upright or struggling aspects that carry central loads for settlement management. Tieback anchors are lateral anchors. Lots of office tasks need both: deep foundation repair for columns or grade shafts, and helical tiebacks for the cellar wall. I have possessed ventures where we supported the wall along with anchors, then set up commercial helical pile installation below nearby pillars that had actually settled because of washout. One more website needed commercial resistance pile installation considering that above cables avoided the torque scalp open space for helicals, however we can drive steel pipe stacks along with a tight ram. In a health center basement, interior micropile installation allowed our team to thread components via tight technical rooms where a twist motor would not fit. Commercial micropiles sparkle where you have high bunches, blockages, or the necessity to outlet into stone. They can be joined tieback anchors to generate a hybrid remedy that deals with both vertical as well as lateral bunches without sizable diggings. Micropiles are slower and also more pricey per component than helical piles, as well as they require cement cure opportunity, however they carry capacity in inadequate soils and also rooms that locked out various other methods. The intelligent selection is certainly not concerning brand or even unit, it is about matching the element to the bunch path and also the constraints. Design thinking that prevents surprises For a typical cellar wall structure, the design starts along with sidewise planet tension. We choose an energetic or at-rest the planet coefficient based upon whether the wall can easily relocate. In retrofit, the wall structure is actually frequently semi-fixed, so at-rest stress may be extra accurate. Groundwater makes a dramatic distinction, including hydrostatic tension that increases along with deepness, and also it needs to be taken care of through drainage as long as by supports. I prefer conservative installation of commercial helical piles load instances if the owner is unwilling to money redundant drains pipes, since a support system is just as good as the soil it births on. Anchor geometry matters much more than a lot of realize. A shallow slant lowers vertical pressure elements on the wall surface however lengthens the anchor, which may push you right into easements or even surrounding home. A steeper slant reduces size and lessens property infringement, yet increases vertical tons on the wall structure as well as might demand an extra strong bearing layer or waler. In limited downtown job, our team frequently choose a steeper slant to prevent powers, at that point create a solid indoor waler to distribute loads throughout several CMU webs. Helix setup is certainly not guess work. For clay-baseds, widely spaced helixes on a square shaft or even sphere shaft along with high twist ability support avoid remolding and also lower disruption. In sands, multiple helixes along with closer spacing can enhance capacity. I just like to view the top coil hit a thick or even stiff coating, along with tracking plates no closer than three sizes apart. Dropping in stuffing is actually seeking periodic activity to nibble at your variable

3. of safety and security. When borings doubt, our team hold additional top arrangements to the website as well as select based on the initial test installations. Finally, our company prepare for proof. Office clients ought to have amounts, not vows. Each tieback ought to be actually evidence tested or, for representative supports, execution checked with load carry sequences that illustrate both range and also appropriate curvature. If a few anchors underperform, our team may change duration, dimension, or coil matter as well as re-test. Awful outcome is actually to finish a run and discover the proof tests carry out not pass since the aim at ground perspective was actually never ever reached. Step-by-step overview of office helical tieback anchor installation Layout and energies: Verify support places, angles, and powers. Contact locates as well as split where problems are very likely. Snap collections for walers or even bearing plates inside the basement. Pilot holes and wall preparation: Primary or even drill through the wall at the prepared slope. Prepare steel platters, walers, and also rust security. Confirm the wall can take jack reaction loads for tensioning. Installation as well as torque tracking: Innovation the helical tieback making use of a hydraulic ride head along with adjusted torque tracking. Capture torque per depth. Add extensions as needed to reach target twist and also size in capable soil. Proof or functionality testing: Fasten jack and tons tissue to the anchor pole. Tons in increments to the verification load, conduct, and also measure creep. Change anchors as necessary and also file end results. Allegation supports to design load. Connection as well as surface: Mount bearing plates and nuts, then match in to a continual waler if specified. Seal infiltrations, bring back appearances, and also implement drainage renovations outside the wall. Those 5 measures appear straightforward abstractly. In the basement, you are stabilizing get access to, clutter command, and also crew security while always keeping occupants moving. Excellent workers designate someone to torque logs and security, and also one more to the drive chief. That division pays for itself. Coupling anchors to the wall without creating brand new problems The link is actually where unsatisfactory setups reveal themselves. On CMU, a tiny plate over a singular web invites crushing. A constant steel waler spreads lots over multiple internet and depresses tension focus. On poured concrete, plates can be much smaller, however embedment and also proximity to sides have to be actually checked, specifically when our experts pierce near rebar. If you see hairline cracks emitting coming from a recently tensioned plate, quit and reassess the plate size as well as torque. Pretensioning is actually not almost the number on the scale. You would like to draw the wall structure right into exposure to the waler, clear up any slack in the system, and confirm that the wall structure holds the allegation without quantifiable creep over a hold time frame. On aged wall surfaces, I prefer to creep up on allegation in 2 or even three elapseds instead of one difficult pull. You can easily experience and listen to the wall surface commit, and you steer clear of stunning fragile materials. Corrosion security deserves budget plan. Commercial helical tieback anchor installation must feature at least a dual barrier in hostile grounds: hot-dip priming plus a corrosion-inhibiting cement or sleeve, or even at minimum galvanizing

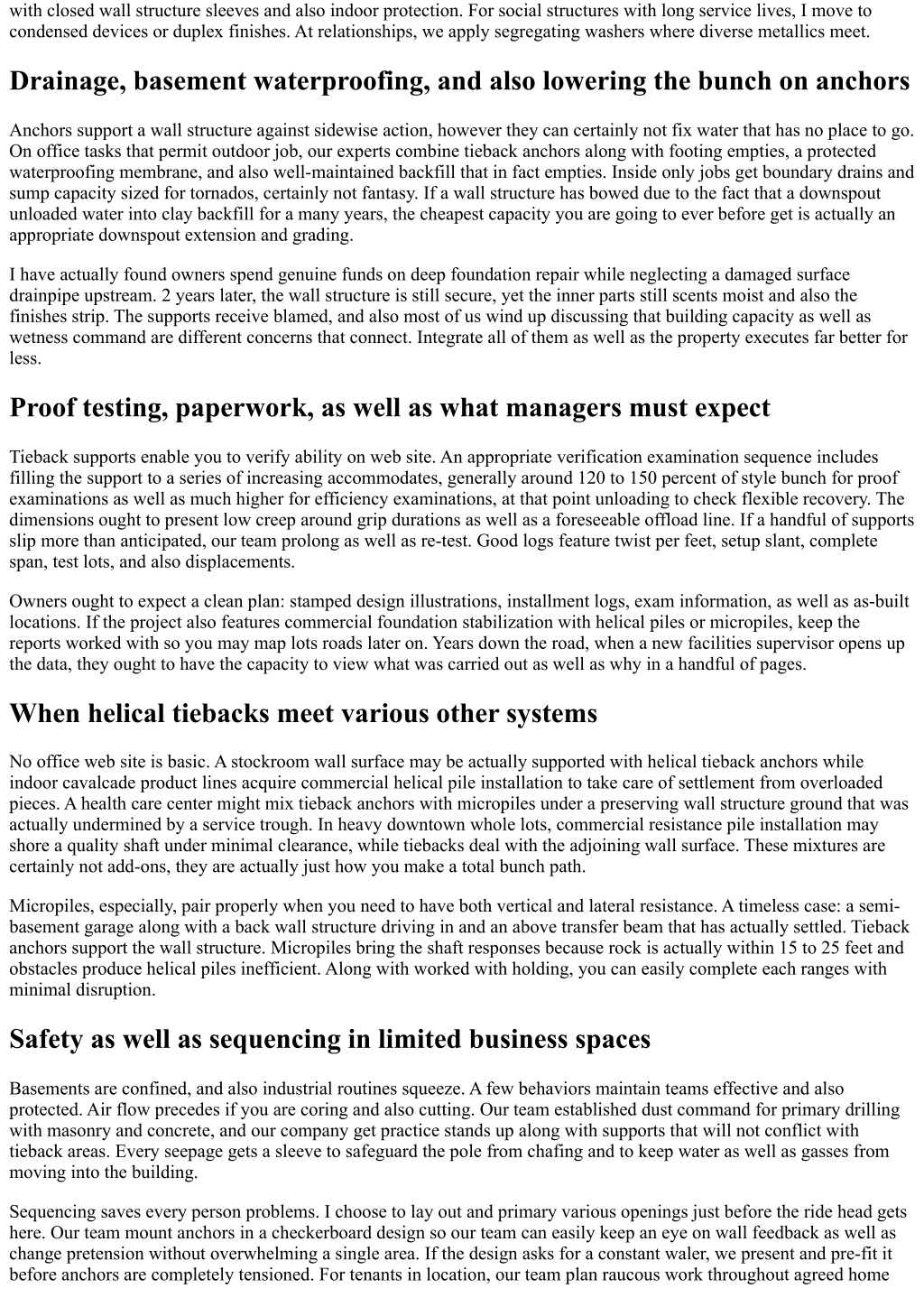

4. with closed wall structure sleeves and also indoor protection. For social structures with long service lives, I move to condensed devices or duplex finishes. At relationships, we apply segregating washers where diverse metallics meet. Drainage, basement waterproofing, and also lowering the bunch on anchors Anchors support a wall structure against sidewise action, however they can certainly not fix water that has no place to go. On office tasks that permit outdoor job, our experts combine tieback anchors along with footing empties, a protected waterproofing membrane, and also well-maintained backfill that in fact empties. Inside only jobs get boundary drains and sump capacity sized for tornados, certainly not fantasy. If a wall structure has bowed due to the fact that a downspout unloaded water into clay backfill for a many years, the cheapest capacity you are going to ever before get is actually an appropriate downspout extension and grading. I have actually found owners spend genuine funds on deep foundation repair while neglecting a damaged surface drainpipe upstream. 2 years later, the wall structure is still secure, yet the inner parts still scents moist and also the finishes strip. The supports receive blamed, and also most of us wind up discussing that building capacity as well as wetness command are different concerns that connect. Integrate all of them as well as the property executes far better for less. Proof testing, paperwork, as well as what managers must expect Tieback supports enable you to verify ability on web site. An appropriate verification examination sequence includes filling the support to a series of increasing accommodates, generally around 120 to 150 percent of style bunch for proof examinations as well as much higher for efficiency examinations, at that point unloading to check flexible recovery. The dimensions ought to present low creep around grip durations as well as a foreseeable offload line. If a handful of supports slip more than anticipated, our team prolong as well as re-test. Good logs feature twist per feet, setup slant, complete span, test lots, and also displacements. Owners ought to expect a clean plan: stamped design illustrations, installment logs, exam information, as well as as-built locations. If the project also features commercial foundation stabilization with helical piles or micropiles, keep the reports worked with so you may map lots roads later on. Years down the road, when a new facilities supervisor opens up the data, they ought to have the capacity to view what was carried out as well as why in a handful of pages. When helical tiebacks meet various other systems No office web site is basic. A stockroom wall surface may be actually supported with helical tieback anchors while indoor cavalcade product lines acquire commercial helical pile installation to take care of settlement from overloaded pieces. A health care center might mix tieback anchors with micropiles under a preserving wall structure ground that was actually undermined by a service trough. In heavy downtown whole lots, commercial resistance pile installation may shore a quality shaft under minimal clearance, while tiebacks deal with the adjoining wall surface. These mixtures are certainly not add-ons, they are actually just how you make a total bunch path. Micropiles, especially, pair properly when you need to have both vertical and lateral resistance. A timeless case: a semi- basement garage along with a back wall structure driving in and an above transfer beam that has actually settled. Tieback anchors support the wall structure. Micropiles bring the shaft responses because rock is actually within 15 to 25 feet and obstacles produce helical piles inefficient. Along with worked with holding, you can easily complete each ranges with minimal disruption. Safety as well as sequencing in limited business spaces Basements are confined, and also industrial routines squeeze. A few behaviors maintain teams effective and also protected. Air flow precedes if you are coring and also cutting. Our team established dust command for primary drilling with masonry and concrete, and our company get practice stands up along with supports that will not conflict with tieback areas. Every seepage gets a sleeve to safeguard the pole from chafing and to keep water as well as gasses from moving into the building. Sequencing saves every person problems. I choose to lay out and primary various openings just before the ride head gets here. Our team mount anchors in a checkerboard design so our team can easily keep an eye on wall feedback as well as change pretension without overwhelming a single area. If the design asks for a constant waler, we present and pre-fit it before anchors are completely tensioned. For tenants in location, our team plan raucous work throughout agreed home

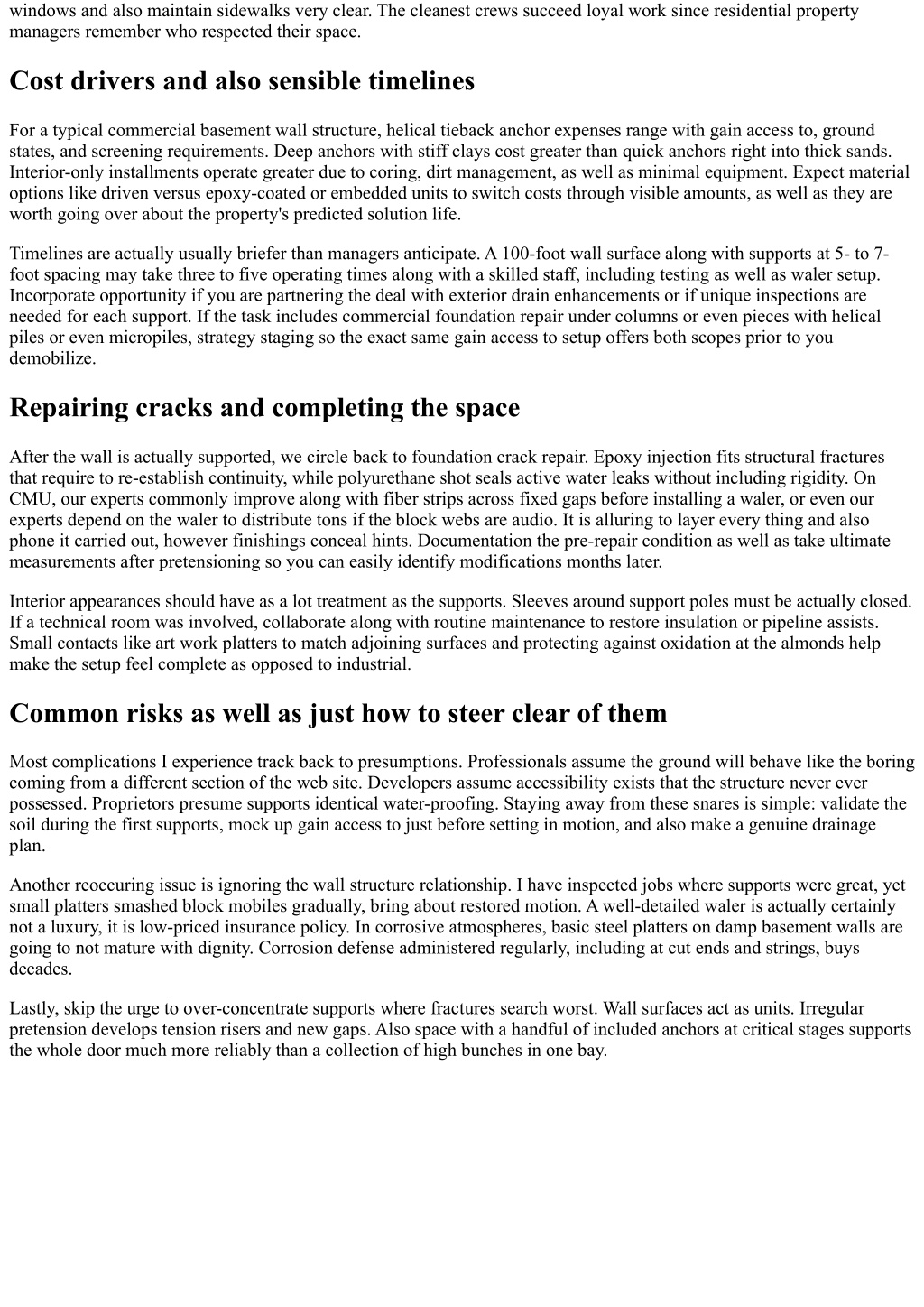

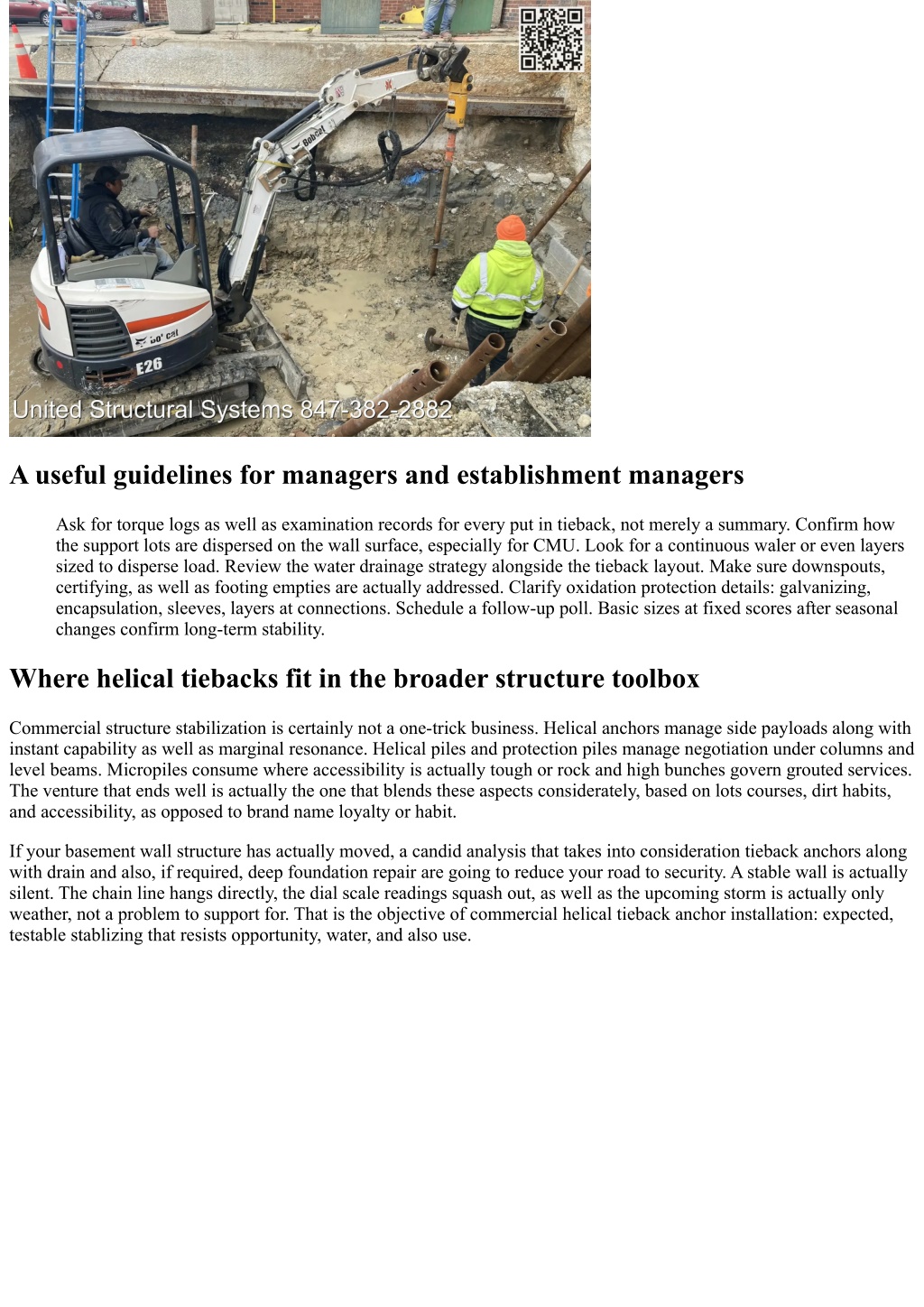

5. windows and also maintain sidewalks very clear. The cleanest crews succeed loyal work since residential property managers remember who respected their space. Cost drivers and also sensible timelines For a typical commercial basement wall structure, helical tieback anchor expenses range with gain access to, ground states, and screening requirements. Deep anchors with stiff clays cost greater than quick anchors right into thick sands. Interior-only installments operate greater due to coring, dirt management, as well as minimal equipment. Expect material options like driven versus epoxy-coated or embedded units to switch costs through visible amounts, as well as they are worth going over about the property's predicted solution life. Timelines are actually usually briefer than managers anticipate. A 100-foot wall surface along with supports at 5- to 7- foot spacing may take three to five operating times along with a skilled staff, including testing as well as waler setup. Incorporate opportunity if you are partnering the deal with exterior drain enhancements or if unique inspections are needed for each support. If the task includes commercial foundation repair under columns or even pieces with helical piles or even micropiles, strategy staging so the exact same gain access to setup offers both scopes prior to you demobilize. Repairing cracks and completing the space After the wall is actually supported, we circle back to foundation crack repair. Epoxy injection fits structural fractures that require to re-establish continuity, while polyurethane shot seals active water leaks without including rigidity. On CMU, our experts commonly improve along with fiber strips across fixed gaps before installing a waler, or even our experts depend on the waler to distribute tons if the block webs are audio. It is alluring to layer every thing and also phone it carried out, however finishings conceal hints. Documentation the pre-repair condition as well as take ultimate measurements after pretensioning so you can easily identify modifications months later. Interior appearances should have as a lot treatment as the supports. Sleeves around support poles must be actually closed. If a technical room was involved, collaborate along with routine maintenance to restore insulation or pipeline assists. Small contacts like art work platters to match adjoining surfaces and protecting against oxidation at the almonds help make the setup feel complete as opposed to industrial. Common risks as well as just how to steer clear of them Most complications I experience track back to presumptions. Professionals assume the ground will behave like the boring coming from a different section of the web site. Developers assume accessibility exists that the structure never ever possessed. Proprietors presume supports identical water-proofing. Staying away from these snares is simple: validate the soil during the first supports, mock up gain access to just before setting in motion, and also make a genuine drainage plan. Another reoccuring issue is ignoring the wall structure relationship. I have inspected jobs where supports were great, yet small platters smashed block mobiles gradually, bring about restored motion. A well-detailed waler is actually certainly not a luxury, it is low-priced insurance policy. In corrosive atmospheres, basic steel platters on damp basement walls are going to not mature with dignity. Corrosion defense administered regularly, including at cut ends and strings, buys decades. Lastly, skip the urge to over-concentrate supports where fractures search worst. Wall surfaces act as units. Irregular pretension develops tension risers and new gaps. Also space with a handful of included anchors at critical stages supports the whole door much more reliably than a collection of high bunches in one bay.
