Presentation Transcript
slide1

Sequence analysis of CpG islands reveals possiblefunctional correlation between genes and its CpG island sequence

Henry Hyun-il Paik

Bioinformatics, School of Informatics

Indiana University

outline
Outline
  • What CpG islands are
  • The Known Relations between CpG islands and Genes
  • Motivation and Goal
  • Data set
  • Procedures
  • Results
  • Discussion

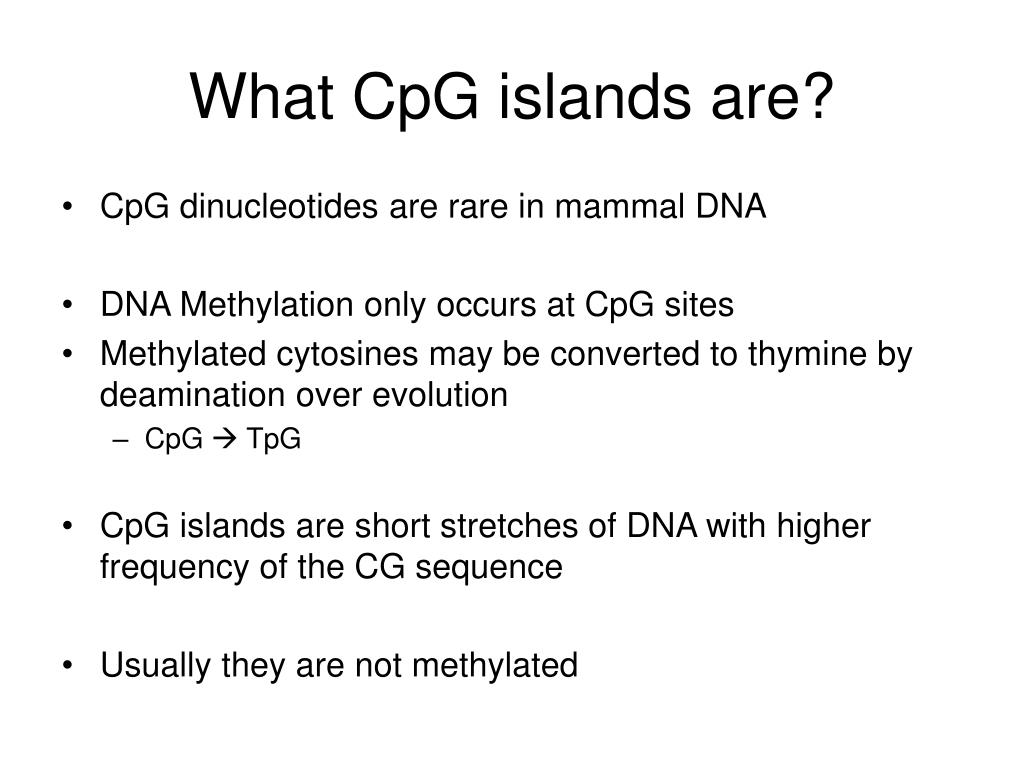

what cpg islands are
What CpG islands are?
  • CpG dinucleotides are rare in mammal DNA
  • DNA Methylation only occurs at CpG sites
  • Methylated cytosines may be converted to thymine by deamination over evolution
    • CpG  TpG
  • CpG islands are short stretches of DNA with higher frequency of the CG sequence
  • Usually they are not methylated
what cpg islands are4
What CpG islands are?
  • Definition from Gardiner-Garden & Frommer
    • At least 200 bases long
    • G+C content: > 50%
    • observed CpG/expected CpG ratio: >= 0.6
  • Definition from Takai & Jones
    • Longer than 500 bp
    • G+C content: > 55%
    • observed CpG/expected CpG ratio: >= 0.65
    • With this definition, these CpGi’s are more likely to be associated with the 5’ regions of genes and exclude most Alu’s
  • There are about 29,000 such regions in the human genome

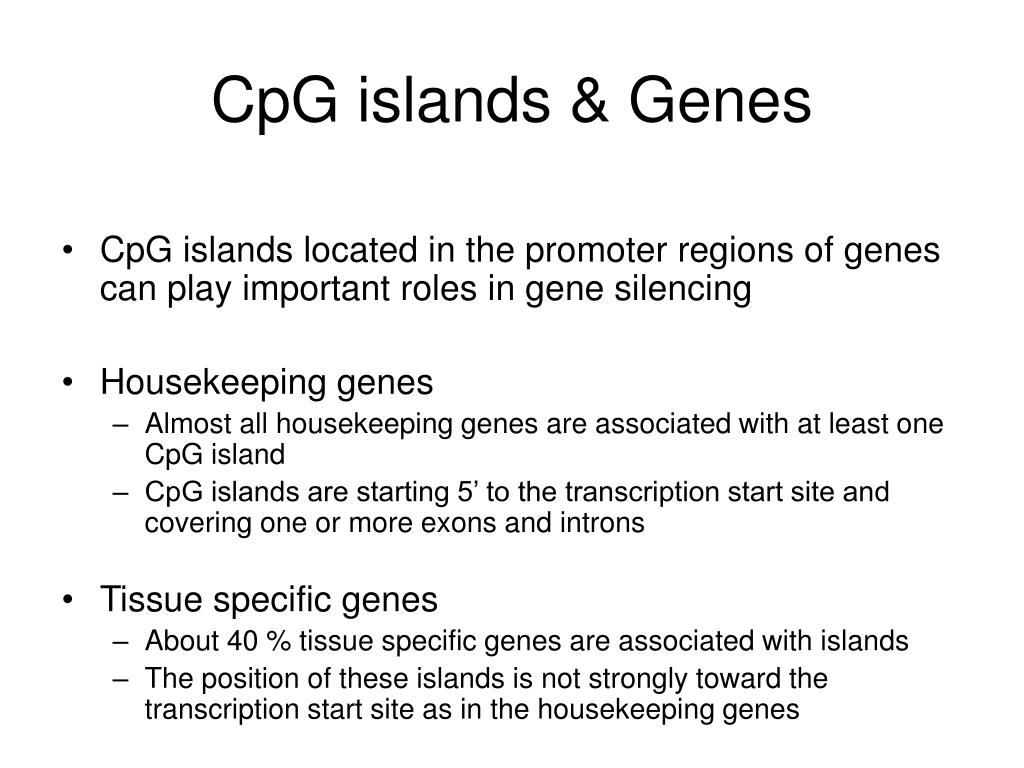

cpg islands genes
CpG islands & Genes
  • CpG islands located in the promoter regions of genes can play important roles in gene silencing
  • Housekeeping genes
    • Almost all housekeeping genes are associated with at least one CpG island
    • CpG islands are starting 5’ to the transcription start site and covering one or more exons and introns
  • Tissue specific genes
    • About 40 % tissue specific genes are associated with islands
    • The position of these islands is not strongly toward the transcription start site as in the housekeeping genes

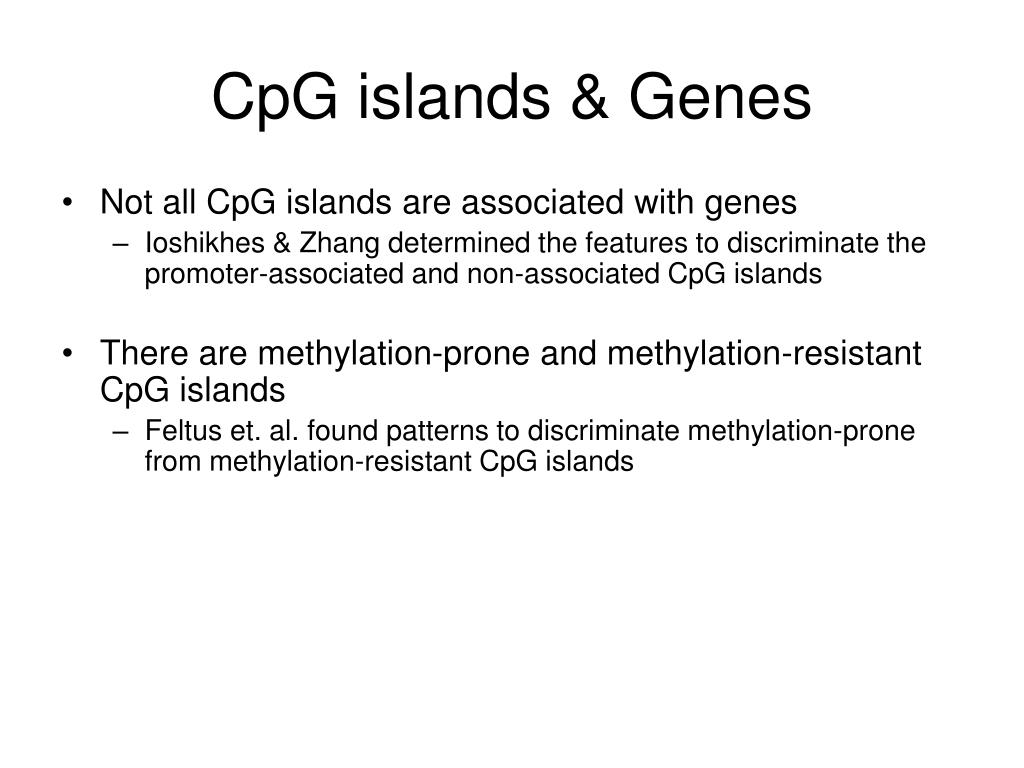

cpg islands genes7
CpG islands & Genes
  • Not all CpG islands are associated with genes
    • Ioshikhes & Zhang determined the features to discriminate the promoter-associated and non-associated CpG islands
  • There are methylation-prone and methylation-resistant CpG islands
    • Feltus et. al. found patterns to discriminate methylation-prone from methylation-resistant CpG islands

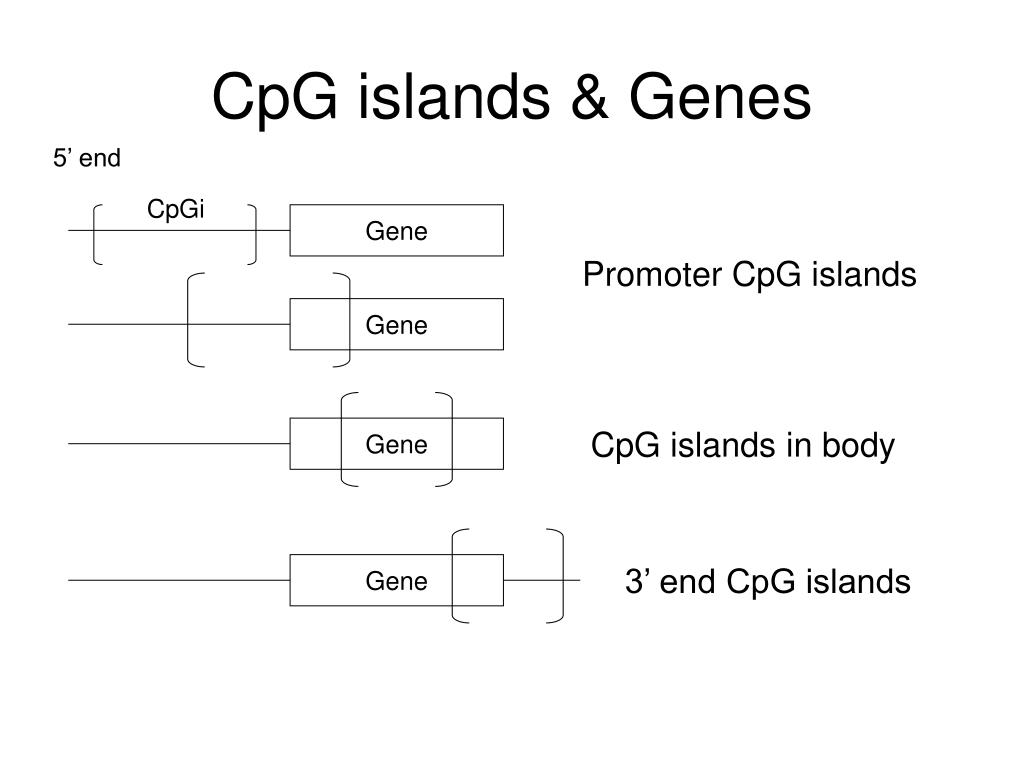

cpg islands genes8
CpG islands & Genes

5’ end

CpGi

Gene

Promoter CpG islands

Gene

Gene

CpG islands in body

Gene

3’ end CpG islands

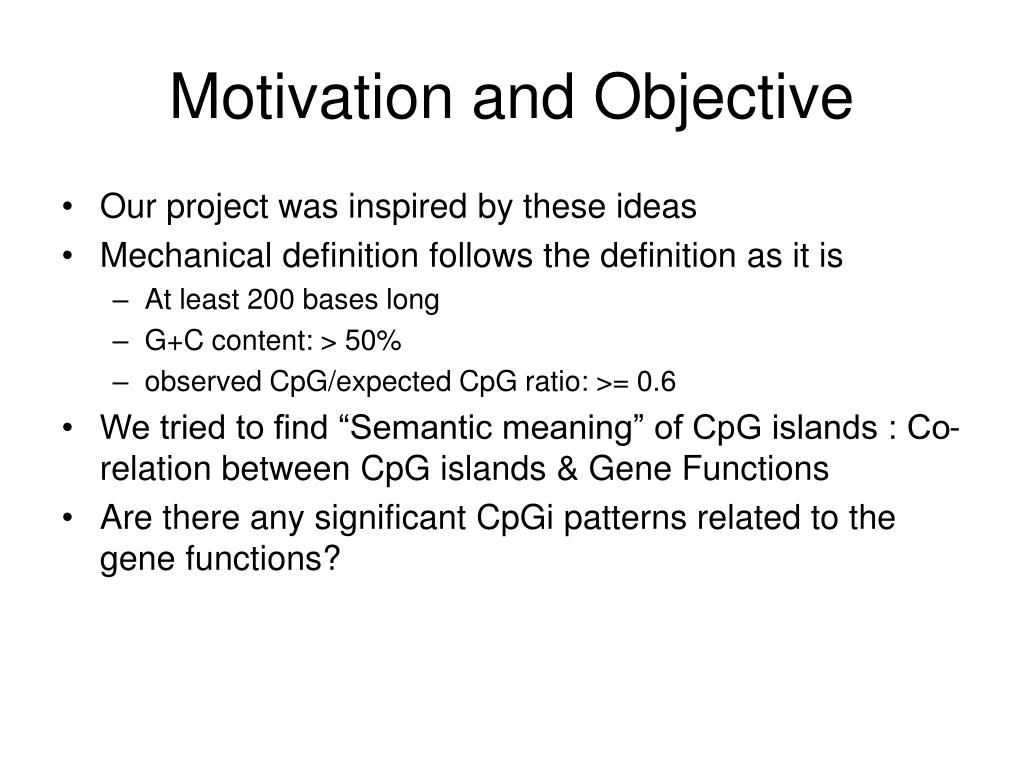

motivation and objective
Motivation and Objective
  • Our project was inspired by these ideas
  • Mechanical definition follows the definition as it is
    • At least 200 bases long
    • G+C content: > 50%
    • observed CpG/expected CpG ratio: >= 0.6
  • We tried to find “Semantic meaning” of CpG islands : Co-relation between CpG islands & Gene Functions
  • Are there any significant CpGi patterns related to the gene functions?

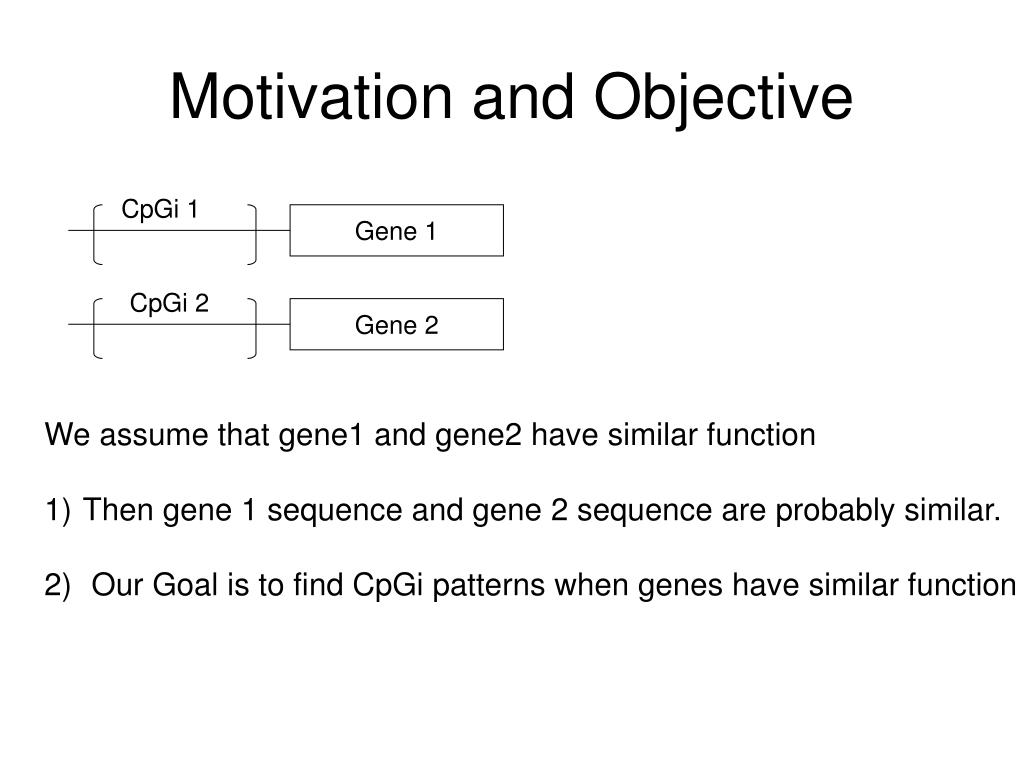

motivation and objective10
Motivation and Objective

CpGi 1

Gene 1

CpGi 2

Gene 2

  • We assume that gene1 and gene2 have similar function
  • Then gene 1 sequence and gene 2 sequence are probably similar.
  • Our Goal is to find CpGi patterns when genes have similar function

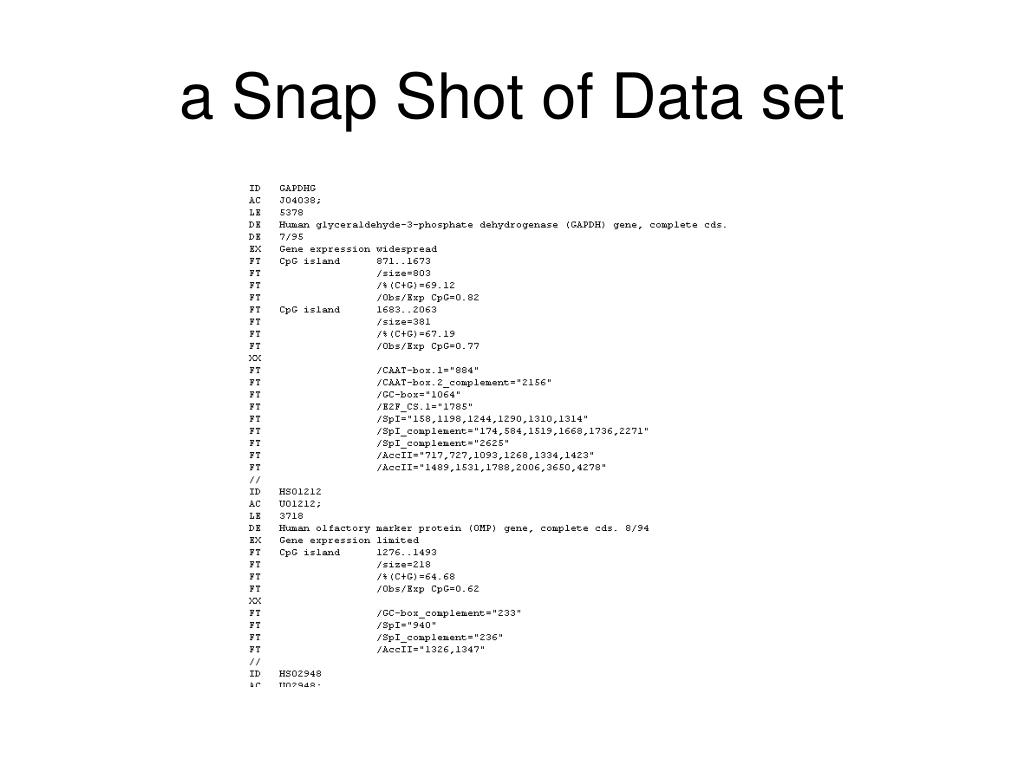

data set
Data Set
  • Reference:
  • Larsen F., Gundersen, G., Lopez L., Prydz H.
  • CpG island as Gene Markers in the Human Genome
  • Genomics 13:1095-1107 (1992)
  • Total number of entries: 1711
  • Entries with no islands: 1212
  • Entries with islands: 499
  • Total number of islands: 928
  • The Length of CpG islands
    • Average size of islands: 465 bp
    • Shortest detectable island: 200 bp
    • Largest island: 3340 bp

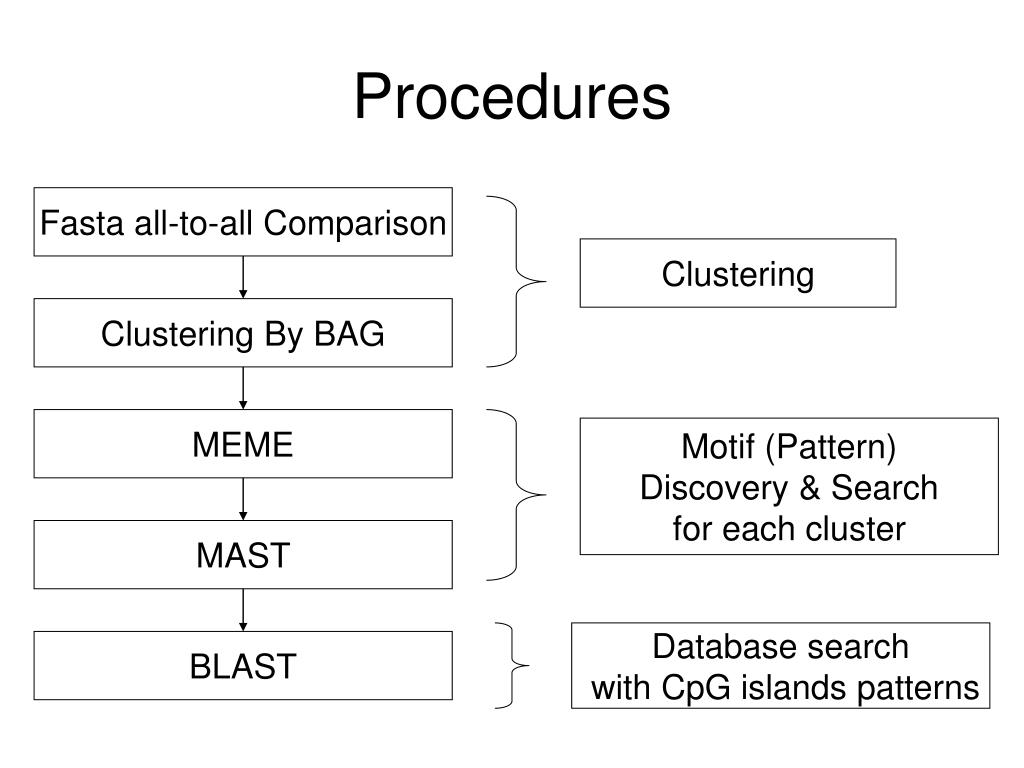

procedures
Procedures

Fasta all-to-all Comparison

Clustering

Clustering By BAG

MEME

Motif (Pattern)

Discovery & Search

for each cluster

MAST

Database search

with CpG islands patterns

BLAST

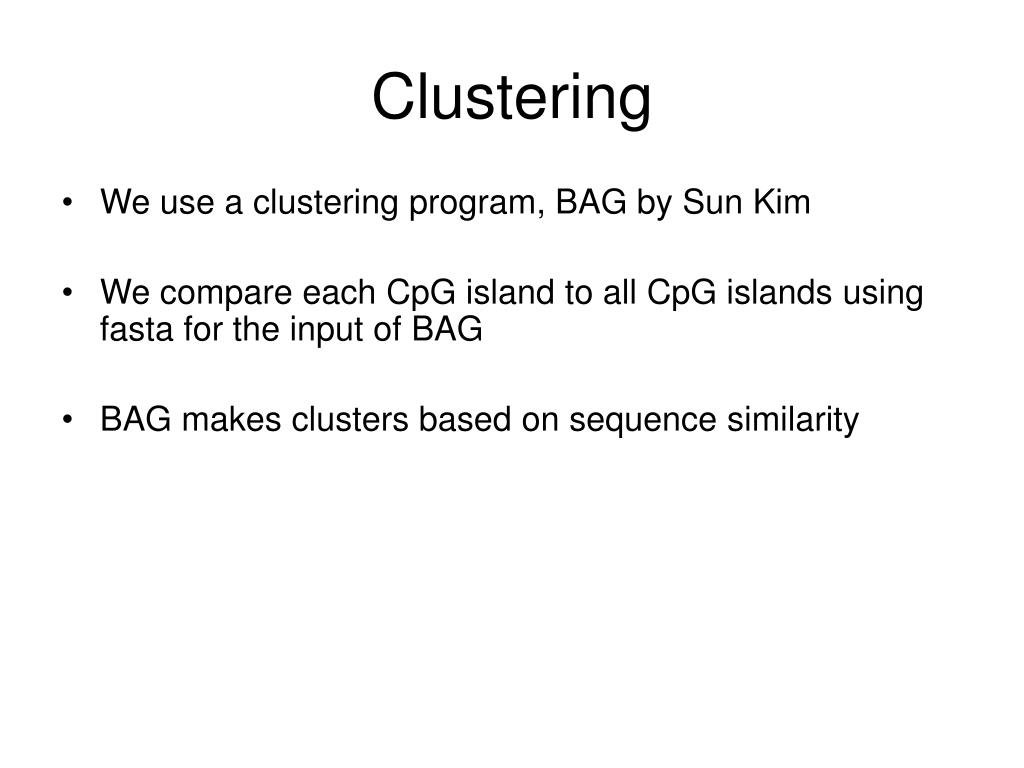

clustering
Clustering
  • We use a clustering program, BAG by Sun Kim
  • We compare each CpG island to all CpG islands using fasta for the input of BAG
  • BAG makes clusters based on sequence similarity

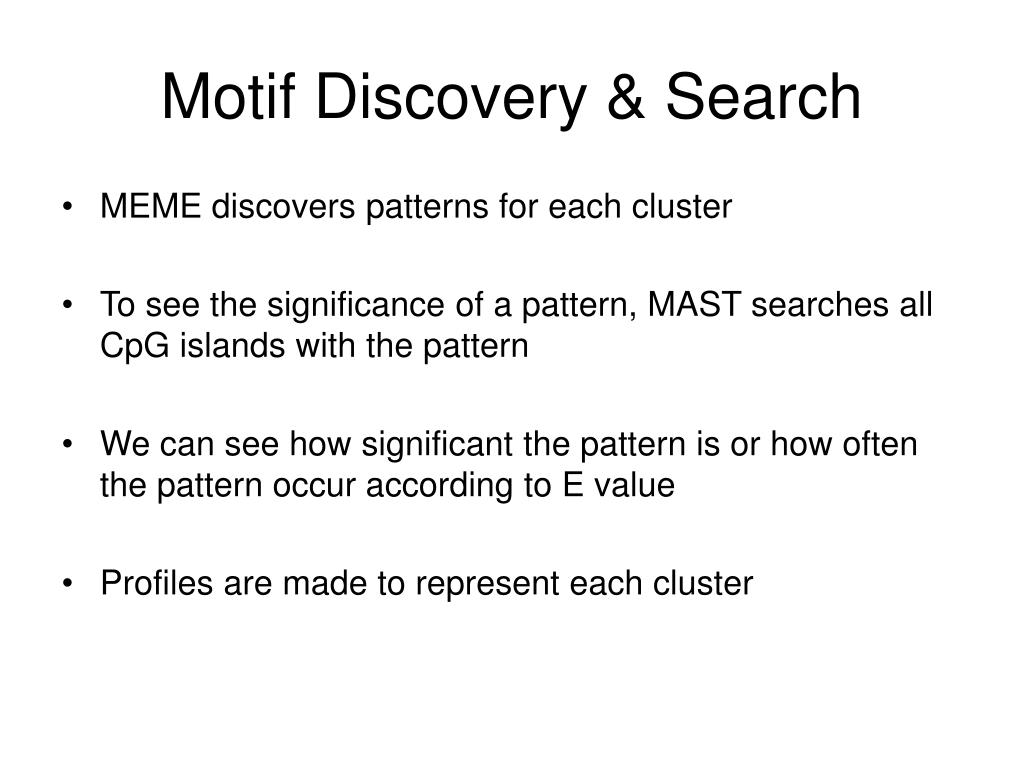

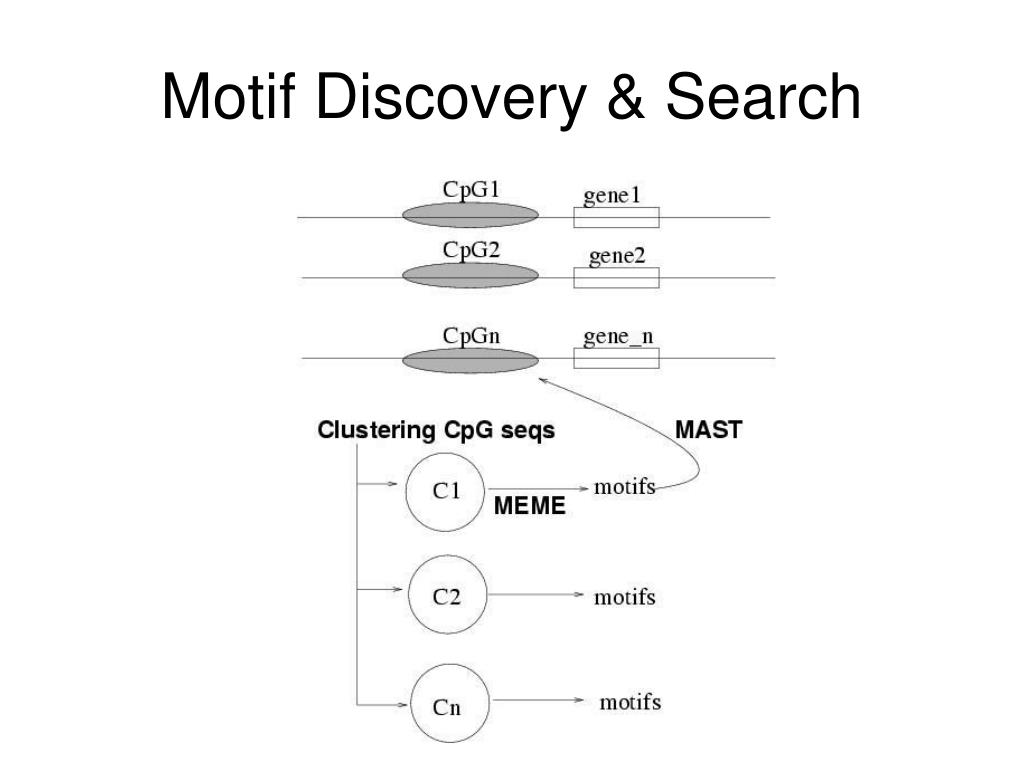

motif discovery search
Motif Discovery & Search
  • MEME discovers patterns for each cluster
  • To see the significance of a pattern, MAST searches all CpG islands with the pattern
  • We can see how significant the pattern is or how often the pattern occur according to E value
  • Profiles are made to represent each cluster
blast
BLAST
  • The entire GenBank was searched with CpG island profile, not with Gene
  • We see how efficiently the profile can find the genes that have similar function
  • This verifies the validity of the profile
results
Results
  • There are 26 clusters in which members have similar gene function among total 115 clusters
  • These 26 clusters are divided into two categories depending on CpGi location
    • 18 clusters have CpGi’s in coding region
    • 8 clusters have CpGi’s in promoter region
results19
Results
  • One example from CpGi in body
  • Cluster # 18 : Human heat-shock protein HSP70B' gene
    • Meme
    • Mast
    • profile sequence ATCATCGCCAACGACCAGGGCAACCGCACCACCCCCAGCTACGTGGCCTT
    • Blast

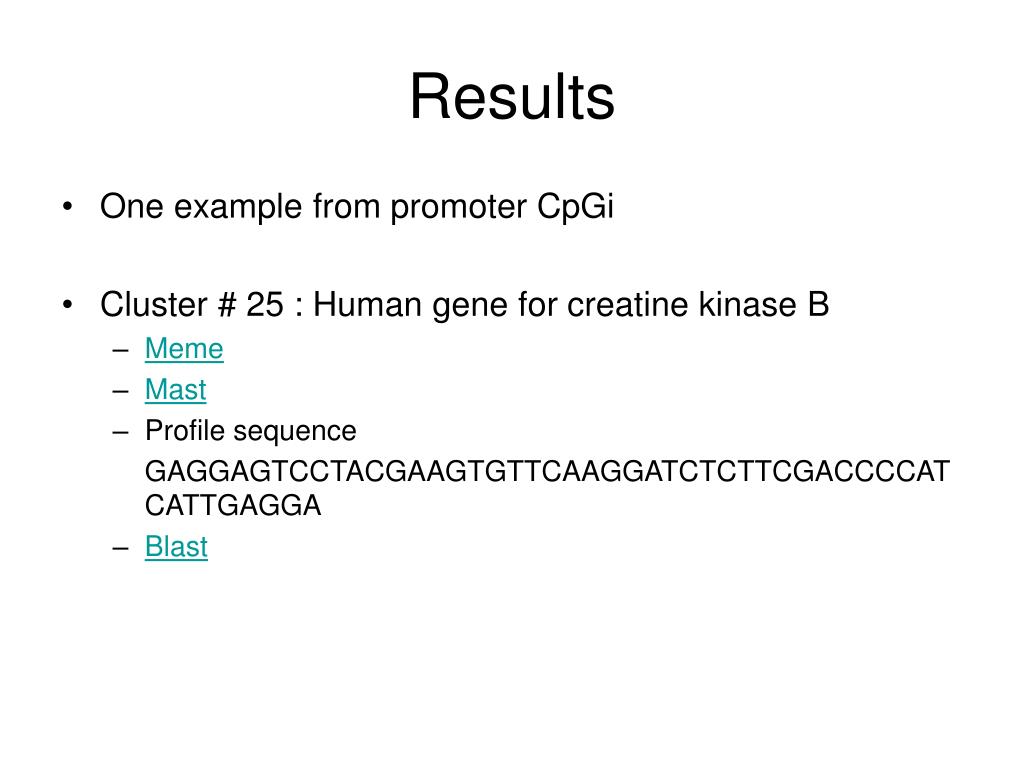

results20
Results
  • One example from promoter CpGi
  • Cluster # 25 : Human gene for creatine kinase B
    • Meme
    • Mast
    • Profile sequence

GAGGAGTCCTACGAAGTGTTCAAGGATCTCTTCGACCCCATCATTGAGGA

    • Blast

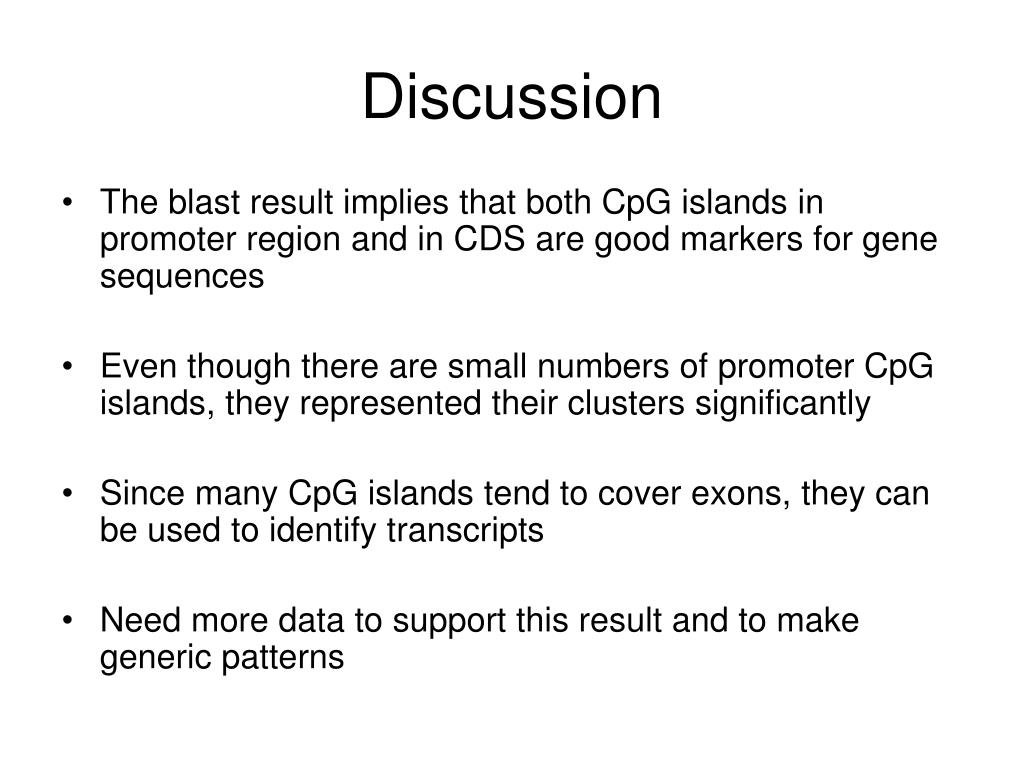

discussion
Discussion
  • The blast result implies that both CpG islands in promoter region and in CDS are good markers for gene sequences
  • Even though there are small numbers of promoter CpG islands, they represented their clusters significantly
  • Since many CpG islands tend to cover exons, they can be used to identify transcripts
  • Need more data to support this result and to make generic patterns
acknowledgement
Acknowledgement
  • Dr. Sun Kim
  • Dr. Paul Ma
  • Arvind
  • Bioperl community
