1. RC tutorial David Verstraeten

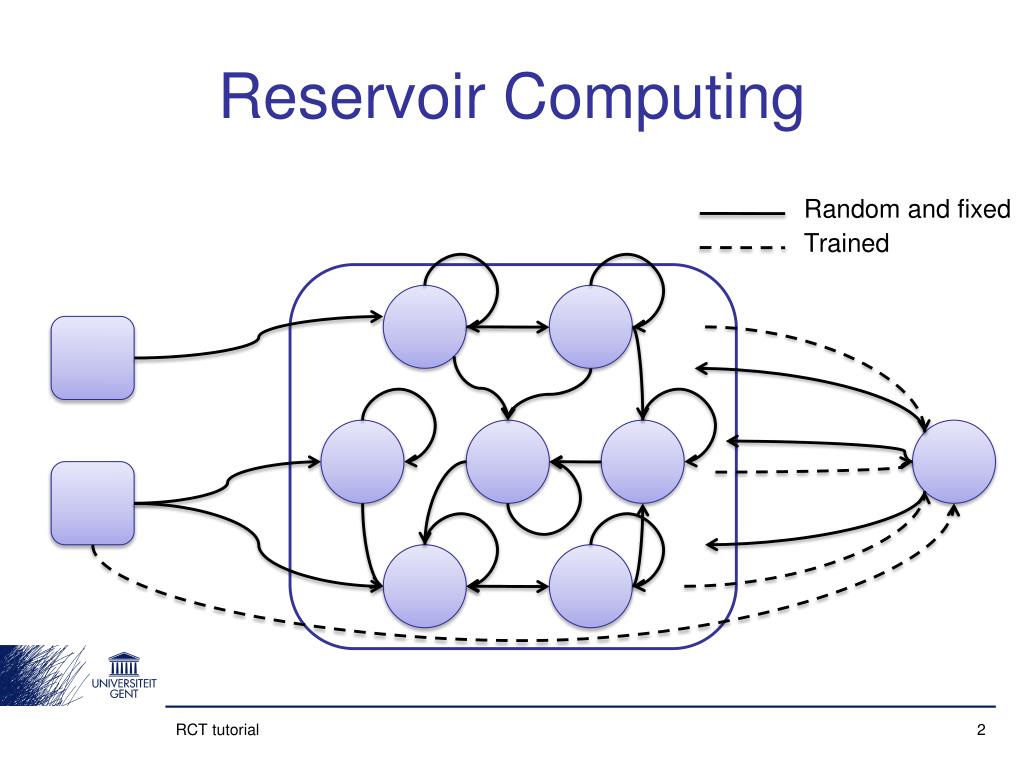

2. Reservoir Computing Random and fixed Trained

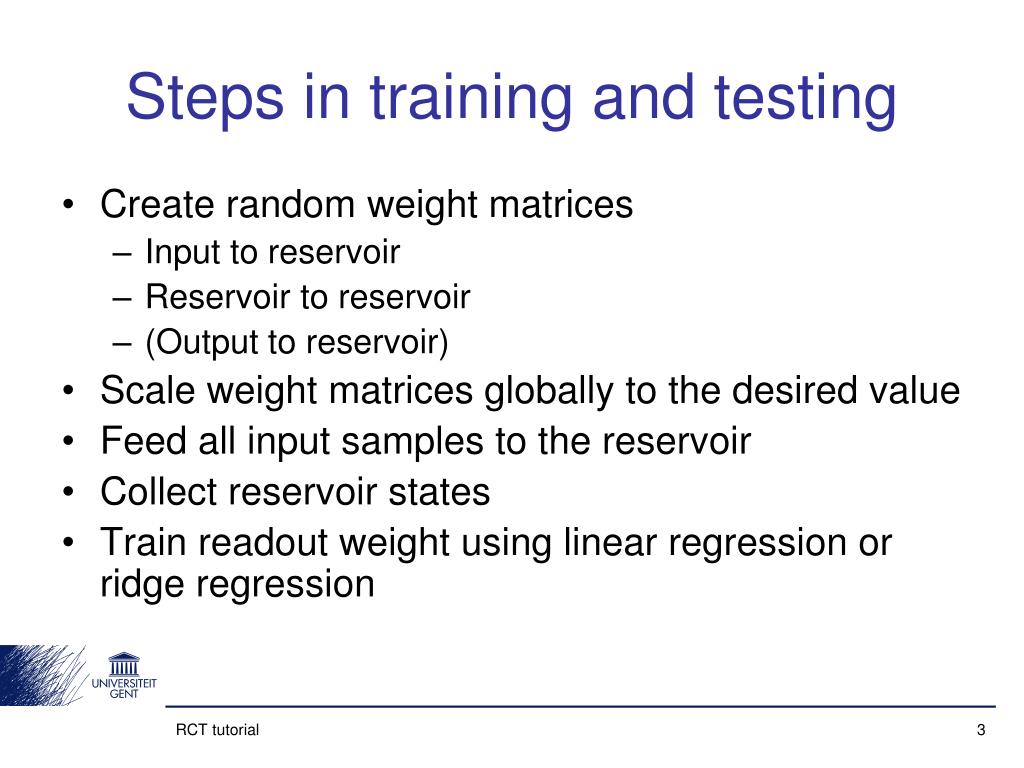

3. Steps in training and testing • Create random weight matrices • Input to reservoir • Reservoir to reservoir • (Output to reservoir) • Scale weight matrices globally to the desired value • Feed all input samples to the reservoir • Collect reservoir states • Train readout weight using linear regression or ridge regression

4. Scaling reservoir matrix:Spectral radius LTI system RC system Spectral radius

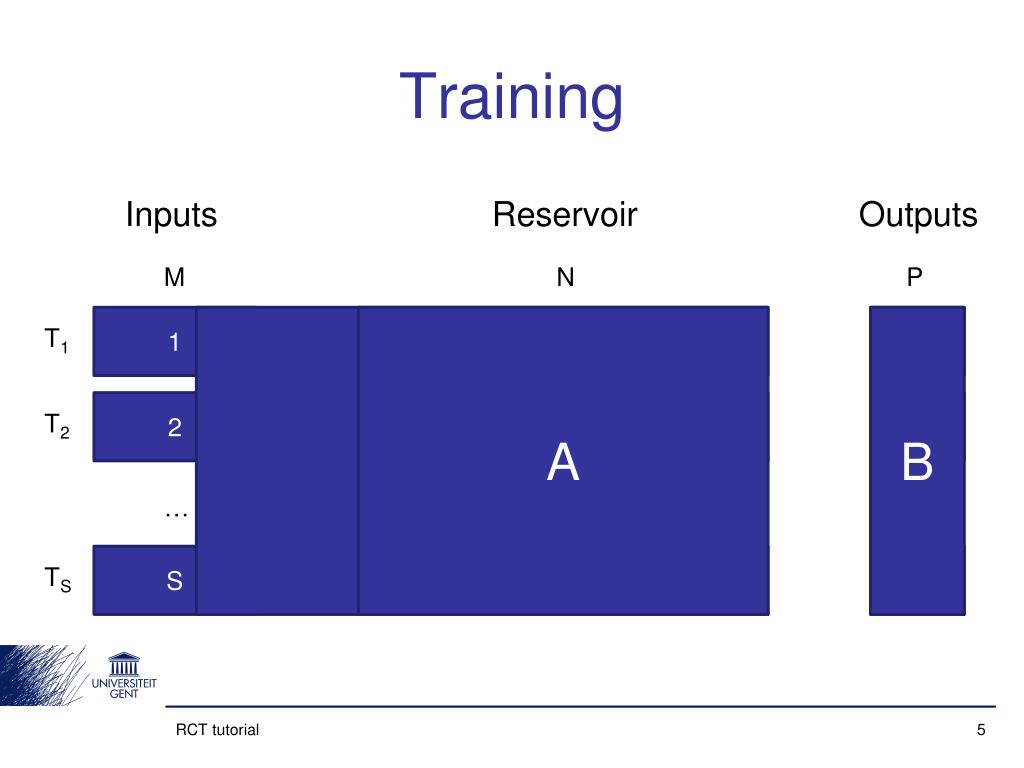

5. Training Inputs Reservoir Outputs M N P 1 A 1 B 1 T1 2 2 2 T2 … … … S S S TS

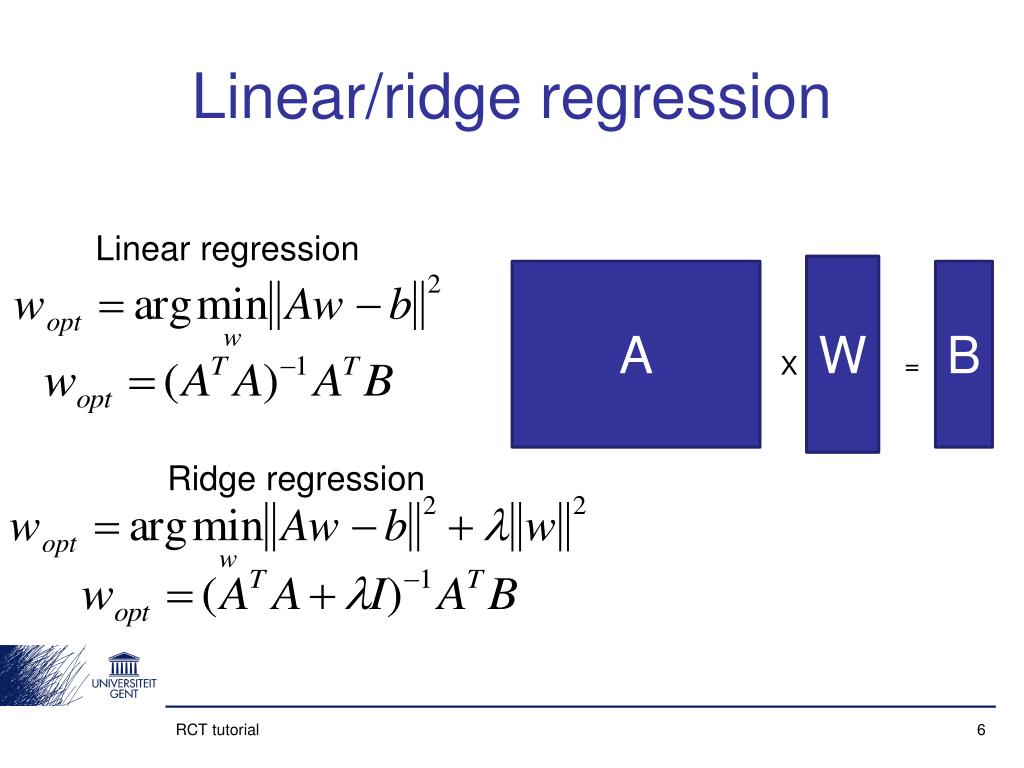

6. Linear/ridge regression W A B Linear regression = X Ridge regression

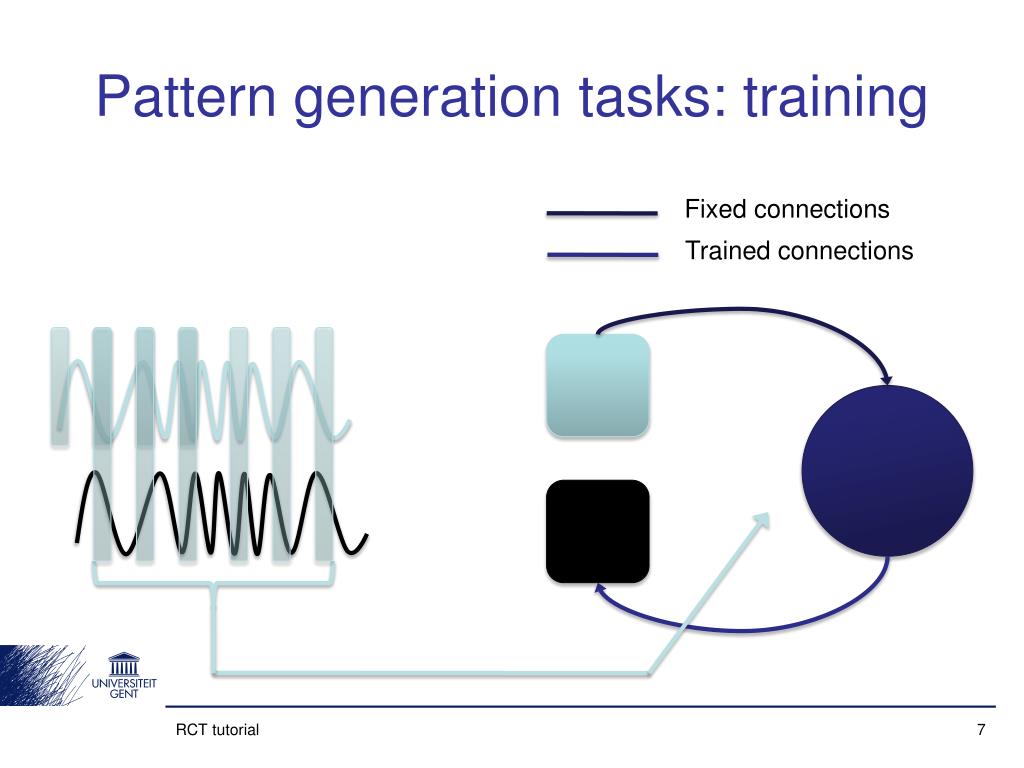

7. Pattern generation tasks: training Fixed connections Trained connections

8. Pattern generation: generation/testing Fixed connections Trained connections Warmup Freerun

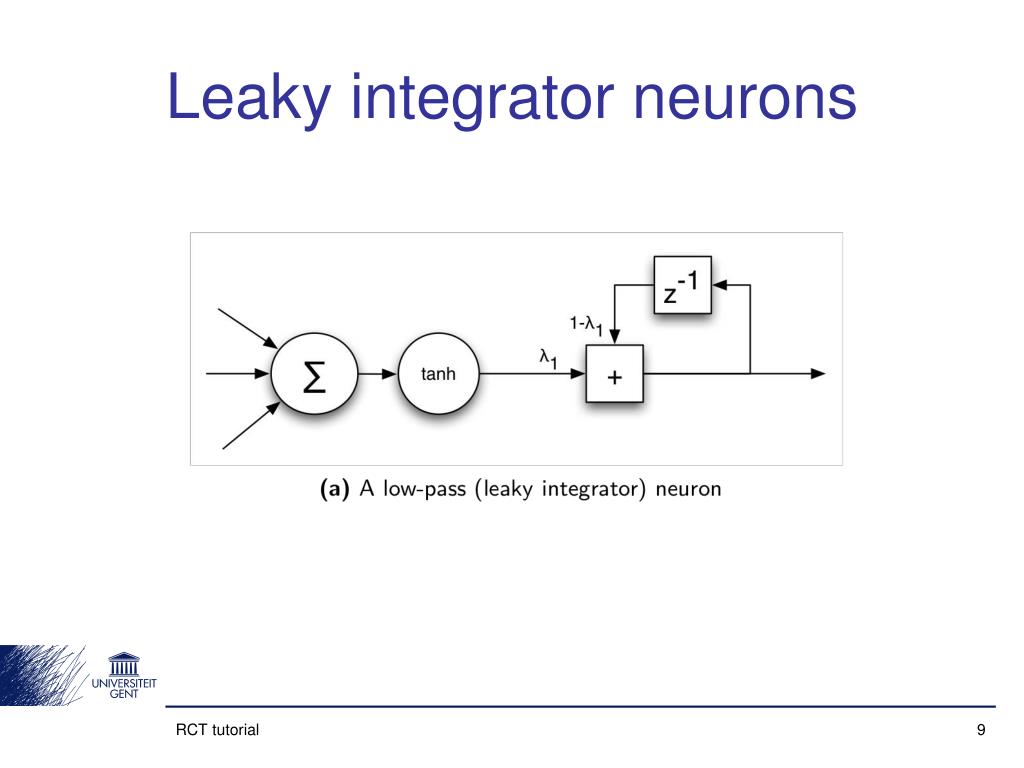

9. Leaky integrator neurons

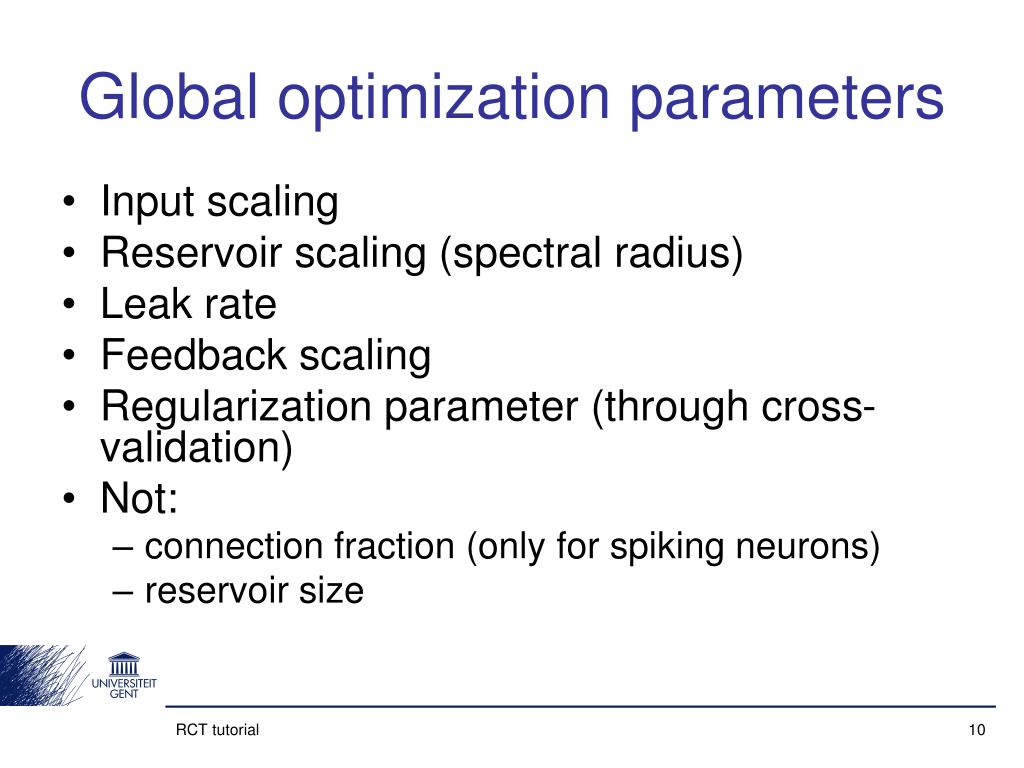

10. Global optimization parameters • Input scaling • Reservoir scaling (spectral radius) • Leak rate • Feedback scaling • Regularization parameter (through cross-validation) • Not: • connection fraction (only for spiking neurons) • reservoir size

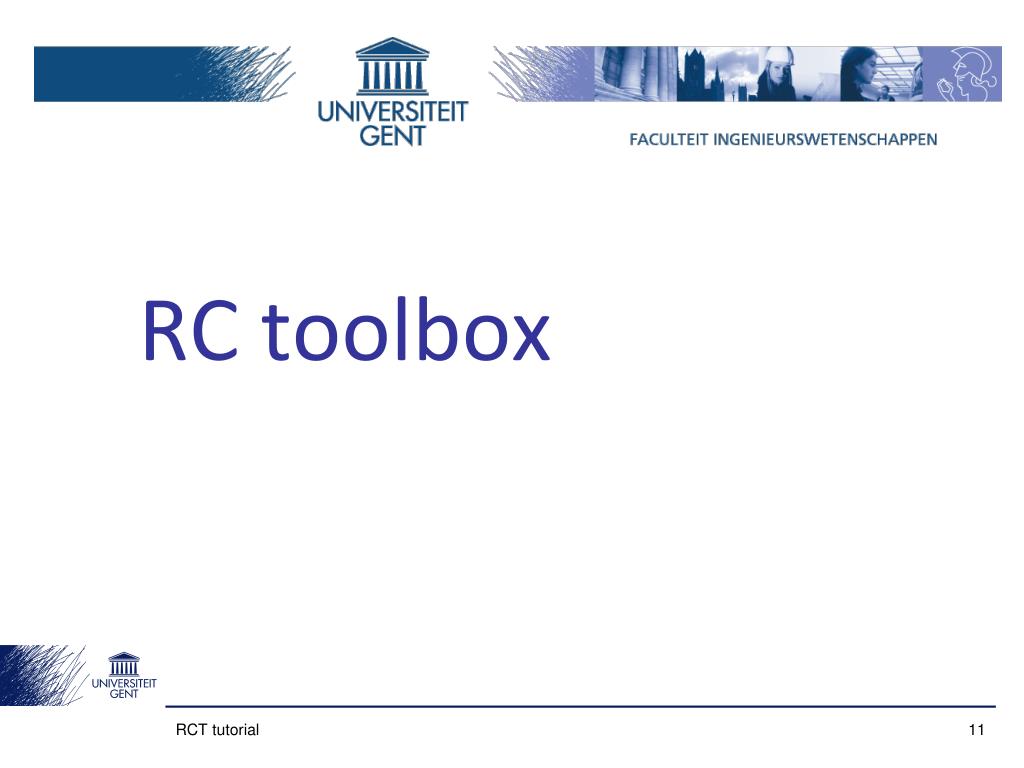

11. RC toolbox

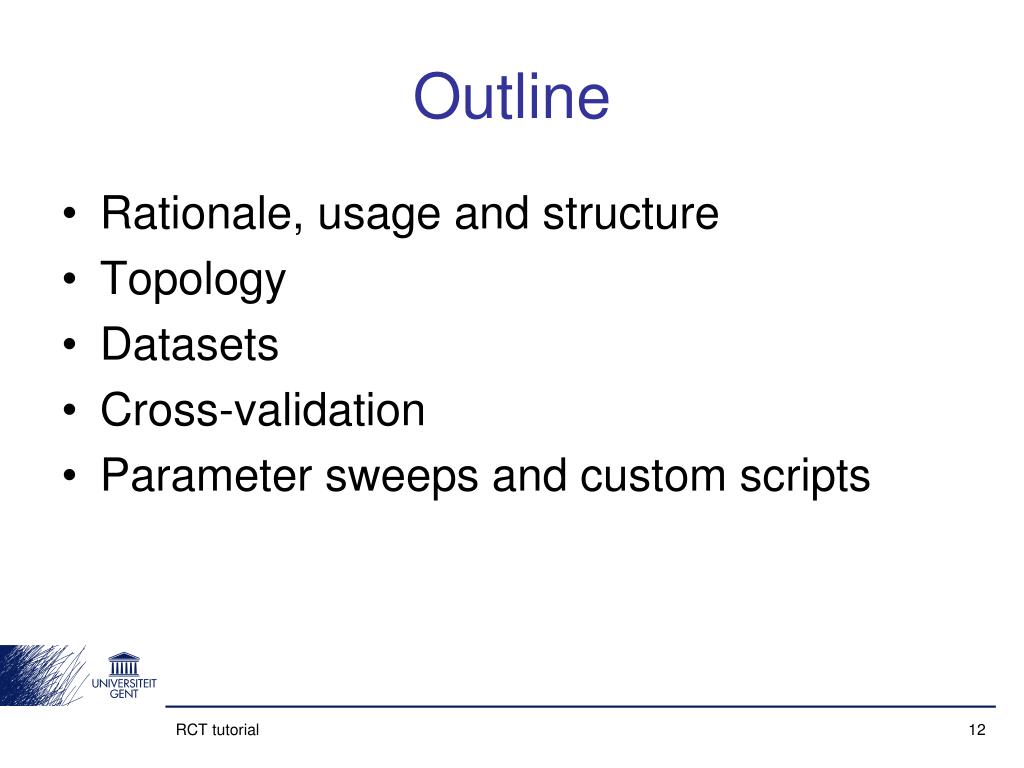

12. Outline • Rationale, usage and structure • Topology • Datasets • Cross-validation • Parameter sweeps and custom scripts

13. Outline • Rationale, usage and structure • Topology • Datasets • Cross-validation • Parameter sweeps and custom scripts

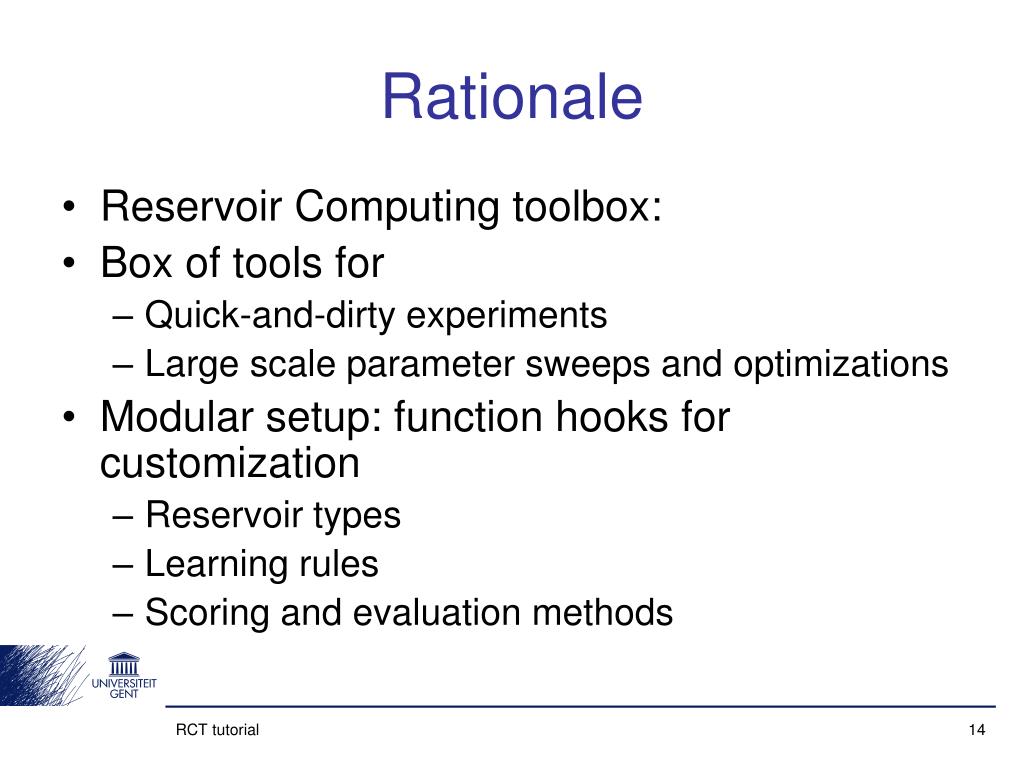

14. Rationale • Reservoir Computing toolbox: • Box of tools for • Quick-and-dirty experiments • Large scale parameter sweeps and optimizations • Modular setup: function hooks for customization • Reservoir types • Learning rules • Scoring and evaluation methods

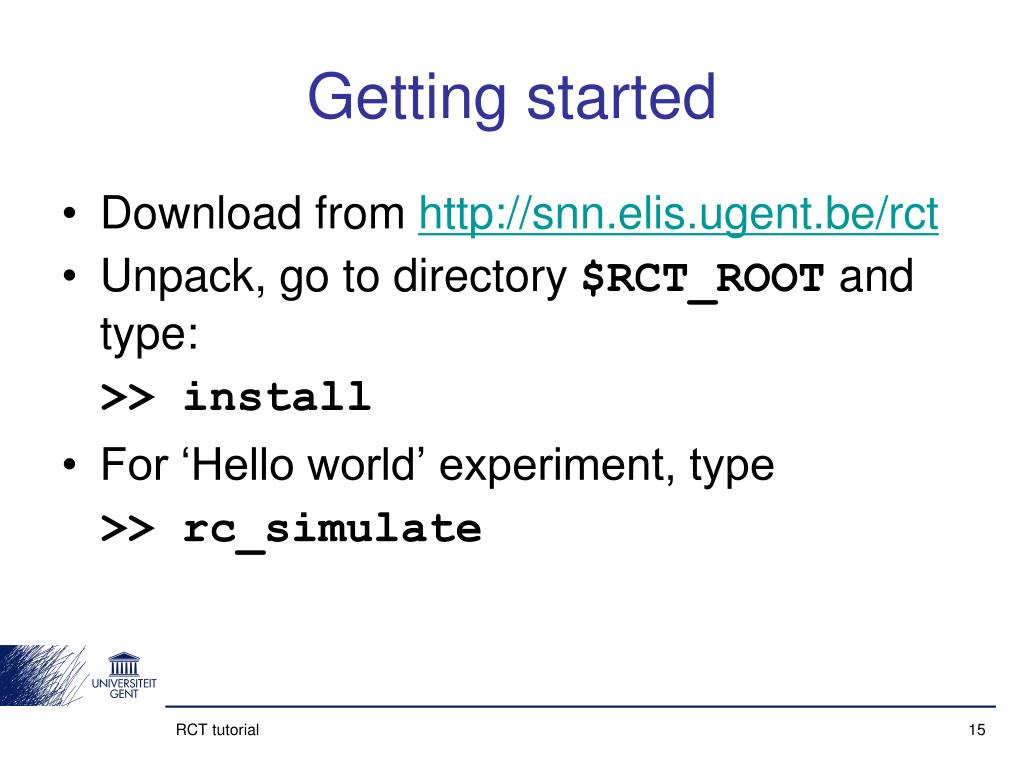

15. Getting started • Download from http://snn.elis.ugent.be/rct • Unpack, go to directory $RCT_ROOT and type: >> install • For ‘Hello world’ experiment, type >> rc_simulate

16. Usage • Default settings • Are ok as starting point for many experiments • Contained in $RCT_ROOT/default_settings/default_*.m • Look at these scripts! They give an overview of RCToolbox functionality

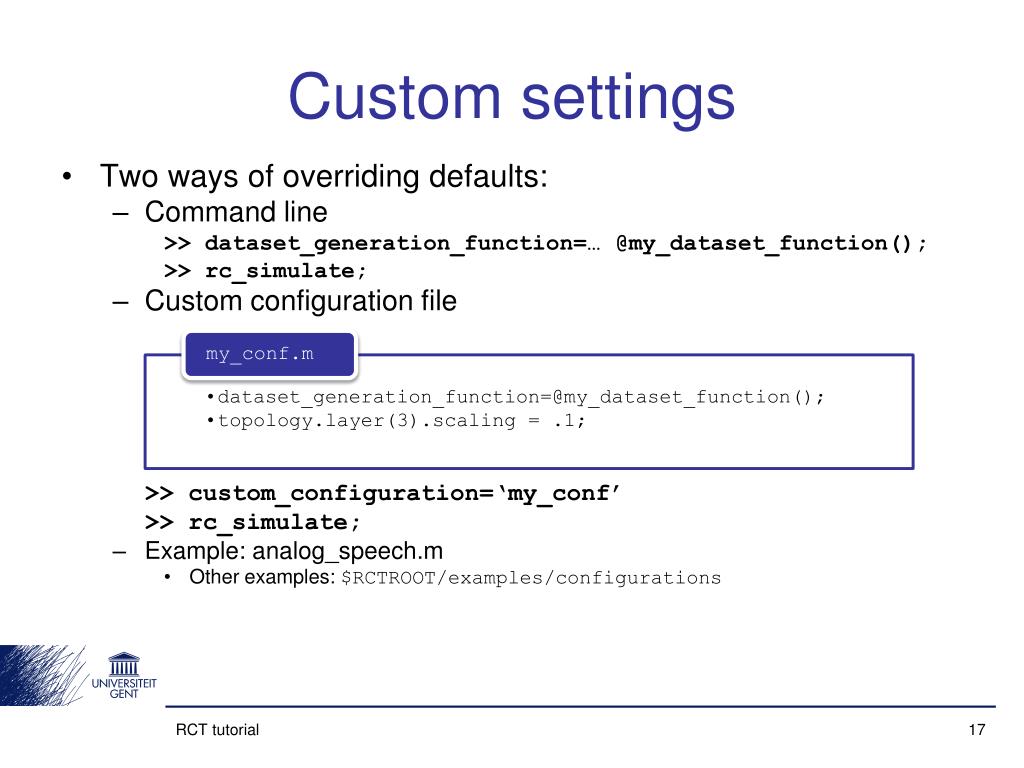

17. Custom settings • Two ways of overriding defaults: • Command line >> dataset_generation_function=… @my_dataset_function(); >> rc_simulate; • Custom configuration file >> custom_configuration=‘my_conf’ >> rc_simulate; • Example: analog_speech.m • Other examples: $RCTROOT/examples/configurations

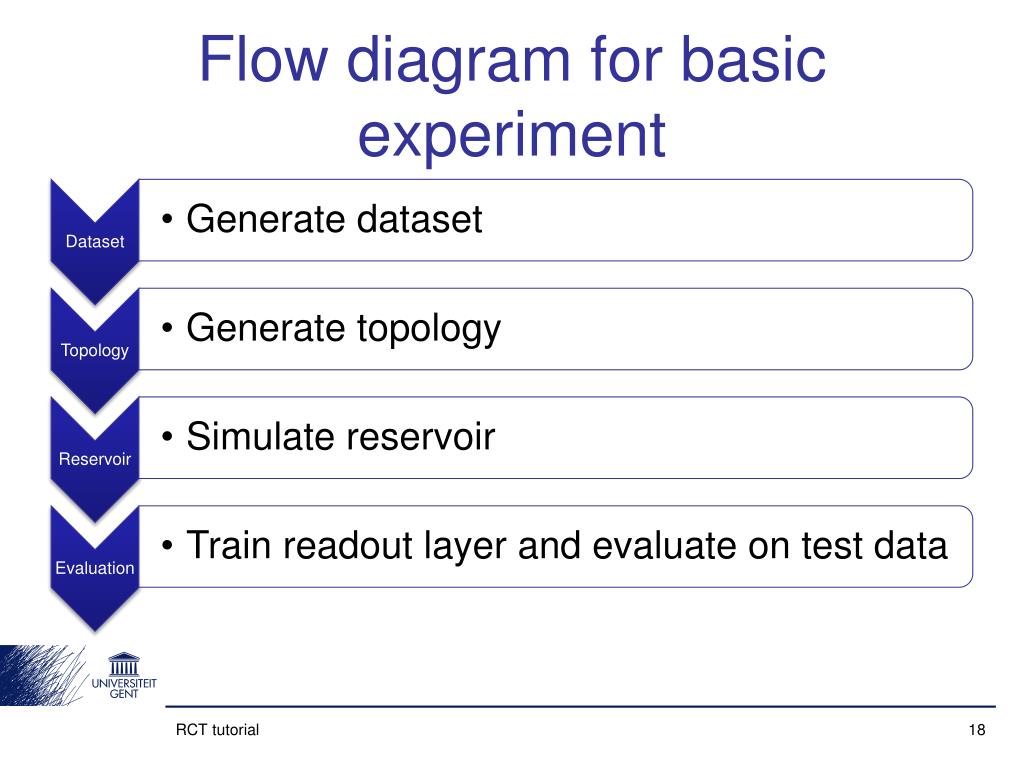

18. Flow diagram for basic experiment

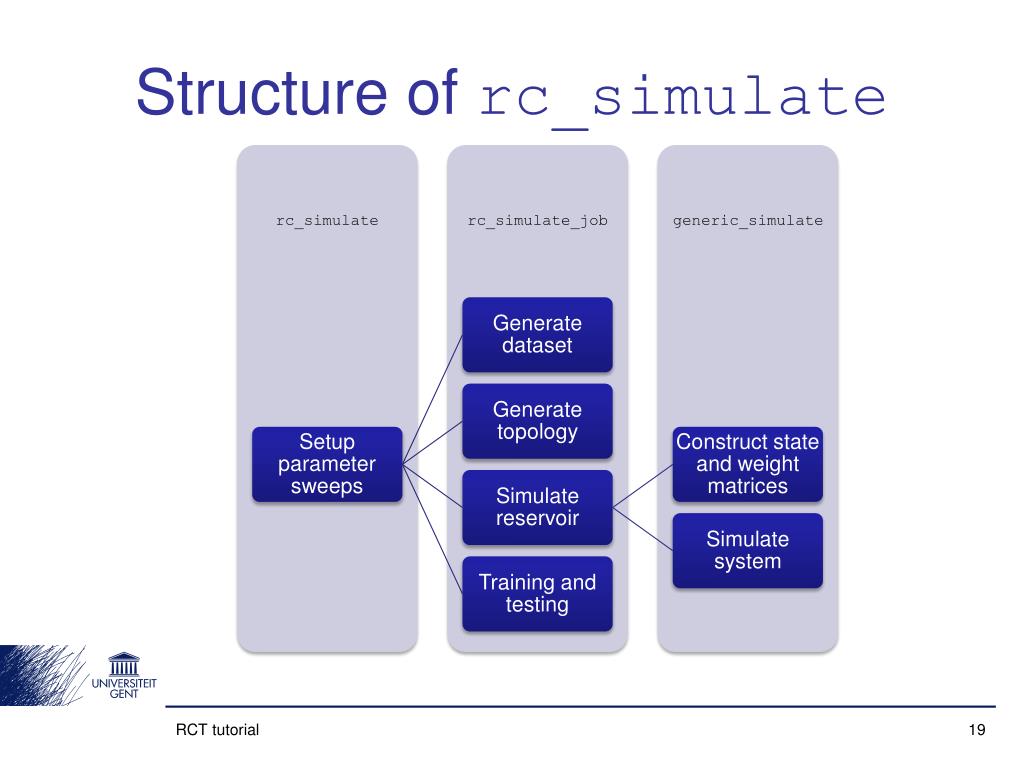

19. Structure of rc_simulate

20. Outline • Rationale, usage and structure • Topology • Datasets • Cross-validation • Parameter sweeps and custom scripts

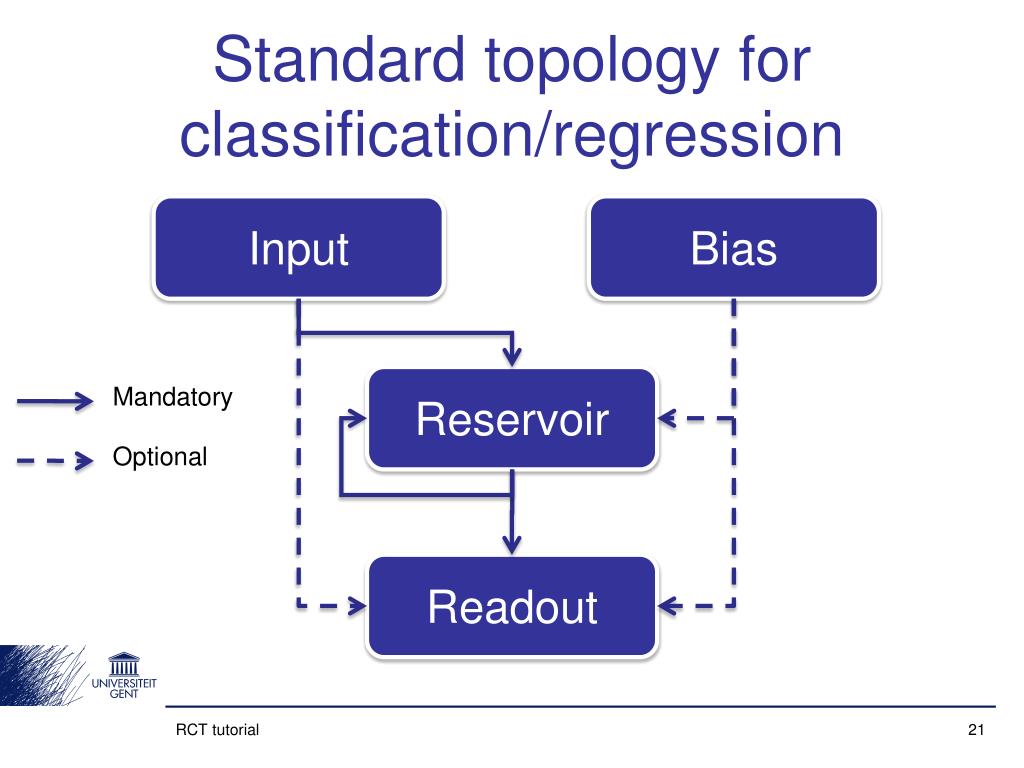

21. Standard topology for classification/regression Input Bias Reservoir Mandatory Optional Readout

22. Connectivity matrix between layers Input Bias Reservoir Readout

23. Standard topology for classification/regression Reservoir Mandatory Bias Optional Readout

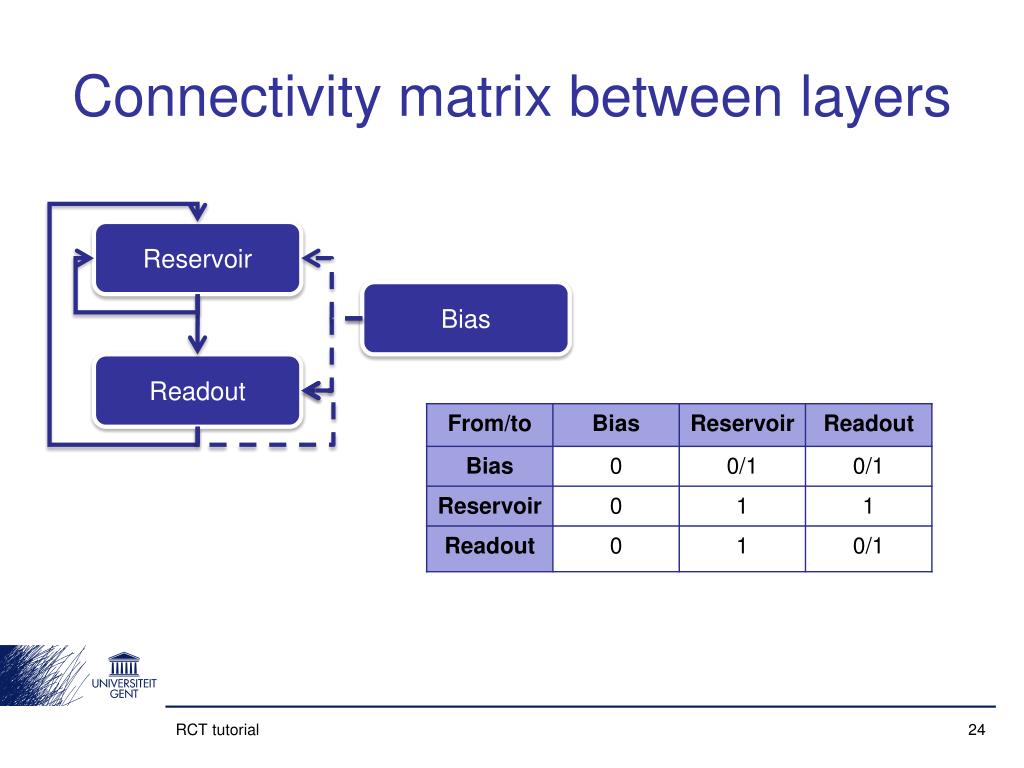

24. Connectivity matrix between layers Reservoir Bias Readout

25. Topology datastructure in the toolbox • topology. • layer(1,n) • conn(n,n) • with n = number of layers • Default settings: • $RCTROOT/default_settings/default_topology.m • Layer 1 : input • Layer 2 : bias • Layer 3 : reservoir • Layer 4 : readout

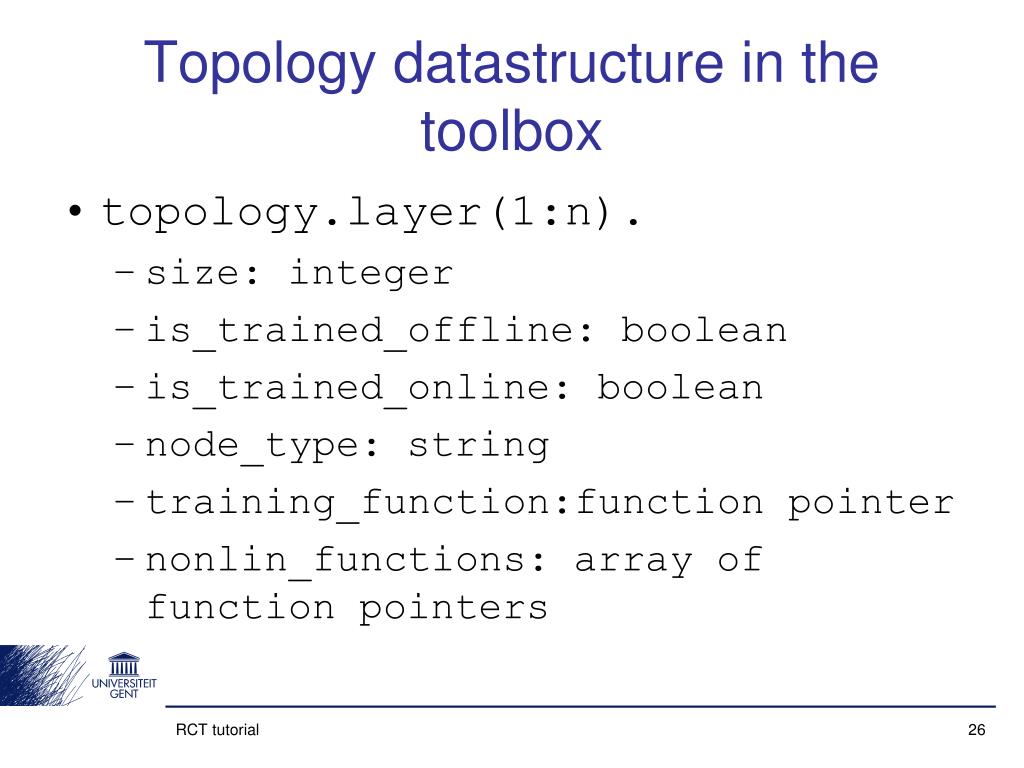

26. Topology datastructure in the toolbox • topology.layer(1:n). • size: integer • is_trained_offline: boolean • is_trained_online: boolean • node_type: string • training_function:function pointer • nonlin_functions: array of function pointers

27. Topology datastructure in the toolbox • topology.layer(1:n). • init_simulation: function pointer • finish_simulation: function pointer • dt: float • regul_param: float • scoring: function pointer

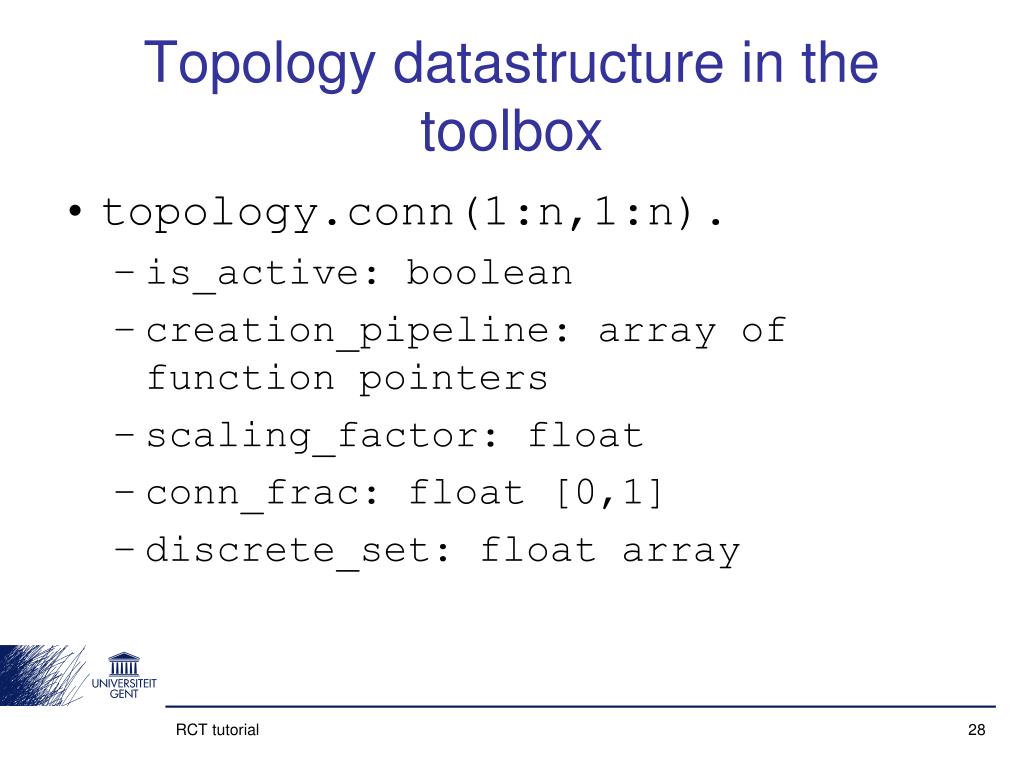

28. Topology datastructure in the toolbox • topology.conn(1:n,1:n). • is_active: boolean • creation_pipeline: array of function pointers • scaling_factor: float • conn_frac: float [0,1] • discrete_set: float array

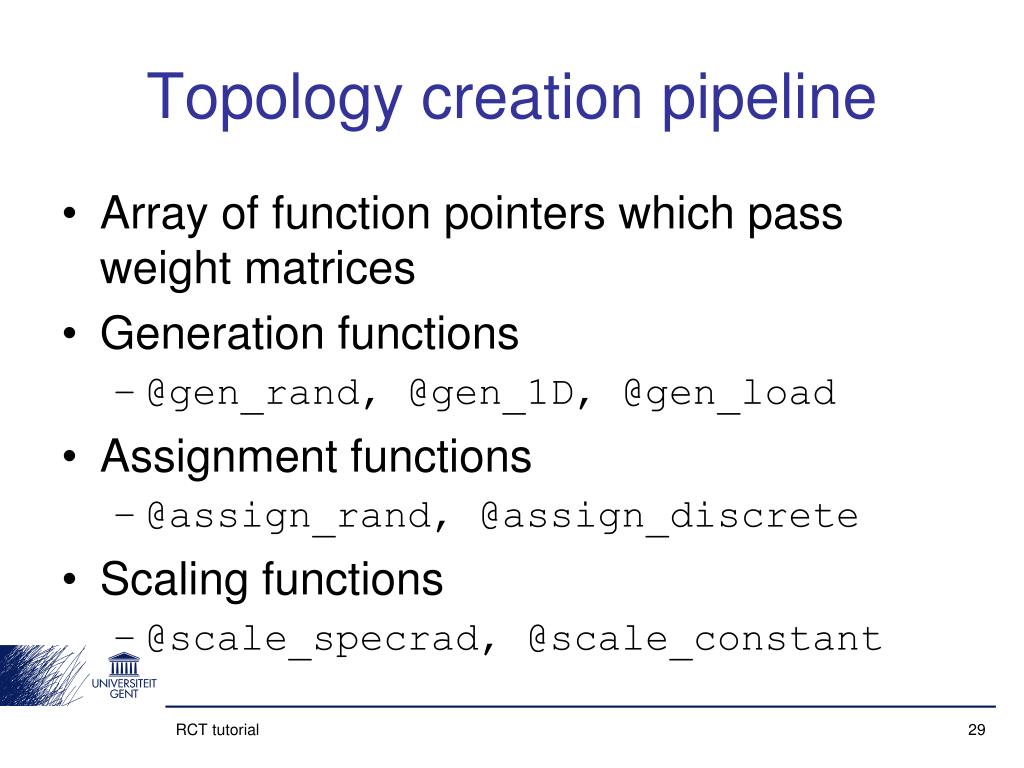

29. Topology creation pipeline • Array of function pointers which pass weight matrices • Generation functions • @gen_rand, @gen_1D, @gen_load • Assignment functions • @assign_rand, @assign_discrete • Scaling functions • @scale_specrad, @scale_constant

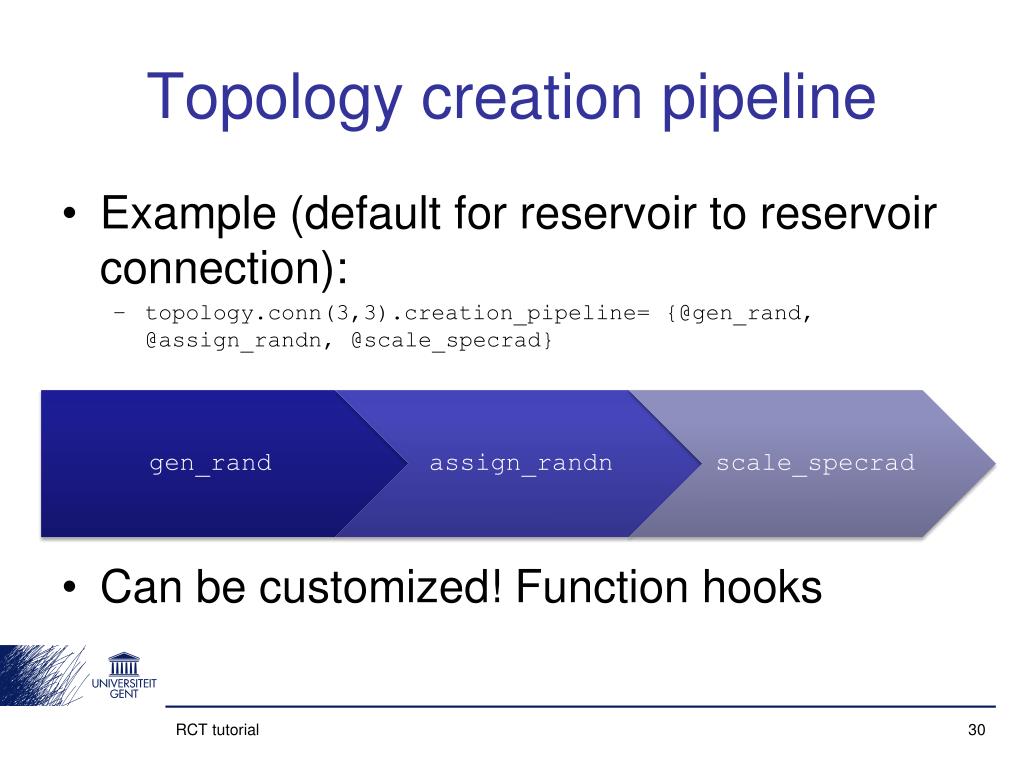

30. Topology creation pipeline • Example (default for reservoir to reservoir connection): • topology.conn(3,3).creation_pipeline= {@gen_rand, @assign_randn, @scale_specrad} • Can be customized! Function hooks

31. Outline • Rationale, usage and structure • Topology • Datasets • Cross-validation • Parameter sweeps and custom scripts

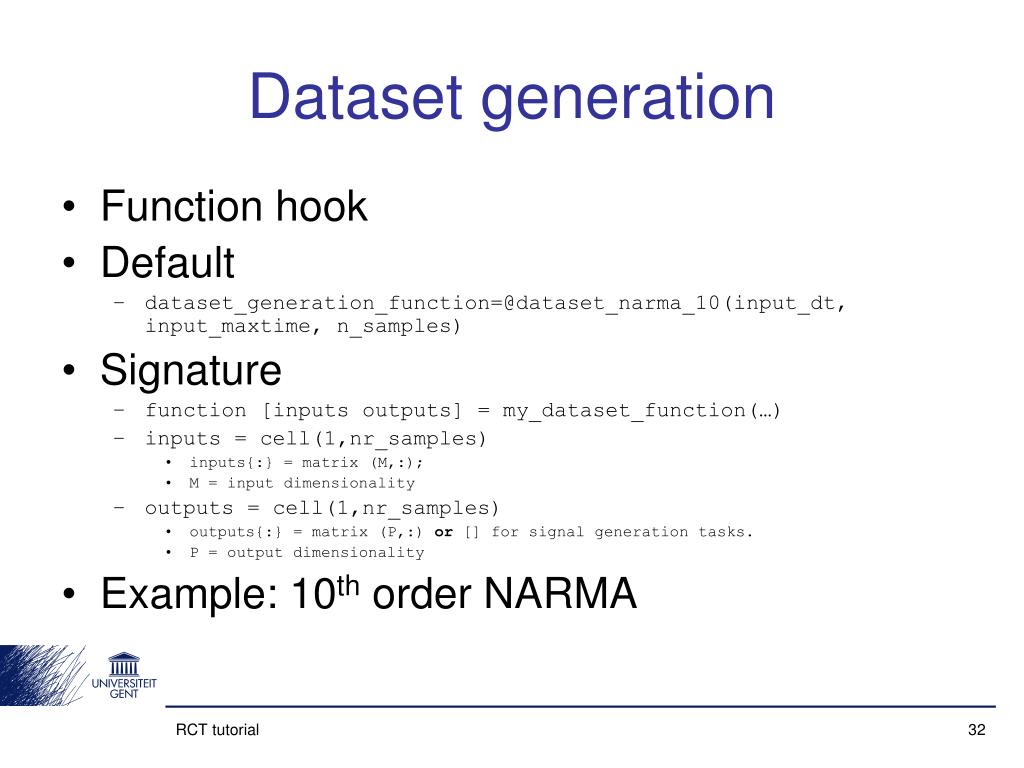

32. Dataset generation • Function hook • Default • dataset_generation_function=@dataset_narma_10(input_dt, input_maxtime, n_samples) • Signature • function [inputs outputs] = my_dataset_function(…) • inputs = cell(1,nr_samples) • inputs{:} = matrix (M,:); • M = input dimensionality • outputs = cell(1,nr_samples) • outputs{:} = matrix (P,:) or [] for signal generation tasks. • P = output dimensionality • Example: 10th order NARMA

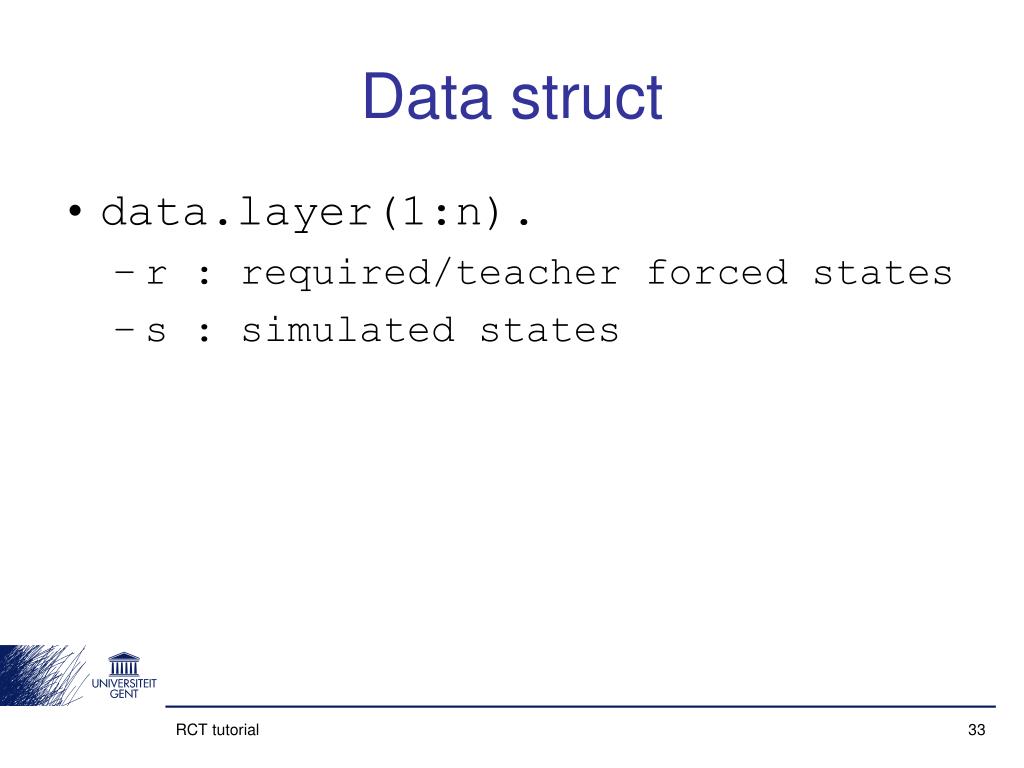

33. Data struct • data.layer(1:n). • r : required/teacher forced states • s : simulated states

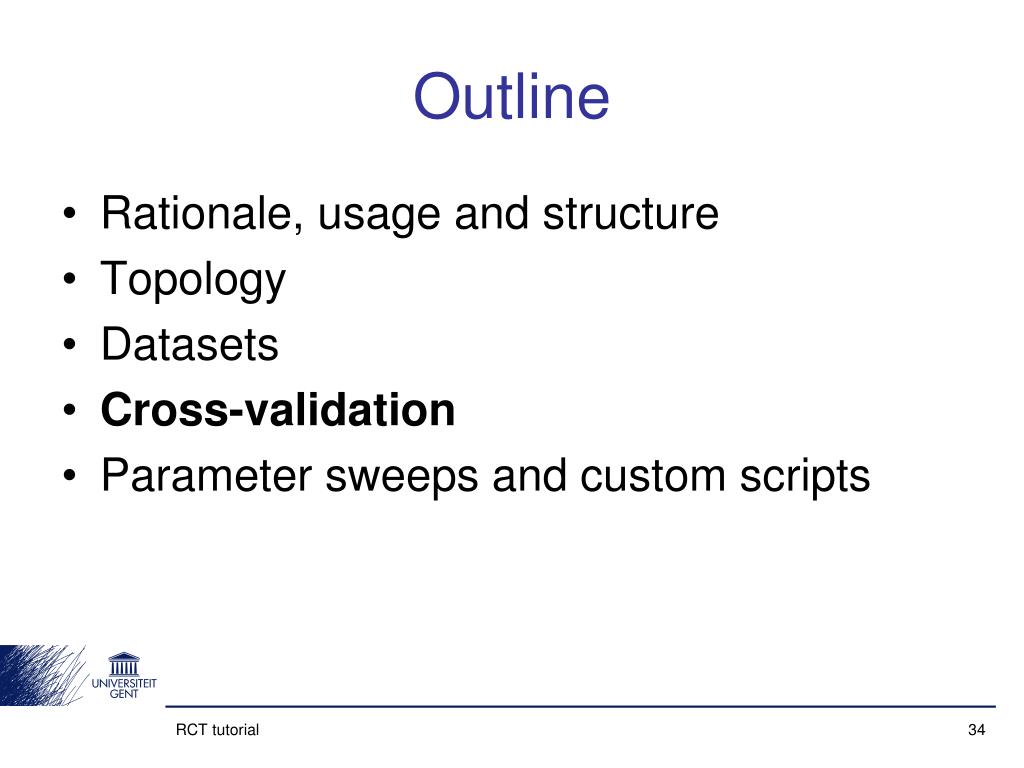

34. Outline • Rationale, usage and structure • Topology • Datasets • Cross-validation • Parameter sweeps and custom scripts

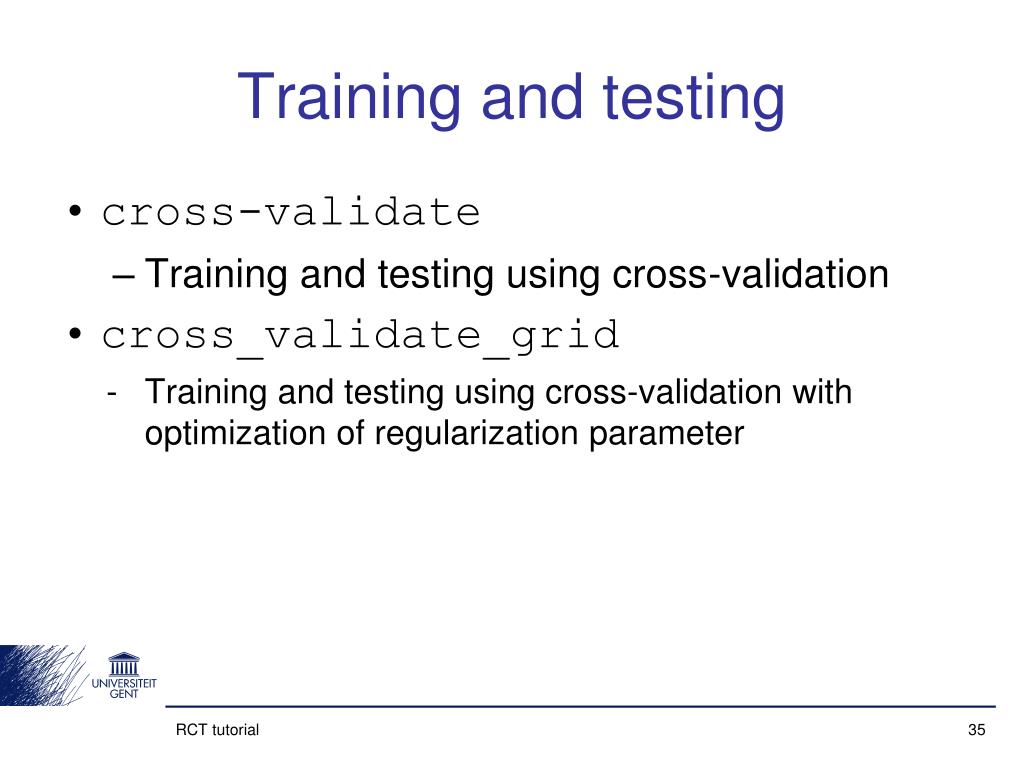

35. Training and testing • cross-validate • Training and testing using cross-validation • cross_validate_grid • Training and testing using cross-validation with optimization of regularization parameter

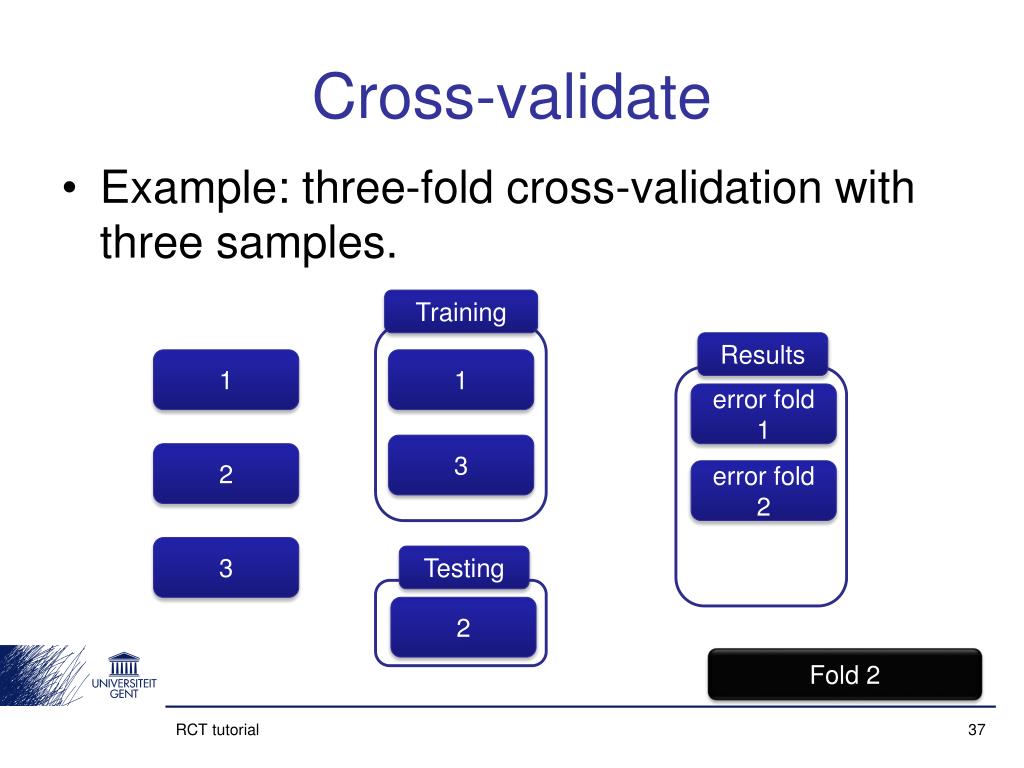

36. Cross-validate • Example: three-fold cross-validation with three samples. Training Results 1 1 error fold 1 2 2 3 Testing 3 Fold 1

37. Cross-validate • Example: three-fold cross-validation with three samples. Training Results 1 1 error fold 1 3 2 error fold 2 3 Testing 2 Fold 2

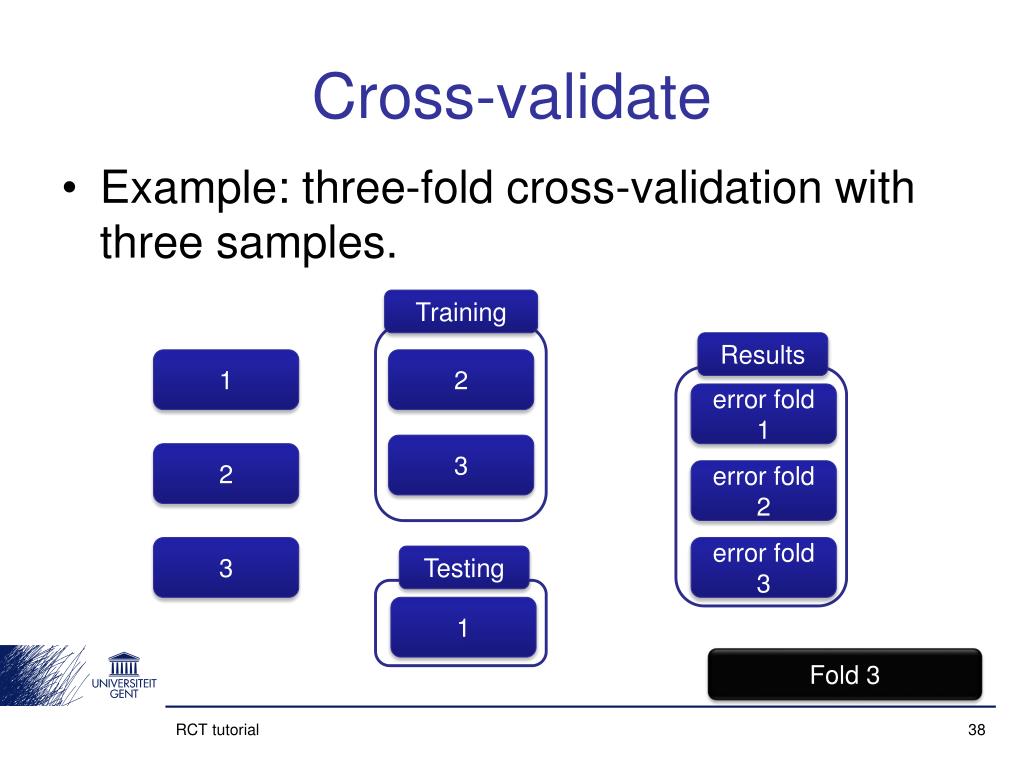

38. Cross-validate • Example: three-fold cross-validation with three samples. Training Results 1 2 error fold 1 3 2 error fold 2 3 error fold 3 Testing 1 Fold 3

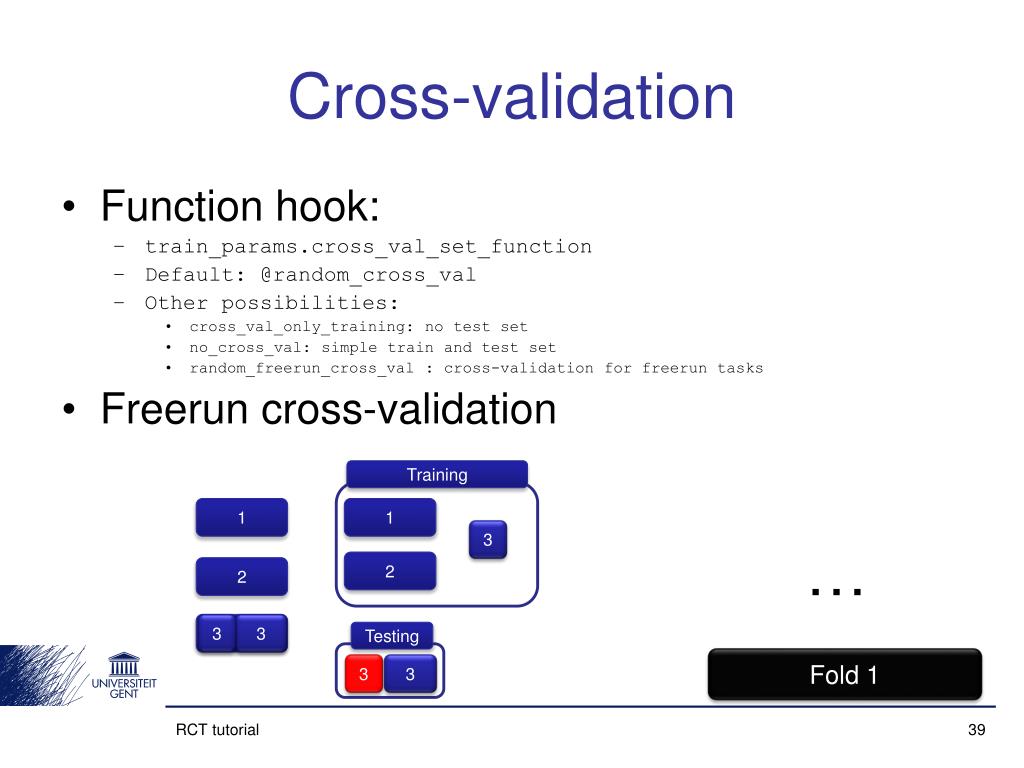

39. Cross-validation • Function hook: • train_params.cross_val_set_function • Default: @random_cross_val • Other possibilities: • cross_val_only_training: no test set • no_cross_val: simple train and test set • random_freerun_cross_val : cross-validation for freerun tasks • Freerun cross-validation Training 1 1 3 … 2 2 3 3 3 Testing Fold 1 3 3

40. Cross-validate with gridsearch • For optimization of regularization parameter l 1 2 3 Val. results Results Training Testing error fold 1 error l1 1 2 l=l2 l=ln l=l1 lopt 3 error l2 error fold 2 … Validation error fold 3 1 2 error ln Subfold 1 Subfold 2 Fold 2 Fold 1 Fold 3

41. Outline • Rationale, usage and structure • Topology • Datasets • Cross-validation • Parameter sweeps and custom scripts

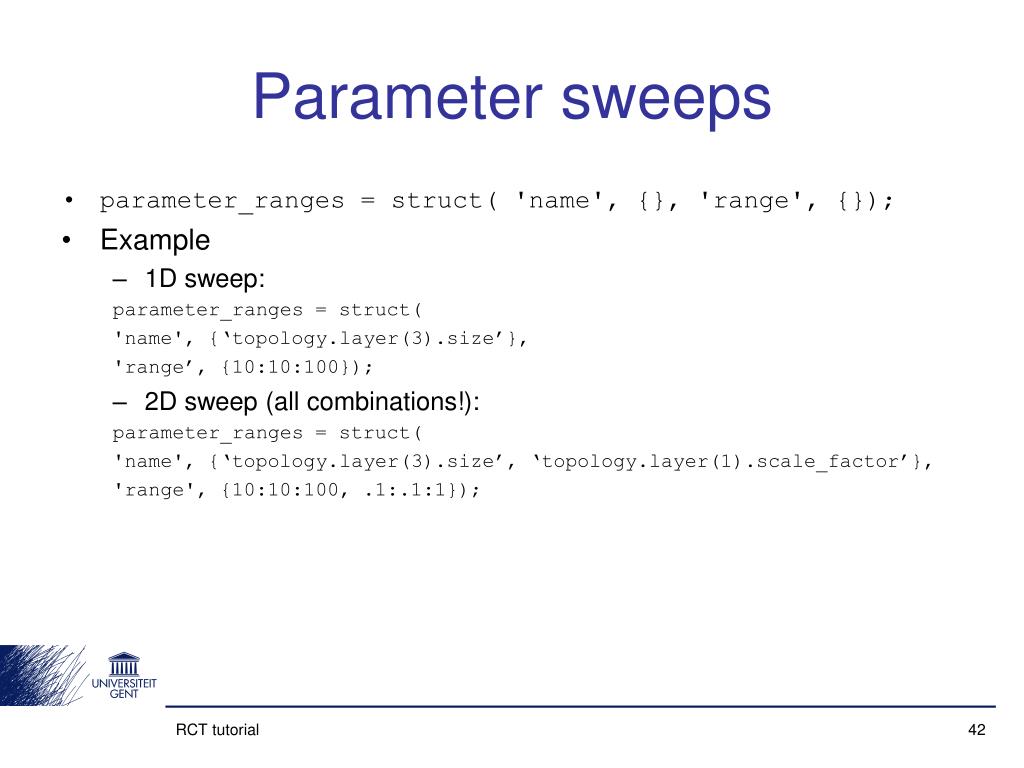

42. Parameter sweeps • parameter_ranges = struct( 'name', {}, 'range', {}); • Example • 1D sweep: parameter_ranges = struct( 'name', {‘topology.layer(3).size’}, 'range’, {10:10:100}); • 2D sweep (all combinations!): parameter_ranges = struct( 'name', {‘topology.layer(3).size’, ‘topology.layer(1).scale_factor’}, 'range', {10:10:100, .1:.1:1});

43. Parameter sweeps • Results are saved in output_directory • Set save_results=true! • Plot results of sweep • plot_error(output_directory) • Get variables from simulation • get_saved_data(output_directory, variables)

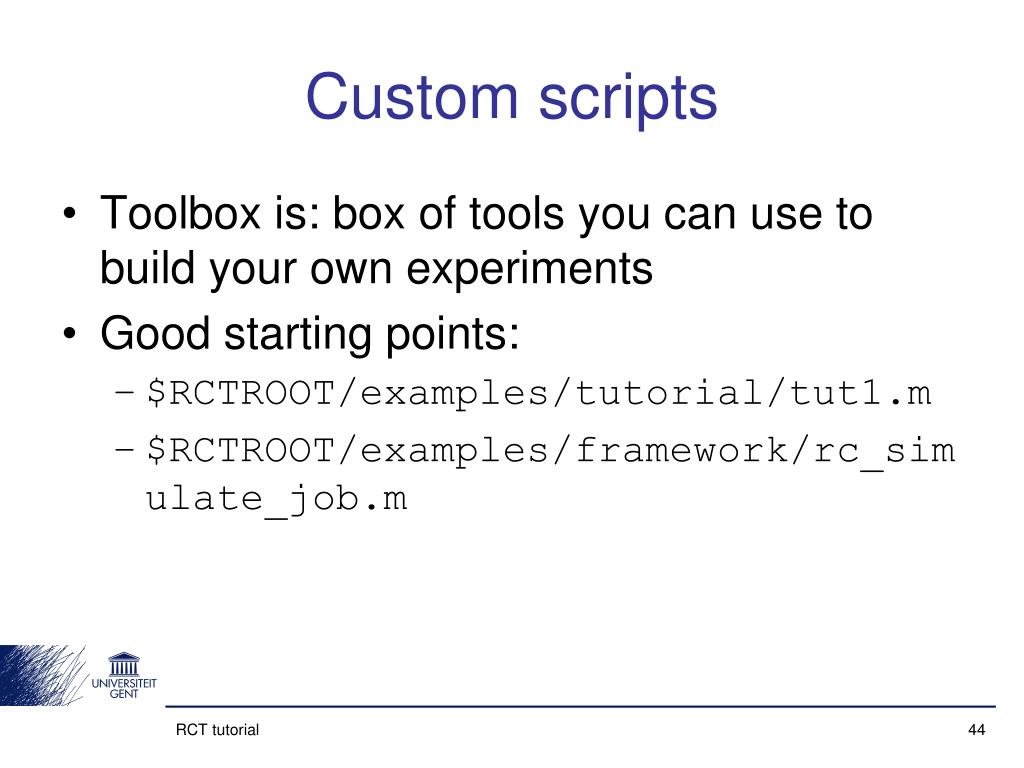

44. Custom scripts • Toolbox is: box of tools you can use to build your own experiments • Good starting points: • $RCTROOT/examples/tutorial/tut1.m • $RCTROOT/examples/framework/rc_simulate_job.m
