문제설명

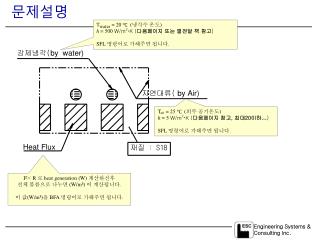

문제설명. T water = 20 ℃ (냉각수 온도) h = 500 W/m 2  K ( 다음페이지 또는 열전달 책 참고 ) SFL 명령어로 가해주면 됩니다. T air = 25 ℃ (외부 공기온도) h = 5 W/m 2  K ( 다음페이지 참고, 최대20이하 … ) SFL 명령어로 가해주면 됩니다. I²× R 로 heat generation (W) 계산하신후 전체 볼륨으로 나누면 ( W/m³) 이 계산됩니다. 이 값( W/m³) 을 BFA 명령어로 가해주면 됩니다.

cate
Download Presentation

문제설명

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

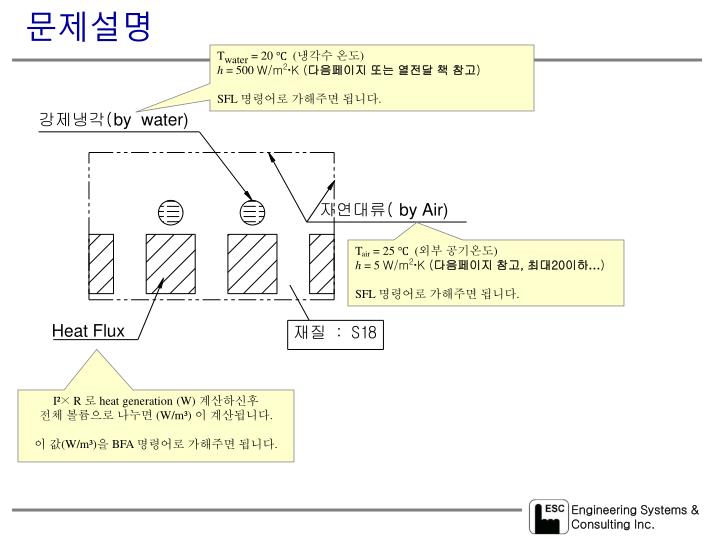

  1. 문제설명 Twater = 20 ℃ (냉각수 온도) h = 500 W/m2K (다음페이지 또는 열전달 책참고) SFL 명령어로 가해주면 됩니다. Tair = 25 ℃ (외부 공기온도) h = 5 W/m2K (다음페이지 참고, 최대20이하…) SFL 명령어로 가해주면 됩니다. I²× R 로 heat generation (W) 계산하신후전체 볼륨으로 나누면 (W/m³) 이 계산됩니다.이 값(W/m³)을 BFA 명령어로 가해주면 됩니다.

  2. Convective Heat Transfer Coefficients

  3. 간단한 해석모델 Twater = 20 ℃ h = 500 W/m2K Tair = 25 ℃ h = 5 W/m2K Motor coil Heat generation ( 임의의 값 ) = 100 W/m3

  4. Input file /solu SFL,1,CONV,5, ,25, SFL,2,CONV,5, ,25, SFL,3,CONV,5, ,25, SFL,4,CONV,5, ,25, SFL,9,CONV,500, ,20, SFL,10,CONV,500, ,20, SFL,11,CONV,500, ,20, SFL,12,CONV,500, ,20, BFA,2,HGEN,100 solve /POST1 PLNSOL,temp, /Prep7 Et,1,77 Mp,kxx,1,0.78 ! thermal conductivity of the motor coil Mp,kxx,2,0.78 ! thermal conductivity of the S18 rect,,1,,1 rect,0.3,0.7,0.1,0.5 wpoff,0.5,0.75 PCIRC,0.1, ,0,360, AOVLAP,all ADELE, 3, , ,1 esize,0.05 mat,1 amesh,2 mat,2 amesh,4

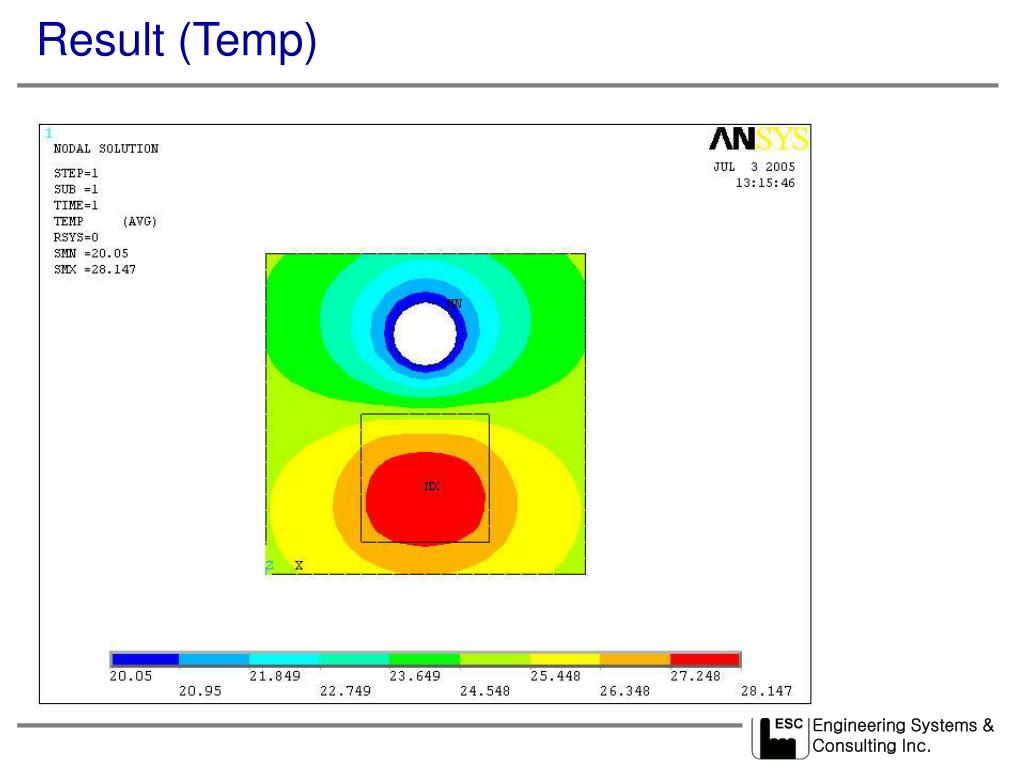

  5. Result (Temp)
