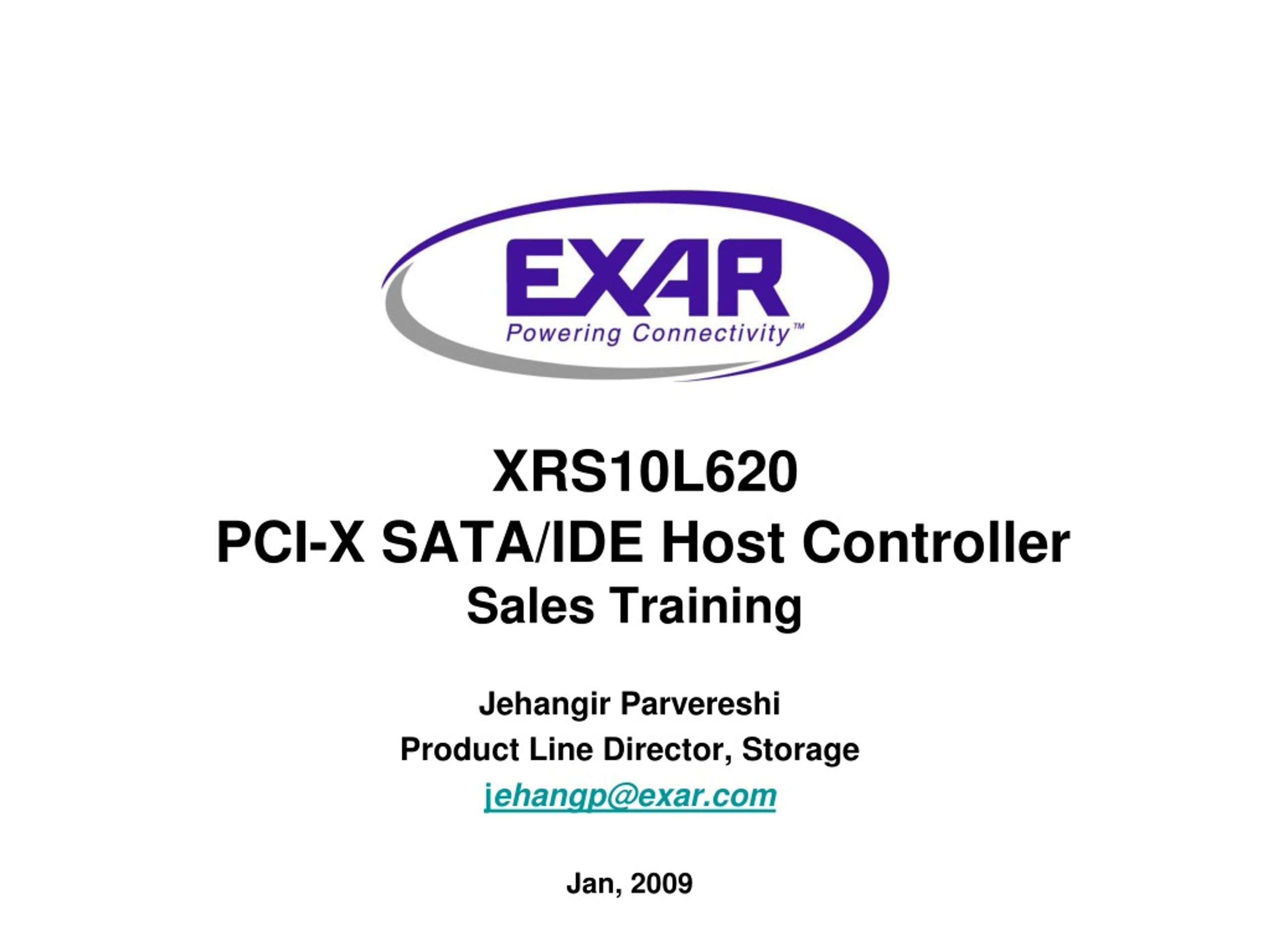

  1. XRS10L620 PCI-X SATA/IDE Host Controller Sales Training Jehangir Parvereshi Product Line Director, Storage jehangp@exar.com Jan, 2009

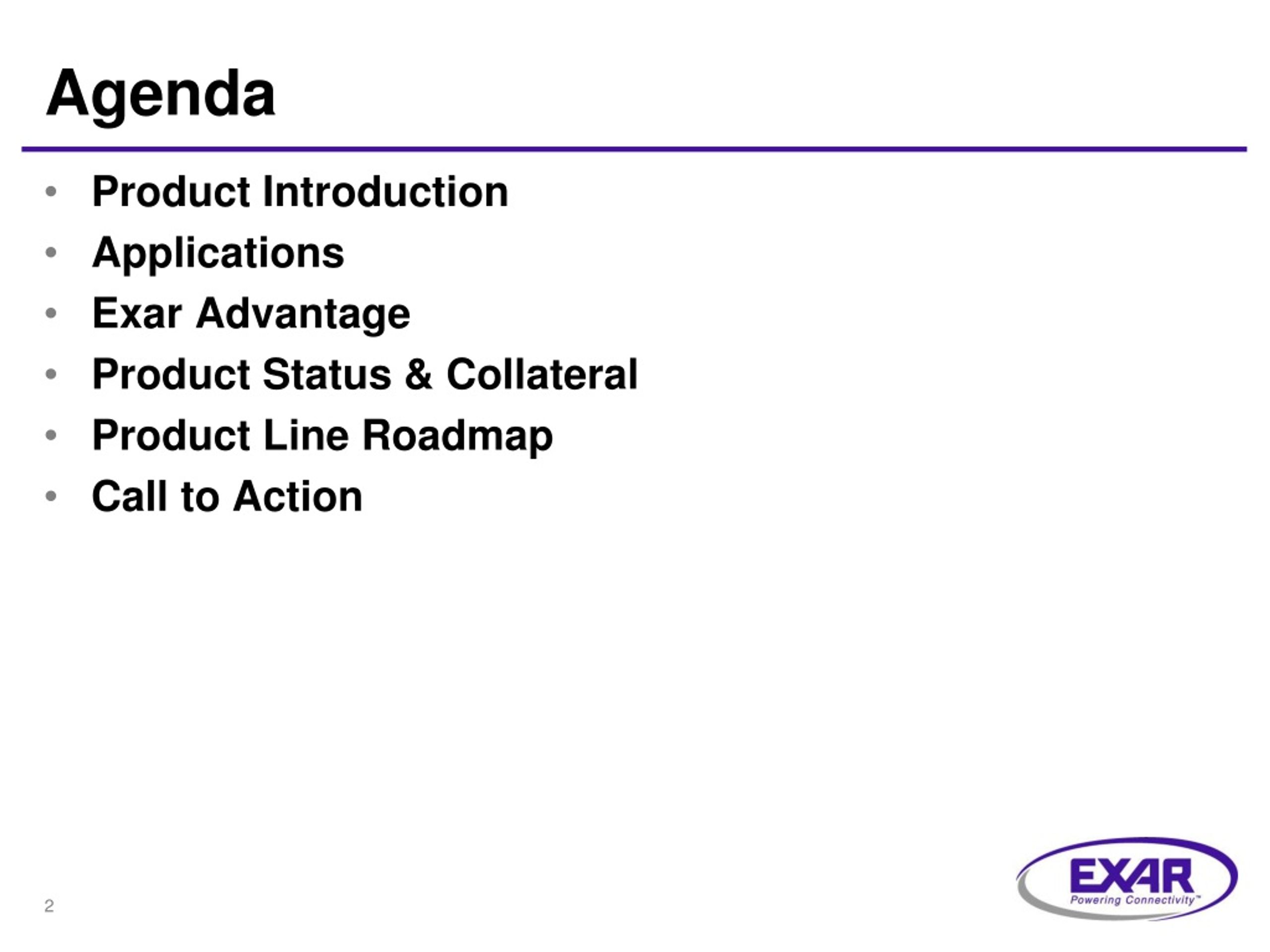

  2. Agenda • Product Introduction • Applications • Exar Advantage • Product Status & Collateral • Product Line Roadmap • Call to Action

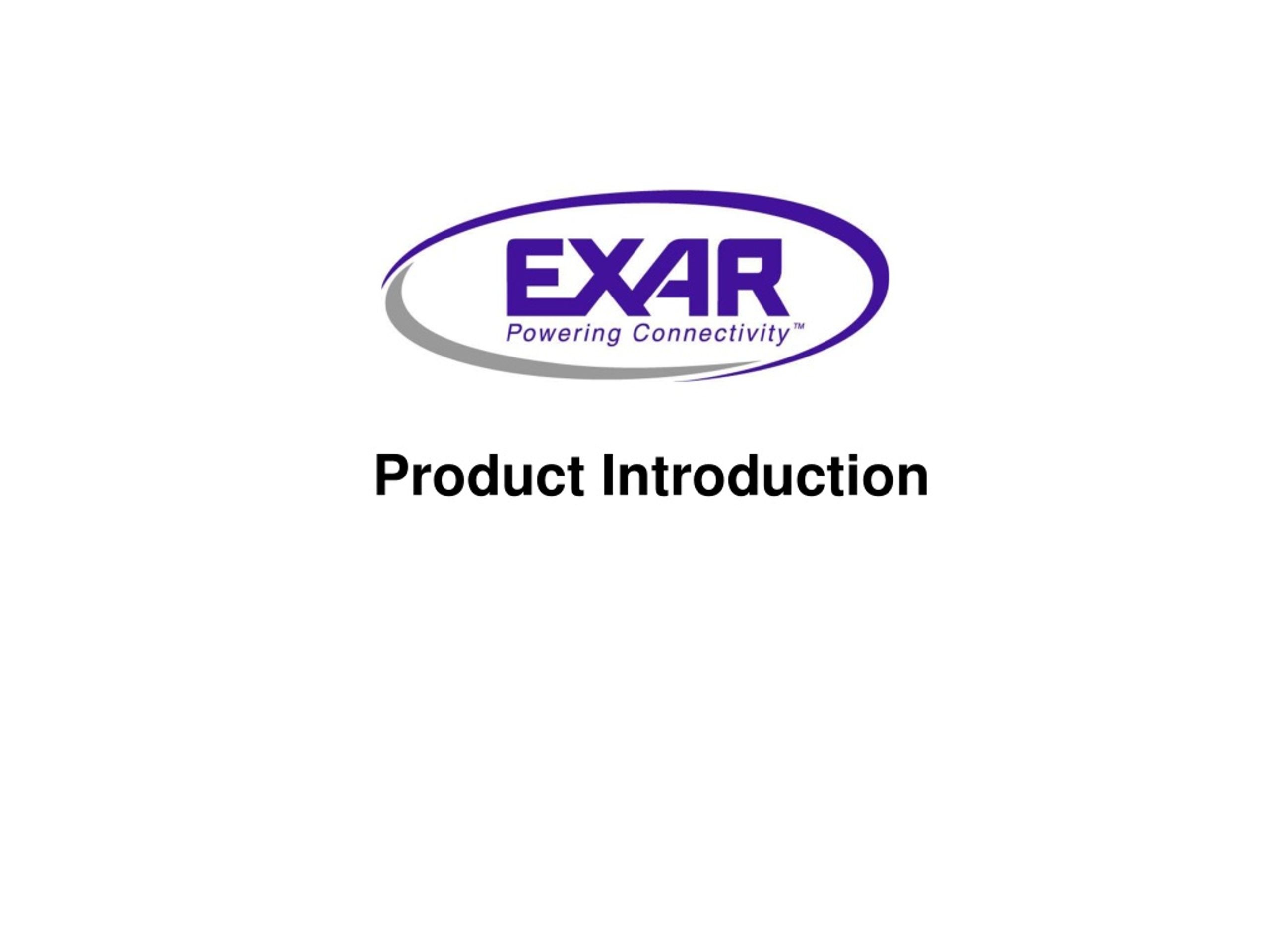

  3. Product Introduction

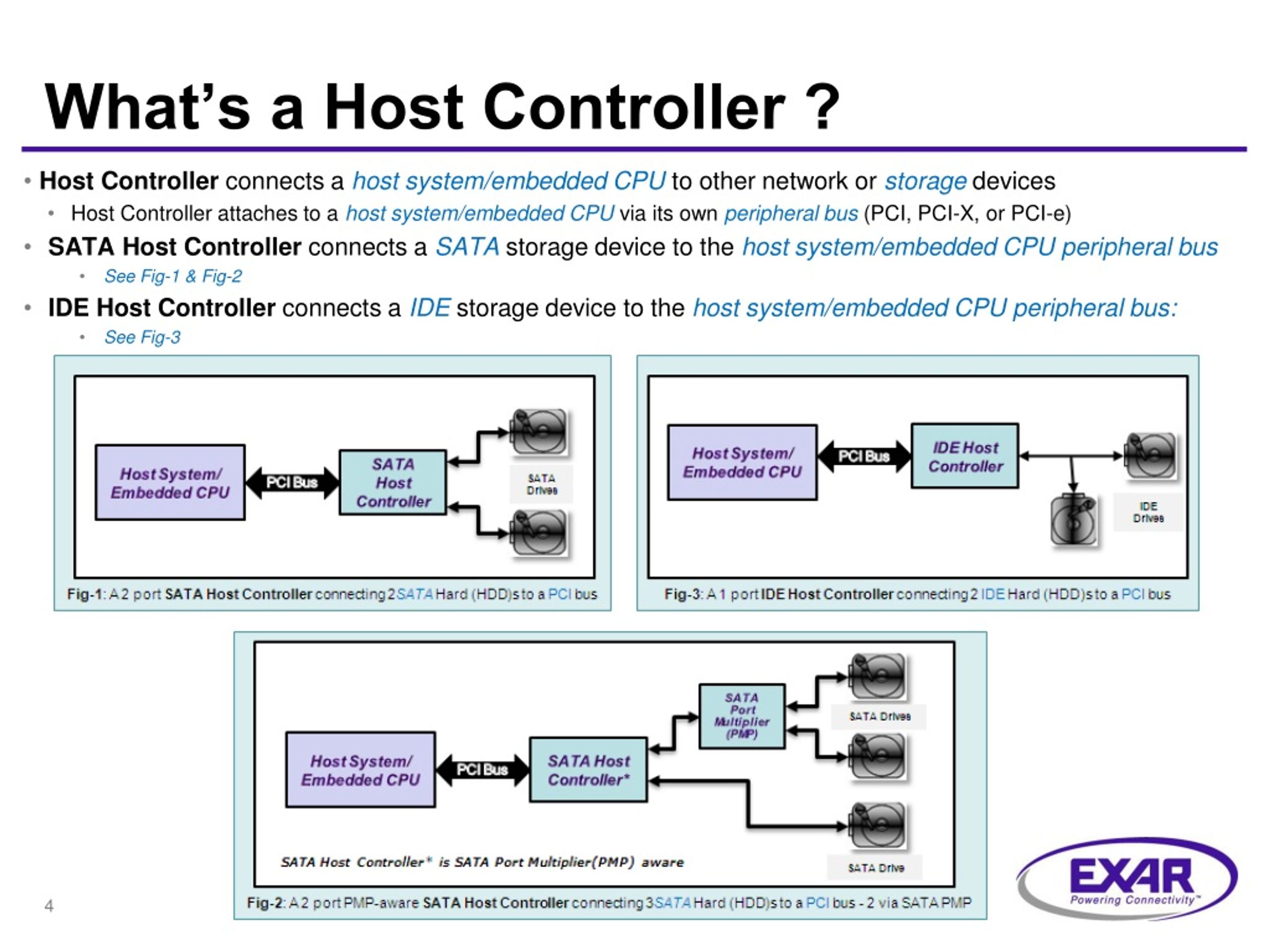

  4. What’s a Host Controller ? • Host Controllerconnects a host system/embedded CPU to other network or storage devices • Host Controller attaches to a host system/embedded CPU via its own peripheral bus (PCI, PCI-X, or PCI-e) • SATA Host Controller connects a SATA storage device to the host system/embedded CPU peripheral bus • See Fig-1 & Fig-2 • IDE Host Controller connects a IDE storage device to the host system/embedded CPU peripheral bus: • See Fig-3

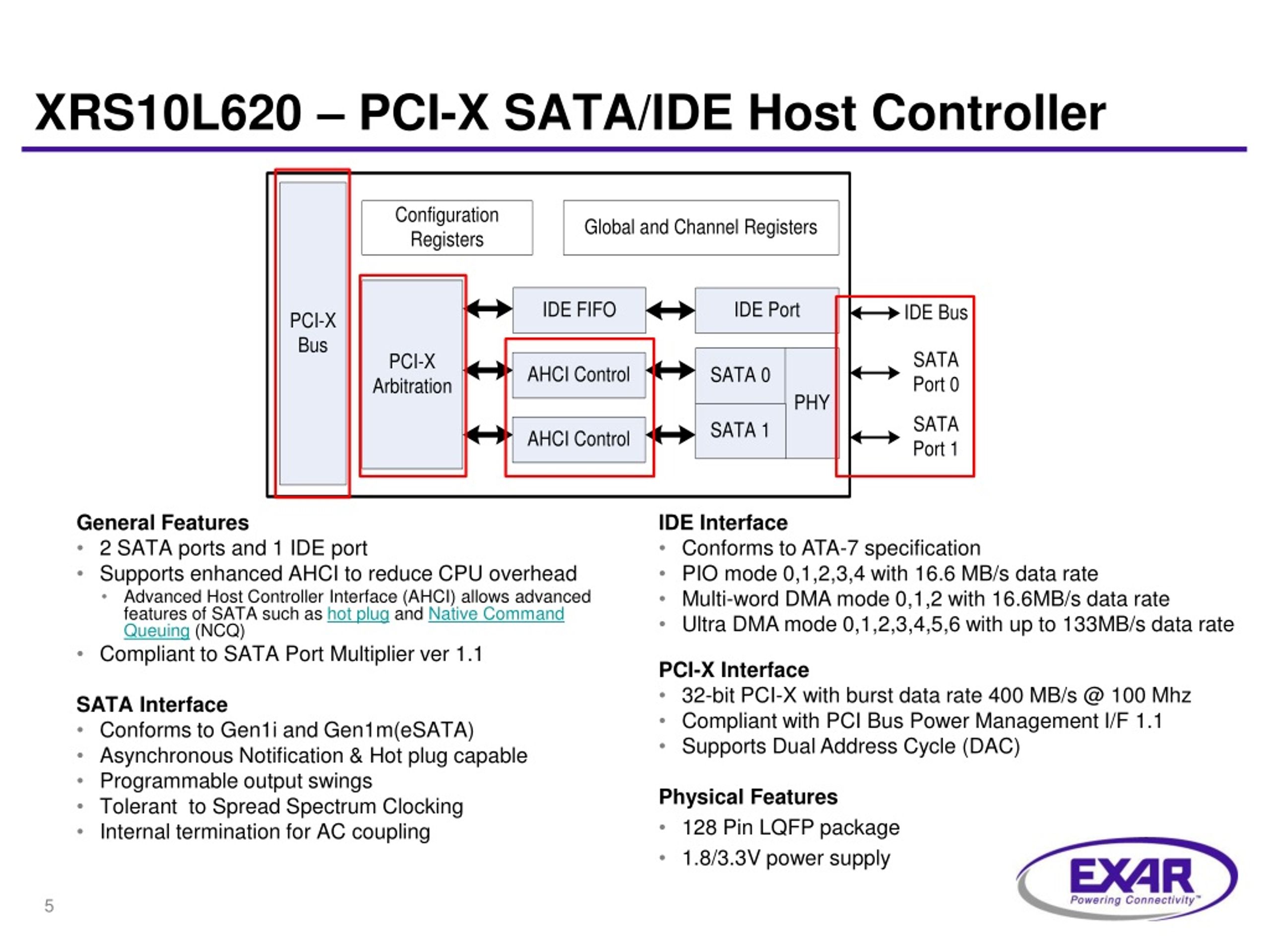

  5. XRS10L620 – PCI-X SATA/IDE Host Controller • IDE Interface • Conforms to ATA-7 specification • PIO mode 0,1,2,3,4 with 16.6 MB/s data rate • Multi-word DMA mode 0,1,2 with 16.6MB/s data rate • Ultra DMA mode 0,1,2,3,4,5,6 with up to 133MB/s data rate • PCI-X Interface • 32-bit PCI-X with burst data rate 400 MB/s @ 100 Mhz • Compliant with PCI Bus Power Management I/F 1.1 • Supports Dual Address Cycle (DAC) • Physical Features • 128 Pin LQFP package • 1.8/3.3V power supply General Features • 2 SATA ports and 1 IDE port • Supports enhanced AHCI to reduce CPU overhead • Advanced Host Controller Interface (AHCI) allows advanced features of SATA such as hot plug and Native Command Queuing (NCQ) • Compliant to SATA Port Multiplier ver 1.1 SATA Interface • Conforms to Gen1i and Gen1m(eSATA) • Asynchronous Notification & Hot plug capable • Programmable output swings • Tolerant to Spread Spectrum Clocking • Internal termination for AC coupling

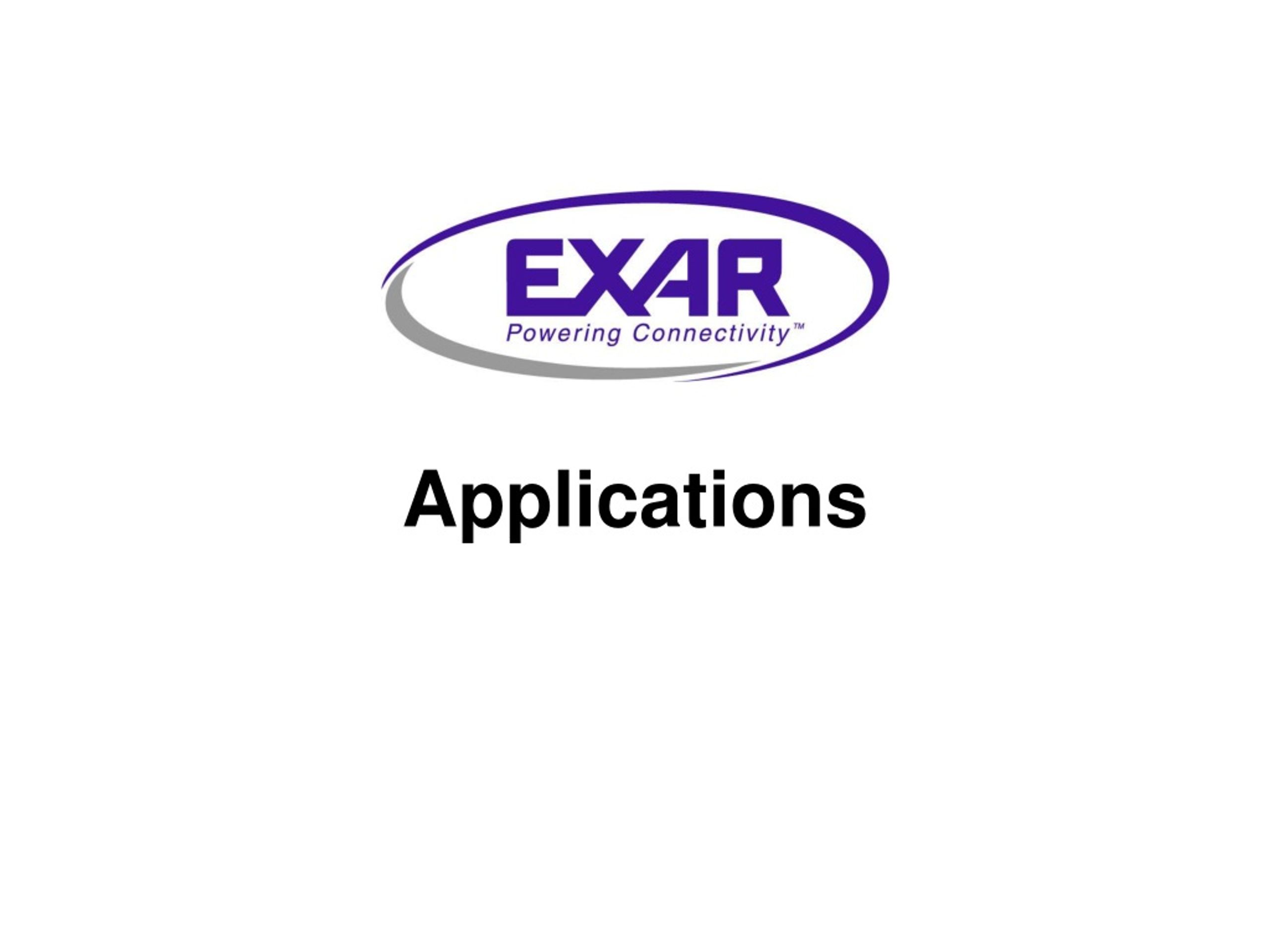

  6. Applications

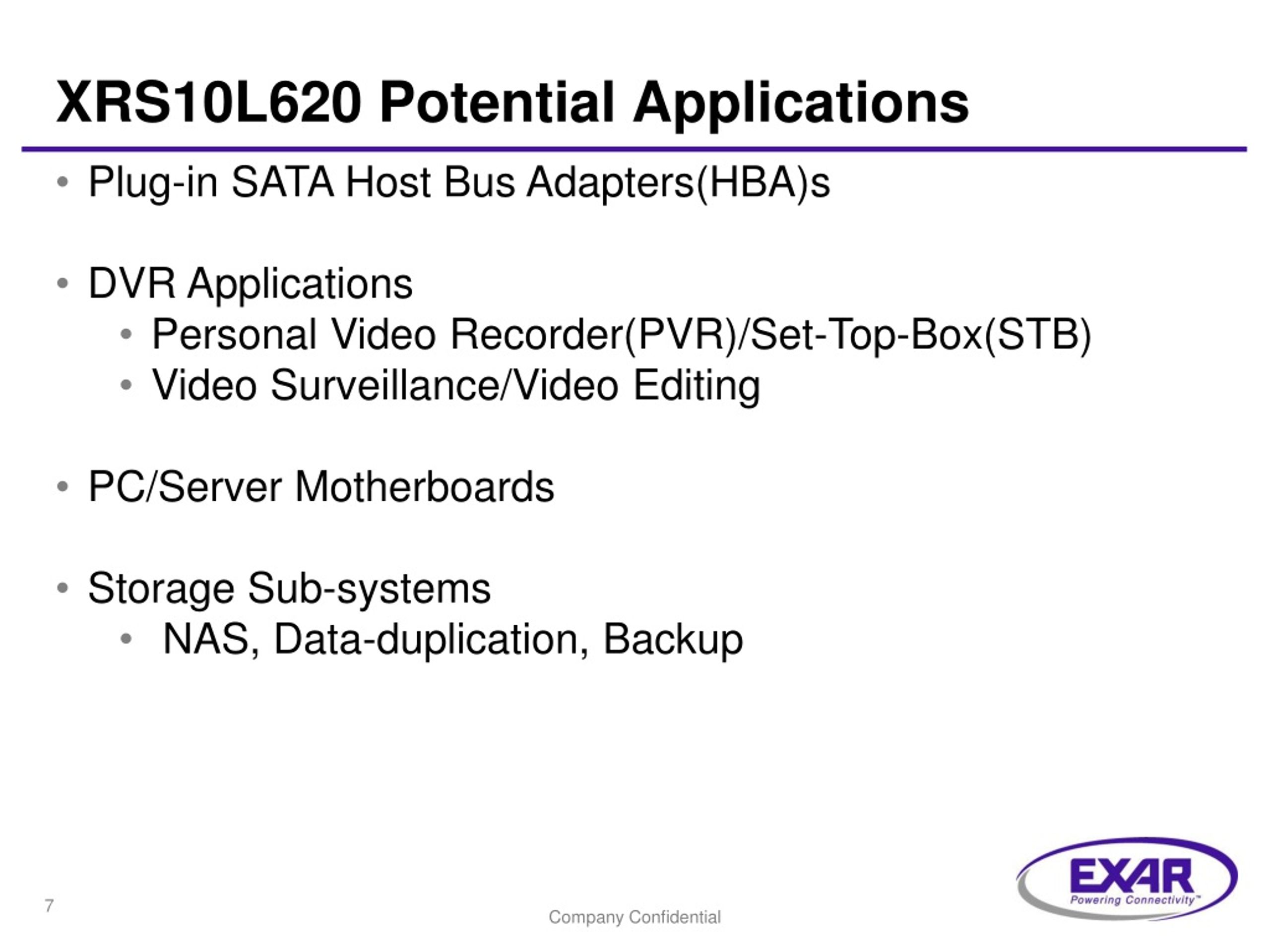

  7. XRS10L620 Potential Applications • Plug-in SATA Host Bus Adapters(HBA)s • DVR Applications • Personal Video Recorder(PVR)/Set-Top-Box(STB) • Video Surveillance/Video Editing • PC/Server Motherboards • Storage Sub-systems • NAS, Data-duplication, Backup Company Confidential

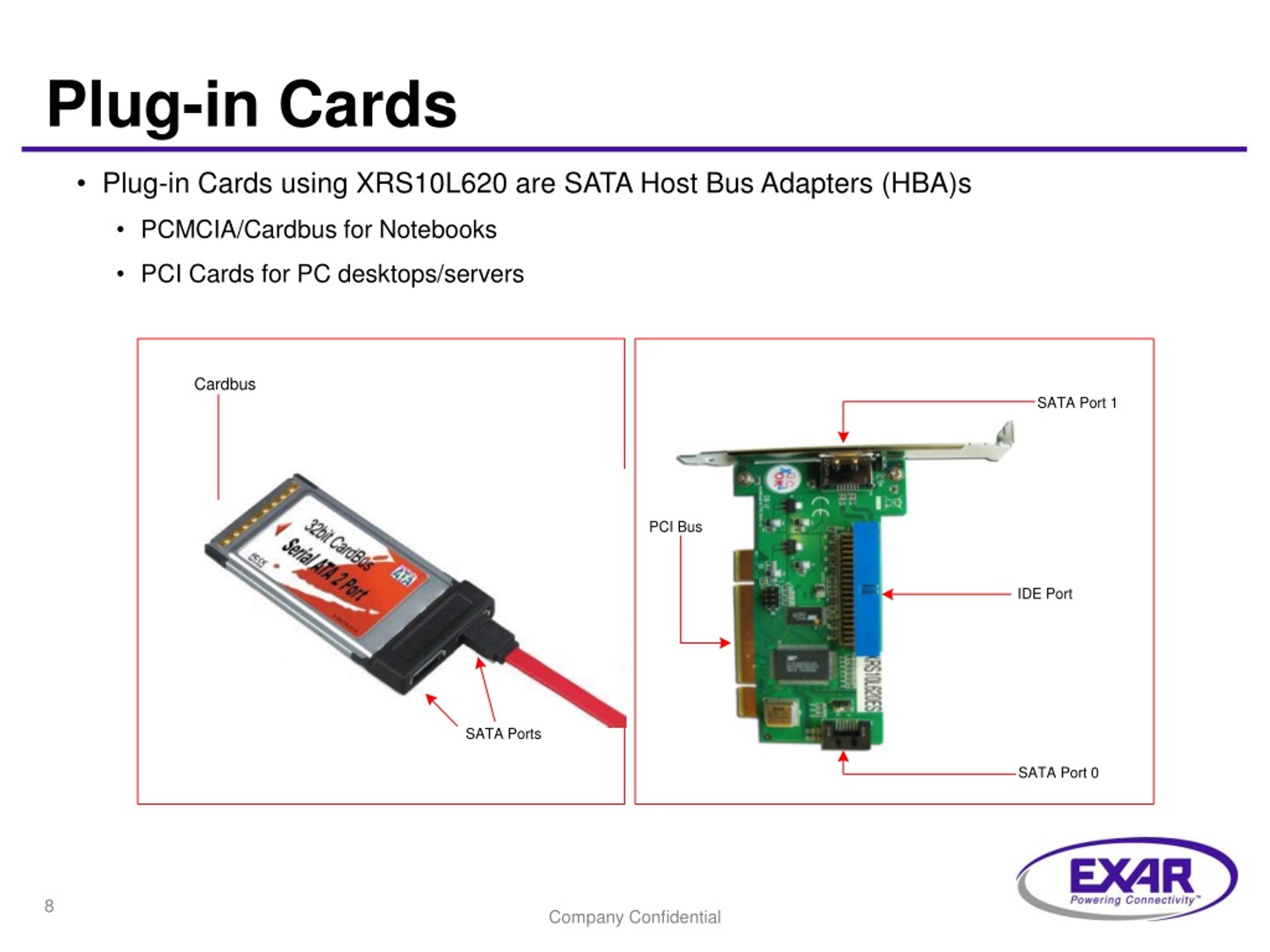

  8. Plug-in Cards • Plug-in Cards using XRS10L620 are SATA Host Bus Adapters (HBA)s • PCMCIA/Cardbus for Notebooks • PCI Cards for PC desktops/servers Company Confidential

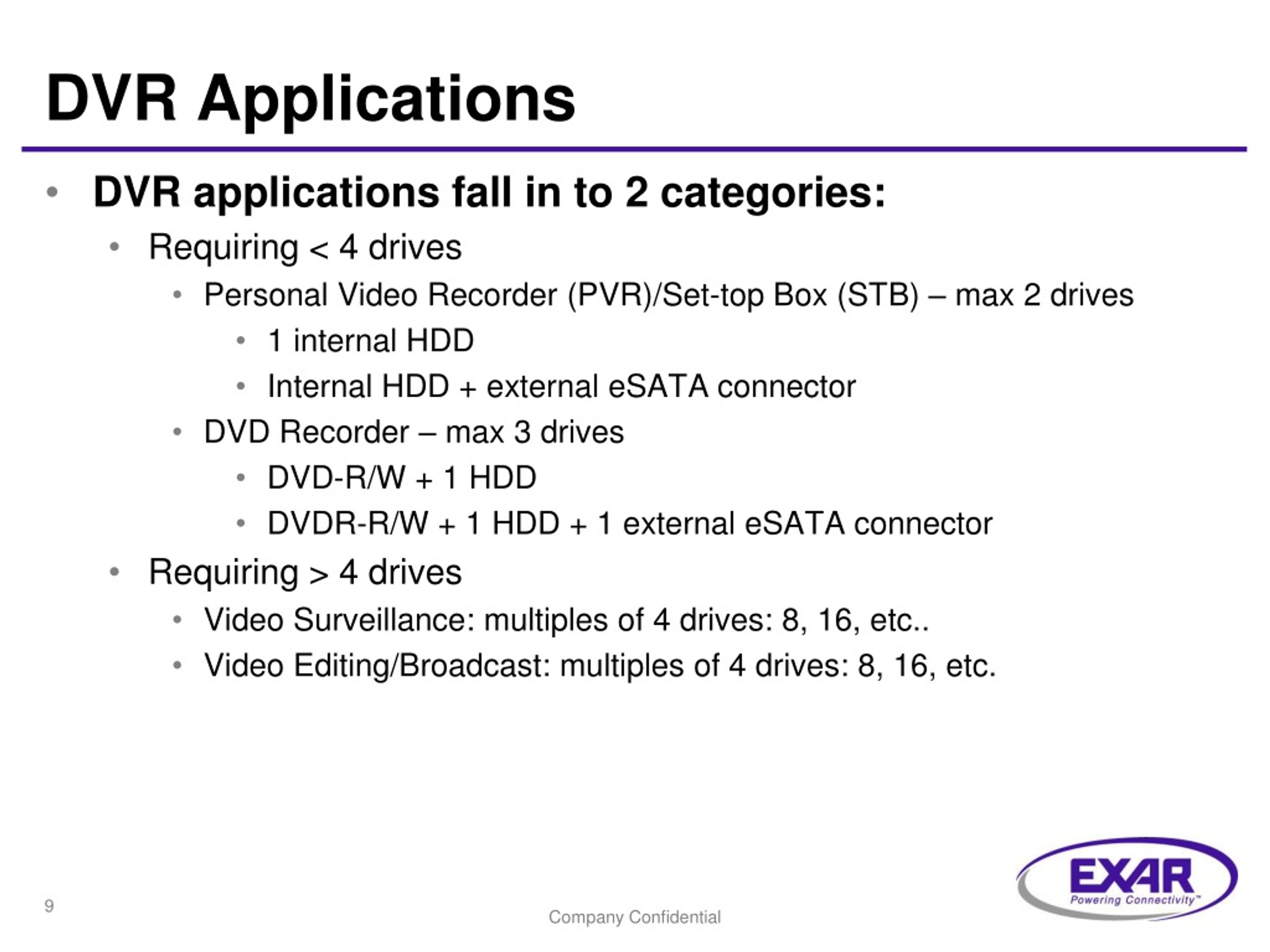

  9. DVR Applications • DVR applications fall in to 2 categories: • Requiring < 4 drives • Personal Video Recorder (PVR)/Set-top Box (STB) – max 2 drives • 1 internal HDD • Internal HDD + external eSATA connector • DVD Recorder – max 3 drives • DVD-R/W + 1 HDD • DVDR-R/W + 1 HDD + 1 external eSATA connector • Requiring > 4 drives • Video Surveillance: multiples of 4 drives: 8, 16, etc.. • Video Editing/Broadcast: multiples of 4 drives: 8, 16, etc. Company Confidential

  10. DVR Applications: < 4 Drives Any system with PCI interface and don’t have (enough) SATA/IDE drive ports • PVR • Set-top-Box • Home Media Server DVR with 2 to 4 drives (No PMP needed) Company Confidential

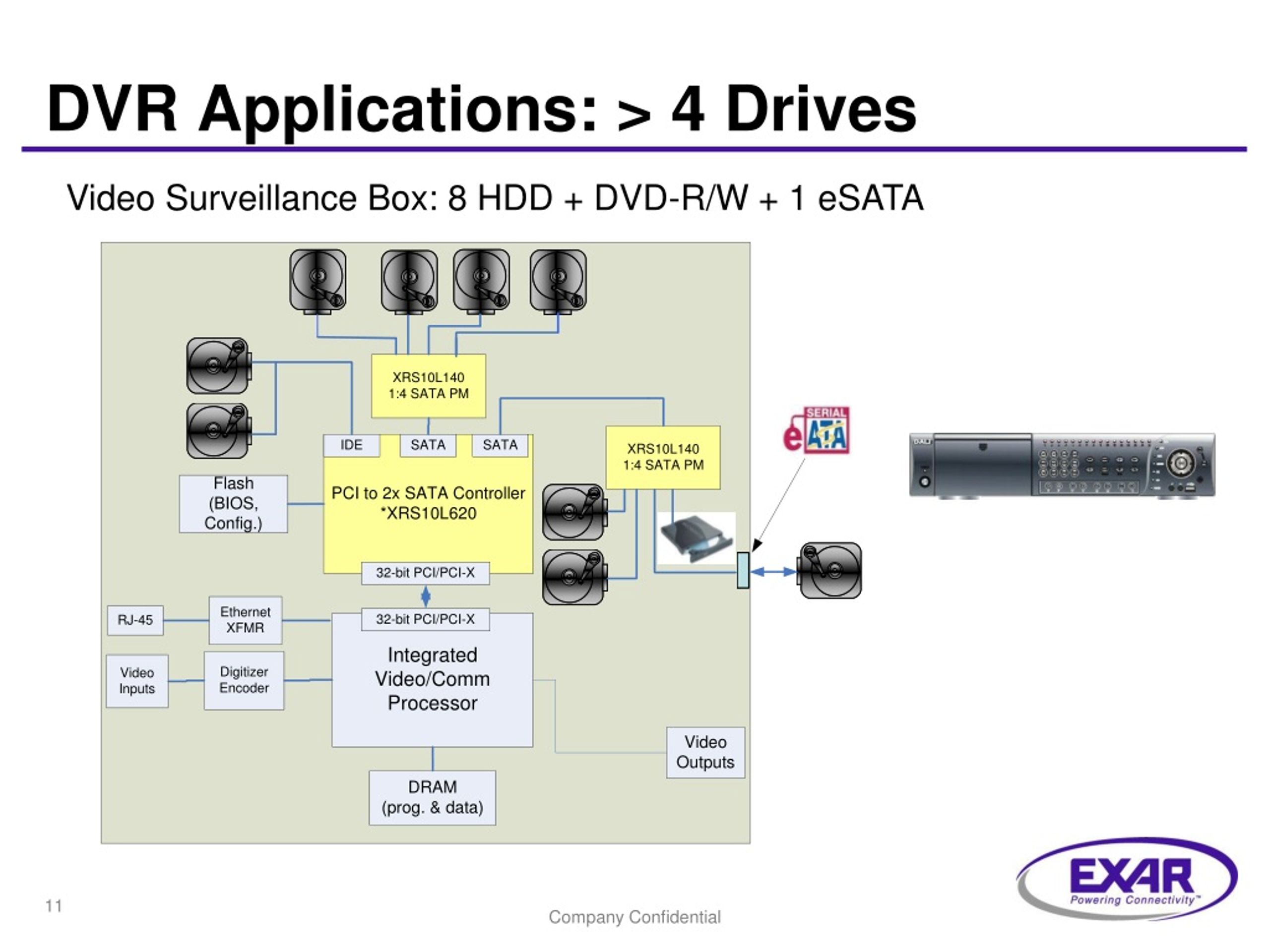

  11. DVR Applications: > 4 Drives Video Surveillance Box: 8 HDD + DVD-R/W + 1 eSATA Company Confidential

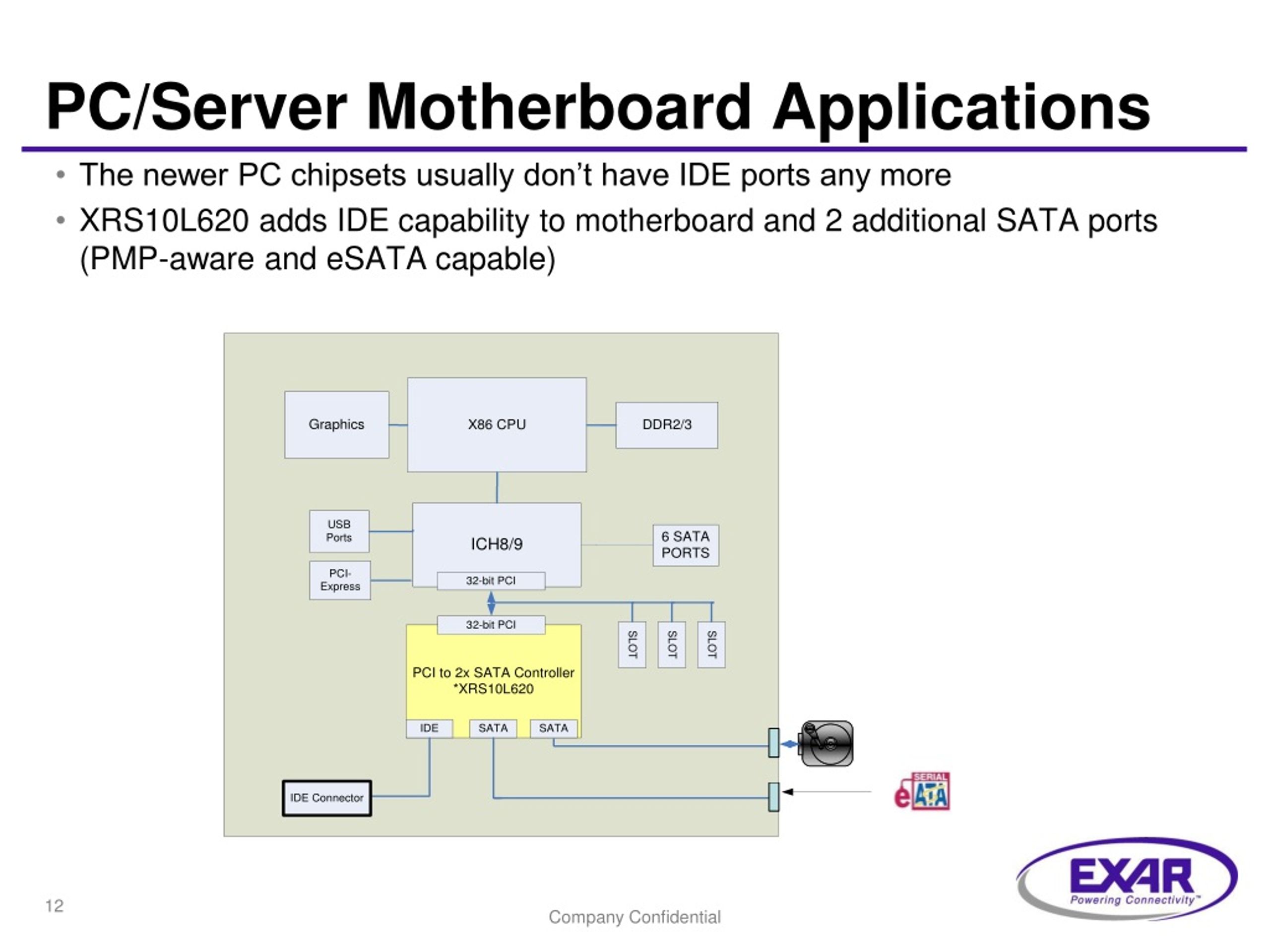

  12. PC/Server Motherboard Applications • The newer PC chipsets usually don’t have IDE ports any more • XRS10L620 adds IDE capability to motherboard and 2 additional SATA ports (PMP-aware and eSATA capable) Company Confidential

  13. EXAR Advantage

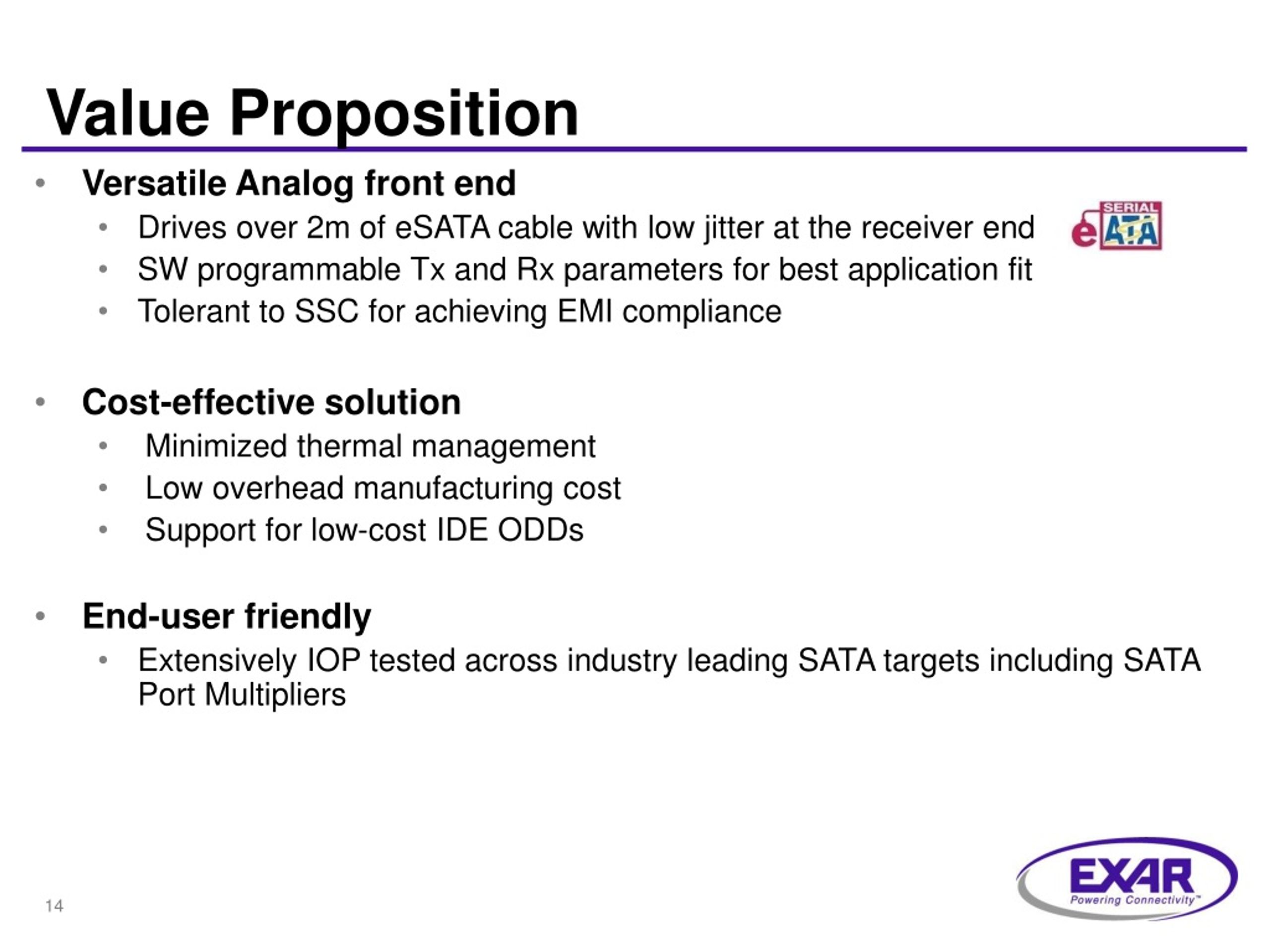

  14. Value Proposition • Versatile Analog front end • Drives over 2m of eSATA cable with low jitter at the receiver end • SW programmable Tx and Rx parameters for best application fit • Tolerant to SSC for achieving EMI compliance • Cost-effective solution • Minimized thermal management • Low overhead manufacturing cost • Support for low-cost IDE ODDs • End-user friendly • Extensively IOP tested across industry leading SATA targets including SATA Port Multipliers

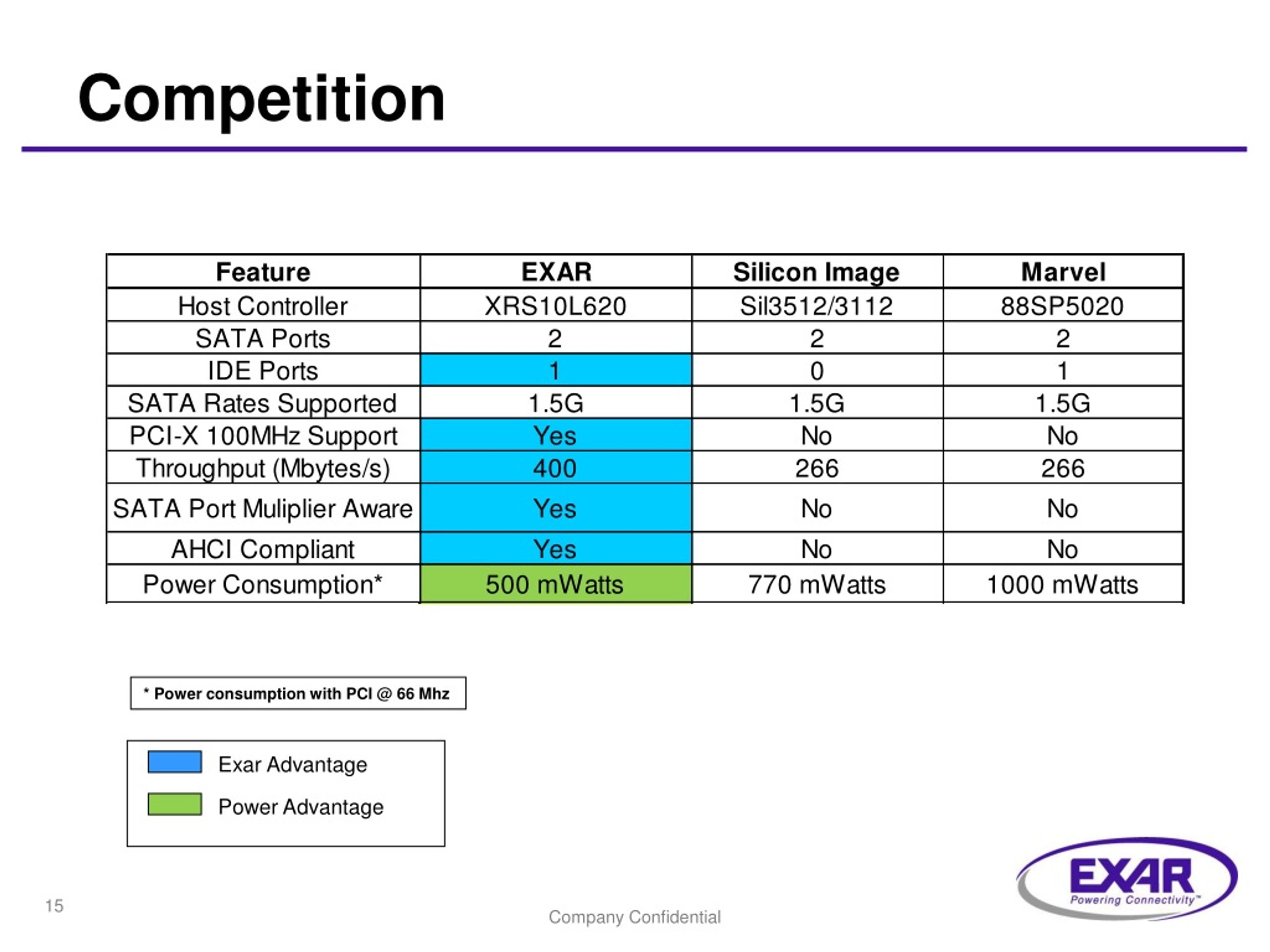

  15. Competition * Power consumption with PCI @ 66 Mhz Exar Advantage Power Advantage Company Confidential

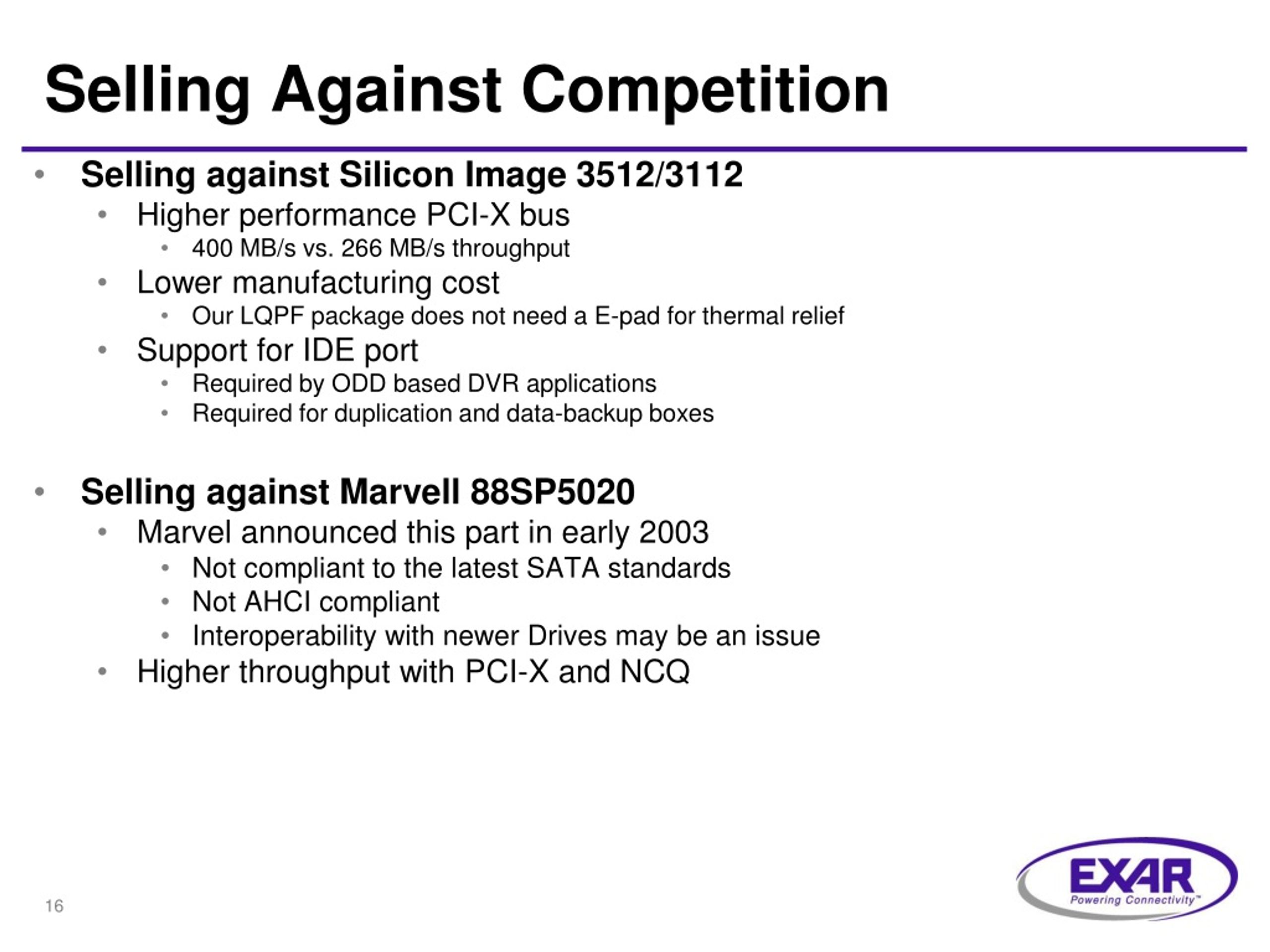

  16. Selling Against Competition • Selling against Silicon Image 3512/3112 • Higher performance PCI-X bus • 400 MB/s vs. 266 MB/s throughput • Lower manufacturing cost • Our LQPF package does not need a E-pad for thermal relief • Support for IDE port • Required by ODD based DVR applications • Required for duplication and data-backup boxes • Selling against Marvell 88SP5020 • Marvel announced this part in early 2003 • Not compliant to the latest SATA standards • Not AHCI compliant • Interoperability with newer Drives may be an issue • Higher throughput with PCI-X and NCQ

  17. Product Status and Collateral

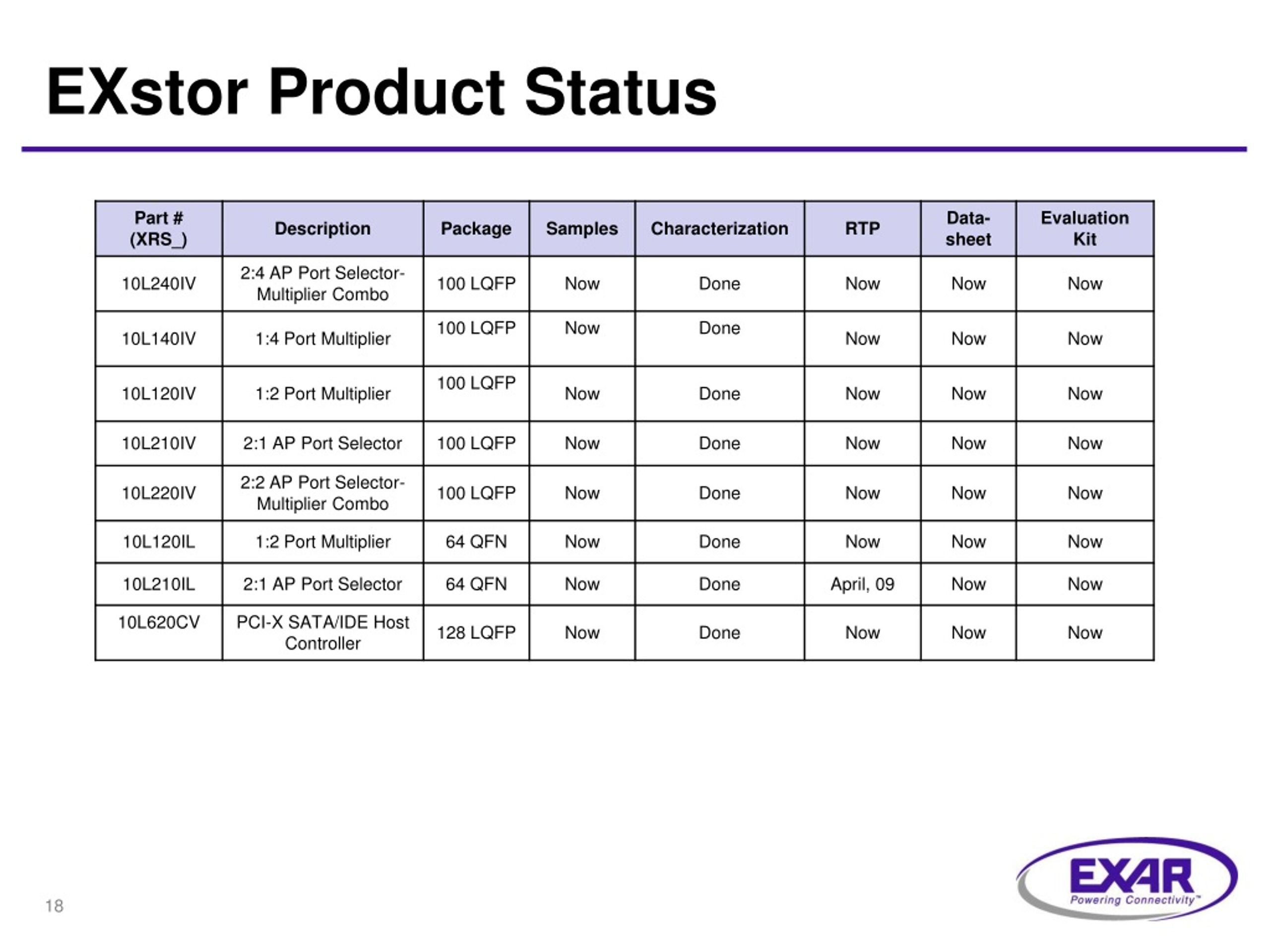

  18. EXstor Product Status

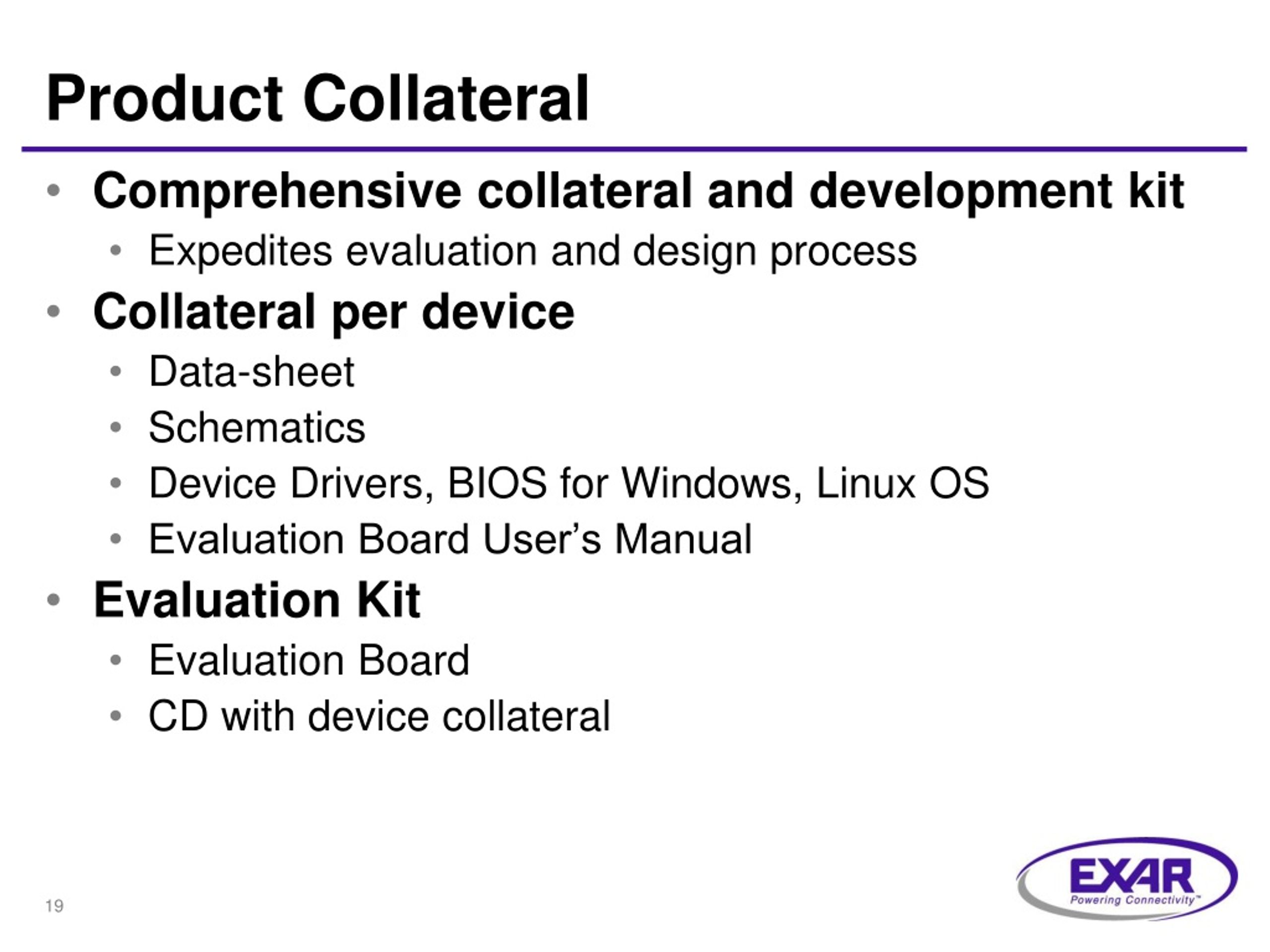

  19. Product Collateral • Comprehensive collateral and development kit • Expedites evaluation and design process • Collateral per device • Data-sheet • Schematics • Device Drivers, BIOS for Windows, Linux OS • Evaluation Board User’s Manual • Evaluation Kit • Evaluation Board • CD with device collateral

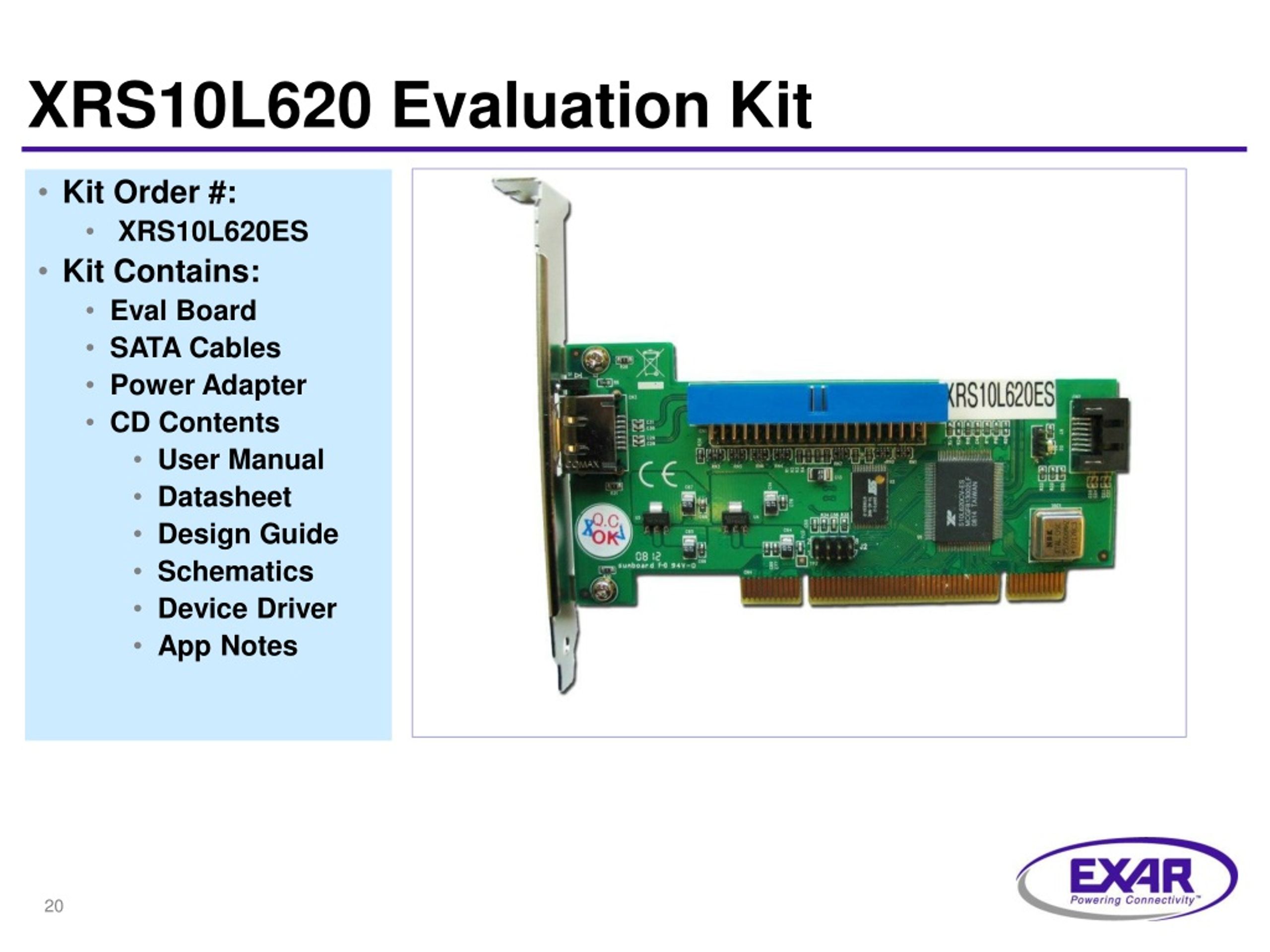

  20. XRS10L620 Evaluation Kit • Kit Order #: • XRS10L620ES • Kit Contains: • Eval Board • SATA Cables • Power Adapter • CD Contents • User Manual • Datasheet • Design Guide • Schematics • Device Driver • App Notes

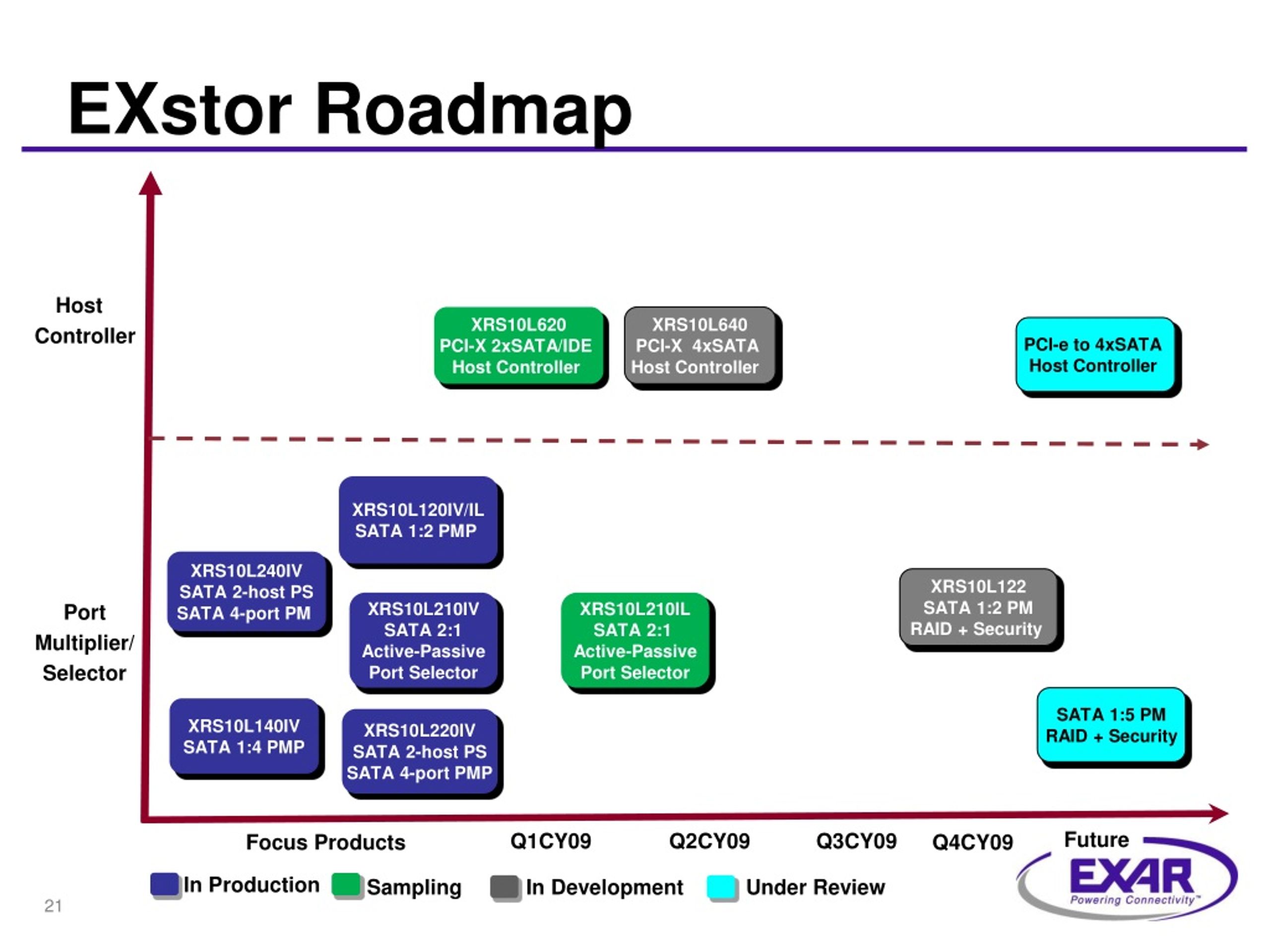

  21. EXstor Roadmap Host Controller XRS10L620 PCI-X 2xSATA/IDE Host Controller XRS10L640 PCI-X 4xSATA Host Controller PCI-e to 4xSATA Host Controller XRS10L120IV/IL SATA 1:2 PMP XRS10L240IV SATA 2-host PS SATA 4-port PM XRS10L122 SATA 1:2 PM RAID + Security Port Multiplier/ Selector XRS10L210IV SATA 2:1 Active-Passive Port Selector XRS10L210IL SATA 2:1 Active-Passive Port Selector SATA 1:5 PM RAID + Security XRS10L140IV SATA 1:4 PMP XRS10L220IV SATA 2-host PS SATA 4-port PMP Future Q1CY09 Q2CY09 Q3CY09 Focus Products Q4CY09 In Production Sampling In Development Under Review *

  22. Call to Action • Identify & attack the following Host Controller sockets • Silicon Image 3512/3112 • Marvell 88SP5020 • Identify and engage the following applications/markets • Plug-in Cards: PCMCIA, HBAs • OEMs: Addonics, SIIG, Adaptec, IOGear, Belkin, Lacie, SONNET • DVR/Set-Top-Box • OEMs: DirectTV, PACE, Motorola/GI, Archos, Thompson/RCA • Video Surveillance/Video Broadcast • OEMs: Dahua, Cisco/Linksys, Honeywell, AVID, CSST, Panasonic, SONNET • Next 30 days • Download customer presentations and device collateral from Partnernet • Set up meetings with sales reps in your region • Identify and engage with top 5 customers in your region • Feedback to JP after customer visits • E-mail: jehangp@exar.com
