接地电阻测试仪工作原理

接地电阻测试仪工作原理. RE = U / IE. 接地电阻测试仪工作原理. 电位差 – 3 和 4 极法实际测量. 设置接地极. 接地电阻测试仪工作原理. 错误. 错误. 错误. 正确. 地极通常设置在地电势影响的中间位置 !. 地电势. false. 土壤导电率测量原理. 从显示的电阻值 R E , 土壤导电率按照下面公式计算 :  E ...... 土壤导电率平均值 (W.m) R E ...... 测量电阻 (W) a ...... 地极距离 (m). r E =2* p *a*R A. 土壤导电率测量.

cassidy-sweet
Download Presentation

接地电阻测试仪工作原理

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 接地电阻测试仪工作原理 RE = U / IE

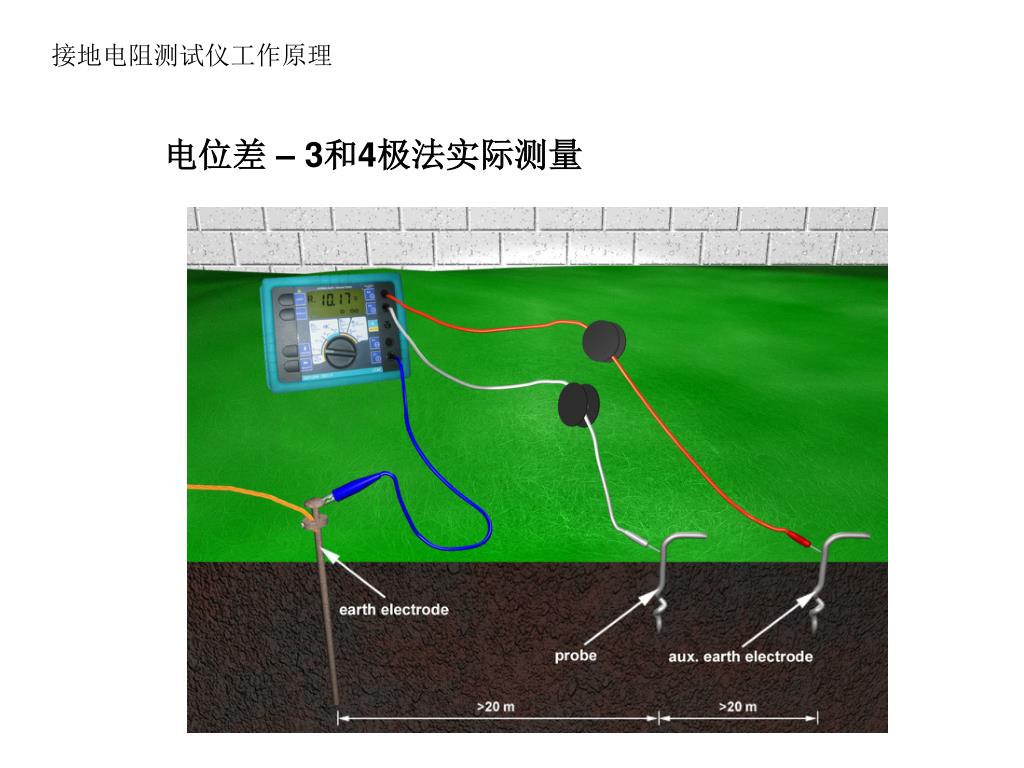

  2. 接地电阻测试仪工作原理 电位差 – 3和4极法实际测量

  3. 设置接地极 接地电阻测试仪工作原理 错误 错误 错误 正确 地极通常设置在地电势影响的中间位置! 地电势 false

  4. 土壤导电率测量原理 从显示的电阻值 RE, 土壤导电率按照下面公式计算 : E ...... 土壤导电率平均值 (W.m) RE ...... 测量电阻 (W) a ...... 地极距离 (m) rE=2*p*a*RA

  5. 土壤导电率测量 rE=2*p*a*RA

  6. 选择法原理及应用 Advantage: Distinct earth resistances within meshed ground systems can be measured without disconnection. Only clamp current Im is used for calculation of RE. Important: The minimum clamp current is 0.5mA – if not, an error message is displayed. R Display = R E3 !!

  7. 应用:高压输送塔的接地测量 用这种方法可以测量 各种结构 例如:测量有四个支腿 的输电塔一用户应测 量四次,而6个支腿就 要六次,仪依此类推. 四次测量时,不得\变动输电塔上的电流接线 (E) 只需把钳型探头分别 夹到每个支腿上 钳型探头 环形接地系统 电流接线(E)
