PERTEMUAN 14. PENGUKURAN ENERGI. Measurement of Energy. Energy is measured by means of the energy meter (watt-hour-meter) Energy meter is an integrating instrument and takes into account both of the quantities Three types of energy meter : Electrolytic meters Motor meters Clock meters.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'PERTEMUAN 14' - cassandra-gilbert


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
pertemuan 14

PERTEMUAN 14

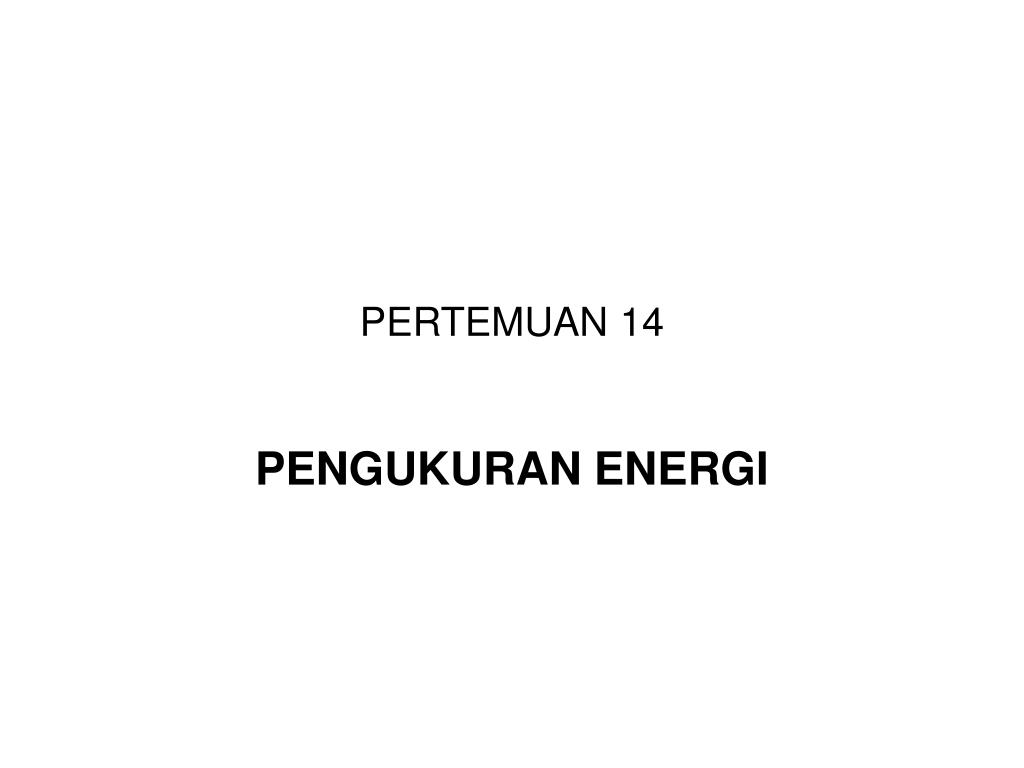

PENGUKURAN ENERGI

measurement of energy
Measurement of Energy
  • Energy is measured by means of the energy meter (watt-hour-meter)
  • Energy meter is an integrating instrument and takes into account both of the quantities
  • Three types of energy meter :
    • Electrolytic meters
    • Motor meters
    • Clock meters
electrolytic meters

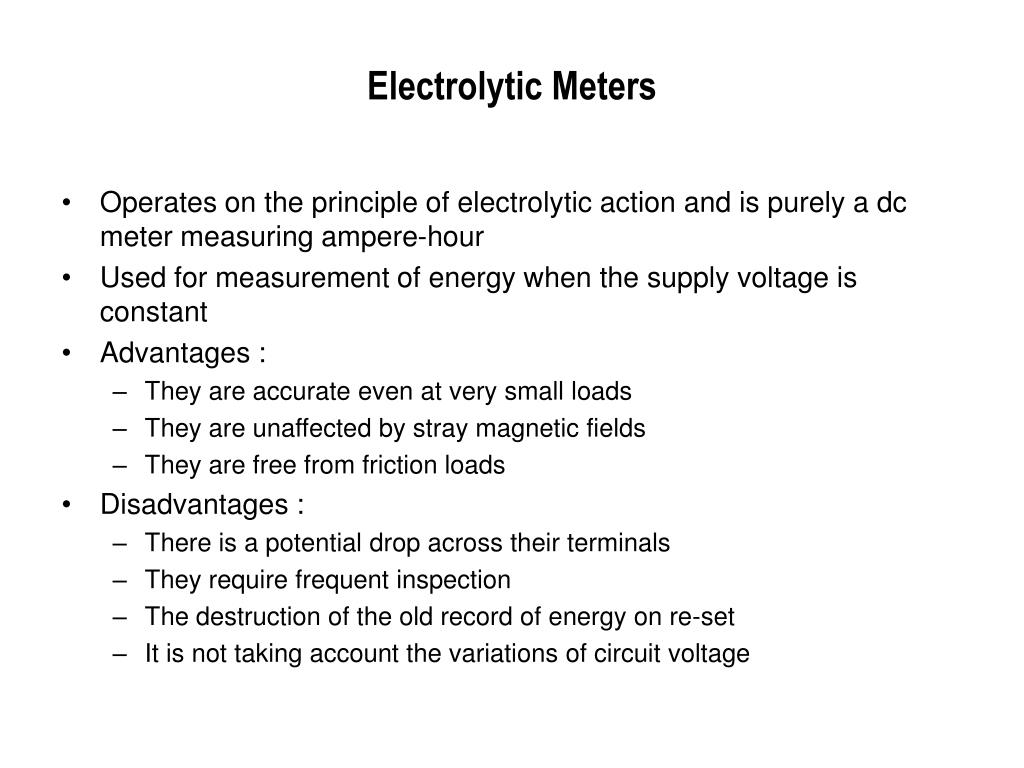

Electrolytic Meters
  • Operates on the principle of electrolytic action and is purely a dc meter measuring ampere-hour
  • Used for measurement of energy when the supply voltage is constant
  • Advantages :
    • They are accurate even at very small loads
    • They are unaffected by stray magnetic fields
    • They are free from friction loads
  • Disadvantages :
    • There is a potential drop across their terminals
    • They require frequent inspection
    • The destruction of the old record of energy on re-set
    • It is not taking account the variations of circuit voltage
reason electrolytic meters

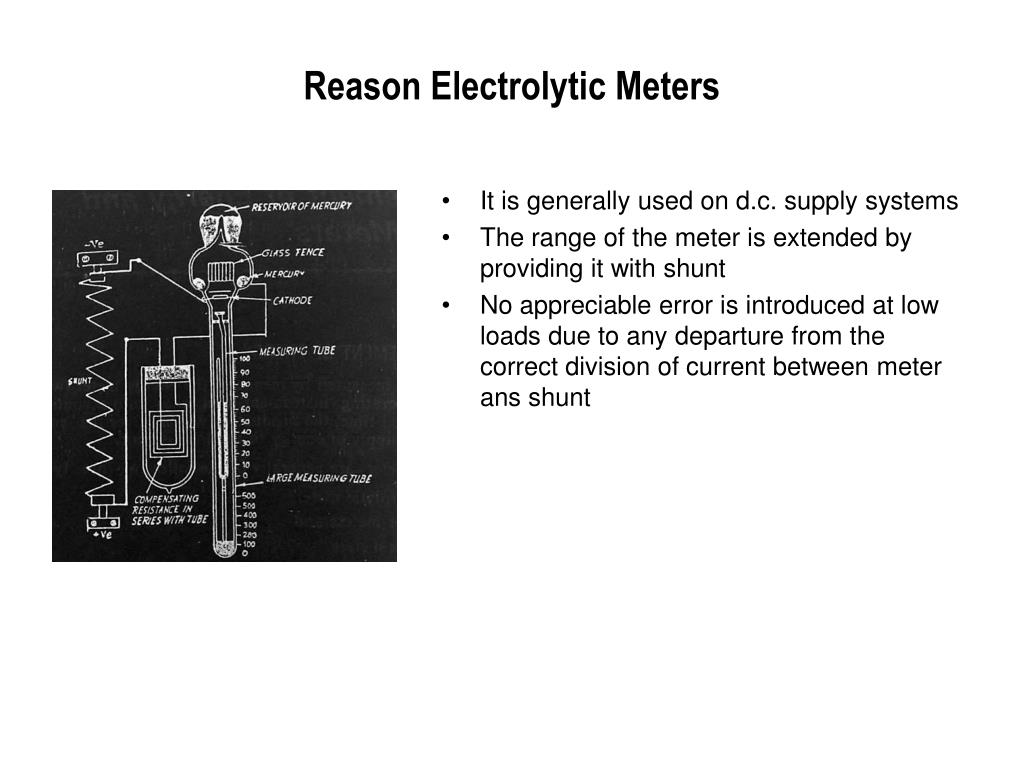

Reason Electrolytic Meters
  • It is generally used on d.c. supply systems
  • The range of the meter is extended by providing it with shunt
  • No appreciable error is introduced at low loads due to any departure from the correct division of current between meter ans shunt
types of motor meters

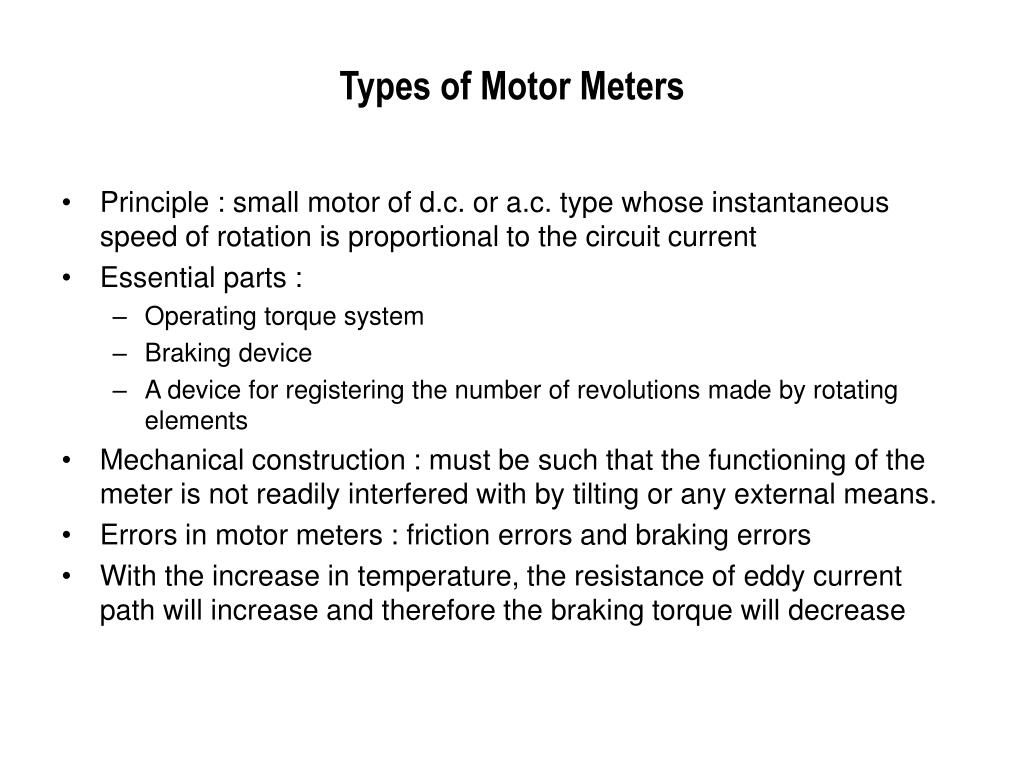

Types of Motor Meters
